Haier AS26NC1HRA User manual

Please read this operation manual before using the air conditioner.

Keep this operation manual for future reference.

SPLIT TYPE ROOM AIR CONDITION

OPERATION MANUAL

0010582061

AS26NC1HRA

AS35NC1HRA

AS53HE1HRA

AS71NE1HRE

Contents

PARTS AND FUNCTIONS

OPERATION

MAINTENANCE

CAUTIONS

TROUBLE SHOOTING 12

Display board A

Display board B

Signal receiver hole

COOL display

HEALTH display

Signal receiver hole

DRY display

TIMER ON/OFF display

TIMER ON OFF display

SLEEP display

Ambient temp.display

When receiving the remote

control signal, display the set

temperature.

Ambient temp.display

When receiving the remote

control signal, display the set

temperature.

HEAT display

Display board C 1

Operation mode indicator

(lights up when the compressor is on.)

Timer mode indicator

(Lights up whenTimer operation is selected.)

Power indicator

(Lights up when unit starts.)

Ambient temp display

When receiving the remote control signal, display the set temperature.

Remote signal receiver

(A beeping sound is generated when a signal from remote controller isreceived.)

2 3 4 5

Operation mode indicator

(lights up when the compressor is on.)

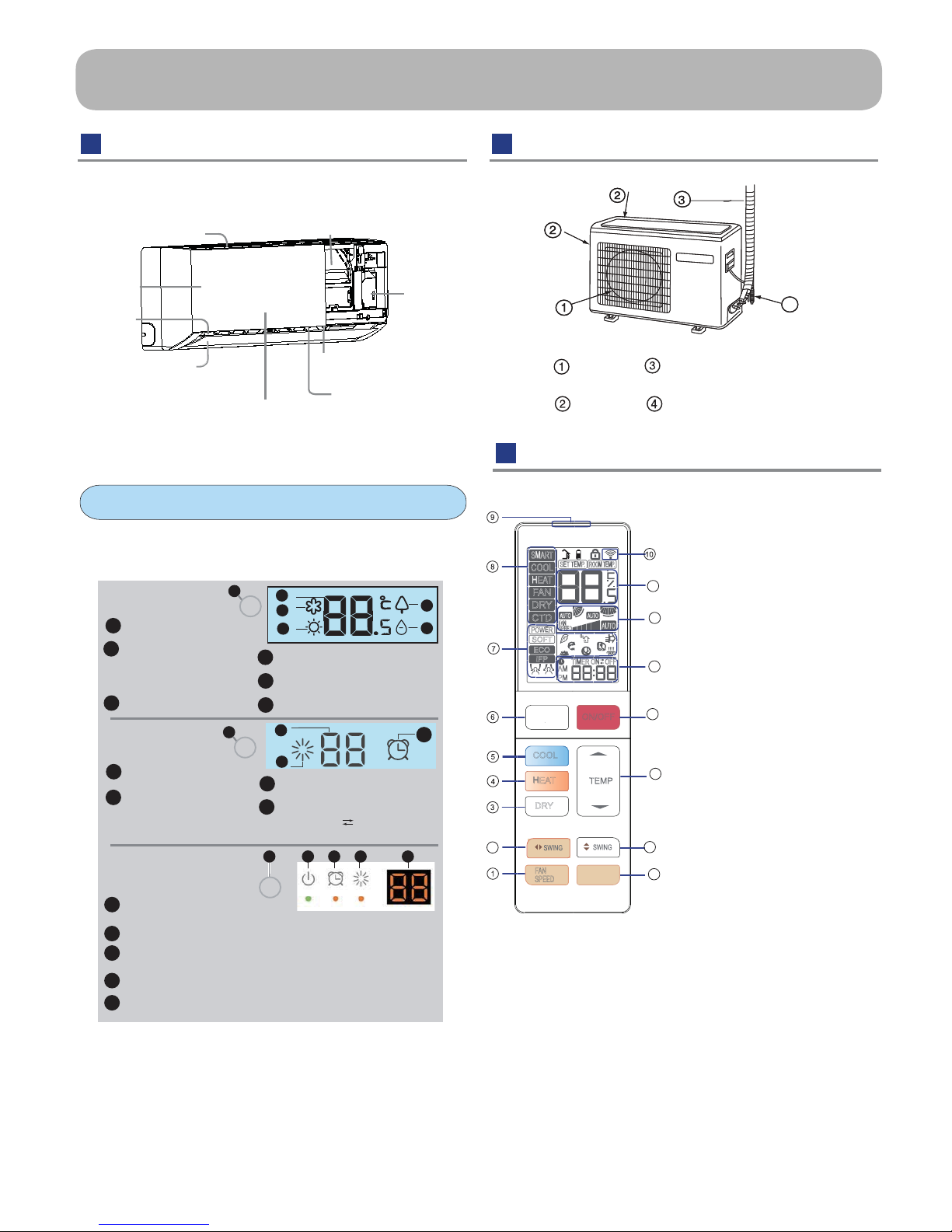

Parts and Functions

Indoor Unit Outdoor Unit

Remote controller

Outer side of the controller

OUTLET CONNECTING PIPING

AND ELECTRICAL WIRING

INLET DRAIN HOSE

1. FAN SPEED button

Used to select fan speed:

LOW, MED, HI, AUTO

2. SWING LEFT/RIGHT button

3. DRY button

Used to set DRY operation.

4. HEAT button

Used to set HEAT operation.

(Cooling only unit do not

have displays and functions

related with heating.)

QUIET

SOFT

iFP

ECO

TIMER ON OFF

COOL

ON/OFF

HEAT

DRY

FAN

SPEED

ECO

FAN

COOL

SMART

HEAT

DRY

CTD

SET TEMP.

ROOM TEMP.

AUTO AUTO

AUTO

FAN

SPEED

POWER

5. COOL button

Used to set COOL

operation.

6. QUIET button

7. Display of each function

status

8. Operation mode display

9. Signal sending end device

10. Signal sending display

11. TEMP display

12. FAN SPEED display

Swing up/down display

swing left/right display

13. TIMER ON display

TIMER OFF display

CLOCK display

14. ON / OFF button

15. TEMP button

used to change setting

temperature

16. SWING UP/DOWN

button

17. ECO button

power saving function

Outlet

Horizontal flap

Display board

(adjust up and down air flow

Don't adjust it manually)

(adjust left and

ow)

Vertical blade

Emergency

Switch

right air fl

Inlet

Air Purifying Filter

(inside)

Inlet grille

Anion generator

(inside)

Actual inlet grille may vary from the one shown in the

manual according to the product purchased

English

Operation

Loading of the battery

Clock set

Load the batteries as illustrated. 2 R-03 batteries,

resetting key (cylinder); Be sure that the loading is

in line with the “+”/“-”;

Load the battery, then put on the cover again.

Press CLOCK button,

Press “+” or “-” to set

correct time.

Each press will increase or

decrease 1min. If the button is

kept pressed, time will change

quickly.

press CONFIRM, “AM” and

starts working.

Note:

The distance between the signal transmission head and

the receiver hole should be within 7m without any obstacle

change-over wireless telephone is installed in the room,

signals,so the distance to the indoor unit should be shorter.

Full display or unclear display during operation indicates the

batteries have been used up. Please change batteries.

If the remote controller can’t run normally during operation,

please remove the batteries and reload several minutes later.

Inner side of the controller

CHILD

LOCK

SLEEPSMART

FAN

COOL

SMART

HEAT

DRY

CTD

SET TEMP.

ROOM TEMP.

AUTO AUTO

AUTO

FAN

SPEED

POWER

SOFT

iFP

ECO

TIMER ON OFF

FRESH

LIGHT

QUIET

18. nottubEDOC

Used to select CODE A or B

with a press, A or B will be

displayed on LCD. Please

select A without special

explanation.

19. TESER button

When the remote controller

appears abnormal, use

a sharp pointed article to

press this button to reset

the controller normal.

20. nottubERIUQNI

Inquire the external

environmental temperature

and the operating power

of the machine. (e.g. when

the panel display “01”, the

operating power is 100W;

when the panel display

“02”, the operating power

is 200W, and so forth)

21. POWER button

22. LIGHT button

Control the lightening and

extinguishing of the indoor

LED display board.

23. HEALTH AIRFLOW button

24. HEALTH button

25. SMART button

Used to set SMART

operation. (This function

is unavailable on some

models.)

26. SLEEP button

27. 10 ºC button

special heating set

function: 10 degree

heating maintaining

(valuable for RS)

28. CHILDLOCK button

If pressed, the other

buttons will be disabled.

Press it once again, lock

will be cancelled.

29. FRESH button

30. TIMER ON / OFF button

31. HOUR button

used to change clock or

timer

32. CANCEL/CONFIRM

button

clock settings.

33. CLOCK button

The following functions and related displays are not

available: 20

Remove the battery cover;

QUIET

SMART SLEEP

LIGHT

CHILD

LOCK

FRESH

Hint:

Remove the batteries in case unit won’t be in usage for

a long period. If there are any display after taking-out,

just need to press reset key.

likely in receiving the

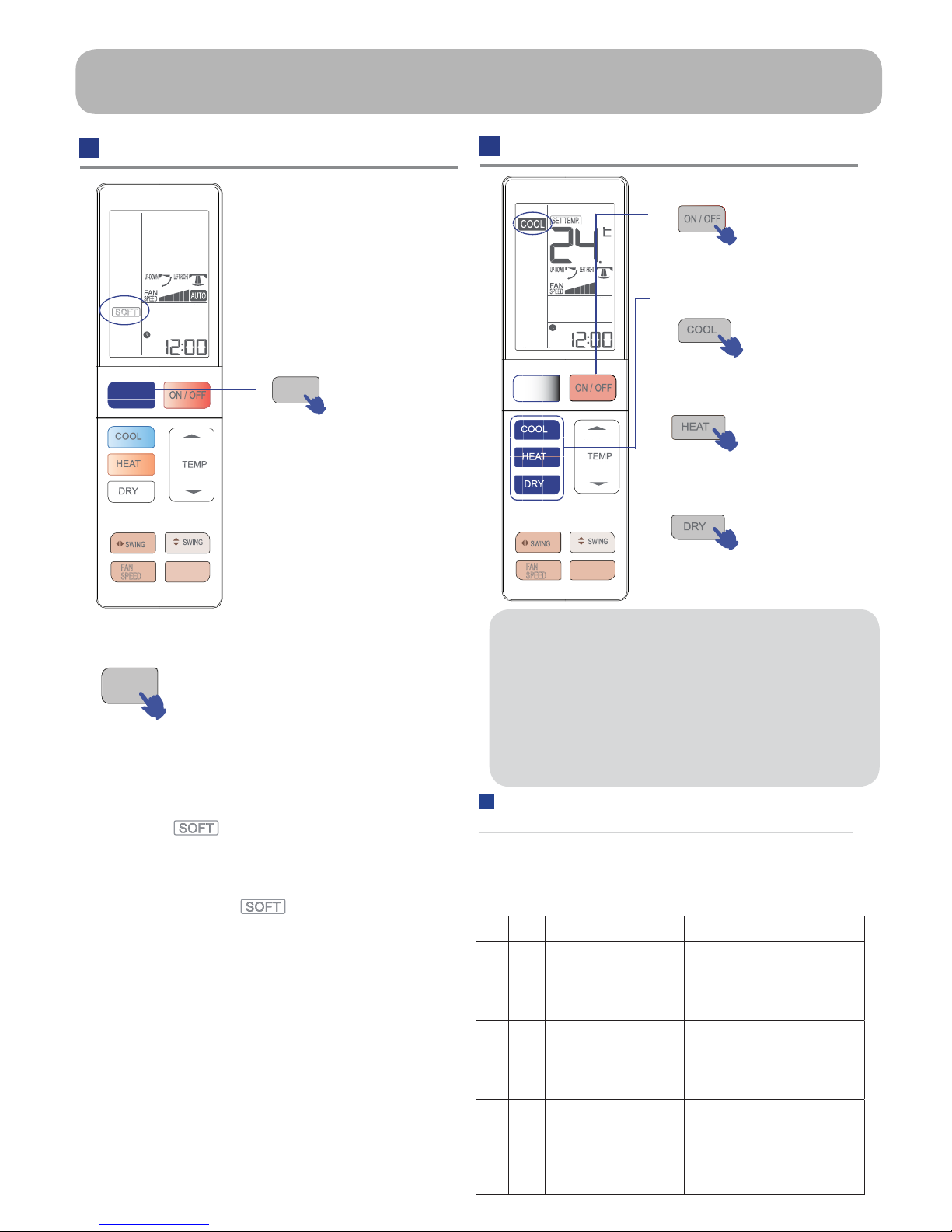

QUIET Operation COOL,HEAT and DRY Operation

QUIET Operation

Unit start.

Select operation mode.

Press the COOL button on

the remote control.

Press the HEAT button on the

remote control.

Press the DRY button on the

You can use this function when silence is needed for rest or

reading.

For each press, SOFT is displayed Air conditioner starts

POWER function operation. In SOFT operation mode, fan

speed automatically takes low speed of AUTO fan mode.

Press SOFT button again, SOFT disappears, the operation

stops.

Operation

1. In DRY mode, when room temperature becomes

lower than temp. setting +2 ºC, unit will run

intermittently ai LOW speed regardless of FAN

setting.

2. Remote controller can memorize each operation

status. When starting it next time, just press ON/

OFF button and unit will run in previous status.

QUIET

FAN

SPEED

ECO

SOFT

QUIET

FAN

SPEED

ECO

remote control.

DRED Operation

Haier Peaksmart enabled air-conditioners have a Demand Response Mode display

on the indoor unit.

The display could be labelled d1, d2, d3 (wording may differ model to model).

These modes are described in more detail below:

odottahWnoitpircseDyalpsiDedoM

DRM3 d3

Your air-conditioner will continue

to cool or heat during the peak

demand event. The energy

consumed by your air-conditioner

is capped to 75%.

No action is required.

DRM2 d2

Your air-conditioner will continue

to cool or heat during the peak

demand event. The energy

consumed by your air-conditioner

is capped to 50%.

No action is required.

DRM1 d1

Your air-conditioner is still turned

on and the fan will continue to

operate. Your compressor is

turned off and cool/hot air will no

longer be generated

DRM1 mode is only activated during

emergency demand management

situations. This mode will automatically reset

the device within 2 hours .If your air-con is in

this mode for longer than 2 hours please

contact Energex on 13 12 53.

(This function is unavailable on some models.)

Unit will start running to reach the

temp. setting on LCD.

COOL/DRY:

For each press of “ ” button, air

displays as follows according to

different operation modes:

FAN Operation

LOW MED HI AUTO

Press FAN SPEED button. For each press, fan speed

changes as follows:

Unit will run at selected fan speed.

Press TEMP button.

Every time the button is

pressed, temp. setting

increases 1 ºC.

Every time the button is

pressed, temp. setting

decreases 1 ºC.

Operation

When humidity is high, condensate water might occur

at air outlet if all vertical louvers are adjusted to left or

right.

position for a long time in COOL or DRY mode,

otherwise, condensate water might occur.

QUIET

ECO

FAN

SPEED

QUIET

ECO

FAN

SPEED

.HEAT:

SMART:

Initial state

For each press of “ ” buttor, remote controller

displays as follows:

remote controller:

The water-ion generator in the

airconditioner can generate a lot

of anion effectively balance the

quantity of position and anion in

the air and also to kill bacteria

and speed up the dust sediment

air in the room.

and outlet grills of the air conditioner are opened, and

the unit goes on working under the condition before the

grille will close automatically.

Notice:

Do not force the outlet grille by hand. Otherwise, the

grille will run incorrectly. If the grille is not run correctly,

stop for a minute and then start, adjusting by remote

controller.

Remote controller can memorize each operation status.

when starting it next time, just press ON/OFF button and

unit will run in previous status.

The setting of

function

The cancel of

function

Press HEALTH

button

Press HEALTH button twice press and

the operation stops.

For each press, is displayed

Air conditioner starts health anion

function operation.

Operation

When indoor fan motor is running, it has healthy

process function. (It’s available under any mode)

When the fan in the indoor unit does not work, the

health lamp lights up, but the anion generator does

not release anion.

HEALTH Operation HEALTH AIRFLOW Operation

SMART SLEEP

LIGHT CHILD

LOCK

FRESH

QUIET

SMART SLEEP

LIGHT CHILD

LOCK

FRESH

QUIET

appears on the display. Avoid

the body.

again, appears on the display.

direct to the body.

Note:

2. In heating, it is better to select the mode.

3. In cooling, it is better to select the mode.

4. In cooling and dry, using the air conditioner for a

long time under the high air humidity, a phenomenon

falling drips of water occurs at the outlet grille.

5. Select the appropriate fan direction according to the

actual conditions.

Set Clock correctly before starting Timer operation. You can

let unit start or stop automatically a following times: Before

you wake up in the morning, or get back from outside or

after you fall asleep at night.

POWER Operation

When you need rapid cooling,

you can use this function.

Select your desired operation

mode.

Time setting.

Remote controller: “

TIMER ON

”

Remote controller: “

TIMER OFF

”

“

” or “

OFF

”

TIMER ON OFF / TIMER ON OFF

procedure in “Time setting for TIMER OFF”

Remote controller:

TIMER ON OFF

procedure in “Time setting for TIMER ON”

Remote controller:

TIMER ON OFF

Every time the button is pressed,

time setting increases or decreases

Select your desired

TIMER ON.

Select your desired

TIMER OFF.

For each press, is displayed Air conditioner

starts POWER function operation.

In COOL mode, fan speed automatically takes high

speed of AUTO fan mode.

Press POWER button again,

POWER

disappears, the

operation stops.

POWER Operation TIMER Operation

AUTO

POWER

SMART SLEEP

LIGHT CHILD

LOCK

FRESH

QUIET

Hints:

During POWER operation, in rapid COOL mode,

the room will show varying temperature distribution.

To cancel TIMER mode

Symbol clears from the screen

QUIET

TIMER ON

SMART SLEEP

LIGHT CHILD

LOCK

FRESH

1 min, if kept depressed, it will increase rapidly. It can be

adjusted within 24 hours.

Operation

Before going to bed, you can simply press the SLEEP

button and unit will operate in SLEEP mode and bring you

a sound sleep.

3 hours then stop. Temp is lower than temp setting

so that room temperature won’t be too high for your

sleep.

Approx. 6hrs

Temp. setting

Decreases 2 ºC

Unit stop

Rises 1 ºC

Temp. setting

In COOL, DRY mode

In HEAT mode

Unit stop

1 hr

3 hrs

1 hr

SLEEP

operation starts

SLEEP

operation starts

SLEEP

operation stops

SLEEP

operation stops

Press SLEEP

button.

Operation Mode

1. In COOL, DRY mode

1 hours after SLEEP mode

starts, temp. will become 1 ºC

higher than temp. setting. After

another 1 hours, temp. rises by

1 ºC further. The unit will run for

further 6 hours then stop Temp.

is higher than temp. setting so

that room temperature won’t be

too low for your sleep.

2. In HEAT mode

1 hours after SLEEP mode starts, temp will become

2 ºC lower than temp. setting. After another 1 hours,

temp decrease by 2 ºC further. After more another

3 hours, temp. rises by 1 ºC further. The unit will run for

further

3. In SMART mode

The unit operates in corresponding sleep mode, which

adapted to the automatically selected operation mode.

4. When quiet sleeping function is set to 8 hours the

quiet sleeping time can not be adjusted. When TIMER

function is set, the quiet sleeping function can’t be

set up. After the sleeping function is set up, if user

resets TIMER function, the sleeping function will be

cancelled; the machine will be in the state of timing-

on, if the two modes are set up at the same time, either

automatically, and the other mode will be cancelled.

Power Failure Resume Function

not start running unless 3 minutes have elapsed. When

the power resumes after power failure, the unit will run

automatically, and 3 minutes later the compressor starts

running.

Note to the power failure resume:

enter function after hearing four sounds. And press the

this function after hearing two sounds.

Comfortable SLEEP

Operation

AUTO

QUIET

SMART SLEEP

LIGHT CHILD

LOCK

FRESH

This manual suits for next models

Table of contents

Other Haier Air Conditioner manuals

Haier

Haier HPU-18C03/E1 User manual

Haier

Haier HSU-09LR03 User manual

Haier

Haier HUM18HB03 User manual

Haier

Haier HSU-28HA03/R2 - annexe 1 User manual

Haier

Haier HSU-09CW03 User manual

Haier

Haier HPU-18CRA13 User manual

Haier

Haier ESA3156 - ANNEXE 221 Operating manual

Haier

Haier CommercialCool CPF10XCL-LW User manual

Haier

Haier AS072AIAAA User manual

Haier

Haier HSM09HRA03/R2 User manual

Haier

Haier MVAH072ME2AA1 User manual

Haier

Haier HWE15XCR-L User manual

Haier

Haier 10516146 User manual

Haier

Haier HSU-09RS03/R2(SDB) User manual

Haier

Haier 3U55S2SR2FA User manual

Haier

Haier ACD187R User manual

Haier

Haier AD50S2SS1FA Installation and operating instructions

Haier

Haier HWF05XC7 User manual

Haier

Haier ESA3105 - MANUAL 2 User manual

Haier

Haier HSU-09HX03 User manual

Haier

Haier FlexFit Multi Series User manual

Haier

Haier HSU-09RU03/R2 - annexe 1 User manual

Haier

Haier AB242ACBEA User manual

Haier

Haier 1U25S2SQ1FA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
