Haier H2SM-14HC03/R2 User manual

H2SM-14HC03/R2

H2SM-18HC03/R2

No.0010555643

SPLITTYPE ROOM AIR CONDITIONER

OPERATION MANUAL

Please read this operation manual before using the air conditioner.

Before disposing an old air conditioner that

goes out of use, please make sure it's

inoperative and safe. Unplug the air conditioner

in order to avoid the risk of child entrapment.

It must be noticed that air conditioner system

contains refrigerants, which require speciali-

zed waste disposal.The valuable materials

contained in an air conditioner can be recycled.

Contact your local waste disposal center for

proper disposal of an old air conditioner and

contact your local authority or your dealer if

you have any question. Please ensure that

the pipework of your air conditioner does not

get damagedprior to being picked up by the

relevant waste disposal center, and contribute

to environmental awareness by insisting on an

appropriate, anti-pollution method of disposal.

Disposal of the old air conditioner All these valuable materials may be taken to

a waste collecting center and used again after

adequate recycling.

Consult your local authorities for the name

and address of the waste materials collecting

centers and waste paper disposal services

nearest to your house.

Disposal of the packaging of your

new air conditioner

Safety Instructions andWarnings

Cautions

All the packaging materials employed in the

package of your new air conditioner may be

disposed without any danger to the

environment.

The cardboard box may be broken or cut into

smaller pieces and given to a waste paper

disposal service.The wrapping bag made of

polyethylene and the polyethylene foam pads

contain no fluorochloric hydrocarbon.

Before starting the air conditioner, read the

information given in the User's Guide caref-

ully.The User's Guide contains very impor-

tant observations relating to the assembly,

operation and maintenance of the air

conditioner.

The manufacturer does not accept respon-

sibility for any damages that may arise due

to non-observation of the following

instruction.

Damaged air conditioners are not to be

put into operation.In case of doubt, consult

your supplier.

Use of the air conditioner is to be carried

out in strict compliance with the relative

instructions set forth in the User's Guide.

Installation shall be done by professional

people, don't install unit by yourself.

For the purpose of the safety,the air con-

ditioner must be properly grounded in acco-

rdance with specifications.

Always remember to unplug the air

conditioner before openning inlet grill.Never

unplug your air conditioner by pulling on

the power cord. Always grip plug firmly and

pull straight out from the outlet.

All electrical repairs must be carried out

by qualified electricians.Inadequate repairs

may result in a major source of danger for

the user of the air conditioner.

Do not damage any parts of the air

conditioner that carry refrigerant by piercing

or perforating the air conditioner's tubes

with sharp or pointed items, crushing or

twisting any tubes, or scraping the coatings

off the surfaces. If the refrigerant spurts

out and gets into eyes, it may result in

serious eye injuries.

Cautions

Do not obstruct or cover the ventilation

grille of the air conditoner.Do not put fingers

or any other things into the inlet/outlet and

swing louver.

Do not allow children to play with the air

conditioner.In no case should children be

allowed to sit on the outdoor unit.

The refrigerating circuit is leak-proof.

Remark per EMC Directive 89/336/EEC.

To prevent flicker impression during the

start of the compressor(Technical Process)

and the adversely influence caused by

the 2nd harmonies of compressor following

installation conditions do apply:

1.The power connection for air conditioner

has to be done at the main power

distribution.This distribution has to be of a

Iow impedance. Normally the required

impedance is reached at a 32A fusing point.

2.No other equipment has to be connected:

to this power line.

3.For the details installation acceptance

please refer to your contract with the power

supplier, if restrictions do apply for products:

like washing machines,air conditioners or

electrical ovens.

4.For the details of the power of air,

conditioner, please refer to the rating plate

of the product.

5.For any question contact your local dealer.

Specifications

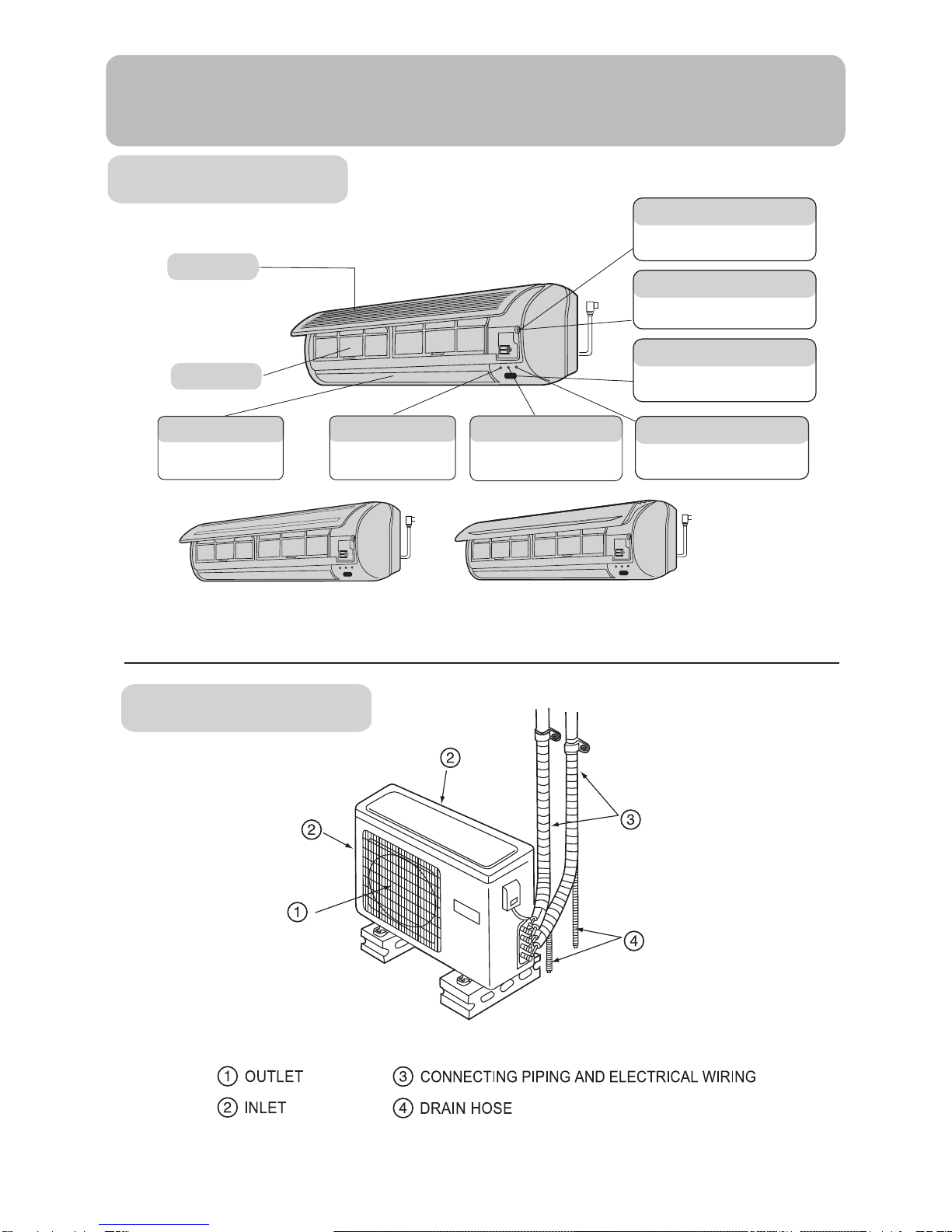

Indoor Unit

Parts and Functions

Inlet grille

Air filter

Vertical flap

Use remote controller to

adjust up and down air flow.

(Don't adjust it manually.)

Power indicator

Lights up when unit starts.

Timer mode indicator

Lights up when Timer operation

is selected.

Operation mode indicator

Remote signal receiver

Emergency switch(manual)

Test running switch(manual)

Lights up during compressor

running.

A beeping sound is generated when

a signal from remote controller is

received.

Used when remote controller is lost or

defective. Unit will run temporarily.

Used only for test running in cooling

when room temp. is below 16oC.

Don't use it in normal operation.

Outdoor Unit

Actual inlet grille may vary from the one shown in the manual according to

the product purchased

Parts and Functions

Cooling Indoor Maximum:D.B/W.B 32oC/23oC

24oC/18oC

-7oC/-8oC

43oC/26oC

18oC

27oC

15oC

18oC/14oC

Maximum:D.B/W.B

Minimum:D.B

Maximum:D.B

Minimum:D.B

Minimum:D.B/W.B

Maximum:D.B/W.B

Minimum:D.B/W.B

Outdoor

Indoor

Outdoor

Heating

2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent

or a similar qualified person. The type of connecting wire is H05RN-F or H07RN-F.

3. If the fuse on PC board is broken please change it with the type of T.3.15A/250V.

4. The distance between the indoor unit and the floor should be more than 2m.

5. The wiring method should be in line with the local wiring standard.

6. After installation, the power plug should be easily reached.

7. The waste battery should be disposed properly.

8. The appliance is not intended to use by young children or infirm persons without supervision

9.Young children should be supervised ensure that they do not play with the appliance.

10.The appliance must be installed on strong enough supporter.

11 .The wiring diagram is attached inside the machine.

The machine is adaptive in following situation

1. Applicable ambient temperature range:

13.For the unit H2SM-18HC03/R2

Through poor conditions of the electrical MAINS, shortly voltage drops can appear when

starting the EQUIPMENT.This can influence other equipment (eg. Blinking of a lamp).

If the MAINS-IMPEDANCE Zmax<0.199 OHM, such disturbances are not expected. (In case

of need, you may contact your local supply authority for further information.)

12. A breaker should be incorporated into fixed wiring. The breaker should be all-pole switch

and the distance between its two contacts should be not less than 3mm.

Hints

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

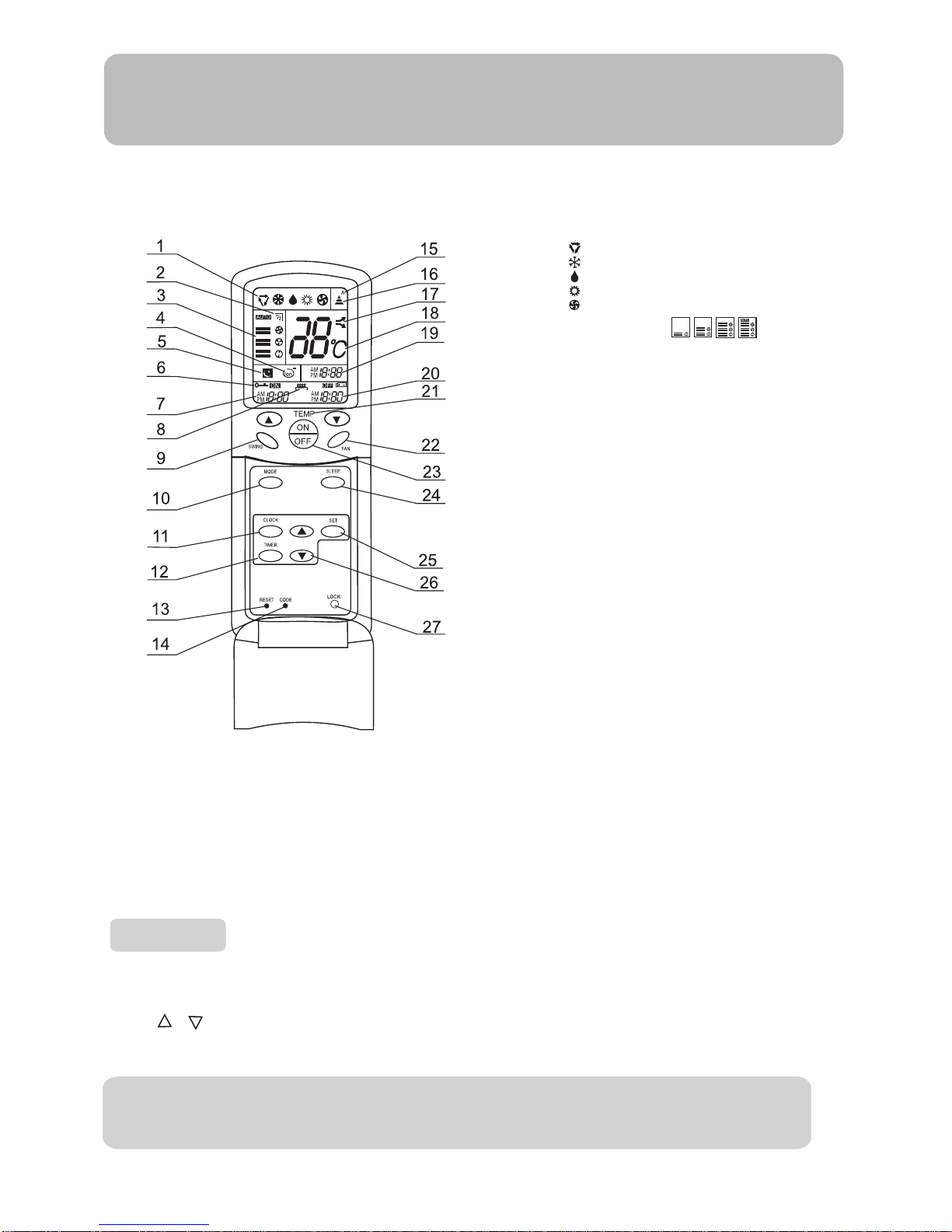

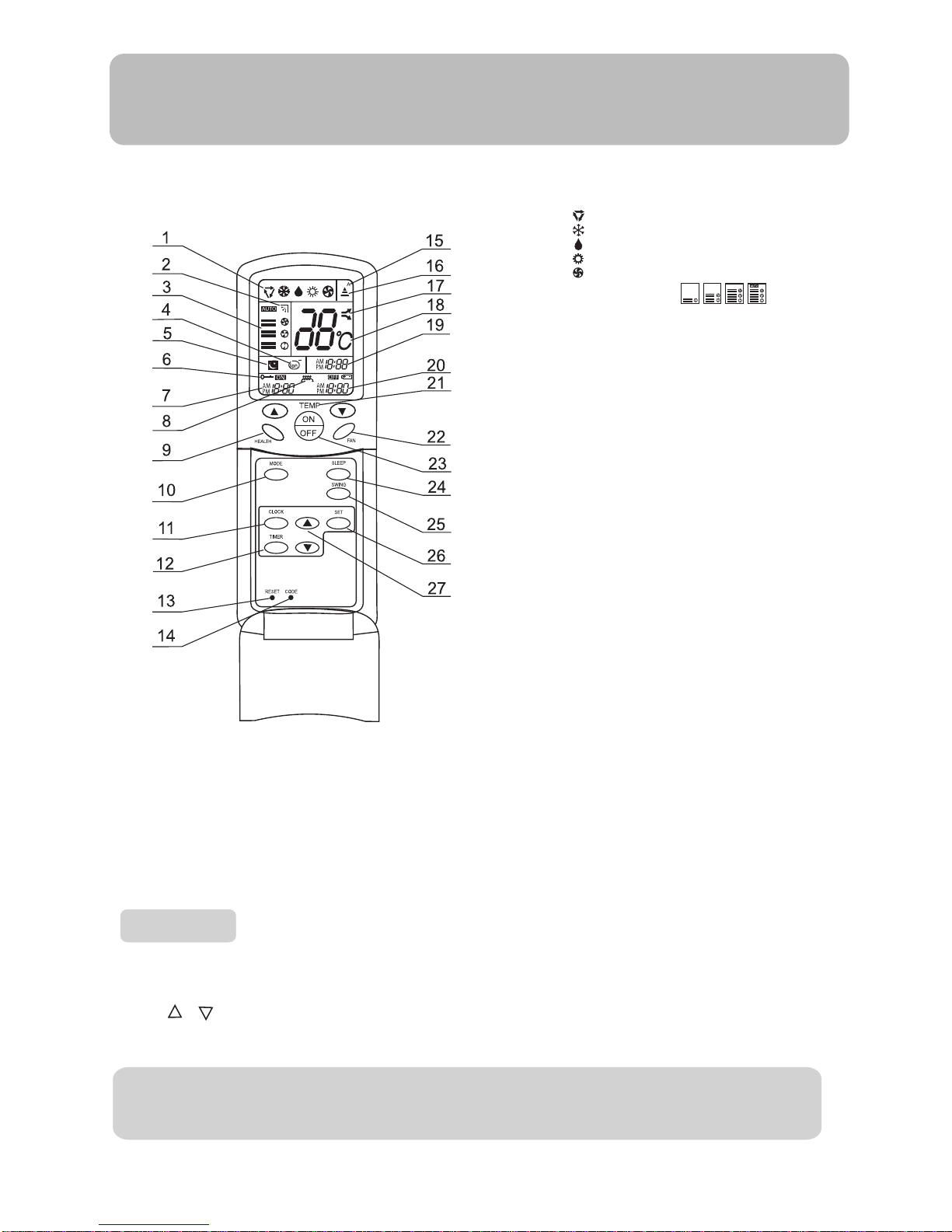

Buttons and display of the remote controller.

Parts and Functions

1.Mode display

AUTO

COOL

DRY

HEAT

FAN

2. SWING display

3. FAN SPEED display

4. HEALTH display

5. SLEEP display

6. LOCK display

7. TIMER ON display

8. AUXILIARY HEAT display

9. HEALTH

10. MODE

Used to select AUTO,COOL

and FAN

11. CLOCK

Used to set correct time

12. TIMER

Used to select TIMER ON,TIMER OFF

13. RESET

Used to reset the controller back to

normal condition.

14. CODE

Used to select code A or B with a press,A

or B will be displayed on LCD.please

select A without special explanation

15. CODE display

16. SIGNAL SENDING display

17. POWER/SOFT display

18. TEMP. display

19. CLOCK display

20. TIMER OFF display

21. TEMP

Used to select your desired temperature

22. FAN

Used to select fan speed

23. POWER ON/OFF

Used for unit start or stop

24. SLEEP

Used to select sleep mode

LOW MED HI AUTO

25. SWING

26. SET

Used to confirm timer and clock settings

27. HOUR

Used to set clock and timer settings

NOTE:(1)The following functions and related displays are not available: AUXILIARY HEAT display, POWER/SOFT display, LOCK display.

(2)If the Air conditioner don't have the function of the code ,press code B can cause it not available.

(3)Cooling only unit do not have functions and displays related with heating.

Clock set

When unit is started for the first time and after replacing batteries in remote controller, clock should

be adjusted as follows:

Press CLOCK button, "AM" or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the button is kept

depressed, time will change quickly.

After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock starts working.

Hints

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

Clock set

When unit is started for the first time and after replacing batteries in remote controller, clock should

be adjusted as follows:

Press CLOCK button, "AM" or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the button is kept

depressed, time will change quickly.

After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock starts working.

NOTE:(1)The following functions and related displays are not available: AUXILIARY HEAT display, POWER/SOFT display,HEALTH display.

(2)If the Air conditioner don't have the function of the code ,press code B can cause it not available.

(3)Cooling only unit do not have functions and displays related with heating.

Buttons and display of the remote controller.

Parts and Functions

If the unit which you purchased has not health function, remote controller should

like the following figure: 1.Mode display

AUTO

COOL

DRY

HEAT

FAN

2. SWING display

3. FAN SPEED display

4. HEALTH display

5. SLEEP display

6. LOCK display

7. TIMER ON display

8. AUXILIARY HEAT display

9. SWING

10. MODE

Used to select AUTO,COOL

and FAN

11. CLOCK

Used to set correct time

12. TIMER

Used to select TIMER ON,TIMER OFF

13. RESET

Used to reset the controller back to

normal condition.

14. CODE

Used to select code A or B with a press,A

or B will be displayed on LCD.please

select A without special explanation

15. CODE display

16. SIGNAL SENDING display

17. POWER/SOFT display

18. TEMP. display

19. CLOCK display

20. TIMER OFF display

21. TEMP

Used to select your desired temperature

22. FAN

Used to select fan speed

23. POWER ON/OFF

Used for unit start or stop

24. SLEEP

Used to select sleep mode

LOW MED HI AUTO

25. SET

Used to confirm timer and clock settings

26. HOUR

Used to set clock and timer settings

27.LOCK

Used to lock buttons and LCD display.

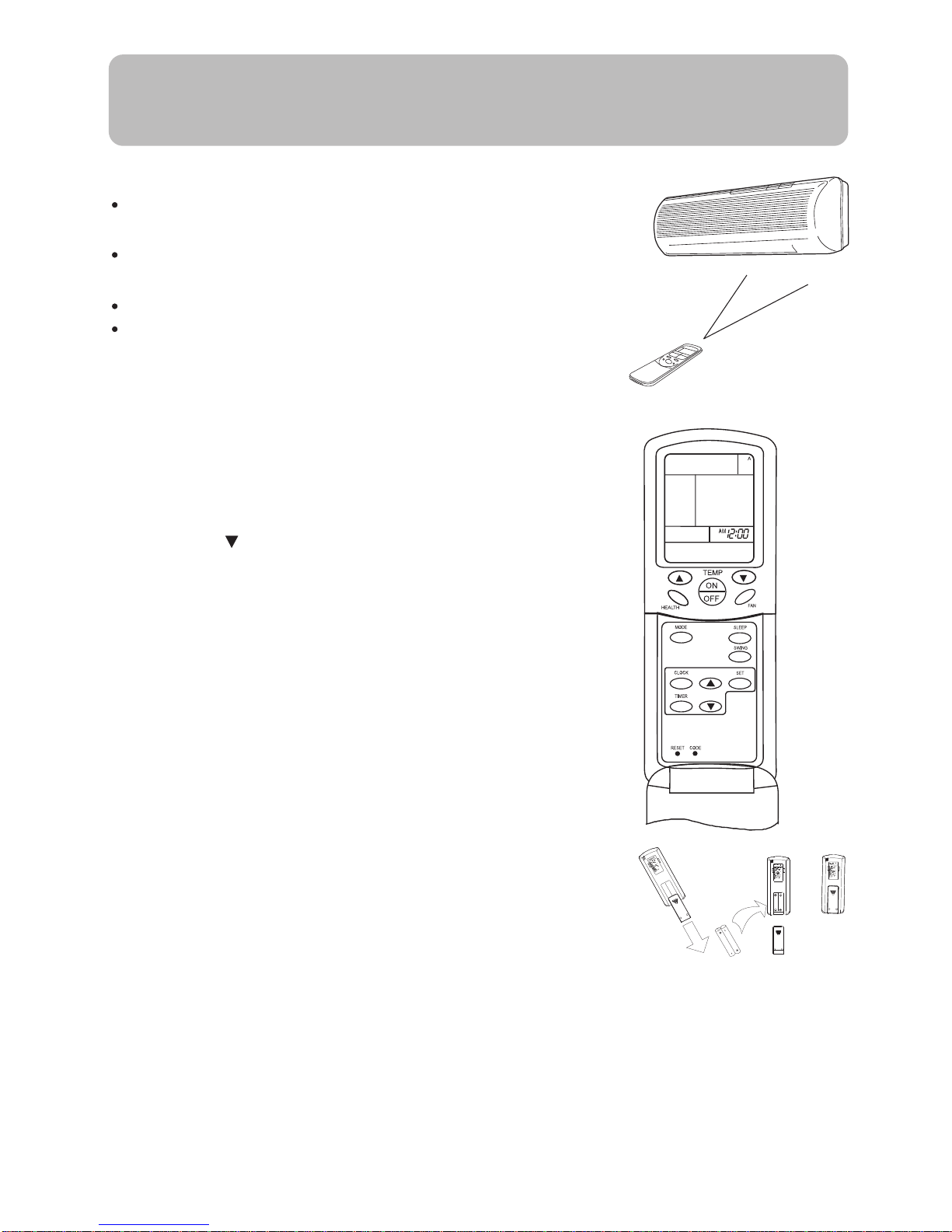

Operation

When in use, put the signal transmission head directly to the

receiver hole on the indoor unit.

The distance between the signal transmission head and the

receiver hole should be within 7 m without any obstacle as well.

Don't throw the controller, prevent it from being damaged.

When electronic-started type fluorescent lamp or change-over

type fluorescent lamp or wireless telephone is installed in the

room, the receiver is apt to be disturbed in receivering the signals

so the distance to the indoor unit should be shorter.

Loading of the battery

Load the batteries as illustrated. 2 R-03 batteries,

resetting key (cylinder)

Remove the battery cover:

Slightly press " " and push down the cover.

Load the battery:

Be sure that the loading is in line with the" + "/"-"

pole request as illustrated.

Put on the cover again

Confirmation indicator:

In disorderation, reload the batteries or load the new batteries

after 6 mins.

Note:

Use two new same-typed batteries when loading.

If the remote controller can't run normally or doesn't work at all,

use a sharp pointed item to press the reset key.

Hint:

Remove the batteries in case unit won't be in usage for a long period.

If there are any display after taking-out just need to press reset key.

Power failure resume(please set and apply as necessary)

If sudden power failure occurs, the unit will resume original operation when power is

supplied again.

Note: When sudden power failure happens during unit operation in power failure resume mode, if

the air conditioner is not desired for use in a long period, please shut off the power supply

in case that the unit automatically resume operation when power is re-supplied, or press

ON/OFF to turn off the unit when power resumes.

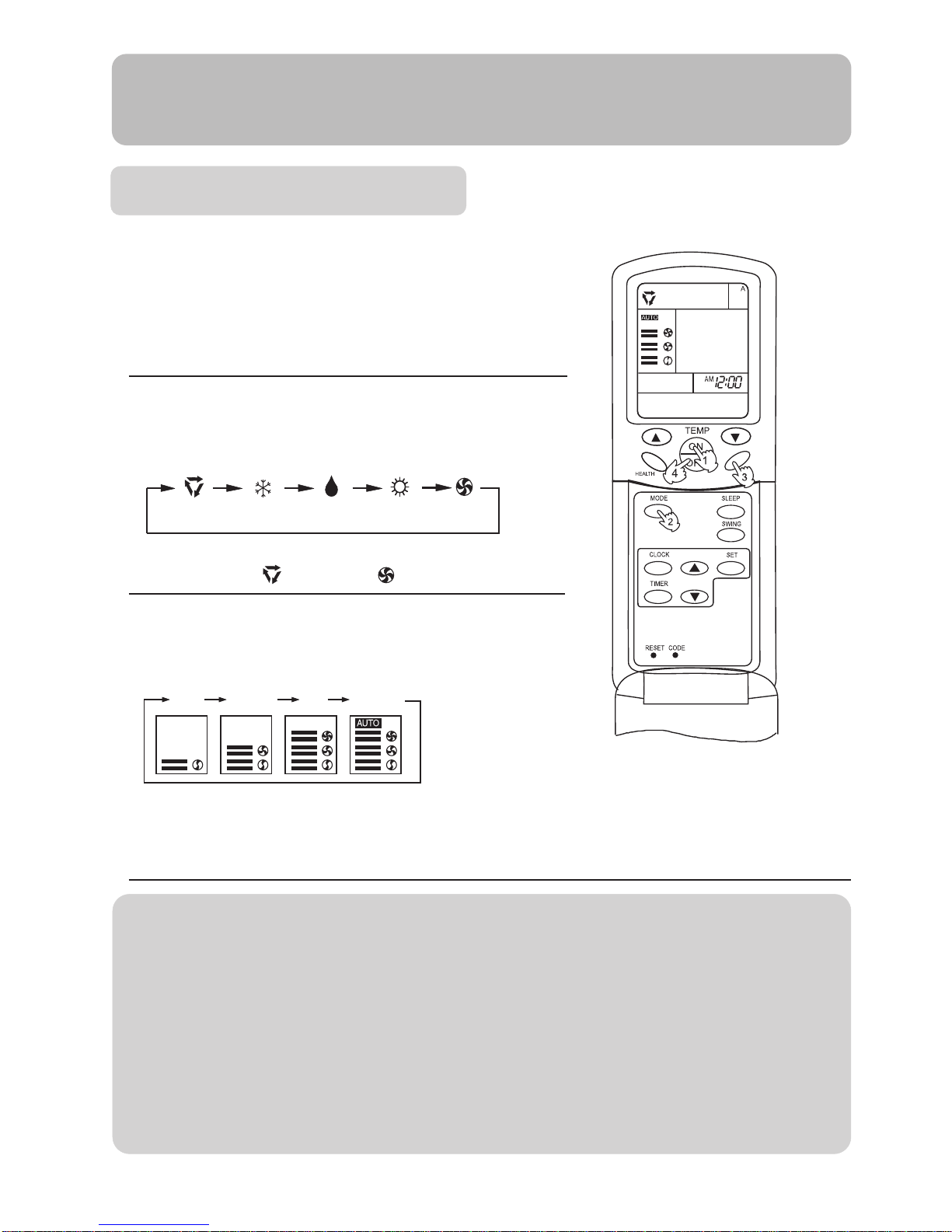

Remote controller's operation

Operation

(4) Unit stop

(1) Unit start

mode changes as follows:

Press ON/OFF button, unit starts.

Previous operation status appears on display.

(Not Timer setting)

Power indicator on indoor unit lights up.

(2) Select operation mode

Press MODE button. For each press, operation

AUTO COOL DRY HEAT FAN

Unit will run in selected mode.

Stop display at " " AUTO or " "FAN.

(3) FAN

Press FAN button. For each press, fan speed changes

as follows:

Unit will run at selected fan speed.

Note:AUTO is not available in FAN mode.

Press ON/OFF button.

Only time remains on LCD.

All indicators on indoor unit go out.

Vertical flap closed automatically.

Hints

Remote controller can memorize settings in each operation mode. To run it next time just

select the operation mode and it will start with the previous setting.

No reselecting is needed.(TIMER ON/OFF needs reselecting)

Cautions: Note:

On cooling only unit, heating mode is not available, The above information is the

After replacing batteries, press ON/OFF, and display explanation of the displayed

becomes as follows: information therefore varies

Operation mode: AUTO, Temp. No with those displayed in actual

Timer mode: No, Fan speed :AUTO operation.

Auto run, Fan operation Enjoy yourself by just a gentle press.

LO MED HI AUTO

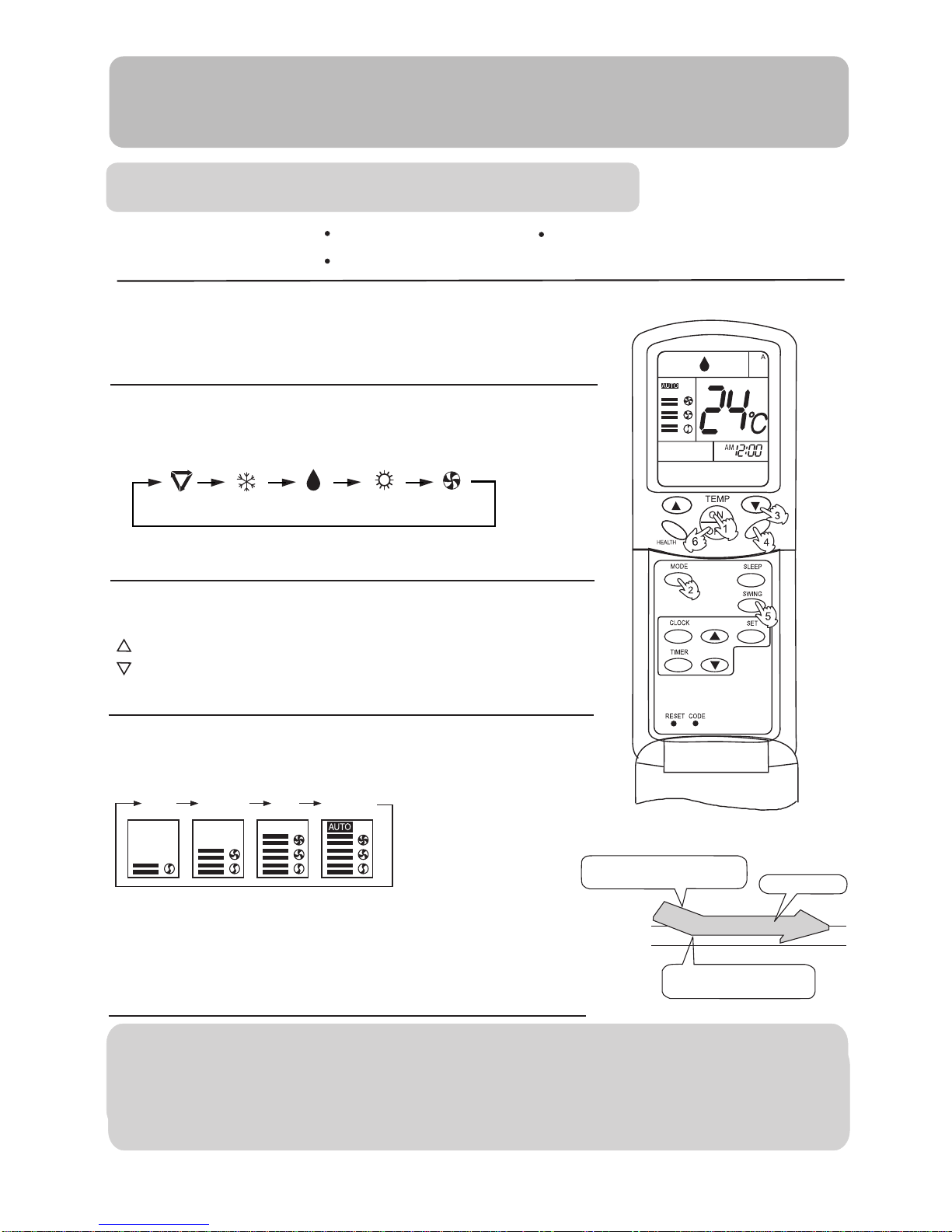

Operation

Press MODE button. For each press, operation

Recommendations:

COOL,HEAT and DRY operation

Use COOL in summer. Use HEAT in winter

Use DRY in spring, autumn and in damp climate.

(1) Unit start

mode changes as follows:

Press ON/OFF button, unit starts.

Previous operation status appears on display.(Not Timer setting)

Power indicator on indoor unit lights up.

(2) Select operation mode

AUTO COOL DRY HEAT FAN

Unit will run in operation mode displayed on LCD.

Stop display at your desired mode.

(3) Select temp. setting

Press TEMR button.

Every time the button is pressed, temp. setting increases 1oC

Every time the button is pressed, temp. setting decreases 1oC

Unit will start running to reach the temp. setting on LCD.

Press FAN button. For each press, fan speed changes

(4) Fan speed selection

as follows:

just press ON/OFF button and unit will run in previous status.

Unit runs at the speed displayed on LCD.

Hints

On cooling only unit, heating mode is not available.

Remote controller can memorize each operation status. When starting it next time,

COOL operation starts when room

temp. is higher than temp. setting. Ultra-low air flow

Temp. setting+2oC

Temp. setting

On reaching temp. setting, unit

will run in mild DRY mode.

LO MED HI AUTO

In HEAT mode,warm air will blow out after a short period

of time due to cold-draft prevention function.

In DRY mode, when room temp. becomes 2oC higher than

temp. setting, unit will run intermittently at LO speed

regardless of FAN setting.

Other manuals for H2SM-14HC03/R2

This manual suits for next models

Table of contents

Other Haier Air Conditioner manuals

Haier

Haier HDU-96HTO3/H User manual

Haier

Haier HSU-30HEA03(T3) User manual

Haier

Haier HSU-36LPA03R2T3 User manual

Haier

Haier HPR09XC7 User manual

Haier

Haier AS072AIAAA User manual

Haier

Haier AMA05JF User manual

Haier

Haier 2HUM18HA03 User manual

Haier

Haier HSU-09LR03 User manual

Haier

Haier HSU-09C03/Z1 User manual

Haier

Haier AB092XCERA Specification sheet

Haier

Haier AC-8888-20 User manual

Haier

Haier 1U68WEGFRA-C User manual

Haier

Haier HPU-36C13 User manual

Haier

Haier ESA3069 - annexe 1 User manual

Haier

Haier H2SM- - annexe 15 User manual

Haier

Haier FlexFit Multi Series User manual

Haier

Haier HWF05XCPT User manual

Haier

Haier GE 2U18MS2HDA User manual

Haier

Haier HWF06XC3 User manual

Haier

Haier H2SM-21HA03 User manual

Haier

Haier ESA3155 - Window Air Conditioner User manual

Haier

Haier HSU-22LEA03 User manual

Haier

Haier ESAX3186 - 17,000 BTU In-Wall Air... User manual

Haier

Haier HSU-24LPA03/R2 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
