OPERATION MANUAL

No.0010571466

CASSETTE AIR CONDITIONER

AB182ACNAC

AU182AANAC

(HBU-18CL03/R1)

AB182ACBAC

AU182AABAC

(HBU-18HL03/R1)

CONTENTS

CAUTIONS..................................................................................

THE NAME OF EACH PART AND ITS FUNCTION...............

INTRODUCTION TO SPARE PARTS ................................

REMOTE CONTROLLER OPERATION .................................

GUIDE TO OPERATION .......................................................

AIR FLOW DIRECTION ADJUSTMENT PROCEDURE

.......

FOR COMFORTABLE USE ....................................................

CARE AND MAINTENANCE..............................................

WARNING OPERATION ...................................................

2-3

5-6

8-12

13-15

17-19

20-24

CAUTIONS

Disposal of the old air conditioner

Before disposing an old air conditioner

that goes out of use, please make sure

it's inoperative and safe. Unplug the

air conditioner in order to avoid the risk

of child entrapment.

It must be noticed that air conditioner

system contains refrigerants, which

require specialized waste disposal.

The valuable materials contained in a

air conditioner can be recycled.

Contact your local waste disposal

center for proper disposal of an old air

conditioner and contact your local

authority or your dealer if you have

any question. Please ensure that the

pipework of your air conditioner does

not get damaged prior to being picked

up by the relevant waste disposal

center, and contribute to

environmental awareness by insisting

on an appropriate, anti-pollution

method of disposal.

Disposal of the packaging of your

new air conditioner

All the packaging materials employed

in the package of your new air

conditioner may be disposed without

any danger to the environment.

Consult your local authorities for the name

and address of the waste materials

collecting centers and waste paper

disposal services nearest to your house.

Safety Instructions and Warnings

Before starting the air conditioner, read

the information given in the User's Guide

carefully. The User's Guide contains very

important observations relating to the

assembly, operation and maintenance of

the air conditioner.

The manufacturer does not accept

responsibility for any damages that may

arise due to non-observation of the

following instruction.

Damaged air conditioners are not to

be put into operation. In case of doubt,

consult your supplier.

All these valuable materials may be taken

to a waste collecting center and used

again after adequate recycling.

The cardboard box may be broken or cut

into smaller pieces and given to a waste

paper disposal service. The wrapping

bag made of polyethylene and the

polyethylene foam pads contain no

fluorochloric hydrocarbon.

CAUTIONS

All electrical repairs must be carried

out by qualified electricians.

Inadequate repairs may result in a

major source of danger for the user of

the air conditioner.

Do not damage any parts of the air

conditioner that carry refrigerant by

piercing or perforating the air

conditioner's tubes with sharp or

pointed items, crushing or twisting any

tubes, or scraping the coatings off the

surfaces. If the refrigerant spurts out

and gets into eyes, it may result in

serious eye injuries.

For the purpose of safety, the air

conditioner must be properly grounded

in accordance with specifications.

Always remember to unplug the air

conditioner before opening inlet grill.

Never unplug your air conditioner by

pulling on the power cord. Always grip

plug firmly and pull straight out from the

outlet.

Use of the air conditioner is to be

carried out in strict compliance with the

relative instructions set forth in the

User's Guide.

Installation shall be done by

professional people, don't install unit

by yourself.

Do not obstruct or cover the

ventilation grille of the air conditioner.

Do not put fingers or any other things

into the inlet/outlet and swing louver.

Do not allow children to play with the

air conditioner. In no case should

children be allowed to sit on the

outdoor unit.

Indoor unit

Unitindicationsection

(Power, Timer, Run, Pump)

Remotecontrollersignalreceiver

The signal is received.

Backupswitch

Swinglouver

Air blows out from here.

Airflowdirectionisadjusted.

WirelessRemotecontroller

Air inlet grille

Takesintheindoorair.

Air filter

Removesdustordirtoutoftheinletair.

(In the Air inlet grille)

Airinlet

Outdoor unit

Airoutlet

Compressor(inside of unit)

THE NAME OF EACH PART AND ITS FUNCTION

INTRODUCTION TO SPARE PARTS

Buttons and display of the remote controller.

Operation

CLOCK

MODE

SWING

Power ON/OFF TEMP

FAN

SLEEP

SET

HOUR

RESET

LOCK

TIMER

Used for unit start and

stop.

Used to set auto fan

direction.

Used to select AUTO run,

COOL,DRY,HEAT and

FAN operation.

Used to set correct time.Used to set correct time.

Used to select

TIMER ON, TIMER OFF,

TIMER ON/OFF.

Used to lock buttons

and LCD display. Used to reset the controller

back to normal condition.

Used to set clock and

timer setting.

Used to confirm Timer

and Clock settings.

Used to select sleep

mode.

Used to select fan speed:

LO, MID, HI, AUTO

Used to select your

desired temp.

Cautions:

On cooling only unit, heating mode is not available.

After replacing batteries, press ON/OFF, and display

becomes as follows:

Operation mode: AUTO, Temp: 24 C

Timer mode: No, Fan speed: AUTO

Note:

1. The above information is the explanation of

the displayed information therefore varies

with those displayed in actual operation.

2. This type only has the relevant function and

display as indicated in the above figure.

TEMP

SWING

FAN

OFF

MODE

SLEEP

SET

CLOCK

TIMER

LOCK RESET

AUTO

ON OFF

PM AM

INTRODUCTION TO SPARE PARTS

Hints

LO MID

HI AUTO

AUTO

Buttons and display of the remote controller.

Operation

DRY

COOL

AUTO

SWING

FAN SPEED

SLEEP

Clock set

TIMER ON

TIMER OFF

LOCK

CLOCK

TEMP.

SIGNAL SENDING

FAN OPERATION

HEAT

When unit is started for the first time and after replacing batteries in remote controller,

clock should be adjusted as follows:

Press CLOCK button, "AM" or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the

button is kept depressed, time will change quickly.

After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock

starts working.

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

TEMP

SWING

FAN

OFF

MODE

SLEEP

SET

CLOCK

TIMER

LOCK RESET

AUTO

ON OFF

PM AM

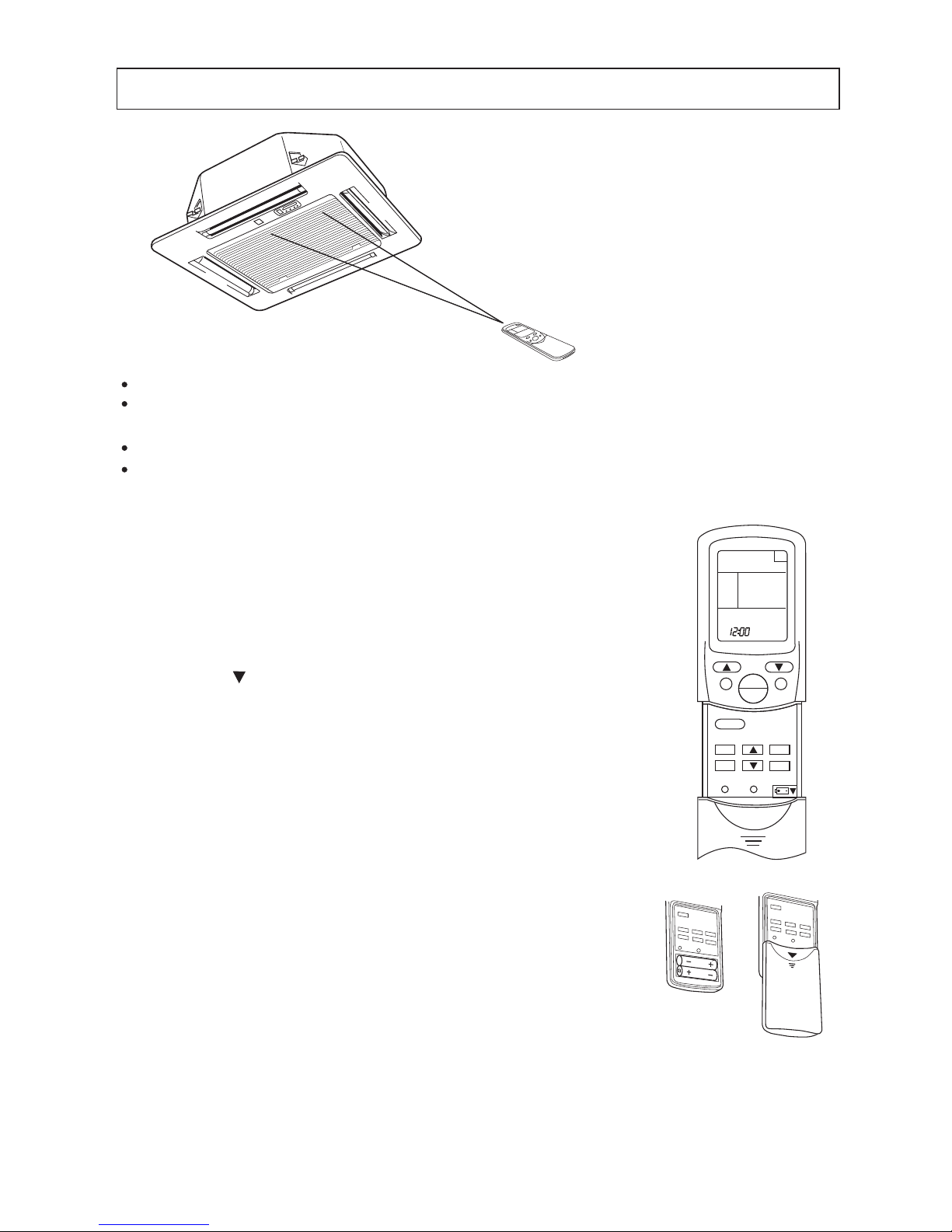

REMOTE CONTROLLER OPERATION

Remote controller's operation

When in use, put the signal transmission head directly to the receiver hole on the indoor unit.

The distance between the signal transmission head and the receiver hole should be within 7m

without any obstacle as well.

Don't throw the controller, prevent it from being damaged.

When electronic-started type fluorescent lamp or change-over type fluorescent lamp or wireless

telephone is installed in the room, the receiver is apt to be disturbed in receiving the signals so

the distance to the indoor unit should be shorter.

Loading of the battery

Load the batteries as illustrated.

2R-03 batteries, resetting key (cylinder)

Remove the battery cover :

Slightly press " " and push down the cover.

Load the battery :

Be sure that the loading is in line with the " + " / " - " pole request

as illustrated.

Put on the cover again

Confirmation indicator :

In disorderation, reload the batteries or load the new batteries

after 5 mins.

Note :

Use two new same-typed batteries when loading.

If the remote controller can't run normally or doesn't work at all,

use a sharp pointed item to press the reset key.

Hint :Remove the batteries in case unit won't be in usage for a long period.

If there is any display after taking-out just need to press reset key.

TEMP

SWING

FAN

OFF

MODE

SLEEP

SET

CLOCK

TIMER

LOCK RESET

GUIDE TO OPERATION

FAN operation

Remote controller can memorize settings in each operation mode. To run it next

time just select the operation mode and it will start with the previous setting.

No reselecting is needed.(TIMER ON/OFF needs reselecting)

Hints

(1) Unit start

(2) Select operation mode

(3) Fan

(4) Unit stop

AUTO COOL DRY HEAT FAN

Press ON/OFF button, unit starts.

Previous operation status appears on display.

(Not Timer setting)

Power indicator on indoor unit lights up.

Press MODE button. For each press, operation

mode changes as follows:

Unit will run in selected mode.

stop display at " " FAN.

Press FAN button. For each press, fan speed changes

as follows:

Unit will run at selected fan speed.

Adjust air flow direction if necessary, refer to page13.

Press ON/OFF button.

Only time remains on LCD.

All indicators on indoor unit go out.

Vertical flap closed automatically.

LO MID HI

TEMP

SWING

FAN

OFF

MODE

SLEEP

SET

CLOCK

TIMER

LOCK RESET

413

GUIDE TO OPERATION

AUTO run, COOL,HEAT and DRY operation

Use COOL in summer.

Use HEAT in winter.

Use DRY in spring,autumn and in damp climate.

(1) Unit start

(2) Select operation mode

(3) Select temp.setting

Press ON/OFF button, unit starts.

Previous operation status appears on display.(Not Timer setting)

Power indicator on indoor unit lights up.

Press MODE button. For each press, operation

mode changes as follows:

Unit will run in operation mode displayed on LCD.

Stop display at your desired mode.

Hints

Unit will start running to reach the temp. setting on LCD.

Remote controller can memorize each operation status. When starting it next time,

just press ON/OFF button and unit will run in previous status.

AUTO COOL DRY HEAT FAN

Press TEMP button

Every time the button is pressed, temp. setting increases 1 C.

Every time the button is pressed, temp. setting decreases 1 C.

Recommendations

TEMP

SWING

FAN

OFF

MODE

SLEEP

SET

CLOCK

TIMER

LOCK RESET

This manual suits for next models

Table of contents

Other Haier Air Conditioner manuals

Haier

Haier ESA3159 User manual

Haier

Haier AS072AZBAA User manual

Haier

Haier AS052AZMAA User manual

Haier

Haier AS09TACHRA User manual

Haier

Haier AU482FIBHA User manual

Haier

Haier HWR18VC3 User manual

Haier

Haier HSM09HS03/R2(DB) User manual

Haier

Haier 2HUM18HA03 User manual

Haier

Haier ESA3087 - 7,800-BTU Energy-Star Window Air... User manual

Haier

Haier 1U09MAEFRA User manual

Haier

Haier AD142AMAAA User manual

Haier

Haier HWR18VC7 - annexe 2 User manual

Haier

Haier 1U68WEGFRA User manual

Haier

Haier HSU-18HB03/R2 User manual

Haier

Haier HW-07LM03 User manual

Haier

Haier AB25S2PC1FA Installation and operating instructions

Haier

Haier ESA3105 - MANUAL 2 User manual

Haier

Haier AS35XCHHRA-NR User manual

Haier

Haier HSU-18LEK13 User manual

Haier

Haier ESA3105 - MANUAL 2 User manual

Haier

Haier ESA412J-115V User manual

Haier

Haier HSU-30LPA03/R2 User manual

Haier

Haier MRV SII AU042FNEUA User manual

Haier

Haier AD282AHEAA Administrator Guide

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
