Haier 10571570 User manual

No. *

Please read this manual carefully before using

Please keep this manual for future use

AB212BCBAA

0010571570

Haier Network Air Conditioner

Two by One Room Air Conditioner

CONTENTS

Before Use

Name of Parts

************* 3-4

Safety Precautions

********** 5-6

Operation Instruction

Fan Operation

************** 7

Auto, Cooling, Dehumidifying,

Heating operation

************ 8

Timer On/Off Function

******** 11

Timer On-Off Function

******** 12

Maintenance

*************14-18

Usersí Attention

************ 13

Installation of Indoor Unit

Installation Instruction

****** 21 22

Installation Procedure

****** 23*36

Operation Points

*********** 1-2

Troubleshooting

*********** 19-20

Sleep Function

************* 10

Swing Operation

************ 9

Characteristics of Products

Far distance monitoring

There is a pre-set far distance control communication interface on the control

panel of indoor unit. After installing the peripheral equipment according to the

manual attached with the Haier made far distance control detector, the computer

management or other place monitoring can be achieved to the air conditioner.

Characteristics of Products

1.Free combination multi-split.

2.Four-direction air sending, more even temperature adjustment.

3.Inner hidden type installation, space-saving; harmonized with the ceiling, exquisite

and beautiful.

4.Powerful circular air volume, quick temperature adjustment.

5.This air conditioner has POWER FAILURE RESUME FUNCTION.

6.Anti-bacteria mildew resistant air filter, fresher air creates more healthy.

This unit has the function of far distance monitoring. Through the telephone

network, it can be effectively controlled in any other far-distance place. (Only

after equipped with the ìfar distance detectorî made by our company can this

function be fulfilled.)

7.This unit has the function of far distance monitoring. Through the telephone network,

it can be effectively controlled in any other far-distance place. (Only after equipped

with the ìfar distance detectorî made by our company can this function be fulfilled.)

Operation points

Operation of air conditioner

When the ambient humidity is too high,

in COOLING or DEHUMIDIFYING

mode, there may be water dropped

in the air outlet.

Far distance monitoring

There is a pre-set far distance control communication interface on the

control panel of indoor unit. After installing the peripheral equipment

according to the manual attached with the Haier made far distance

control detector, the computer management or other place monitoring

can be achieved to the air conditioner.

If start the unit immediately only after

it is turned off, the compressor will start

after 3 minutes have elapsed to protect the

compressor.

3-minute protection function

Change of fan speed

In COOLING mode, the air sending is set at AUTO, when the indoor

temperature is near the set temperature,

the fan speed will lower automatically.

In HEATING mode, when room

temperature reaches the set temperature,

the compressor will stop running, and

the fan will change to LOW FAN or stop.

In DEHUMIDIFYING mode, the fan speed

will change automatically.

Operation points

Anti-cold air blowing out

Defrosting function

During Heating operation, after

starting the unit, the indoor fan

motor will not rotate immediately

to prevent cold air from blowing out.

During Heating operation, when frost formed

on the heat exchanger of outdoor unit, the air

conditioner will defrost automatically for

several minutes. During defrosting, both

the fan of indoor and outdoor unit do not

run. After finishing defrosting, the air

conditioner will automatically resume operation.

Hint

When the air conditioner is in Heating mode,

it absorbs heat from outside and release to

indoors. So the outdoor temperature may

affect the Heating effect.

Power failure resume function

(please set and use this function according to actual condition)

After setting power failure resume function, if there is a sudden power

failure during unit operation, when power on for again, the unit will

resume the previous state.

Setting method: when the wire controller is in ON state (except for

TIMER and FAN mode), press the SLEEP button for 10 times in 5

seconds, after the buzzer sounds 4 times, the unit will change to

POWER FAILURE RESUME function.

Cancellation method: press the SLEEP button 10 times in 5 seconds, after

the buzzer 2 times, the POWER FAILURE RESUME function is cancelled.

Note: After the unit is set POWER FAILURE RESUME function, if there

is a sudden power failure in using, during this period of time if there is no

need to use the unit for a long time, please cut off power to prevent the air

conditioner from automatically resuming to the previous setting if power

failure resumes, or press the ON/OFF button to turn off the unit after power

failure resumes.

Please wait

Connection pipes

and electric wire

Drain hose Louver

Louver

Air filter

(inside of air outlet)

(inside of air inlet grille)

Air inlet grille

Air outlet

Name of Parts

Indoor Unit

Wire Controller

** ** **

** ****

AUTO

**/**

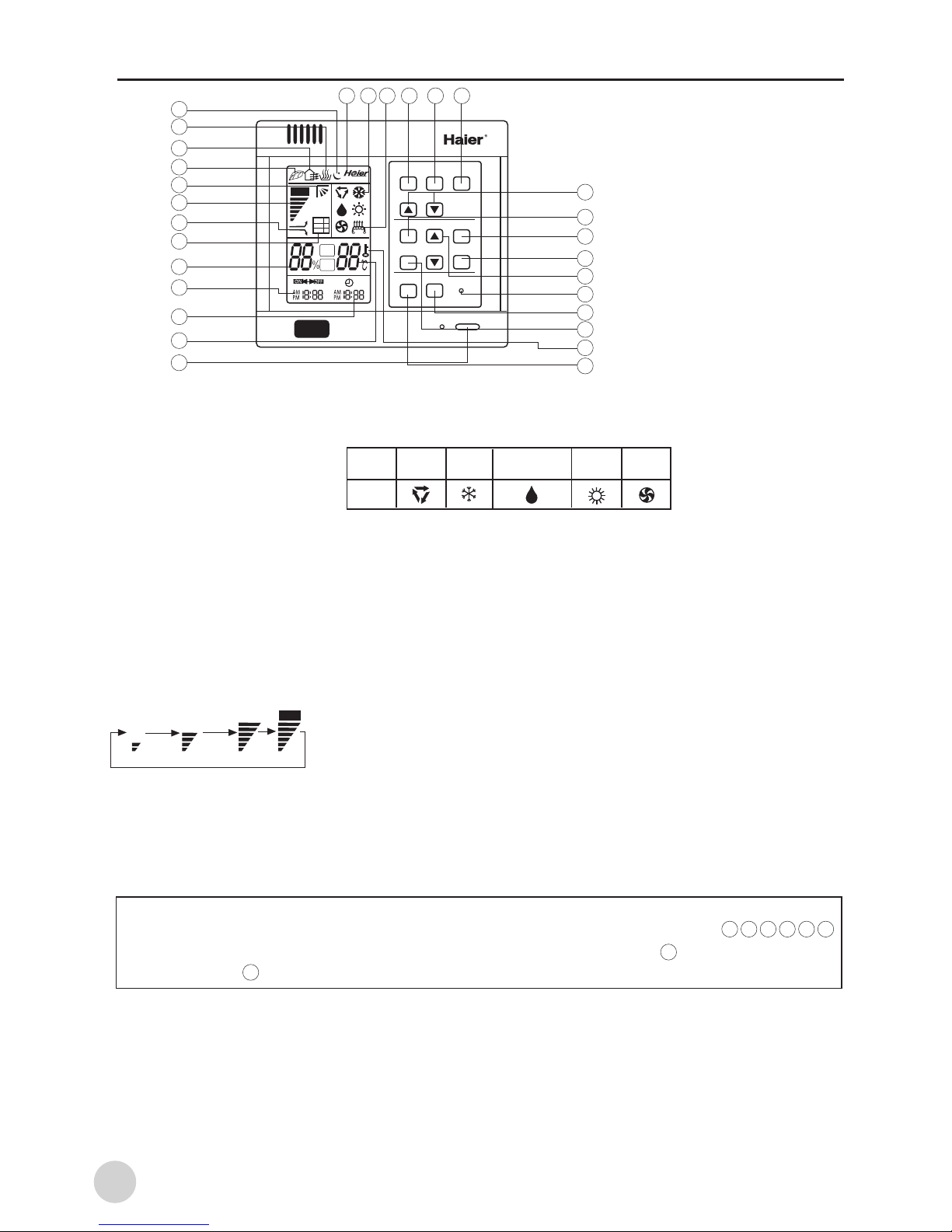

Name of Parts Wire Controller

14.Network control display

Used to adjust the

time of timer and

clock

When the wire

controller appears

abnormal condition,

use a sharp-pointed

article to press this

button to make the

wire controller

resume normal

After cleaning the

air inlet, press this

button, the unit

can start to operate

12.Humidifying state display

Used to turn on/off unit

1.ON/OFF button

6.Air filter cleaning display

7.Super/Soft operation display

13.Sleep state display

2.Temperature display

24.Time Adjusting

button

23.Sleep button

Used to set Sleep

state or Power

Failure Resume

Function

When there is too much dust

collected on the air inlet, the

wire controller will show

this display to remind the

user to clean the air inlet.

After cleaning and installation,

just press the air filter reset button.

8.Fan speed display

9.Auto Swing display

11.Fresh air state display

25.Reset button

26.Air Filter Reset

button

27.Timer button

Used to set the

mode of timer

28.Lock state display

29.Electric heating button

4.Timer ON/OFF display

3.Clock display

17.Operation mode button

5.Humidity display

22.Setting button

Used to confirm

the time of timer

and clock

15.Working mode display

21.Clock button

Used to calibrate the time of

timer and clock

16.Electric heating display

Used to set working mode:

Auto, Cooling, Dehumidifying,

Heating, Fan

18.Fan speed button

Used to set fan speed: Low

Fan, Med Fan, High Fan, Auto

20.Temperature Setting button

** ** **

** ****

**/**

13 14 15 16 17 18

AUTO

10.Health state display Used to set temperature,

temperature range: 16*~30*

19.Swing button

Used to set Auto Swing or

Fixed air sending direction

Calibration of clock

When turning on the unit for the first time, the clock should be calibrated. The

method of calibration is:

1.Press “Clock” button, the Clock display “AM” “PM” will flash.

2.Press *or *to adjust time. For each press, the time will increase or*decrease 1

*minute. If depressing the button, the time will increase or decrease*rapidly.

3.After confirming the time, press “Set” button, “AM” or “PM” will stop flashing,

*the clock will begin to work.

Note:1.This model does not have the following related display and function

2.Non-electric heating type, there is no electric heating button and electric heating

display

* * 10 11 12 28

16 29

Auto

Low Fan Med Fan High Fan Auto

Working

mode Auto

operationCooling

operationDehumidifying

operation Heating

operationFan

operation

Wire

controller

When repair is needed, please ask

the after-sales service worker for

help.

Improper repair and maintenance

may cause water leakage,

electric shock

and fire.

If finding abnormal phenomenon

(e.g. smell of firing), please cut off

the power first, and contact the

after-sales service worker

for treatment.

Under this

circumstance,

if continue using

the air conditioner,it may be

damaged, it may also cause electric

shock or fire accident.

During unit operation, do not insert

fingers or other objects into air inlet,

air outlet and louver.

Because high

rotation speed

fan is dangerous,

it may cause injury.

Ask after-sales service worker to take

measure to prevent refrigerant from

leaking.

If the leaked refrigerant exceeds a

certain density, it will cause

lack of oxygen. If the room

installed with air conditioner

is too small, do take enough

measure in order to avoid lack of

oxygen even if refrigerant leaks.

When have to dismantle and reinstall

the air conditioner, please ask the

after-sales service worker to perform

the work.

Improper installation may

cause water leakage,

electric shock or fire.

Cut off

power

Safety Precautions

The following lists four kinds of safety precaution items and suggestions:

Warning: Improper use may cause death or serious injury.

* Those contents marked with “Forced” are definitely forced action,

otherwise, it may cause unit damage or risk to users’ safety.

Notice: Improper use may cause body hurt or unit damage; in some

circumstance, it may cause serious results.

Those contents marked with “Prohibition” are definitely prohibited

action, otherwise, it may cause unit damage or risk to users’ safety.

The following safety precautions must be observed.

This safety precautions should keep in hand for reference.

If the air conditioner is given to a new user, this manual should be attached with

unit to the new user.

Warning

Please read the following Safety Precautions carefully and use the

air conditioner properly.

Safety Precautions

Notice

Do not use wet hands to operate the

air conditioner.

Otherwise, it may

cause electric shock.

Only use the proper specified fuse.

Do not use cable or

other materials to

replace the fuse,

otherwise it may

cause fire and

other trouble.

Do not use water to

clean air conditioner,

otherwise

may cause

electric shock.

Connected with the grounding wire.

The grounding wire shouldn’t be

connected with gas pipe, tap water pipe,

lightning rod or

telephone line.

Improper grounding

may cause electric shock accident.

The drain hose should be

arranged properly to have a

smooth drainage.

If the drain hose is

not arranged properly, the leaked

drain water may damage the

furniture or other articles alike.

Do not install the air conditioner

in a place where the inflammable

gas maybe exists.

The inflammable gas around the

air conditioner may cause fire

accident.

The Creepage breaker should

be equipped.

If not equipped

with Creepage breaker, it may

cause Creepage.

When using indoor smoky type

pesticide, do not use air

conditioner.

Otherwise, it

may cause the

chemicals

accumulate

in the unit, result in

doing harm to the people’s health

who is extremely sensitive to

these chemicals.

Do not put the fire devices in the

places, which the air from the air

conditioner can directly blow.

It may cause the

fire devices

cannot burn

completely.

Only after cutting off the power, can

the cleaning of the air conditioner be

performed to

avoid leading

to electric

shock or

injury.

Do not put or use any spray near the

air conditioner,

otherwise it

may cause

fire.

Not in

operation

Fan operation

About FAN operation:

FAN operation refers the air conditioner does not perform COOLING and

HEATING operation, but FAN operation. In this mode, the air conditioner

cannot perform AUOT FAN operation, and does show the temperature

value on the wire controller.

Turn on the unit

Press the ON/OFF button to turn on the

unit The LCD display of the wire controller

will show the previous working state

(except for Timer, Sleep, Swing mode), the

operation indicator light on the wire controller

will light up.

2Choose of working mode

Press MODE button, each press the

working mode will change as the

following sequence:

choose FAN operation

Adjusting FAN SPEED

Press the FAN SPEED button to change fan

speed:

4Turn off the unit

Press the ON/OFF button to turn off the

unit.

The wire controller only shows the clock and

room temperature.

Choose the desired fan speed

COOLING DEHU

AUTO HEATING FAN

LOW FAN MED FAN HIGH FAN

Operation instruction

** ** **

**** **

**/**

Operation instruction Auto/Cooling/Dehumidifying/Heating operation

Hints:

The wire controller can memorize the working condition of each time. When

start the unit for the second time, just need to press ON/OFF button, the air

conditioner will work according to the previous working mode. (except for

Timer, Sleep and Swing)

Turn on the unit

Press the ON/OFF button to turn on the

unit The LCD display of the wire

controller will show the previous

working state (except for TIMER,

SWING, SLEEP mode). The operation

indicator light on the wire controller

will light up.

Choose of working mode

Press MODE button, each press the

working mode will change as the

following sequence:

then choose AUTO, COOLING,

DEHUMIDIFYING, HEATING operation.

Set temperature

*Each press , the set temperature will

increase 1 degree.

*Each press, the set temperature will

decrease 1 degree.

Set the desired temperature.

Press the TEMP. SET button

Adjusting FAN SPEED

Press the FAN SPEED button, for each

press, the fan speed will change as the

following sequence:

Choose the desired fan speed.

In Heating operation, after start

the unit, the air conditioner will

sending warm air a moment

later to prevent the cold air

blowing out. In Dehumidifying,

when the room temperature drops

2*higher than the set

temperature, regardless the set fan

speed, the air conditioner will

intermittently operate in low fan

speed.

** ** **

** ****

**/** 5

5Turn off the unit

Press the ON/OFF button to turn off

the unit.

The wire controller only shows the clock

and room temperature.

AUTO COOLING DEHUMIDIFYING HEATING FAN

AUTO

LOW FAN MED FAN HIGH FAN AUTO

Set temperature + 2*

Set temperature

When room temperature

reaches set temperature

+ 2*, the unit will

operate in mild

dehumidifying

operation.

Ultra-low air flow

When room temperature

is higher than set

temperature, unit in

COOLING operation.

This manual suits for next models

Table of contents

Other Haier Air Conditioner manuals

Haier

Haier FCB-051BCN2A Building instructions

Haier

Haier AP96NACAEA User manual

Haier

Haier HSU-18CK03 User manual

Haier

Haier AE122FCAKA User manual

Haier

Haier HSU-09LEB13-H - annexe 1 User manual

Haier

Haier HSU-09C03/Z1 User manual

Haier

Haier ESAQ406T User manual

Haier

Haier HSM24HEA03 User manual

Haier

Haier 1U18BR4EAA User manual

Haier

Haier HWR05XCJ User manual

Haier

Haier HWR06XC5-T User manual

Haier

Haier inosens 1U35S2SM1FA-2 User manual

Haier

Haier HPR09XC7 User manual

Haier

Haier AS20S2SF2FA-3 User manual

Haier

Haier H2SM-14HC03/R2 User manual

Haier

Haier ESA406M User manual

Haier

Haier AS09FBAHRA User manual

Haier

Haier HSU18VHJ(DB)-W User manual

Haier

Haier AB072FDAHA User manual

Haier

Haier HSU24VC7 HSU24VC7-W User manual

Haier

Haier AP182AZAAA Specification sheet

Haier

Haier AS072AIAAA User manual

Haier

Haier HSU-12HJ03/R2 User manual

Haier

Haier MVAL009MV2AA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
