Haier HSU-09LE04 User manual

Please read this operation manual before using the air conditioner.

OPERATION MANUAL

0010511927

SPLIT TYPE ROOM AIR CONDITIONER

HSU-07LD03

HSU-18LE04

HSU-12LE04

HSU-22LE04

HSU-09LE04

FJT-12L

FJT-18L

FJT-24L

Maximum: D.B/ W.B

10.The appliance must be installed on strong enough supporter.

9.Young children should be supervised ensure that they do not play with the appliance.

8. The appliance is not intended to use by young children or infirm persons without supervision.

7. The waste battery should be disposed properly.

6. After installation, the power plug should be easily reached.

5. The wiring method should be in line with the local wiring standard.

4. The distance between the indoor unit and the floor should be more than 2m.

3. If the fuse on PC board is broken please change it with the type of T. 3.15A/250V.

11.The wiring diagram is attached inside the machine.

or a similar qualified person. The type of connecting wire is H05/07RN-F or 245IEC57(YZW).

2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent

Cautions

The machine is adaptive in following situation

I. Applicable ambient temperature range:

Cooling

Indoor

Outdoor

Maximum: D.B / W.B 32oC/23oC

18oC/14oC

43oC/26oC

18oC

Minimum: D.B / W.B

Minimum: D.B

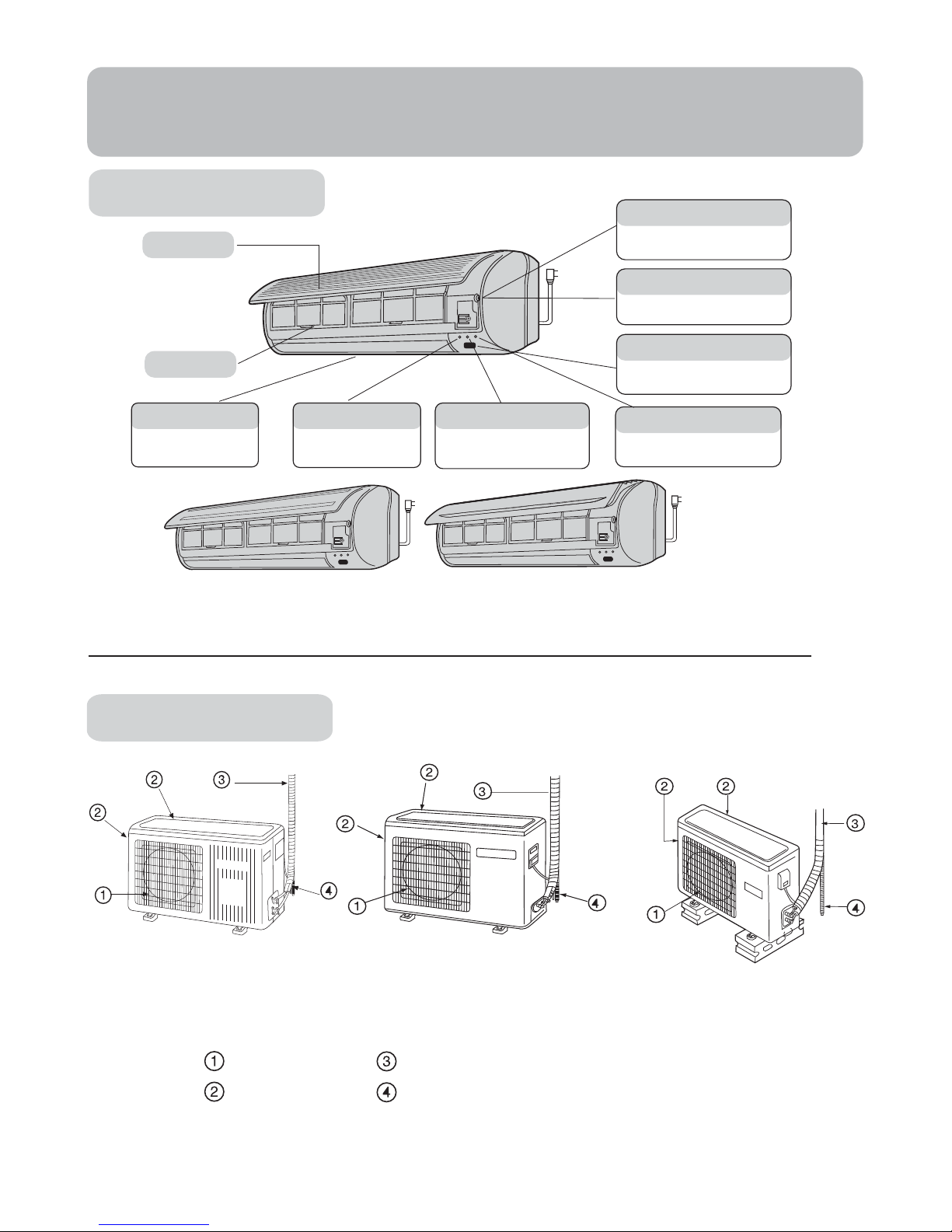

Parts and Functions

Indoor Unit

Inlet grille

Air filter

Horizontal flap Power indicator Timer mode indicator Operation mode indicator

Remote signal receiver

Emergency switch(manual)

Test running switch(manual)

Use remote controller to

adjust up and down air flow.

(Don't adjust it manually.)

Lights up when unit starts. Lights up when Timer operation

is selected. Lights up during compressor

running.

A beeping sound is generated when

a signal from remote controller is

received.

Used when remote controller is lost or

defective. Unit will run temporarily.

Used only for test running in cooling

when room temp. is below 16

Don't use it in normal operation.

OUTLET

INLET

CONNECTING PIPING AND ELECTRICAL WIRING

DRAIN HOSE

Outdoor Unit

HSU-18LE04

HSU-09LE04 HSU-12LE04

For 22k unit, the power plug is on the outdoor unit

Actual inlet grille may vary from the one shown in the manual according to

the product purchased

HSU-22LE04

HSU-07LD03

FJT-12L FJT-18L

FJT-24L

Parts and Functions

Operation

NOTE: Cooling only unit do not have displays and functions related with heating

ON/OFF TEMP

MODE SET

FAN TIMER

SWING CLOCK

SLEEP

LOCK RESET

ON OFF

HEALTH

FAN

DRY

COOL

AUTO

1. Mode display

2. SWING display

3. FAN SPEED display LO MED HIAUTO

5. SLEEP display

6. LOCK display

7. SIGNAL SENDING display

8. TIMER OFF display

9. TIMER ON display

10. CLOCK display

11. TEMP display

12. POWER ON/OFF

Used for unit start and stop.

13. MODE

Used to select AUTO run, COOL,

DRY and FAN operation

14. FAN

Used to select fan speed LO, MED, HI, AUTO

15. HOUR

Used to set clock and timer setting.

16. SWING

Used to set auto fan direction.

17. SLEEP

Used to select sleep mode.

18. LOCK

Used to lock buttons and LCD

display.

19. TEMP.

Used to select your desired temp.

20. SET

Used to confirm timer and clock settings.

21. TIMER

Used to select TIMER ON, TIMER OFF,

TIMER ON-OFF

22. CLOCK

Used to set correct time

23. RESET

normal condition.

Used to reset the controller back to

4. HEALTH display

24. HEALTH

Used to operate the healthy function

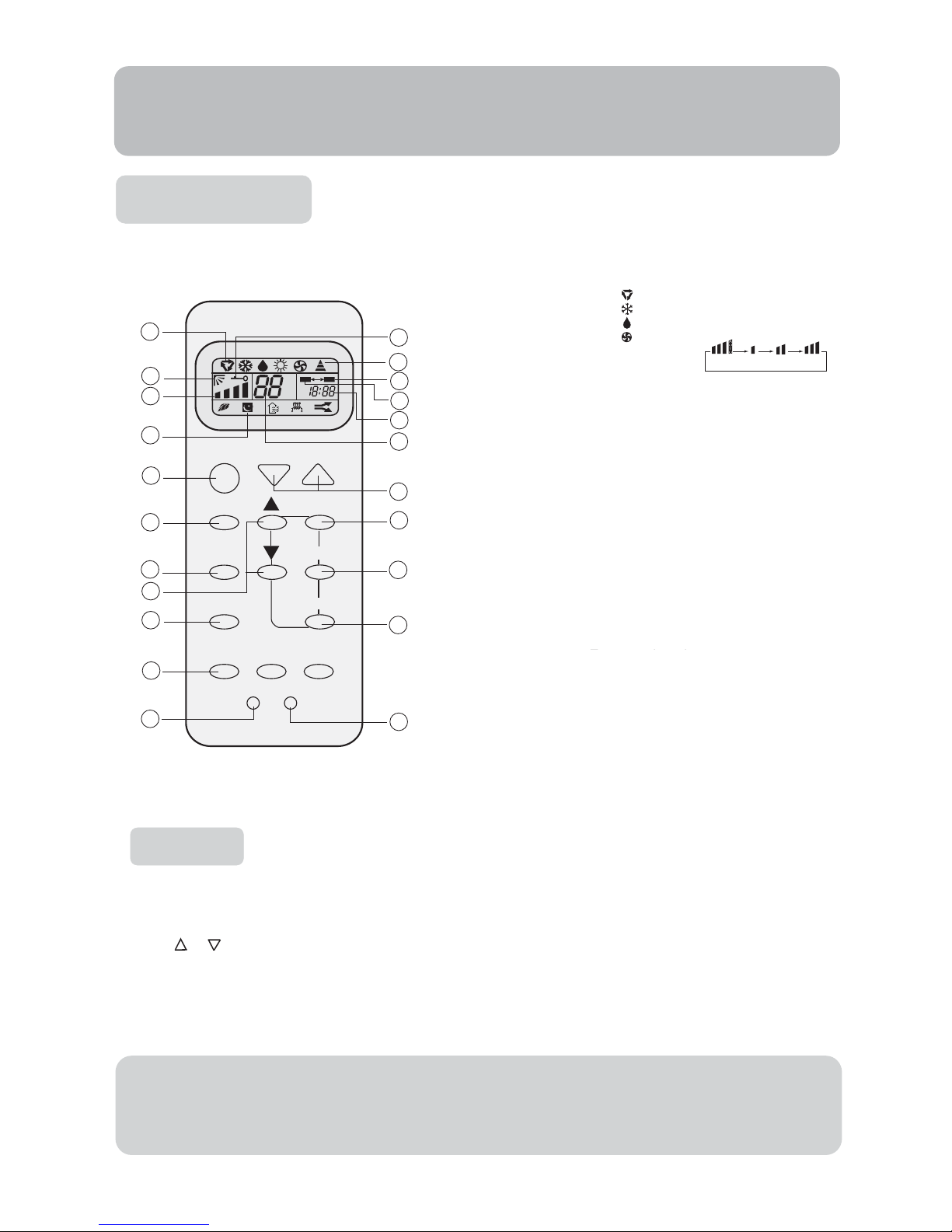

Buttons and display of the remote controller.

Clock set

When unit is started for the first time and after replacing batteries in remote controller,

clock should be adjusted as follows:

Press CLOCK button, "AM" or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the

button is kept depressed, time will change quickly.

After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock

starts working.

Hints

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

Parts and Functions

Operation

Hints

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

NOTE: Cooling only unit do not have displays and functions related with heating

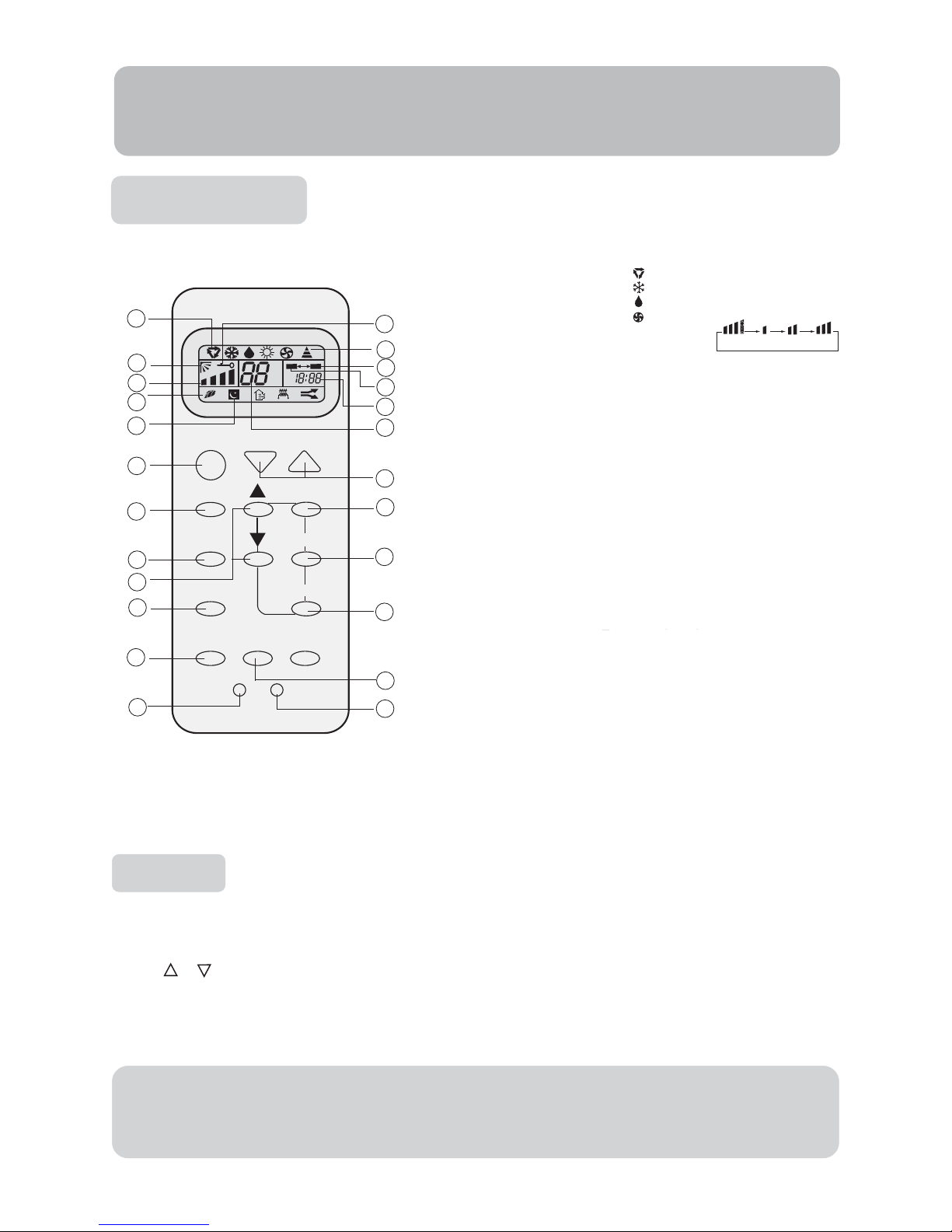

Buttons and display of the remote controller.

like the following figure:

If the unit which you purchased has not healthy function, Remote controller should

ON/OFF TEMP

MODE SET

FAN TIMER

SWING CLOCK

SLEEP

LOCK RESET

ON OFF

FAN

DRY

COOL

AUTO

1. Mode display

2. SWING display

3. FAN SPEED display

4. SLEEP display

5. LOCK display

6. SIGNAL SENDING

7. TIMER OFF display

8. TIMER ON display

9. CLOCK display

10. TEMP display

11. POWER ON/OFF

Used for unit start and stop.

12. MODE

Used to select AUTO run, COOL,

DRY and FAN operation

13. FAN

Used to select fan speed LO, MED, HI, AUTO

14. HOUR

Used to set clock and timer setting.

15. SWING

Used to set auto fan direction.

16. SLEEP

Used to select sleep mode.

17. LOCK

Used to lock buttons and LCD

display.

18. TEMP.

Used to select your desired temp.

19. SET

Used to confirm timer and clock settings.

20. TIMER

Used to select TIMER ON, TIMER OFF,

TIMER ON-OFF

21. CLOCK

Used to set correct time

22. RESET

normal condition.

Used to reset the controller back to

LO MED HIAUTO

Clock set

When unit is started for the first time and after replacing batteries in remote controlle

clock should be adjusted as follows:

Press CLOCK button, "AM" or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the

button is kept depressed, time will change quickl

After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock

starts working.

Operation

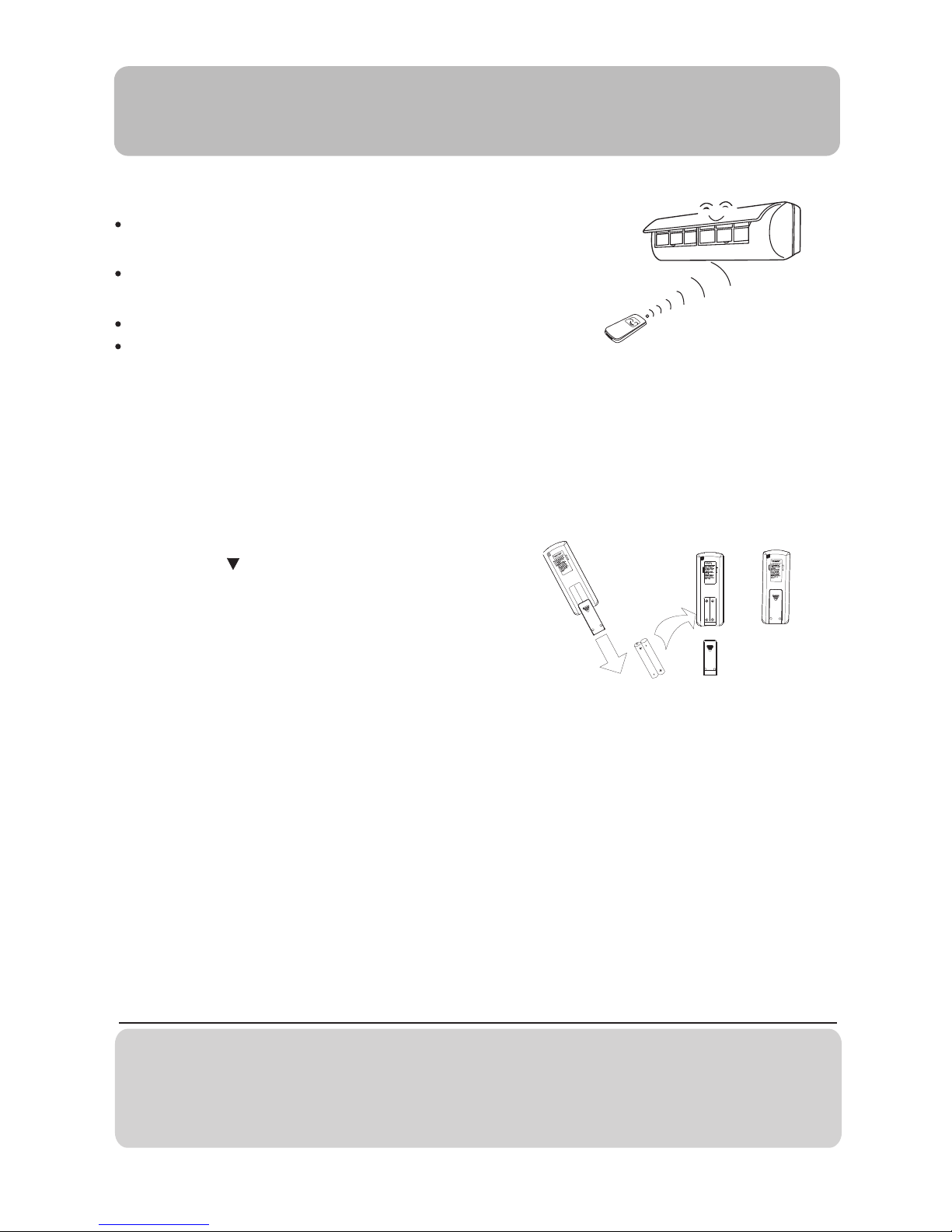

Remote controller's operation

When in use, put the signal transmission head directly to the

receiver hole on the indoor unit.

The distance between the signal transmission head and the

receiver hole should be within 7m without any obstacle as well.

Don't throw the controller, prevent it from being damaged.

When electronic-started type fluorescent lamp or change-over

type fluorescent lamp or wireless telephone is installed in the

room, the receiver is apt to be disturbed in receivering the signals

so the distance to the indoor unit should be shorter.

Loading of the battery

Load the batteries as illustrated. 2 R-03 batteries, resetting key (cylinder)

Remove the battery cover:

Slightly press " " and push down the cover.

Load the battery:

Be sure that the loading is in line with the" + "/"-"

pole request as illustrated.

Put on the cover again

Confirmation indicator:

In disorderation, reload the batteries or load the new batteries after 6mins.

Note:

Use two new same-typed batteries when loading.

If the remote controller can't run normally or doesn't work at all,

use a sharp pointed item to press the reset key.

Hint:

Remove the batteries in case unit won't be in usage for a long period.

If there are any display after taking-out just need to press reset key.

Power failure resume(please set and apply as necessary)

If sudden power failure occurs, the unit will resume original operation when power is

supplied again.

Note: When sudden power failure happens during unit operation in power failure resume mode,

the air conditioner is not desired for use in a long period, please shut off the power

supply in case that the unit automatically resume operation when power is re-supplied,

or press ON/OFF to turn off the unit when power resumes.

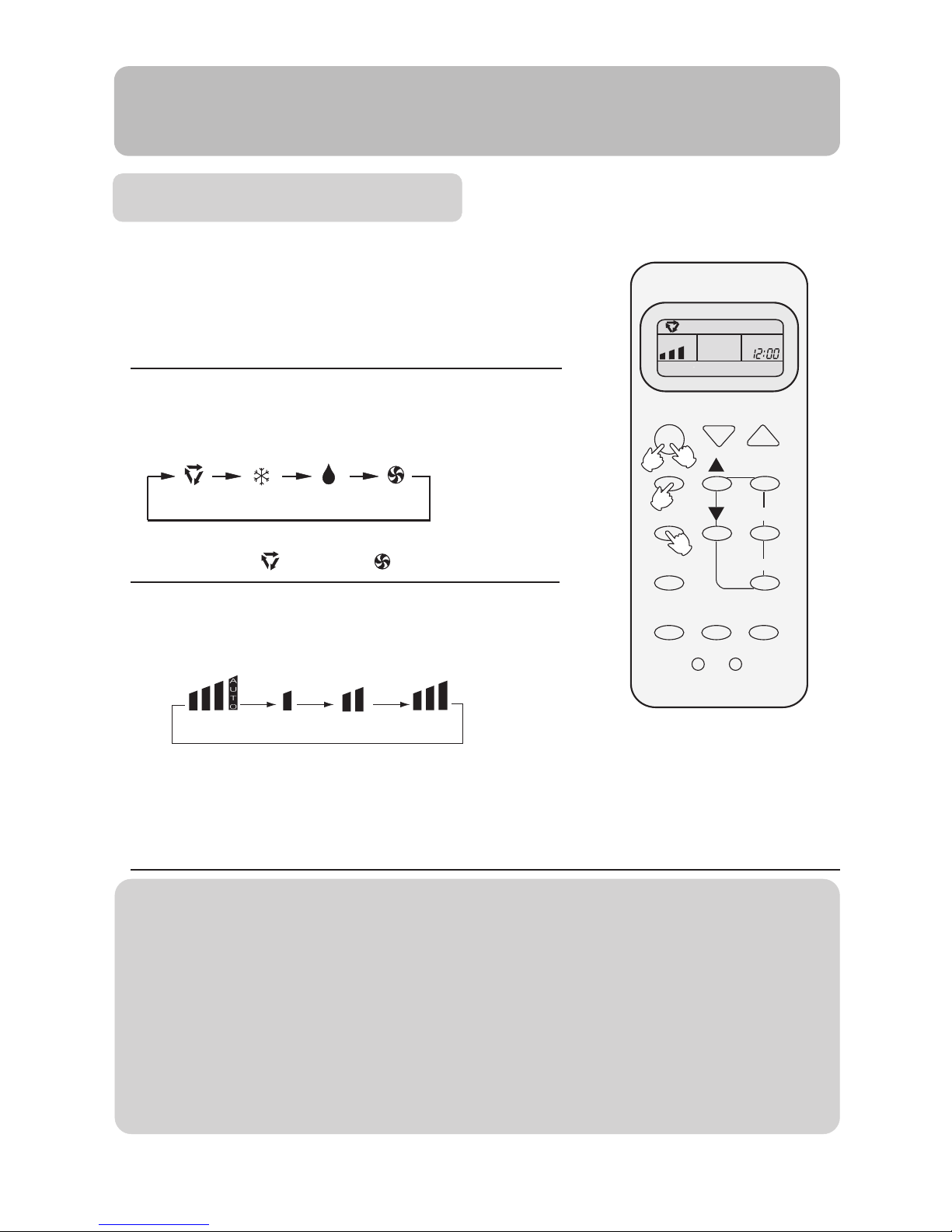

(4) Unit stop

(1) Unit start

Auto run, Fan operation Enjoy yourself by just a gentle press.

Operation

mode changes as follows:

Press ON/OFF button, unit starts.

Previous operation status appears on display.

(Not Timer setting)

Power indicator on indoor unit lights up.

(2) Select operation mode

Press MODE button. For each press, operation

AUTO COOL DRY FAN

Unit will run in selected mode.

Stop display at " " AUTO or " "FAN.

(3) FAN

Press FAN button. For each press, fan speed changes

as follows:

AUTO LO MED HI

Unit will run at selected fan speed.

Note:AUTO is not available in FAN mode. Press ON/OFF button.

Only time remains on LCD.

All indicators on indoor unit go out.

Vertical flap closed automatically.

Hints

Remote controller can memorize settings in each operation mode. To run it next time just

select the operation mode and it will start with the previous setting.

No reelecting is needed.(TIMER ON/OFF needs reelecting)

Cautions: Note:

On cooling only unit, heating mode is not available, The above information is the

After replacing batteries, press ON/OFF, and display explanation of the displayed

becomes as follows: information therefore varies

Operation mode: AUTO, Temp. No with those displayed in actual

operation.

ON/OFF TEMP

SET

TIMER

CLOCKSWING

SLEEP

LOCK RESET

FAN

MODE

HEALTH

Press MODE button. For each press, operation

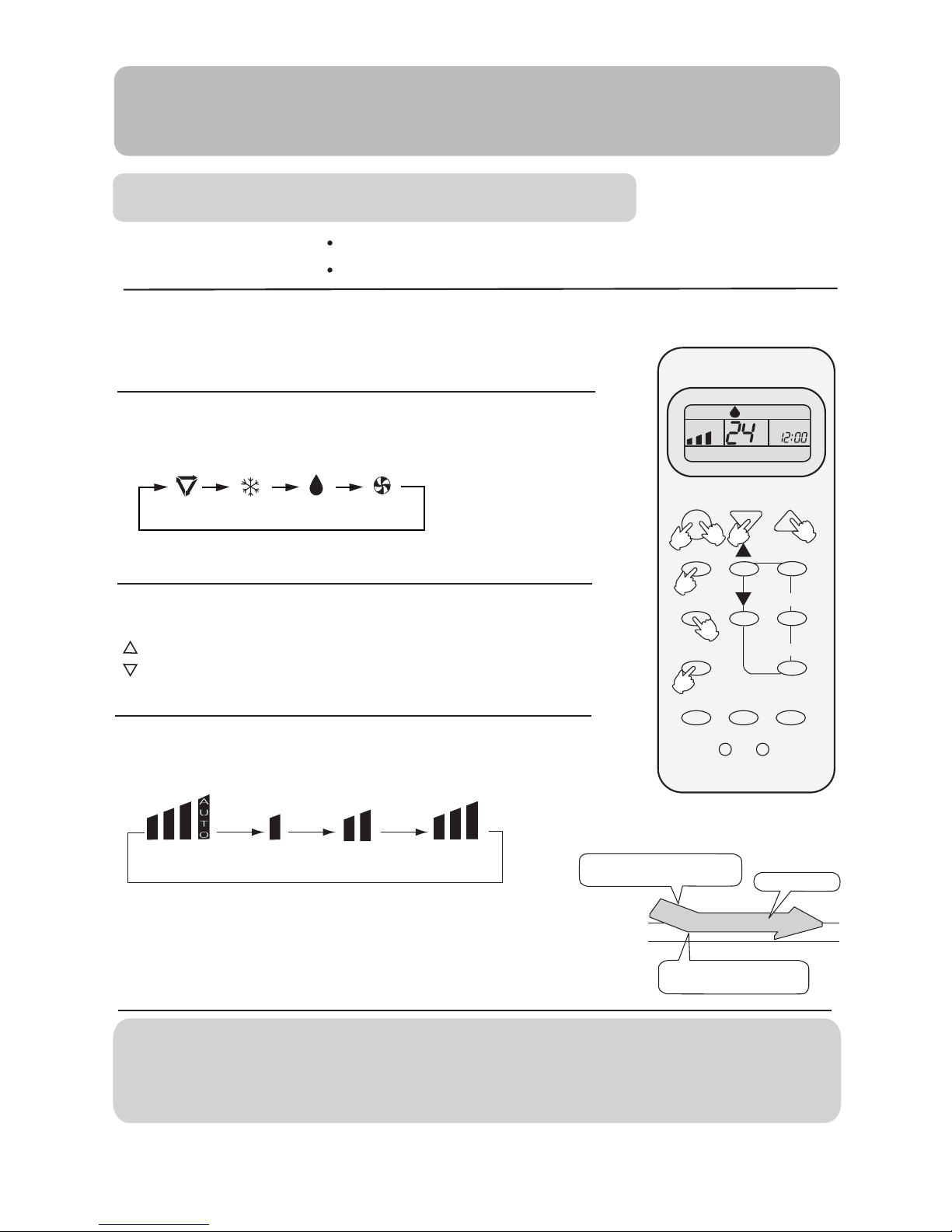

Recommendations:

Operation

COOL and DRY operation

Use COOL in summer.

Use DRY in spring, autumn and in damp climate.

(1) Unit start

mode changes as follows:

Press ON/OFF button, unit starts.

Previous operation status appears on display. (Not Timer setting)

Power indicator on indoor unit lights up.

(2) Select operation mode

AUTO COOL DRY FAN

Unit will run in operation mode displayed on LCD.

Stop display at your desired mode.

(3) Select temp. setting

Press TEMP button.

Every time the button is pressed, temp. setting increases 1oC

Every time the button is pressed, temp. setting decreases 1oC

Unit will start running to reach the temp. setting on LCD.

Press FAN button. For each press, fan speed changes

(4) Fan speed selection

as follows:

AUTO LO MED HI

just press ON/OFF button and unit will run in previous status.

Unit runs at the speed displayed on LCD.

Hints

On cooling only unit, heating mode is not available.

Remote controller can memorize each operation status. When starting it next time,

COOL operation starts when room

temp. is higher than temp. setting. Ultra-low air flow

Temp. setting+2oC

Temp. setting

On reaching temp. setting, unit

will run in mild DRY mode.

ON/OFF TEMP

SET

TIMER

CLOCKSWING

SLEEP

LOCK RESET

FAN

MODE

In DRY mode, when room temperature becomes

lower than temp.setting+2oC,unit will run intermittently

at LOW speed regardless of FAN setting.

HEALTH

Operation

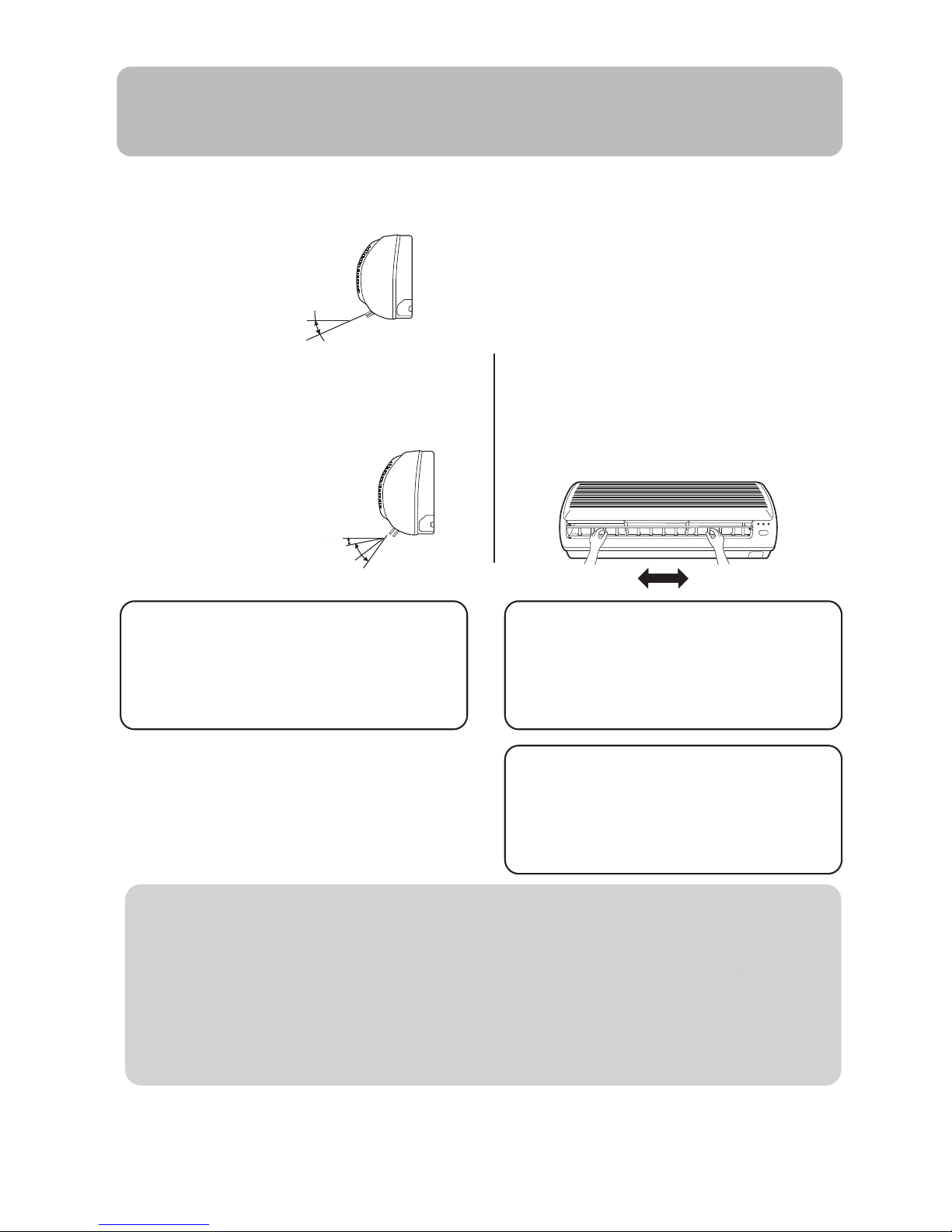

(5) Air flow direction adjustment

After operation mode is selected, horizontal flap will open automatically according to the mode.

Referring to the Fig.

COOL

About 10o

better set a temp. difference of 3-5oC between indoor and outdoor temp. in COOL mode.

Hints

As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more

helpful for a better air circulation.

Be careful not to catch a cold when cold air blows downward.

It is harmful to your health in summer to go frequently in and out of places where temp.

difference is above 7oC. Temp. difference of 3-5oC will remove your fatigue.

More than this, unit's load can be reduced and power consumption cut down as well. So, you'd

(6) Unit stop

Press ON/OFF button.

Only time remains on LCD.

All indicators on indoor unit go out.

horizontal flap automatically.

Cautions:

Unit won't restart until 3 minutes have

elapsed, due to system protection.

HEAT mode is not available on

cooling only unit.

It is advisable not to keep horizontal flap at

downward position for a long time in COOL

or DRY mode, otherwise, condensate water

might occur.

Cautions: Cautions:

When humidity is high, condensate water

might occur at air outlet if all vertical

louvers are adjusted to left or right.

Move the vertical blade by a knob on air

conditioner to adjust left and right direction

referring to Fig.

Left and right air flow adjustment

(manual)

Press SWING button, horizontal flap will move

within the range shown in the Fig. Press SWING

button stop it at a fixed position.

Up and down (Use remote controller)

About 45o

Other manuals for HSU-09LE04

This manual suits for next models

Table of contents

Other Haier Air Conditioner manuals

Haier

Haier FlexFit Pro Series User manual

Haier

Haier Commercial Cool CPN14XC9 User manual

Haier

Haier HW-18CM03 User manual

Haier

Haier HWR12XC9 User manual

Haier

Haier AW094AAMBA User manual

Haier

Haier HSU-09RS03/R2(SDB) User manual

Haier

Haier HPM07XC5 User manual

Haier

Haier HSU-07HV03/R2 User manual

Haier

Haier AS072XCBAA Instruction Manual

Haier

Haier ESA3243 User manual

Haier

Haier HSU-36LPA03R2T3 User manual

Haier

Haier 1U09EH2VHA User manual

Haier

Haier MRVII-S AU282FHERA User manual

Haier

Haier AB12CS1ERA User manual

Haier

Haier HPP10XCT User manual

Haier

Haier AD25S2PS1FA User manual

Haier

Haier HSU-18LXA03 User manual

Haier

Haier HWF05XCK User manual

Haier

Haier HSU-12RUE03 User manual

Haier

Haier AS50TDDHRA-CLC User manual

Haier

Haier ESAD4089 User manual

Haier

Haier H2SM- - annexe 13 User manual

Haier

Haier HTWR10XCK Assembly instructions

Haier

Haier HPY08XCM User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
