Gree WHD(18)ND3CO User manual

MODELS:

GWHD(18)ND3CO

GWHD(24)ND3CO

GWHD(30)ND3CO

Change for Life

Split Air Conditioner

Owner's Manual

Residential Air Conditioners

Thank you for choosing Residential Air Conditioners,please read this owner’s

manual carefully before operation and retain it for future reference.

Add: West Jinji Rd, Qianshan, Zhuhai, Guangdong, China, 519070

Tel: (+86-756) 8522218 Fax: (+86-756) 8669426

E-mail: [email protected] www.gree.com

GREE ELECTRIC A PPLIANCES, INC. OF ZHUHAI

66163066

Technical Data

Electrical Connections

Installing The Outdoor Unit

Maintenance

Installation Dimension Diagram

Check After Installation

Bleeding

Conformity And Range

The Instructions Before Use

Name of Parts

Outdoor Unit Working Temperature Range

GENERAL

INSTALLER INFORMATION

CONTENTS

In line with the company’s policy of continual product improvement, the aesthetic and dimensional characteristics,

technical data and accessories of this appliance may be changed without notice.

CONFORMITY AND RANGE GENERAL INFORMATION

GENERA L INFORMATION

Please read this owner's manual carefully before operating the unit and keep it carefully for consultation.

The products in this manual may be different with the real one, according to different

models, some models have displayer and some models without displayer, the position

and shape of the displayer please refer to the real one.

The air conditioner you have purchased is in conformity with the following American Directives

UL1995:

Only use the air conditioner as instructed in this booklet. These instructions are not intended to cover every

possible condition and situation. As with any electrical household appliance, common sense and caution are

therefore always recommended for installation, operation and maintenance.

WARNING

When having a burning smell

or smoke, please turn off the power

supply and contact with the service

may be damaged, and may cause

center .

If the abnormity still exists, the unit

electric shock or fire.

Power must adopts the special

circuit to prevent fire.

Otherwise, it can cause electric

shock or fire.

Otherwise, the accumulated dusts

may cause overheating or fire.

Never damage the electric wire or

use the electric wire which is not

appointed.

Otherwise, it will cause overheating or

fire.

Cut off power supply

THE INSTRUCTIONS BEFORE USE GENERA L INFORMATION

Don't attempt to repair the air

conditioner by yourself.

Please note whether the installed

stand is firm enough or not.

Don't step on the top of the outdoor

unit or place something on it.

As falling off the outdoor unit can be

dangerous.

If it is damaged, it may lead to the

fall of the unit and cause the injury.

The wrong repair will lead to an electric

shock or fire, so you should contact the

service center to repair.

Earthing: The unit must be reliably

earthed. The earthing cable shall

be connected to the special earthing

device in the construction.

Never cut off or damage power

cables and control wires. If the

power cable and signal control wire

were damaged, change them by

professional.

When cleaning, it is necessary

to stop driving and turn off the

power supply.

Otherwise, it may cause electric

shock or damage.

Disconnect the power supply if

long putting the air conditioner out

of use.

The power supply must adopt

the special circuit that with air switch

protection and assure it has enough

capacity. The unit will be turned on or

off according to your requirement

automatically, please do not turn on

or turn off the unit frequently, otherwise

disadvantage effect may be caused

to the unit.

Rated voltage of this air conditioner

208-230V,60Hz, The compressor

will vibrate sharply if the voltage is

too low, resulting in damage to

refrigerating system. Electrical

component are easy to damage if

the voltage is too high.

Note:the above figures are only intended to be a simple

diagram of the appliance and may not correspond to

the appearance of the units that have been purchased.

OUTDOOR UNIT

N o. Description

1 Air outlet grille

2Valve

The temperature of refrigerant circuit will be high,please keep the

interconnection cable away from the copper tube.

Be sure to cut off the power supply before cleaning the air conditioner;

otherwise electric shock might happen.

Wetting of air conditioner may cause the risk of electric shock. Make

sure not to wash your air conditioner in any case.

Volatile liquids such as thinner or gasoline will cause damage to the

appearance of air conditioner. (Only use soft dry cloth moist cloth clean

the air conditioner cabinet).

Do not dispose this product as unsorted municipal waste.

Collection of such waste separately for special treatment

is necessary.

If the supply cable is damaged, it must be replaced by the manufacturer

or its service agent or a similarly qualified person in order to avoid a hazard.

OUTDOOR UNIT

N o. Description

1 Air outlet grille

2Valve

GENERAL INFORMATION

The temperature of refrigerant circuit will be high,please keep the interconnection cable away

from the copper tube.

Note:the above figures are only intended to a simple

diagram of the appliance and may not correspond to the

appearance of the units that have been purchased.

GWHD(24)ND3CO,GWHD(30)ND3CO

GWHD(18)ND3CO

NAME OF PARTS

Warning

Wetting of air conditioner may cause the risk of electric shock. Make sure not to wash your

air conditioner in any case.

Be sure to cut off the power supply before cleaning the air conditioner; otherwise electric

shock might happen.

This product must not be disposed together with the domestic waste.

This product has to be disposed at an authorized place for recycling

of electrical and electronic appliances.

Volatile liquids such as thinner or gasoline will cause damage to the appearance of

air conditioner. (Only use soft dry cloth moist cloth clean the air conditioner cabinet).

Maximum cooling

Minimum cooling

Maximum heating

Minimum heating

OutdoorsideDB/WB( )

48/-

-5/-

27/-

-15/-

OUTDOOR UNIT WORKING TEMPERATURE RANGE GENERALINFORMATION

TECHNICAL DATA GENERAL INFORMATION

TECHNICALDATA GENERA L INFORMATION

Minimum power cable section

40 40

4.0

Fuse or air switch

2200 2200

890

362

700

560

368

MODE GWHD(24)ND3CO

GWHD(18)ND3CO

208/230V/1~60Hz

mm2

Refrigerant gas(R410A)

GWHD(30)ND3CO

Minimum power cable section

2.5

Fuse or air switch

1350

818

378

596

550

354

MODE

Electricity supply

Electrical data

Electricity supply

208/230V/1~60Hz

mm2

Refrigerant gas(R410A)

Size and clearance

All power cables and connection cables must be protected with conduits.

Wrong wire connection may cause malfunction of some

electric components.After fixing cable, ensure that

An all-pole disconnection switch having a contact

separation of at least 3mm in all pole should be

connected in fixed wiring.

leads between connection to fixed point have some space.

Remove the cable clamp, connect the connection

1. R

emove the handle at the right side plate of the

outdoor unit (six screw).

Fix power connection wire by wire clamp.

Ensure wire has been fixed well.

Install the handle.

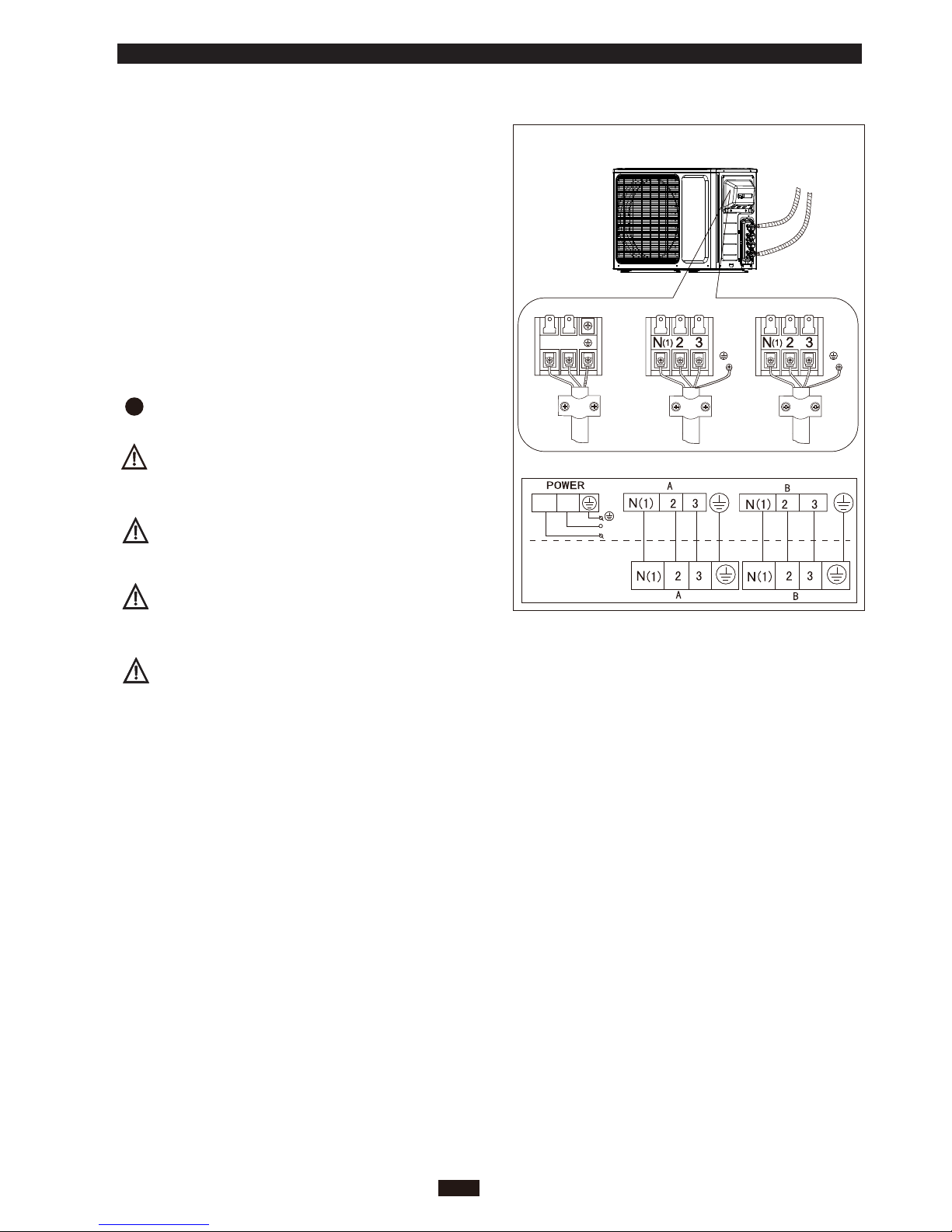

ELECTRICAL CONNECTIONS INSTALLER

the unit A and unit B must be corresponding to each

other respective.

national wiring regulations.

To the power supply

To unit B

cable cable

To unit A

GWHD(18)ND3CO

L1 L2

ELECTRICAL CONNECTIONS INSTALLER

cable cable cable

power

cable and power cable with the terminal at the row of

connection and fix the connection. The fitting line

distributing must be consistent with the indoor unit

terminal of line bank.

Wiring should meet that of indoor unit.

The connection pipes and the connectiong wirings of

The appliance shall be installed in accordance with

Note: the above figures are only intended to be a simple

diagram of the appliance and may not correspond to the

appearance of the units that have been purchased.

connecting connecting

Remove the cable clamp, connect the connection cable

and power cable with the terminal at the row of connection

and fix the connection. The fitting line distributing must be

consistent with the indoor unit terminal of line bank.

Remove the handle at the right side plate of the

outdoor unit (ten screw).

Wiring should meet that of indoor unit.

Fix power connection wire by wire clamp.

Ensure wire has been fixed well.

Install the handle.

ELECTRICAL CONNECTIONS INSTALLER

GWHD(24)ND3CO

Wrong wire connection may cause malfunction of some

electric components.After fixing cable, ensure that

An all-pole disconnection switch having a contact

separation of at least 3mm in all pole should be

connected in fixed wiring.

leads between connection to fixed point have some space.

The connection pipes and the connectiong wirings of

the unit A ,unit B and unit C must be corresponding to each

other respective.

The appliance shall be installed in accordance with

national wiring regulations.

Do not install the outdoor unit where it is exposed

to the sunlight.

Note: the above figures are only intended to be a simple

ehtotdnopserroctonyamdnaecnailppaehtfomargaid

appearance of the units that have been purchased.

To the power supply

To unit B

To unit A

cable

connection

power connection

cable

To unit C

connection

cable

Outdoor unit

Indoor unit

L1 L2

Power

cable

connection cable

1) The power cable should be put in from the hole under

connection cable cover.

2) If connecting with two indoor units, the connection cable

should be put in from hole A and hole B.

3) If connecting with three indoor units, the connection cable

should be put in from hole A , B and C.

4) If connecting with four indoor units, the connection cable

should be put in from hole A, B , C and D.

All power cables and connection cables must be protected with conduits.

Remove the handle at the right side plate of the

outdoor unit (ten screw).

Fix power connection wire by wire clamp.

Ensure wire has been fixed well.

Install the handle.

ELECTRICAL CONNECTIONS INSTALLER

Wrong wire connection may cause malfunction of some

electric components.After fixing cable, ensure that

An all-pole disconnection switch having a contact

separation of at least 3mm in all pole should be

connected in fixed wiring.

leads between connection to fixed point have some space.

The connect ion pipes and the connectiong wirings of

the unit A ,unit B,unit C and unit D must be corresponding

to each other respective.

The appliance shall be installed in accordance with

national wiring regulations.

Do not install the outdoor unit where it is exposed

to the sunlight.

HANDLING USER

GWHD(30)ND3CO

Power

cable

connection cable

1) The power cable should be put in from the hole under

connection cable cover.

2) If connecting with two indoor units, the connection cable

should be put in from hole A and hole B

3) If connecting with three indoor units, the connection cable

should be put in from hole A , B and C

4) If connecting with four indoor units, the connection cable

should be put in from hole A, B , C and D.

All power cables and connection cables must be protected with conduits.

To the power supply

To unit B

To unit A

connection

cable

connection

cable

To unit C

connection

cable

To unit D

connection

cable

Outdoor unit

Indoor unit

L1 L2

N(1) 2 3 N(1) 2 3 N(1) 2 3 N(1) 2 3

AB C D

power

cable

After having removed the packaging, check that the

contents are intact and complete.

The outdoor unit must always be kept upright.

Handling must be done by suitably equipped qualified

technical personnel using equipment that is for suitable

the weight of the appliance .

Remove the cable clamp, connect the connection cable

and power cable with the terminal at the row of connection

and fix the connection. The fitting line distributing must be

consistent with the indoor unit terminal of line bank.

Wiring should meet that of indoor unit.

Vacuum pump

INSTALLER

Humid air left inside the refrigerant circuit can cause com-

pressor malfunction. After having connected the indoor

and outdoor units, bleed the air and humidity from the

refrigerant circuit using a vacuum pump.

(1) Unscrew and remove the caps from the 2-way and 3-

way valves.

(2) Unscrew and remove the cap from the service valve.

(3) Connect the vacuum pump hose to the service valve.

(4) Operate the vacuum pump for 10-15 minutes until an

absolute vacuum of 10 mm Hg has been reached.

(5) With the vacuum pump still in operation, close the

low-pressure knob on the vacuum pump coupling. Stop

the vacuum pump.

(6) Open the 2-way valve by 1/4 turn and then close it

after 10 seconds.Check all the joints for leaks using

liquid soap or an electronic leak device.

(7) Turn the body of the 2-way and 3-way valves. Discon-

nect the vacuum pump hose.

(8) Replace and tighten all the caps on the valves.

BLEEDING INSTALLER

INDOOR

UNIT

Vacuum pump Vacuum pump

Connect to the

indoor unit

Location

Twisting moment (N.m)

35-40

60-65

45-50

70-75

Φ12

Φ19

Diameter (mm)

Φ9.52

Φ16

15-20

Φ6

(9) If the specification of outdoor unit gas valve is 3/8＂,

but curstomer needs to install 1/2＂indoor unit so that

it is need to use a “pipe joint subassembly” (Code 06643008)

to make a conversion joint with outdoor unit gas valve and

connection pipe, as show in following.

conversion joint

Refrigerant fluid direction of flow

3-way valve

2-way valve

Service

inlet

(2)Turn

(8) Secure

(7)Turn to open fully

(2)Turn

(8) Secure

Valve cap

(6) Open by 1/4 turn

(7)Turn to open fully

(2)Turn

(8) Secure

Valve cap

Drain-water hole

Bottom frame

Drain plug

Hose (available commercially,

inner dia. 16mm)

Drain connecter

Use bolts to secure the unit to a flat, solid floor.

When mounting the unit on a wall or the roof, make

sure the support is firmly secured so that it cannot

move in the event of intense vibrations or a strong

wind.

Do not install the outdoor unit in pits or air vents

Installing the pipes

Install the drain fitting and the drain hose(for

model with heat pump only)

Condensation is produced and flows from the outdoor unit

when the appliance is operating in the heating mode. In order

not to disturb neighbours and to respect the environment,

install a drain fitting and a drain hose to channel the conden-

sate water. Install the drain fitting and rubber washer on the

outdoor unit chassis and connect a drain hose to it as shown

in the figure.

Use suitable connecting pipes and equipment for the

refrigerant R410A.

Wrap all the refrigerant pipes and joints.

Tighten the connections using two wrenches working

in opposite directions.

Caution: Installation Must be Performed in Accordance

with the NEC/CEC by Authorized Personnel Only

Models(m) 18K 24/30K

Max. connection pipe length 20 70

Max. connection pipe length(Simple

one indoor unit) 10 20

The refrigerant pipes must not exceed the maximum

heights 5m(18K) or 10m(24K&30K).

INSTALLING THE OUTDOOR UNIT

MAINTENANCE INSTALLER

INSTALLATION DIMENSION DIAGRAM

The installation must be done by trained and qualified service personnel with reliability according to this manual.

30cm

Space to the cover

or above

30cm

50cm

200cm

or more

Space to the cover

(Air inlet side)

or above

Space to the wall

(Air outlet side)

or above

50cm

This is just the schematic plan, please refer to the actual product.

GWHD(18)ND3CO

GWHD(24)ND3CO, GWHD(30)ND3CO

30cm

(Air inlet side)

or above

50cm

or above

Space to the wall

200cm

(Air outlet side)

or above

30cm

Space to the cover

or above

or more

Space to the cover

50cm

INSTALLER

Use suitable instruments for the refrigerant R410A.

Do not use any other refrigerant than R410A.

Do not use mineral oils to clean the unit.

Contact service center before installation to avoid the malfunction due to unprofessional installation.

When picking up and moving the units, you must be guided by trained and qualified person.

Ensure that the recommended space is left around the appliance .

This manual suits for next models

Table of contents

Other Gree Air Conditioner manuals

Gree

Gree GVC36ALXH-K3NTC7A User manual

Gree

Gree GWH09ACC-K6DNA1F/I User manual

Gree

Gree DC Inverter Multi VRF User manual

Gree

Gree GWH09RB-K3DNA2C User manual

Gree

Gree GWC30LB-D3DNA3H User manual

Gree

Gree Vireo Gen 3 3VIR09HP115V1AH User manual

Gree

Gree BORA GWH12AAB User manual

Gree

Gree FGR20Pd/DNa-X User manual

Gree

Gree CROWN09HP230V1A User manual

Gree

Gree GWH18RC-K3DNA2C User manual

Gree

Gree MULTI24HP230V1EO Operating instructions

Gree

Gree 13-04582 User manual

Gree

Gree Bright Series User manual

Gree

Gree E-TAC II Operating instructions

Gree

Gree GMV-ND30PLS/C-T User manual

Gree

Gree GWH07NA-K3NNA4A User manual

Gree

Gree GWH09AB-A3DNA1B User manual

Gree

Gree GMV-ND22PL/B-T User manual

Gree

Gree GC201109-I User manual

Gree

Gree GAC09AA-A3RNB4C User manual

Gree

Gree GWH09AGA-K6DA1A User manual

Gree

Gree GWH09KF-K3DN series User manual

Gree

Gree NEO09HP115V1A User manual

Gree

Gree GWHN24FANK3A1B User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
