Gree CROWN09HP230V1A User manual

Models:

CROWN09HP230V1A

CROWN12HP230V1A

CROWN18HP230V1A

HIGH-WALL DUCTLESS

AIR CONDITIONING & HEATING SYSTE

INSTALLATION ANUAL

Table of Contents

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Suggested Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installation Site Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9

Indoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Outdoor Unit Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12

Piping Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-16

Power and Wiring Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-19

Testing and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-23

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25

Diagnostic Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-28

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Thank you for choosing a Crown

High-Wall Unit for your customer.

Please read this installation manual carefully before installing and starting up the

Crown System. Take a moment to fill out the product and installation form on the

back cover. Retain both the manual and installation record for future reference.

SAFETY PRECAUTIONS

Please read the following before operation.

Recognize safety information. This is the safety-alert symbol. When you see this

symbol on the unit and in instructions or manuals, be alert to the potential for personal

injury. Understand these signal words: DANGER, WARNING, and CAUTION. These

words are used with the safety-alert symbol.

DANGER identifies the most serious hazards which will result in severe personal injury

or death.

WARNING signifies hazards which could result in personal injury or death.

CAUTION is used to identify unsafe practices which may result in minor personal

injury or product and property damage.

NOTE is used to highlight suggestions which will result in enhanced installation,

reliability, or operation.

This appliance is not intended for use by children without responsible adult supervision.

Proper care should be taken to ensure safety.

Heat pumps, air conditioners & heating equipment should be installed, started up, and

serviced only by qualified installers and service technicians. Air conditioning, heat pumps

and refrigeration systems are hazardous due to high voltage electrical components,

high refrigerant pressures, and moving parts.

NOTE: Your actual air conditioning & heating system and related devices may differ

from the images shown in this manual.

WARNING

SAFETY PRECAUTIONS

• The unit should be installed and serviced only by trained, qualified installers and service

technicians. Untrained personnel can perform basic maintenance functions such as

cleaning coils. All other operations should be performed by trained service personnel.

• Owner should be cautioned that children should not play with the appliance.

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury or death.

• Before installing, servicing or modifying the system, the main electrical disconnect

switch must be in the OFF position. There may be more than one disconnect switch.

ock out and tag all switches with a warning label.

General Safety Precautions

• A dedicated power supply circuit should be used in accordance with local electrical

safety regulations and National Electrical Codes (NEC).

• Ensure that the entire system is properly grounded.

• Use a properly sized circuit breaker to protect equipment against short circuit and

overload conditions.

• The system must be positioned at least 5 feet from combustible surfaces.

• Observe all local codes and regulations.

Installation Site Instructions

A proper installation site is vital for correct and reliable operation of the system.

Avoid the following installation locations :

• High heat sources, vapors, flammable gas or volatile liquids.

• High-frequency electro-magnetic waves, generated by radio equipment, welders

or medical equipment.

WARNING

CROWN

Cooling Capacity

09 - 9,000 BTUH

12 - 12,000 BTUH

18 - 18,000 BTUH

Series Designation

Revision Level

Style/Color Designation

Example: CROWN12HP230V1AO

O12 HP 230V 1A

TERRA

RIO

NEO

CROWN

Model Type

AC - Cooling Only

HP - Heat Pump

Product Type

S - System

O - Outdoor units

H - Indoor High Wall

Electrical Rating

230V - 208/230V 60Hz 1PH

NO ENCLATURE

SYSTE REQUIRE ENTS

REFRIGERANT CHARGE

ELECTRICAL REQUIRE ENTS

PIPE SIZE in (mm)

Notes: 1) System must be on a single dedicated circuit.

2) Power for indoor unit originates from outdoor unit.

3) Use table above for sizing of wiring and circuit breakers.

4) Follow all local building codes and NEC (National Electrical Code) regulations.

Interconnecting Cable: Recommended cable-14/4 A WG stranded bare copper conductors THHN 600V unshielded wire

Note: Use shielded cable if installation is in close proximity of RF and EMI transmitting devices.

Condensate Drain Size: 5/8-in OD 7/16-in ID

Unit Size (BtuH) Liquid Line Suction/Gas Line

9,000 1/4 (6) 1/2 (12)

12,000 1/4 (6) 1/2 (12)

18,000 1/4 (6) 5/8 (15)

Unit Size (BtuH) in Line Length ax Line Length ax Elevation

9,000 10 (3) 25 (7.5) 49 (15) 33 (10)

12,000 10 (3) 25 (7.5) 66 (20) 33 (10)

18,000 10 (3) 25 (7.5) 82 (25) 33 (10)

Unit Size (BtuH)Refrigerant TypeFactory System ChargeAdditional Charge

oz (kg)oz/ft (g/m)

9,000 R410A 49.4 (1.4) 0.2 (20)

12,000 R410A 49.4 (1.4) 0.2 (20)

18,000 R410A 70.6 (2.0) 0.5 (50)

Unit Size Voltage in Circuit ax Overcurrent ain Power

(BtuH) Amps ( CA) Protection ( OP) Wire Size (AWG)*

9,000 208/230v - 1ph 60hz 12 15 14-2

12,000 208/230v - 1ph 60hz 13 20 12-2

18,000 208/230v - 1ph 60hz 19 30 10-2

*Main power wire from electrical panel to outdoor unit.

REFRIGERANT LINE LENGTHS ft (m)

Pre-Charge

Line Length

• Standard Wrench

• Adjustable/Crescent Wrench

• Torque Wrench

• Hex Keys or Allen Wrenches

• Drill & Drill Bits

• Hole Saw

• Pipe Cutter

• Screw drivers (Phillips & Flat blade)

• Manifold and Gauges

• evel

• R410A Flaring Tool

• Clamp on Amp Meter

• Vacuum Pump

• Safety Glasses

• Work Gloves

• Refrigerant Scale

• Micron Gauge

SUGGESTED TOOLS

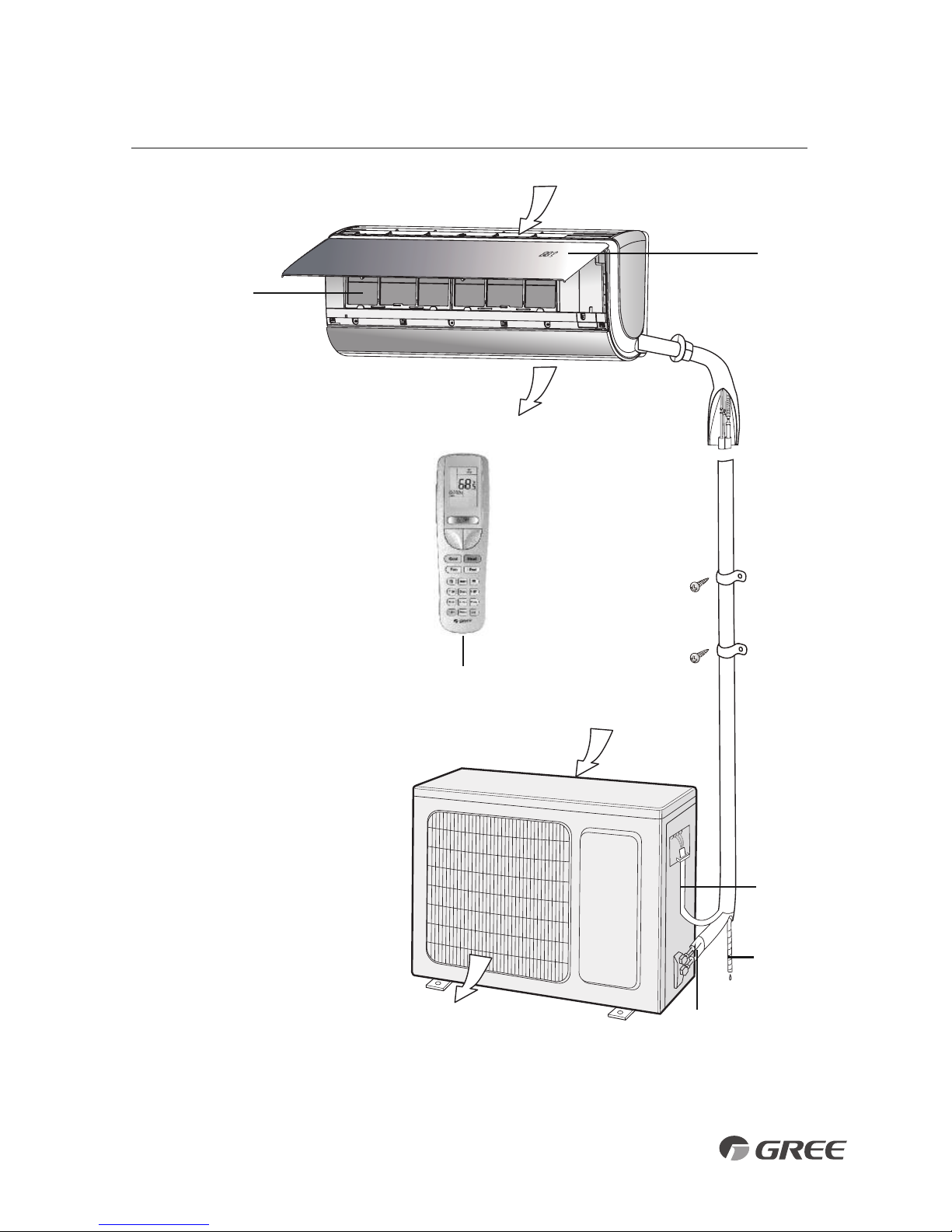

PART NA ES

Indoor unit

Part Name

1. Front Panel

2. Filter

3. Remote Controller

4. Inter-Connection Wire

5. Drain Hose

6. Refrigerant ines

Outdoor unit

Air outlet

Air inlet

Air outlet

INSTALLATION SITE INSTRUCTIONS

Indoor Unit

Select a site that allows for the following:

1. Ensure the installation complies with the installation minimum dimensions (defined below)

and meets the minimum and maximum connecting piping length and maximum change in

elevation as defined in the System Requirements section.

Air inlet and outlet will be clear of obstructions, ensuring proper airflow throughout the room.

3. Condensate can be easily and safely drained.

4. All connections can be easily made to outdoor unit.

5. Indoor unit is out of reach of children.

A mounting wall strong enough to withstand four times the full weight and vibration of the unit.

7. Filter can be easily accessed for cleaning.

8. eave enough free space to allow access for routine maintenance.

9. Install at least 10 ft. (3 m) away from the antenna of TV set or radio. Operation of the air

conditioner may interfere with radio or TV reception in areas where reception is weak.

An amplifier may be required for the affected device.

10. Do not install in a laundry room or by a swimming pool due to the corrosive environment.

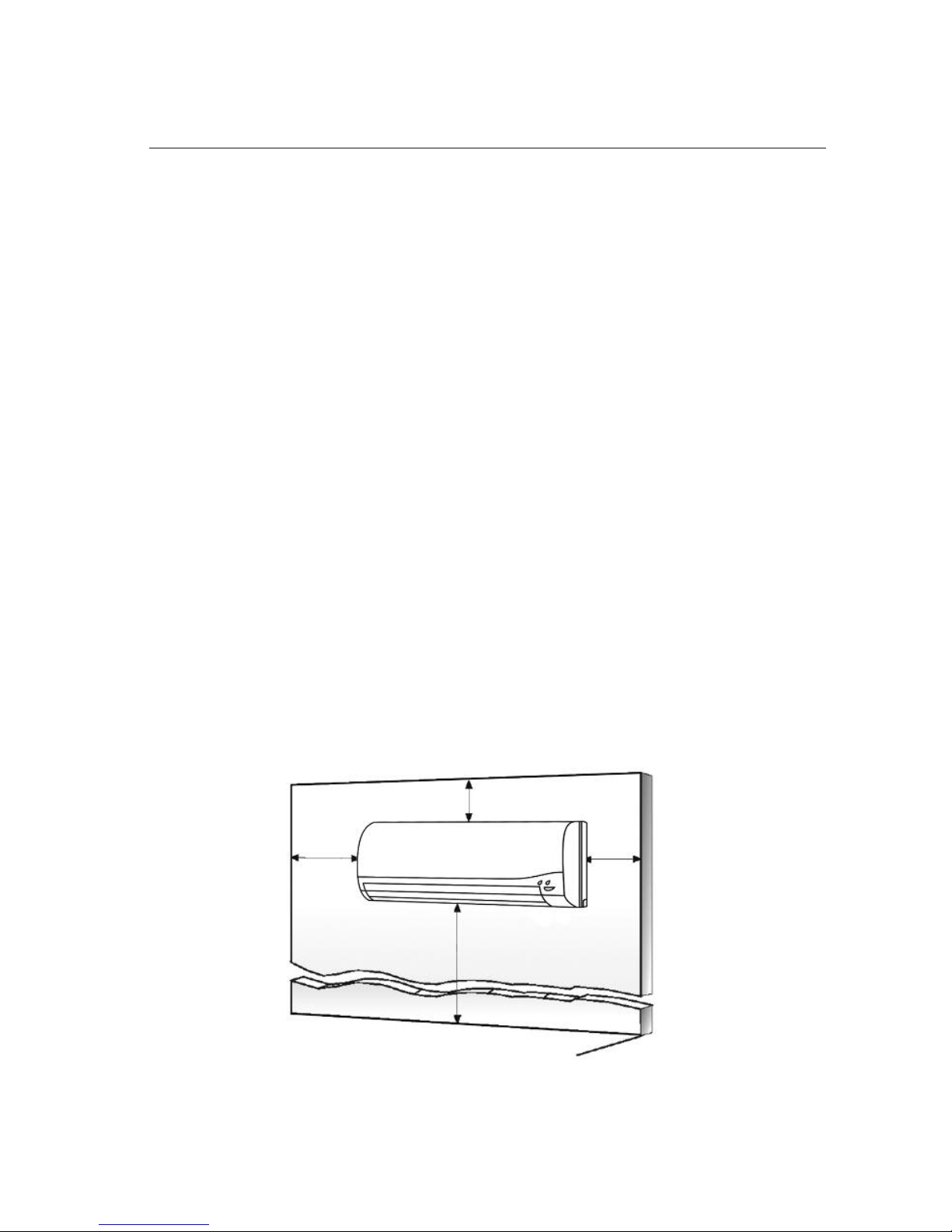

inimum Indoor clearances

6 in

(0.15m)

6 in

(0.15m)

6 ft (1.8m)

6 in (0.15m)

Ceiling

Floor

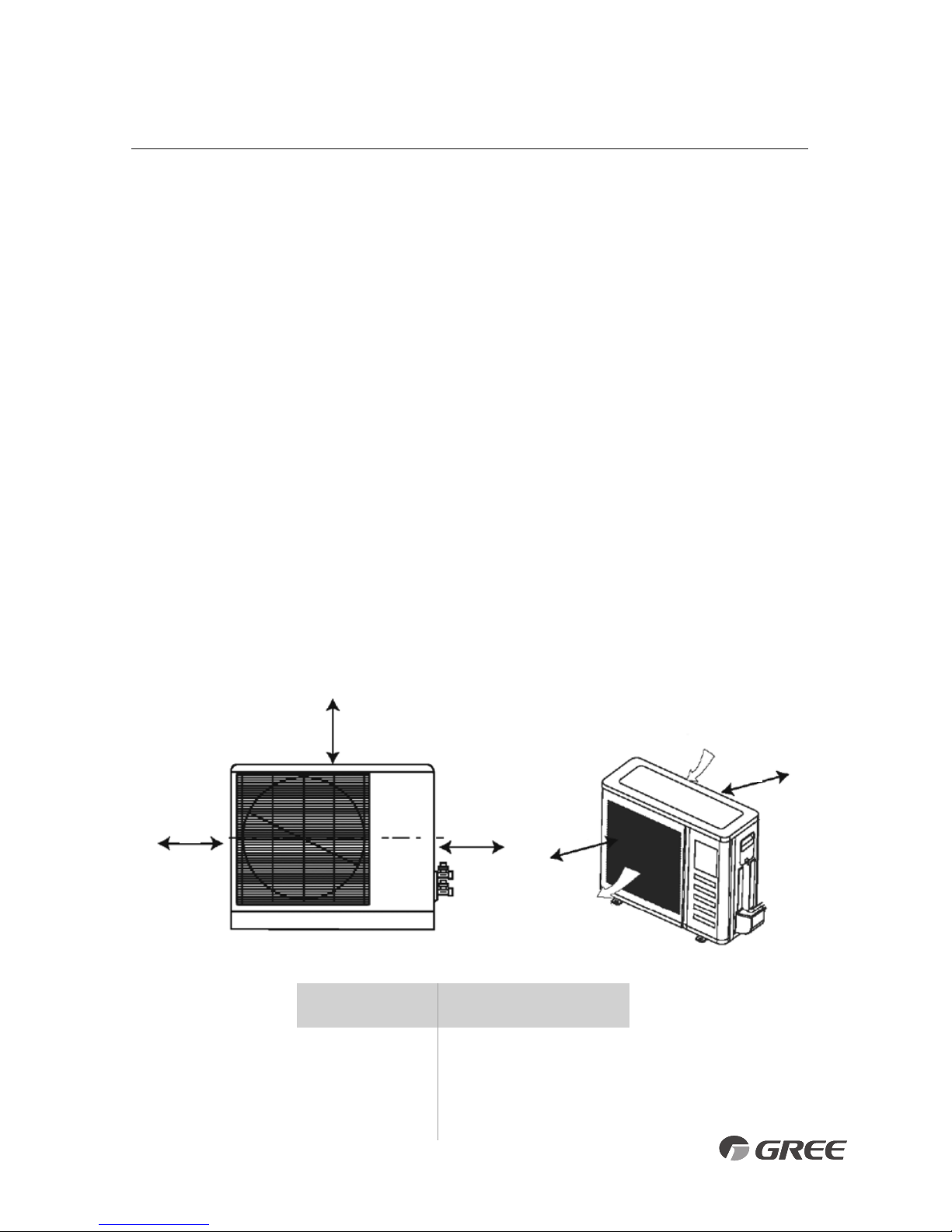

Outdoor Unit inimum Distances

in (mm)

A 20 (500)

B 12 (305)

C 20 (500)

D 24 (610)

E 12 (305)

Air inlet

Air outlet

INSTALLATION SITE INSTRUCTIONS

Outdoor Unit

Select a site that allows for the following:

Outdoor location meets all minimum installation clearances defined below.

Sound from outdoor unit will not annoy neighbors.

All connections can be easily made to indoor unit.

Air inlet and outlet will be clear of obstructions to ensure proper airflow.

Wall or roof is strong enough to withstand the full weight and vibration of the outdoor

unit (for wall or roof installation only).

Outdoor unit is out of reach of children and does not obstruct walkways.

Outdoor unit is not exposed to direct sunlight, excessive dust or strong wind.

8. Condensate water can drain freely during heating

Maintenance and repairs can be easily performed on the outdoor unit.

10.

Ensure the installation complies with the minimum and maximum connecting piping

length and maximum change in elevation as defined in the System Requirements section.

inimum Outdoor Clearances

BC D
