Gree KY-32Na/D User manual

AIRCONDITIONER

MOBILE

Please read this manual carefully before operating the unit.

OWNER'S MANUAL

MOBILE AIR CONDITIONER

GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI

KY-32Na/D

KYD-32Na/D

.................................................

...........................................

.............................................

................................................

............................................... 24

..................................．．．．．．．．

...............．．．．．．．．

..................................．．．．．．．．

.................................．．．．．．．．

17-19

20-21

.............................................

.................．．．．．．．

4-8

9-10

...............

CONTENTS

Summary

Working principle

Models and specifications

..................................................

Structure

Operating methods

Names and Functions of the Remote Controller

COOL mode operation

HEATmode operation (only for cooling/heating type units)

DRYmode operation

SLEEP mode operation

AUTO mode operation

TIMER mode operation

Installation guide for castor, drainage pipe and air exhaust accessory

Care and Maintenance

Troubleshooting

User notices

After service

.........................................

.........．．．．．．．

.........................................

－2－

SUMMARY

－1－

GREE MOBILE AIR CONDITIONER is a small, moveable air conditioner. It possess the

functionsofCOOL,HEAT,DRYandtheSeparateVentilation,anddependsondifferentplaces,it

canbemovedatwill.Itisfitforhome andofficeuse,especiallyfitforthehousewithmanyrooms.

With the compact configuration, excellent workmanship, elegant appearance, it looks like a standing

Benz car, it is convenient for moving, energy saving, and low noise.

Note: Please read this manual carefully before operating the unit, the manual is used for reference,

andthetechnicalparameters aresubjecttochangewithoutnotice.

WORKING PRINCIPLE

With the help of upper motor, the airflow of indoor passes through the evaporator becomes the

cooling wind,butwiththehelpoflowermotor,theairflowofindoorpassesthroughthecondenser

becomestheheating wind.ItwasdesignedtwoductsystemsinitsstructureTheheating windisdischarged

bytherearoutlet,thecooling windisdischargedbythefrontoutlet,flow-guidedbythelouver,andit

brings the gentle cooling airflow, and the low temperature environment is maintained.

The Working Principle

Cooling wind

Upper

motor

Lower

motor

Evaporator

Airflow 1

Airflow 2

Capillary

Heating wind

Condenser

－2－

KY-32Na/D

3200W

KYD-32Na/D

3200W/2000W

230V

50Hz

5.2A

5.65A

1200W

1245W

5.2A/8.0A

5.65A/8.0A

1200W/2050W

1245W/1850W

330m3/h

410A 0.58Kg

56dB(A)

45 kg

80.0×37.040.0×

44.4

63.4×

84.0×

MODELS AND SPECIFICATIONS

Model

Cooling/heating capacity

Rated voltage

Rated frequency

Cooling/heating rated current

The max. cooling/heating input current

Cooling/heating rated power

The max. input power

Recycling air volume

Refrigerant and refrigerant charging

Noise(sound intensity level)

Weight (net weight)

The dimensions of unit

(Height×Width×Depth) (cm)

The dimensions of packaging

(Height×Width×Depth) (cm)

Note:

1. The cooling capacity was tested in the condition of the indoor dry bulb temp.30℃, wet bulb

temp.25.5℃(the temp of indoor and outdoor are same) there is no exhaust pipe, the heating capacity

was tested in the condition of the indoor dry bulb temp.20℃, wet bulb temp.12℃.

2. The max. input power was tested the indoor dry bulb temp. 32℃,the wet bulb temp.23℃was

tested in the cooling mode.

3.The technical parameters are subject to change without notice. Please refer to the nameplate of the unit.

－3－

STRUCTURE

Controlling panel

Air outlet

Handle

Lower air inlet

Front

Rear

Upper air inlet grille

Power cable

Air exhaust outlet

Lower air inlet grille

OPERATING METHODS

－4－

The working range is 16℃-30℃.

When operating, the unit should be placed on the horizontal place, more

than 50cm away from the wall or other obstructions.

The working range of COOL mode and DRY mode.

Location requirement

Power supply Before the unit is power-on, please check the following:

The standard working range of the voltage is 220/240V 6%, 50Hz,

if the voltage is higher or lower, the air conditioner will be affected.

● The lead wire is suitable for more than 20A start-up current, in order

to avoid the voltage decline when the unit starts suddenly.

● The power plugs and the

sockets can be supported by the current

that is more than 16A.

● The thread section of the lead wires and any continued use lead wire

is no less than 2.5mm2.

● If the power supply cord is damaged, should adopt the special

power supply cord to replace.

●

If the power supply is needed to replace or maintain, please

contact with the dealer and ask for the professional to do

the repairing work.

● The air conditioner must be safety earthed. Earth wire must be

connected to the special device of the building. In order to provide

the good earthing for the air conditioner.

５

０ｃ

ｍ

５０ｃｍ

OPERATING METHODS

●Can not use the steel wire or the brass wire replace the fuse, the

capability of the fuse must be appropriate.

In order to avoid the power

cord damaged and electrical leakage, do not fix the power supply on the

knife edge or the sharp object.

●The wiring must be operated by the professional

and according

to the national regulations, in fixed circuit, there must be electricity

leakage protection switch of enough power capacity and 16A

thermal-

magnetic breaker air switch with enough space, the earth wire can't be

connected to the water pipe or the gas pipe, when the air

is not used, please pull out the power plug or cut off the power supply.

conditioner

－5－

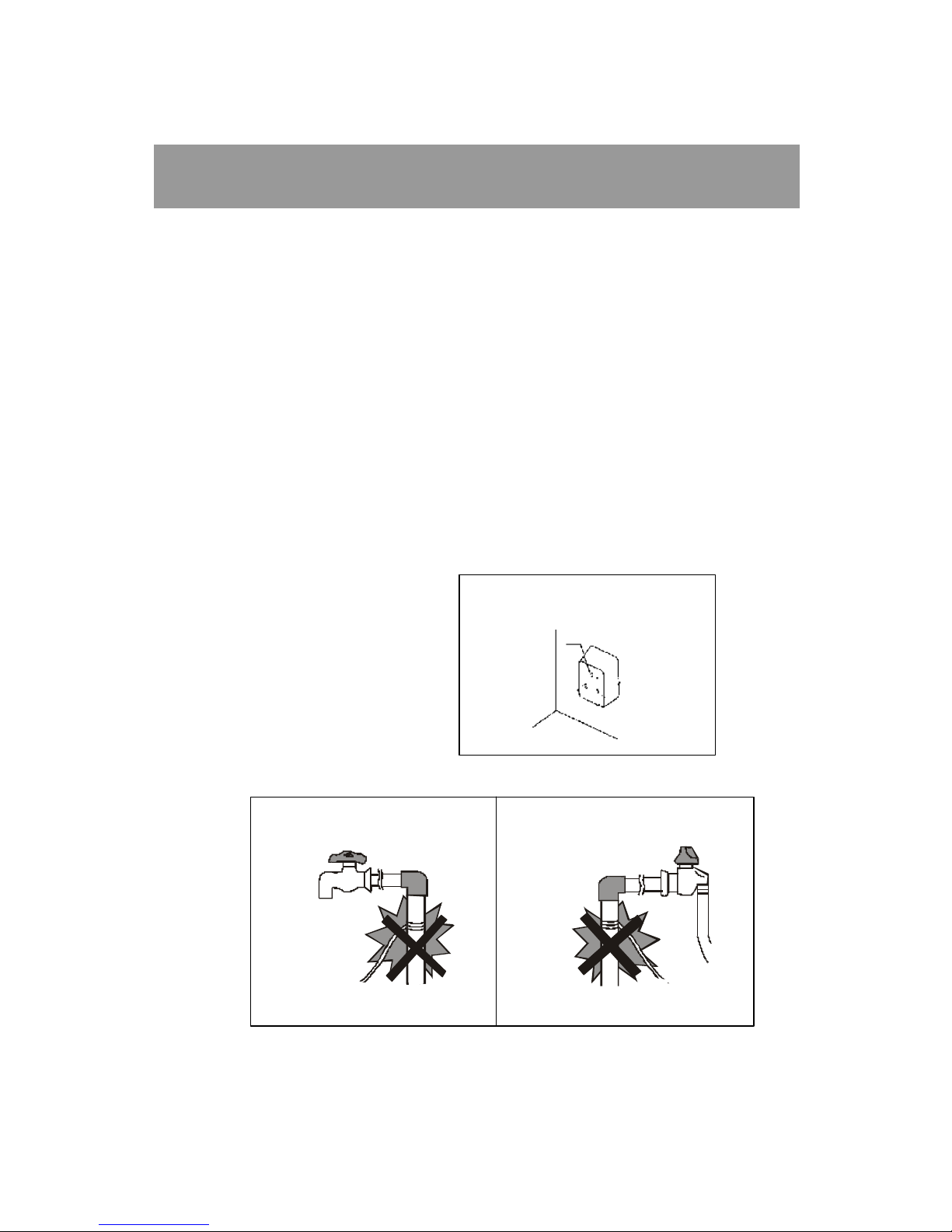

There must be reliable ground

wire in the power supply

Earthing

Water pipe

Gas pipe

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in

order to avoid hazard.

●

－6－

ON/OFF

FAN TEMP TIMER SLEEP

OFF

LOW MD HIGH

OPERATING METHODS

LCD instruction (dynamic display)

SLEEP

COOL

FAN

SET TIME DISPLAY

HEAT

DRY

SLEEP

COOL

HEAT

DRY

SET TEMP

AUTO

SET TIME

SETTEMP

AUTO

FANSPEED

SETTIMERON/OFF

NamesandFunctions-RemoteController

ON/OFF

MODE

FANSPEED

LCD Display

SETTEMP

SETTIMER

SETSLEEP

MODE

－7－

OPERATING METHODS

Control panel and the function

1. "ON/ OFF "

Press once to start and press once more to stop the unit.

2."MODE"

Press this button to change the operation mode in order of:

ＦＡＮ → ＣＯＯＬ →ＨＥＡＴ→ ＤＲＹ → ＡＵＴＯ → ＦＡＮ

3 "FAN "

When the unit is running in the "FAN", "COOL" mode there are 3 kinds of fan speed could

be selected, press "FAN " to choose between "LOW → MD → HIGH".

4." TEMP"

When turn on the air conditioner, in the "COOL", mode, the control panel will display the set

temp. Press "▲"""to increase or to decrease the set temperature.

5. " TIMER"

Press"▲""" to set the time for timer on or timer off. When the unit is running, you could set the

timer off, the unit will stop running; When the unit is stop running (not power off ) set the timer on, the

time interval being set will be 0.5-24 hour(s), press "▲""" to adjust.

6. " SLEEP"

When the unit is running, press once to set "SLEEP" operation, repress it, the unit will stop the "SLEEP"

operation, there is no "SLEEP" operation in "AUTO" mode.

7. " HEAT"

Pressthe"mode"button,selecttheheatingmode,theLCDwindowshows" ".

－8－

OPERATING METHODS

1). To select a place near the door and window, install the exhaust duct put the exhaust

ductout of the door, do not close the door andwindowtightly,leavingthespacefor

air flow, for example to open the window or the door, to keep the good ventilation.

2). Press "MODE" to select "COOL" mode.

3). Press "TEMP" to set the suitable temp.16℃-30℃.

4). Press "FAN" to select the suitable fan speed, (HIGH, MD, LOW).

When the unit is running in the COOL mode, in order to keep the good cooling effect,

please pay more attention to:

①If there is the direct sunlight near the window, please use the curtain to shield .

② Do not use other heat sources in the air conditioner room.

Please close the door and window, in order to obtain the better dehumidifying effect:

Press"MODE",selectthe"DRY"mode,theunitwillruninthe"DRY"mode,atthe

same time, the upper motor is running at the low speed, it is not adjustable.

When the air conditioner is used as the dehumidifier, it is no need to install the exhaust duct.

1). Press "MODE", to select the "FAN" mode.

2). Press "FAN ", to choose from the HIGH, MD, LOW fan speed options.

Press"MODE"toselectthe"AUTO"mode,themicrocomputerprocesswill

automaticallychoosetheCOOL,DRY mode,toensuretheindoorconstant

temperature efficiency.

COOL

CAUTION

DRY

CAUTION

FAN

AUTO

WATER

DRAINAGE

When in "COOL" or "DRY" mode, the dew water will drain into the tank, when the tank gets

full, the buzzer will sound "Di, Di……"for eight times, LCD window shows error code "E4",

at the same time the unit will switch off, till there is no full of water, and the compressor will

stop for 3 minutes to restart, pull out the plug of the drainage pipe, take out the drainage pipe

from the set clamp, pour out the water inside the tank, then insert the plug to the drainage pipe,

in order to avoid the leakage, at the same time fix the drainage pipe on the set clamp, it is shown

as below:

Rear plate

Fix the drainage pipe on the set clamp

Drainage pipe

Pressthe"mode"button,selecttheheatingmode,theLCDwindowshows" ".

HEATING
