Grandstream Networks GXV3240 User manual

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Grandstream Networks, Inc.

GXV3240/3275

BroadWorks Xsi Directories and Call Logs Guide

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 1 of 19

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Index

INTRODUCTION ........................................................................................3

BROADWORKS XTENDED SERVICES INTRODUCTION........................4

XSI ARCHITECTURE AND MESSAGEING ..........................................................................................4

BROADWORKS XSI DIRECTORY AND CALL LOGS CONFIGURATION 6

BROADWORKS SERVER CONFIGURATION......................................................................................6

GXV PHONE CONFIGURATION ..........................................................................................................6

XSI AUTHENTICATION WITH BROADWORKS USER LOGIN CREDENTIALS ..........................6

XSI AUTHENTICATION WITH SIP AUTHENTICATION CREDENTIALS......................................8

BROADWORKS XSI DIRECTORIES....................................................................................................9

BROADWORKS XSI CALL LOGS.......................................................................................................15

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 2 of 19

Table of Figures

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Figure 1: Xsi-Actions Requests Response ...................................................................................................4

Figure 2: Broadsoft Xsi Configuration with BroadWorks User Login Credentials.........................................7

Figure 3: Broadsoft Xsi Configuration with SIPAuthentication Credentials..................................................9

Figure 4: GXV32xx Contacts Page.............................................................................................................10

Figure 5: BroadWorks Contacts Page.........................................................................................................11

Figure 6: Request Error on BroadWorks Contacts Page............................................................................12

Figure 7: Disable Contact Category on BroadWorks Contacts Page .........................................................12

Figure 8: BroadWorks Contact Dialing........................................................................................................13

Figure 9: Selecting Number on BroadWorks Contact Dialing Page ...........................................................14

Figure 10: BroadWorks Xsi Directory Searching and Results ....................................................................15

Figure 11: Call History Page .......................................................................................................................16

Figure 12: BroadWorks Call Log Page .......................................................................................................16

Figure 13: Sorting on BroadWorks Call Log Page......................................................................................18

Figure 14: Selecting Call Logs on BroadWorks Call Log Page ..................................................................19

Figure 15: Selecting All Call Logs ...............................................................................................................19

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 3 of 19

INTRODUCTION

Grandstream GXV3240/GXV3275 IP Multimedia phone supports the BroadWorks Xtended Services

Interfaces (Xsi) Directories and Call Log features. This User Guide will describe how to configure and use

the BroadWorks Xsi Directories and Call Logs features on GXV3240/GXV3275. To learn more about

GXV3240/GXV3275 features, please visit http://www.grandstream.com/support to download the latest

“GXV3240/GXV3275 User Guide" and " GXV3240/GXV3275 Administration Guide".

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 4 of 19

BROADWORKS XTENDED SERVICES INTRODUCTION

BroadWorks Xtended Services Interfaces (Xsi interfaces) are a set of application programming interfaces

supporting the integration of BroadWorks functions with Internet services to create Web Application or

mashups. Currently, service providers offer a voice service consisting of connectivity, features, phone

numbers and usage or minutes. By adding a public web service interface to the offering, the voice services

can be integrated with existing Internet services. This integration is done outside of BroadWorks. It can be

done by end users, the service providers, or third party developers to provide applications that normally

could not be offered in a mainstream offering.

The Xsi-Actions are a set of RESTful APIs that allows resources to be defined and addressed over HTTP

with simple XML. This approach requires less client-side software to be written than other approaches and

is the overwhelming choice for developers to create Web Applications. These APIs allow a remote

application to control and query BroadWorks.

XSI ARCHITECTURE AND MESSAGEING

The Xsi-Action is a Web Application that runs in a container like the BroadWorks Xtended Service Platform

(Xsp). Xsi-Action is responsible for authenticating the requests received from the remote applications. It is

also responsible for providing request and response mapping and for routing events received from the

BroadWorks core.

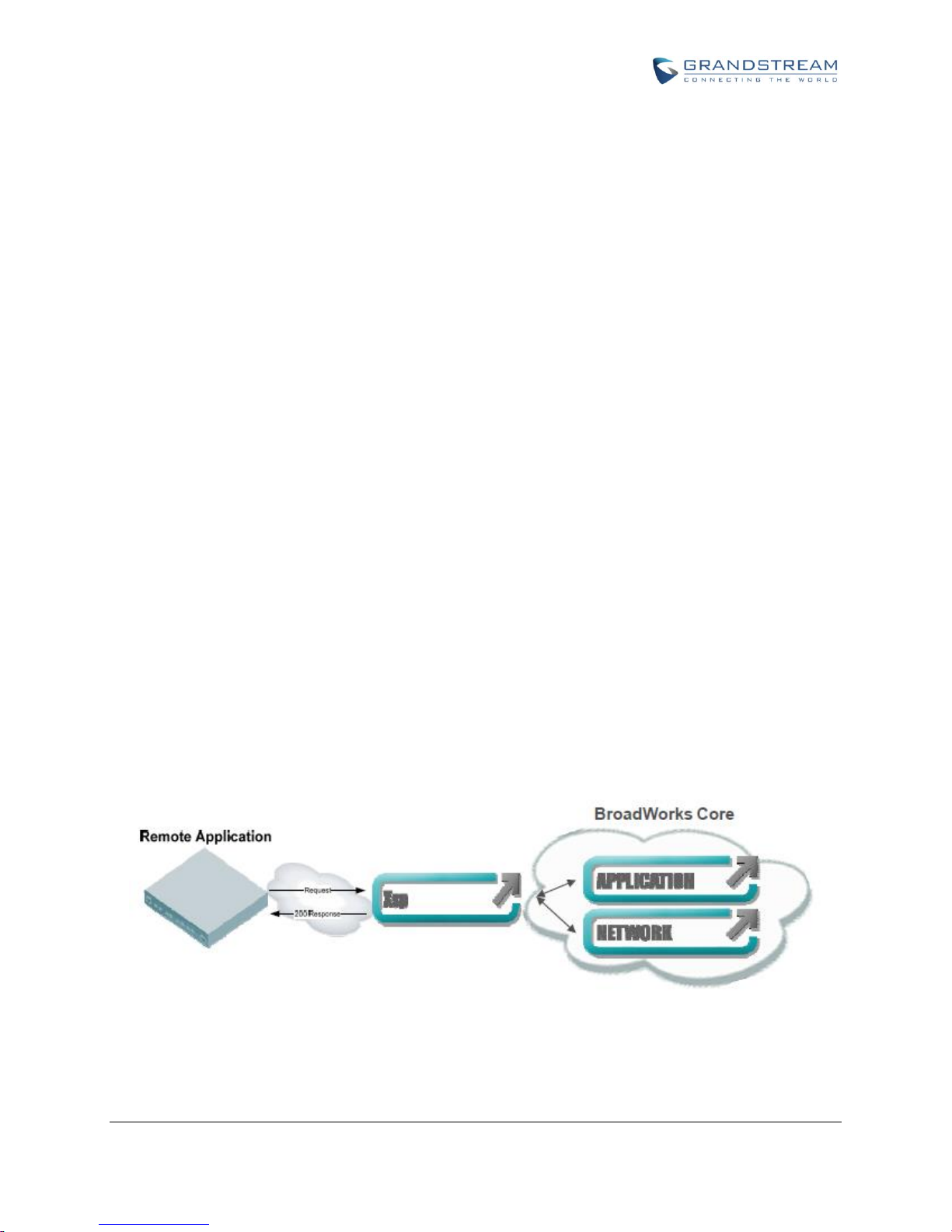

When an HTTP requests is received from the remote application and successfully authenticated, then the

request is processed by the BroadWorks core and an appropriate response is generated.

Figure 1: Xsi-Actions Requests Response

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 5 of 19

The BroadWorks Xsi Directories and Xsi Call Logs feature allows user to access the phonebook and call

log entries managed by BroadWorks Servers via the Xsp server.

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 6 of 19

BROADWORKS XSI DIRECTORY AND CALL LOGS

CONFIGURATION

BROADWORKS SERVER CONFIGURATION

The BroadWorks Xsi Directories and Call Logs configuration are completed by the BroadWorks server

administrator or service provider. End users should be given Xsp server URI and user credentials to

access the service.

GXV PHONE CONFIGURATION

XSI AUTHENTICATION WITH BROADWORKS USER LOGIN CREDENTIALS

1. Log in Web GUI and register the BroadWorks account on GXV phone.

2. Browse to Maintenance Broadsoft to set configuration for BroadWorks Xsi Directories and Call Logs

service:

Fill the BroadWorks XSP server address in the Server blank. If the BroadWorks Xsp server

requires to use the HTTPS, please add the header “https://” ahead of BroadWorks Xsp server URI.

For example, “https://xsp1.iop1.broadworks.net”.

Fill the XMPP port number in the Port blank. The default port number is 80. If the BroadWorks Xsp

server requires to use the HTTPS, please fill the HTTPS port number “443” in the blank.

Fill the BroadWorks Xsi credentials in Username and Password blanks. The User ID field should

be intentionally left blank.

If users need to use the selected Directory or Call Log categories, please set the categories as

“Enabled”.

End user is able to rename each directory or call log category. If user types a string into the blank,

it will override the default name. For example, the Group Directory’s default name is “Group” if it

keeps blank. If the user fills “Grandstream” into the blank, the phone will display “Grandstream” for

the Group Directory.

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 7 of 19

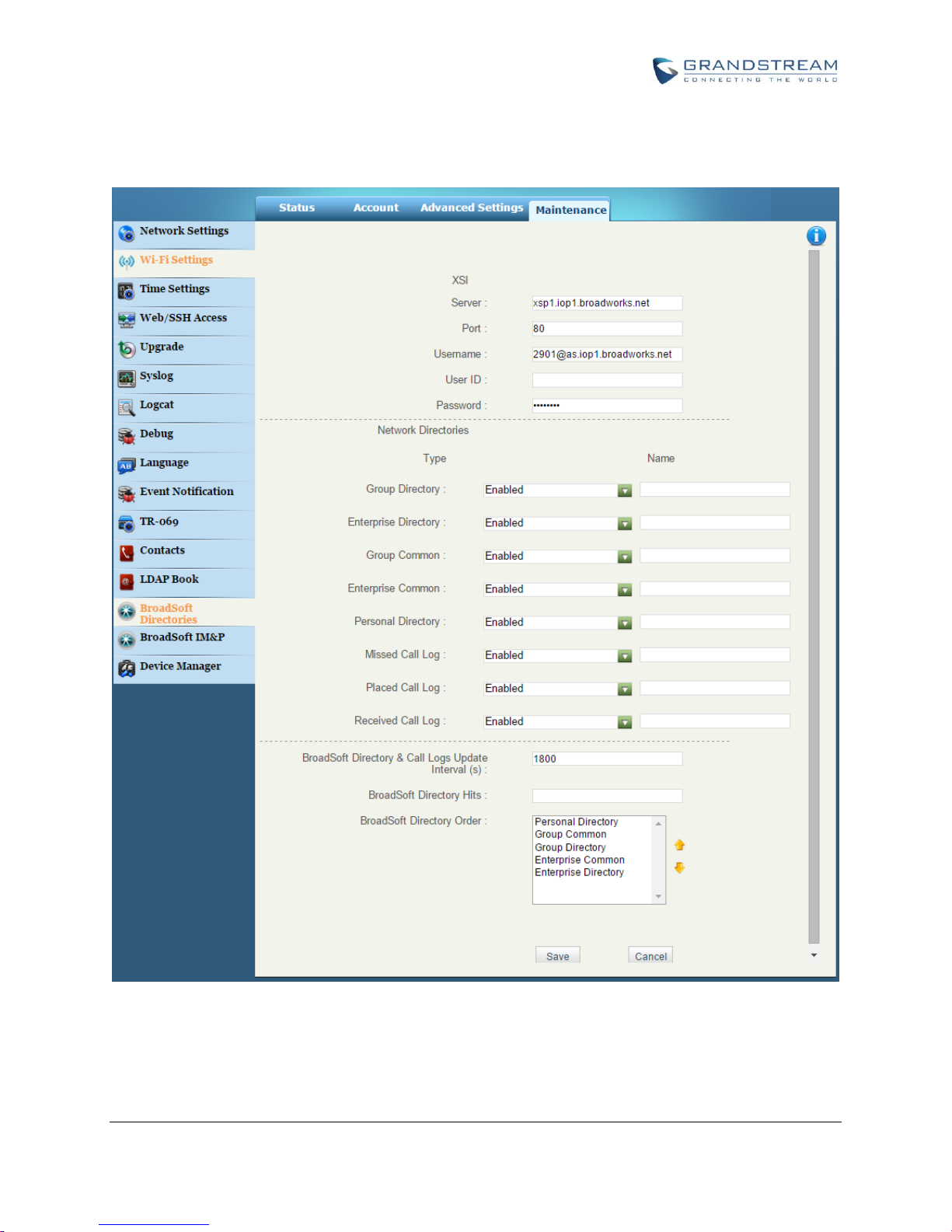

The following figure shows an example of how to configure the Broadsoft Xsi Directories and Call Log

settings on the GXV3240/GXV3275 phones.

Figure 2: Broadsoft Xsi Configuration with BroadWorks User Login Credentials

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 8 of 19

XSI AUTHENTICATION WITH SIP AUTHENTICATION CREDENTIALS

1. Log in Web GUI and register the BroadWorks account on GXV phone.

2. Browse to Maintenance Broadsoft to set configuration for BroadWorks Xsi Directories and Call Logs

service:

Fill the BroadWorks XSP server address in the Server blank. If the BroadWorks Xsp server

requires to use the HTTPS, please add the header “https://” ahead of BroadWorks Xsp server URI.

For example, “https://xsp1.iop1.broadworks.net”.

Fill the XMPP port number in the Port blank. The default port number is 80. If the BroadWorks Xsp

server requires to use the HTTPS, please fill the HTTPS port number “443” in the blank.

Fill the SIP Authentication ID in Username, and fill the SIP User ID in User ID. Users also need to

fill the SIPAuthentication Password in Password.

If users need to use the selected Directory or Call Log categories, please set the categories as

“Enabled”.

End user is able to rename each directory or call log category. If user types a string into the blank,

it will override the default name. For example, the Group Directory’s default name is “Group” if it

keeps blank. If the user fills “Grandstream” into the blank, the phone will display “Grandstream” for

the Group Directory.

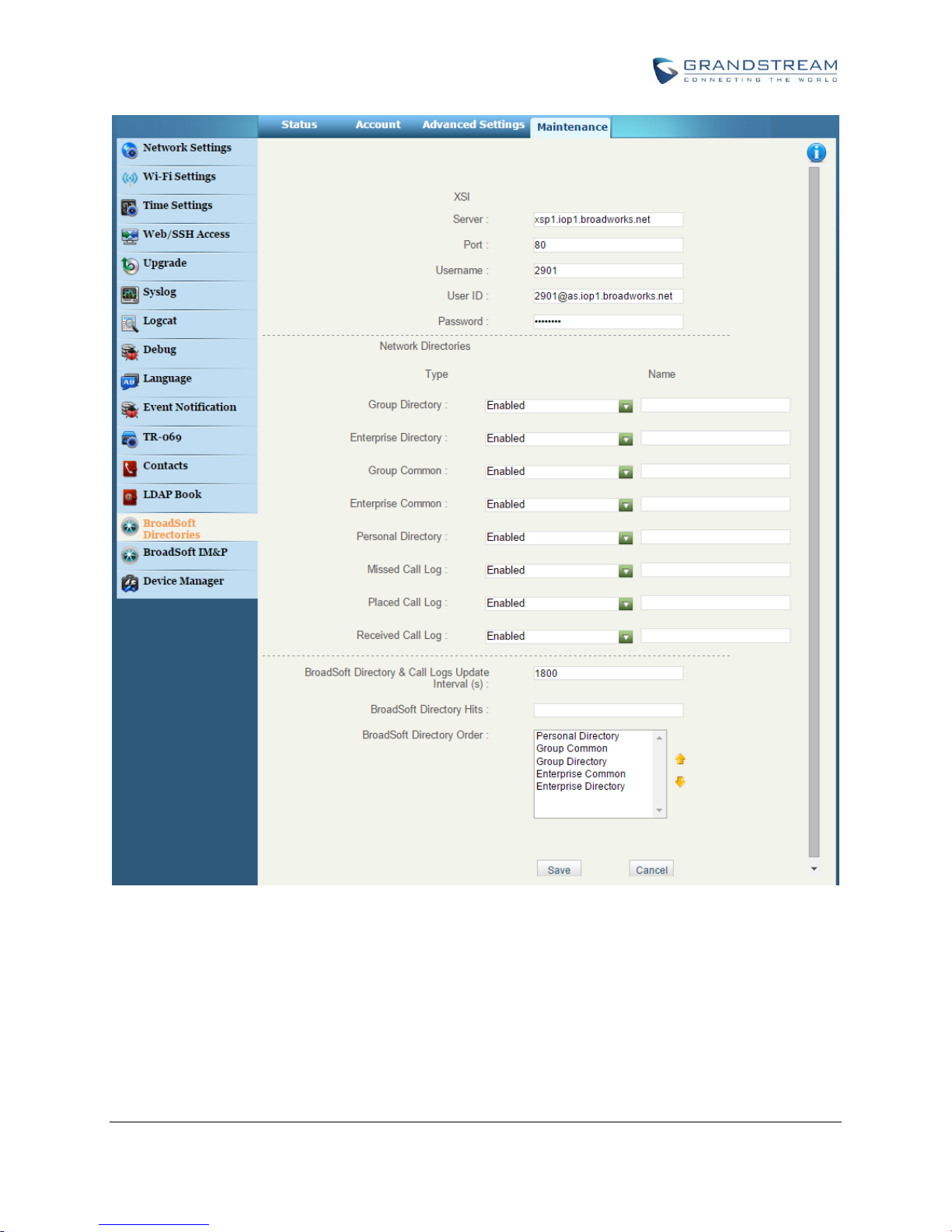

The following figure shows an example of how to configure the Broadsoft Xsi Directories with SIP

Authentication Credentials on the GXV3240/GXV3275 phones.

GXV3240/3275 BroadWorks Xsi Directories and Call Logs Guide

Page 9 of 19

Figure 3: Broadsoft Xsi Configuration with SIP Authentication Credentials

BROADWORKS XSI DIRECTORIES

After configuring the phone as the steps above, users can use Broadsoft Xsi Directories features on GXV

phones. Please do as the following steps:
