Grandstream Networks BudgeTone 200 User manual

BudgeTone-200 SIP Phone

User Manual

Updated – 01/2008

Grandstream Networks, Inc. BT200 User Manual Page 2 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

TABLE OF CONTENTS

BT200 USER MANUAL

WELCOME .................................................................................................................................................................4

INSTALLATION.........................................................................................................................................................5

WHAT IS INCLUDED IN THE PACKAGE .........................................................................................................................5

CONNECTING YOUR PHONE ........................................................................................................................................5

SAFETY COMPLIANCES................................................................................................................................................6

WARRANTY.................................................................................................................................................................6

PRODUCT OVERVIEW............................................................................................................................................7

USING THE GXP SIP ENTERPRISE PHONE.....................................................................................................10

GETTING FAMILIAR WITH THE LCD..........................................................................................................................10

GETTING FAMILIAR WITH KEYPAD............................................................................................................................12

MAKING PHONE CALLS.............................................................................................................................................14

CALL FEATURES........................................................................................................................................................17

CONFIGURATION GUIDE......................................................................................................................................19

CONFIGURATION VIA KEYPAD..................................................................................................................................19

CONFIGURATION VIA WEB BROWSER ......................................................................................................................20

SAVING THE CONFIGURATION CHANGES...................................................................................................................30

REBOOTING THE PHONE REMOTELY .........................................................................................................................30

SOFTWARE UPGRADE & CUSTOMIZATION..................................................................................................31

FIRMWARE UPGRADE THROUGH TFTP/HTTP..........................................................................................................31

CONFIGURATION FILE DOWNLOAD ...........................................................................................................................32

RESTORE FACTORY DEFAULT SETTING.......................................................................................................33

TABLE OF FIGURES

BT200 USER MANUAL

Figure 1: BT200 Back Panel ........................................................................................................... 5

Figure 2: BT200 Internal Headset Wiring Schema ......................................................................... 6

Figure 3: BT200 Front View ............................................................................................................ 7

Figure 4: BT200 Side View ............................................................................................................. 7

Figure 5: BT200 LCD .................................................................................................................... 10

TABLE OF TABLES

BT200 USER MANUAL

Table 1: BT200 Connectors ............................................................................................................ 5

Table 2: BT200 Key Features in a Glance...................................................................................... 7

Table 3: Hardware Specifications ................................................................................................... 8

Table 4: BT200 Technical Specifications........................................................................................8

Table 5: LCD Icons ....................................................................................................................... 10

Table 6: BT200 Keypad Buttons ................................................................................................... 13

Table 7: BT200 Call Features ....................................................................................................... 17

Grandstream Networks, Inc. BT200 User Manual Page 3 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

Table 8: Key Pad Configuration Menu .......................................................................................... 19

Table 9: Device Configuration - Status .........................................................................................22

Table 10: Device Configuration – Basic Settings.......................................................................... 22

Table 11: Advanced Settings ........................................................................................................ 23

Table 12: SIP Account Settings .................................................................................................... 27

GUI INTERFACE EXAMPLES

BT200 USER MANUAL

(http://www.grandstream.com/user_manuals/GUI/GUI_BT200.rar)

1. SCREENSHOT OF CONFIGURATION LOGIN PAGE

2. SCREENSHOT OF STATUS PAGE

3. SCREENSHOT OF BASIC SETTINGS CONFIGURATION PAGE

4. SCREENSHOT OF ADVANCED USER CONFIGURATION PAGE

5. SCREENSHOT OF SIP ACCOUNT CONFIGURATION

6. SCREENSHOT OF SAVED CONFIGURATION CHANGES

7. SCREENSHOT OF REBOOT PAGE

Grandstream Networks, Inc. BT200 User Manual Page 4 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

Welcome

Thank you for purchasing Grandstream BudgeTone-200 IP Phone. You made an excellent choice and

we hope you will enjoy all its capabilities.

Grandstream's BT200 SIP IP phone is the innovative IP telephone that offers a rich set of functionality

and superb sound quality. They are fully compatible with SIP industry standard and can interoperate with

many other SIP compliant devices and software on the market.

This document is subject to changes without notice. The latest electronic version of this user manual is

available for download from the following location:

http://www.grandstream.com/resources.html

Caution: Changes or modifications to this product not expressly approved by Grandstream, or operation

of this product in any way other than as detailed by this User Manual, could void your manufacturer

warranty.

Warning: Please do not use a different power adaptor with the BT200 as it may cause damage to the

products and void the manufacturer warranty.

•This document is contains links to Grandstream GUI Interfaces. Please download these examples

http://www.grandstream.com/user_manuals/GUI/GUI_BT200.rar for your reference.

•This document is subject to change without notice. The latest electronic version of this user manual

is available for download @: http://www.grandstream.com/user_manuals/BT200_User_Manual.pdf

•Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print,

for any purpose without the express written permission of Grandstream Networks, Inc. is not

permitted.

Grandstream Networks, Inc. BT200 User Manual Page 5 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

Installation

WHAT IS INCLUDED IN THE PACKAGE

The BudgeTone-200 phone package contains:

1. One BudgeTone -200 Main Case

2. One Handset

3. One Phone Cord

4. One Universal Power Adapter

5. One Ethernet Cable

CONNECTING YOUR PHONE

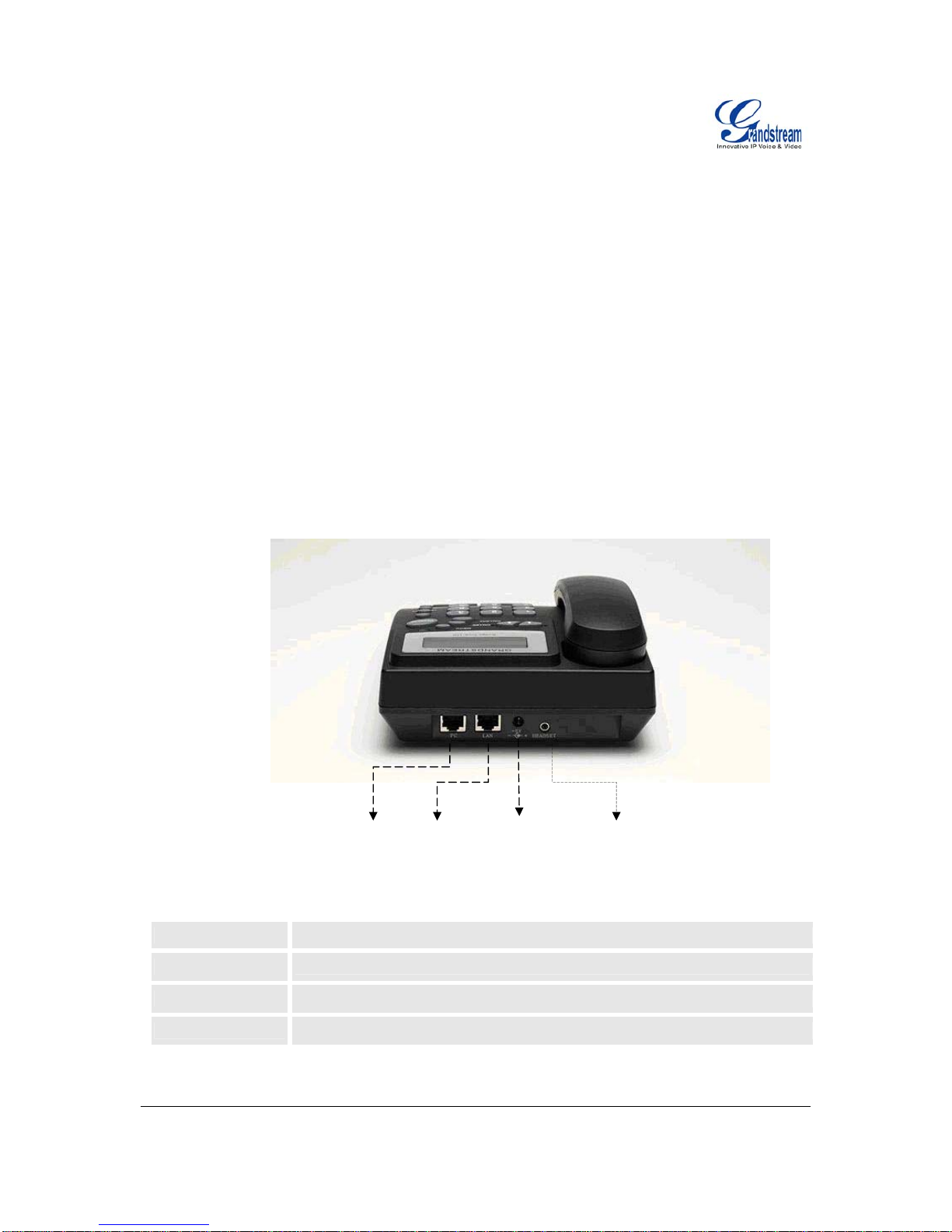

Following is a backside picture of BT200, each connection port is labeled with the name in the following

table:

Figure 1: BT200 Back Panel

Table 1: BT200 Connectors

LAN 10/100 Switch LAN port for connecting to Ethernet.

PC 10/100Mbps RJ-45 ports for PC (downlink) connection.

Power Jack 5V DC power port; UL Certified

HEADSET 2.5mm Headset port

1. Connect attached telephone cord to the handset and to the phone device.

PC LAN POWER HEADSET

Grandstream Networks, Inc. BT200 User Manual Page 6 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

2. Put the handset on the base.

3. Connect attached LAN cable to the LAN port of the phone.

4. Connect attached power supply first to the 5V power port of the phone.

5. Connect attached power supply to the wall outlet.

When power on, the phone starts the initialization procedure.

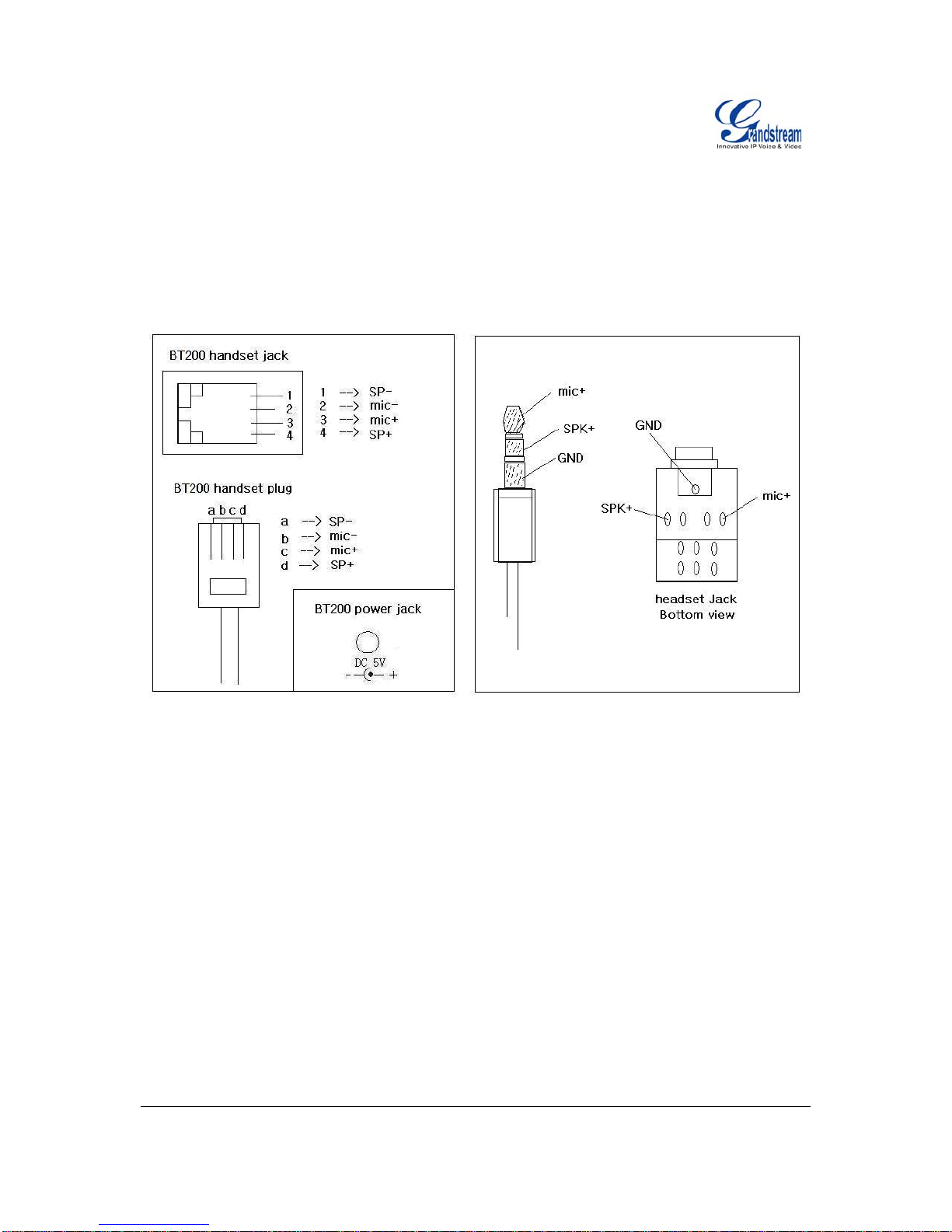

Figure 2: BT200 Internal Headset Wiring Schema

SAFETY COMPLIANCES

The BudgeTone-200 phone is compliant with various safety standards including FCC/CE. Its power

adaptor is compliant with UL standard. The phone should only be operated with the universal power

adaptor provided with the package. Damages to the phone caused by using other unsupported power

adaptors are not covered by the manufacturer’s warranty.

WARRANTY

If you purchased your BT200 from a reseller, please contact the company where you purchased your

phone for replacement, repair or refund. If you purchased the product directly from Grandstream, contact

your Grandstream Sales and Service Representative for a RMA (Return Materials Authorization) number

before you return the product. Grandstream reserves the right to remedy warranty policy without prior

notification.

Grandstream Networks, Inc. BT200 User Manual Page 7 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

Product Overview

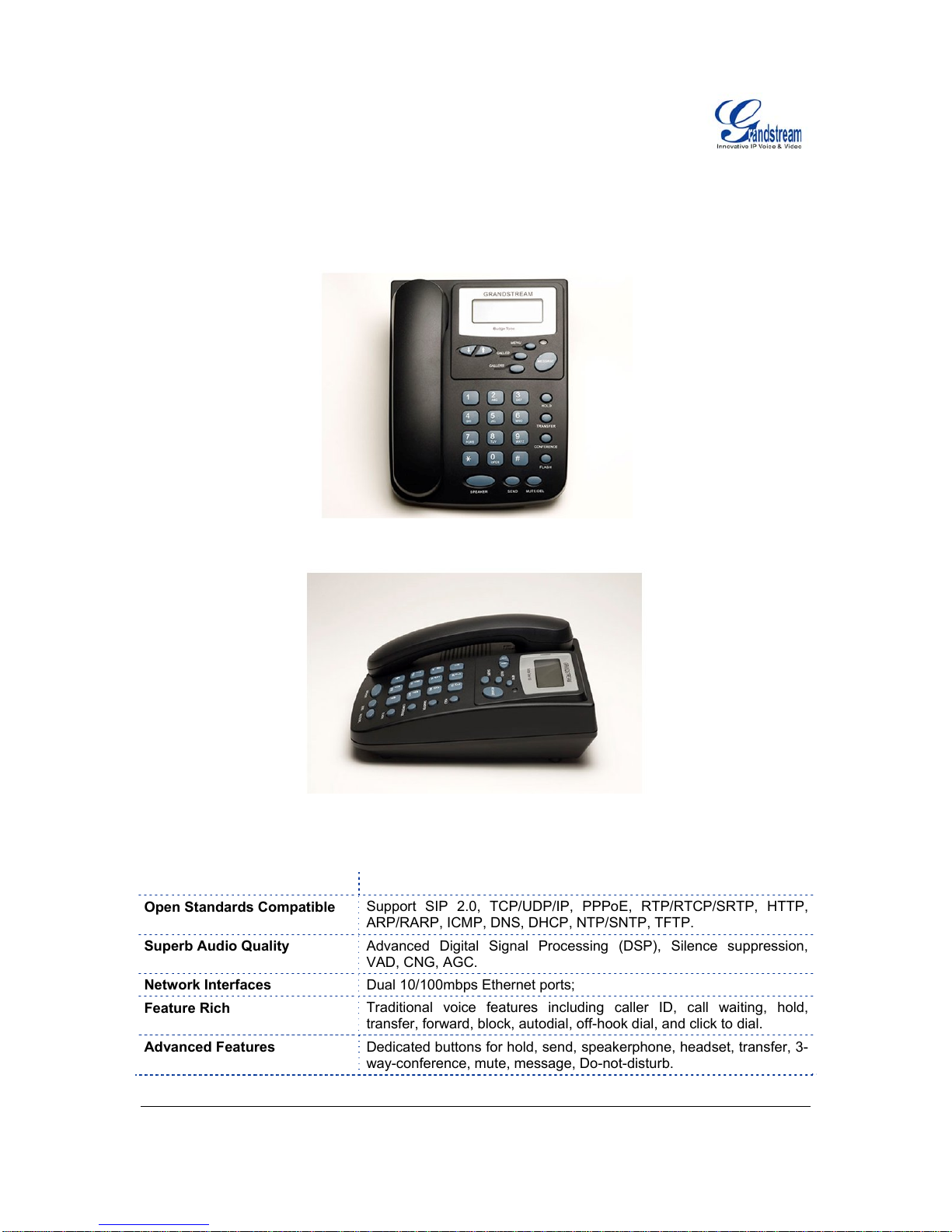

The following photo illustrates the appearance of a BudgeTone-200 IP phone.

Figure 3: BT200 Front View

Figure 4: BT200 Side View

Table 2: BT200 Key Features in a Glance

Features Benefits

Open Standards Compatible Support SIP 2.0, TCP/UDP/IP, PPPoE, RTP/RTCP/SRTP, HTTP,

ARP/RARP, ICMP, DNS, DHCP, NTP/SNTP, TFTP.

Superb Audio Quality Advanced Digital Signal Processing (DSP), Silence suppression,

VAD, CNG, AGC.

Network Interfaces Dual 10/100mbps Ethernet ports;

Feature Rich Traditional voice features including caller ID, call waiting, hold,

transfer, forward, block, autodial, off-hook dial, and click to dial.

Advanced Features Dedicated buttons for hold, send, speakerphone, headset, transfer, 3-

way-conference, mute, message, Do-not-disturb.

Grandstream Networks, Inc. BT200 User Manual Page 8 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

Advanced Functionality Custom down-loadable ring-tones, SRTP, SIP over TLS (pending),

multi-language support and adjustable positioning angles, wall

mountable, AES encryption.

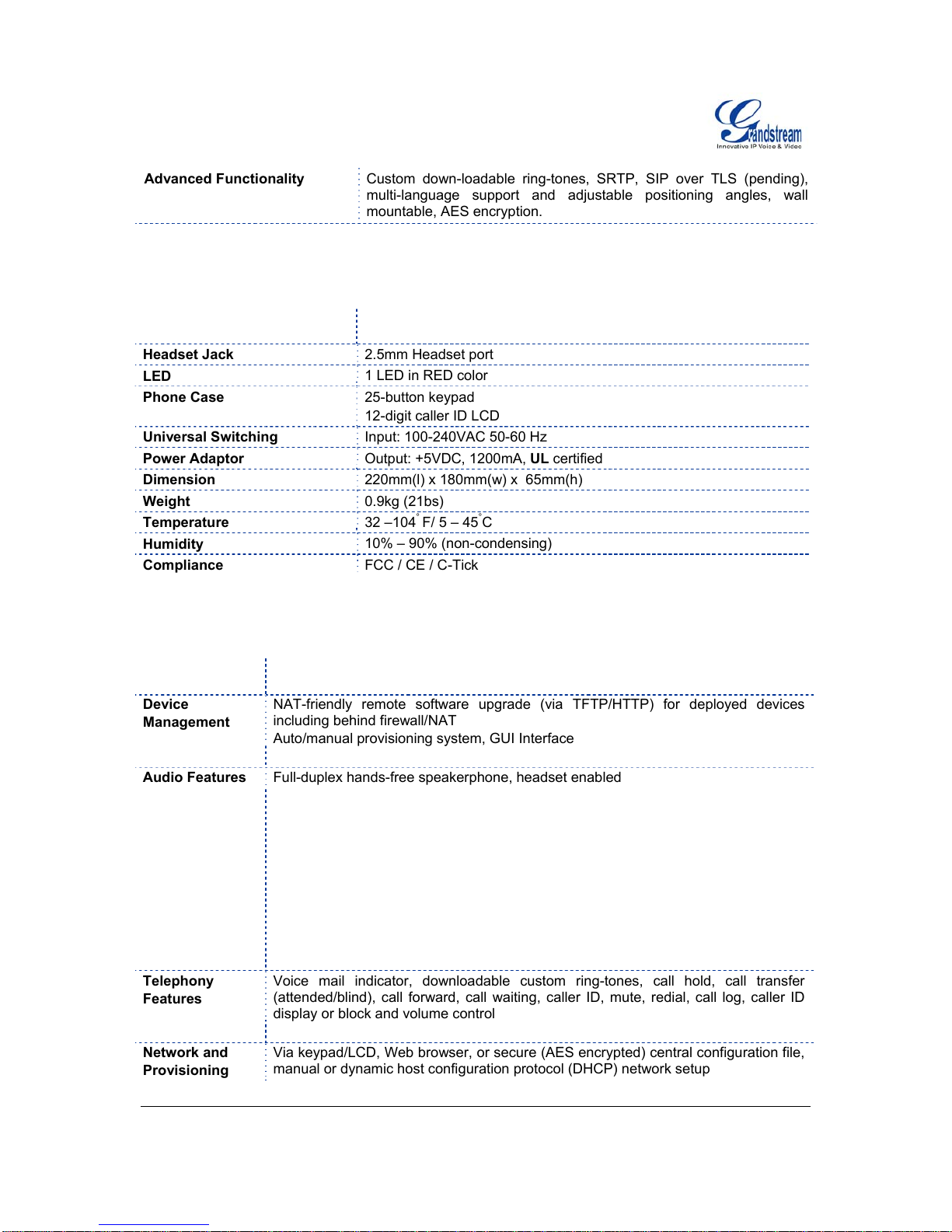

Table 3: Hardware Specifications

LAN Interface (Ethernet ports) Two (2) 10/100 Mbps Full/Half Duplex Ethernet Switch with LAN and

PC port with auto detection

Headset Jack 2.5mm Headset port

LED 1 LED in RED color

Phone Case 25-button keypad

12-digit caller ID LCD

Universal Switching Input: 100-240VAC 50-60 Hz

Power Adaptor Output: +5VDC, 1200mA, UL certified

Dimension 220mm(l) x 180mm(w) x 65mm(h)

Weight 0.9kg (21bs)

Temperature 32 –104° F/ 5 – 45°C

Humidity 10% – 90% (non-condensing)

Compliance FCC / CE / C-Tick

Table 4: BT200 Technical Specifications

Protocol

Support

Support SIP 2.0, TCP/UDP/IP, PPPoE, RTP/RTCP/SRTP, HTTP, ARP/RARP,

ICMP, DNS, DHCP, NTP/SNTP, TFTP.

Device

Management

NAT-friendly remote software upgrade (via TFTP/HTTP) for deployed devices

including behind firewall/NAT

Auto/manual provisioning system, GUI Interface

Support Layer 2 (802.1Q, VLAN, 802.1p) and Layer 3 QoS (ToS, DiffServ, MPLS)

Audio Features Full-duplex hands-free speakerphone, headset enabled

Advanced Digital Signal Processing (DSP)

Dynamic negotiation of codec and voice payload length

Support for G.723,1 (5.3/6.3K), G.729A/B, G.711 a/µ-law, G.726-32, G.722 (wide-

band), GSM and iLBC codecs

In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Silence Suppression, VAD (voice activity detection), CNG (comfort noise

generation), ANG (automatic gain control)

Acoustic Echo Cancellation (AEC) with Acoustic Gain Control (AGC) for

speakerphone mode, Support side tone

Adaptive jitter buffer control (patent-pending) and packet delay & loss concealment

Telephony

Features

Voice mail indicator, downloadable custom ring-tones, call hold, call transfer

(attended/blind), call forward, call waiting, caller ID, mute, redial, call log, caller ID

display or block and volume control

3-way-conference, off-hook auto dial, auto answer, early dial and speed dial

Network and

Provisioning

Via keypad/LCD, Web browser, or secure (AES encrypted) central configuration file,

manual or dynamic host configuration protocol (DHCP) network setup

Grandstream Networks, Inc. BT200 User Manual Page 9 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

Support NAT traversal using IETF STUN and Symmetric RTP

Support for IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS

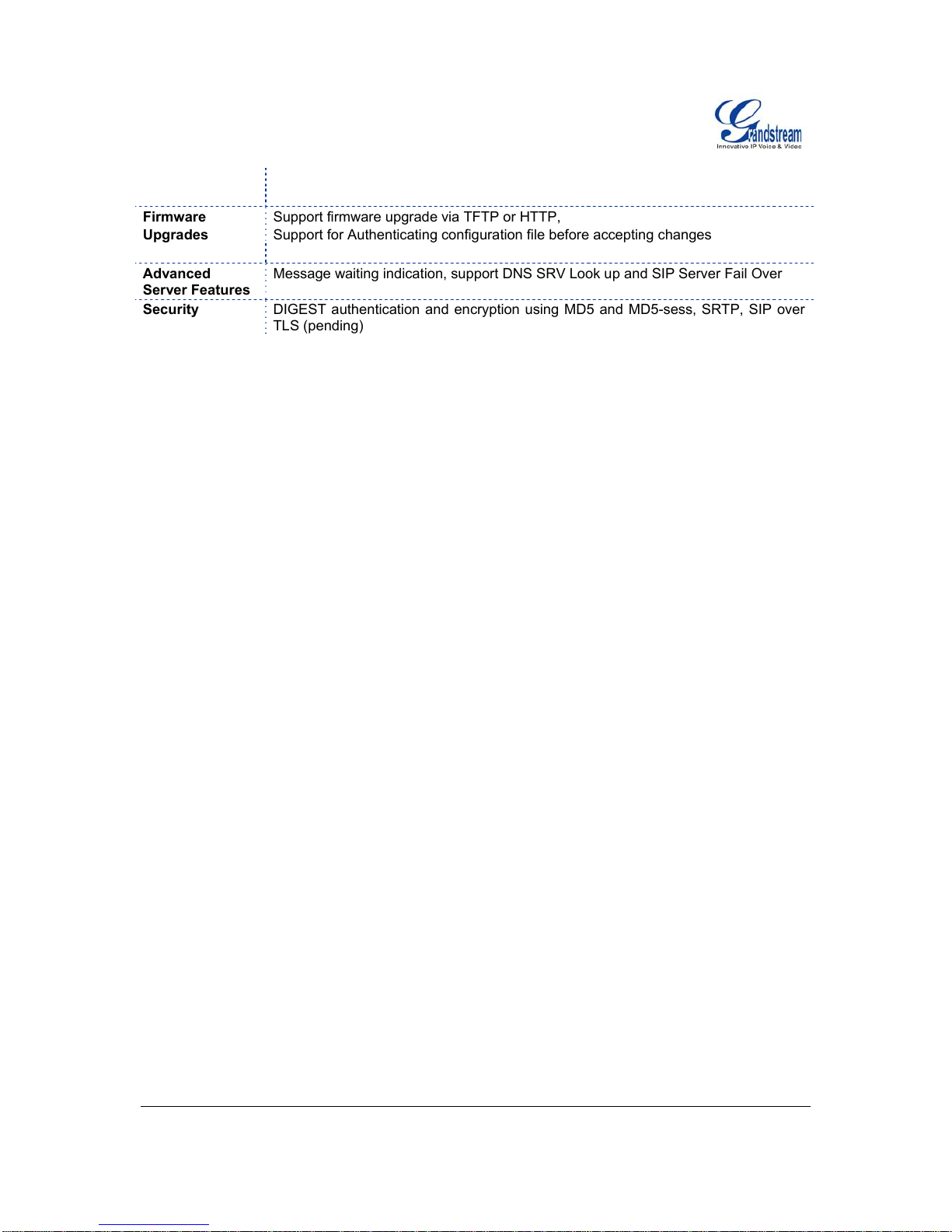

Firmware

Upgrades

Support firmware upgrade via TFTP or HTTP,

Support for Authenticating configuration file before accepting changes

User specific URL for configuration file and firmware files

Advanced

Server Features

Message waiting indication, support DNS SRV Look up and SIP Server Fail Over

Security DIGEST authentication and encryption using MD5 and MD5-sess, SRTP, SIP over

TLS (pending)

Grandstream Networks, Inc. BT200 User Manual Page 10 of 33

Firmware 1.1.5.15 Last Updated: 01/2008

Using the GXP SIP Enterprise Phone

GETTING FAMILIAR WITH THE LCD

BT200 phone has a numeric LCD of 64mmx24mm size with backlight. This model has a small red LED

status reminder. Here is the display when all segments illuminate:

Figure 5: BT200 LCD

When the phone is in the normal idle state, the backlight is off. Whenever an event (call) occurs, the

backlight will turn on automatically to bring the user’s attention. In addition, if Voice Mail configured and

there is a VM waiting, the red LED will be blinking to remind user there is a Voice Mail in the Voice Mail

server.

Table 5: LCD Icons

Icon LCD Icon Definitions

Connectivity Status / SIP Proxy/Server Icon:

OFF – IP address of Sip server is not found

ON – IP address of Sip server are located

Blinking –Ethernet link failure or the phone is not registered properly

Phone Status Icon:

OFF when the handset is on-hook

ON when the handset is off-hook

Speaker Phone Status Icon:

FLASH when phone rings

OFF when the speakerphone is off

ON when the speakerphone is on

Handset and Speakerphone/Headset Volume Icons:

0-7 scales to adjust handset / speakerphone volume

Other manuals for BudgeTone 200

This manual suits for next models

Table of contents

Other Grandstream Networks IP Phone manuals

Grandstream Networks

Grandstream Networks GXV3240 Instruction manual

Grandstream Networks

Grandstream Networks GXP2130 Series User manual

Grandstream Networks

Grandstream Networks GXP2130 Series Instruction Manual

Grandstream Networks

Grandstream Networks 100 Series User manual

Grandstream Networks

Grandstream Networks GXP2160 Installation guide

Grandstream Networks

Grandstream Networks GXV-3140 User manual

Grandstream Networks

Grandstream Networks GXV3175 User manual

Grandstream Networks

Grandstream Networks GXP-1400 User manual

Grandstream Networks

Grandstream Networks Grandstream GXP-2000 Reference manual

Grandstream Networks

Grandstream Networks GRP2616 User manual

Grandstream Networks

Grandstream Networks GXV3240 User manual

Grandstream Networks

Grandstream Networks GXP11O5 User manual

Grandstream Networks

Grandstream Networks GXP21 Series User manual

Grandstream Networks

Grandstream Networks GXP-2020 User manual

Grandstream Networks

Grandstream Networks DP750 User manual

Grandstream Networks

Grandstream Networks GRP2602 User manual

Grandstream Networks

Grandstream Networks GRP2614 User manual

Grandstream Networks

Grandstream Networks GXV-3140 User guide

Grandstream Networks

Grandstream Networks GRP26 Series User manual

Grandstream Networks

Grandstream Networks GXP1625 User manual

Grandstream Networks

Grandstream Networks GXP2140 User manual

Grandstream Networks

Grandstream Networks GXV3275 Instruction Manual

Grandstream Networks

Grandstream Networks Grandstream GXP-2000 User manual

Grandstream Networks

Grandstream Networks GXV3240 Instruction Manual

Popular IP Phone manuals by other brands

Alcatel

Alcatel 4028 manual

Polycom

Polycom Polycom VVX 600 quick reference

Polycom

Polycom SoundPoint IP 450 datasheet

Cisco

Cisco SPA-500 Series user guide

Polycom

Polycom SoundPoint IP 650 user guide

Proximus

Proximus Maestro 3016 IP quick start guide

Fanvil

Fanvil X4 user manual

Cisco

Cisco 7962 user guide

Snom

Snom 320 quick start guide

Yealink

Yealink Yealink SIP-T46G Guide

Avaya

Avaya 4625SW user guide

Yealink

Yealink SIP-T52S quick start guide

Nortel

Nortel 1140E Getting started

Nexotek

Nexotek NT-P500 user manual

Avaya

Avaya Integral 5 R3.0 user guide

GE 28320EE2 - Dect 6.0 InfoLink 2 user guide

Avaya

Avaya 4600 Series Administrator's guide

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP user guide
