INTRODUCTION

Busy Lamp Field (BLF) feature allows an end user, such as attendant, to monitor the hook status of a list of

users. GRP26XX supports Busy Lamp Field (BLF) on the Multi-Purpose Keys on the phone. This

document serves as an end user guide on how to configure Grandstream GRP Carrier-Grade IP Phones

for Busy Lamp Field feature.

To learn more about GRP26XX’s basic and advanced features, please visit link

http://www.grandstream.com/support to download the latest “GRP26XX Administration Guide” and

“GRP26xx User Guide”.

GRP26XX Series - BLF Guide

P a g e | 5

OVERVIEW OF FUNCTIONS

Grandstream GRP Carrier-Grade IP Phones supports Busy Lamp Filed (BLF) feature. GRP26XX supports

this feature by changing the color and status of the MPK indicators, associated with the monitored users.

GRP26XX phones support this feature by changing the LED keys color and status on the MPKs on phone

body. Additionally, the phone system is also able to pick up the calls to the monitored extensions.

CONFIGURATION VIA WEB BROWSER

GRP26XX embedded Web server responds to HTTP/HTTPS GET/POST requests. Embedded HTML

pages allow a user to configure the IP phone through a Web browser such as Google Chrome, Mozilla

Firefox, …

To access the Web GUI:

1. Connect the computer to the same network as the phone;

2. Make sure the phone is turned on and shows its IP address. You may check the IP address from the

phone’s keypad menu under Status => Network Status;

3. Open a Web browser on your computer;

4. Enter the phone’s IP address in the address bar of the browser;

5. Enter the administrator’s login and password to access the Web Configuration Menu

Notes:

•The computer has to be connected to the same sub-network as the phone. This can be easily done by

connecting the computer to the same hub or switch as the phone connected to. In absence of a

hub/switch (or free ports on the hub/switch), please connect the computer directly to the PC port on

the back of the phone;

•If the phone is properly connected to a working Internet connection, the IP address of the phone will

display in MENU->Status->Network Status. This address has the format: xxx.xxx.xxx.xxx, where xxx

stands for a number from 0-255. Users will need this number to access the Web GUI. For example, if

the phone has IP address 192.168.40.154, please enter "http://192.168.40.154" in the address bar of

the browser;

GRP26XX Series - BLF Guide

P a g e | 6

•There are two default passwords for the login page:

Table 1: Default Passwords for Login Page

User Level

User

Password

Web Pages Allowed

End User Level

user

123

Only Status and Basic Settings

Administrator Level

admin

Browse all pages

The password is case sensitive with maximum length of 25 characters.

•When changing any settings, always SUBMIT them by pressing the "Save" or "Save and Apply"

button on the bottom of the page. If the change is saved only but not applied, after making all the

changes, click on the "APPLY" button on top of the page to submit. After submitting the changes in all

the Web GUI pages, reboot the phone to have the changes take effect if necessary (All the options

under "Accounts" page and "Phonebook" page do not require reboot. Most of the options under

"Settings" page do not require reboot).

BLF KEYS CONFIGURATIONS

To configure the BLF feature on GRP26XX phones:

1. On the Web UI, click on “Settings”;

2. On the drop-down list, click on “Programmable Keys”,

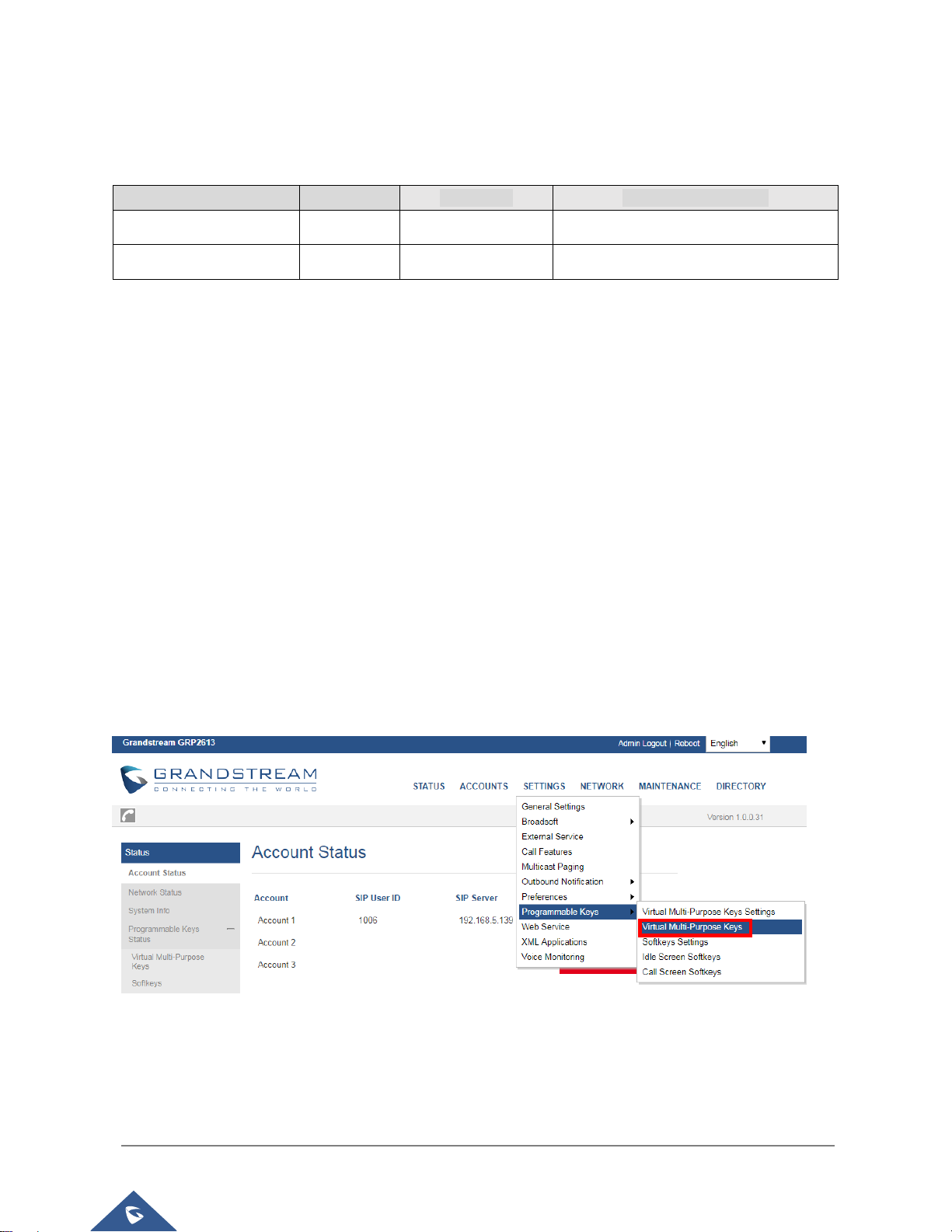

3. Then scroll to “Virtual Multi-Purpose Keys”as the figure shows below:

Figure 1: Programmable Keys Settings

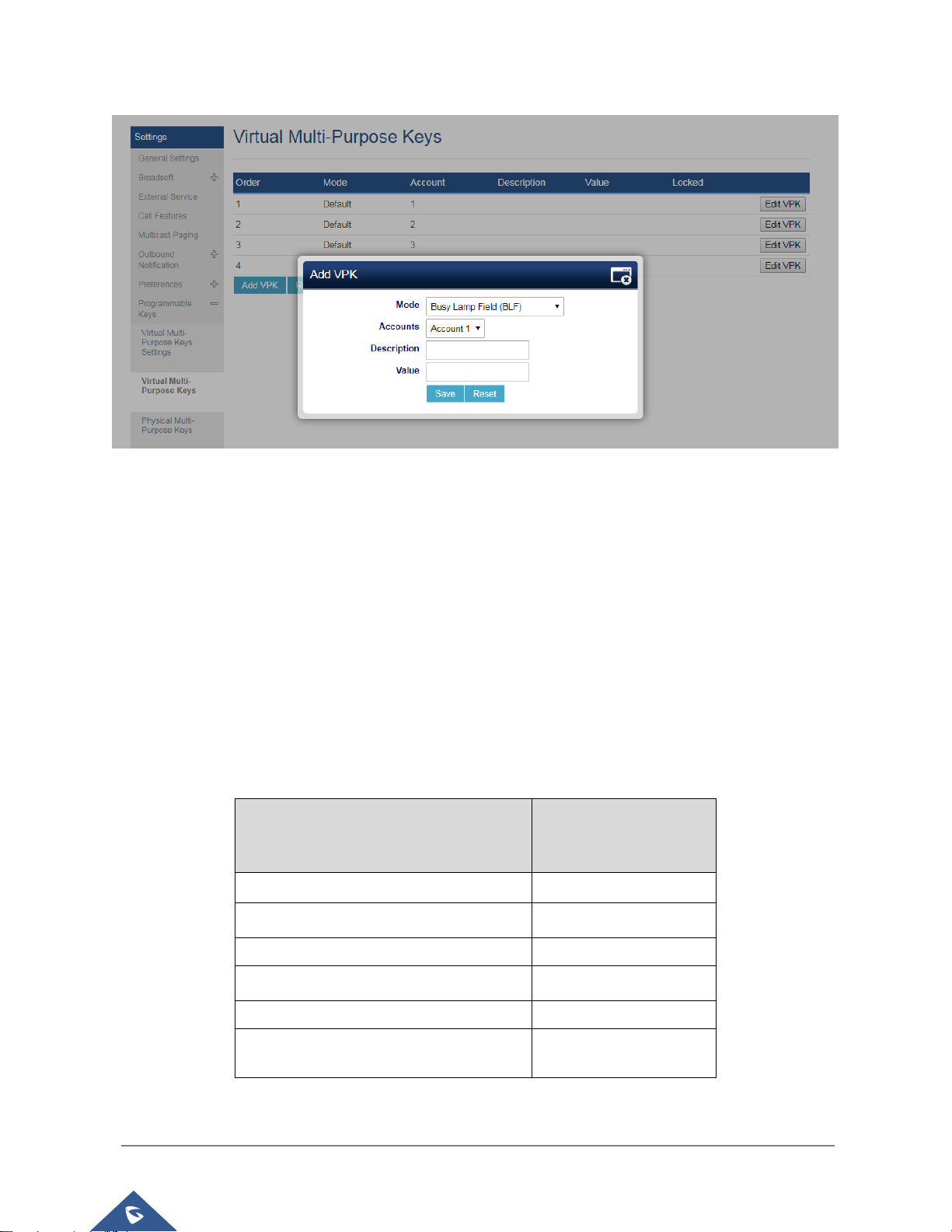

4. On the “Virtual Multi-Purpose Keys” page. Click on “Edit VPK”. Under “Mode”tab Scroll down and click

on “Busy Lamp Field (BLF)”;

GRP26XX Series - BLF Guide

P a g e | 7

Figure 2: Configure Multi-Purpose Keys

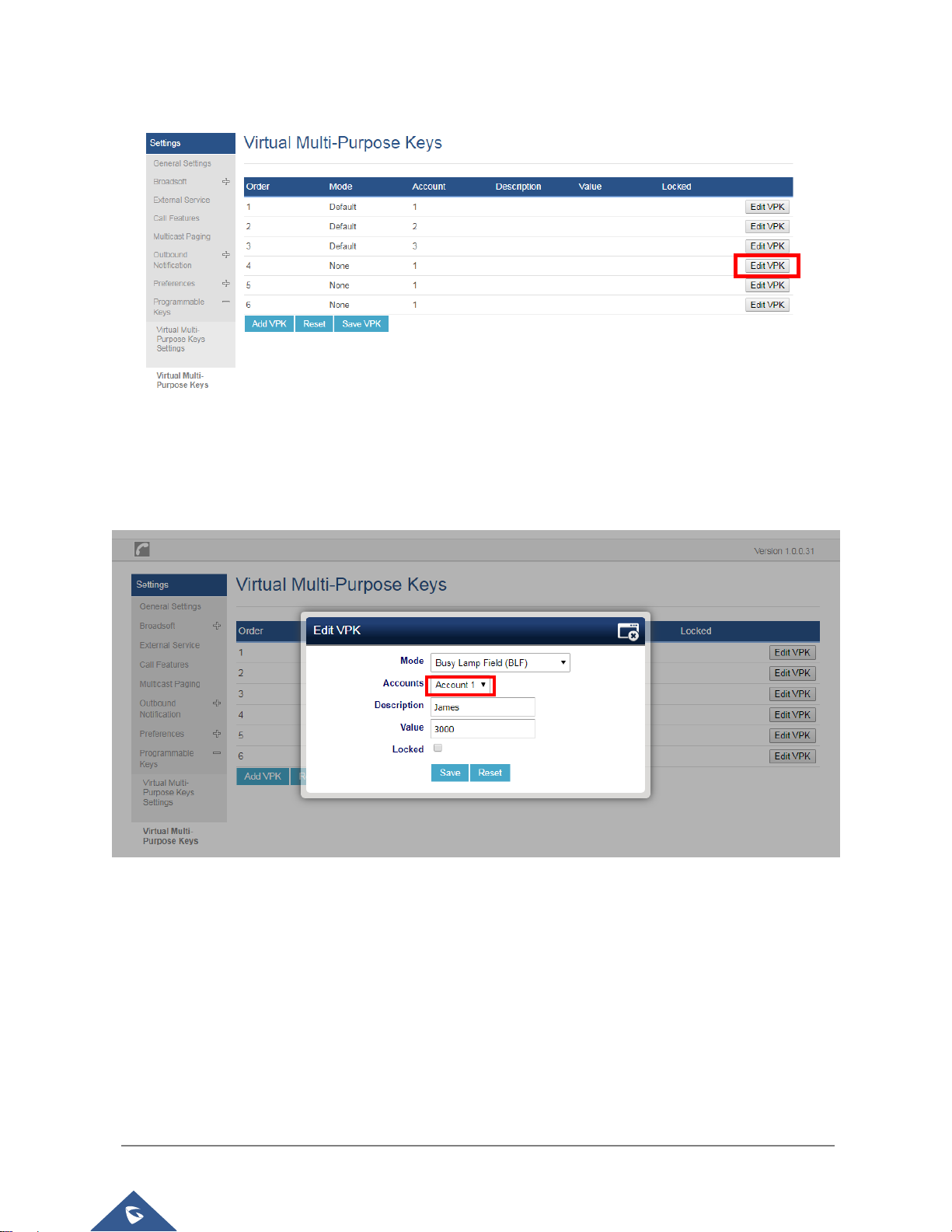

5. On the “Account” dropdown menu, select the account associated with the IP PBX that carries the

extension being set up;

Figure 3: Select Associated Account

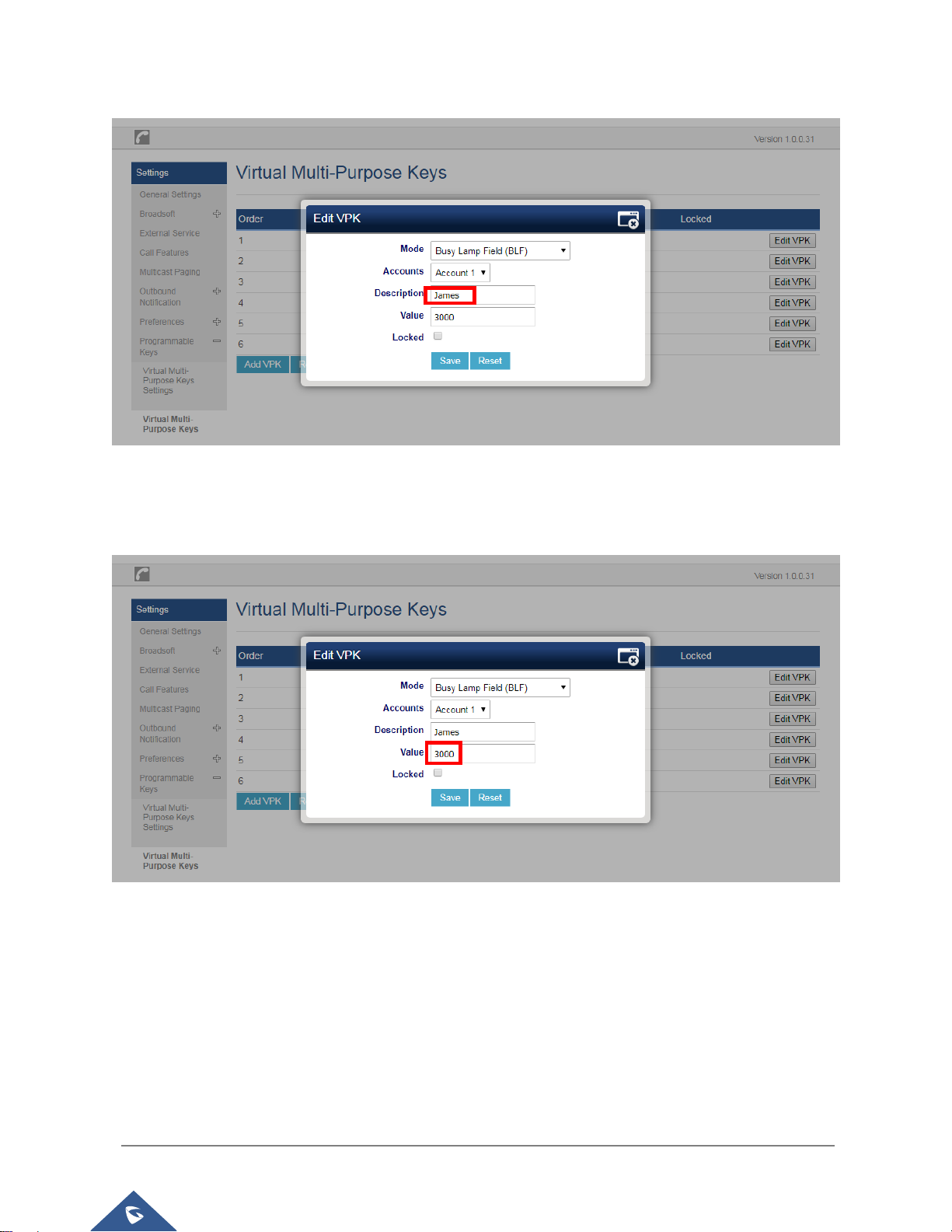

6. In the “Description” field, type the name of the individual or department that you want to associate with

the extension being set up;

GRP26XX Series - BLF Guide

P a g e | 8

Figure 4: Add Description

7. In the “Value” field, type the extension number for the extension being set up;

Figure 5: Add Extension Value

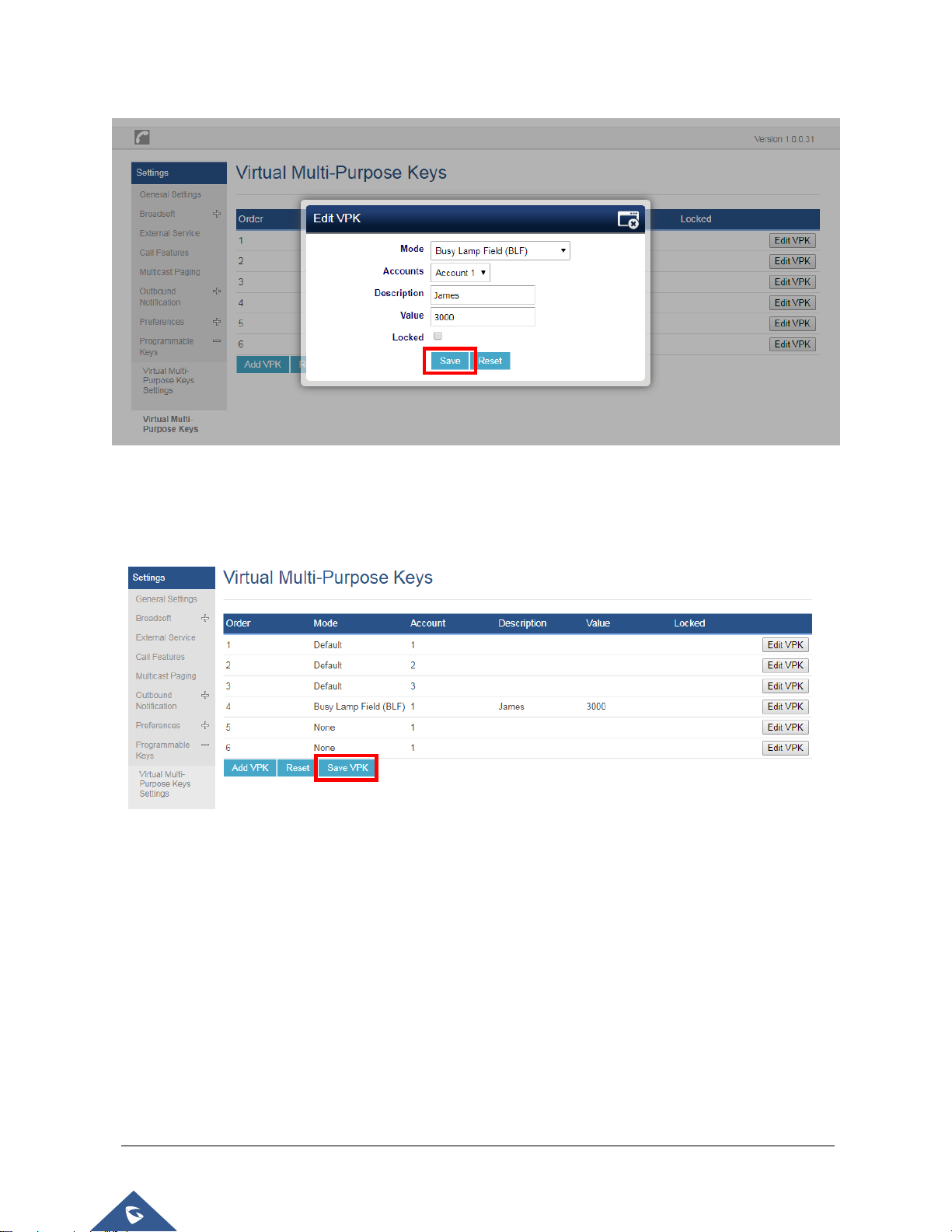

8. Go to the bottom of the page and click on “Save”.

GRP26XX Series - BLF Guide

P a g e | 9

Figure 6: Click “Save”

9. Then in the bottom of the “Virtual Multi-Purpose Keys” page and click on “Save VPK”.

Figure 7: Click “Save VPK”

Note: If users would like to configure more VPKs than the ones displayed on the page to perform BLF, they

can click on “Add VPK” to configure dynamic VPK.

GRP26XX Series - BLF Guide

P a g e | 10

Figure 8: Add VPK

VISUAL INDICATORS

The phone system is able to notify the end user the hook status of the monitored extension by changing

the LED colors.

For example, if the monitored extension is ringing, the BLF indicator status will be changed from solid

green to blinking red; and if the monitored extension answers the call, the BLF indicator status will be

changed from blinking red to solid red.

The following table shows the BLF indicator status in different scenarios:

Table 2: The BLF Indicators Status in Different Scenarios

Monitored Extension Behavior

BLF Indicator Status

(LINE Keys/MPKs on

Phone Body)

Idle

Solid green

Placing a call

Solid red

Ringing

Blinking red

During a call

Solid red

Hold the call

Solid red

Monitored extension not

registered/BLF subscription failed

Off
