GE Spacemaker DSKS433EBWW Manual

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

360432

Specification Revised 5/09

Listed by

Underwriters

Laboratories

DSKS433EB

GE Spacemaker® Stationary Dryer

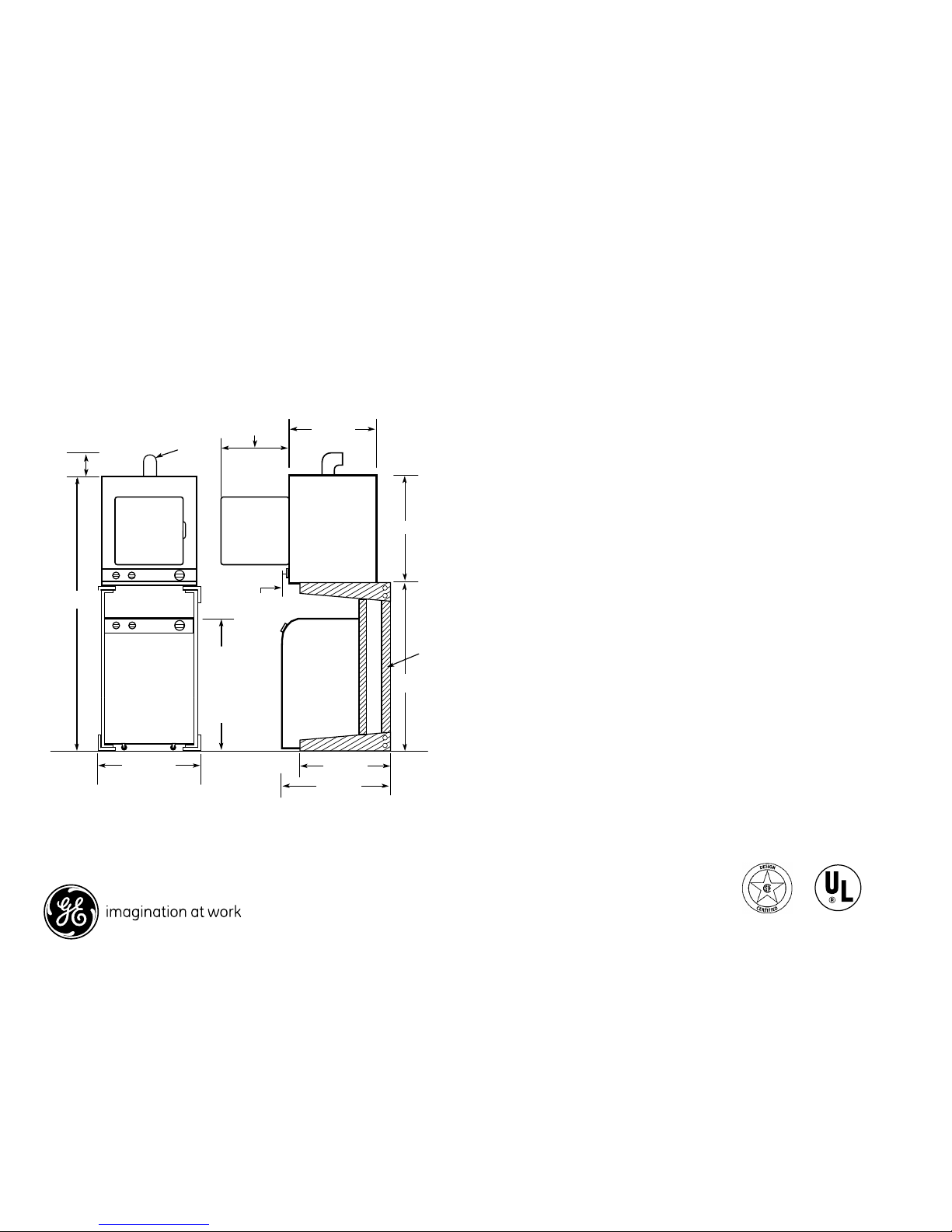

Dimensions and Installation Information (in inches)

Shown with WSLP1100A or WSLS1100A and Stack Rack DSDR24D

WSLP1500J

Portable

Washer

WSLS1500J

Stationary

Washer

DSKS433EB and

DSKS333EC

Dryer

Stack Rack

DSDR24D

22-7/8

1-5/8

5-1/2

79-1/4

38"

WSLP1500J

Portable

37-1/2"

WSLS1500J

Stationary

24-1/2 25-1/2

31-1/2

Top

Vent

WSLP1100A

Stationary

Washer

DSKS333EC

Dryer

Stack Rack

DSDR24D

22-7/8

1-5/8

5-1/2

77-3/4

25-1/2

Top

Vent

31-1/2

stack rack DSR24 w/DDP1380T

24-1/2

33-1/4

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

360432

Specification Revised 5/09

Listed by

Underwriters

Laboratories

DSKS433EB

GE Spacemaker® Stationary Dryer

Dimensions and Installation Information (in inches)

Special Installation Requirements

Alcove or Closet Installation:

• If your dryer is approved for installation in an alcove or closet, it will be stated on

a label on the dryer back.

• The dryer MUST be exhausted to the outside.

• Minimum clearances between dryer cabinet and adjacent walls or other

surfaces are:

0" either side

3" front and rear

• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52”.

• Closet doors must be louvered or otherwise ventilated and must contain a

minimum of 60 sq. in. of open area equally distributed. If this closet contains

both a washer and a dryer, doors must contain a minimum of 120 sq. in. of open

area equally distributed.

• No other fuel-burning appliance shall be installed in the same closet with

a gas dryer.

Bathroom or Bedroom Installation:

• The dryer MUST be exhausted to the outdoors.

• The installation must conform with the local codes, or in the absence of local

codes, with the National Electric Code and National Fuel Gas Code, ANSI Z223

for gas dryers.

Minimum Clearances other than Alcove or Closet Installation:

• Minimum clearances to combustible surfaces

0" both sides

3" rear

Best performance

Domestic

dryer models

Maximum length of 4"

dia. rigid metal duct

Number

90°

turns

Exhaust hood type

opening

2-1/2"

opening

DSKS433EB

DSKS333EC

DSKP333EC

WSM2780H

46 ft.

38 ft.

31 ft.

24 ft.

37 ft.

30 ft.

22 ft.

15 ft.

WSM2700H

56 ft.

46 ft.

34 ft.

32 ft.

42 ft.

36 ft.

28 ft.

18 ft.

WSM2420D

WSM2480D

43 ft.

33 ft.

23 ft.

36 ft.

26 ft.

16 ft.

2-1/2

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

360432

Specification Revised 5/09

Listed by

Underwriters

Laboratories

DSKS433EB

GE Spacemaker® Stationary Dryer

Dimensions and Installation Information (in inches)

For complete information, see installation instructions packed with your dryer.

Ducting Materials:

For best performance, this dryer should be vented with 4" diameter all rigid metal

exhaust duct. If rigid metal duct cannot be used, then UL-listed flexible metal (semi-rigid)

ducting can be used (Kit WX08X10077). In special installations, it may be necessary to

connect the dryer to the house vent using a flexible metal (foil-type) duct. A UL-listed

flexible metal (foil-type) duct may be used ONLY in installations where rigid metal or

flexible metal (semi-rigid) ducting cannot be used AND where a 4” diameter can be

maintained throughout the entire length of the transition duct. Please see installation

instruction packed with your dryer for complete instructions when using flexible metal

(foil type) ducting.

Exhaust Length Calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to the

side or bottom of dryer, add one turn.

2. The maximum length of 4' rigid (aluminum or galvanized) duct which can be tolerated

is shown in the table.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should be

treated as a 90° elbow. A turn over 45° should be treated as a 90° elbow.

Dryers must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any

enclosed house floor (crawl space), or into an attic, since the accumulated lint could

create a fire hazard or moisture could cause damage. Never terminate the exhaust into

a common duct or plenum with a kitchen exhaust, since the combination of lint and

grease could create a fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird

nesting, etc. The wall cap must also be located at least 12" above the ground or any

other obstruction with the opening pointed down.

Dryer Note: Dryer wall outlet must be located within 36" of service

cord entry and accessible when dryer is mounted in position.

DSKS433EBWW

100

OFF

PERM. PRESS & DELICATESCYCLE

TIMED CYCLE

PUSH TO START

AUTO

REGULAR

TEMPERATURE

REGULAR

(HIGH HEAT)

PERM PRESS

(MED.HEAT)

DELICATES

(LOW HEAT)

FLUFF

(NO HEAT)

OFF

cool down

cool

down

33-1/4

24-1/2 23-7/8

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

360432

Specification Revised 5/09

Listed by

Underwriters

Laboratories

DSKS433EB

GE Spacemaker® Stationary Dryer

Features and Benefits

• Auto Dry – Uses thermostats to monitor air temperature and

reduce fabric wear

• Multiple Heat Selections – Offers enhanced drying

performance and fabric care

• Multiple Dry Cycles – Deliver optimal drying results

• Rotary Mechanical Controls – Are straightforward and easy

to turn

• Upfront Lint Filter – Easy to reach and clean

• Model DSKS433EBWW – White on white

• Model DSKS433EBWH – White

DSKS433EBWW

100

OFF

cool down

PERM. PRESS & DELICATESCYCLE

*PREFERRED

REGULARSETTING

TIMED CYCLE

PUSH TO START

AU TO

REGULAR

TEMPERATURE

REGULAR

(HIGH HEAT)

PERM PRESS

(MED.HEAT)

DELICATES

(LOW HEAT)

FLUFF

(NO HEAT)

NORMAL DRY

OFF

cool down

cool

down

EXTRA DRY

NORMAL DRY

EXTRA DRY
