GE GTDP740EDWW User manual

12/3/2012

GTDP740EDWW/GDWW

GTDL740EDWW/GDWW

GTDS810EDWS/GDWS

GTDS815EDMC/GDMC

GTDS820EDWS/GDWS

GTDS825EDMC/GDMC

GHDS830EDWS/GDWS

GHDS835EDMC/GDMC

GTDS850EDWS/GDWS

GTDS855EDMC/GDMC

GTDS860EDWS/GDWS

GTDS865EDMC/GDMC

GE Appliance Park Proudly Presents

The Newly Designed GE Dryers For 2012

Colors

White/ White Silver Metallic/Carbon

12/3/2012

Table of Contents

Page Number ……………………………………......Description

3, 4, 5 ………………………………………………………..Table Of Contents

6, 7, 8, 9 …………………………………………………...Safety

10 ………..……………………………………………………Nomenclature

11 ……………………………………………………………..Mini Manual location

12, 13 ……………………………………………………….Warranty Info

14 ……………………………………………………………..Schematic, Electric Dryer - AC Voltage Into The Board and

Motor Switch

15 ……………………………………………………………..Schematic Gas Dryer - AC Voltage To The Board

16 ……………………………………………………………..Schematic, Electric And Gas –Long Vent

17 ……………………………………………………………..Schematic, Electric And Gas –Mist Water Valve

18, 19, 20, 21 …………………………………………..Service Mode

22, 23 ,24 …………………………………………………Resistance/Voltage Charts

25 ……………………………………………………………..Main Board Connecter Locations

26 ……………………………………………………………..Diagnostics From The Board - Sensor Rods

27 ……………………………………………………………..Diagnostics From The Board - LED Light

28 ……………………………………………………………..Diagnostics From The Board - Inlet Thermistor

29 ……………………………………………………………..Diagnostics From The Board - Outlet Thermistor

30 ……………………………………………………………..Diagnostics From The Board - Heaters Resistance Reading

31 ……………………………………………………………..Diagnostics From The Board - Heaters Voltage Reading / Low

Heat or No Heat Issues

12/3/2012

Table of Contents

Page Number ……………………………………......Description

32 ……………………………………………………………. Diagnostics From The Board –Dead Board

33 ……………………………………………………………. Diagnostics From The Board –Water Valve

34 ……………………………………………………………. Diagnostics From The Board –Gas Valve

35 ……………………………………………………………. Diagnostics From The Board –Motor Resistance

36 ……………………………………………………………. Igniter And Flame Viewing

37 ……………………………………………………………. Installation

38 ……………………………………………………………. Installation –Cord Replacement

39 ……………………………………………………………. Installation –Vent Exhaust Length

40, 41, 42 ……………………………………………….. Installation - Location

43 ……………………………………………………………. Installation – Leveling and Stabilizing

44 - 52 ……………………………………………………. Reversing the Door Swing

53 - 58 ……………………………………………………. Controls

59 ……………………………………………………………. Dryer Features

60 ……………………………………………………………. Dryer Features –Clean Speak

61 ……………………………………………………………. Disassembly

62, 63, 64 ……………………………………………….. Disassembly – Backsplash Removal

65, 66 ……………………………………………………… Disassembly –Top Cover Removal

67, 68 ……………………………………………………… Disassembly –Front panel removal

69, 70 ……………………………………………………… Disassembly – Drum removal

12/3/2012

Table of Contents

Page Number ……………………………………......Description

71 ……………………………………………………………. Disassembly –Internal Components –Electric

72 ……………………………………………………………. Disassembly –Internal Components Electric - Thermistor/

Thermostat Locations

73 ……………………………………………………………. Disassembly –Internal Components Gas

74 ……………………………………………………………. Disassembly – Internal Components Gas - Thermistor/

Thermostat Locations

75 ……………………………………………………………. Rear Roller Support Bulkhead - Removal

76 ……………………………………………………………. Blower

77 ……………………………………………………………. Heater Removal – Electric

78 ……………………………………………………………. Heater Removal – Gas

79 ……………………………………………………………. Heater Removal –Gas Valve Assembly

80 ……………………………………………………………. Heater Removal –Main Burner Assembly

81, 82 ……………………………………………………… Heater Removal –Glow Bar Replacement

83 …………………………………………………………... Flame sensor - Removal

84, 85 …….……………………………………………….. Water Valve

86 - 90 ……………………………………………………. Before You Call For Service

91 ……………………………………………………………. Any Questions - End

IMPORTANT SAFETY NOTICE

The information in this presentation is intended for use by individuals

possessing adequate backgrounds of electrical, electronic, &

mechanical experience. Any attempt to repair a major appliance may

result in personal injury & property damage. The manufacturer or seller

cannot be responsible for the interpretation of this information, nor can it

assume any liability in connection with its use.

WARNING

To avoid personal injury, disconnect power before servicing

this product. If electrical power is required for diagnosis or

test purposes, disconnect the power immediately after

performing the necessary checks.

RECONNECTALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used to

complete a path to ground are removed for service, they must be

returned to their original position & properly fastened.

12/3/2012

Brand

P=Profile

G=GE

H=Hotpoint

M=Moffat

Config

T=Top Load

F=Front Load

U=Unitized

TL Derivatives

C=Contract

H=Home Depot

L= Lowes

M=Miscellaneous

Product

W=Washer

D=Dryer

M=Canadian

US Sold

Key Feature

S=Steam

A=Additives

C=Condenser

N=None/Stainless

P=7.0 duradrum

X=6.0 duradrum

L = Long Vent

Specific Color

WW=White

BB=Black

CC=Bisque

MC = Metallic Carbon

MV=Metallic Red

MG=Metallic Gold

MS=Metallic Block

WS=Silver backguard

WT=Titanium backguard

Year

Color

0=White

5=Color

8 6

Series

Fuel

E=Electric

G=Gas

Engineering

Digit

2012 Clothes Care Nomenclature

Dryer

12/3/2012

Mini Manual

Location

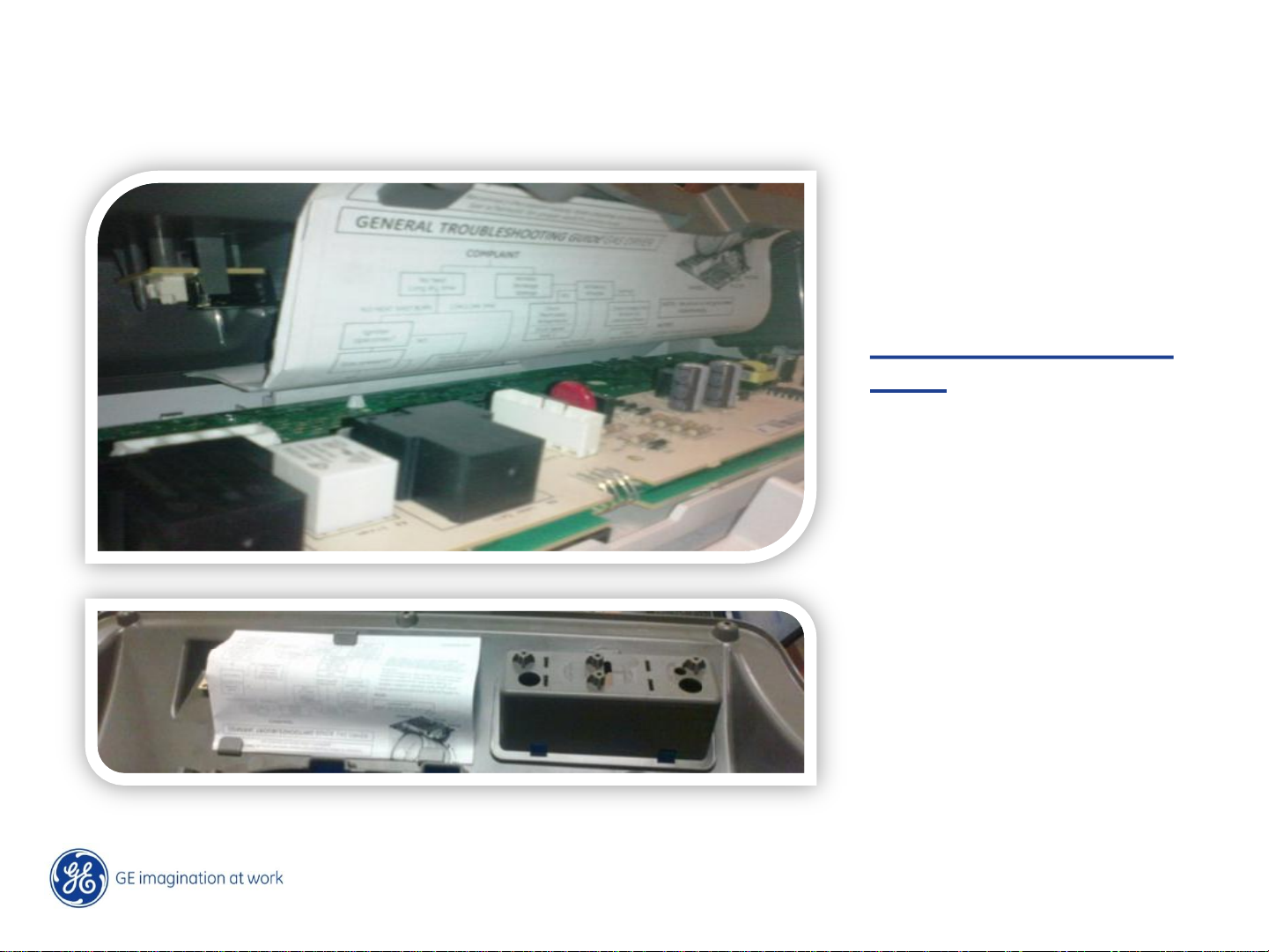

The Mini Manual is located

in the Backsplash area.

Remove power from the

dryer.

Follow the instructions for

rolling the Backsplash

forward on page 62,

Backsplash Removal.

Once it is rolled forward,

you will have access to

the Mini Manual.

12/3/2012

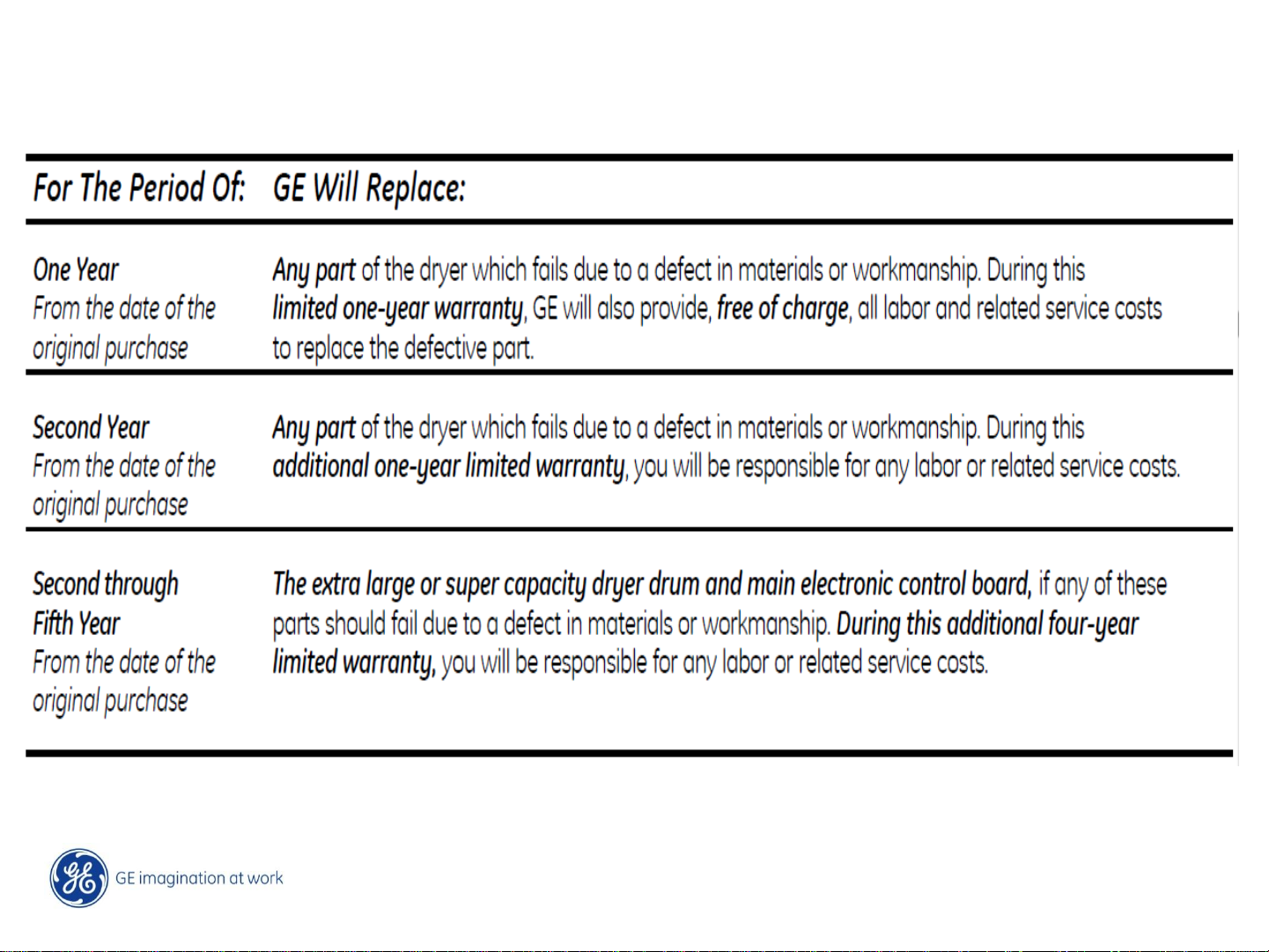

Warranty

12/3/2012

Warranty

12/3/2012

Schematic

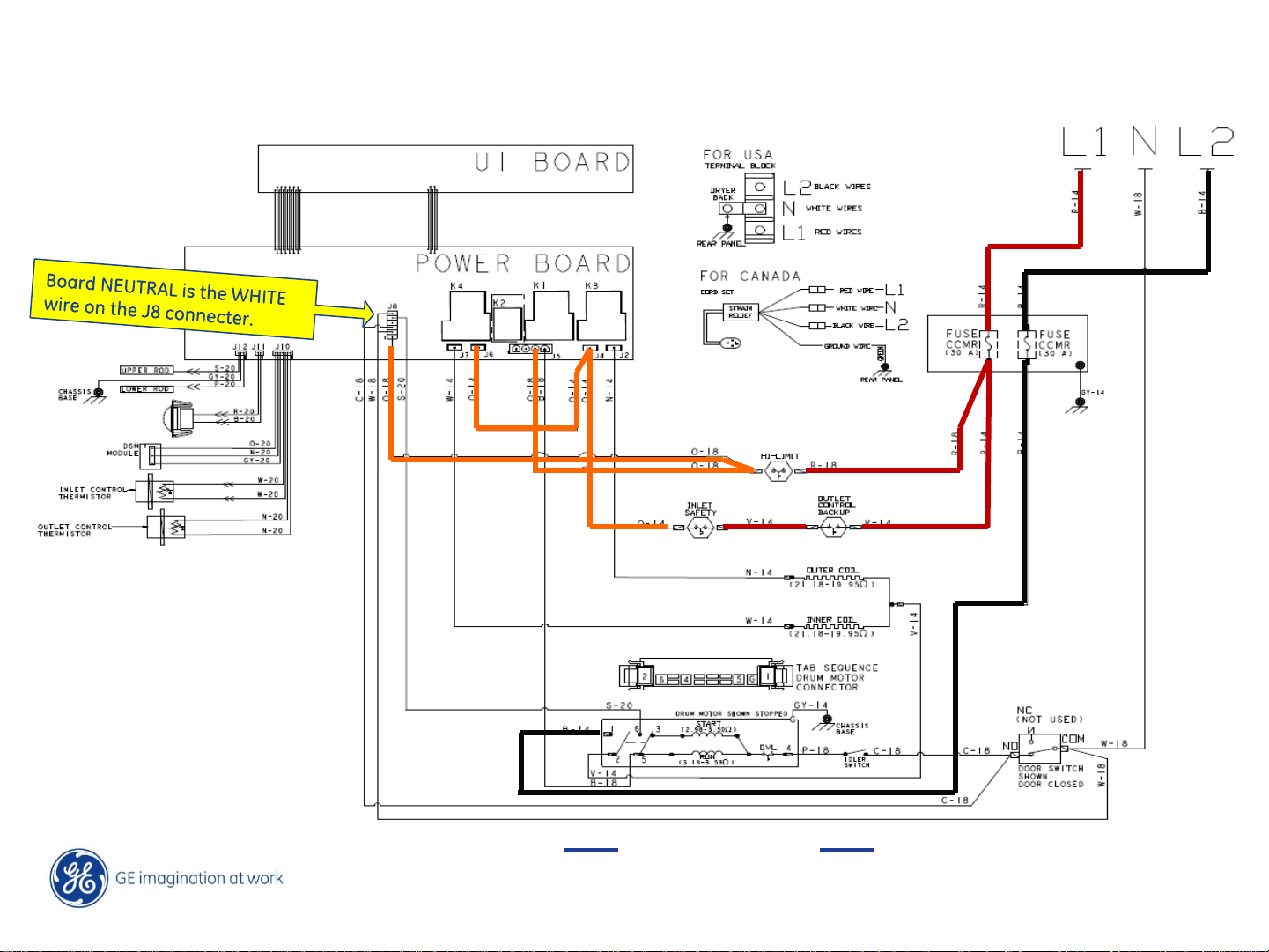

Electric Dryer - AC Voltage Into The Board And Motor Switch

Above diagram shows only non long vent and non steam models.

Other manuals for GTDP740EDWW

This manual suits for next models

Table of contents
