GE DSXH47EG User instructions

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Created 12/06 360472

Listed by

Underwriters

Laboratories

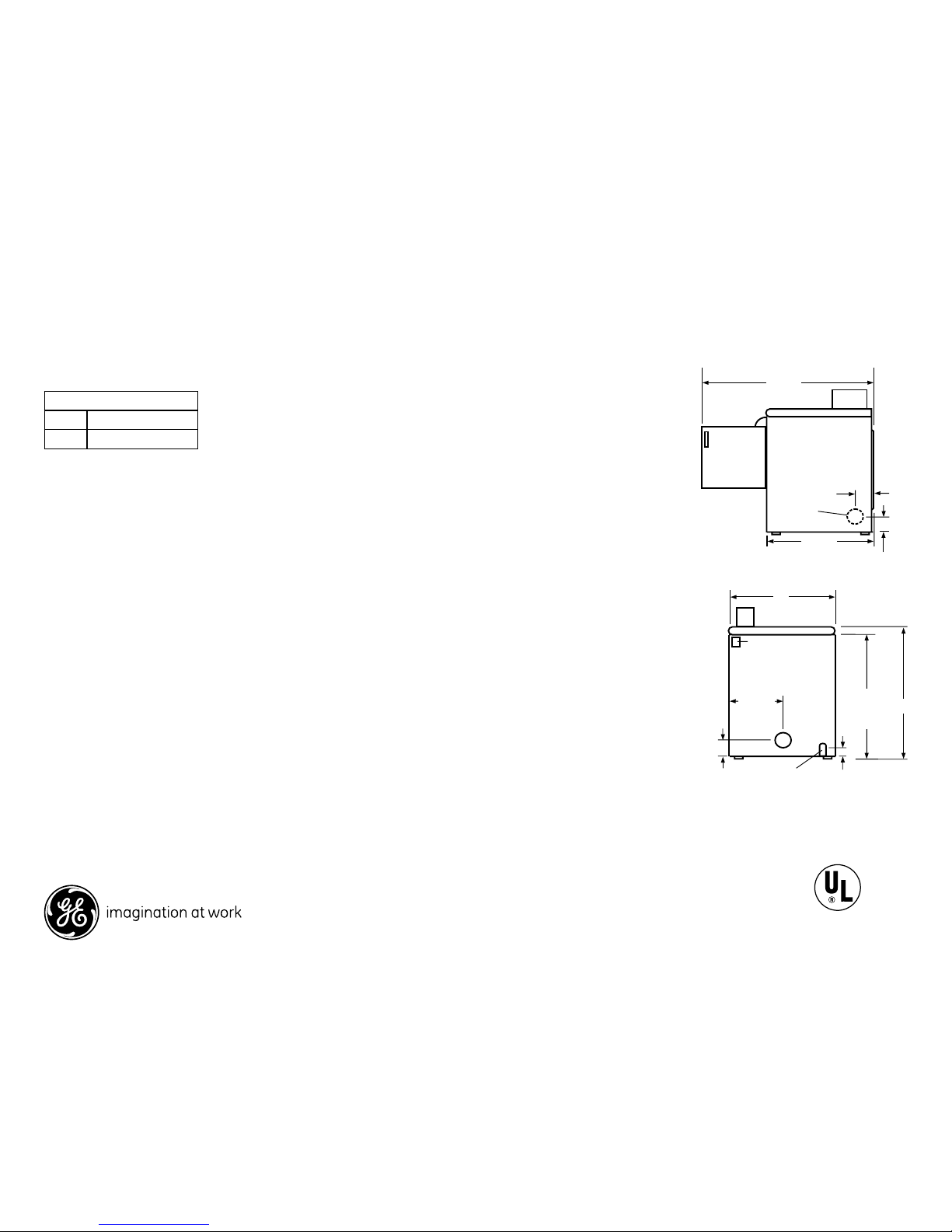

Dimensions and Installation Information (in inches)

Exhaust Options: 4-way via rear, right, left and bottom.

Circuit Requirements: An individual, properly grounded

branch circuit, protected by a 30-amp circuit breaker or

a time-delay fuse, is required.

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information, see

installation instructions packed with your dryer.

SIDE VIEW

28-1/2

48-1/2

4-3/4

Optional

Vent Knockout

Door Open

90°

4-3/8

REAR VIEW

2-1/4

Under

Counter

3/16"

Gas Pipe Connection

Electric

Connection

13-9/16

Electric Dryer Rating

240V 5600W, 24A, 60Hz

208V 4400W, 22A, 60Hz

DSXH47EG

GE®5.8 Cu. Ft. Extra-Large Capacity Frontload Electric Dryer

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

360472

Specification Created 12/06

Special Installation Requirements:

Stacked Installation:

• Brackets for stacking dryer are included as part of the dryer, DSXH43EF/GF. See dryer Use & Care for details.

• Bracket for stacking dryer, DSXH47EG/GG, order Pub. No. 14-A026 or STACKIT1WW at additional cost.

Undercounter installation:

• The WSSH300G and DSXH47EG/GG require a custom-sized countertop (36 inches to the underside of the countertop).

No special washer or dryer top is required.

Alcove or Closet Installation:

• If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.

• The dryer MUST be exhausted to the outside.

• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are: 0" either side, 3" front and rear

• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52".

• Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of open area equally distributed.

If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.

• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.

Bathroom or Bedroom Installation:

• The dryer MUST be exhausted to the outdoors.

• The installation must conform with the local codes, or in the absence of

local codes, with the National Fuel Gas Code, ANSI Z223.

Minimum Clearance other than Alcove or Closet Installations:

• Minimum clearances to combustible surfaces 0" both sides, 3" rear.

For more information on venting kits and accessories,

please call 1-800-GE-CARES.

DSXH47EG

GE®5.8 Cu. Ft. Extra-Large Capacity Frontload Electric Dryer

Listed by

Underwriters

Laboratories

Specification Created 12/06 360472

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter all

rigid metal exhaust duct. If “all rigid metal” duct cannot be used, then “flexible all metal”

venting can be used, but it will reduce the maximum recommended duct length.

Exhaust Length Calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to the

side or bottom of dryer, add one turn.

2. The maximum length of 4’ rigid (aluminum or galvanized) duct which can be tolerated is

shown in the table. The maximum length for flexible ducts are less than for rigid duct.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should be

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Exhausting the dryer to the outside is strongly recommended to prevent large amounts

of moisture and lint from being blown into the room. Gas dryers or any dryer located in a

closet must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire

hazard or moisture could cause damage. Never terminate the exhaust into a common duct

or plenum with a kitchen exhaust, since the combination of lint and grease could create a

fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird

nesting, etc. The wall cap must also be located at least 12" above the ground or any other

obstruction with the opening pointed Down.

Other terminations, such as louvered wall boxes, are acceptable provided they are

equivalent to a 4" opening dampered wall cap.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

DSXH47EG

GE®5.8 Cu. Ft. Extra-Large Capacity Frontload Electric Dryer

Listed by

Underwriters

Laboratories

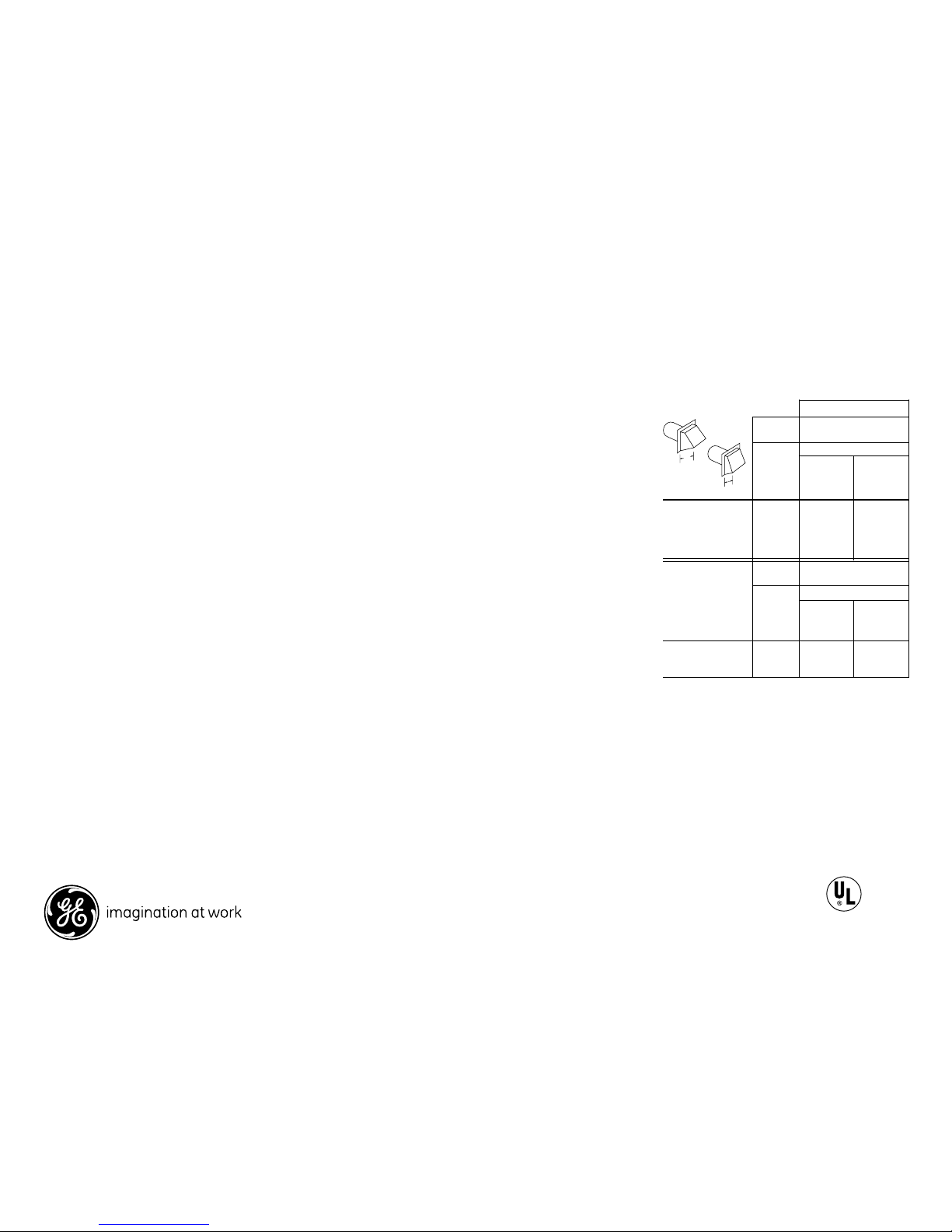

Dryer exhausting information—use metal

duct only

0 60 ft. 48 ft.

1 52 ft. 40 ft.

2 44 ft. 32 ft.

Frontload 3 32 ft. 24 ft.

dryers 4 28 ft. 16 ft.

0 30 ft. 18 ft.

Frontload 1 22 ft. 14 ft.

dryers 2 14 ft. 10 ft.

Number

90°

turns

Number

90°

turns

Maximum length of

4” dia. rigid metal duct

Maximum length of

4” dia. flexible metal duct

Exhaust hood type

4" opening

2-1/2"

opening

4" opening

2-1/2"

opening

2-1/2

GE Dryer Vent

Best performance

Specification Created 12/06 360472

7CYCLES/SUPERCAPACITY/SENSORDRY

REGULAR

HIGH

MEDIUM

NOHEAT

LOW

PERMAPRESS

QUICKDRY

DEWRINKLE

DELICATE

MOREDRY

DRY

LESSDRY

DAMP

EXTRACARE

SIGNAL

DRYING

COOLDOWN

EXTRACARE

CLEANLINTFILTER

CONTROLLOCK

TOWELS

DRYNESS

SENSORDRY

TIMEDDRY

TEMPERATURE

OPTIONSSELECTSTARTPAUSE

CANCEL

DSXH47EG_GGWW

Features and Benefits

• 5.8 Cu. Ft. Extra-Large Capacity - Handles any large-size items

and family-size loads

• Rotary Electronic Controls with Cycle Status Lights - Make it

easy to select and monitor wash cycles

• Painted Drum - Painted drum coated with a rustproof finish to

stand up to heavy use

• Four Temperature Options - Provides the right temperature for

the right drying results

• On/Off End-Of-Cycle Signal - Can be turned on so you can hear

it from another room, or turned off when you do not want to

disturb others

• Four Auto Dry Cycles - A variety of fast and flexible options for

drying clothes

• Sensor Dry™- Continually monitors moisture levels to help

clothes look better longer

• Interior Dryer Light - Lets you see everything inside for easy

loading and unloading

• Reverse-A-Door - Offers added installation flexibility

• Model DSXH47EGWW – White on white

DSXH47EG

GE®5.8 Cu. Ft. Extra-Large Capacity Frontload Electric Dryer
