GE DBVH512EF Manual

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Revised 10/07 360450

Listed by

Underwriters

Laboratories

Dimensions and Installation Information (in inches)

Exhaust Options: 4-way via rear, right, left and bottom.

Circuit Requirements: An individual, properly grounded

branch circuit, protected by a 30-amp circuit breaker or

a time-delay fuse, is required.

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information, see

installation instructions packed with your dryer.

27 1-5/8

41-1/2

31-1/8

5-1/2

3-3/4

Electric Dryer Rating

240V 5600W, 24A, 60Hz

208V 4400W, 22A, 60Hz

DBVH512EF

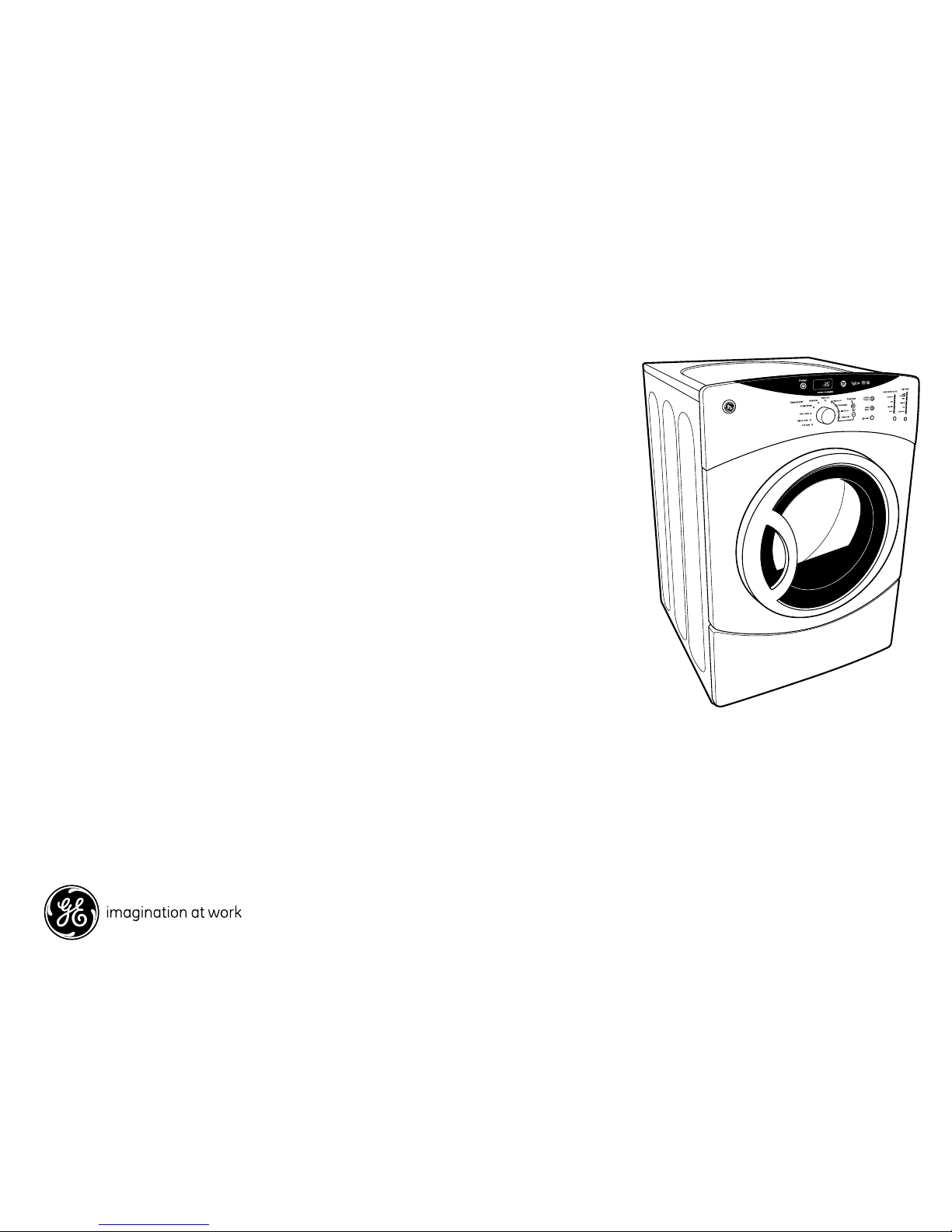

GE®7.0 Cu. Ft. Super Capacity Frontload Electric Dryer

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

360450

Specification Revised 10/07

Special Installation Requirements:

Stacked Installation:

• Brackets for stacking dryer over washer are included with the washer.

Alcove or Closet Installation:

• If your dryer is approved for installation in an alcove or closet, it will be

stated on a label on the dryer back.

• The dryer MUST be exhausted to the outside.

• Minimum clearances between dryer cabinet and adjacent walls or other

surfaces are: 0" either side, 3" front and rear

• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 52".

• Closet doors must be louvered or otherwise ventilated and must contain a

minimum of 60 sq. in. of open area equally distributed. If this closet contains

both a washer and a dryer, doors must contain a minimum of 120 sq. in. of

open area equally distributed.

• No other fuel-burning appliance shall be installed in the same closet with

a gas dryer.

Bathroom or Bedroom Installation:

• The dryer MUST be exhausted to the outdoors.

• The installation must conform with the local codes, or in the absence of

local codes, with the National Fuel Gas Code, ANSI Z223.

Minimum Clearance other than Alcove or Closet Installations:

• Minimum clearances to combustible surfaces 0" both sides, 3" rear.

For more information on venting kits and accessories,

please call 1-800-GE-CARES.

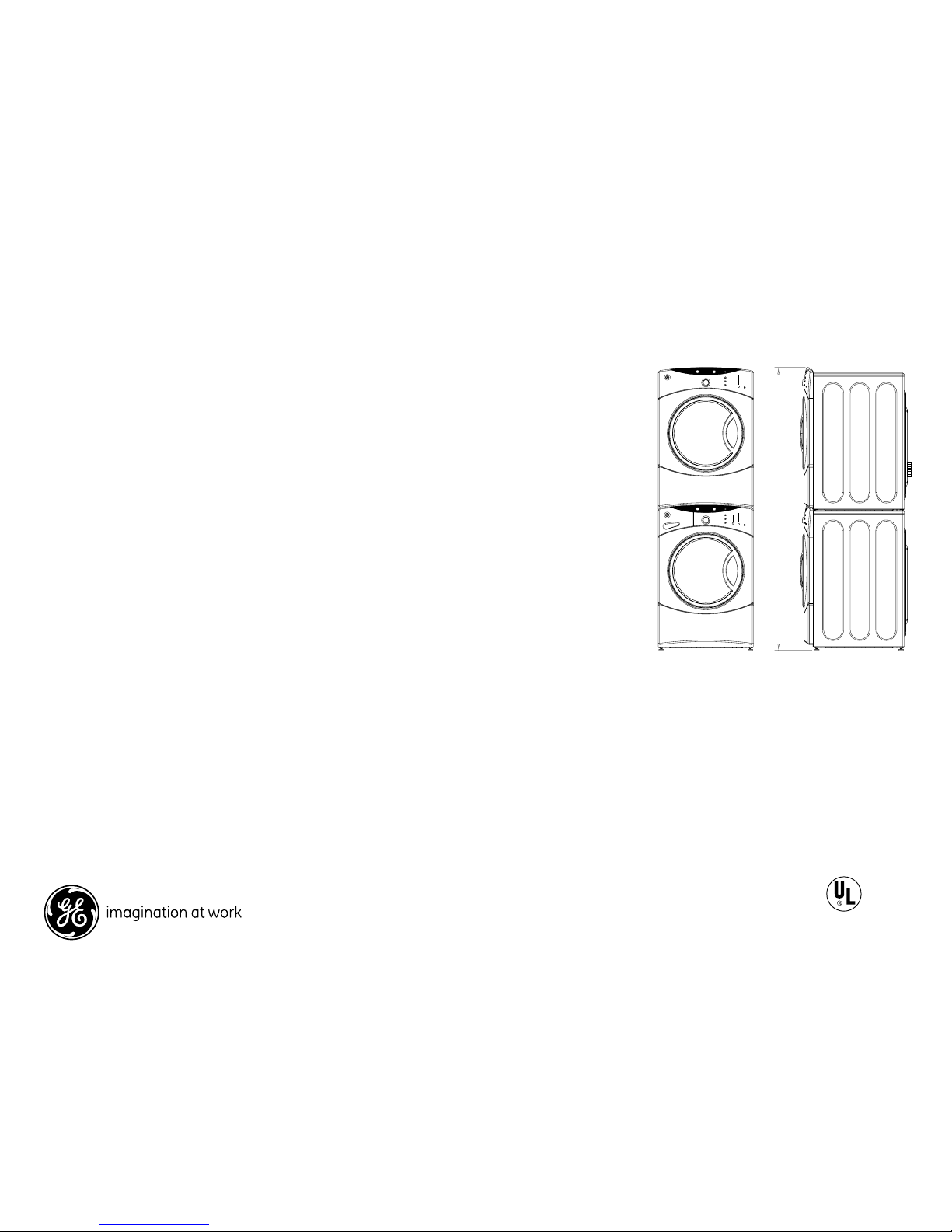

Stacked Dimensions (in inches)

80-1/8

DBVH512EF

GE®7.0 Cu. Ft. Super Capacity Frontload Electric Dryer

Listed by

Underwriters

Laboratories

Specification Revised 10/07 360450

Best Performance

Maximum Length

of 4" Dia.

Rigid Metal Duct

Maximum Length

of 4" Dia.

Flexible Metal Duct

Number

90°

Turns

Exhaust Hood Type Exhaust Hood Type

4" Opening

2-1/2"

Opening

4" Opening

2-1/2"

Opening

Front Loading

Dryers

90 ft.

60 ft.

45 ft.

35 ft.

25 ft.

60 ft.

45 ft.

35 ft.

25 ft.

15 ft.

55 ft.

40 ft.

30 ft.

20 ft.

15 ft.

45 ft.

30 ft.

20 ft.

15 ft.

10 ft.

2-1/2

GE Dryer Vent

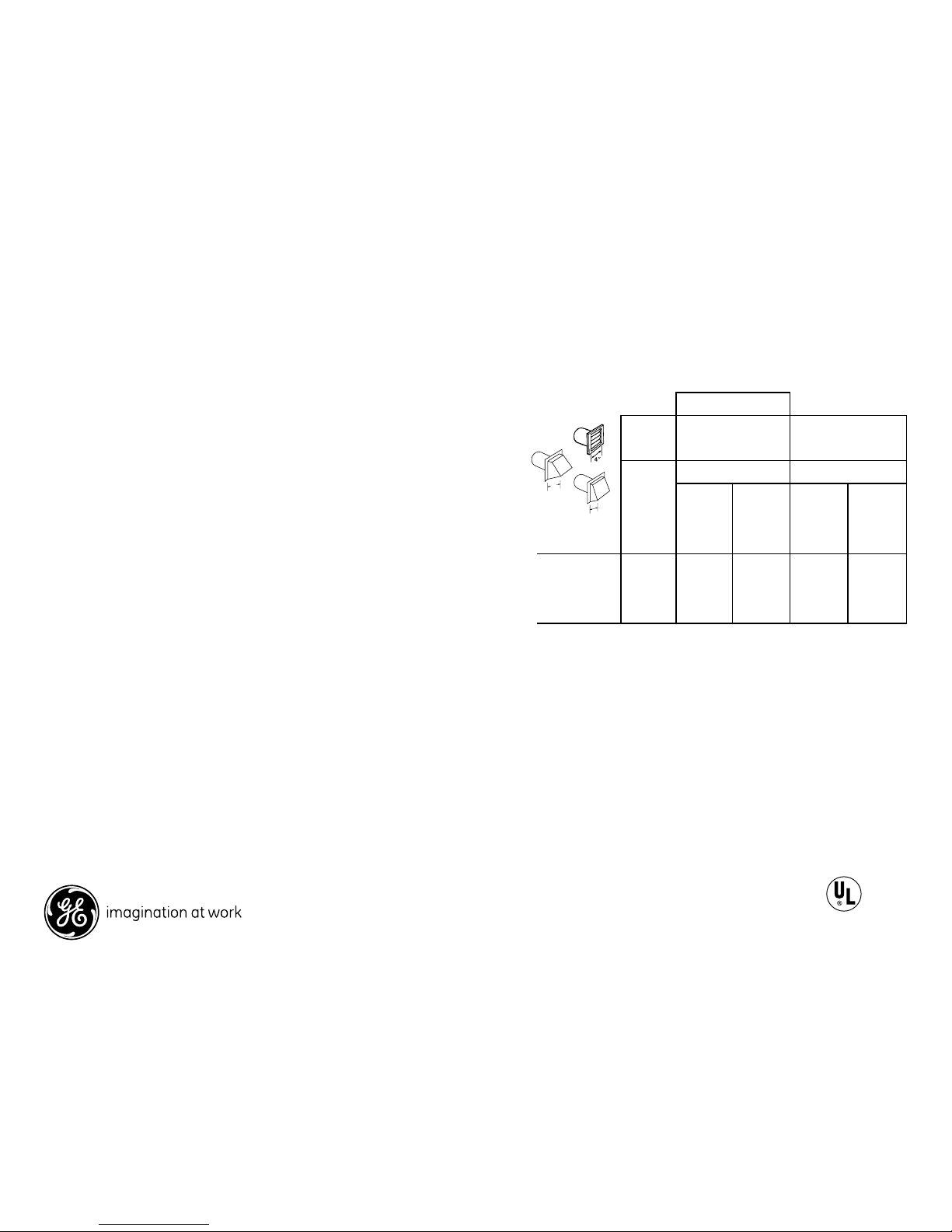

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter all

rigid metal exhaust duct. If “all rigid metal” duct cannot be used, then “flexible all metal”

venting can be used, but it will reduce the maximum recommended duct length.

Exhaust Length Calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to the

side or bottom of dryer, add one turn.

2. The maximum length of 4’ rigid (aluminum or galvanized) duct which can be tolerated is

shown in the table. The maximum length for flexible ducts are less than for rigid duct.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should be

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Exhausting the dryer to the outside is strongly recommended to prevent large amounts

of moisture and lint from being blown into the room. Gas dryers or any dryer located in a

closet must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire

hazard or moisture could cause damage. Never terminate the exhaust into a common duct

or plenum with a kitchen exhaust, since the combination of lint and grease could create a

fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird

nesting, etc. The wall cap must also be located at least 12" above the ground or any other

obstruction with the opening pointed Down.

Other terminations, such as louvered wall boxes, are acceptable provided they are

equivalent to a 4" opening dampered wall cap.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

DBVH512EF

GE®7.0 Cu. Ft. Super Capacity Frontload Electric Dryer

Listed by

Underwriters

Laboratories

Specification Revised 10/07 360450

DBVH512EF/GF

Features and Benefits

• 7.0 Cu. Ft. Super Capacity - Handles large-size items and family-size loads

• Sensor Dry Plus – Continually monitors moisture levels to help clothes look

better longer

• Rotary Electronic Controls with LED Indicators – Make it simple to select and monitor

wash cycles

• Interior Dryer Light – Lets you see everything inside for easy loading and unloading

• Quiet-By-Design™- Engineered for quiet operation

• Variable End-Of-Cycle Signal – Adjustable volume offers added flexibility

• Multiple Dry Cycles – Deliver optimal drying results

• Antibacterial Option – Certified by the NSF®to reduce up to 99.9% of certain types

of bacteria

• 5 Heat Selections – Offer enhanced drying performance and fabric care

• DuraDrum™- Provides long lasting dependability and durability

• Damp Dry Signal – Reminds you when to remove selected items for hang-drying

• Delay Start – Lets you do the laundry on your terms

• Model DBVH512EFWW – White on white

• Model DBVH512EFGG – Granite gray

DBVH512EF

GE®7.0 Cu. Ft. Super Capacity Frontload Electric Dryer
