GE Zoneline AZ28E12DA User manual

AZ28E12D*P – GE Zoneline

Dry Air 25 Series Cooling and Electric Heat Unit

Specification Created 9/04

390509

GE Appliances

Electrical Wiring

All wiring, including installation of receptacle, must be made in

accordance

with local electrical codes and regulations.

Note:

Aluminum wiring may pose special problems – consult

a qualified electrician.

Grille Options

Stamped Aluminum Grille – RAG60

Exterior Architectural Louvers Durable Polycarbonate:

RAG61 or RAG64 (Beige) RAG63 or RAG66 (Bittersweet)

RAG62 or RAG65 (Maple) RAG67 (Extruded Aluminum)

Retrofit Kits:

RAK901L – Wall Case Insulation for use with heat pumps.

RAK40 – Deflector Kit to adapt chassis for use with existing

exterior architectural

louvered grilles.

Ducted Applications

2800 and 3800 series can be used with ductwork to heat or

cool more than

one

room. RAK6052 Duct Adaptor is applied

to top of case over air discharge/

RAK601

Duct Extension is

applied to right or left of adaptor. Locally fabricated

ductwork

may be added to extend to maximum recommended distance

of 15 feet.

Electrical Connection

230/208 volt units may be plugged into a receptacle. 265 volt

units

are provided

with a junction box and require direct

connection. (NEC Requires 265V Direct Connection) See

Architects and Engineers Design Data Manual for electrical

connection information including use of sub-base for direct

connected units. Installation must comply with local electrical

codes and regulations.

Power Connection kits required on all Zoneline chassis.

Zoneline RAC Wall Installation

Zoneline Wall Install QSart

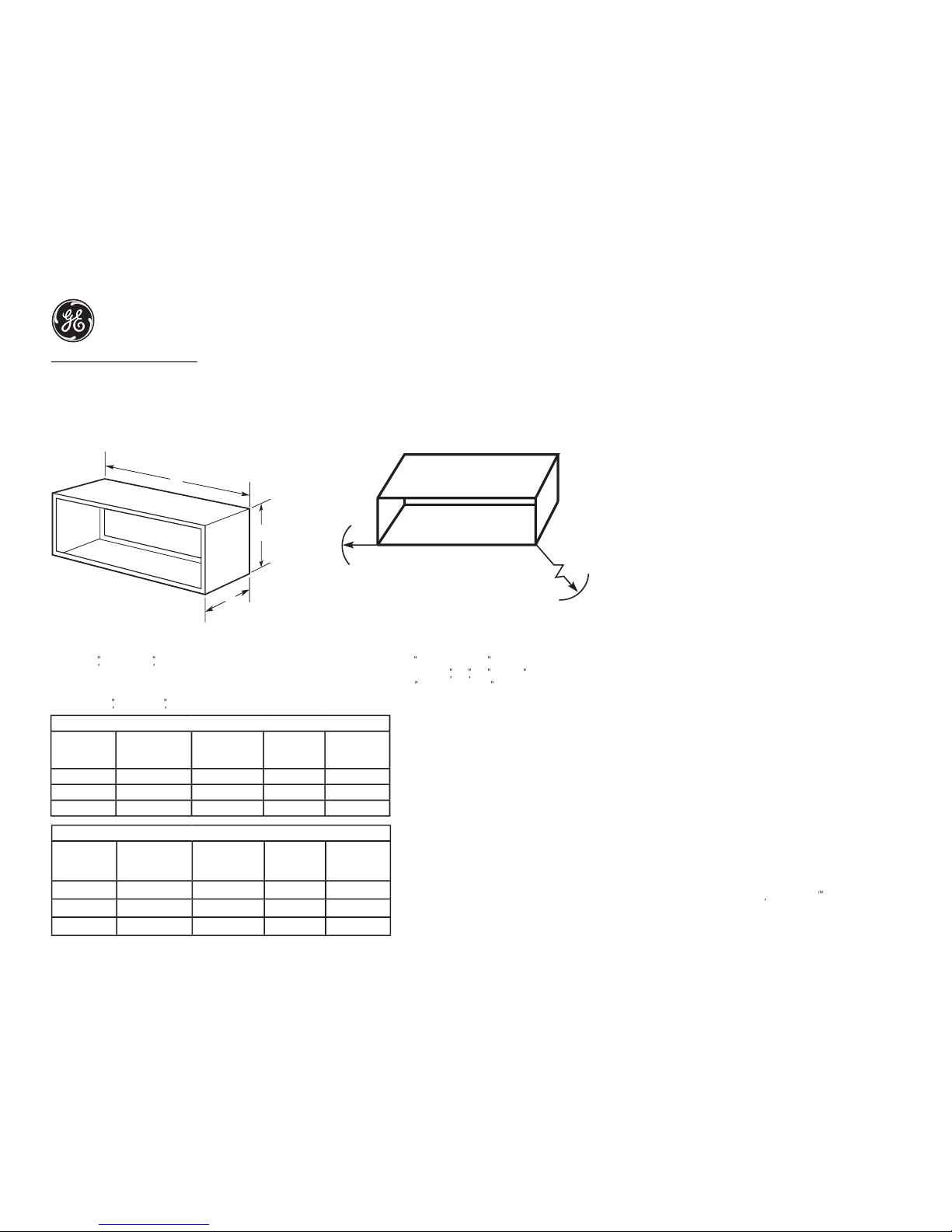

Wall Case Dimensions

RAB71 Wall Sleeve

Heavy-gauge galvanized steel, with insulation.

A – 42

–

13-3/4

–

16"

RAB77 Wall Sleeve

Molded SMC fiberglass-reinforced polyester compound.

A – 42-1/8

–

13-7/8

–

16-1/4

Wall Opening Di

ensions

Add 1/4" to A and C dimensions for all cut-out size.

RAB71 16-1/4

Min. H x 42-1/4

Min. W

RAB71 available in 16

and 31

depths

RAB77 16-1/2

Min. H x 42-3/8

Min. W

Maximum Cord Extension (in inches)

For answers to your Monogram

GE Profile

™

appliance questions, visit our website at

.com or call GE Answer Center

service,

800.626.2000.

SIDE

VIEW

Inside

Room

Cabinet

Outside

Grille

7-1/8

RAB71A = 16

RAB77A = 16-1/4

RAB71A = 20-7/8

RAB77A = 21

Room Air/Installation QSart

230/208 Volt Line Cord Connected Units

Line Cord

Kit

Electric Heat

(Btuh)

Electric

Heater Watts

Electric

Heat Amps

Min. Circuit

Protection

(Amps)

RAK3153

8,600/7,100

2,550/2,090

11.6/10.6

RAK3202

11,700/9,600

3,450/2,820

15.5/14.1

RAK3303

17,000/13,900

5,000/4,090

22.3/20.3

230/208 Volt Sub-Base Connected Units

Sub-Base

Electric Heat

(Btuh)

Electric

Heater Watts

Electric

Heat Amps

Min. Circuit

Protection

(Amps)

RAK204D15P

8,600/7,100

2,550/2,090

11.6/10.6

RAK204D20P

11,700/9,600

3,450/2,820

15.5/14.1

RAK204D30P

17,000/13,900

5,000/4,090

22.3/20.3

AZ28E12D*P – GE Zoneline

Dry Air 25 Series Cooling and Electric Heat Unit

Specification Created 9/04

390509

GE Appliances

Features and Benefits

• 11,200/11,000 BTUH

• 11.0/11.0 E.E.R.

• 4.5 Dehumidification (pts/hr)

• 240 CFM Indoor Fan (High)

• 210 CFM Indoor Fan (Low)

• 75/45 Vent CFM

• Corrosion-Treated Chassis Extends Life of the Unit in Sea Coast Areas

• Electronic 7-Step Temperature Limiting To Prevent Overcooling or Overheating of Room

• Heat Sentinel

• 29 Sound Transmission Class (STC)

• Standard Microcomputer, Rotary Knobs

• Model AZ28E12DAP – Warm grey beige
