GAUI 330X Quad-Flyer User manual
GAUI
330X
Quad-Flyer
Max Flying Weight :
1100g
Weight : 400g
(without batt.)
8 inch Prop
Battery :2S~3S Lipo
330mm
4~5CH radio control system
GAUI TAI SHIH HOBBY CORPORATION
P1
P1
P2~4
P4
P5
P5~6
P7
P8
P9
P10
P11
P12
P13
P14~16
P16
P17
P18
P19
P11
索引
輪架製作

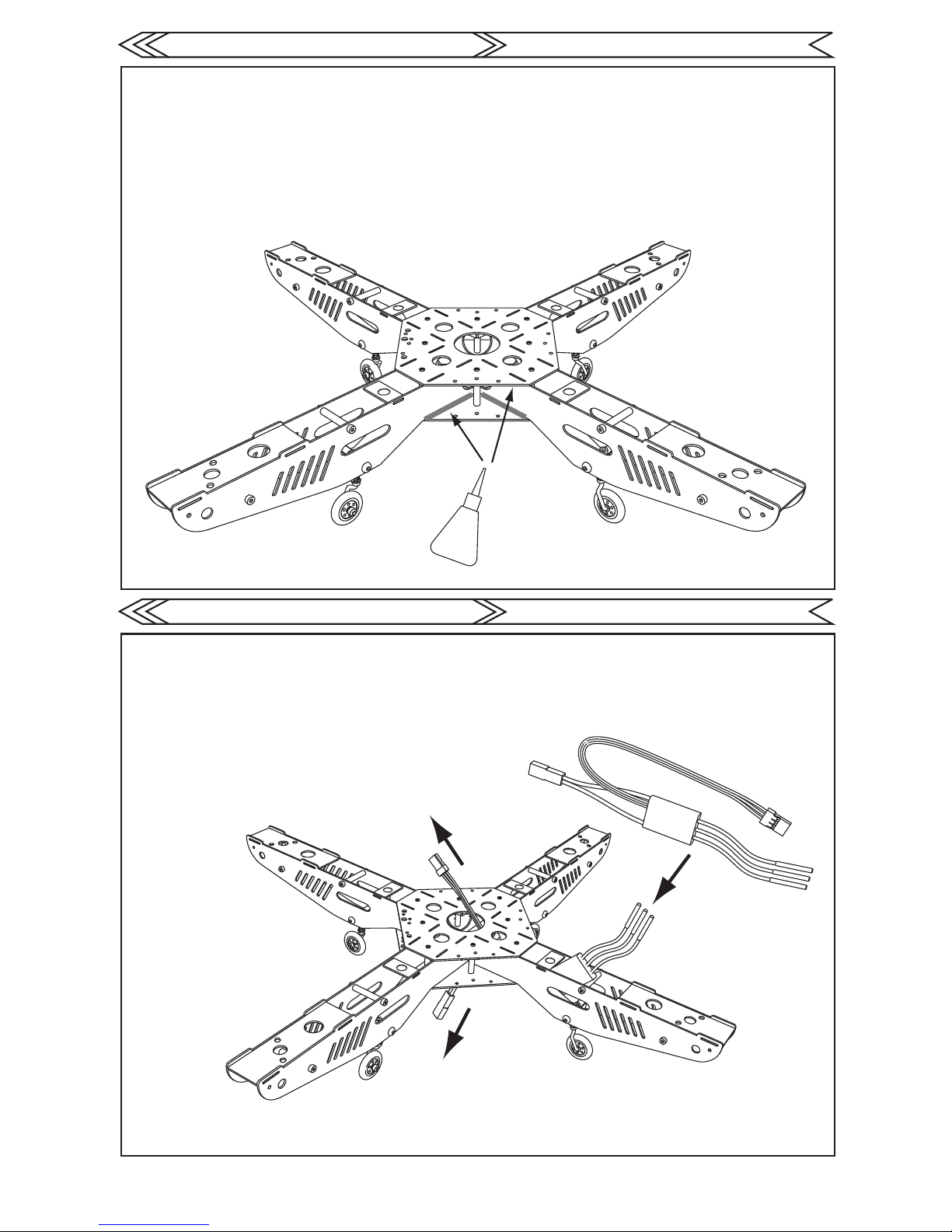

機身製作
組裝ESC

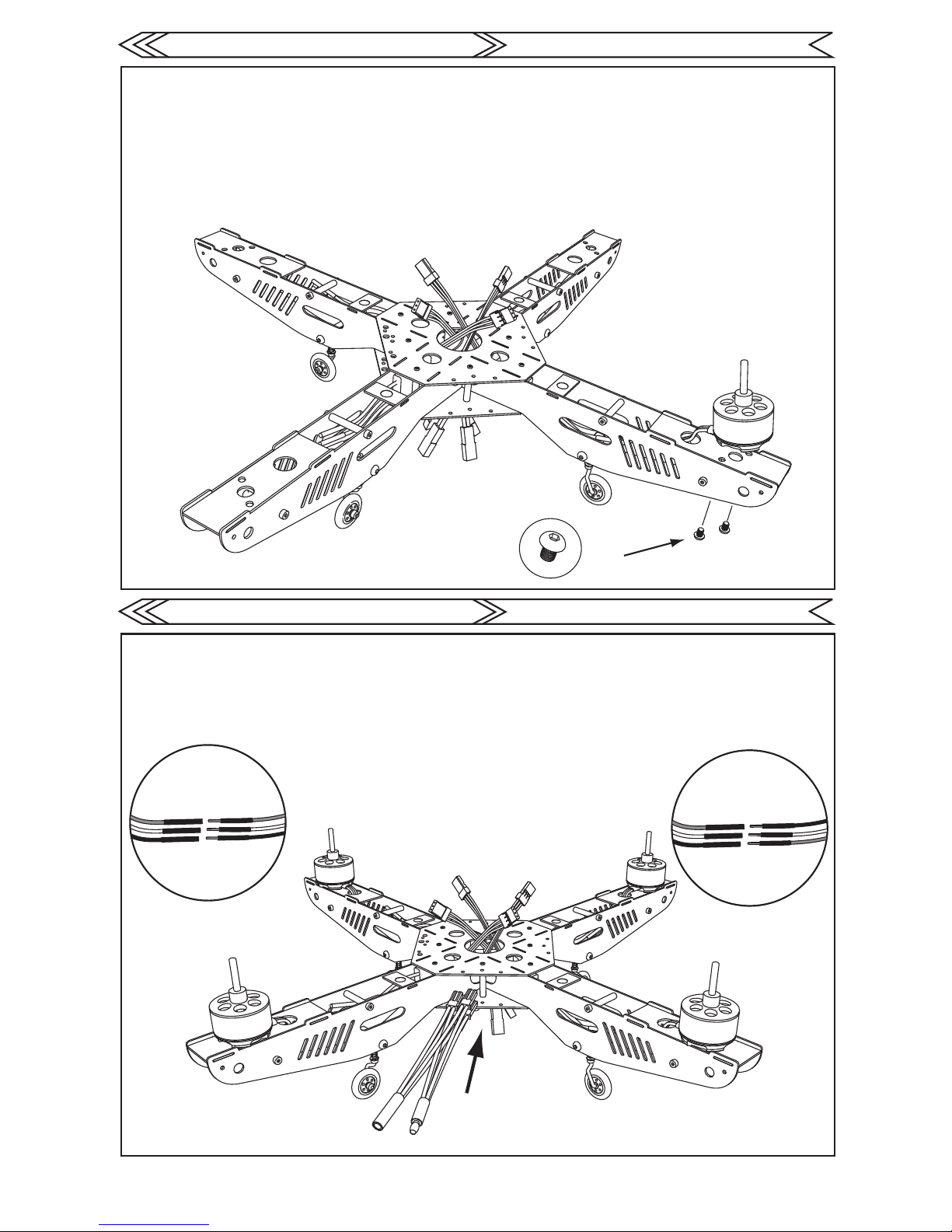

組裝馬達
組裝電源線
組裝GU-344
組裝接收機
組裝螺旋槳
艙罩製作
機頭製作
系統設定
ESC設定
試飛
變更機頭方向
酬載
效率與時間計算
扣件製作
組裝電池
零件表
Windshield Mount Assembly
Gear Set Assembly
Main Frame Assembly
ESC Installing
Motor Installing
Motor and ESC Wiring
GU-344 Installing
Receiver Installing
Props Installing
Windshield Assembly
Nose Ball Assembly
Setting
ESC Setting
Check Before First Flight
Nose Direction Setting
Payload Carrying
Power Efficiency and Flying Time
Parts
Battery Installing
Index
GAUI TAI SHIH HOBBY CORPORATION
X4
X16
X4
X4
X2
X4
X2
X4
X8

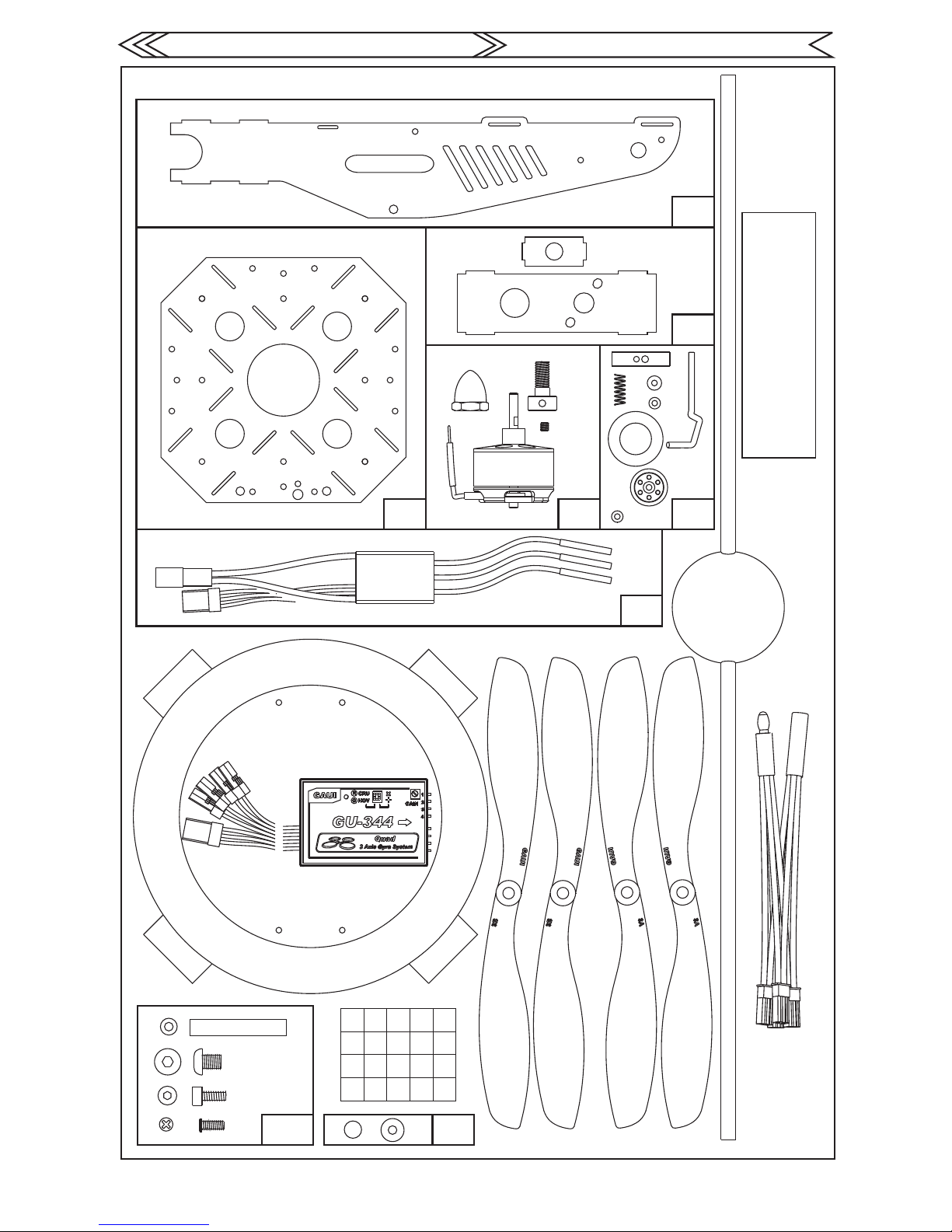

內容物
*
魔術氈
說明書
PM2X3.5X20.2
ASSEMBLY INSTRUCTION
Touch Fastener Tape
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
P.1
CA
P2X4X2
W2X5X0.4
將磁鐵壓入纖維板內,並用瞬間膠塗抹底面(單面即可).
如圖完成輪架製作.
扣件製作
輪架製作
塑膠環
塑膠環
Windshield Mount Assembly
Insert the magnet into the hole of each Windshield Mount. Use the CA to glue it at bottom
side.
Assemble the gear set as shown in figure.
Gear Set Assembly
Plastic Gear Collar
Plastic Gear Collar
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
P.2
M2X5
M3X3
M2X5
PM2X3.5X20.2
PM2X3.5X20.2
CA
X4

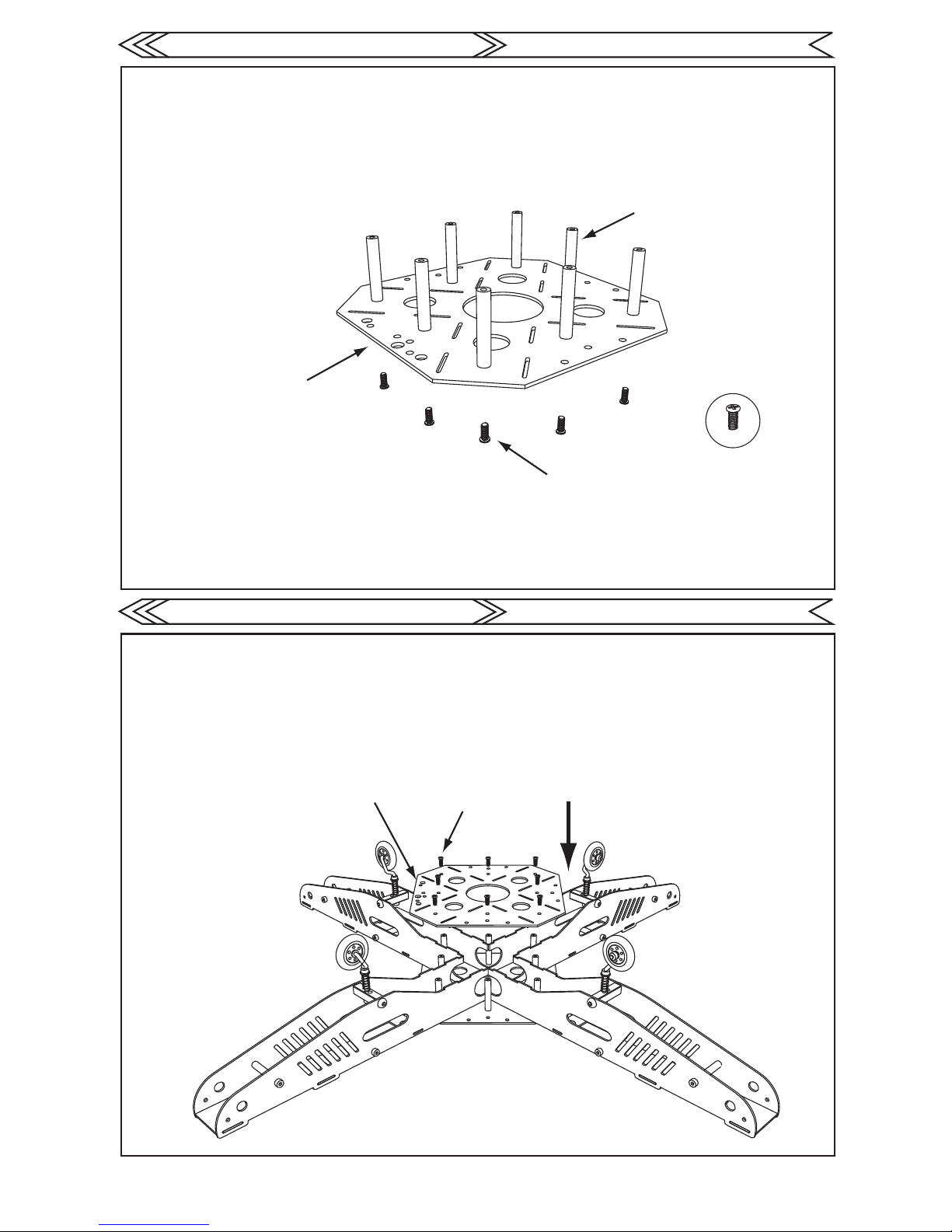

機身製作
機身製作
如圖組合機架
完成四組機架製作,並在下方兩側用少許瞬間膠填補間隙.
*完成圖
扣件
輪架
*注意方向
Main Frame Assembly
Assemble each Frame Extension as shown in figure.
Assembled
IMPORTANT: Make sure to assemble
the Motor Mount correctly and the
hole position shoule be the same as
shown in figure.
Gear Set
Windshield
Mount
Main Frame Assembly
After assembled 4 Motor Mounts onto Frame Extensions,use the CA to glue them as shown
in figure.
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
P.3
PM2X3.5X20.2
X8PCS
M2X4.6
X8PCS
M2X4.6
M2X4.6
X8PCS
機身製作
機身製作
如圖鎖上八支鋁柱.
鑲入四支機架,並鎖上下底板.(注意上下底板位置及方向)
*注意方向
*注意方向
Main Frame Assembly
Assemble the Alu Posts (8 pcs) onto Central Frame as shown in figure.
IMPORTANT: Make sure to
assemble the Central Mount
correctly and the hole position
shoule be the same as shown
in figure.
Main Frame Assembly
Assemble the Central Frame and 4 Frame Extensions as shown in figure.
IMPORTANT: Make sure to assemble the Central Frames correctly and the
hole position should be the same as shown in figure below.
IMPORTANT: The hole
position should be the
same as shown in
figure.
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
P.4
CA
機身製作
組裝ESC
完成機身製作後,需在機架與底板接合處上少許瞬間膠以填補間隙.(如下圖)
如圖置入ESC,並將訊號現由上孔穿出,電源線由下孔穿出.
Main Frame Assembly
After assembled the Central Frames and the Frame Extensions,use the CA to glue them
as shown in figure.
Install each ESC as shown in below, pull out the signal pulg from upper hole and the power
plug from lower hole.
ESC Installing
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
P.5
1
2
34
M3X3
Motor 1,3 Motor 2,4
組裝馬達
組裝電源線
將馬達線穿入馬達座之圓孔,並將馬達鎖至馬達座上.
將馬達線與ESC接上(注意馬達號碼與接線顏色不同),並將電源線由側孔穿入,下孔穿出.
Motor Installing
Motor and ESC Wiring
Install each Motor as shown in below, tighten each motor onto motor mount with screws M3x3.
Wiring the Motors and ESCs as shown in below ( Note that the colors of motor wires
are different from various motor numbers, insert the 4-in-1 Power Connector from
bottom hole of the Central Frame Set, pull out the Psoitive / Negative plugs from the
side between Upper and Lower Central Frames.
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
P.6
75mm

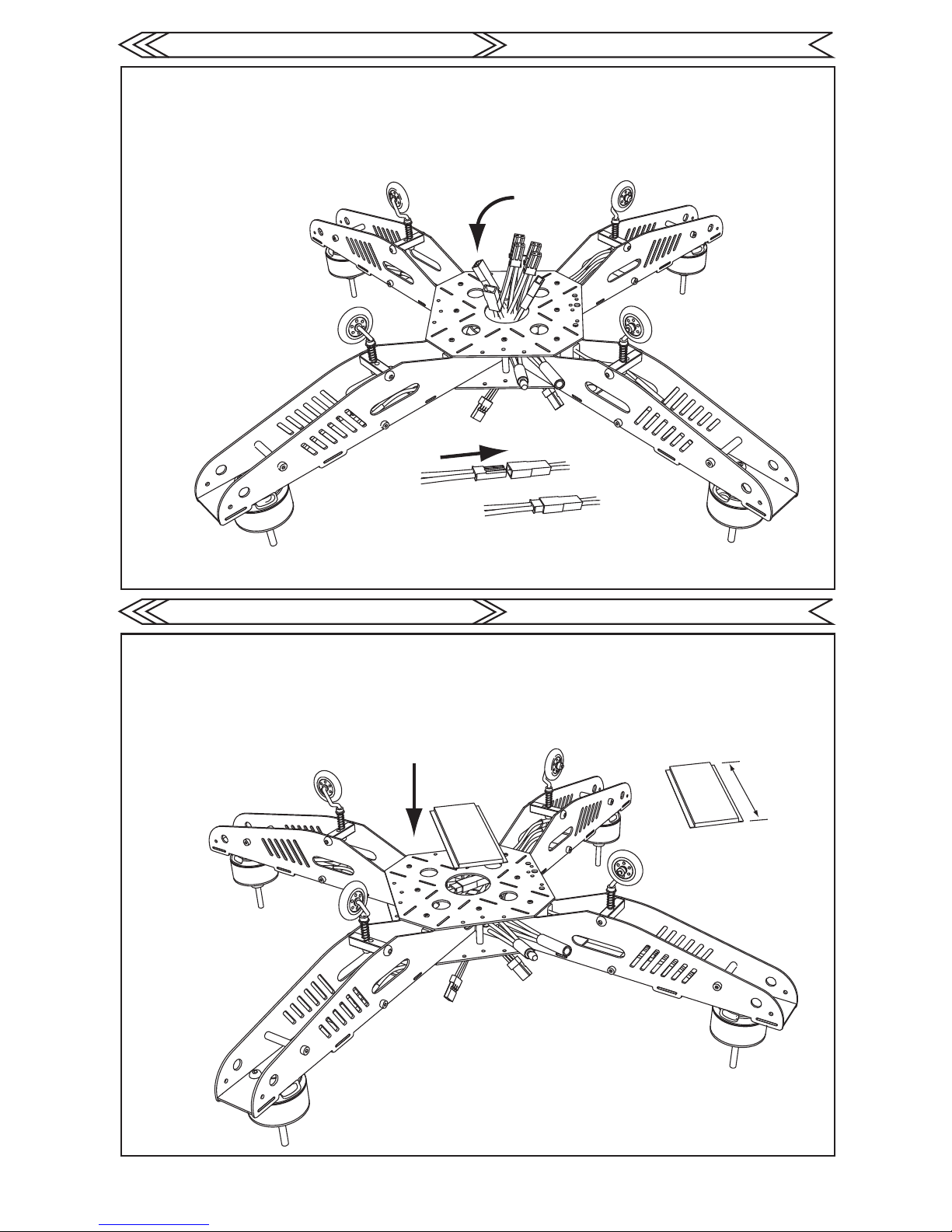

組裝電源線
組裝電源線
電源線穿出後,與四個ESC端子相接.
端子接合後置入機體內,並用魔術氈貼在上方(如圖所示).
Power Plug Wiring
Power Plug Wiring
Connect the plugs of ESCs to the 4-in-1 Power Connector.
After connected the pulgs, put the connectors into the Central Frame Set and attach the
Touch Fastener Tape onto the Bottom Fram as shown in figure.
GAUI TAI SHIH HOBBY CORPORATION
GAUI TAI SHIH HOBBY CORPORATION
P.7
1
2
3
4
S
+
-
1-ESC
2-ECS
3-ESC
4-ESC
5mm

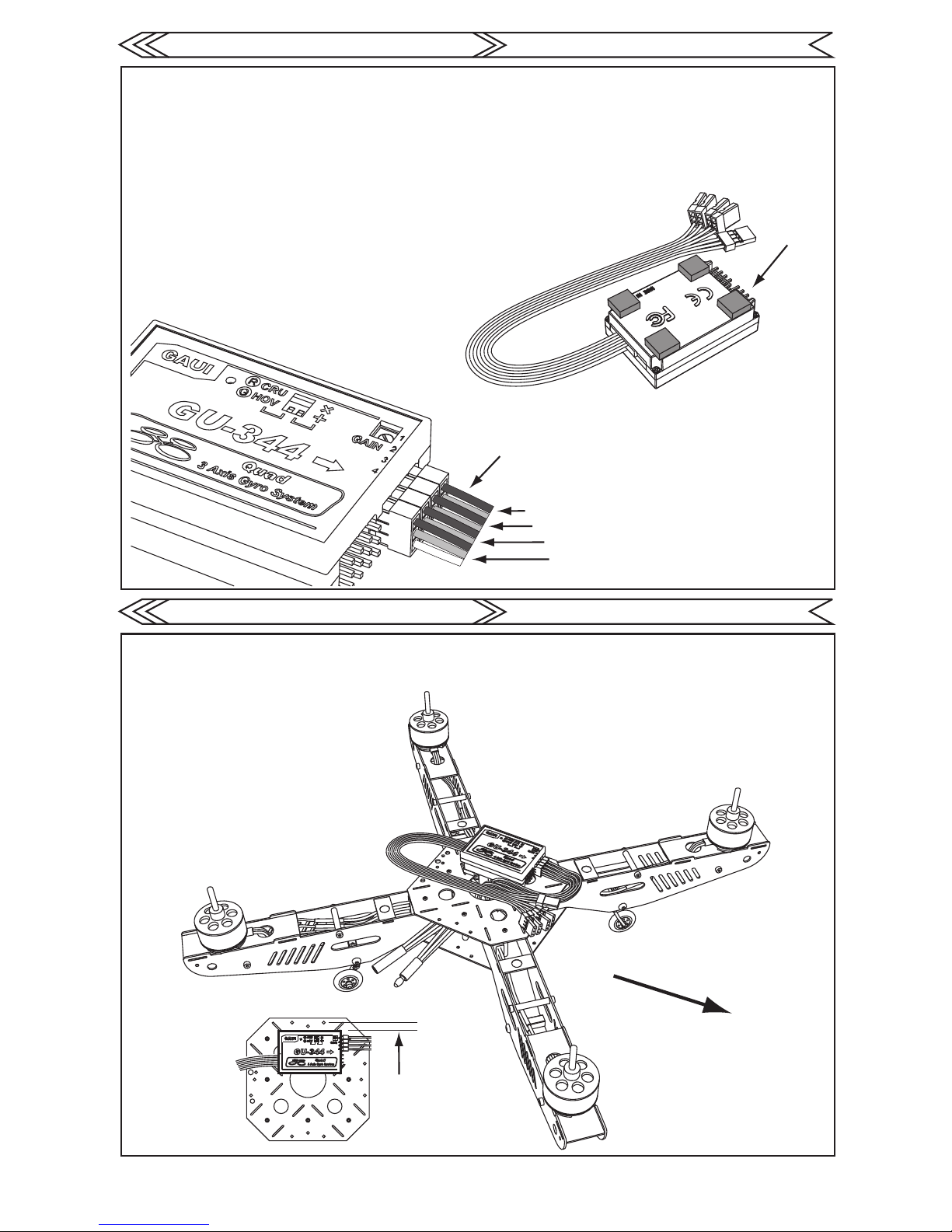

組裝GU-344
組裝GU-344
將GU-344下方貼上防震雙面膠(不可用其它雙面膠替代),並將四組ESC訊號線接在GU-344上(注意號碼
需相同,不可接錯).
將GU-344貼於中心孔左側,位置如下圖.
機頭方向
(注意面板箭頭方向為前方)
GU-344 Installing
Attach the sponge tapes to the bottom side of GU-344 GYRO, make sure to use the
sponge tapes which come with the gyro but not use different sponge tapes for instead.
Put each ESC signal plug in GU-344 correctly as shown in figure below.
Attach the GU-344 GYRO to the position as shown in figure below.
GU-344 Installing
Nose Direction
IMPORTANT: The arrow on the
GU-344 name plate should be
toward to the Nose Direction
as shown in below.
