Galvin Engineering BS Capstan SBA Instruction sheet

Product Installation Guidelines

Document No.: 001.00.30.14

Version 1, 4 October 2022, Page 1of 4

CP-BS Wall/Pillar/Bib/Basin SBA

PRODUCT CODES:

- 32728 (BS Capstan SBA)

- 48751 (BS Stirling SBA)

- 50015 (Vandal Resistant CP-BS SBA)

- 35793 (Ezy-Twist CP-BS SBA)

SPECIFICATIONS

−The main body is made of solid dezincification resistant (DR) brass rod, with a DR brass fixed outlet.

IMPORTANT: All taps are tested in accordance with AS/NZS 3718 and leave our premises in good working

order.

TECHNICAL DATA

Inlet

G 5/8”BSP

Outlet

N/A

Headwork

32728

Ceramic Disc

48751, 50015

Jumper Valve

35793

Cam Action

Working Pressure Range (kPa)

Min

Max

500

Working Temperature (°C)

Min

Max

Nominal Flow Rate (LPM)

N/A

Finish

Brass

NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without notice.

TOOLS REQUIRED

−Spanner and hex key

−Thread tape

Product Installation Guidelines

Version 1, 4 October 2022, Page 2of 4

INSTALLATION

IMPORTANT: Galvin Specialised products must be installed in accordance with these installation instructions and in

accordance with AS/NZS 3500, the PCA and your local regulatory requirements. Water and/or electrical supply

conditions must also comply to the applicable national and/or state standards. Failing to comply with these provisions

shall void the product warranty and may affect the performance of the product.

Note: (Illustrations are for representation of installation only and is not limited for use to these components)

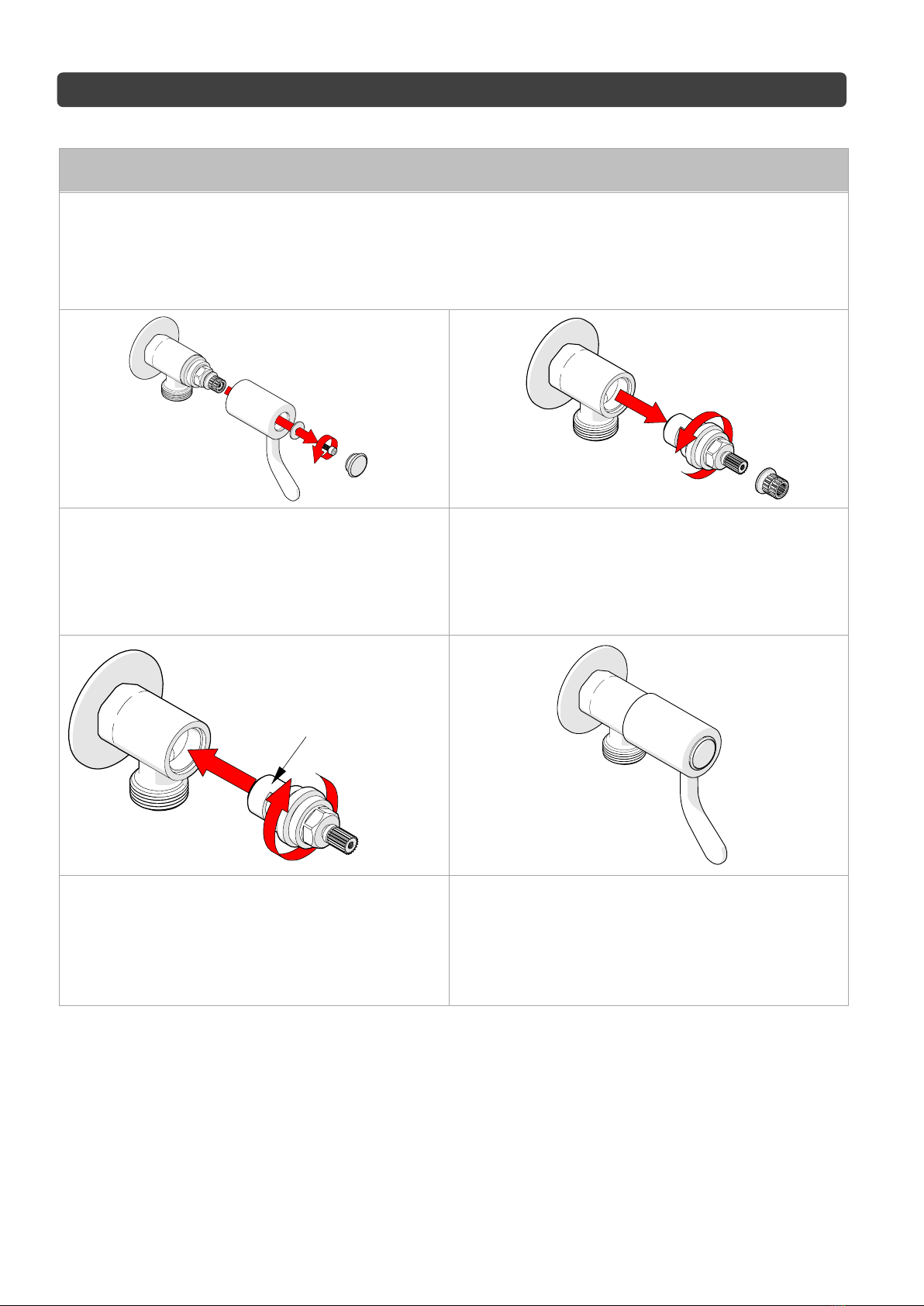

1. Remove Handle

−Prior to installation turn off the water supply.

−Remove the handle assembly. To prevent

damage, carefully pry off plastic indicator from

the handle. (Use a small flat bladed screwdriver

if necessary).

2. Replace spindle assembly

−Unscrew the head part from the threaded sleeve

using a 17mm spanner.

−Check seat inside tap body for pitting or damage.

Re-seat if necessary

3. Refit new head part

-Refit new head part into tap body.

Note: do not tighten cartridge using the handle

as this will result in damage to the cartridge

4. Reassemble Handle

-Refit adaptor and reassemble handle by reversing

step 1.

-When installation is complete, slowly open water

supply and inspect for leaks.

New ceramic head

New head part

Product Installation Guidelines

Version 1, 4 October 2022, Page 3of 4

TROUBLESHOOTING

PROBLEM

CAUSE

RECTIFICATION

Taps are dripping water

Ceramic discs are worn or damaged

Remove and inspect SBA. Remove

debris and/or replace SBA if

damaged.

Tap seat is damaged

Refurbish tap seat using a reseating

tool.

Water is not flowing from tap

Water is turned off

Turn on water

Ceramic discs are worn or damaged

Remove and inspect SBA. Remove

debris and/or replace SBA if

damaged.

Spindle is difficult to turn

Ceramic discs are worn or damaged

Remove and inspect SBA. Remove

debris and/or replace SBA if

damaged.

Handle is loose

Screw has come loose

Tighten handle screw

Product Installation Guidelines

Version 1, 29 August 2022, Page 4of 4

WARRANTY

The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd.

With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin

Engineering Pty. Ltd. hereby specifically disclaims all other warranties, express or implied, including but not limited

to the implied warranties of merchantability and fitness for a particular purpose.

Galvin Engineering Pty Ltd products are covered under our manufacturer’s warranty available for download from

www.galvinengineering.com.au Galvin Engineering Pty Ltd expressly warrants that the product is free from

operational defects in workmanship and materials for the warranty period as shown on the schedule in the

manufacturer’s warranty. During the warranty period, Galvin Engineering will replace or repair any defective products

manufactured by Galvin Engineering without charge, so long as the terms of the Manufacturer’s warranty are

complied with.

The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for

breach of warranty, and Galvin Engineering Pty Ltd shall not be responsible for any incidental, special or

consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property

which is damaged if this product does not work properly, other costs resulting from labour charges, delays,

vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions, chemical,

electrical or any other circumstances over which Galvin Engineering has no control. This warranty shall be

invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or alteration of the

product.
