COPIER
Basic Copying Screen
Reduce / Enlarge %
Steps 1. Load Document
2. <Reduce / Enlarge>
3. More
4. Variable %
5. Enter desire %
6. Press Start
Odd Size Original to A4
Steps 1. Load Document on platen glass
2. Scan Options
3. Original Size
. Input the X/Y axis using the measurement scale
5. Press Save
6. Basic Copying
7. Reduce / Enlarge
8. Select Auto %
9. Paper Supply
10. Select A
11. Press Start
Stapling – Optional feature ( max 50 sheets )
Steps 1. Load Document
2. <Copy Output / Stapling>
3. More
4. Select the desire staple position
5. Press Start
DC236/286 Quick Reference Guide_
_________________________________________________
_______________________________________________________________________________________________________
Reference No: Sheeta-110 -Rev02 Created by FXS CRO
Page 3 of 1
IMAGE QUALITY SCREEN
Original Type
Steps 1. Load Document
2. <Image Quality>
3. <Original Type>
. Select desire mode : Text, Photo Text, Photo or Pencil Text
5. Press Save
Lighten / Darken
Steps 1. Load Document
2. <Image Quality>
3. <Lighten / Darken>
. Select desire copy density
5. Press Save
DC236/286 Quick Reference Guide_
_________________________________________________
_______________________________________________________________________________________________________
Reference No: Sheeta-110 -Rev02 Created by FXS CRO
Page of 1
SCAN OPTIONS SCREEN
Single sided to Double Sided Copying
Steps 1. Load Document
2. <Scan Options>
3. <2 Sided>
. Select 1
2
5. Press Start
Double Sided to Double Sided Copying
Steps 1. Load Document
2. <Scan Options>
3. <2 Sided>
. Select 2
2
5. Press Start
Double Sided to Single Sided Copying
Steps 1. Load Document
2. <Scan Options>
3. <2 Sided>
. Select 2
1
5. Press Start
DC236/286 Quick Reference Guide_
_________________________________________________
_______________________________________________________________________________________________________
Reference No: Sheeta-110 -Rev02 Created by FXS CRO
Page 5 of 1
OUTPUT FORMAT SCREEN
Booklet Creations
Steps 1. Load Document
2. <Output Format>
3. <Booklet Creation>
. Choose left bind
5. Select 1 or 2 sided
6. Press Save
7. Select <Basic Copying>
8. Select Paper Tray : A or A3 ( landscape only )
9. Press Start
Covers
Steps 1. Load paper for the cover in any trays
2. Load Documents
3. <Output Format>
. <Cover>
5. Select front cover or front/back covers
6. Select printed covers : On or Off
7. Select paper trays for body page and cover
8. Press Start
Transparency Separator
Steps 1. Load transparencies in Tray 5 ( Bypass Tray )
2. Load Documents
3. <Output Format>
4. <Separators>
5. Select Options : Off, Blank Separators, Blank Separators + N sets or
No Separators + N sets
6. Press Start
DC236/286 Quick Reference Guide_
_________________________________________________
_______________________________________________________________________________________________________
Reference No: Sheeta-110 -Rev02 Created by FXS CRO
Page 6 of 1
Multiple Up
(Combine 2 or pages onto 1 sheet of paper)
Steps 1. Load Documents
2. <Output Format>
3. <Multiple Up>
4. Select 2 Up, 4 Up or 8 Up
5. Select the required layout order
6. Press Start
Poster
Steps 1. Load document on the platen glass
2. <Output Format>
3. <Poster>
. Select Output Size
5. Select desire output size
6. Select Paper Tray
7. Press Start
Repeat Image
Steps 1. Load Document
2. <Output Format>
3. <Repeat image>
. Select Auto Repeat
5. Press Save
6. <Scan Options>
7. <Original Size>
8. Enter the X/Y axis using the measuring scale on platen glass
9. Press Save
10. <Basic Copying>
11. Select the Paper Supply : A , A3
12. Press Start
DC236/286 Quick Reference Guide_
_________________________________________________
_______________________________________________________________________________________________________
Reference No: Sheeta-110 -Rev02 Created by FXS CRO
Page 7 of 1
STORED PROGRAMMING SCREEN
Stored Programming
IC Printing
Steps 1. All Services in menu screen
2. <Setup Menu>
3. <Stored Programming>
. Store
5. Select desire nos ( 1 – 0 jobs )
6. <Copy mode>
7. <Output Format>
8. <Booklet Creation>
9. Left Bind
10. Press Save
11. <Scan Options>
12. <Bound Originals>
13. Left to Right page
1 . Press Save
15. <Original Size>
16. Select A3
17. Press Save
18. <Image Quality>
19. <Original Type>
20. Text and Photo mode
21. Press Save
22. <Basic Copying>
23. Paper Supply – A landscape only
2 . Press Save
25. <Reduce/Enlarge> – 100 %
26. Clear All ( yellow button on the right )
To Retrieve Stored Jobs
Steps 1. Select the desire Memory buttons ( M01 –M020 )
buttons on the right hand side of machine.
DC236/286 Quick Reference Guide_
_________________________________________________
_______________________________________________________________________________________________________
Reference No: Sheeta-110 -Rev02 Created by FXS CRO
Page 8 of 1
FACSIMILE / INTERNET FAX
Basic Features Screen
Manual Dialing
Steps 1. Load Document
2. Dial the fax number using the keypad
3. Press Start
Speed Dialing
Steps 1. Load Document
2. Select the relevant one touch speed dial key ( 001-070 ) or
Select desire remote from the Address Book
3. Press Start
Manual Broadcasting
Steps 1. Load Document
2. Dial the fax number
3. Press <Next Recipient> on the fax screen
. Dial the next number ( maximum 200 recipients )
5. Repeat steps if require
6. Press Start
Ifax Dialing
Steps 1. Load Document
2. Press Fax/Ifax
3. Select Keyboard
. Enter E-mail address
5. Press Start
DC236/286 Quick Reference Guide_
_________________________________________________
_______________________________________________________________________________________________________
Reference No: Sheeta-110 -Rev02 Created by FXS CRO
Page 9 of 1

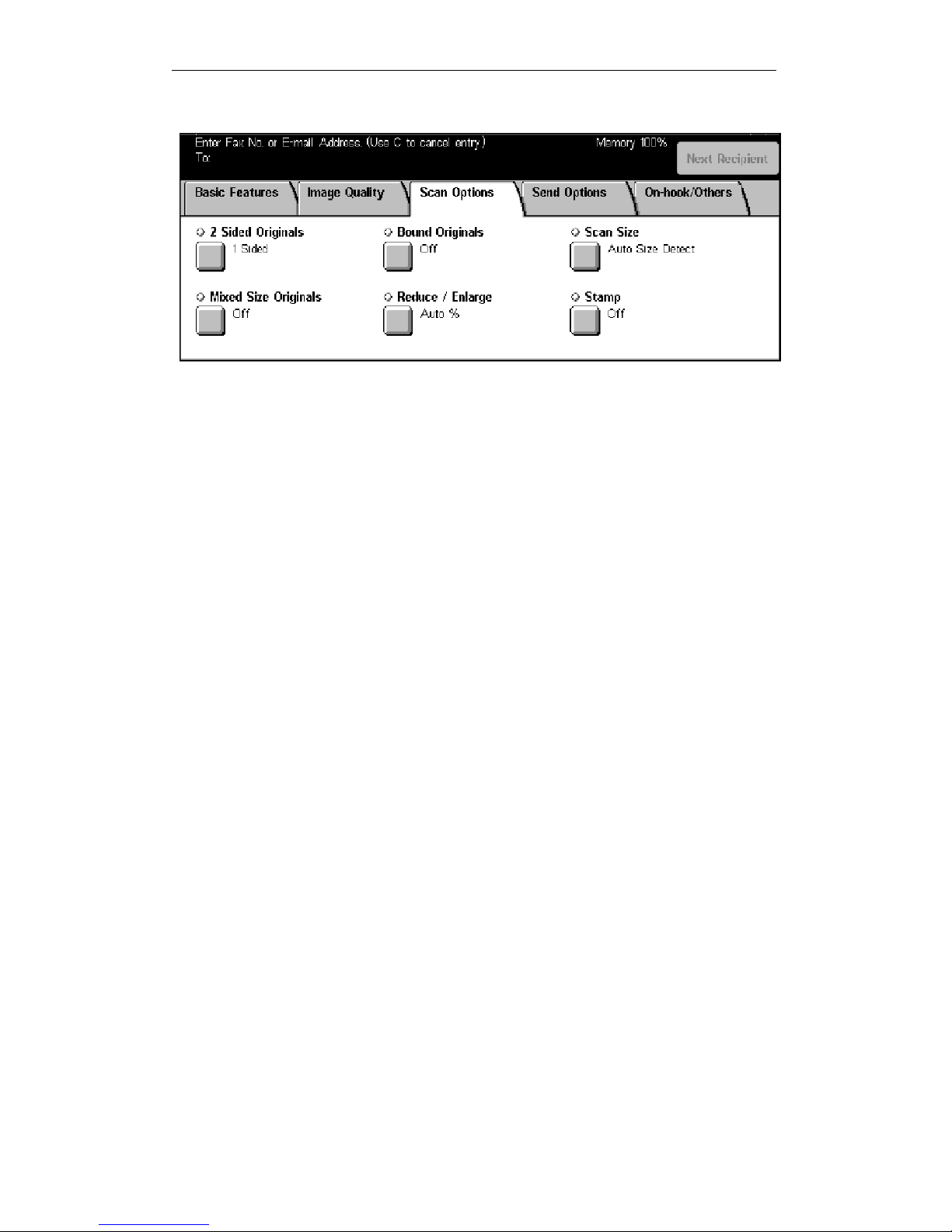

SCAN OPTIONS SCREEN
Scan Options
2 Sided Originals
Steps 1. Load Document
2. <Scan Options>
3. <2 Sided Originals>
4. Press Save
5. Dial fax nos
6. Press Start
Mixed Size originals
Steps 1. Load Documents ( A3,A Or B serials )
2. <Scan Options>
3. <Mixed Size originals>
4. Press Save
5. Press Start
DC236/286 Quick Reference Guide_
_________________________________________________
_______________________________________________________________________________________________________
Reference No: Sheeta-110 -Rev02 Created by FXS CRO
Page 10 of 1
SEND OPTIONS SCREEN
Delayed Start
Steps 1. Load Document
2. <Send Options>
3. <Priority Send/Delayed Start>
. On - Delayed Start
5. Press Start Time
6. Enter the Hour and Minutes using the arrow
7. Press Save
8. Key in fax number
9. Press Start
Transmission Report
Steps 1 Load Document
2. <Send Options>
3. <Report/ Read Status>
. On - Transmission Report
5. Press Save
6. Key in fax number
7. Press Start
