Fuji Xerox ApeosPort C7070 User manual

ApeosPort

Reference Guide

Main Unit

A guide describing the basic operations, maintenance, troubleshooting and precautions for use of the main unit.



This manual may not be edited, modified or copied in whole or in part without the written consent of the publisher.



Parts of this manual are subject to change without prior notice.



The screen shots and the illustrations in this manual are used as examples. They may differ from yours depending on the model, the

software, or the OS.

Edition 4, September 2020 / ME9024E2-1

C7070/C6570/C5570/C4570/C3570/C3070

-2-

Reference Guide - Main Unit

Before Using the Machine

p.2 Device Components

p.6 Print Area

p.8 Paper

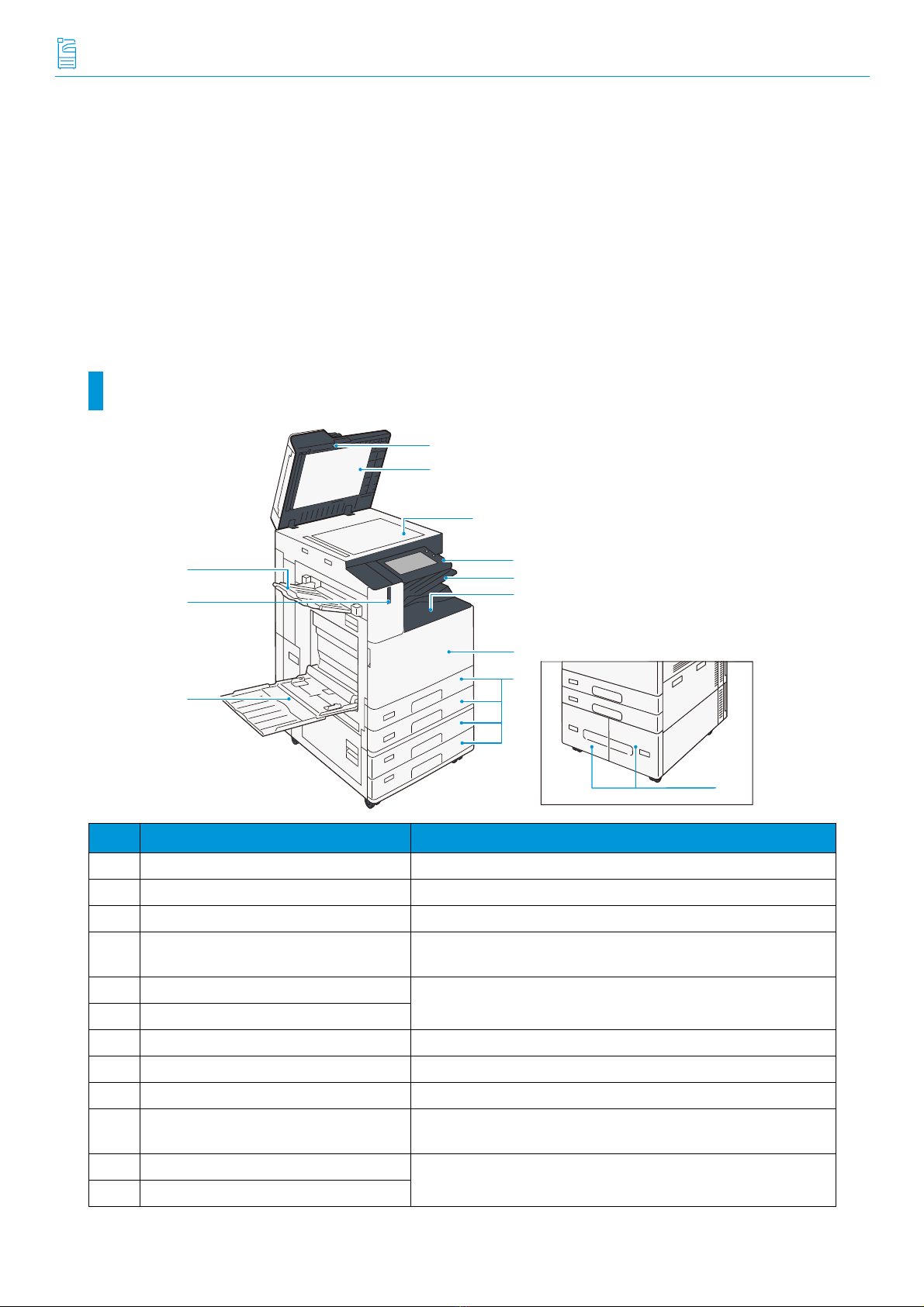

Device Components

Front view

No. Component Function

1 Duplex Automatic Document Feeder Load documents here.

2 Document Cover Holds a document in place.

3 Document Glass Load a document here.

4Control Panel Switches the power of the machine on and off. A touch screen used

for operation of the machine.

5 Extra Center Tray (optional) Outputs are delivered here.

6CenterTray

7 Front Cover Open this cover to clear paper jams or replace the consumables.

8 Standard Trays (Paper Trays 1, 2, 3, 4) Load paper here.

9 Side Tray (optional) Outputs are delivered here.

10 Smart WelcomEyes (SWE) human motion

sensor

Exits the Power Saver Mode when the machine detects user pres-

ence.

11 Bypass Tray (Paper Tray 5) Load paper here.

12 Tandem Trays (Paper Trays 3, 4)

Tandem Tray module model

-3-

i Before Using the Machine

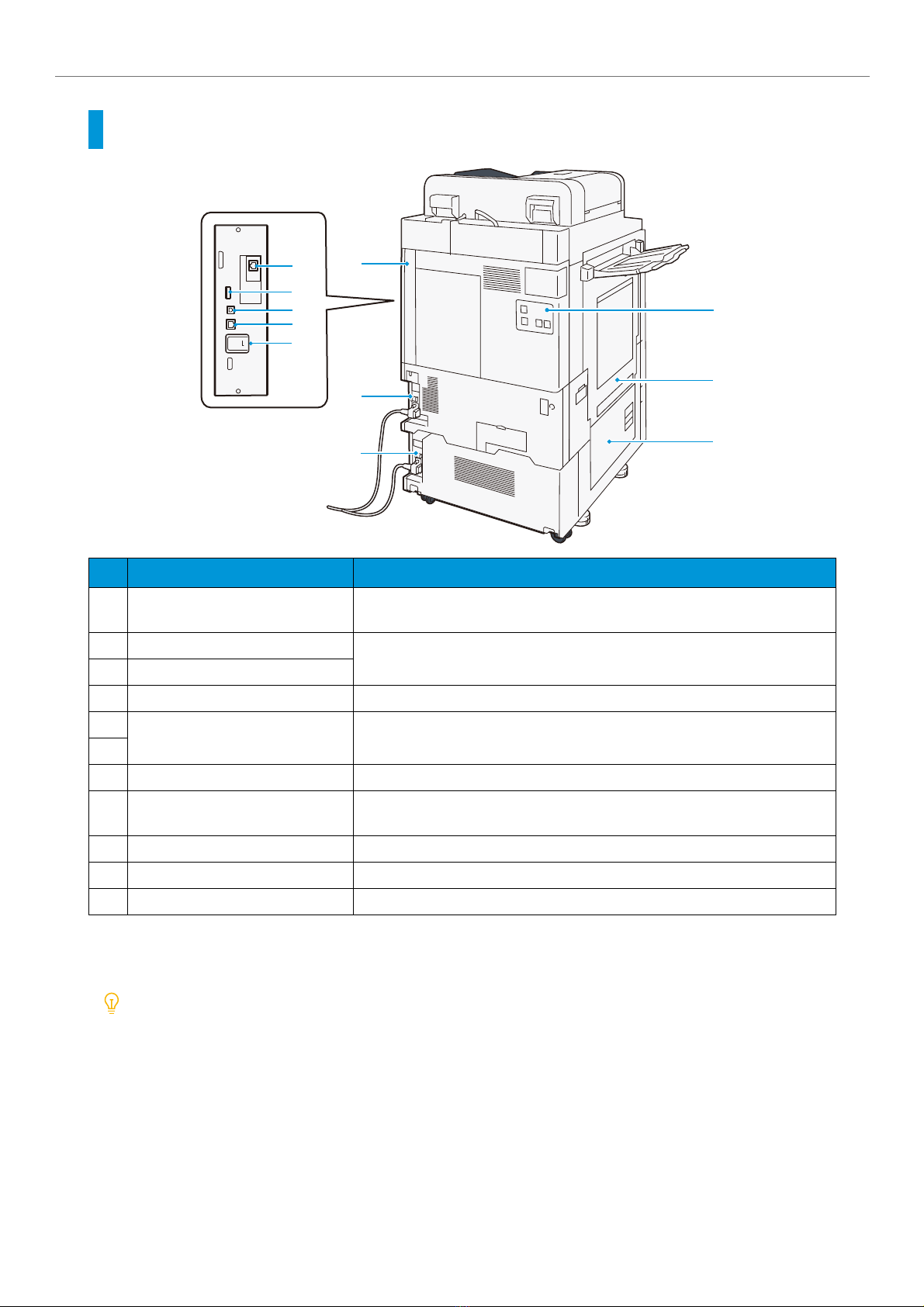

Left Side and Rear View

LAN connection

When connecting to the network port, keep the machine power switched off.

Note

Connection failure may be solved by selecting the Administrator Mode’s Home screen > [Device] >

[Connectivity & Network Setup] > [Protocol Settings] > [Ethernet Settings] > [Energy Efficient Ethernet] >

[Disabled].

USB connection

When connecting to a USB connector, keep the machine power switched off.

No. Component Function

1Telephone line connectors Use “TEL” to call.

Use “LINE 1” for calls using a handset connected to the TEL jack.

2 Upper Left Cover Open this cover to clear paper jams.

3LowerLeftCover

4 Right Rear Cover Open this cover to access each connector.

5 Reset button Automatically switches the machine off when a current leakage is detected.

7 Network Port (optional) Connects to a network cable.

8USB 2.0 interface connector Connects to a memory card reader, an optional component or a peripheral

with a USB cable.

9 USB 3.0 interface connector Connects to a USB cable for printing.

10 Network Port Connects to a network cable.

11 Wireless Network Kit (optional) Used for connecting wireless network (Wi-Fi/Bluetooth) to the machine.

-4-

Reference Guide - Main Unit

Inside

No. Component Function

1 Toner Cartridges Contain Black (K), Cyan (C), Magenta (M), and Yellow (Y) toners.

2Waste Toner Container

(R5)

Collects waste toner.

3 Conveyance Box Remove this box when replacing a drum cartridge.

4Fusing Unit (R8) Fuses toner on paper.

Do not touch this unit as it is extremely hot.

-5-

i Before Using the Machine

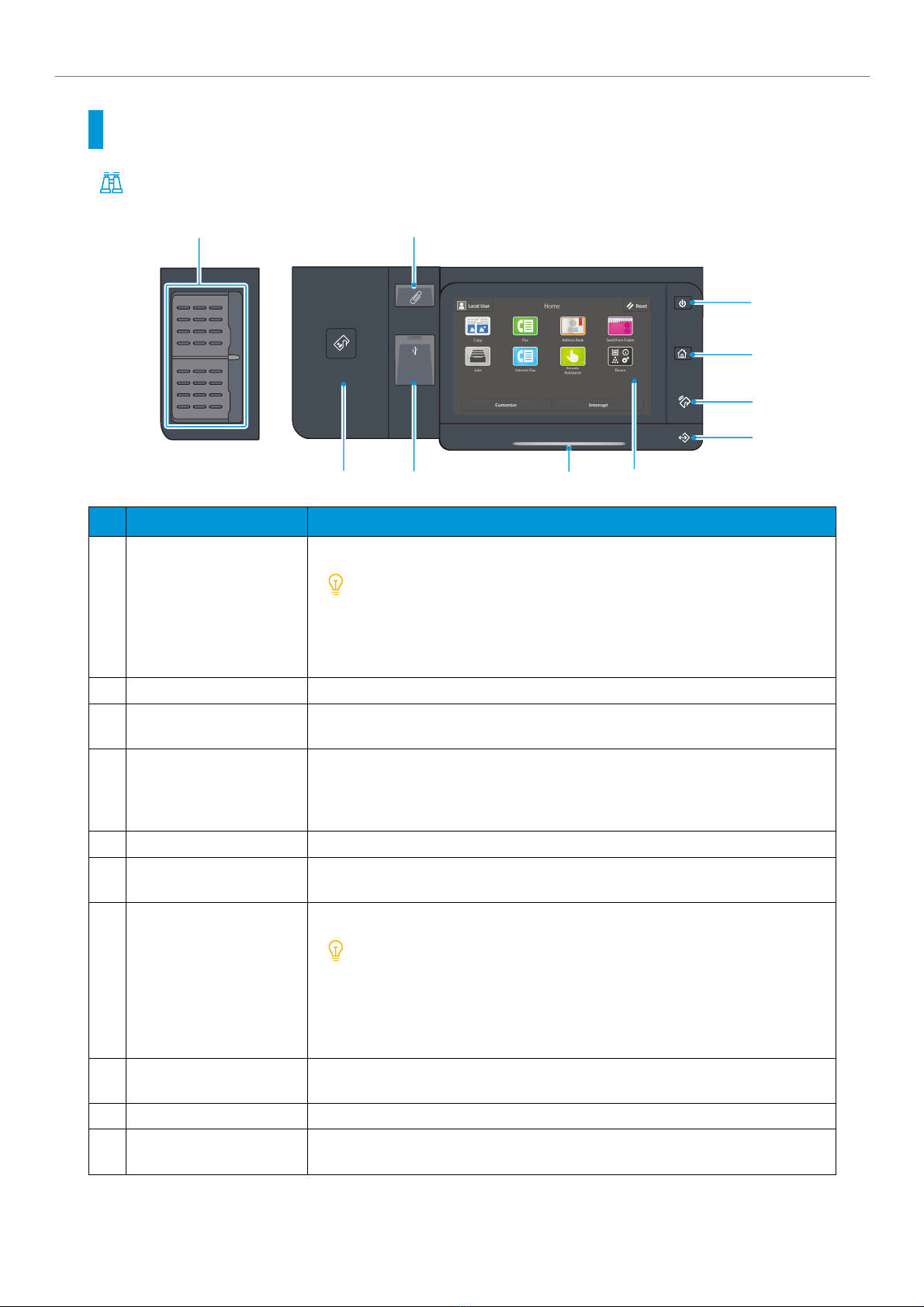

Control Panel

Refer

For Control Panel, refer to the Reference Guide - Operations.

No. Component Function

Power button The power switches on.

Note



When “Please wait...” is displayed, the machine is warming up. The

use of machine is not available during this time.



If the power does not switch on, confirm that the Reset button is in

the reset position (button is pushed in) and the power plug is con-

nected.

2 Home button Pressing this button displays the Home screen.

3NFC touch area This is an area for you to hold up your NFC-supported mobile devices over. To com-

municate interactively, the NFC function of this machine needs to be enabled.

Data indicator This indicator blinks while data is being sent from the machine or data is being

received from the client PC.

Also, this indicator lights up when documents are saved in the machine or the fax is

stored in a local folder.

5 Touch panel display Displays messages required for operation, and buttons for various features.

6Note on status display

lamp

The lamp lights up in blue at an instant of operation reception.

When an error occurs, the lamp blinks in orange.

USB memory slot

(optional)

Insert a USB memory device directly here.

Note

A memory card reader or a USB memory device cannot be connected

to the USB memory slot with a USB cable. Note that the machine will

not recognize the memory on a memory card reader or a memory

device connected to a USB interface connector on the rear side of the

machine when a USB memory device is already inserted in the USB

memory slot.

8Built-in IC card reader

(optional)

Used to authenticate a user using an IC card.

9 Paper clip tray Used for placing paper clips and staples.

10 One-touch buttons Allows you to specify a recipient with the simple press of a button. You can use the

buttons for the Fax, Internet Fax, Scan (E-mail), and Scan (to PC) jobs.

10 9

Fax Module

Model

-6-

Reference Guide - Main Unit

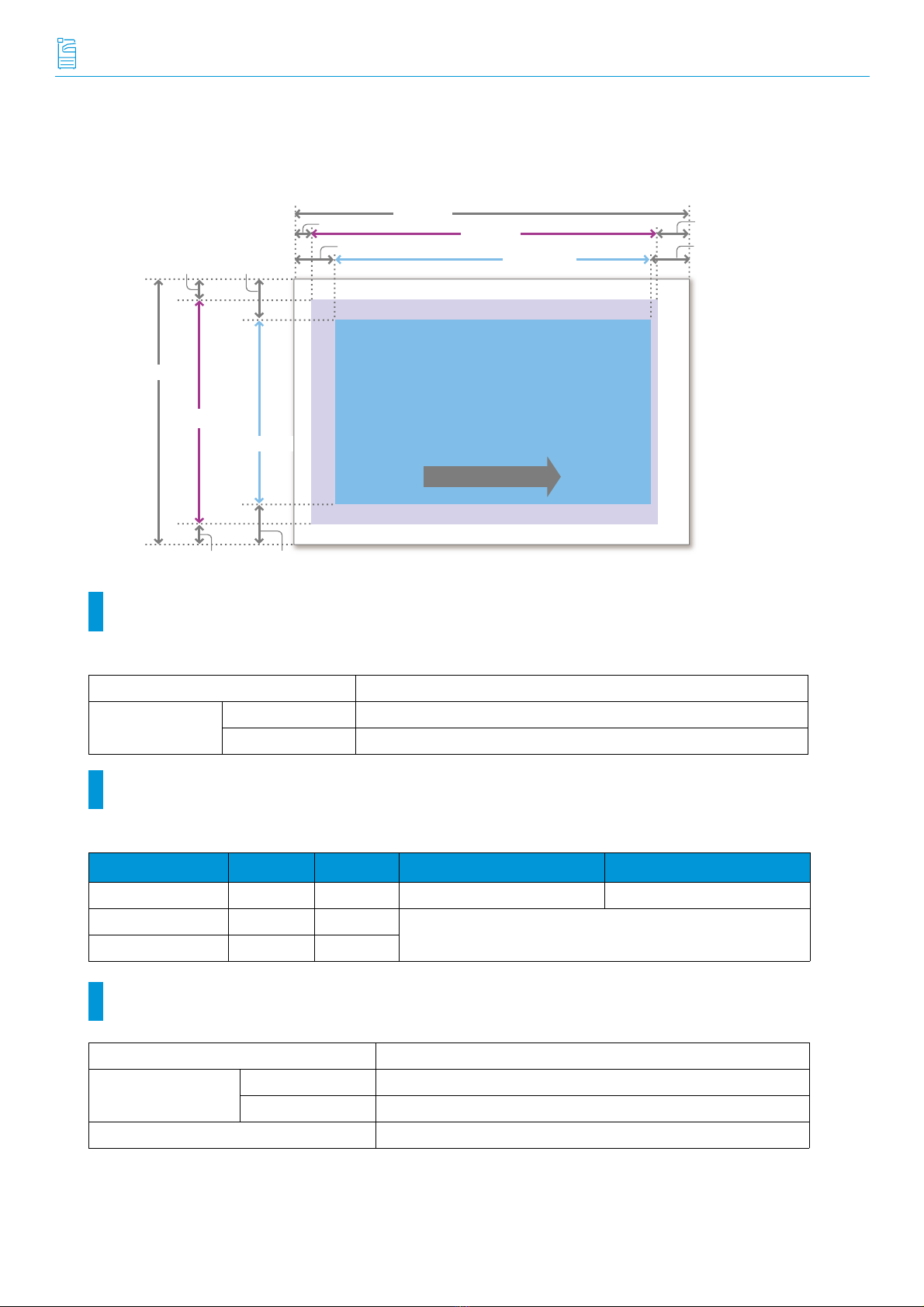

Print Area

A3 size (297 x 420 mm)

Guaranteed Print Area

The following are the areas for which the image quality is guaranteed.

Image Loss Width (mm)

There is an unprintable area (image loss area) along all four edges of the paper.

Standard Printable Area

A3 or smaller Area excluding an image loss area along all four edges of the paper.

Larger than A3 Copying 297 x 432 mm max.

Printing 297 x 476.6 mm max.

Paper size Lead edge Trail edge Left edge Right edge

A3 or smaller 4 2 2 2

Larger than A3 4 2 2

Paper larger than 309 mm: (Paper size - 305) ÷ 2

Long paper 4 2

A3 or smaller Area excluding a margin (4.1 mm) along all four edges of the paper.

Larger than A3 Standard size 305 x 480 mm max.

Custom size Area excluding a margin (4.1 mm) along all four edges of the paper.

Long paper 305 x 1,194 mm max.

Standard printable area

Right edge 2 mm

Feed direction

Extended printable area = Guaranteed print area

Left edge 2 mm

Trail edge 2 mm Lead edge 4 mm

297 mm

293 mm

414 mm

411.8 mm

420 mm

4.1 mm

4.1 mm 4.1 mm

4.1 mm

288.8 mm

-7-

i Before Using the Machine

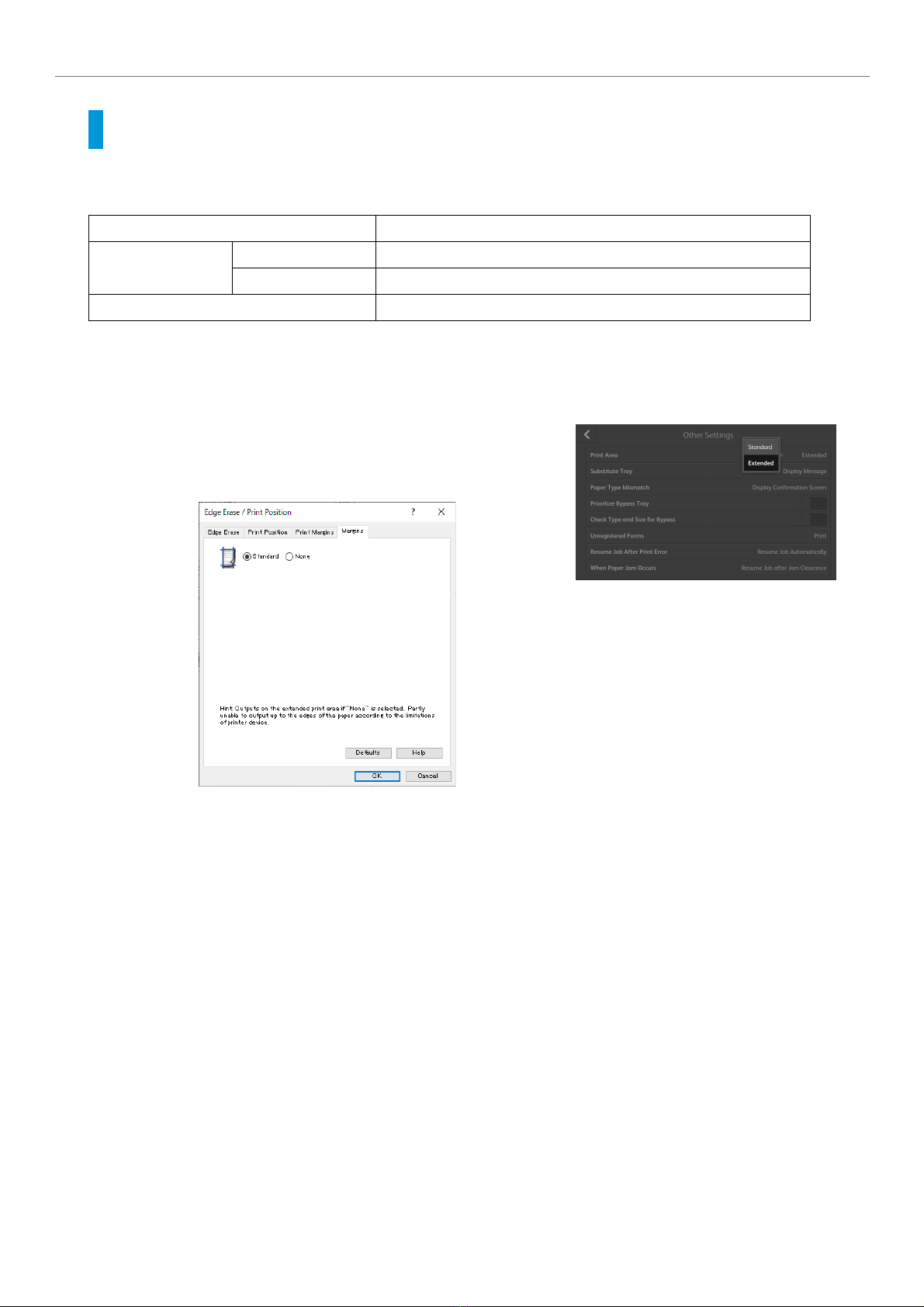

Extended Printable Area

Changing the printable area settings enables you to print over a margin (4.1 mm) for the standard printable

area.

Changing the extended printable area settings

On the Home screen, login to the Administrator Mode.

Select [Device] > [App Settings] > [Print Settings] >

[Other Settings] > [Print Area], and then tap on

[Extended].

You can change the settings using the PCL printer driver.

A3 or smaller Area excluding an image loss area along all four edges of the paper.

Larger than A3 Copying 297 x 432 mm max.

Printing 305 x 476.6 mm max.

Long paper 305 x 1,194 mm max.

-8-

Reference Guide - Main Unit

Paper

Recommended Paper

Standard paper

To use paper other than the above, contact your local Fuji Xerox representative.

Unusable paper

Avoid using the following paper to prevent machine malfunction.

There are more types of unusable paper other than the above. For details, contact your local Fuji Xerox repre-

sentative.

Storing and Handling Paper

Storing paper

Follow the guidelines below since paper is susceptible to moisture in the air and easily deformed by impacts.



Store paper in a place of low humidity. Paper that has absorbed moisture can create paper jams or poor

image quality.



Using paper stored in a low-temperature environment may cause fusing failures. Storing paper in an envi-

ronment where the temperature is 16

C or higher is recommended.



Coated paper stored in a high-temperature, high-humidity environment may cause misfeeding or double-

feeding.



After opening a package of paper, seal and store the remaining paper in a moisture-proof wrapper or a

reclosable plastic bag.



To prevent bending or warping, store paper flat. Do not store it upright.



Do not store paper under direct sunlight.

Handling paper



Do not use collected pieces of paper.



Do not use wrinkled or folded paper.



Do not load paper of different sizes or types in the same tray.



Before loading paper into the tray, fan a stack of paper well to prevent paper jams and double-feeding

(multiple sheets of paper are being fed simultaneously) of transparency films, films and coated paper.

Paper name Paper type setting for paper

tray

Image processing to

the paper type Paper weight Country

P Plain Plain (A) 64 g/m

All

Colotech

Bond Bond (A) 90 g/m

All

Premier Plain Plain (B) 80 g/m

Hong Kong

Business Plain Plain (B) 80 g/m

China



Paper using ink that deteriorates with fusing heat



Damp paper, damp and wavy paper



Ink jet printer paper



Paper with 12 mm or greater curl



Business card size paper



Thermal paper, heat-transfer paper



Wrinkled or folded paper



Envelopes with windows

-9-

ii Basic Operations of the Machine

Basic Operations of the Machine

p.9 Paper and Other Media

p.14 Original Documents

p.16 Outputting Paper

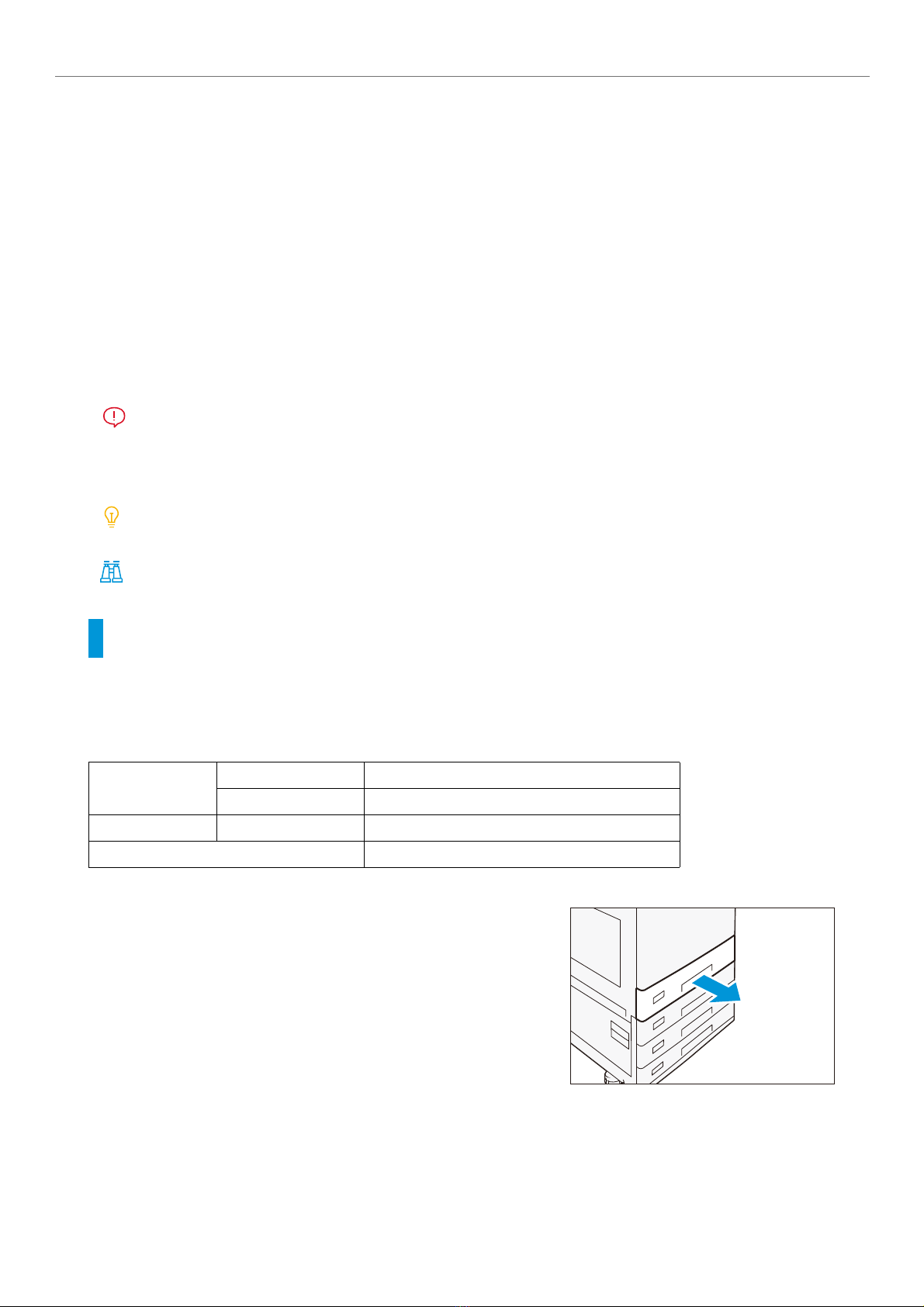

Paper and Other Media

After loading paper, configure the paper tray settings on the Home screen.

Important



Do not place paper or other objects in the reserved space of the tray. Doing so can result in a paper jam

or malfunction.



While the printer is processing a job, do not remove the paper tray used for the job.

Note

Before loading the paper into the paper tray, fan a stack of paper well. This will separate the sheets, and it

can prevent paper jamming.

Refer

For details, refer to “Basic Operations” in the Reference Guide - Operations.

Standard Trays

The paper feeding method is the same for Paper Trays 1 (top tray) through 4 (bottom tray).

The top face of loaded paper is the print surface.

Loadable paper

Pull out the paper tray until it stops.

When paper is already loaded in the tray, take out the

paper.

Paper size Width 100 to 320 (Tray 1: 297) mm

Length 148 to 457.2 (Tray 1: 431.8) mm

Paper weight Single side printing 52 to 300 g/m

Maximum number of sheets 500 sheets (80 g/m

paper)

-10-

Reference Guide - Main Unit

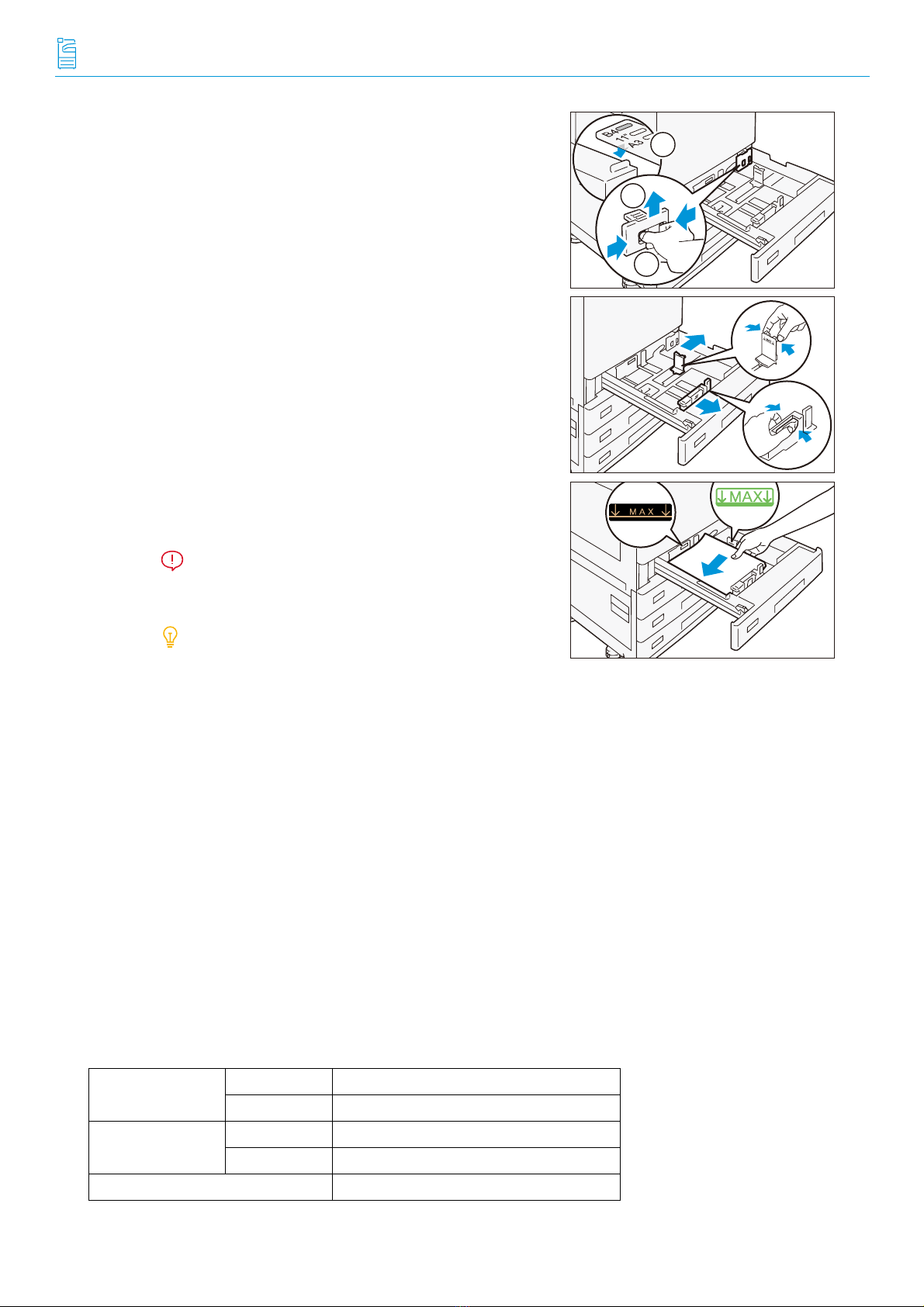

When loading paper whose size is JIS B4 or larger, pinch

the knob and lift the paper rear end guide, and set the

guide into the hole for the indicated size.

Pinch the two guide clips, and adjust to the correct

paper size.

Fan a stack of paper, face the print surface up, and then

load the paper with edges aligned according to the

direction of the arrow.

Important

Do not load paper above the maximum fill line. It

may cause paper jams or machine malfunction.

Note

Adjust the guide correctly to the size of paper. If the

guide is not adjusted correctly, the machine cannot

feed the paper properly, resulting in paper jams.

Push in the paper tray.

Loading special paper

Hole Punched paper

Paper orientation: Load paper with holes facing the left side when viewed from the front of the machine

Postcards

Paper orientation: SEF

Envelopes

Install an optional Envelope Tray.

Usable tray: Tray 1

Paper orientation when the flaps are open: Flaps come at the right when viewed from the front of the

machine

Paper orientation when the flaps are closed: Flaps come at the left when viewed from the front of the

machine

Paper size Width 90 to 241 mm

Length 98 to 372 mm

Paper weight Envelopes 75 to 90 g/m

Postcards 106 to 220 g/m

Maximum number of sheets 50 sheets (Ncolor envelopes)

Other manuals for ApeosPort C7070

This manual suits for next models

Table of contents

Other Fuji Xerox Printer manuals

Fuji Xerox

Fuji Xerox DC900 User manual

Fuji Xerox

Fuji Xerox DocuPrint 203A User manual

Fuji Xerox

Fuji Xerox Color 550 Service manual

Fuji Xerox

Fuji Xerox DocuPrint P205 b User manual

Fuji Xerox

Fuji Xerox ApeosPort-V C7775 User manual

Fuji Xerox

Fuji Xerox DocuPint C2090 FS User manual

Fuji Xerox

Fuji Xerox ApeosPort-IV C4430 User manual

Fuji Xerox

Fuji Xerox DocuPrint CM115 w User manual

Fuji Xerox

Fuji Xerox B9136 Quick start guide

Fuji Xerox

Fuji Xerox DocuPrint P255 dw User manual

Fuji Xerox

Fuji Xerox DocuPrint CP116 w User manual

Fuji Xerox

Fuji Xerox Versant 3100 Press Instruction Manual

Fuji Xerox

Fuji Xerox DC286 User manual

Fuji Xerox

Fuji Xerox DocuPrint CP315 dw User manual

Fuji Xerox

Fuji Xerox DocuPrint P385 dw User manual

Fuji Xerox

Fuji Xerox DocuCentre-II 3005 Service manual

Fuji Xerox

Fuji Xerox ApeosPort-II C4300 User manual

Fuji Xerox

Fuji Xerox DocuPrint P375 d User manual

Fuji Xerox

Fuji Xerox DocuPrint M225 dw Operating and maintenance manual

Fuji Xerox

Fuji Xerox DocuPrint P115 b User manual

Fuji Xerox

Fuji Xerox DocuPrint P255 dw User manual

Fuji Xerox

Fuji Xerox DocuPrint P505 d User manual

Fuji Xerox

Fuji Xerox DocuPrint CP225 w User manual

Fuji Xerox

Fuji Xerox DocuPrint C1110 User manual

Popular Printer manuals by other brands

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series quick start guide

Evolis

Evolis Elypso user guide

Kyocera

Kyocera FS-9530DN specification

Canon

Canon LASER SHOT LBP-1210 Specifications

Samsung

Samsung BIXOLON SRP-350plusF user manual

Canon

Canon PIXMA PRO-1 Series Getting started

Canon

Canon PIXMA G3560 Online manual

Dell

Dell Color Laser Printer 2130cn user guide

Tektronix

Tektronix Phaser 840 user guide

Epson

Epson ET-7750 Programming guide

Canon

Canon CLBR 460ps Service manual

Eltron

Eltron P210 Guide manual

Ricoh

Ricoh MD-P1 Service manual

Epson

Epson SC-F7100 series user guide

Epson

Epson Stylus C40UX Service manual

Canon

Canon imagePASS-A2 Service guide

Canon

Canon S820D user guide
