Front Runner RRAC129 User manual

RRAC129

ENG

IMPORTANT WARNING!

Thank you for purchasing Front Runner Adjustable Cargo Brackets .

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

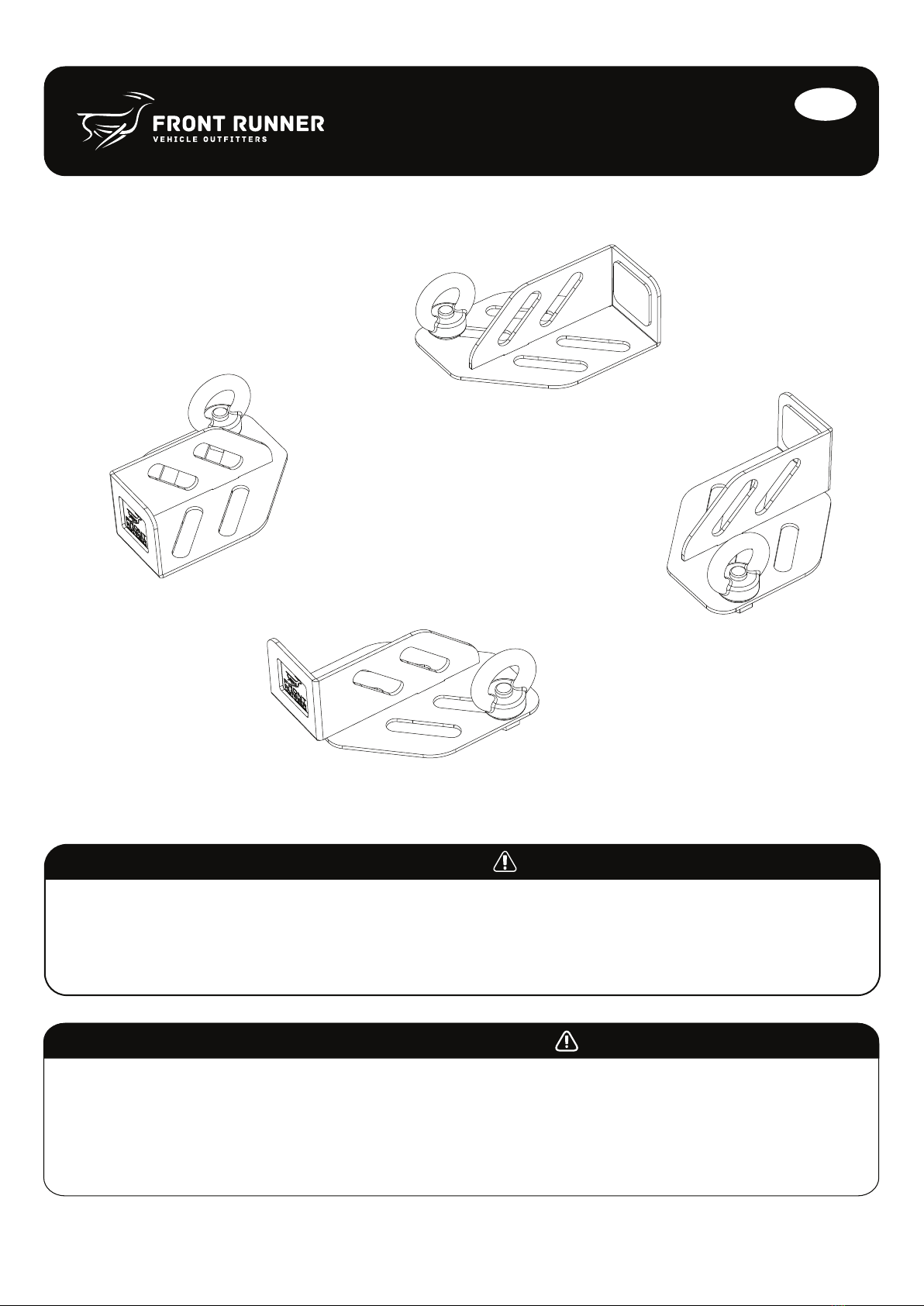

Adjustable Cargo Brackets

FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL

THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN

AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS

TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU

MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE

INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

RRAC129_REV_A00

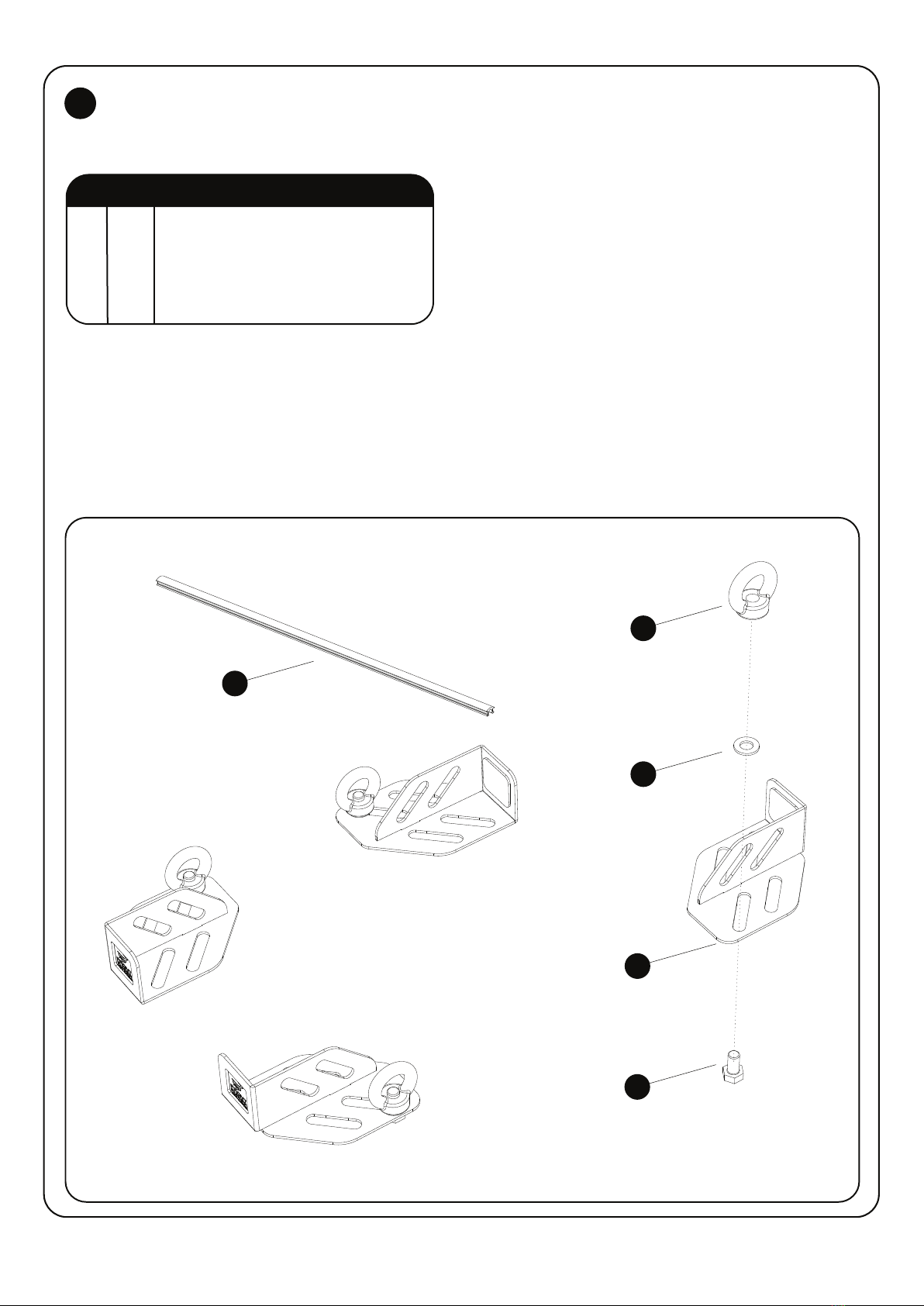

1 4 X Adjustable Cargo Bracket 2LH + 2RH

2 4 X M8 Eye Nut

3 4 X M8 Nylon Washer

4 4 X M8 x 16 Hex Bolt

5 1 X T-Slot Rubber 1000mm

IN THE BOX

FIGURE 1.1

GET ORGANIZED

RRAC129_REV_A00

SECURING THE CORNERS

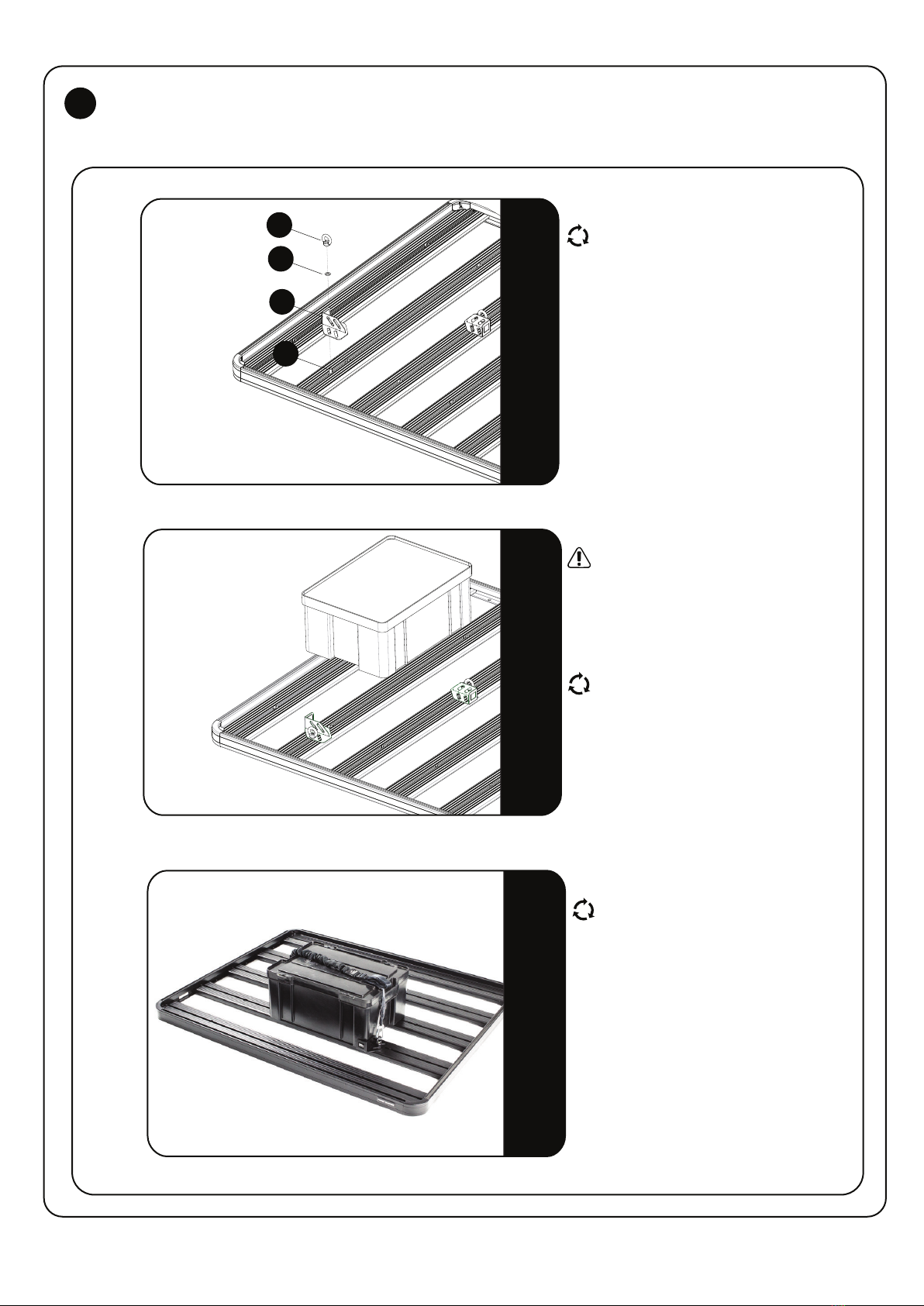

2.1

2.2

2.3

Use the T-Slot Rubber (Item 5) included

and insert into the T-Slot to help prevent

cargo from moving and to protect your rack.

Place your storage box onto the Rack

between the Adjustable Cargo Bracket .

Set the Brackets before fully tightening.

Decide where on the Rack you want to ﬁt

your storage boxes.

Slide M8 x 16 Hex Bolts (Item 4) in the

choosen slats. Loosely ﬁt the Adjustable

Cargo Bracket (Item 1) using an M8 Eye Nut

and M8 Nylon Washer. (Items 2 & 3).

Secure the storage box using a

Stratchit - STRA034 (Not Supplied).

SECURING THE MIDDLE OF A FRONT RUNNER CUB OR WOLF PACK

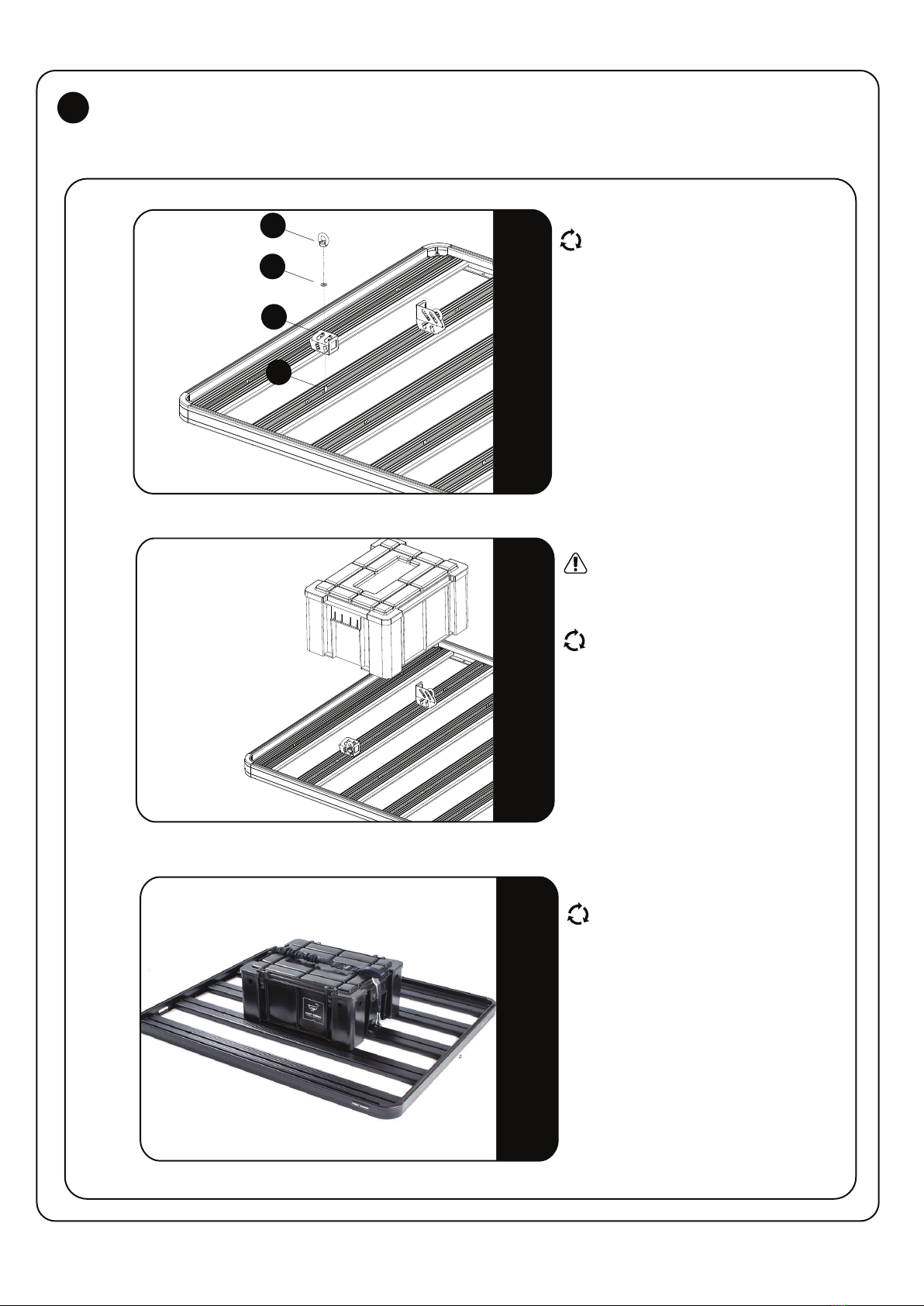

2.4

2.5

2.6

Place your storage box onto the Rack

between the Adjustable Cargo Bracket.

Set the Backets before fully tightening.

Decide where on the Rack you want to ﬁt

your storage boxes.

Slide two M8 x 16 Hex Bolts (Item 4) in the

choosen slats. Loosely ﬁt the Adjustable

Cargo Bracket (Item 1) using an M8 Eye Nut

and M8 Nylon Washer. (Items 2 & 3).

Secure the storage box using a

Stratchit - STRA034 (Not Supplied).

Use the T-Slot Rubber (Item 5) included

and insert into the T-Slot to help prevent

cargo from moving and to protect your rack.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or Online.

COMPLETION

4.1

Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

10mm

Congratulations! You did it. Take a step back and admire your work!
