Frigidaire GLGR331CA User manual

PRODUCT NO. BASE MODEL NO. COLOR

GLGR331CAS0 GLGR331CA White

Publication No.

5995360699

011101

ENG/SERVICE/JAM

361

GAS - DRYER

Model No.

GLGR331CA

FACTORY PARTS CATALOG

GAS DRYER

FRIGIDAIRE - CANADA

WIRING DIAGRAM - # 134085300

OWNER’S GUIDE - # 131679000

OPERATING INSTRUCTIONS - # 134102100

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA ONTARIO

CANADA L5T1K6

TEL (905)565-9200

11/2001 2

Publication No. GLGR331CAS0

5995360699

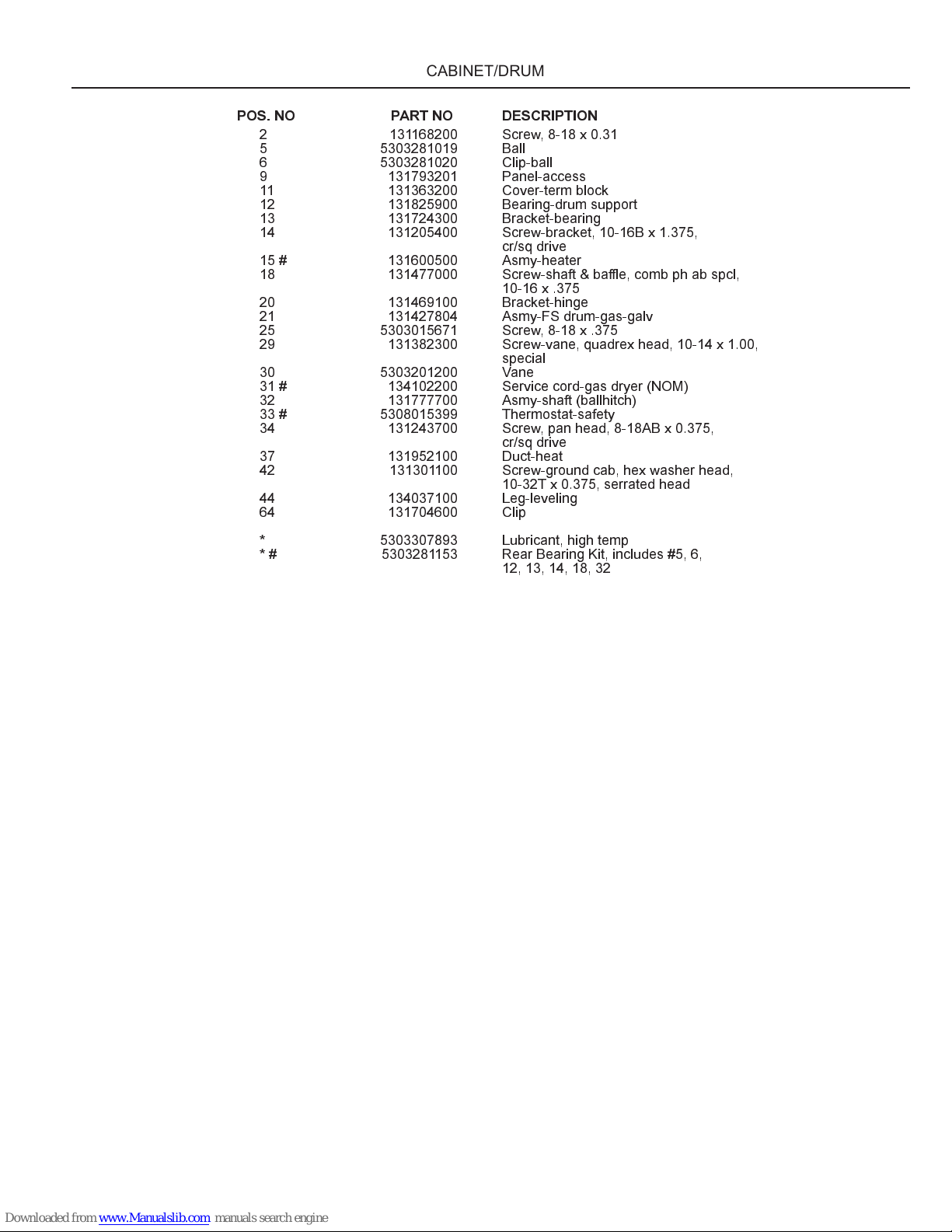

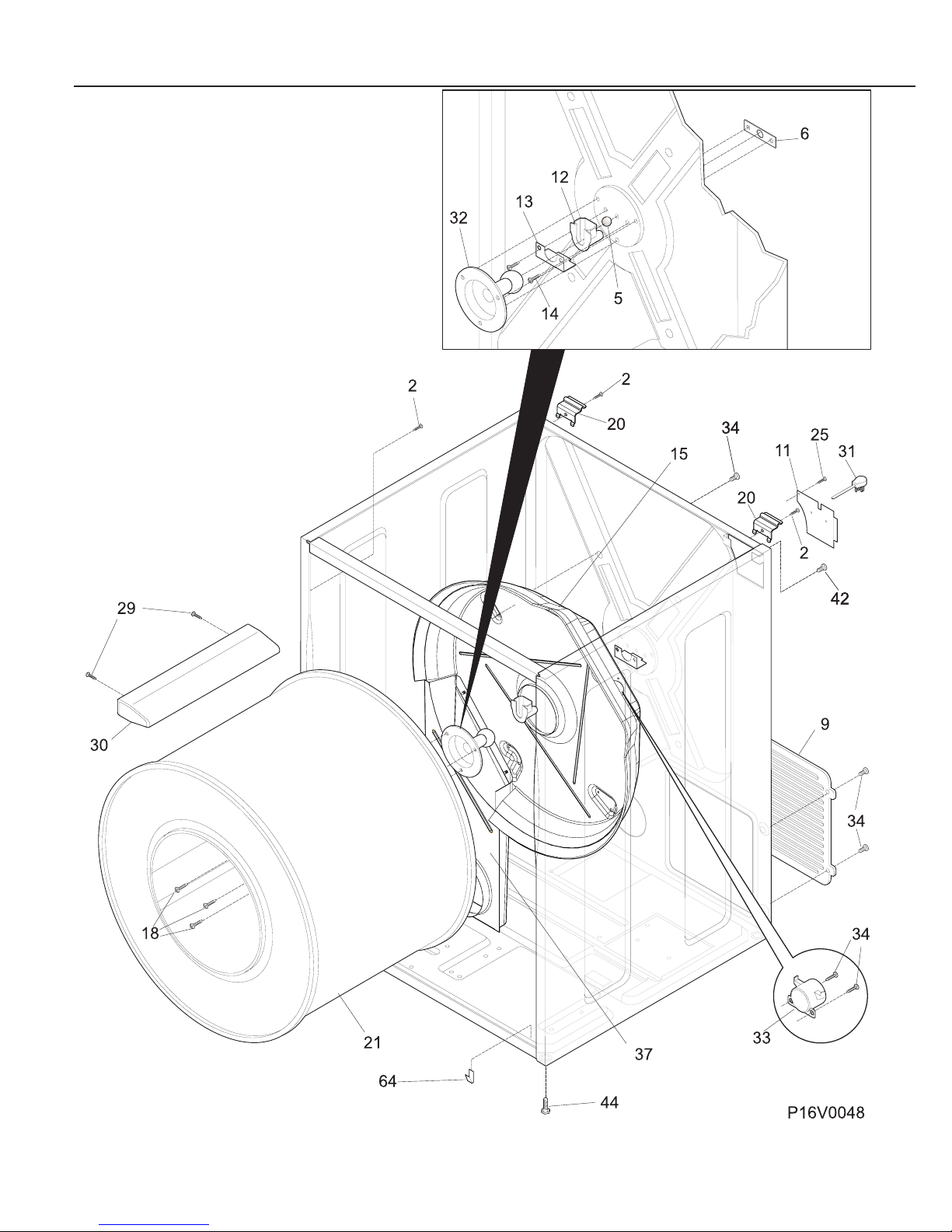

CABINET/DRUM

# = Functional Part 3 11/2001

* = Non-Illustrated Part

GLGR331CAS0 Publication No.

5995360699

POS. NO PART NO DESCRIPTION

2 131168200 Screw, 8-18 x 0.31

5 5303281019 Ball

6 5303281020 Clip-ball

9 131793201 Panel-access

11 131363200 Cover-term block

12 131825900 Bearing-drum support

13 131724300 Bracket-bearing

14 131205400 Screw-bracket, 10-16B x 1.375,

cr/sq drive

15 # 131600500 Asmy-heater

18 131477000 Screw-shaft & baffle, comb ph ab spcl,

10-16 x .375

20 131469100 Bracket-hinge

21 131427804 Asmy-FS drum-gas-galv

25 5303015671 Screw, 8-18 x .375

29 131382300 Screw-vane, quadrex head, 10-14 x 1.00,

special

30 5303201200 Vane

31 # 134102200 Service cord-gas dryer (NOM)

32 131777700 Asmy-shaft (ballhitch)

33 # 5308015399 Thermostat-safety

34 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

37 131952100 Duct-heat

42 131301100 Screw-ground cab, hex washer head,

10-32T x 0.375, serrated head

44 134037100 Leg-leveling

64 131704600 Clip

* 5303307893 Lubricant, high temp

* # 5303281153 Rear Bearing Kit, includes #5, 6,

12, 13, 14, 18, 32

CABINET/DRUM

11/2001 4

Publication No. GLGR331CAS0

5995360699

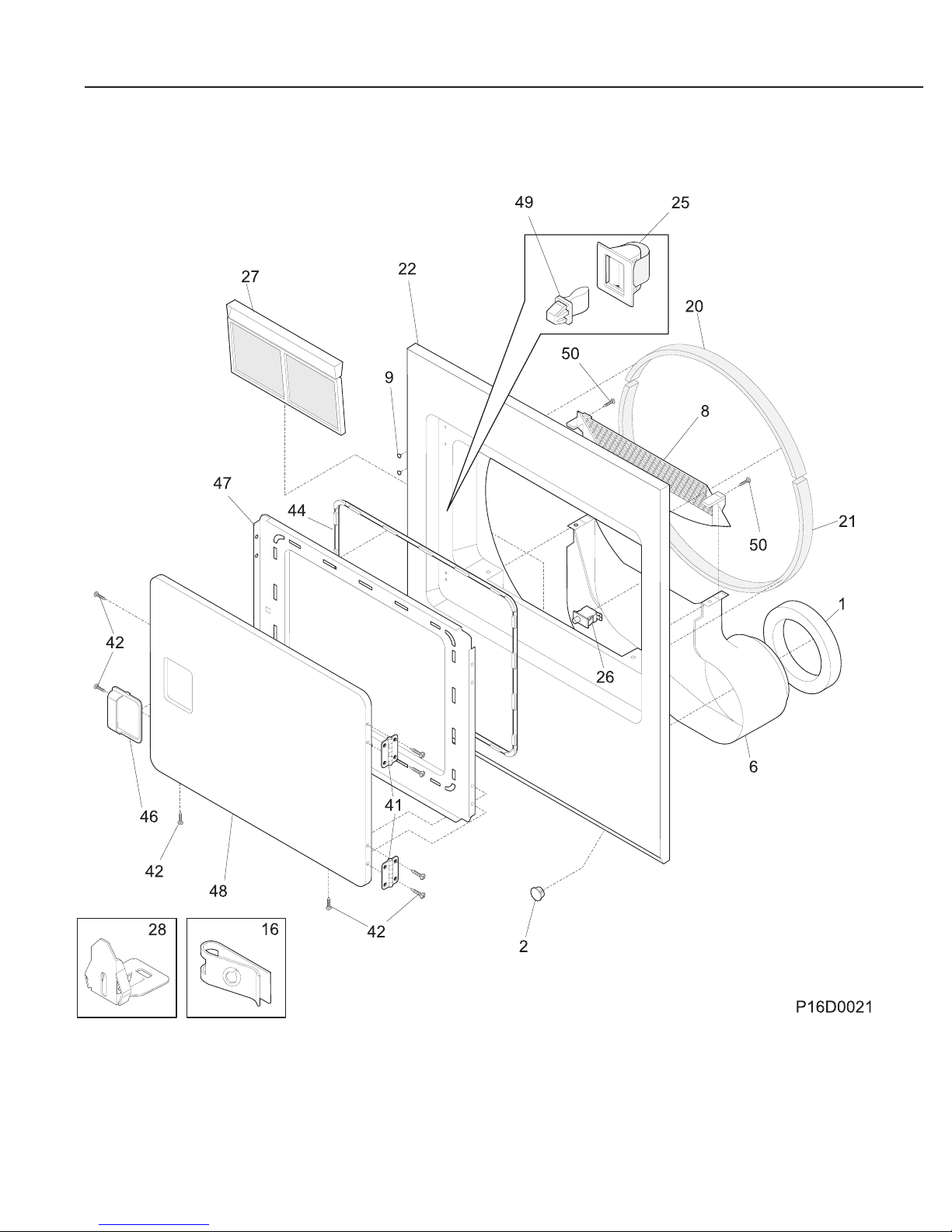

FRONT PANEL/LINT FILTER

# = Functional Part 5 11/2001

* = Non-Illustrated Part

GLGR331CAS0 Publication No.

5995360699

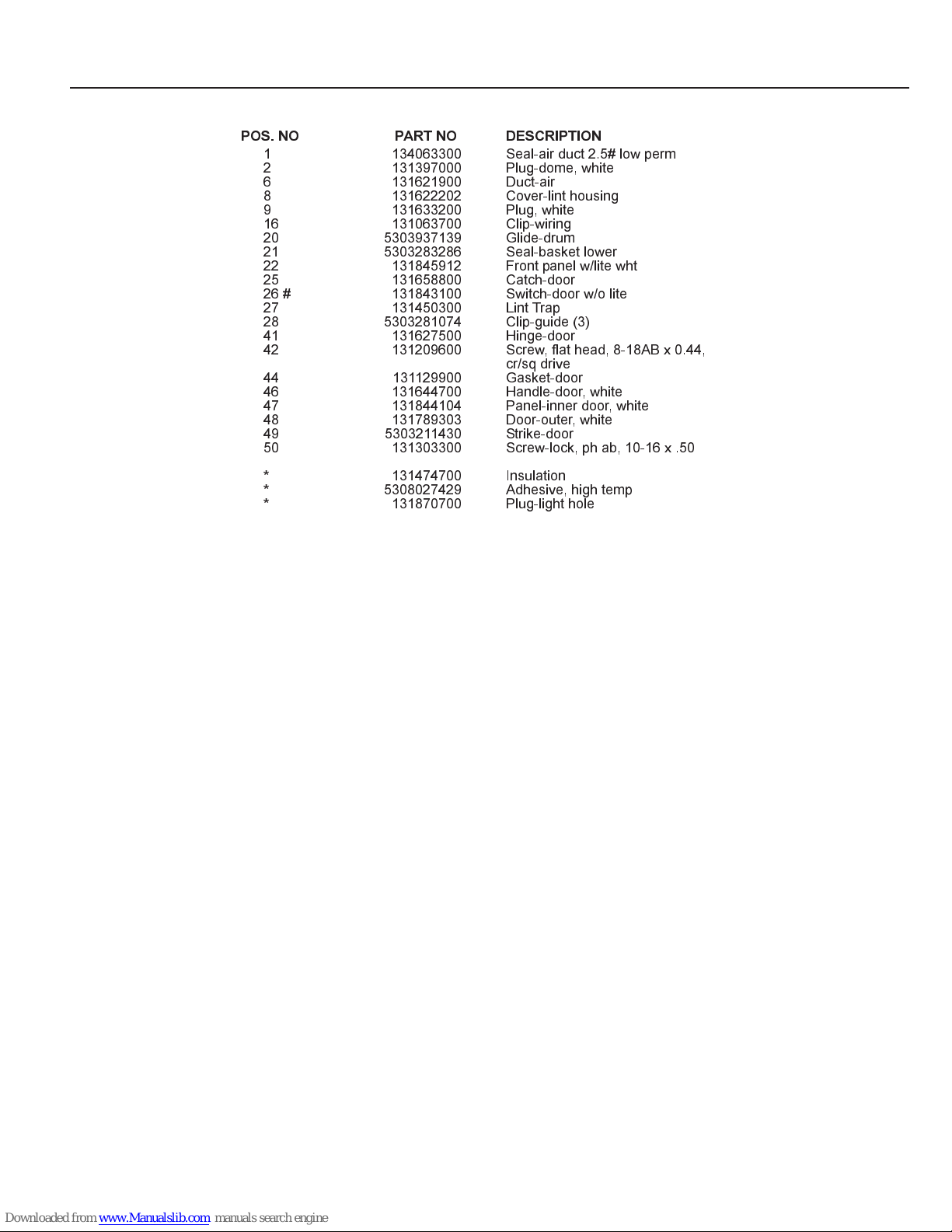

FRONT PANEL/LINT FILTER

POS. NO PART NO DESCRIPTION

1 134063300 Seal-air duct 2.5# low perm

2 131397000 Plug-dome, white

6 131621900 Duct-air

8 131622202 Cover-lint housing

9 131633200 Plug, white

16 131063700 Clip-wiring

20 5303937139 Glide-drum

21 5303283286 Seal-basket lower

22 131845912 Front panel w/lite wht

25 131658800 Catch-door

26 # 131843100 Switch-door w/o lite

27 131450300 Lint Trap

28 5303281074 Clip-guide (3)

41 131627500 Hinge-door

42 131209600 Screw, flat head, 8-18AB x 0.44,

cr/sq drive

44 131129900 Gasket-door

46 131644700 Handle-door, white

47 131844104 Panel-inner door, white

48 131789303 Door-outer, white

49 5303211430 Strike-door

50 131303300 Screw-lock, ph ab, 10-16 x .50

* 131474700 Insulation

* 5308027429 Adhesive, high temp

* 131870700 Plug-light hole

11/2001 6

Publication No. GLGR331CAS0

5995360699

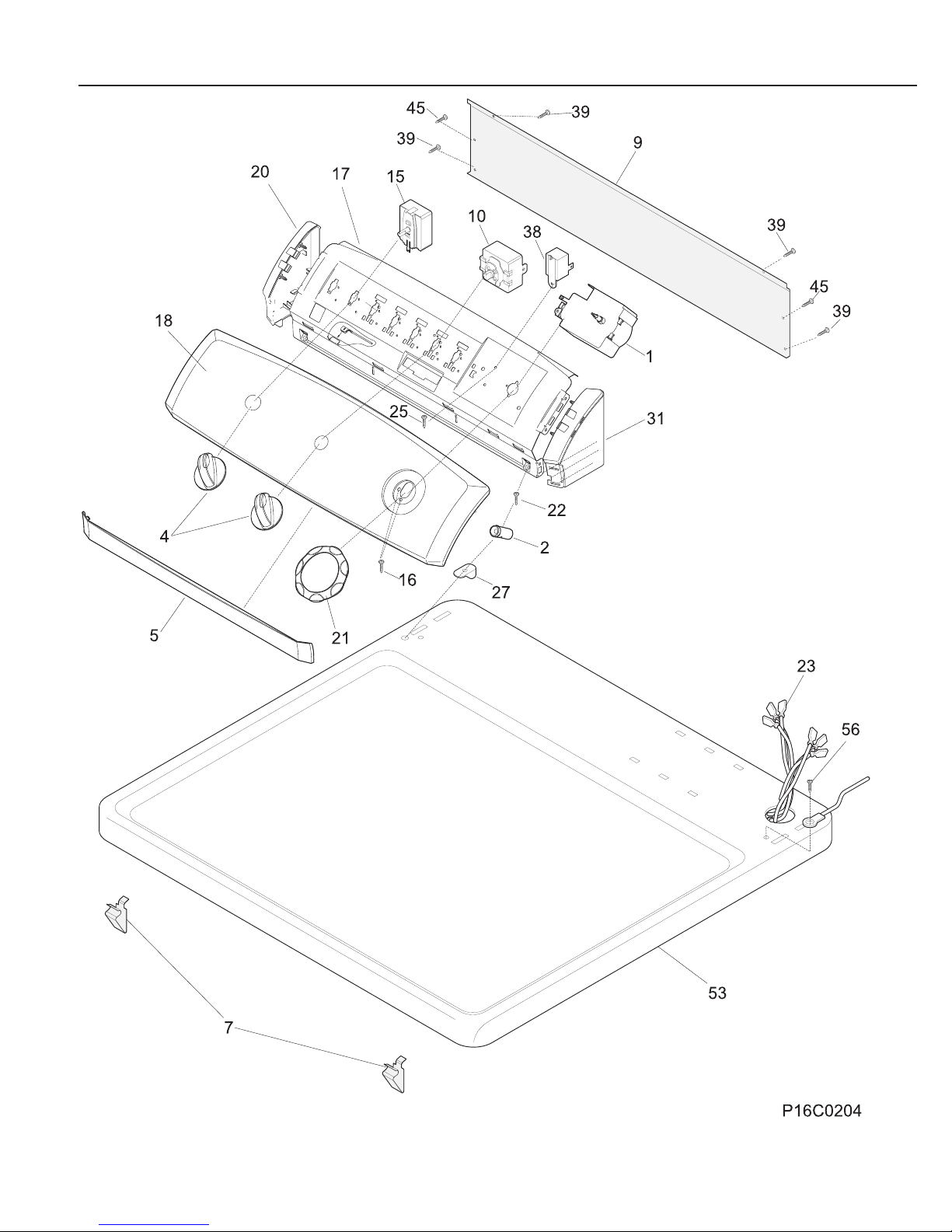

CONTROLS/TOP PANEL

# = Functional Part 7 11/2001

* = Non-Illustrated Part

GLGR331CAS0 Publication No.

5995360699

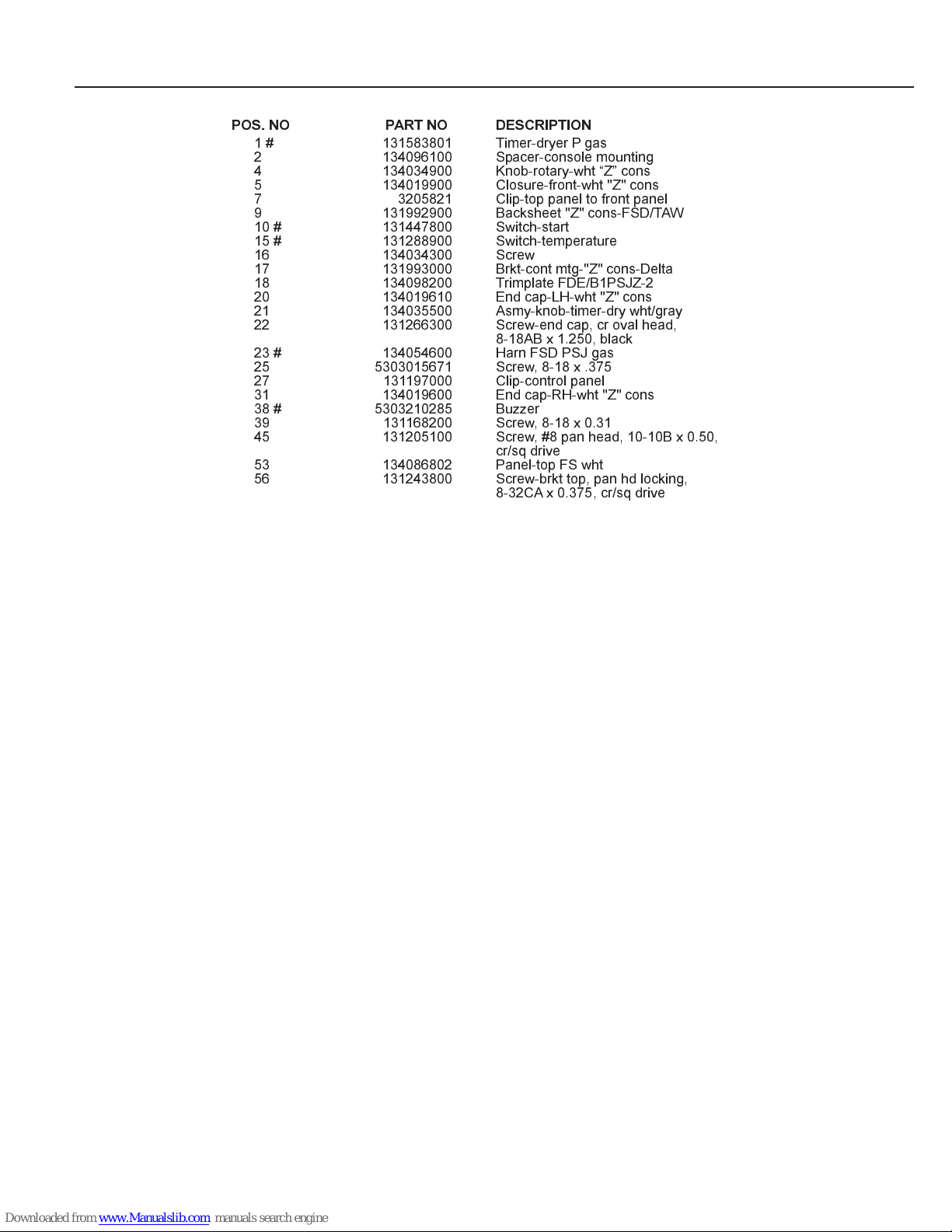

CONTROLS/TOP PANEL

POS. NO PART NO DESCRIPTION

1 # 131583801 Timer-dryer P gas

2 134096100 Spacer-console mounting

4 134034900 Knob-rotary-wht Z cons

5 134019900 Closure-front-wht "Z" cons

7 3205821 Clip-top panel to front panel

9 131992900 Backsheet "Z" cons-FSD/TAW

10 # 131447800 Switch-start

15 # 131288900 Switch-temperature

16 134034300 Screw

17 131993000 Brkt-cont mtg-"Z" cons-Delta

18 134098200 Trimplate FDE/B1PSJZ-2

20 134019610 End cap-LH-wht "Z" cons

21 134035500 Asmy-knob-timer-dry wht/gray

22 131266300 Screw-end cap, cr oval head,

8-18AB x 1.250, black

23 # 134054600 Harn FSD PSJ gas

25 5303015671 Screw, 8-18 x .375

27 131197000 Clip-control panel

31 134019600 End cap-RH-wht "Z" cons

38 # 5303210285 Buzzer

39 131168200 Screw, 8-18 x 0.31

45 131205100 Screw, #8 pan head, 10-10B x 0.50,

cr/sq drive

53 134086802 Panel-top FS wht

56 131243800 Screw-brkt top, pan hd locking,

8-32CA x 0.375, cr/sq drive

11/2001 8

Publication No. GLGR331CAS0

5995360699

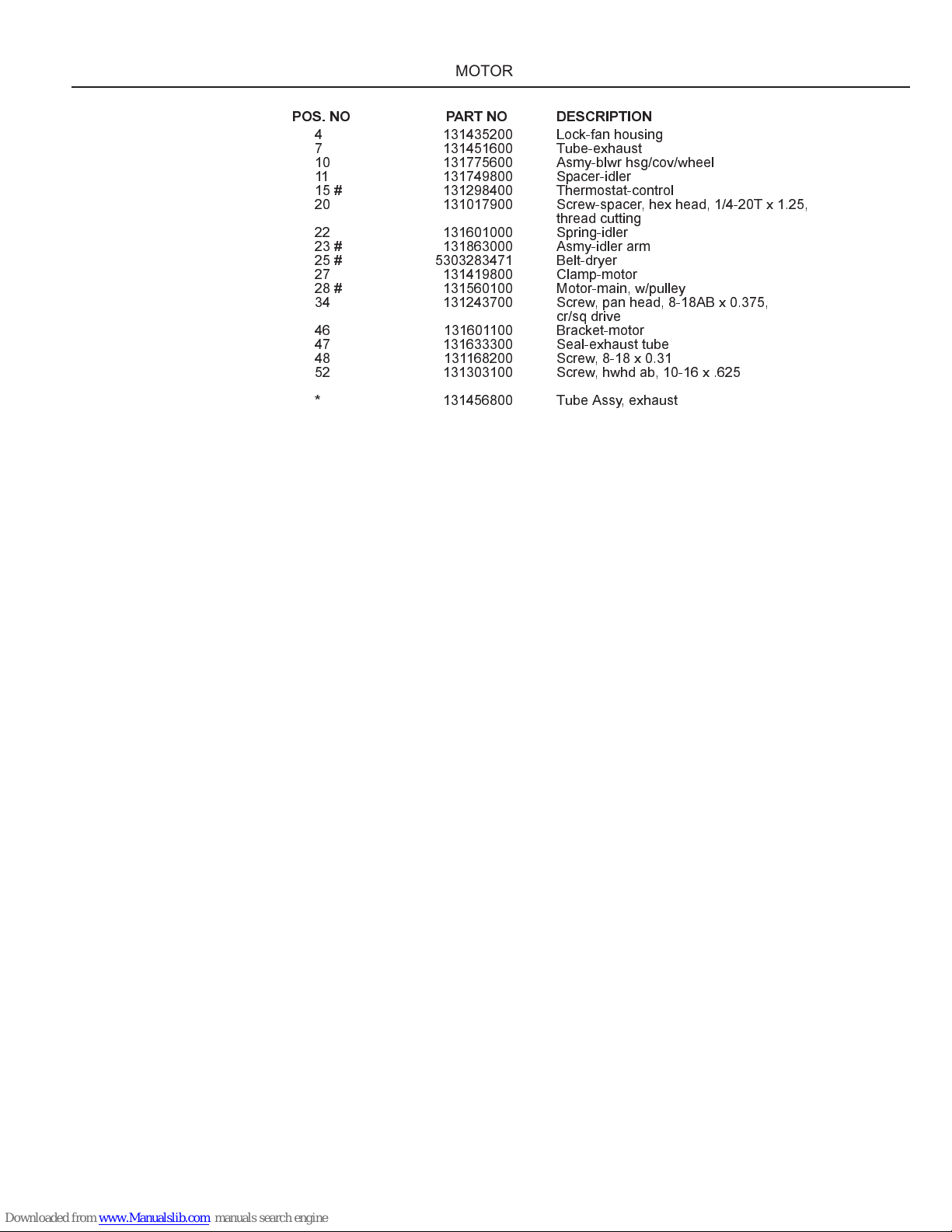

MOTOR

# = Functional Part 9 11/2001

* = Non-Illustrated Part

GLGR331CAS0 Publication No.

5995360699

POS. NO PART NO DESCRIPTION

4 131435200 Lock-fan housing

7 131451600 Tube-exhaust

10 131775600 Asmy-blwr hsg/cov/wheel

11 131749800 Spacer-idler

15 # 131298400 Thermostat-control

20 131017900 Screw-spacer, hex head, 1/4-20T x 1.25,

thread cutting

22 131601000 Spring-idler

23 # 131863000 Asmy-idler arm

25 # 5303283471 Belt-dryer

27 131419800 Clamp-motor

28 # 131560100 Motor-main, w/pulley

34 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

46 131601100 Bracket-motor

47 131633300 Seal-exhaust tube

48 131168200 Screw, 8-18 x 0.31

52 131303100 Screw, hwhd ab, 10-16 x .625

* 131456800 Tube Assy, exhaust

MOTOR

11/2001 10

Publication No. GLGR331CAS0

5995360699

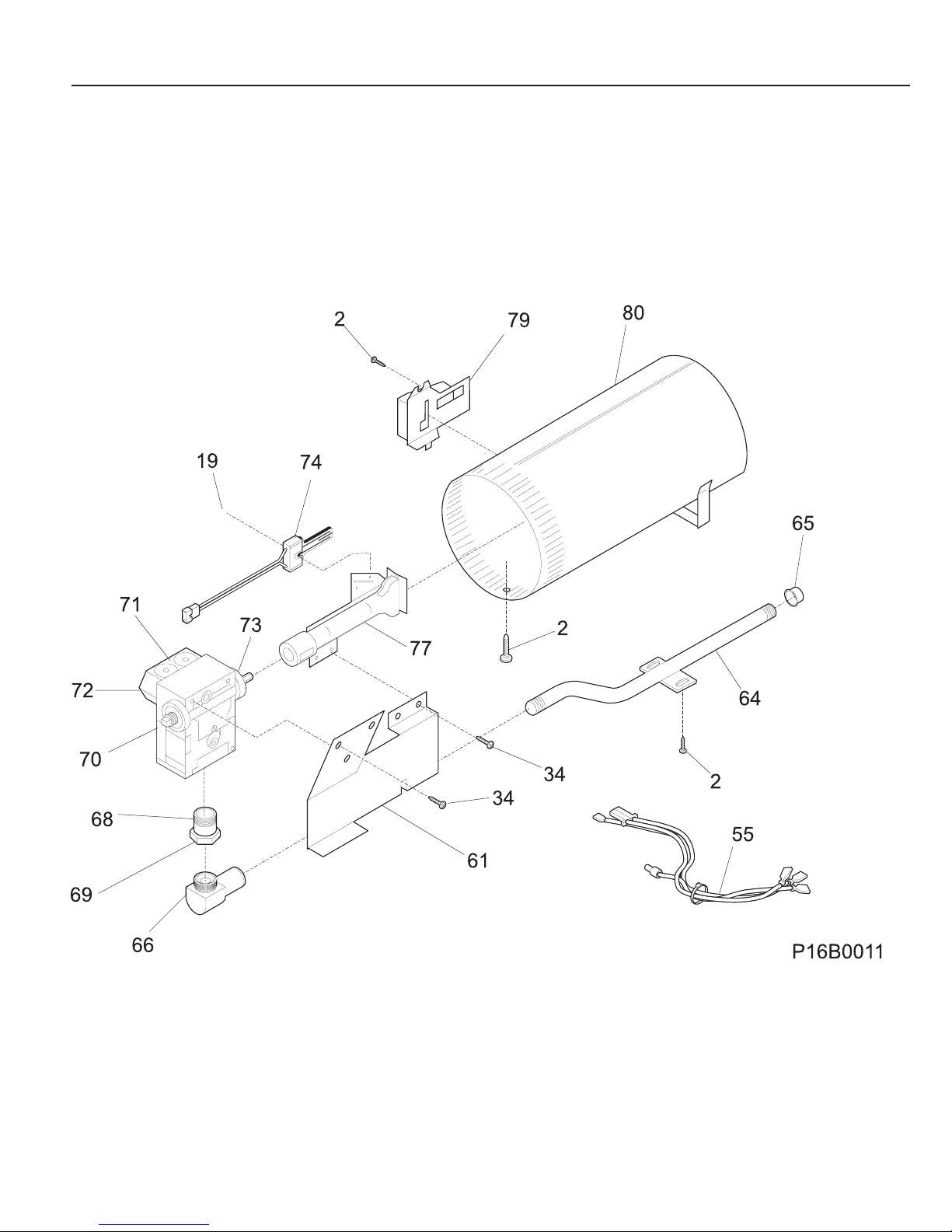

BURNER
