Please read all instructions before using this dryer,

Recognize safety symbols, words and

labels

Safety items throughout this manual are labeled with

a WARNING or CAUTION based on the risk type as

described below:

Definitions

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey al! safety

messages that follow this symbol to avoid possible injury

or death.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

For your safety the following information in this manual

must be followed to minimize the risk of fire or explosion

or to prevent property damage, personal injury or death.

Do not store or use gasoline or other flam-

mable vapors and liquids in the vicinity of

this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Clear the room, building or area of all occu-

pants.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call

the fire department.

Installation and service must be performed

by a qualified installer, service agency or the

gas supplier,

Read all instructions before using this appliance. This

book contains valuable information about:

- Operation

- Care

-Service

Keep it in a safe place.

IMPORTANT indicates installation, operation or

maintenance information which is important but not

hazard-related,

This Use and Care Guide provides general operating

instructions for your dryer. It also contains information

about features for several other models. Your dryer may

not have every feature included.

Use the dryer only as instructed in this Use & Care

Guide.

Save these instructions for future reference,

Product Record

Record Your Model and Serial Numbers

The model and serial numbers of your dryer are found on

the dryer serial plate located at the top of the door open-

ing. Record and retain these numbers.

Model Number

Serial Number

Purchase Date

240 v Electric Dryer 120 v GasDryer

Grounding type

wall receptacle

10-30R

3-wire UL-approved service Do not. under

cord must be installed any circumstances

'fused 30 amp) on electric dryers (not cut. remove,

provided with unit or bypass the

except those grounding prong.

manufactured for sale

in Canada).

14-30R _

4-wire _ J

(fused 30 ampj Power cord with

3-prong grounded plug

Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding

prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.

& WARNING - RISK OF FIRE

To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the basic warnings

listed below. Failure to comply with these warnings could result in serious personal injuries.

You can be killed or seriously injured if you don't follow these Important Safety Instructions:

PREVENT FIRE

*Do not dry items that have been previously cleaned in,

soaked in, or spotted with gasoline, cleaning solvents,

kerosene, waxes, etc. Do not store these items on or

near the dryer. These substances give off vapors that

could ignite or explode.

, Do not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch fire.

, Do not dry articles containing rubber, plastic or similar ma-

terials such as bras, galoshes, bath mats, rugs, bibs, baby

pants, plastic bags and pillows that may melt or burn.

Some rubber materials, when heated, can under certain

circumstances produce fire by spontaneous combustion.

FIRE HAZARD

A clothes dryer produces combustible lint. The dryer

must be connected to an outdoors exhaust. Regularly

inspect the outdoor exhaust opening and remove any

accumulation of lint around the opening and in the

* Clean the lint screen before or after each load. The in-

terior of the dryer, lint screen housing and exhaust duct

should be cleaned approximately every 18 months by

qualified service personnel. An excessive amount of lint

build-up in these areas could result in inefficient drying

and possible fire. See Care and Cleaning.

- Do not operate the dryer if the lint screen is blocked,

damaged or missing. Fire hazard, overheating and

damage to fabrics can occur.

* Do not obstruct the flow of ventilating air. Do not stack

or place laundry or throw rugs against the front or back

of the dryer.

Do not spray any type of aerosol into, on or near dryer

at any time.

Do not use fabric softeners or products to eliminate

static unless recommended by the manufacturer of the

fabric softener or product.

Do not continue to use the dryer is you hear squeaking,

grinding, rubbing or other unusual noises. This could

be a sign of mechanical breakdown and lead to fire or

serious injury. Contact a qualified technician immedi-

ately.

* Failure to comply with these warnings could result in

fire, explosion, serious bodily injury and/or damage to

the rubber or plastic parts of the dryer.

PROTECT CHILDREN

- Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is

used near children. As children grow, teach them the

proper, safe use of all appliances.

- Destroy the carton, plastic bag and other packing ma-

terials after the dryer is unpacked. Children might use

them for play. Cartons covered with rugs, bedspreads

or plastic sheets can become airtight chambers.

Keep laundry products out of children's reach. To pre-

vent personal injury, observe all warnings on product

labels.

Before the dryer is removed from service or discarded,

remove the dryer door to prevent accidental entrapment.

Failure to comply with these warnings could result in

serious personal injuries.

PREVENT INJURY

• To prevent shock hazard and assure stability during

operation, the dryer must be installed and electrically

grounded by a qualified service person in accordance with

local codes. Installation instructions are packed in the

dryer for the installer's reference. Refer to INSTALLATION

INSTRUCTIONSfor detailed grounding procedures. If the

dryer is moved to a new location, have it checked and

reinstalled by a qualified service person.

• To prevent personal injury or damage to the dryer, the

electrical power cord of a gas dryer must be plugged into

a properly grounded and polarized 3-prong outlet. The

third grounding prong must never be removed. Never

ground the dryer to a gas pipe. Do not use an extension

cord or an adaptor plug.

ALWAYSdisconnect the dryer from the electrical supply

before attempting any service or cleaning. Failureto do so

can result in electrical shock or injury.

Do not use any type spray cleanser when cleaning dryer

interior. Hazardous fumes or electrical shock could occur.

To prevent injury, do not reach into the dryer if the drum

is moving. Wait until the dryer has stopped completely

before reaching into the drum.

PREVENT IN]URY AND DAHAGE TO THE DRYER

-All repairs and servicing must be performed by an

authorized servicer unless specifically recommended in

this Owner's Guide. Use only authorized factory parts.

Do not tamper with controls.

Do not sit on, step on or stand on the dryer. Do not

rest heavy loads on top. The dryer is not meant to sup-

port weight.

Do not install or store the dryer where it will be ex-

posed to the weather.

A thermal limiter switch automatically turns off the

motor in the unlikely event of an overheated situation

(electric dryers only). A service technician must replace

the thermal limiter switch after correcting the fault.

Failure to comply with these warnings could result in

serious personal injuries.

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of

substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to

warn customer of potential exposure to such substances. Included in this list are soot and carbon monoxide, both of

which may be produced by the use of this product.

The instructions appearing in this Use and Care Guide are not meant to cover every possible condition and situa-

tion that may occur. Common sense and caution must be practiced when installing, operating and maintaining any

Cycle Selector LCD Display Control Lock

Drum Light

Large Surface

Moisture Sensor

Reversible Door

Door Latch

Adjustable

Leveling Legs

Lint Filter

Door Strike

L_ ................... _

Stacking Kit for Mounting

on Matching Washer* *Not all models come with drying rack and

stacking kit from the factory. They may be

purchased as accessories.

Normal Operating Sounds

You may or may not hear the following sounds from your new

dryer:

A. WATER VALVE (Steam models only.) The flow of water is

controlled by electric solenoids. During operation there may

be a clicking sound as the valve opens and closes to control

the water flow.

B. SUSPENSION ROLLERS The dryer drum is supported by a

set of suspension rollers. At times there may be a thumping

or rolling sound when the dryer starts. This may happen if

the dryer has not been in use for a period of time, or after a

heavy load has remained in the dryer drum for an extended

period, creating a temporary fiat spot on the edge of the

roller. The noise should dissipate as the dryer operates and

the fiat spots smooth out.

C. AIR FLOW SYSTEM Your dryer is equipped with a high

volume air handling system. In some installations there may

be some sounds associated with air movement throughout

the dryer, including the air duct, blower, and exhaust system.

This is normal and can vary with load size and type.

D. GAS VALVE (Gas models only.) The flow of gas is controlled

by electric solenoids. During operation there may be a clicking

sound as the valve opens and closes to control the gas flow.

E. GAS BURNER (Gas models only.) When the burner is

operating, there may be sounds generated as the air flow

mixes with the gas flame. This noise is normal and will only

occur when the gas is ignited in the combustion tube.

i!i!i!i;i;i!ii!ili!i!i!i!i!i!i!i!i!i!i!i!i!ii!¸iiii!!!!!!!!!!!!!ii!ii!i!!_iil¸_i_i_i_i_i_i_i_i_i_i_i_i;:!:_:!!!!!!!!!!i!_ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!! .... ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;,

Do not continue to use the dryer if you hear

squeaking, grinding, rubbing or other unusual

noises. This could be a sign of mechanical

breakdown and lead to fire or serious injury.

Contact a qualified technician immediately.

Operating Your Dryer

To reduce the risk of fire, electric shock or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS

in this Use and Care Guide before operating your dryer.

(Mesh bag not included.)

1Prepare load for drying,

- Dry items of similar fabric, weight and construction

in the same load.

- Separate dark items from light=colored items. Sepa=

rate items that shed lint from those that attract lint.

- Check for stains which may not have been removed

in washing. Repeat stain removal process and wash

again before drying. Dryer heat may permanently

set some stains.

- Place delicate or small items in a mesh bag.

- Be sure buckles, buttons and trim are heatproof

and won't damage the drum finish. Close zippers;

fasten hooks and Velcro<_>-likefasteners. Tie strings

and sashes to prevent snagging and tangling.

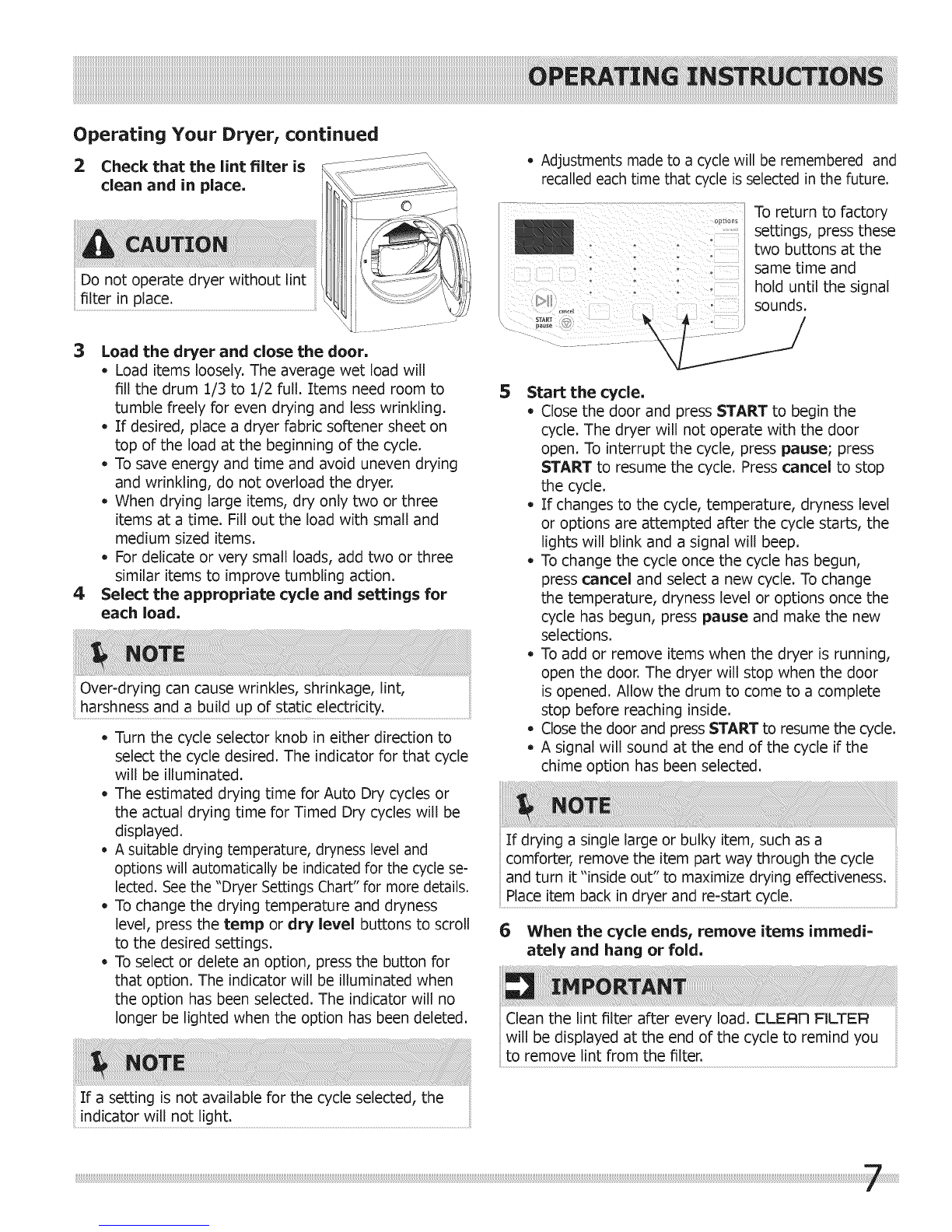

Operating Your Dryerr continued

2 Check that the lint filter is

clean and in place,

Do not operate dryer without lint

filter in place.

3 Load the dryer and close the door.

-Load items loosely. The average wet load will

fill the drum 1/3 to 1/2 full. Items need room to

tumble freely for even drying and less wrinkling.

- If desired, place a dryer fabric softener sheet on

top of the load at the beginning of the cycle.

- To save energy and time and avoid uneven drying

and wrinkling, do not overload the dryer.

- When drying large items, dry only two or three

items at a time. Fill out the load with small and

medium sized items.

-For delicate or very small loads, add two or three

similar items to improve tumbling action.

4Select the appropriate cycle and settings for

each load,

Over-drying can cause wrinkles, shrinkage, lint,

harshness and a build up of static electricity.

- Turn the cycle selector knob in either direction to

select the cycle desired. The indicator for that cycle

will be illuminated.

- The estimated drying time for Auto Dry cyclesor

the actual drying time for Timed Dry cycleswill be

displayed.

•A suitable drying temperature, dryness level and

options will automatically be indicated for the cyclese-

lected. See the "Dryer Settings Chart" for more details.

- To change the drying temperature and dryness

level, press the ternp or dry level buttons to scroll

to the desired settings.

• To select or delete an option, press the button for

that option. The indicator will be illuminated when

the option has been selected. The indicator will no

longer be lighted when the option has been deleted.

If a setting is not available for the cycle selected, the

indicator will not light.

.Adjustments made to a cycle will be remembered and

recalled each time that cycleis selected in the future.

To return to factory

orlons settings, press these

"°two buttons at the

: same time and

hold until the signal

sounds.

S_RT f _

p_use :'J j

Start the cycle,

- Close the door and press START to begin the

cycle. The dryer will not operate with the door

open. To interrupt the cycle, press pause; press

START to resume the cycle. Press cancel to stop

the cycle.

- If changes to the cycle, temperature, dryness level

or options are attempted after the cycle starts, the

lights will blink and a signal will beep.

- To change the cycle once the cycle has begun,

press cancel and select a new cycle. To change

the temperature, dryness level or options once the

cycle has begun, press pause and make the new

selections.

- To add or remove items when the dryer is running,

open the door. The dryer will stop when the door

is opened. Allow the drum to come to a complete

stop before reaching inside.

*Close the door and press START to resume the cycle.

- A signal will sound at the end of the cycle if the

chime option has been selected.

If drying a single large or bulky item, such as a

comforter, remove the item part way through the cycle

and turn it "inside out" to maximize drying effectiveness.

Place item back in dryer and re-start cycle.

6When the cycle ends, remove items immedi-

ately and hang or fold,

Clean the lint filter after every load. [:LERn FILTEF_

will be displayed at the end of the cycleto remind you

to remove lint from the filter.

casuat mixed load

bedding quick dry

casual quick dry

mixed de[icates

toad

steam

Specialty Cycles may include, but

not limited to:

ojeans

pet beds

kids wear

• stuffed toys

.bedding

•warm up

This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown

above for reference only. Your model may differ.

Cycle Selection

Turn the cycle selector in either direction to the cycle

desired. The indicator for that cycle will be illuminated.

To change the cycle once it has begun, press the cancel

button before selecting a new cycle. Just turning the

cycle selector knob to another selection will not change

the cycle.

For best results

Follow the fabric care label instructions

on items to be dried.

Cycle Selectionr continued

Auto Dry Cycles

Auto Dry cycles take the guesswork out of selecting the

correct drying time for each load. Moisture sensing bars

at the back of the dryer drum sense the moisture level of

the load as it tumbles through the heated air. With Auto

Dry cycles, the load will automatically be dried at the

selected temperature to the desired dryness level.

Auto Dry cycles save time and energy and protect fabrics.

When the load has reached the selected dryness level, it

will continue to tumble during a cool down period. This

helps reduce wrinkling and makes items easier to handle

during unloading.

Drying time varies depending on size and dampness of

load and fabric type. If the load is too small or almost dry,

the moisture sensing bars may not detect enough moisture

to continue the cycle and the cycle may end after a few

minutes. If this occurs, select a Timed Dry cycle.

Room temperature and humidity, type of installation and

electrical voltage or gas pressure can also affect drying

time.

heavy duty

Select this Auto Dry cycle to dry durable fabrics such as

jeans and overalls.

bedding (on select models)

Select this Auto Dry cycle to dry bedding and bulky

items such as comforters, blankets, sleeping bags and

parkas.

towels

Select this Auto Dry cycle for towels and bath mats.

normal

Select this Auto Dry cycle for cotton items.

mixed load

Select this Auto Dry cycle to dry loads containing a mix

of fabrics.

casual

Select this Auto Dry cycle for cottons and blends with a

no-iron finish.

delicates

Select this Auto Dry cycle for knits and delicate items.

Timed Dry Cycles

FTRE HAZARD

To avoid fire hazard, do not use heat to dry items

containing feathers or down, foam rubber, plastics

similarly textured, rubber-like materials. Use the Timed

Dry cycle and the Air Dry setting.

quick dry

Select this timed cycle to quickly dry small loads in 25

minutes.

steam refresh

Select this cycle to refresh fabrics, remove odors and

reduce static by injecting the perfect amount of steam

into clothing that has been left in the dryer, stored in

crowded closets, drawers, or unpacked luggage.

time dry

To manually select the drying time for any load, turn

the knob to time dry. Press the dry time button on

the setting panel to scroll through drying times from 15

(touch up) to 90 minutes.

casual mixed toad casual quick dry

beddhlg _"-_ _: _ quick dry mixedtoad ........ _ de cate

team

normat deticates norma_ refresh

..... I,_ _i _t_h_ .... Ls cyctin_eecia

heavy x_ ,z time _Ptes {ty

touch

"dry time" button

Because this is not an Auto Dry cycle, you will not be

able to select a dryness level.

Specialty Cycle Selection

mLxed

Load

normal

towels

heavy

duty

casual quick dry

de[icates

steam

_f rJcy _ damp _ _;oucr_

ootions

_vr_kle

b_e

shrfn_:

ant_

Specialty Cycles (on select models)

Turn the cycle selector to specialty cycles to access

additional custom cycles. Scroll through the cycles by

pressing the outer buttons under the LCD screen.

jeans

Select this specialty cycle for drying an entire load of

denim jeans.

pet beds

Select this specialty cycle for drying soft-sided pet

beds, pet pillows or pet blankets.

kids wear

Select this specialty cycle for drying kids clothing and

baby wear where allergen-reduction is desired.

stuffed toys

Select this specialty cycle for drying stuffed animals and

soft toys that can be tumble dried. Protect your dryer

drum finish and maximize toy life by placing it in a pillow

case and tying the end closed before washing it.

bedding

Use this specialty cycle for large items such as

blankets, sheets, mattress pads, linens, duvet covers

and similar items.

warm up

Quickly warm up an entire dry load left in a cold dryer

or a few dry items you want warm with this specialty

cycle.

This manual suits for next models

Table of contents

Other Frigidaire Dryer manuals

Frigidaire

Frigidaire LAQG7073KW0 Owner's manual

Frigidaire

Frigidaire AGQ7000E User manual

Frigidaire

Frigidaire FDE747GE User manual

Frigidaire

Frigidaire Affinity FAQE7071L User manual

Frigidaire

Frigidaire Affinity FAQE7073K W User manual

Frigidaire

Frigidaire 137339000A Owner's manual

Frigidaire

Frigidaire 134420700A User manual

Frigidaire

Frigidaire AEQ6000CES0 User manual

Frigidaire

Frigidaire P/N 134296400A (0404) User manual

Frigidaire

Frigidaire Dryer User guide

Frigidaire

Frigidaire GLGR642CAS5 Manual

Frigidaire

Frigidaire FLEB8200FS4 User manual

Frigidaire

Frigidaire FARG4044MW User manual

Frigidaire

Frigidaire GLGR1042F User manual

Frigidaire

Frigidaire FASG7073NA User manual

Frigidaire

Frigidaire FEFB9200ES0 User manual

Frigidaire

Frigidaire Affinity FAQE7001LB User manual

Frigidaire

Frigidaire 137058000A 0808 User manual

Frigidaire

Frigidaire FFSG5115PW User manual

Frigidaire

Frigidaire GLEQ642A User manual

Frigidaire

Frigidaire GLER1042F User manual

Frigidaire

Frigidaire FEFB9200E User manual

Frigidaire

Frigidaire Affinity FAQE7001L User manual

Frigidaire

Frigidaire CASE7021NW0 User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
