Pleasereadallinstructionsbeforeusingthisdryer,

Recognize safety symbols, words and

labels

Safety items throughout this manual are labeled with

a WARNING or CAUTION based on the risk type as

described below:

Definitions

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey al! safety

messages that follow this symbol to avoid possible injury

or death.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

For your safety the following information in this manual

must be followed to minimize the risk of fire or explosion

or to prevent property damage, personal injury or death.

Do not store or use gasoline or other flam-

mable vapors and liquids in the vicinity of

this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not

use any phone in your building.

• Clear the room, building or area of all occu-

pants.

• Immediately call your gas supplier from a

neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call

the fire department.

Installation and service must be performed

by a qualified installer, service agency or the

gas supplier,

Read all instructions before using this appliance. This

book contains valuable information about:

- Operation

- Care

-Service

Keep it in a safe place.

IMPORTANT indicates installation, operation or

maintenance information which is important but not

hazard-related,

This Use and Care Guide provides general operating

instructions for your dryer. It also contains information

about features for several other models. Your dryer may

not have every feature included.

Use the dryer only as instructed in this Use & Care

Guide.

Save these instructions for future reference,

Product Record

Record Your Model and Serial Numbers

The model and serial numbers of your dryer are found on

the dryer serial plate located at the top of the door open-

ing. Record and retain these numbers.

Model Number

Serial Number

Purchase Date

240 v Electric Dryer 120 v GasDryer

Grounding type

wall receptacle

10-30R

3-wire UL-approved service Do not. under

cord must be installed any circumstances

'fused 30 amp) on electric dryers Inot cut. remove,

provided with unit or bypass the

except those grounding prong.

manufactured for sale

in Canada).

14-30R _

4-wire _ J

(fused 30 ampj Power cord with

3-prong grounded plug

Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord or remove grounding

prong from electrical power cord. Failure to follow this warning can cause serious injury, fire or death.

& WARNING - RISK OF FIRE

To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the basic warnings

listed below. Failure to comply with these warnings could result in serious personal injuries.

You can be killed or seriously injured if you don't follow these Important Safety Instructions:

PREVENT FIRE

*Do not dry items that have been previously cleaned in,

soaked in, or spotted with gasoline, cleaning solvents,

kerosene, waxes, etc. Do not store these items on or

near the dryer. These substances give off vapors that

could ignite or explode.

,Do not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch fire.

Do not dry articles containing rubber, plastic or similar ma-

terials such as bras, galoshes, bath mats, rugs, bibs, baby

pants, plastic bags and pillows that may melt or burn.

Some rubber materials, when heated, can under certain

circumstances produce fire by spontaneous combustion.

FIRE HAZARD

A clothes dryer produces combustible lint, The dryer

must be connected to an outdoors exhaust. Regularly

inspect the outdoor exhaust opening and remove any

accumulation of lint around the opening and in the

* Clean the lint screen before or after each load. The in-

terior of the dryer, lint screen housing and exhaust duct

should be cleaned approximately every 18 months by

qualified service personnel. An excessive amount of lint

build-up in these areas could result in inefficient drying

and possible fire. See Care and Cleaning.

Do not operate the dryer if the lint screen is blocked,

damaged or missing. Fire hazard, overheating and

damage to fabrics can occur.

Do not obstruct the flow of ventilating air. Do not stack

or place laundry or throw rugs against the front or back

of the dryer.

Do not spray any type of aerosol into, on or near dryer

at any time.

Do not use fabric softeners or products to eliminate

static unless recommended by the manufacturer of the

fabric softener or product.

Do not continue to use the dryer is you hear squeaking,

grinding, rubbing or other unusual noises. This could

be a sign of mechanical breakdown and lead to fire or

serious injury. Contact a qualified technician immedi-

ately.

Failure to comply with these warnings could result in

fire, explosion, serious bodily injury and/or damage to

the rubber or plastic parts of the dryer.

PROTECT CHILDREN

- Do not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer is

used near children. As children grow, teach them the

proper, safe use of all appliances.

o Destroy the carton, plastic bag and other packing ma-

terials after the dryer is unpacked. Children might use

them for play. Cartons covered with rugs, bedspreads

or plastic sheets can become airtight chambers.

Keep laundry products out of children's reach. To pre-

vent personal injury, observe all warnings on product

labels.

• Before the dryer is removed from service or discarded,

remove the dryer door to prevent accidental entrapment.

Failure to comply with these warnings could result in

serious personal injuries.

PREVENT INJURY

•To prevent shock hazard and assure stability during

operation, the dryer must be installed and electrically

grounded by a qualified service person in accordance with

local codes, Installation instructions are packed in the

dryer for the installer's reference. Refer to INSTALLATION

INSTRUCTIONSfor detailed grounding procedures. If the

dryer is moved to a new location, have it checked and

reinstalled by a qualified service person.

• To prevent personal injury or damage to the dryer, the

electrical power cord of a gas dryer must be plugged into

a properly grounded and polarized 3-prong outlet. The

third grounding prong must never be removed. Never

ground the dryer to a gas pipe. Do not use an extension

cord or an adaptor plug.

ALWAYSdisconnect the dryer from the electrical supply

before attempting any service or cleaning. Failureto do so

can result in electrical shock or injury.

• Do not use any type spray cleanser when cleaning dryer

interior. Hazardous fumes or electrical shock could occur.

• To prevent injury, do not reach into the dryer if the drum

is moving. Wait until the dryer has stopped completely

before reaching into the drum.

PREVENT IN3URY AND DAHAGE TO THE DRYER

- All repairs and servicing must be performed by an

authorized servicer unless specifically recommended in

this Owner's Guide. Use only authorized factory parts.

Do not tamper with controls.

Do not install or store the dryer where it will be ex-

posed to the weather.

A thermal limiter switch automatically turns off the

motor in the unlikely event of an overheated situation

(electric dryers only). A service technician must replace

the thermal limiter switch after correcting the fault.

Failure to comply with these warnings could result in

serious personal injuries.

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of

substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to

warn customer of potential exposure to such substances. Included in this list are soot and carbon monoxide, both of

which may be produced by the use of this product.

The instructions appearing in this Use and Care Guide are not meant to cover every possible condition and situa-

tion that may occur. Common sense and caution must be practiced when installing, operating and maintaining any

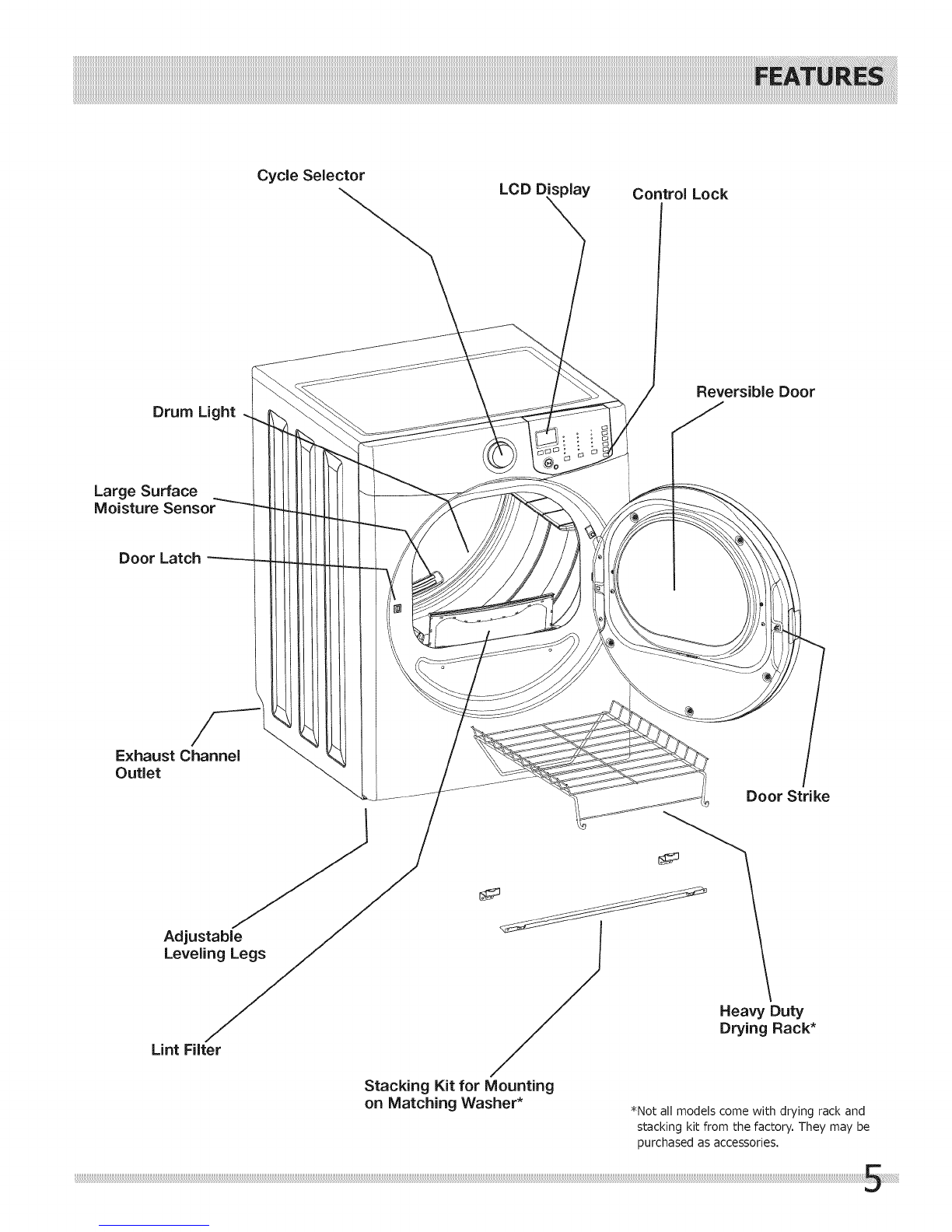

Cycle Selector LCD Display Control Lock

Drum Light

Large Surface

Moisture Sensor

Reversible Door

Door Latch

Adjustable

Leveling Legs

Lint Filter

Door Strike

L_ ................... _

Stacking Kit for Mounting

on Matching Washer* *Not all models come with drying rack and

stacking kit from the factory. They may be

purchased as accessories.

Normal Operating Sounds

You may or may not hear the following sounds from your new

dryer:

A. WATER VALVE (Steam models only.) The flow of water is

controlled by electric solenoids. During operation there may

be a clicking sound as the valve opens and closes to control

the water flow.

B. SUSPENSION ROLLERS The dryer drum is supported by a

set of suspension rollers. At times there may be a thumping

or rolling sound when the dryer starts. This may happen if

the dryer has not been in use for a period of time, or after a

heavy load has remained in the dryer drum for an extended

period, creating a temporary fiat spot on the edge of the

roller. The noise should dissipate as the dryer operates and

the fiat spots smooth out.

C. AIR FLOW SYSTEM Your dryer is equipped with a high

volume air handling system. In some installations there may

be some sounds associated with air movement throughout

the dryer, including the air duct, blower, and exhaust system.

This is normal and can vary with load size and type.

D. GAS VALVE (Gas models only.) The flow of gas is controlled

by electric solenoids. During operation there may be a clicking

sound as the valve opens and closes to control the gas flow.

E. GAS BURNER (Gas models only.) When the burner is

operating, there may be sounds generated as the air flow

mixes with the gas flame. This noise is normal and will only

occur when the gas is ignited in the combustion tube.

i!i!i!i;i;i!ii!ili!i!i!i!i!i!i!i!i!i!i!i!i!ii!¸iiii!!!!!!!!!!!!!ii!ii!i!!_iil¸_i_i_i_i_i_i_i_i_i_i_i_i;:!:_:!!!!!!!!!!i!_ii!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!! .... ;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;,

Do not continue to use the dryer if you hear

squeaking, grinding, rubbing or other unusual

noises. This could be a sign of mechanical

breakdown and lead to fire or serious injury.

Contact a qualified technician immediately.

Operating Your Dryer

To reduce the risk of fire, electric shock or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS

in this Use and Care Guide before operating your dryer.

(Mesh bag not included.)

1Prepare load for drying,

- Dry items of similar fabric, weight and construction

in the same load.

- Separate dark items from light=colored items. Sepa=

rate items that shed lint from those that attract lint.

- Check for stains which may not have been removed

in washing. Repeat stain removal process and wash

again before drying. Dryer heat may permanently

set some stains.

- Place delicate or small items in a mesh bag.

- Be sure buckles, buttons and trim are heatproof

and won't damage the drum finish. Close zippers;

fasten hooks and Velcro<_>-likefasteners. Tie strings

and sashes to prevent snagging and tangling.

Operating Your Dryer, continued

2Check that the lint filter is dean and in place.

3 Load the dryer and close the door.

- Load items loosely. The average wet load wiii

fillthe drum 1/3 to 1/2 full. Items need room to

tumble freely for even drying and less wrinkling.

- If desired, place a dryer fabric softener sheet on

top of the load at the beginning of the cycle.

- To save energy and time and avoid uneven drying

and wrinkling, do not overload the dryer.

•When drying large items, dry only two or three

items at a time. Fill out the load with small and

medium sized items.

o For delicate or very small loads, add two or three

similar items to improve tumbling action.

4Select the appropriate cycle and settings for

each load.

Over-drying can cause wrinkles, shrinkage, lint,

harshness and a build up of static electricity.

Turn the cycle selector knob in either direction to

select the cycle desired. The indicator for that cycle

will be illuminated.

The estimated drying time for Auto Dry cycles or

the actual drying time for Timed Dry cycles will be

displayed.

• A suitable drying temperature, dryness level and

options will automatically be indicated for the cycle se-

lected. See the "Dryer Settings Chart" for more details.

To change the drying temperature and dryness

level, press the Temp or Dry Level buttons to

scroll to the desired settings.

To select or delete an option, press the button for

that option. The indicator will be illuminated when

the option has been selected. The indicator will no

longer be lighted when the option has been deleted.

If a setting is not available for the cycle selected, the

indicator will not light.

Adjustments made to a cycle wi be remembered and

recalled each time that cycle is selected in the future.

oouons To return to factory

settings, press these

two buttons at the

same time and

hold until the signal

...... sounds.

5Start the cycle.

*Close the door and press Start to begin the cycle.

The dryer will not operate with the door open. To

interrupt the cycle, press Pause; press Start to

resume the cycle. Press cancel to stop the cycle.

If changes to the cycle, temperature, dryness level

or options are attempted after the cycle starts, the

lights will blink and a signal will beep.

To change the cycle once the cycle has begun,

press cancel and select a new cycle. To change

the temperature, dryness level or options once the

cycle has begun, press Pause and make the new

selections.

To add or remove items when the dryer is running,

open the door. The dryer will stop when the door

is opened. Allow the drum to come to a complete

stop before reaching inside.

Close the door and press Start to resume the cycle.

A signal will sound at the end of the cycle if the

chime option has been selected.

6When the cycle ends, remove items immedi=

ately and hang or fold.

Clean the lint filter after every load. CLERFI FILTER

will be displayed at the end of the cycle to remind you

to remove lint from the filter. ....

normal

towels

bulky

heavy

allergy mixed load

casual

casual quickdry

allergy delicates

mixed

load

casual

refresh

time

dry

specialty

cycles

Specialty Cycles may include, but

not limited to:

,.leans

• Kids Wear

•Active Wear

• Warm Up (on select models)

quickdry

delicates

steam

refresh

time

dry

specialty

cycles

Specialty Cycles may include, but

not limited to:

,Jeans

• Pet Beds

• Kids Wear

•Stuffed Toys

•Active Wear

•Warm Up

This manual covers many models and not all cycles, options, or features listed are available on every model. Consoles shown

above for reference only. Your model may differ.

Cycle Selection

Turn the cycle selector in either direction to the cycle

desired. The indicator for that cycle will be illuminated.

To change the cycle once it has begun, press the cancel

button before selecting a new cycle, lust turning the

cycle selector knob to another selection will not change

the cycle.

For best results

Follow the fabric care label instructions

on items to be dried.

Cycle Selection, continued

Auto Dry Cycles

Auto Dry cycles take the guesswork out of selecting the

correct drying time for each load. Moisture sensing bars

at the back of the dryer drum sense the moisture level of

the load as it tumbles through the heated air. With Auto

Dry cycles, the load will automatically be dried at the

selected temperature to the desired dryness level.

Auto Dry cycles save time and energy and protect fabrics.

When the load has reached the selected dryness level, it will

continue to tumble during a cool down period. This helps

reduce wrinkling and makes items easier to handle during

unloading.

Drying time varies depending on size and dampness of

load and fabric type. If the load is too small or almost dry,

the moisture sensing bars may not detect enough moisture

to continue the cycle and the cycle may end after a few

minutes. If this occurs, select a Timed Dry cycle.

Room temperature and humidity, type of installation and

electrical voltage or gas pressure can also affect drying time.

Heavy (on select models)

Select this Auto Dry cycle to dry durable fabrics such as

jeans and overalls.

Heavy/Bulky (on select models)

Select this Auto Dry cycle to dry durable fabrics such as

jeans and overalls.

Bulky (on select models)

Select this Auto Dry cycle to dry bedding and bulky items

such as comforters, blankets, sleeping bags and parkas.

Towels (on select models)

Select this Auto Dry cycle for towels and bath mats.

Normal

Select this Auto Dry cycle for cotton items.

Allergy (on select models)

Select this Auto Dry cycle to compliment your washer's

Allergy cycle or where you wish to reduce allergens as

you dry your load. Items prone to heat damage are not

recommended for this cycle.

Mixed Load (on select models)

Select this Auto Dry cycle to dry loads containing a mix

of fabrics.

Jeans (on select models)

Select this Auto Dry cycle for drying an entire load of

denim jeans.

Casual

Select this Auto Dry cycle for cottons and blends with a

no-iron finish.

Delicates

Select this Auto Dry cycle for knits and delicate items.

Timed Dry Cycles

FIRE HAZARD

To avoid fire hazard, do not use heat to dry items

containing feathers or down, foam rubber, plastics

similarly textured, rubber-like materials. Use the Timed

Dry cycle and the Air Dry setting.

Quick Dry (on select models)

Select this timed cycle to quickly dry small loads in 25

minutes.

Steam Refresh (steam models only)

Select this cycle to refresh fabrics, remove odors and

reduce static by injecting the perfect amount of steam

into clothing that has been left in the dryer, stored in

crowded closets, drawers, or unpacked luggage.

Time Dry

To manually select the drying time for any load, turn

the knob to Time Dry. Press the Dry Time button (on

select models) on the setting panel to scroll through

drying times from 15 (Touch Up) to 90 minutes.

"Dry Time" button

On models without a Dry Time button, continue to

turn the cycle Selector knob while on the Time Dry

cycle, to increase or decrease drying time displayed on

the LCD screen.

allergy mExed]oad

quickdry .gn _nEgn ,:j_

_aJrarv oaam_,

Continue turning to select

manual drying time No "Dry Time" button

Because this is not an Auto Dry cycle, you will not be

able to select a dryness level.

Specialty Cyde Selection

allergy

normal

towels

heavy/

bulky

casual quick dry

delicates

steam

START

pause

o_tions

release

Ein_

75 _ dry

60 _ cl_ay

_tart

"OW e lOW _ 30

aug

air dry _ damp -touch steam

up arm

_amceL temp dr_ d_y _tk

{eve[ t_me

lock

mixed

load

normal

towels

heavy/

bulky

casual quickdry

delicates

steam

optloris

Specialty Cycles (on select models)

Turn the cycle selector to Specialty Cycles to access

additional custom cycles. Scroll through the cycles by

pressing the outer buttons under the LCD screen.

Jeans

Select this Specialty cycle for drying an entire load of

denim jeans.

Pet Beds (on select models)

Select this Specialty cycle for drying soft-sided pet

beds, pet pillows or pet blankets.

Kids Wear

Select this Specialty cycle for drying kids clothing and

baby wear where allergen-reduction is desired.

Stuffed Toys (on select models)

Select this Specialty cycle for drying stuffed animals

and soft toys that can be tumble dried. Protect your

dryer drum finish and maximize toy life by placing it in a

pillow case and tying the end closed before washing it.

Active Wear

Select this Specialty cycle to dry lightweight synthetic

athletic apparel including stretch fabrics.

Warm=Up (on select models)

Quickly warm up an entire dry load left in a cold dryer

or a few dry items you want warm with this Specialty

cycle.

This manual suits for next models

Other Frigidaire Dryer manuals

Frigidaire

Frigidaire FEQ332ES - 27" Electric Dryer User manual

Frigidaire

Frigidaire FFRE1001PW0 Owner's manual

Frigidaire

Frigidaire GLGR331MA User manual

Frigidaire

Frigidaire 134507800B User manual

Frigidaire

Frigidaire GLGR341C User manual

Frigidaire

Frigidaire GLEQ642A User manual

Frigidaire

Frigidaire GLER341CE User manual

Frigidaire

Frigidaire GLGQ332CA User manual

Frigidaire

Frigidaire FLSG72GCSB User manual

Frigidaire

Frigidaire FARE1011MW User manual

Frigidaire

Frigidaire AGQ6700FS2 User manual

Frigidaire

Frigidaire 134760600A User manual

Frigidaire

Frigidaire FGR311FS - 27" Gas Dryer User manual

Frigidaire

Frigidaire Affinity FAQE7071L User manual

Frigidaire

Frigidaire FFRE4120S Owner's manual

Frigidaire

Frigidaire Affinity FAQE7073K W User manual

Frigidaire

Frigidaire GLEQ642AS2 Quick start guide

Frigidaire

Frigidaire AEQB6000E User manual

Frigidaire

Frigidaire FEQ1452HS0 User manual

Frigidaire

Frigidaire LCGQ2152FE0 User manual

Frigidaire

Frigidaire Affinity FAQG7072L R Owner's manual

Frigidaire

Frigidaire 137102600 User manual

Frigidaire

Frigidaire FGQB4000F User manual

Frigidaire

Frigidaire FEFB9100E User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
