Frigidaire FAQE7111LW0 User manual

ImportantSafetyInstructions..............

InstallationRequirements.................

InstalledDryerDimensions..................................11

InstallationInstructions.................................12-17

www,frigidaire,com USA 1-800-944-9044 www,frigidaire,ca Canada 1-800-265-8352

For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent

property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in

Read all of the following instructions before installing and using this appliance:

o Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons covered

with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in a

garbage container or make materials inaccessible to children.

Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier.

Install the clothes dryer according to the manufacturer's instructions and local codes.

The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the Na-

tional Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.

The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National

Fuel Gas Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000.

The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 =CAN/CSA C22.2 No. 112 (latest editions) for HOME

USE only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.

Do not install a clothes dryer with flexible plastic venting material. Flexible venting materials are known to collapse,

be easily crushed and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.

The instructions in this manual and all other literature included with this dryer are not meant to cover every pos-

sible condition and situation that may occur. Good safe practice and caution MUST be applied when installing,

operating and maintaining any appliance.

WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.

If you cannot reach your gas supplier, call the fire department.

Save these instructions for future reference.

Pre-Installation Requirements

Tools and materials needed for installation:

Adjustable pliers

Phillips, straight, & square bit

screwd rivers

Adjustable wrench

Pipe wrench for gas supply (gas

dryer)

LP-resistant thread tape (for natu-

ral gas or LP supply, gas dryer)

Carpenter's level

External vent hood

4-inch (i0.2 cm), rigid metal or

semi-rigid metal exhaust duct work

3-wire or 4-wire 240 volt cord kit

(electric dryer)

4 in. (10.2 cm) clamp

Gas line shutoff valve (gas dryer)

1/2NPT union flare adapters (x2)

and flexible gas supply line (gas

dryer)

Metal foil tape (not duct tape)

Pleasereadallinstructionsbeforeusingthisdryer.

Recognize safety symbols, words and

labels

Safety items throughout this manual are labeled with

a WARNING or CAUTION based on the risk type as

described below:

Definitions

This is the safety alert symbol. It is used to alert

you to potential personal injury hazards. Obey all safety

messages that follow this symbol to avoid possible injury

or death.

DANGER indicates an imminently hazardous situation

which, if not avoided, will result in death or serious

injury.

WARNING indicates a potentially hazardous situation

which, if not avoided, could result in death or serious

CAUTION indicates a potentially hazardous situation

which, if not avoided, may result in minor or moderate

IMPORTANT indicates installation, operation or

maintenance information which is important but not

hazard-related.

Exhaust Venting

[] Free-flowing, clear of lint buildup

[] 4 inch (10.2 cm) rigid or semi-rigid ducting of

minimal length and turns

[] NO foil or plastic venting material

[] Approved vent hood exhausted to outdoors

Leveling

[] Dryer is level, side=to-side and front-to-back

[] Cabinet is setting solid on all corners

Gas Supply (Gas Dryer)

[] Manual shutoff valve present in supply

[] All connections sealed with approved sealer

and wrench tight

[] Conversion kit for LP system

[] Gas supply turned on

[] No leaks present at all connections -

check with soapy water, NEVERcheck with

flame

240v Electric Supply (Electric Dryer)

[] Approved NEMA 10-30R or 14-30R service

cord with all screws tight on terminal block

[] Approved strain relief installed

[] Terminal access cover installed before initial

operation

Door Reversal

[] Follow detailed instructions in this guide

[] Test hinge and latch for function

Electrical Power

[] House power turned on

[] Dryer plugged in

Final Checks

[] Installation Instructions and Use and

Care Guide read thoroughly

[] Door latches and drum tumbles when cycle

starts

[] Registration card sent in

Electrical requirements for electric dryer

CIRCUIT - Individual 30 amp. branch circuit fused with 30 amp. time delay fuses or circuit breakers. Use separately

fused circuits for washer and dryer. DO NOT operate a washer and a dryer on the same circuit.

POWER SUPPLY- 3-wire or 4-wire, 240 volt, single phase, 60 Hz, Alternating Current.

This dryer is internally grounded to neutral unless it was manufactured for sale in Canada. Grounding through the

neutral link is prohibited for: (1) new branch circuit installations, (2) mobile homes, (3) recreational vehicles, and (4)

areas where local codes do not permit grounding through the neutral.

OUTLET RECEPTACLE- NEMA 10-30R or NEMA 14-30R receptacle to be located so the power supply cord is accessible

when the dryer is in the installed position.

GROUNDING CONNECTION - See "Grounding requirements" in Electrical Installation section.

3-WIRE POWER SUPPLYCORD KIT (not supplied)

3=wire receptacle

(NEMA type 10=30R)

The dryer MUST employ a 3-conductor power

supply cord NENA 10-30 type SRDT rated at 240

volt AC minimum, 30 amp, with 3 open end spade

lug connectors with upturned ends or closed

loop connectors and marked for use with clothes

dryers. For 3-wire cord connection instructions see

ELECTRICALCONNECTIONS FOR A 3-WIRE SYSTEM.

4-WIRE POWER SUPPLYCORD KIT (not supplied)

4=wire receptacle

(NEMA type 14=30R)

The dryer MUST employ a 4-conductor power supply

cord NEMA 14-30 type SRDT or ST (as required) rated

at 240 volt AC minimum, 30 amp, with 4 open end

spade lug connectors with upturned ends or closed

loop connectors and marked for use with clothes

dryers. For4-wire cord connection instructions see

ELECTRICAL CONNECTIONS FOR A 4-WIRE SYSTEM.

Dryers manufactured for sale in Canada have factory-

installed, 4-wire power supply cord (NEMA 14-30R).

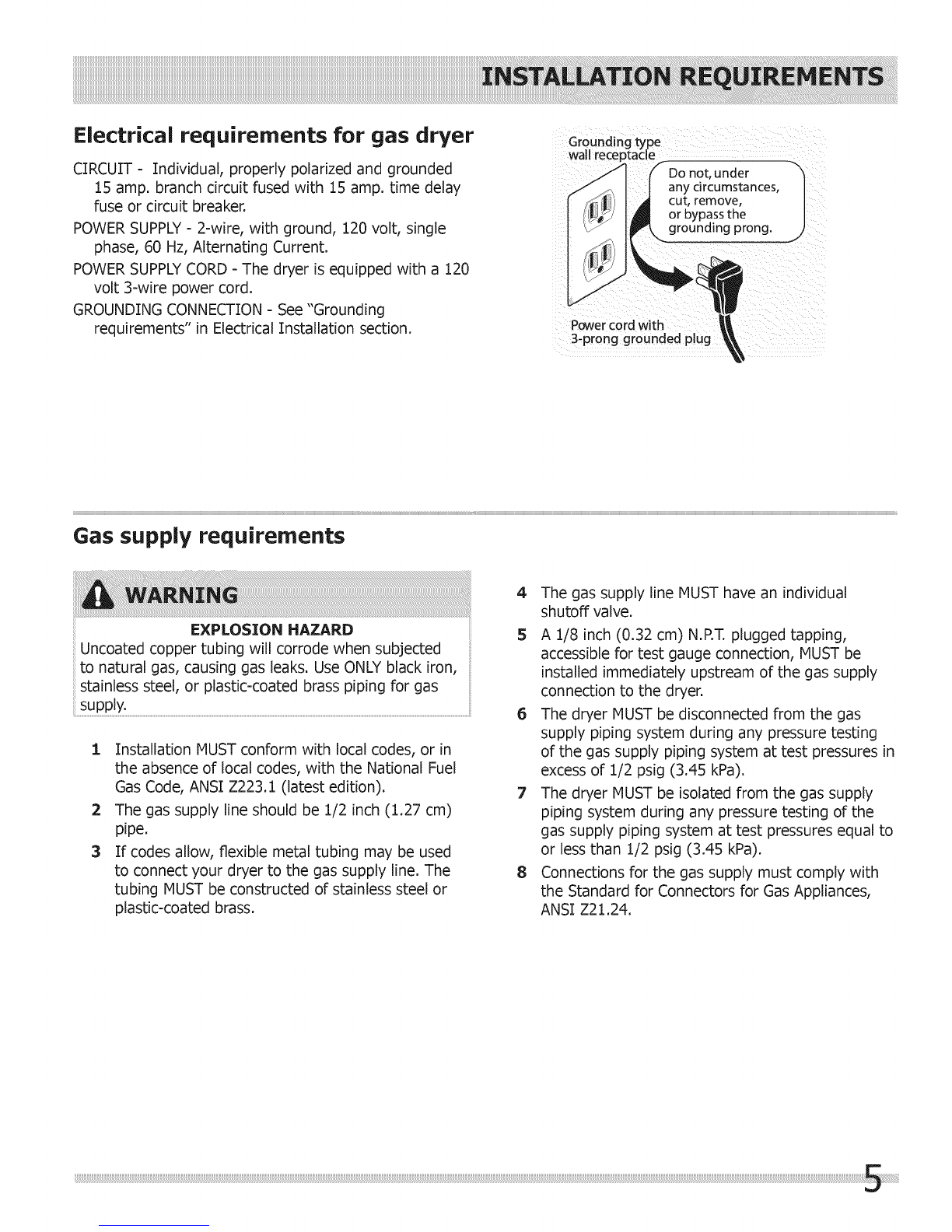

Electrical requirements for gas dryer

CIRCUIT - Individual, properly polarized and grounded

15 amp. branch circuit fused with 15 amp. time delay

fuse or circuit breaker.

POWER SUPPLY- 2-wire, with ground, 120 volt, single

phase, 60 Hz, Alternating Current.

POWER SUPPLYCORD - The dryer is equipped with a 120

volt 3-wire power cord.

GROUNDING CONNECTION - See "Grounding

requirements" in Electrical Installation section.

Do not, under

any circumstances,

cut, remove,

or bypass the

grounding prong.

Powercord with

3-prong grounded plug

Gas supply requirements

1Installation MUST conform with local codes, or in

the absence of local codes, with the National Fuel

Gas Code, ANSI Z223.1 (latest edition).

2 The gas supply line should be 1/2 inch (1.27 cm)

pipe.

3 If codes allow, flexible metal tubing may be used

to connect your dryer to the gas supply line. The

tubing MUST be constructed of stainless steel or

plastic-coated brass.

4 The gas supply line MUST have an individual

shutoff valve.

5A 1/8 inch (0.32 cm) N.RT. plugged tapping,

accessible for test gauge connection, MUST be

installed immediately upstream of the gas supply

connection to the dryer.

6 The dryer MUST be disconnected from the gas

supply piping system during any pressure testing

of the gas supply piping system at test pressures in

excess of 1/2 psig (3.45 kPa).

7 The dryer MUST be isolated from the gas supply

piping system during any pressure testing of the

gas supply piping system at test pressures equal to

or less than 1/2 psig (3.45 kPa).

8 Connections for the gas supply must comply with

the Standard for Connectors for Gas Appliances,

ANSI Z21.24.

Exhaust system requirements

Use only 4 inch (10.2 cm) diameter (minimum) rigid

or flexible metal duct and approved vent hood which

has a swing-out damper(s) that open when the dryer

is in operation. When the dryer stops, the dampers

automatically close to prevent drafts and the entrance

of insects and rodents. To avoid restricting the outlet,

maintain a minimum of 12 inches (30.5 cm) clearance

between the vent hood and the ground or any other

obstruction.

FIRE HAZARD

Failure to follow these instructions can create excessive

drying times and fire hazards.

The following are specific requirements for

proper and safe operation of your dryer.

FIRE HAZARD

Do not install a clothes dryer with flexible plastic or

metal foil venting materials. Flexibleventing materials

are known to collapse, be easily crushed and trap lint.

These conditions will obstruct clothes dryer airflow and

increase the risk of fire:...........................................................................................................................................................................................................

:If your present system is made up of plastic duct or

metal foil duct, replace it with a rigid or semi-rigid metal

duct. Also, ensure the present duct is free of any lint prior

to installing dryer duct.

Correct

Incorrect

Exhaust system requirements, continued

FIRE HAZARD

Aclothes dryer must be exhausted outdoors. Do not

exhaust dryer into a chimney, a wall, a ceiling, an attic,

a crawl space or any concealed space of a building. A

clothes dryer produces combustible lint. If the dryer is

not exhausted outdoors, some fine lint will be expelled

into the laundry area. An accumulation of lint in any

area of the home can create a health and fire hazard.

The dryer must be connected to an exhaust outdoors.

Regularly inspect the outdoor exhaust opening and

remove any accumulation of lint around the outdoor

exhaust opening and in the surrounding area.

FIRE HAZARD

-Do not allow combustible materials (for example:

clothing, draperies/curtains, paper) to come in

contact with exhaust system. The dryer MUST NOT

be exhausted into a chimney, a wall, a ceiling,

or any concealed space of a building which can

ii accumulate lint, resulting in a fire hazard.

- Do not screen the exhaust ends of the vent system,

or use any screws, rivets or other fasteners that

extend into the duct to assemble the exhaust

system. Lint can become caught in the screen, on

the screws or rivets, clogging the duct work and

ii creating a fire hazard as well as increasing drying

ii times. Use an approved vent hood to terminate

the duct outdoors, and seal all joints with duct

tape. All male duct pipe fittings MUST be installed

downstream with the flow of air.

FIRE HAZARD

Exceeding the length of duct pipe or number of elbows

allowed in the "MAXIMUM LENGTH" charts can cause

an accumulation of lint in the exhaust system. Plugging

the system could create a fire hazard, as well as

€-

MAXIMUM LENGTH

of 4" (10,2cm) Rigid Metal Duct

VENT HOOD TYPE

(Preferred)

(10.2cm) Iouvered

64 ft. (19.5 m)

2.5"

(6.35cm)

48 ft. (14.6 m)

1 52 ft. (15.9 m) 40 ft. (12.2 m)

2 44 ft. (13.5 m) 32 ft. (9.8 m)

3 32 ft. (9.8 m) 24 ft. (7.3 m)

4 28 ft. (9.5 m) 16 ft. (4.9 m)

FIRE HAZARD

-Do not install flexible plastic or flexible foil venting

material.

- If installing semi-rigid venting, do not exceed 8 ft.

Exhaust system requirementsr continued

Install male fittings in correct direction"

CORRECT iNCORRECT

In installations where the exhaust system is not described

in the charts, the following method must be used to

determine if the exhaust system is acceptable:

:[ Connect an inclined or digital manometer between

the dryer and the point the exhaust connects to the

dryer.

2 Set the dryer timer and temperature to air fluff

(cool down) and start the dryer.

3 Read the measurement on the manometer.

4 The system back pressure MUST NOT be higher

than 0.75 inches of water column. If the

system back pressure is less than 0.75 inches of

water column, the system is acceptable. If the

manometer reading is higher than .075 inches of

water column, the system is too restrictive and the

installation is unacceptable.

Although vertical orientation of the exhaust system is

acceptable, certain extenuating circumstances could

affect the performance of the dryer:

o Only the rigid metal duct work should be used.

Venting vertically through a roof may expose the

exhaust system to down drafts causing an increase

in vent restriction.

Running the exhaust system through an

uninsulated area may cause condensation and

faster accumulation of lint.

Compression or crimping of the exhaust system will

cause an increase in vent restriction.

The exhaust system should be inspected and

cleaned a minimum of every 18 months with

normal usage. The more the dryer is used, the

more often you should check the exhaust system

and vent hood for proper operation.

Exhaust direction

Directional exhausting can be accomplished by installing

a quick-turn 90° dryer vent elbow directly to exhaust

outlet of dryer. Dryer vent elbows are available through

your local parts distributor or hardware store.

See also CLEARANCE REQUIREMENTS on the next page.

Use of 90° quick-turn elbow required to meet minimum

installation depth of free-standing dryer:

• Straight back venting allows for 0" (0 cm) installation.

Venting right with 90° elbow allows for 0.75" (2 cm)

installation.

Venting downward with 90° elbow allows for 0.75" (2

cm) installation.

Venting left with short, straight adapter and 90°

elbow allows for 3.75" (9.5 cm) installation.

Venting upward with short, straight adapter and 90°

.......................e/bow a!!ows for 4" (10-5 cm) !nsta/lat!on- ..............................................................................

Manufactured or mobile home installation

1 Installation MUST conform to current Manufactured

Home Construction & Safety Standard, Title 24

CFR, Part 32-80 (formerly the Federal Standard

for Mobile Home Construction and Safety, Title 24,

HUD Part 280) or Standard CAN/CSAZ240 MH.

2 Dryer MUST be exhausted outside (outdoors, not

beneath the mobile home) using metal ducting

that will not support combustion. Metal ducting

must be 4 inches (10.16 cm) in diameter with no

obstructions. Rigid metal duct is preferred.

3 If dryer is exhausted through the floor and area

beneath the mobile home is enclosed, the exhaust

system MUST terminate outside the enclosure with

the termination securely fastened to the mobile

home structure.

4 Refer to previous sections in this guide for other

important exhaust venting system requirements.

5When installing a gas dryer into a mobile home, a

provision must be made for outside make up air.

This provision is to be not less than twice the area

of the dryer exhaust outlet.

6Installer MUST anchor this (1) dryer or (2) dryer

mounted on pedestal to the floor with approved

Mobile Home Installation Kit - P/N 137067200.

Clearance requirements

EXPLOSION HAZARD

Do not install the dryer where gasoline or other

flammables are kept or stored. If the dryer is installed

in a garage, it must be a minimum of 18 inches (45.7

cm) above the floor. Failure to do so can result in

death, explosion, fire or burns.

NOT INSTALL YOUR DRYER:

1 In an area exposed to dripping water or outside

weather conditions.

2 In an area where it will come in contact with

curtains, drapes, or anything that will obstruct

the flow of combustion and ventilation air.

3 On carpet. Floor MUST be solid with a maximum

slope of 1 inch (2.54 cm).

Installation in a Recess or Closet

1A dryer installed in a bedroom, bathroom, recess or

closet, MUST be exhausted outdoors.

2No other fuel burning appliance shall be installed in

the same closet as the gas dryer.

3 Your dryer needs the space around it for proper

ventilation.

DO NOT install your dryer in a closet with a solid door.

4 Closet door ventilation required: A minimum

of 120 square inches (774.2 cm 2) of opening,

equally divided at the top and bottom of the

door, is required. Openings should be located 3

inches (7.6 cm) from bottom and top of door.

Openings are required to be unobstructed when a

door is installed. A Iouvered door with equivalent

air openings for the full length of the door is

acceptable.

(7.6c m]

closet door

-1--

60 sq. in.

(387.1cm 2)

60 sq. in.

(387.1cm 2)

MINIMUM INSTALLATION CLEARANCES- Inches (cm)

SIDES REAR TOP FRONT

Alcove 0" (0 cm) )" (0 cm)* 0" (0 cm) n/a

Under- 0" (0 cm) )" (0 cm)* 0" (0 cm) n/a

Counter

Closet i0" (0 cm) )" (0 cm)_ 0" (0 cm) 1" (2.54 cm)

For other than straight back venting, a quick-turn

90° dryer vent elbow (vented right or down in free-

standing dryer or right on pedestal-mounted dryer)

must be installed to achieve 0" (0 cm) installation.

))To achieve an installation with 0" (0 cm) clearance

for the back of the dryer (for other than straight back

venting), a quick-turn 90° dryer vent elbow must be

installed as described previously in this manual.

This manual suits for next models

Table of contents

Languages:

Other Frigidaire Dryer manuals

Frigidaire

Frigidaire GLEQ332CAS1 User manual

Frigidaire

Frigidaire AEQ7000CES1 User manual

Frigidaire

Frigidaire GLEQ442CEs0 User manual

Frigidaire

Frigidaire GCET1031FS2 User manual

Frigidaire

Frigidaire AEQ6000CE User manual

Frigidaire

Frigidaire FAQG7017KN0 Owner's manual

Frigidaire

Frigidaire FEQ221CAS1 User manual

Frigidaire

Frigidaire GLGQ442CES0 Quick start guide

Frigidaire

Frigidaire 137339000A Owner's manual

Frigidaire

Frigidaire CAQE7011LW User manual

Frigidaire

Frigidaire FAQE7021LB0 User manual

Frigidaire

Frigidaire GLEQ2152EE0 User manual

Frigidaire

Frigidaire FASG7073NA User manual

Frigidaire

Frigidaire Affinity FAQG7072L R User manual

Frigidaire

Frigidaire AGQ8700FE1 User manual

Frigidaire

Frigidaire Affinity FAQG7072LA Installation instructions

Frigidaire

Frigidaire FRG5714KW - Gas Dryer w/ 4 Temps User manual

Frigidaire

Frigidaire GLEQ442CE User manual

Frigidaire

Frigidaire AFFINITY FAQG7011K W User manual

Frigidaire

Frigidaire CAQE7077KW0 Owner's manual

Frigidaire

Frigidaire FRQG7000LW0 Owner's manual

Frigidaire

Frigidaire 131883500A User manual

Frigidaire

Frigidaire FRQE7000LW0 Owner's manual

Frigidaire

Frigidaire GLER1042F User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
