Frigidaire PTAC FRP12PTT2R User manual

frigidaire.com

Signature Features

Air Conditioner /

Heat Pump /

Backup Electric Heater

PTAC

FRP12PTT2R

Performance

Cool

Backup Electric Heater

Heat Pump

BTUs

12,000 / 11,800

10,200 / 8,300

10,700 / 10,500

Product Dimensions

Height 16"

Width 42"

Depth 13-13/16"

More Easy-To-Use Features

Comfort Control Design

Simple controls allow guests to

customize their settings, while quiet,

uniform air movement keeps rooms

comfortable.

Smart Self-Check

Provides nine diagnostic points for self-

check and correction of fault conditions.

Eco-Friendly

Frigidaire® uses R-410A refrigerant that’s

not harmful to the earth’s ozone layer

and meets U.S. Environmental Protection

Agency requirements.

Eortless™ Operation

Simple, intuitive room controls are easy

for guests to operate — ensuring a

relaxing, more comfortable stay. Features

like Effortless™ Restart and Ready-Select®

controls reduce maintenance calls.

Eortless™ Temperature

Control

Frigidaire® air conditioners maintain the

preset room temperature so the room

remains comfortable at all times and

helps control energy levels.

SilentDesign™

Sound reduction package.

Energy-Saver Option

This function effortlessly maximizes

energy efficiency while keeping guests

comfortable.

Eortless™ Maintenance

With Frigidaire’s reputation for durability,

easy maintenance, availability of reliable

parts and service you can count on,

you can be sure that you’re getting the

highest-quality performance.

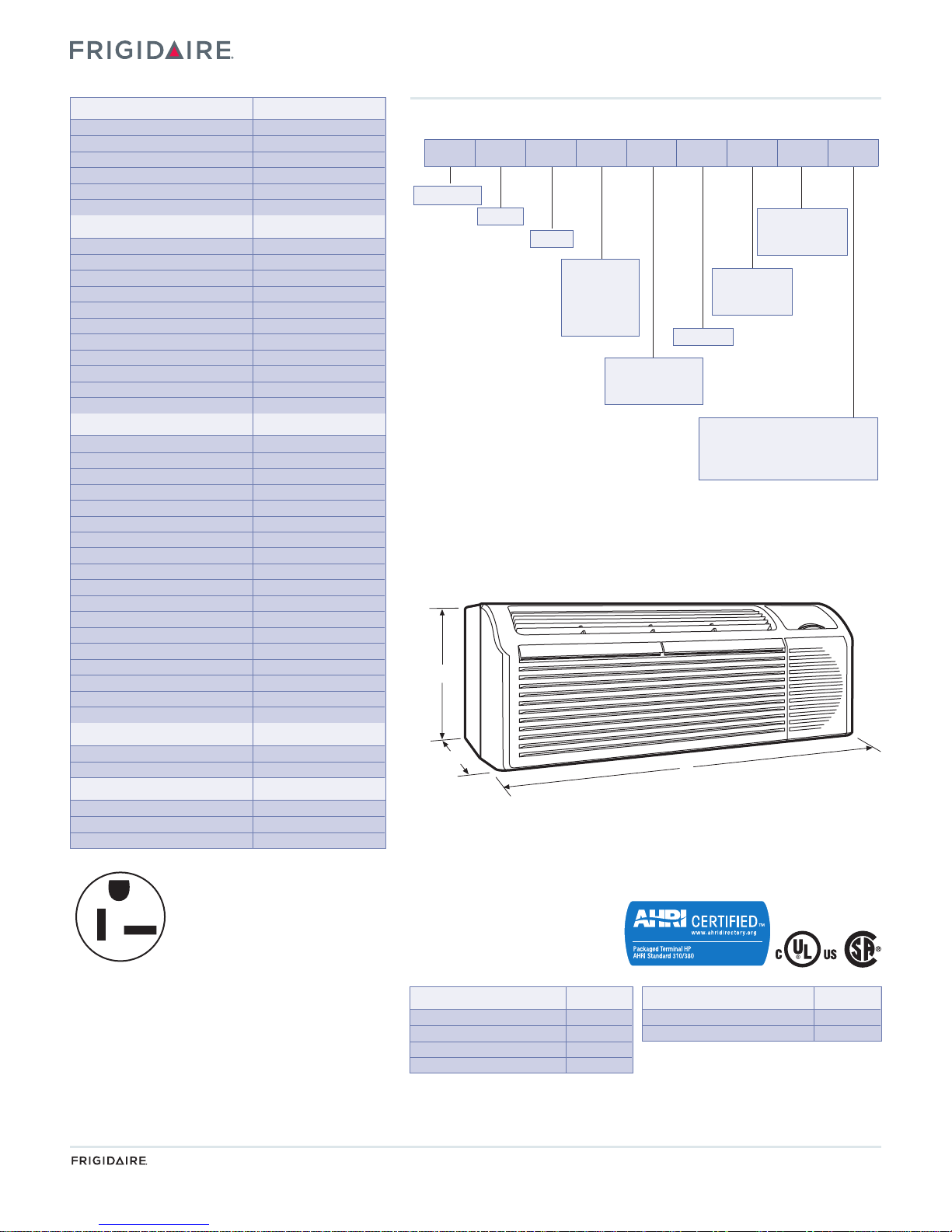

Specifications

subject to change.

Product Dimensions

A - Height

B - Width

C - Depth

Max. Wall Thickness

16"

42"

13-13/16"

Wall Cutout Dimensions

Height

Width

16-5/16"

42-3/16"

NOTE: For planning purposes only. Always consult

local and national electric codes. Refer to Product

Installation Guide for detailed installation instructions

on the web at frigidaire.com.

RAC P-TAC Models

Frigidaire Baseline

Accessories information available

on the web at frigidaire.com

Frigidaire

R= Normal no accessories

A= Seacoast no accessories

S= Normal w/ accessories

B= Seacoast w/ accessories

F R P 90 E T T 2 R

Room

PTAC

Platform

Design Year

T= 2010

U= 2011

BTU

77= 7,700

90= 9,000

12= 12,000

15= 15,000

Heat Type

E= Electric

P= Heat Pump

Voltage

2= 230/208V

3= 265V

PTAC Nomenclature

Performance

BTU (Cool)

BTU (Backup Electric Heater)

BTU (Heat Pump)

Dehumidiﬁcation (Pints / Hour)

Cool Area (Sq. Ft.)

Energy Eciency Ratio

Electrical

Volts

Amps (Cool)

Amps (Backup Electric Heater)

Amps (Heat Pump)

Watts (Cool)

Watts (Backup Electric Heater)

Watts (Heat Pump)

Cable Included

Length of Power Cord

Circuit Breaker

Plug Type (NEMA)

Features

Electronic Controls

Front Desk Control Ready

Fan Speeds (Cool / Fan / Heat)

Noise Level Indoors (High / Med / Low)

Quiet Start-Up

Low Voltage Start-Up

Random Restart Protection

Eortless™ Auto Freeze Protection

Energy Save

24-Hour On / O Timer

Air CFM (High / Med / Low)

Air Direction Control

Air Intake

Filter Type

Filter Access

Fin Coating

Slide-Out Chassis

Commercial Grade Warranty1

Certiﬁcations

Safety Certiﬁcation

Performance

Speciﬁcations

Refrigerant

Charge

Shipping Weight (Approx.)

Plug Type (NEMA)

6-20P

1Warranty 5 year sealed system / 1 year full parts and labor.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-866-942-1567

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-866-942-1567

•

frigidaire.ca

12,000 / 11,800

10,200 / 8,300

10,700 / 10,500

2.7

640

10.7 / 10.5

230 / 208

5.1 / 5.3

13.2 / 12.2

4.5 / 4.7

1,120 / 1,120

3,000 / 2,452

1,010 / 990

Yes

5.5'

20A

LCDI (6-20P)

Ready-Select® Controls

Yes

3 / 3 / 3

53 /52 / 51

Yes

315 / 295 / 275

Auxiliary 2-Way

Fresh or Recycled

Nylon Mesh

Slide-Out

Normal

Yes

UL, CUL & CSA

AHRI & CEC

R410a

26.8 oz.

135 Lbs.

PTAC

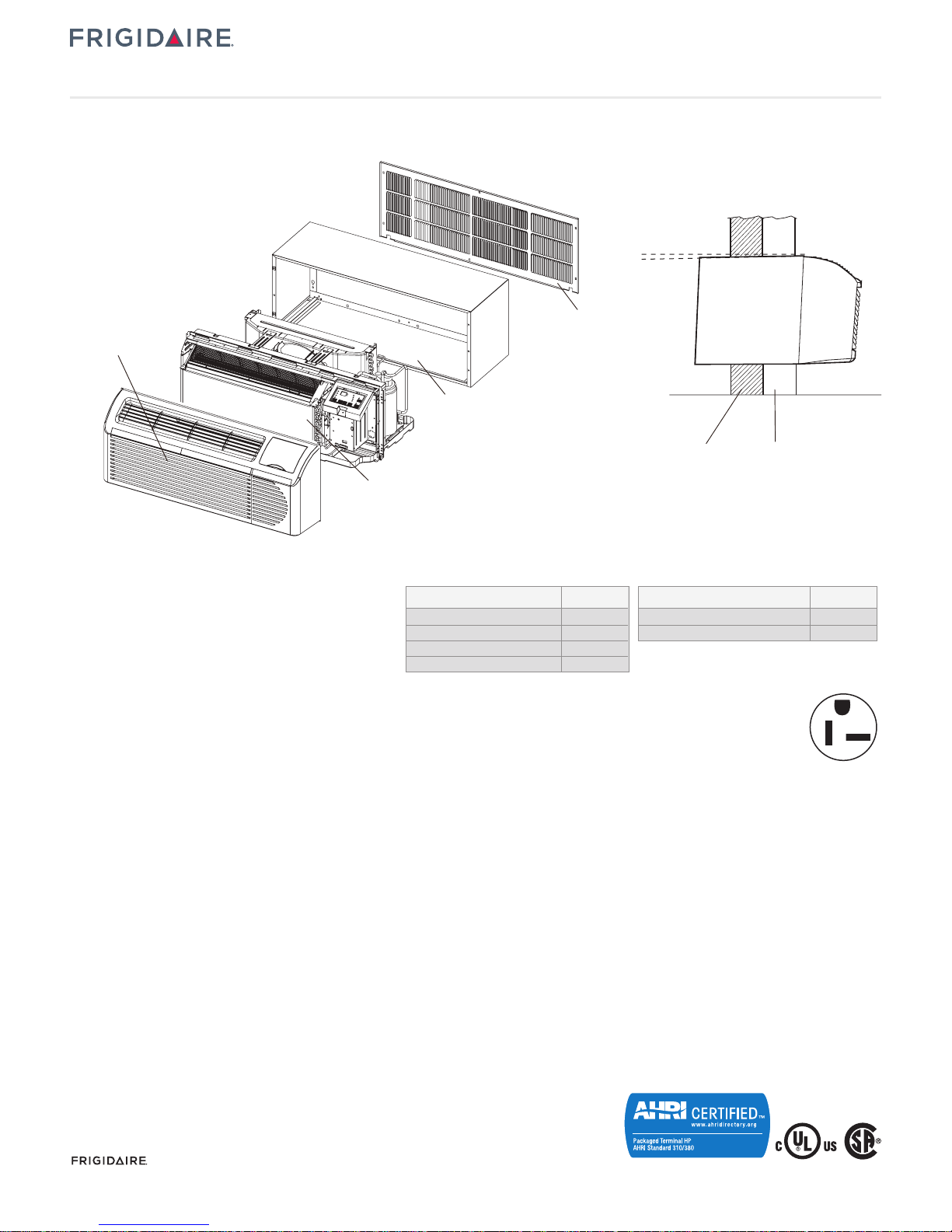

FRP12PTT2R Air Conditioner / Heat Pump / Backup Electric Heater

PTAC - Heat Pump and Electric Heat models_Full Back

Rearward Slope

Front Panel

Outside Wall

1/4" Slope

Inside Wall

Chassis

Acccessory

Wall Sleeve

Acccessory

Outdoor Grille

16"

42"

Specifications

subject to change.

Product Dimensions

Height

Width

Depth

Max. Wall Thickness

Manufacturer Wall Sleeve Part Number

General Electric

Amana

Trane

Friedrich

16"

42"

13-13/16"

Metal Sleeve RAB71

Plastic Sleeve RAB77

Metal Sleeve WS900B

Metal Sleeve SLV149

T-Series Metal 11-1/2-in. Deep

Wall Sleeve

Standard-Depth Wall Sleeve

16 X 42 X 13-3/4-in. PXWS

Wall Cutout Dimensions

Height

Width

16-5/16"

42-3/16"

PTAC Specifications

•Product Shipping Weight (approx.) – 135 Lbs.

•An electrical supply with grounded three-prong receptacle is

required. The power supply circuit must be installed in accordance

with current edition of National Electrical Code (ANSI/NFPA 70)

and local codes & ordinances.

•Voltage Rating – 230V / 208V / 60 Hz / 20 Amps

•Amps @ 230/208V Volts = (Cool) 5.1 / 5.3 Amps / (Backup Electric

Heater) 13.2 / 12.2 Amps / (Heat Pump) 4.5 / 4.7 Amps

•Always consult local and national electric codes.

•Recommended Circuit Breaker – 20 Amps

•Unit equipped with 230/208V 3-wire power supply cord, NEMA plug

type 6-20P, approximately 66" long.

•In order for condensate water to drain properly inside the unit, the

sleeve must be installed properly: Level from right to left with a slight

1/4" rearward pitch from the indoor side to the outdoor side as shown

in the illustration above. Refer to the Installation Instructions on the

web.

New Installation

•For new installation, Frigidaire® PTAC Sleeves are available and

recommended for proper installation. See accessories pages for

sleeve options.*

•PTAC installation requires 13-13/16" maximum wall thickness.

Replacement Installation

•When replacing existing PTAC with new unit, refer to Product

Installation Guide on web to identify existing wall-sleeve manufacturer

and size compatibility. If proper installation and slope are suspect,

then correct installation of Frigidaire® PTAC Sleeve options

recommended.

•For any sleeve retrofit application, be sure that the foam seals

(factory-installed on the tube sheets) provide a good seal between

the grille and the outdoor coil tube sheets. These foam seals provide

a barrier that stops air from the inside mixing with air on the outside

(known as air recirculation).

•Using Frigidaire® wall sleeve with Non-Frigidaire grille requires

installation of an Accessory Baffle Kit, which ensures a good seal

between the unit and exterior grille to prevent air recirculation. Air

recirculation is a large contributor to performance loss and premature

damage to major components.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

*See accessories pages attached for optional accessories.

Plug Type (NEMA)

6-20P

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-866-942-1567

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-866-942-1567

•

frigidaire.ca

PTAC

FRP12PTT2R Air Conditioner / Heat Pump / Backup Electric Heat

JOB: REFERENCE: CONSTRUCTION:

LOCATION: APPROVAL: UNIT NUMBER:

ENGINEER: DATE: DRAWING NUMBER:

SUBMITTED TO: SUBMITTED BY:

Packaged Terminal Air Conditioner (PTAC)

FRP12PTT2R – Cool & Heat Pump with Electric Heat Back-up, 12,000 BTU

Features

•SilentDesign™

•Energy-Saver Option

•Eco-Friendly with R410a Refrigerant

•Ready-Select® Controls with

LED Temperature Display

•Effortless™ Temperature Control

•Versatile Multi-Mode Operation

•Effortless™ Operation

•Multi-Speed Fan

•24 Hour On/Off Timer

•Effortless™ Maintenance

•Effortless™ Protection

•Comfort Control Design

•Smart Self-Check

•Front desk Control Ready

•Cord included (LCDI 6-20P)

•Commercial Grade Warranty

Dimensions

Height: 16˝

Width: 42˝

Depth: 13

13/16˝

Unit Weight: 111 Lbs.

Shipping Weight: 135 Lbs.

Max Wall Thickness: 13 13/16˝

Cut-Out Height: 16 5/16˝

Cut-Out Width: 42 3/16˝

SPECIFICATIONS

Refrigerant

Charge (Oz.)

Noise Level Indoors (High/Med/Low) (dB)

Air Volume (CFM) (High/Med/Low)

Motor RPM (High/Med/Low)

Air Direction Control

UPC Code

FEATURES

Fin Coating

Air Intake

Low-Voltage Start-up

Auto Fan

Energy Saver

24 Hour On/Off Timer

Room Freeze Protection

Random Restart Protection

Quiet Start-up

Indoor Fan Speeds

LED Display

R410A

26.8

53/52/51

315/295/276

1100/1000/920

Auxiliary 2-way

0-12505-27603-3

Normal

Fresh or Recycled

Yes

PERFORMANCE

BTU (Cool)

BTU (Heat Pump)

BTU (Heat - Electric)

EER (Cooling)

COP (Heat Pump)

Dehumidiﬁcation (Pints/Hr.)

Approximate Cooling Area (Sq. Ft.)

Performance Certiﬁcation

Safety Certiﬁcation

Commercial Grade Warranty

ELECTRICAL

Volts/Hertz

Amps (Cool)

Watts (Cool)

Amps (Heat Pump)

Watts (Heat Pump)

Amps (Heat - Electric)

Watts (Heat - Electric)

Circuit Breaker

NEMA Plug Type

12,000/11,800

10700 / 10500

10,200/8,300

10.7/10.5

3.1/3.1

2.7

640

AHRI & CEC

UL, CUL & CSA

1 Year Full/5 Year Sealed

230/208V/60Hz

5.1/5.3

1120/1120

4.5/4.7

1010 / 990

13.2/12.2

3000/2452

20A

LCDI 6-20P

ACCESSORIES

– A complete line of accessories is available for each Frigidaire PTAC model. For more details please contact our Commercial Call Center at 1-866-942-1567.

F11FRP12PTT2RSS

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire FAK083J7V1 User manual

Frigidaire

Frigidaire FAH08EP1T1 Service manual

Frigidaire

Frigidaire FFRE103WA1 Owner's manual

Frigidaire

Frigidaire FAH08EP1T User manual

Frigidaire

Frigidaire FAA065M7A1 Quick start guide

Frigidaire

Frigidaire FRA084KT7 Quick start guide

Frigidaire

Frigidaire FAA067P7 User manual

Frigidaire

Frigidaire FFPA1422R1 Owner's manual

Frigidaire

Frigidaire FAA055P7AB User manual

Frigidaire

Frigidaire FAX050S7AA User manual

Frigidaire

Frigidaire FAK123N1V Quick start guide

Frigidaire

Frigidaire FAS185J2A5 User manual

Frigidaire

Frigidaire FAH086S1T - Through The Wall Room Air... User manual

Frigidaire

Frigidaire FFRE25L3Q20 User manual

Frigidaire

Frigidaire FAS153K1A1 User manual

Frigidaire

Frigidaire CRA256ST211 Owner's manual

Frigidaire

Frigidaire FRA053XT715 Owner's manual

Frigidaire

Frigidaire FRS124YW10 Owner's manual

Frigidaire

Frigidaire THRU-THE-WALL ELECTRONIC CONTROL AIR... User manual

Frigidaire

Frigidaire GAS154J1A1 User manual

Frigidaire

Frigidaire Home Comfort FRA093PT1 Installation instructions

Frigidaire

Frigidaire FHPW142AC1 User manual

Frigidaire

Frigidaire FAD052M7A1 User manual

Frigidaire

Frigidaire FRA18EMU2 Installation instructions

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
