Frigidaire FAD052M7A1 User manual

Keep Well This Manual.

Read Rulesfor Safe Operation and Instructions Carefully.

WINDOW-TYPE

AIR CONDITIONER

2200019260

11o3

1. ELECTRICAL SAFETY RULES .............................................................. 1

2. UNIT PARTS IDENTIFICATION .............................................................. 2

3. POINTS FOR ATTENTION WHEN OPERATING .................................... 3

4. OPERATION PANEL(Cooling only type) ..................................................... 4

OPERATION INSTRUCTION .................................................................. 4

5. CAREAND MAINTENANCE ................................................................... 7

6. WINDOW INSTALLATION INSTRUCTIONS ......................................... 10

7. TROUBLESHOOTING TIPS ................................................................... 15

All wiring must comply with local and national electrical codes and

be installed by a qualified electrician. If you have any questions

regarding the following instructions, contact a qualified electrician.

Never insert your fingers or any foreign objects into the air outlet.

Take special care to warn children of these dangers.

To avoid the possibility of personal injury, be sure to disconnect

power to the unit before installing and/or servicing and/or cleaning.

If the supply cord is damaged, it must be replaced by the manu-

facturer or its service agent or a similar qualified person in order to

avoid a hazard.

1. The power cord is distinguished according to the cord color:

2. For your safety and protection, this unit is grounded through the power cord plug

when plugged into a matching wall outlet. Please contact the manufacturer or its

service agent or a similar qualified person if you want to replace it.

3. Electrical requirement., See the specifications)

4. Be sure that the unit being correctly grounded. The wall outlet should be provided

with reliable earth wire.

5. The unit should be provided with an individual branch circuit and the fuse size

should be same as that of the power cord plug and wall outlet.

\\\

Fig. 1

1. Front panel

2. Air filter

3. Frame

4. Cabinet

5. Air inlet grille (outdoor side)

6. Air outlet grille

7. Operation panel

8. Power supply and plug

1. During the course of operating, if you have turned off

the unit or changed operation mode from COOLING

MODE to FAN MODE, be sure to keep that state for

at least three minutes before switching to COOLING

MODE again.

2. Attaching the Air Filter

Before starting the air conditioner operation, make

sure that the air filter iswell attached. If the unit has

not been used for a long time, it is recommended to

clean the air filter before your using the unit. For

continuous use, clean the air filter at least once every

two weeks.

3. Before turning on the unit, make sure that the air inlet

grille and air outlet grille are not obstructed by

anything.

4. This air conditioner is designed to be operated under conditions as follows:

Outdoor temp.: 18-43°C

Indoortemp.: 21-32°C

Cooling Operation _ The relative humidity of room should be less

than 80%. If the unit is used in a condition with a

relative humidity over 80%, there will be condensed

water on the surface of the unit.

5. Ifthe unit is operated beyond the conditions specified above, it may cause a failure

of the unit.

6. Relocation of the unit:

When changing the installation location of the air conditioner, consult the selling

agent from which you bought your unit.

THERMOSTAT SELECTOR

6 OFF

5 7

u_ k_

2 10 _o,,

CC_L

I 11

WAITTHREEMINUTESBEFORERESTARTING

Fig. 2

1. Pull the top of the operation cover to

open it.

2. Close the operation cover and press

the top until it snaps into the locked

position.

Fig. 3

Don't press or swing the opened

operation cover,

imlmmr ttm

SELECTOR

OFF

H_H __W

LOW

To set desired cooling temperature, simply rotate

the SELECTOR knob to the appropriate setting.

"HIGH FAN" will circulate the air at a maximum

speed without cooling.

"MED FAN" will circulate the air at a middle speed

without cooling.

"HIGH FAN" provides cooling automatically with

maximum air circulation.

"MED COOL" provides cooling automatically with

middle air circulation.

"LOW COOL" provides cooling automatically with

minimum air circulation.

"OFF" will completely shut off the unit.

When turning the SELECTOR knob from "LOW COOL" to "HIGH COOL", keep

your speed as slow as possible. Do not change the operation mode between

"LOW COOL" and "HIGH COOL" too often.

THERMOSTAT

3 9

2 IO

1 11

The thermostat automatically starts and stops the

running of the compressor in the air conditioner in order

to control and maintain a comfortable room

temperature. When the room temperature reaches the

desired setting, cooling will automatically stop. When

the room temperature rises above, cooling resumes.

This results in efficient use of power and economical

cooling.

The operating method is as follows: turn along the

arrow, the temperature setting becomes lower. When

you feel it is too cool, rotate the knob to the original

direction. When you feel it is too hot, rotate the knob

to the "COOLER" direction.

During the cooling operation of the unit, when the thermostat knob is rotated

counterclockwise, allow at least three minutes before turning back the knob

to the "COOLER" direction. Otherwise the fuse may blow due to an

overload of the unit.

Horizontal air flow adjustment (manually)

Move the "T" shaped handle left or right to

adjust horizontal air flow.

Vertical air flow adjustment (manually) Fig. 4

To adjust vertical air flow direction, adjust any one

of the horizontal louver blades.

Fig. 5

This is usually kept in the closed position and

use only when clearing smoke and/or odors

from the room. When the ventilation switch is

pushed to "CLOSE", the fresh air ventilation is

closed; when the ventilation switch is pushed

to "VENT", the fresh air ventilation is opened.

• Keeping the fresh air ventilation

opened for a long time will reduce the

cooling effeciency.

To avoid the possibility of personal injury, be sure to disconnect power to the unit

before servicing and/or cleaning.

CHEMICALS

Do Not use gasoline, benzene, thinner

or any other chemicals, or any liquid

insecticide on the air conditioner, as

these substances may cause flaking

off of the paint, cracking or deformation

of plastic parts.

Never attempt to clean the unit by

pouring water directly over any of the

surface areas, as this will cause

deterioration of electrical components

and wiring insulation.

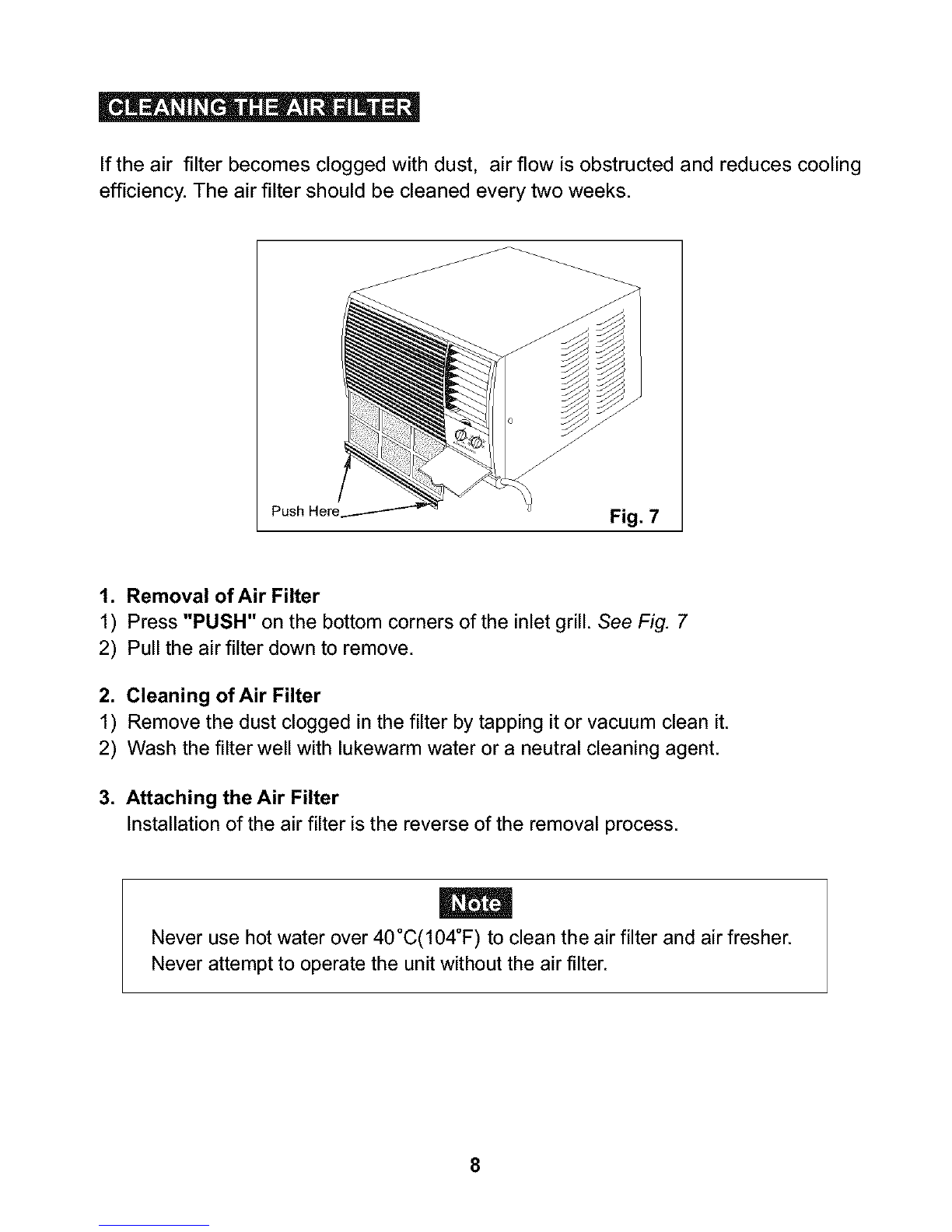

If the air filter becomes clogged with dust, air flow is obstructed and reduces cooling

efficiency. The air filter should be cleaned every two weeks.

Fig. 7

1. Removal of Air Filter

1) Press "PUSH" on the bottom corners of the inlet grill. See Fig. 7

2) Pull the air filter down to remove.

2, Cleaning of Air Filter

1) Remove the dust clogged in the filter by tapping it or vacuum clean it.

2) Wash the filter well with lukewarm water or a neutral cleaning agent.

3. Attaching the Air Filter

Installation of the air filter is the reverse of the removal process.

Never use hot water over 40°C(104°F) to clean the air filter and air fresher.

Never attempt to operate the unit without the air filter.
