Frigidaire LRA18HMT20 User manual

For Medium (15-18.5K) + Heavy duty (22-28.5K)Air Conditioner

READ BEFORE INSTALLING UNIT

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp

edges that may be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to

move and install the unit. To prevent injury or strain, use proper lifting and carrying techniques when moving unit.

Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit over

an extended period of time.

Handle air conditioner with care. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp

metal fins of front and rear coils.

Make sure air conditioner does not fall during installation.

If a new electrical outlet is required, have the outlet installed by a qualified electrician before installing unit.

NOTE: DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED HERE.

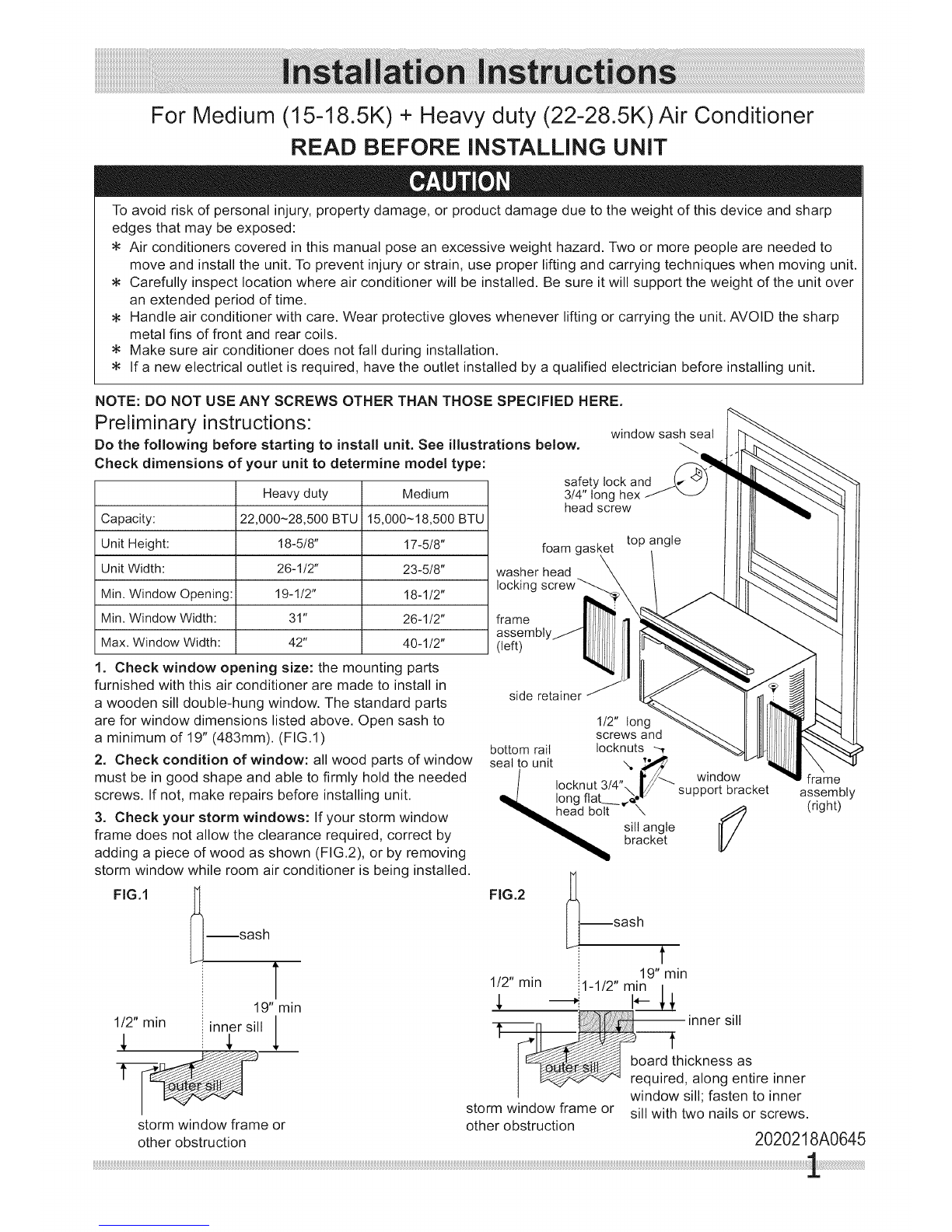

Preliminary instructions: window sash seal

Do the following before starting to install unit. See illustrations below.

Check dimensions of your unit to determine model type:

Heavy duty Medium

Capacity: 22,000~28,500 BTU 15,000~18,500 BTU

Unit Height: 18-5/8" 17-5/8"

Unit Width: 26-1/2" 23-5/8"

Min. Window Opening: 19-1/2" 18-1/2"

Min. Window Width: 31" 26-1/2"

Max. Window Width: 42" 40-1/2"

1. Check window opening size: the mounting parts

furnished with this air conditioner are made to install in

a wooden sill double-hung window. The standard parts

are for window dimensions listed above. Open sash to

a minimum of 19" (483mm). (FIG.l)

2. Check condition of window: all wood parts of window

must be in good shape and able to firmly hold the needed

screws. If not, make repairs before installing unit.

3. Check your storm windows: If your storm window

frame does not allow the clearance required, correct by

adding a piece of wood as shown (FIG.2), or by removing

storm window while room air conditioner is being installed.

FIG.1 _--sash l

19" min

1/2" min inner sill |

safety lock and

3/4" long hex

head screw

foam gasket

washer head

locking

top angle

frame

(left)

storm window frame or

other obstruction

side retainer

1/2" tong

screws and

bottom rail Iocknuts -_

seat to unit %

/Iocknut 3/4"\ rr__ window

• 1_ long flat ,,_.._ support bracket

head bolt \ ,=_

sill angle U

"_ bracket

frame

assembly

(right)

FIG.2 _--sash t

19" min

1/2" min i1-1/2" min /

-----f inner sill

board thickness as

I _ required, along entire inner

window sill; fasten to inner

storm window frame or sill with two nails or screws.

other obstruction 2020218A0645

4. Check for anything that could block airflow

Check area outside of window for things such as shrubs, trees, or awnings. Inside, be sure furniture, drapes, or blinds

will not stop proper air flow.

5. Check the available electrical service

Power supply must be the same as that shown on the unit serial

nameplate. (See Use & Care Guide for serial plate location.) Power

cord is 48" long. Be sure you have an outlet near.

All models have a 3-prong service plug to provide proper service and

safe positive grouding. Do not change plug in any way. Do not use an

adapter plug. If your present wall outlet does not match your plug, call

a qualified electrician to make the needed change.

6. Carefully unpack air conditioner

Remove all packing material. Protect floor or other stable flat surface

with covering to prevent scratches from unit. With the aid of an

assistant, remove unit from styrofoam base and rest on protected

surface. Move and install unit with the aid of an assistant. Save

packing and shipping box for future unit storage.

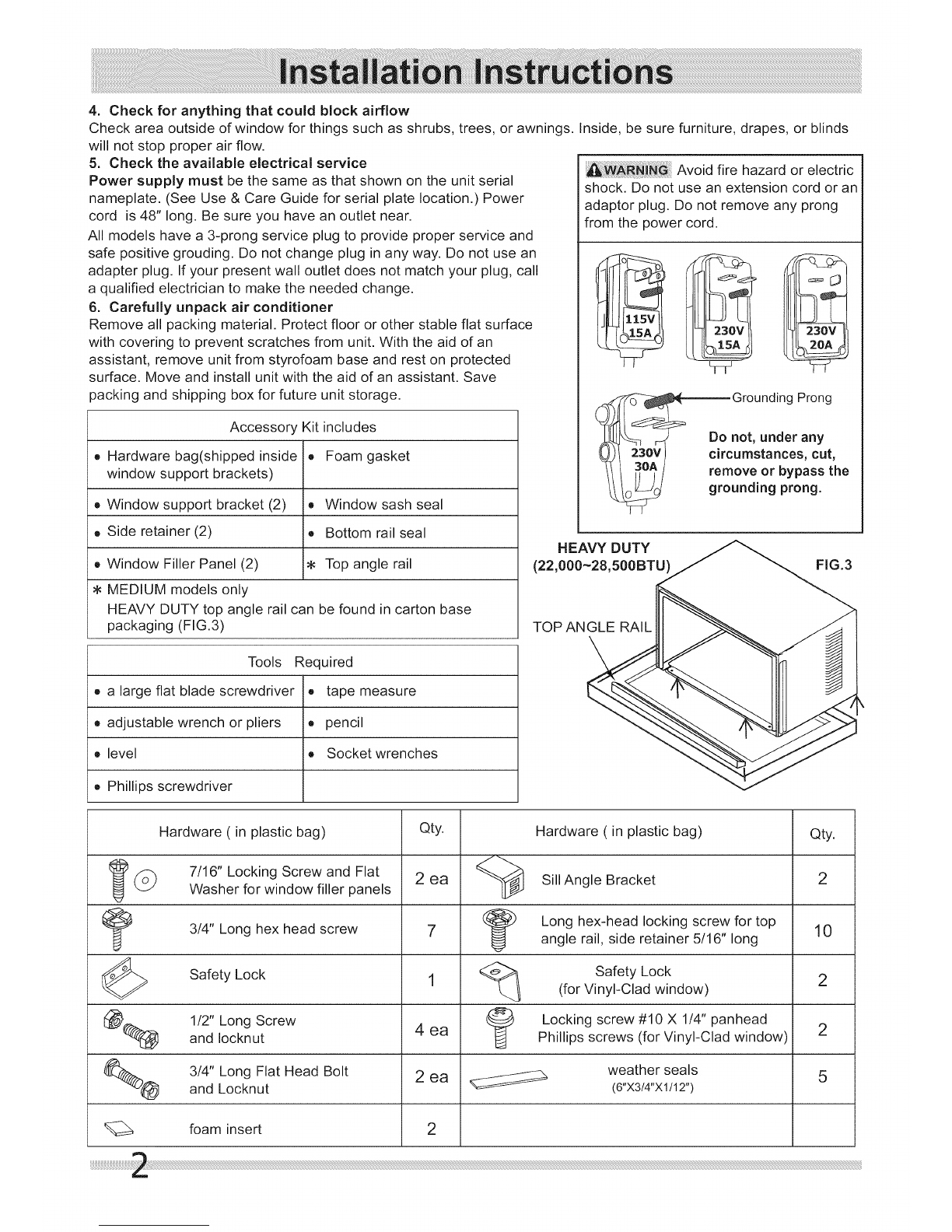

Accessory Kit includes

o Hardware bag(shipped inside • Foam gasket

window support brackets)

• Window support bracket (2) • Window sash seal

• Side retainer (2) • Bottom rail seal

• Window Filler Panel (2) _ Top angle rail

MEDIUM models only

HEAVY DUTY top angle rail can be found in carton base

packaging (FIG.3)

Tools Required

• a large flat blade screwdriver e tape measure

• adjustable wrench or pliers o pencil

• level • Socket wrenches

e Phillips screwdriver

Avoid fire hazard or electric

shock. Do not use an extension cord or an

adaptor plug. Do not remove any prong

from the power cord.

Grounding Prong

not, under any

32.vJ circumstances,cut,

/// _lu_'/remove or bypass the

\O_ grounding prong.

HEAVY DUTY

(22,000-28,500BTU) FIG.3

TOP ANGLE RAIL

Hardware ( in plastic bag) Qty. Hardware (in plastic bag)

7/16" Locking Screw and Flat

Washer for window filler panels

3/4" Long hex head screw

Safety Lock

1/2" Long Screw

and Iocknut

2 ea

4 ea

Sill Angle Bracket

Long hex-head locking screw for top

angle rail, side retainer 5/16" long

Safety Lock

(for Vinyl-Clad window)

Locking screw #10 X 1/4" panhead

Phillips screws (for Vinyl-Clad window)

3/4" Long Flat Head Bolt

and Locknut 2 ea weather seals

(6"x3/4"x1/12")

Qty.

foam insert 2

is free, lift filter up and out.

FIG.1 _ _.___

F Front Grille

Window Mounting

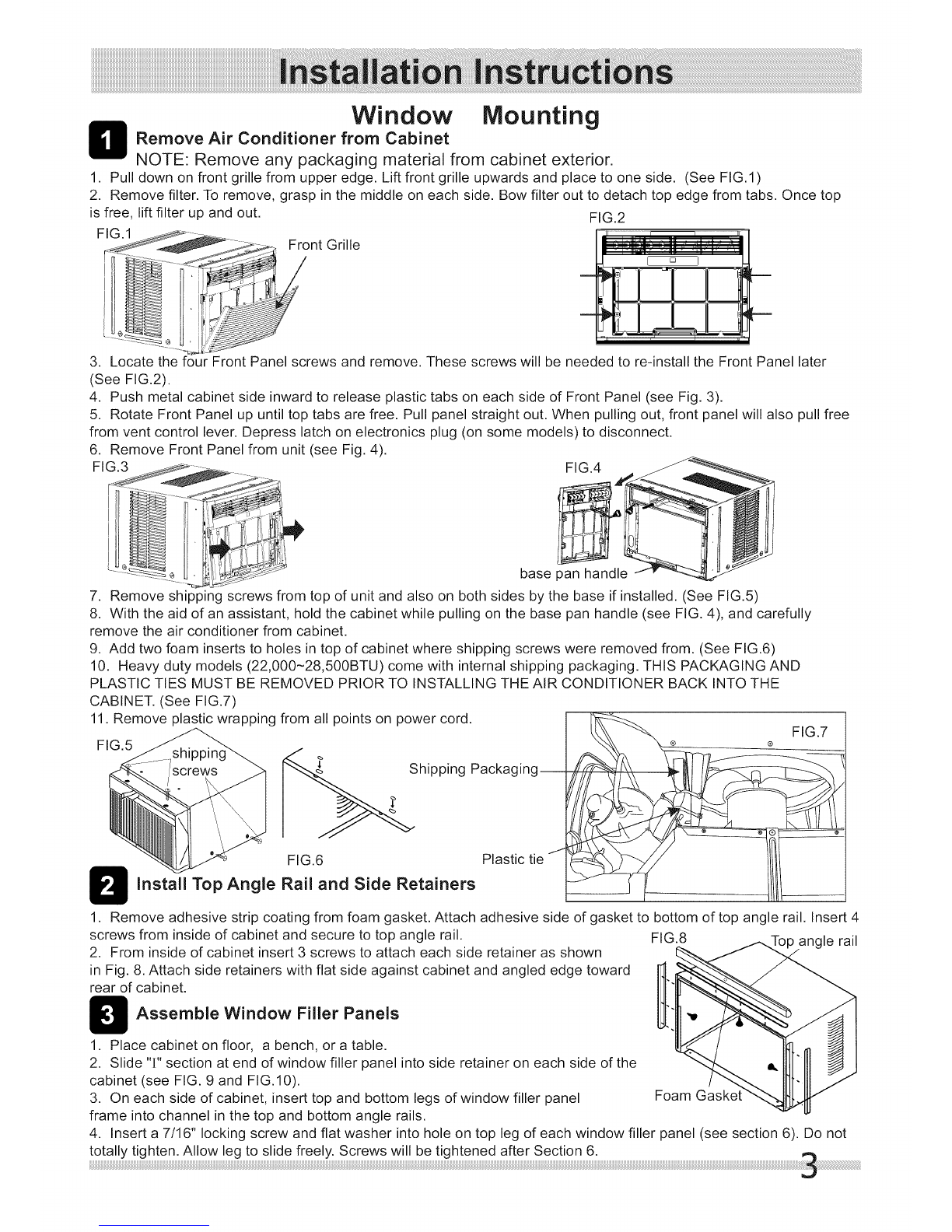

Remove Air Conditioner from Cabinet

NOTE: Remove any packaging material from cabinet exterior.

Pull down on front grille from upper edge. Lift front grille upwards and place to one side. (See FIG.l)

Remove filter. To remove, grasp in the middle on each side. Bow filter out to detach top edge from tabs. Once top

FIG.2

3. Locate the four Front Panel screws and remove. These screws will be needed to re-install the Front Panel later

(See FIG.2).

4. Push metal cabinet side inward to release plastic tabs on each side of Front Panel (see Fig. 3).

5. Rotate Front Panel up until top tabs are free. Pull panel straight out. When pulling out, front panel will also pull free

from vent control lever. Depress latch on electronics plug (on some models) to disconnect.

6. Remove Front Panel from unit (see Fig. 4).

FIG.3 __ __

F....__'__ II _ _

iii II ,:',I __FIG.4

base pan handle

7. Remove shipping screws from top of unit and also on both sides by the base if installed. (See FIG.5)

8. With the aid of an assistant, hold the cabinet while pulling on the base pan handle (see FIG. 4), and carefully

remove the air conditioner from cabinet.

9. Add two foam inserts to holes in top of cabinet where shipping screws were removed from. (See FIG.6)

10. Heavy duty models (22,000~28,500BTU) come with internal shipping packaging. THIS PACKAGING AND

PLASTIC TIES MUST BE REMOVED PRIOR TO INSTALLING THE AIR CONDITIONER BACK INTO THE

CABINET. (See FIG.7)

11. Remove plastic wrapping from all points on power cord.

FIG.5

Shipping Packaging

FIG.6 Plastic tie

Install Top Angle Rail and Side Retainers

FIG.7

1. Remove adhesive strip coating from foam gasket. Attach adhesive side of gasket to bottom of top angle rail. Insert 4

screws from inside of cabinet and secure to top angle rail. FIG.8 angle rail

2. From inside of cabinet insert 3 screws to attach each side retainer as shown

in Fig. 8. Attach side retainers with flat side against cabinet and angled edge toward

rear of cabinet.

Assemble Window Filler Panels

1. Place cabinet on floor, a bench, or a table.

2. Slide 'T' section at end of window filler panel into side retainer on each side of the

cabinet (see FIG. 9 and FIG.10).

3. On each side of cabinet, insert top and bottom legs of window filler panel Foam

frame into channel in the top and bottom angle rails.

4. Insert a 7/16" locking screw and flat washer into hole on top leg of each window filler panel (see section 6). Do not

totally tighten. Allow leg to slide freely. Screws will be tightened after Section 6.

FIG.9 Top window filler

panel leg WINDOW FILLER

PANEL

Bottom

filler panel leg

.SIDE RETAINER

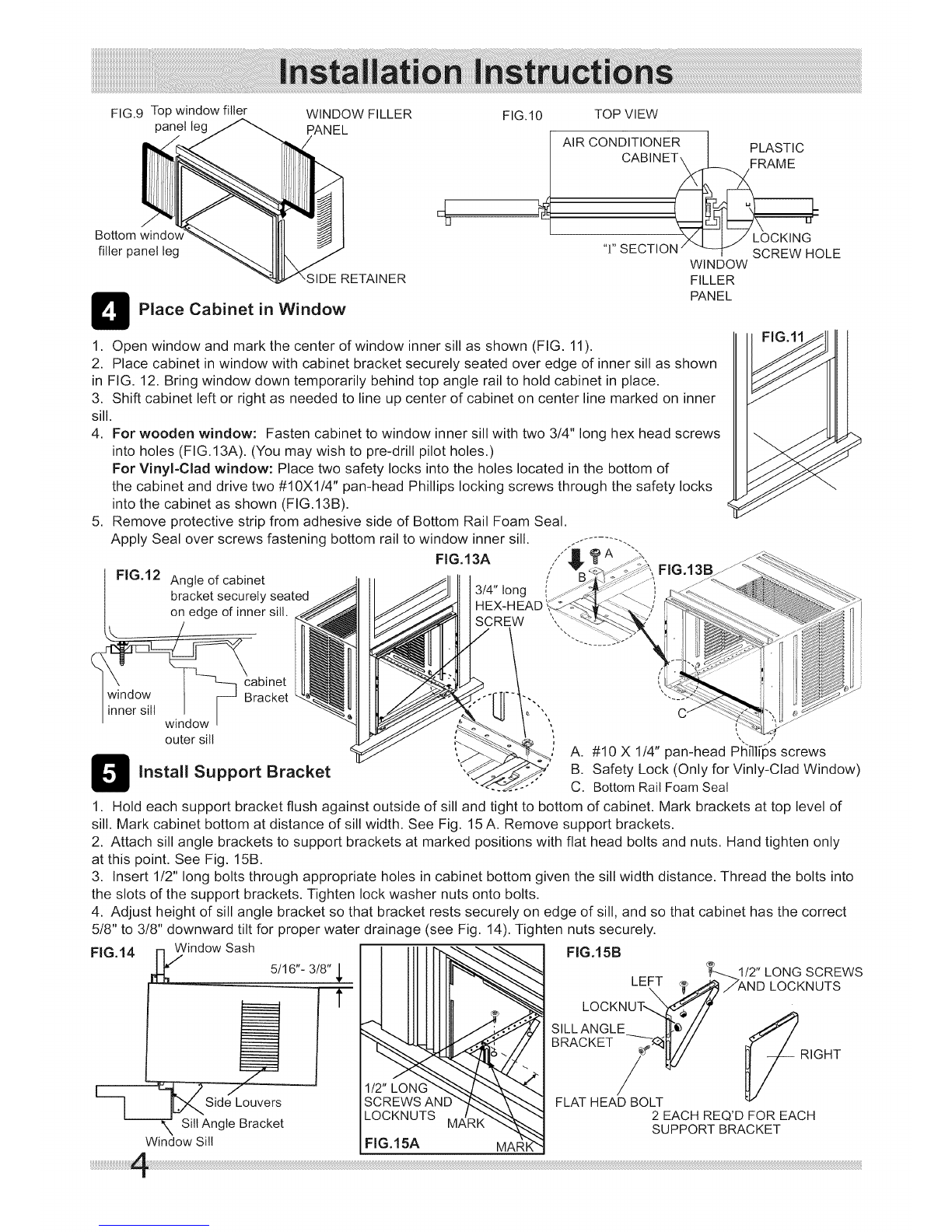

Place Cabinet in Window

FIG.10 TOP VIEW

AIR CONDITIONER

"I" SECTION

PLASTIC

FRAME

CKING

CREW HOLE

WINDOW

FILLER

PANEL

1. Open window and mark the center of window inner sill as shown (FIG. 11).

2. Place cabinet in window with cabinet bracket securely seated over edge of inner sill as shown

in FIG. 12. Bring window down temporarily behind top angle rail to hold cabinet in place.

3. Shift cabinet left or right as needed to line up center of cabinet on center line marked on inner

sill.

4. For wooden window: Fasten cabinet to window inner sill with two 3/4" long hex head screws

FIG.12 Angle of cabinet

i bracket securely seated

Iq._ on edge of inner sill.

_binet

w'neUr°_,t winldow F Bracket

outer sill

into holes (FIG.13A). (You may wish to pre-drill pilot holes.)

For Vinyl-Clad window: Place two safety locks into the holes located in the bottom of

the cabinet and drive two #10Xl/4" pan-head Phillips locking screws through the safety locks

into the cabinet as shown (FIG.13B).

Remove protective strip from adhesive side of Bottom Rail Foam Seal.

Apply Seal over screws fastening bottom rail to window inner sill. .. .......... "-.

,""!!'11 FIG.13B

FIG.1 3A

3/4" long !

HEX-HEAD' \

SCREW ',..

Install Support Bracket

l__ Side Louvers

Sill Angle Bracket

Window Silt

A. #10 X 1/4" pan-head P'h'i]]ip'sscrews

B. Safety Lock (Only for Vinly-Clad Window)

C. BottomRail Foam Seat

FIG.15A MARb

1. Hold each support bracket flush against outside of sill and tight to bottom of cabinet. Mark brackets at top level of

sill. Mark cabinet bottom at distance of sill width. See Fig. 15 A. Remove support brackets.

2. Attach sill angle brackets to support brackets at marked positions with flat head bolts and nuts. Hand tighten only

at this point. See Fig. 15B.

3. Insert 1/2" long bolts through appropriate holes in cabinet bottom given the sill width distance. Thread the bolts into

the slots of the support brackets. Tighten lock washer nuts onto bolts.

4. Adjust height of sill angle bracket so that bracket rests securely on edge of sill, and so that cabinet has the correct

5/8" to 3/8" downward tilt for proper water drainage (see Fig. 14). Tighten nuts securely.

FIG.14 Window Sash FIG.15B _ 1/2" LONG SCREWS

5/16"- 3/8" LLE? _;_ _AND LOCKNUTS

LOCKNUT_ _ /_'

SlLLANGLE "_2//

1/2" LONG BRACKET_,[_/ FR,GHT

SCREWSAN[ FLATHEAD BOLT

LOCKNUTS 2 EACH REQ'D FOR EACH

SUPPORT BRACKET

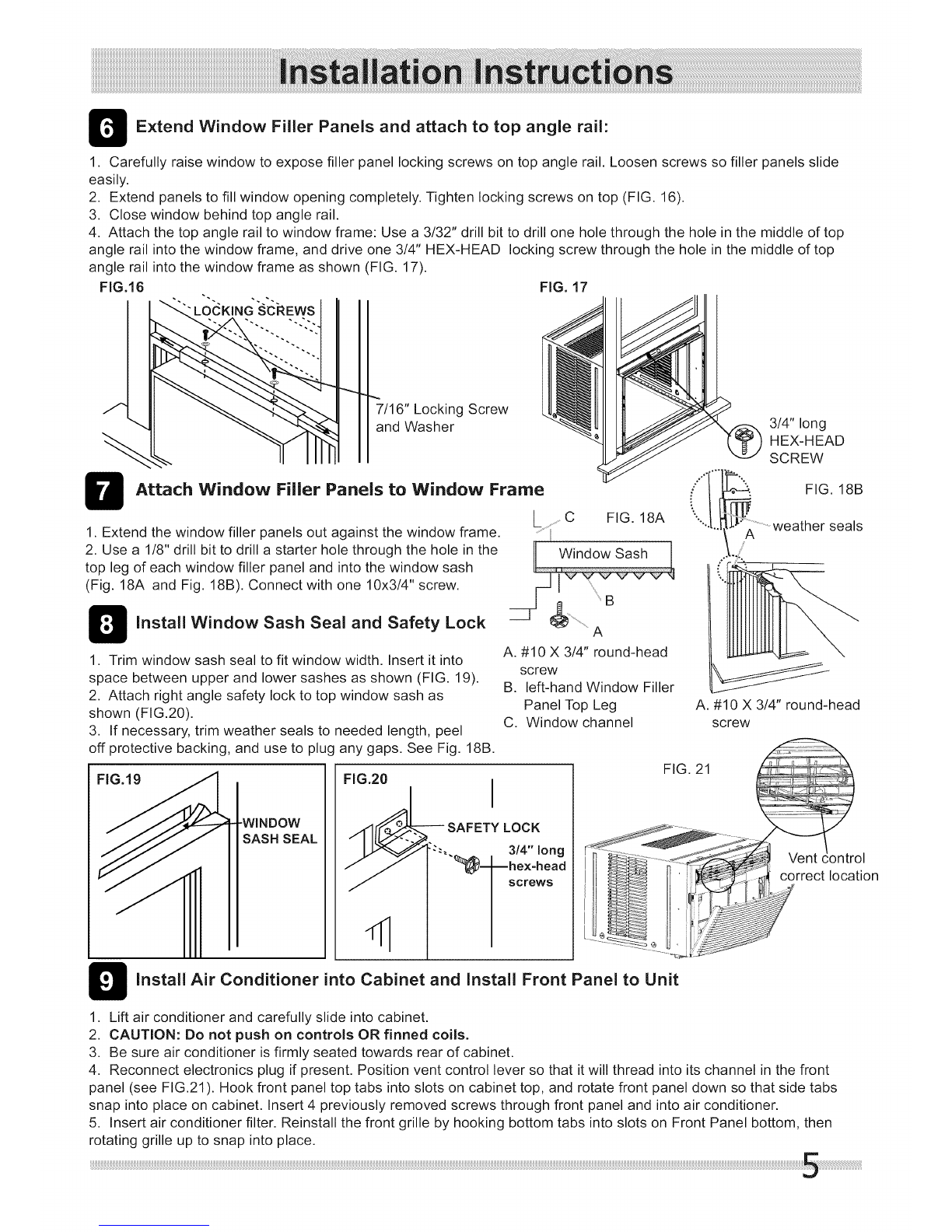

Extend Window Filler Panels and attach to top angle rail:

1. Carefully raise window to expose filler panel locking screws on top angle rail. Loosen screws so filler panels slide

easily.

2. Extend panels to fill window opening completely. Tighten locking screws on top (FIG. 16).

3. Close window behind top angle rail.

4. Attach the top angle rail to window frame: Use a 3/32" drill bit to drill one hole through the hole in the middle of top

angle rail into the window frame, and drive one 314"HEX-HEAD locking screw through the hole in the middle of top

FIG, 17

angle rail into the window frame as shown (FIG. 17).

FIG.16

J'L II % II 7/16-LockingScrew

"41 _ "4"_"q_"l I I and Washer 3/4" long

Attach Window Filler Panels to Window Frame /" "X. FIG. 18B

1. Extend the window filler panels out against the window frame. FIG. 18A-"..I.._ ..............weather seals

2. Use a 1/8" drill bit to drill a starter hole through the hole in the __W!:dowSash |

top leg of each window filler panel and into the window sash .............................. ]

(Fig. 18A and Fig. 18B). Connect with one 10x3/4" screw.

Install Window Sash Seal and Safety Lock

A. #10 X 3/4" round-head

1. Trim window sash seal to fit window width. Insert it into screw

space between upper and lower sashes as shown (FIG. 19). B. left-hand Window Filler

2. Attach right angle safety lock to top window sash as Panel Top Leg A. #10 X 314" round-head

shown (FIG.20). C. Window channel screw

3. If necessary, trim weather seals to needed length, peel

off protective backing, and use to plu! any gaps. See Fig. 18B.

SASH SEAL

FIG,20 FIG. 21

SAFETYL°cK..__. ..........__

.__":-.._ 3/4" Bong

hex-hea _ _, '_ ' location

I[I_. _2_ II _ ..............

Install Air Conditioner into Cabinet and Install Front Panel to Unit

1. Lift air conditioner and carefully slide into cabinet.

2. CAUTION: Do not push on controls OR finned coils.

3. Be sure air conditioner is firmly seated towards rear of cabinet.

4. Reconnect electronics plug if present. Position vent control lever so that it will thread into its channel in the front

panel (see FIG.21). Hook front panel top tabs into slots on cabinet top, and rotate front panel down so that side tabs

snap into place on cabinet. Insert 4 previously removed screws through front panel and into air conditioner.

5. Insert air conditioner filter. Reinstall the front grille by hooking bottom tabs into slots on Front Panel bottom, then

rotating grille up to snap into place.

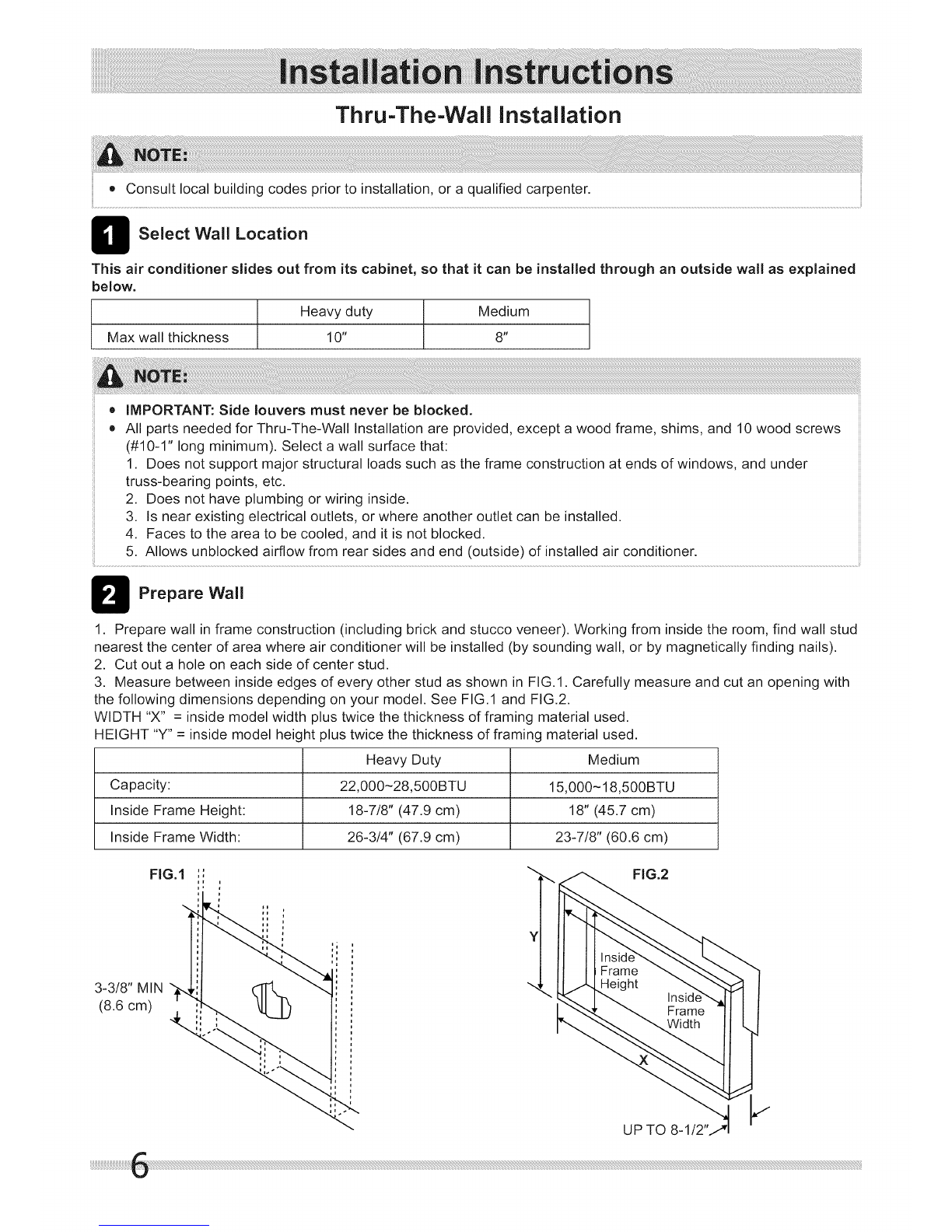

Thru-The-Wall installation

• Consult local building codes prior to installation, or a qualified carpenter.

Select Wall Location

This air conditioner slides out from its cabinet, so that it can be installed through an outside wall as explained

below.

Heavy duty Medium

Max wall thickness 10" 8"

®iMPORTANT: Side louvers must never be blocked.

® All parts needed for Thru-The-Wall Installation are provided, except a wood frame, shims, and 10 wood screws

(#10-1" long minimum). Select a wall surface that:

1. Does not support major structural loads such as the frame construction at ends of windows, and under

truss-bearing points, etc.

2. Does not have plumbing or wiring inside.

3. Is near existing electrical outlets, or where another outlet can be installed.

4. Faces to the area to be cooled, and it is not blocked.

5. Allows unblocked airflow from rear sides and end (outside) of installed air conditioner.

Prepare Wall

1. Prepare wall in frame construction (including brick and stucco veneer). Working from inside the room, find wall stud

nearest the center of area where air conditioner will be installed (by sounding wall, or by magnetically finding nails).

2. Cut out a hole on each side of center stud.

3. Measure between inside edges of every other stud as shown in FIG.1. Carefully measure and cut an opening with

the following dimensions depending on your model. See FIG.1 and FIG.2.

WIDTH "X" = inside model width plus twice the thickness of framing material used.

HEIGHT "Y" = inside model height plus twice the thickness of framing material used.

Heavy Duty Medium

Capacity: 22,000~28,500BTU 15,000 ~18,500BTU

Inside Frame Height: 18-7/8" (47.9 cm) 18" (45.7 cm)

Inside Frame Width: 26-3/4" (67.9 cm) 23-7/8" (60.6 cm)

FIG.1 :: _ FIG.2

3-3/8" MIN

(8.6 cm)

UP TO 8-1/2"

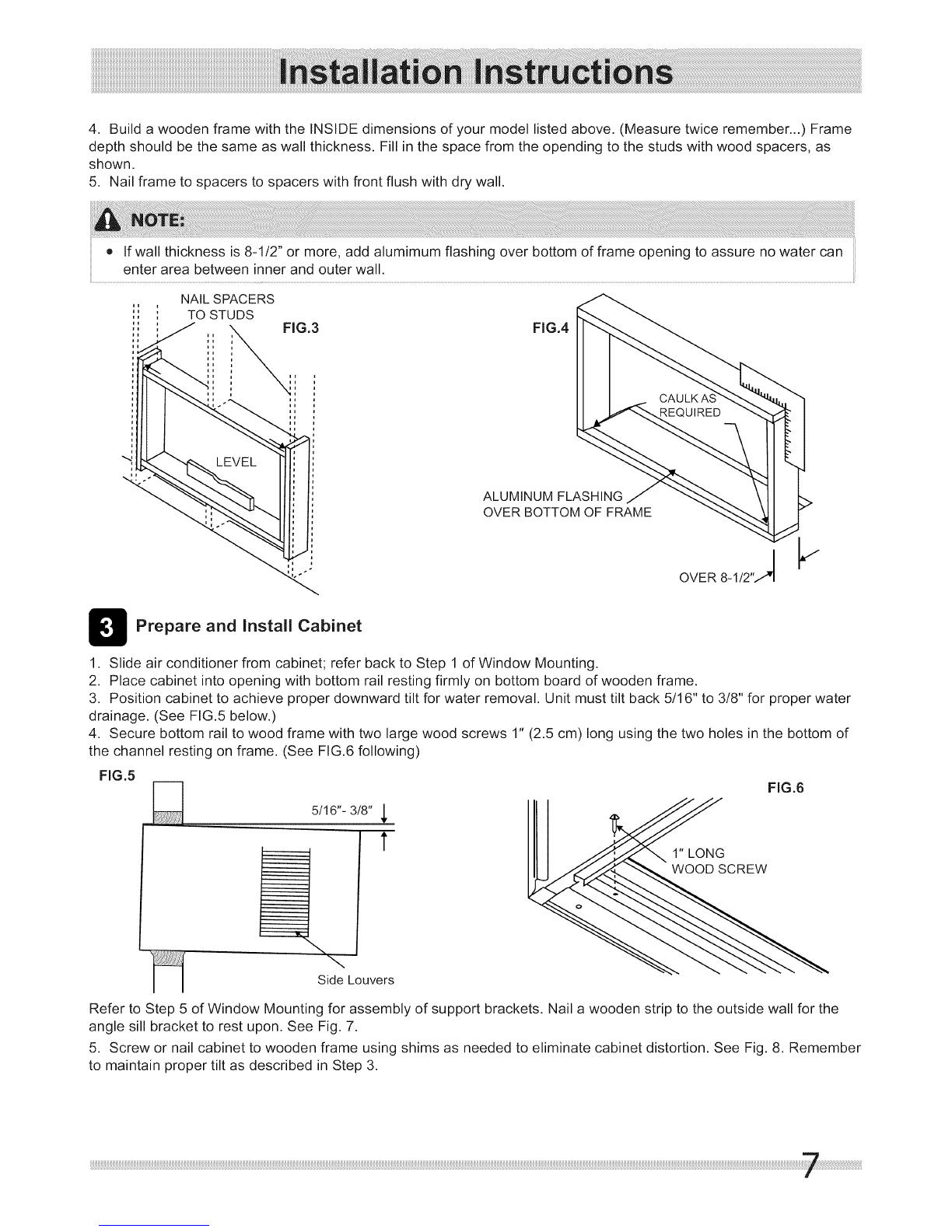

4. BuildawoodenframewiththeINSIDEdimensionsofyourmodellistedabove.(Measuretwiceremember...)Frame

depthshouldbethesameaswallthickness.Fillinthespacefromtheopendingtothestudswithwoodspacers,as

shown.

5. Nailframetospacerstospacerswithfrontflushwithdrywall.

• Ifwallthicknessis8-1/2"ormore,addalumimumflashingoverbottomofframeopeningtoassurenowatercan

enterareabetweeninnerandouterwall.

NAILSPACERS

TOSTUDS

IG.3

ALUMINUM FLASHING

OVER BOTTOM OF FRAME

Prepare and Install Cabinet

1. Slide air conditioner from cabinet; refer back to Step 1 of Window Mounting.

2. Place cabinet into opening with bottom rail resting firmly on bottom board of wooden frame.

3. Position cabinet to achieve proper downward tilt for water removal. Unit must tilt back 5/16" to 3/8" for proper water

drainage. (See FIG.5 below.)

4. Secure bottom rail to wood frame with two large wood screws 1" (2.5 cm) long using the two holes in the bottom of

the channel resting on frame. (See FIG.6 following)

FIG.5

5/16"- 3/8" J,

lSide Louvers

FIG.6

1" LONG

WOOD SCREW

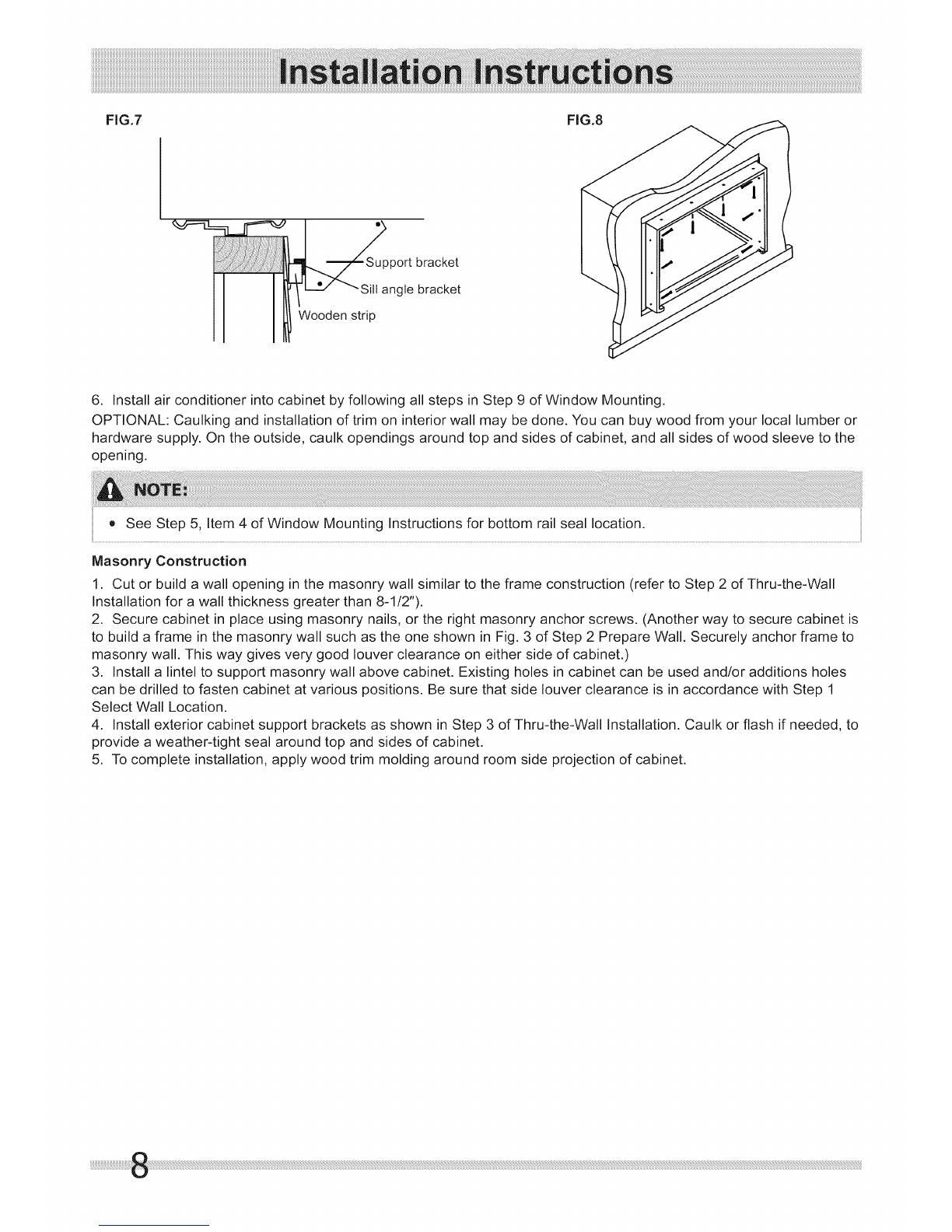

Refer to Step 5 of Window Mounting for assembly of support brackets. Nail a wooden strip to the outside wall for the

angle sill bracket to rest upon. See Fig. 7.

5. Screw or nail cabinet to wooden frame using shims as needed to eliminate cabinet distortion. See Fig. 8. Remember

to maintain proper tilt as described in Step 3.

FIG.7 FIG.8

iiiiii!iii portbracket

ill L-z/ _'Sillanglebracket

_ Wooden strip

6. Install air conditioner into cabinet by following all steps in Step 9 of Window Mounting.

OPTIONAL: Caulking and installation of trim on interior wall may be done. You can buy wood from your local lumber or

hardware supply. On the outside, caulk opendings around top and sides of cabinet, and all sides of wood sleeve to the

opening.

• See Step 5, Item 4 of Window Mounting Instructions for bottom rail seal location.

Masonry Construction

1. Cut or build a wall opening in the masonry wall similar to the frame construction (refer to Step 2 of Thru-the-Wall

Installation for a wall thickness greater than 8-1/2").

2. Secure cabinet in place using masonry nails, or the right masonry anchor screws. (Another way to secure cabinet is

to build a frame in the masonry wall such as the one shown in Fig. 3 of Step 2 Prepare Wall. Securely anchor frame to

masonry wall. This way gives very good louver clearance on either side of cabinet.)

3. Install a lintel to support masonry wall above cabinet. Existing holes in cabinet can be used and/or additions holes

can be drilled to fasten cabinet at various positions. Be sure that side louver clearance is in accordance with Step 1

Select Wall Location.

4. Install exterior cabinet support brackets as shown in Step 3 of Thru-the-Wall Installation. Caulk or flash if needed, to

provide a weather-tight seal around top and sides of cabinet.

5. To complete installation, apply wood trim molding around room side projection of cabinet.

Other manuals for LRA18HMT20

This manual suits for next models

Table of contents

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire FAX054P7A14 User manual

Frigidaire

Frigidaire LRA127CT10 User manual

Frigidaire

Frigidaire FAC107P1 User manual

Frigidaire

Frigidaire FAC084K7A2 User manual

Frigidaire

Frigidaire CRA102BT112 Owner's manual

Frigidaire

Frigidaire FAS226N2 User manual

Frigidaire

Frigidaire Gallery GHWW083WB1 Owner's manual

Frigidaire

Frigidaire Gallery FGRC0844U1E00 User manual

Frigidaire

Frigidaire FAS225M2A2 User manual

Frigidaire

Frigidaire FAK124Q1V2 User manual

Frigidaire

Frigidaire FAC089L7A1 User manual

Frigidaire

Frigidaire FRA083AT7 Installation instructions

Frigidaire

Frigidaire FAP09EP1Z3 Quick start guide

Frigidaire

Frigidaire FAM157S1A13 User manual

Frigidaire

Frigidaire CRA086HT10 User manual

Frigidaire

Frigidaire FRA12EZT2 Quick start guide

Frigidaire

Frigidaire FAC080J7A2 User manual

Frigidaire

Frigidaire FRA25ESU2 Quick start guide

Frigidaire

Frigidaire CPA12EDU111 User manual

Frigidaire

Frigidaire 220218A007 User manual

Frigidaire

Frigidaire FAC105L1A2 User manual

Frigidaire

Frigidaire 220201d038 User manual

Frigidaire

Frigidaire FAK104R1V 10,000 User manual

Frigidaire

Frigidaire FRA25ESU2 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
