INSTRUCTIONS MANUAL

SPLIT TYPE ROOM AIR CONDITIONER

INVERTER

MODELS:

S(347-350,512-515)FM_English_120907A(1)

ATTENTION

Please read this manual completely

before operating your room air conditioner.

• FRS095YC1

• FRS095YW1

• FRS125YC1

• FRS125YW1

• FRS185YC2

• FRS185W2

• FRS225YC2

• FRS225YW2

• FAS(C,E)09C6APLW

• FAS(C,E)12C6APLW

• FAS(C,E)18C6APLW

• FAS(C,E)24C6APLW

Thank you for choosing Frigidaire. This manual contains all of the information

required to guarantee your safety and the appropriate use of your air

conditioner.

Please read all of the instructions before using the air conditioner and keep this

manual for future reference.

We know you will enjoy your new air conditioner and thank you for choosing

our product. We hope you will consider us for future purchase.

The packaging material used is

recyclable; we recommend that you

separate plastic, paper and cardboard

and give them to recycling companies.

According to WEEE (Waste of Electrical

and Electronic Equipment) guidelines,

waste from electrical and electronic

devices should be collected separately. If

you need to dispose of this appliance in

the future, do NOT throw it away with the

rest of your domestic garbage. Instead,

please take the appliance to the nearest

WEEE collection point, where available.

Environmental advices

Welcome to the world of

simple handling and no worries.

Contents

01 02

01. Welcome...........................................................................................01

02. Environmental advices..........................................................................01

03. Contents...................................................................................................02

04. Safety precautions.....................................................................04

05. Installation:

5.1 Choosing the installation site.......................................................08

5.2 Parts list.........................................................................................10

5.3 Indoor unit installation...................................................12

5.4 Outdoor unit installation..............................................................17

5.5 Refrigerant piping connection........................................................19

5.6 Electrical work.....................................................................21

5.7 Purga de aire.............................................................................26

5.8 Electrical safety....................................................................29

5.7 Gas leak check...............................................................................29

5.8 Test running.............................................................................30

06. Operation:

6.1 Preparing the device for operation..............................31

6.2 Product description...........................................................32

6.3 Remote control...................................................................34

- Remote control operation

- Remote control specifications

- Remote control battery

- When should the batteries be replaced

- To replace batteries

- Remote control instructions

6.4 Remote control description....................................................36

- On/Off

- Temp. increase

- Temp. decrease

- Swing

- Clock

- Turbo

- Mode

- Fan speed

- Sleep

- Timer

- Cancel

- LED (screen)

6.5 LCD display indicators..................................................................38

6.6 How the air conditioner works...................................39

- Automatic operation

To prevent injury to the user or other people and property damage, the

following instructions must be followed.

Incorrect operation due to ignoring of instructions may cause harm or damage.

The seriousness is classified by the following indications.

Safety precautions

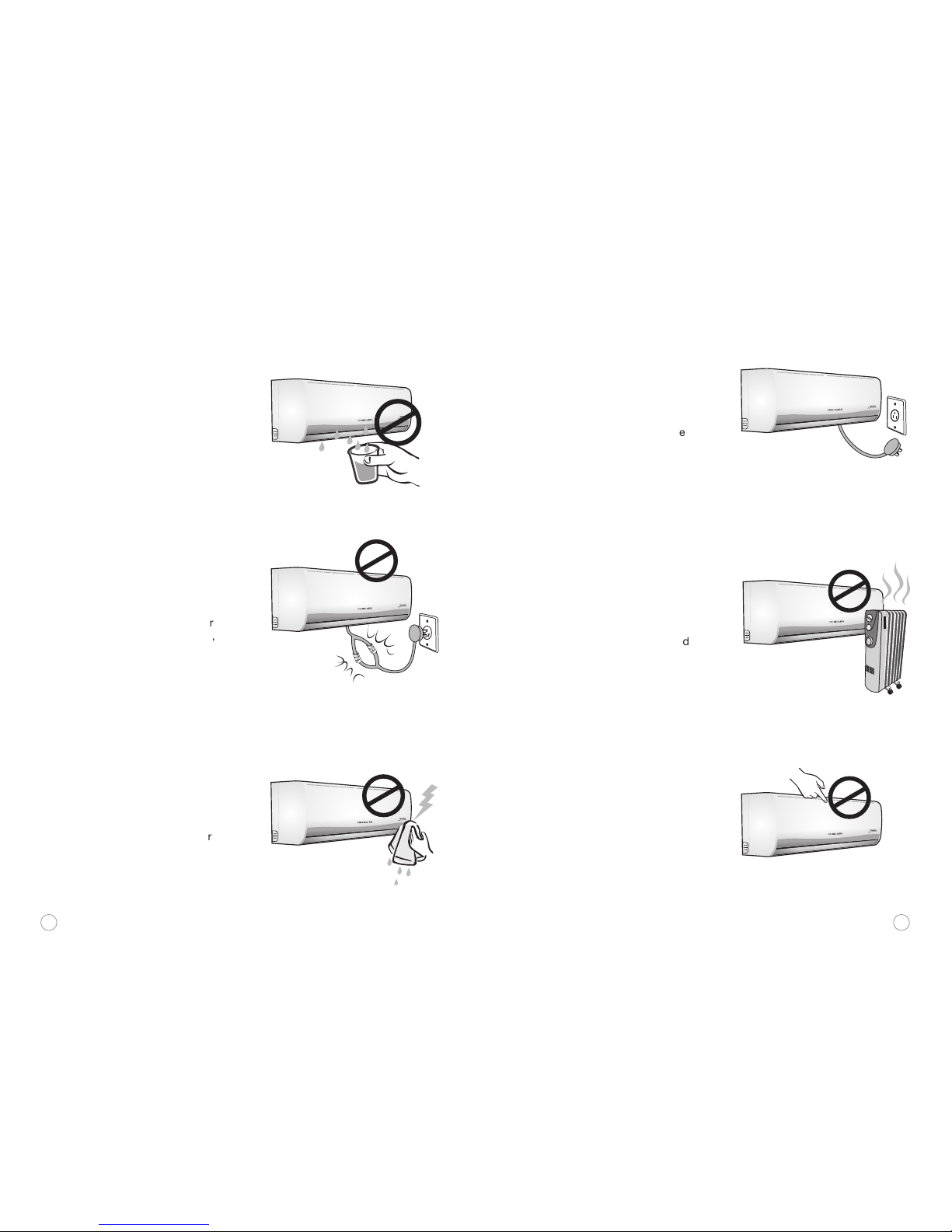

1. Connect with the power properly.

Otherwise, it may cause electric

shock or fire due to excess heat

generation.

2. Do not modify power cord length

or share the outlet with other

appliances. It may cause electric

shock or fire due to heat

generation.

3. Always ensure effective earthing.

No earthing may cause electric

shock.

4. Disconnect the power if strange

sounds, smell, or smoke comes

from it. It may cause fire and

electric shock.

5. Keep firearms away. It may cause

fire.

6. Do not operate or stop the unit by

switching on or off the power. It

may cause electric shock or fire

due to heat generation.

7. Do not operate with wet hands or

in damp environment. It may

cause electric shock.

8. Do not allow water to run into

electric parts. It may cause failure

of machine or electric shock.

9. Do not drink water drained from air

03 04

The air conditioner that you have bought may be slightly different from the

one illustrated in this manual. Please refer to the information related to the

model you have.

This air conditioner is for domestic use only. It is not reccomended for

commercial or industrial use.

The air conditioner you have may carry a different plug than the one

illustrated in this manual. The plug that comes with the product follows the

electrical specification of the country where it is sold.

Attention

- Cool/heat and fan only operation

- Dry operation

- Airflow direction adjustment

- Sleep mode

- Timer operation

- Optimal operation

6.7 How to use the indoor unit......................................................43

- Adjusting air flow direction

- Adjusting the vertical air flow direction (up/down)

- To set the horizontal air flow direction (left/right)

- To automatically swing the air flow direction (up/down)

6.8 Manual operation........................................................................45

07. Maintenance....................................................................................46

08. Operation tips..........................................................................................48

09. Solution for problems..............................................................................50

10. Technical specifications.....................................................................51

conditioner. It contains contaminants

and could make you sick.

10.Do not use the power cord close to

heating appliances. It may cause

fire and electric shock.

11.Do not damage or use an

unspecified power cord. It may

cause electric shock or fire.

12.Do not direct airflow at room

occupants only. This could damage

your health.

13.Always install circuit breaker and a

dedicated power circuit. No

installation may cause fire and

electric shock.

14.Do not open the unit during

operation. It may cause electric

shock.

15.Do not use the power cord near

flammable gas or combustibles,

such as gasoline, benzene, thinner,

etc. It may cause an explosion or

fire.

16.Ventilate room before operating air

conditioner if there is a gas leakage

from another appliance. It may

cause explosion, fire and, burns.

17.Do not disassemble or modify unit.

It may cause failure and electric

shock.

18.When the air filter is to be removed,

do not touch the metal parts of the

unit. It may cause an injury.

19.Do not clean the air conditioner

with water. Water may enter the

unit and degrade the insulation. It

may cause an electric shock.

20.Ventilate the room well when used

together with a stove, etc. An

oxygen shortage may occur.

21.When the unit is to be cleaned,

switch off, and turn off the circuit

breaker. Do not clean unit when

power is on as it may cause fire

and electric shock, it may cause

an injury.

22.Do not put a children, pet or house

plant where it will be exposed to

direct air flow. This could injure the

pet or plant.

23.Do not use for special purposes.

Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects. It

may cause deterioration of quality,

etc.

24.Stop operation and close the

window in storm or hurricane.

Operation with windows opened

may cause wetting of indoor and

soaking of household furniture.

25.Turn off the main power switch

when not using the unit for a long

time. It may cause failure of

product or fire.

26.Do not use strong detergent such

as wax or thinner. Use a soft cloth

for cleaning. Appearance may be

deteriorated due to change of

product color or scratching of its

surface.

27.Ensure that the installation bracket

of the outdoor appliance is not

damaged due to prolonged

exposure. If bracket is damaged,

there is concern of damage due to

05 06

falling of unit.

28.Always insert the filters securely.

Clean filter once every two weeks.

Operation without filters may cause

failure.

29.Do not place heavy object on the

power cord and take care so that

the cord is not compressed. There

is danger of fire or electric shock.

30.Do not place obstacles around air-

inlets or inside of air-outlet. It may

cause failure of appliance or

accident.

8. The site must allow for the easy

removal of the connector pipe and

drain hose.

9. The unit must be installed at a site

protected from direct sunlight.

Precautions for Installation

Installation at the following sites may cause problems. If you must inevitably

install the unit at one of these sites, please consult your local distributor

beforehand:

1. Site with machine oil.

2. Sites with a high concentration of salinity, such as coastal areas.

3. Sites with sulfuric gas, such as hot water springs.

4. Sites with high frequency equipment, such as wireless equipment, welding

machines and medical installations.

5. Sites with flammable gases or volatile material.

6. Sites with special environmental conditions.

7. Laundry rooms.

Indoor Unit

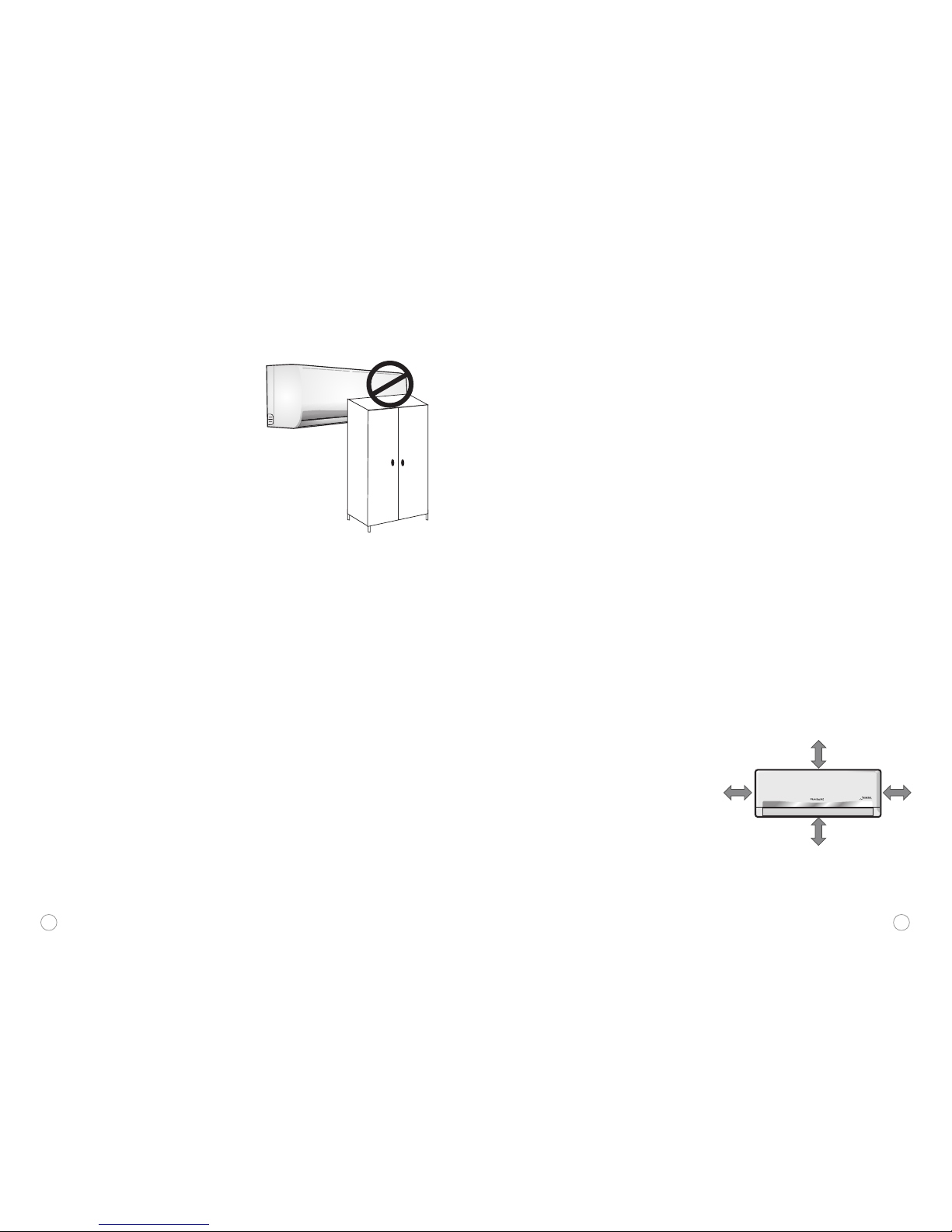

1. The unit must be installed at a site

that does not obstruct the flow of

air.

2. The site must support the weight

of the indoor unit.

3. The site must be easily accessible

for maintenance and replacement

of the air filter.

4. The site must allow for the

necessary space around the

indoor unit, as shown in the

following figure.

5. There should be at least 1 meter (3

feet) between the unit and radio

and television devices. It is ideal

that the unit be installed at the

center of the environment.

6. It must be far from fire, smoke or

flammable gases.

7. The indoor unit must be at least

2.3 meters (7.5 feet) from the

ground.

Choosing the Installation Site

than15cm

than 12cm

More than

200cm

than 12cm

07 08

Outdoor Unit

1. The outdoor unit must be installed

at a convenient site that is not

exposed to strong winds. The site

should be dry and well ventilated.

2. The site must support the weight of

the outdoor unit and allow for

vertical installation.

3. There must not be the possibility of

increased noise and vibration at the

site.

4. The unit must be installed at a site

where the noise produced by its

operation and air discharge does

not disturb the neighbors or

animals.

5. The site cannot have any leakage

of flammable gases.

6. The site must allow for a piping

extension of no less than 5 meters

(16 feet) and for pipes measuring at

least 10 meters (33 feet) in length.

7. The site must provide enough

space around the unit, as shown in

the diagram.

8. Children must not be able to

access the installation site.

than 60cm

than 30cm

than 200cm

than 30cm

than 60cm

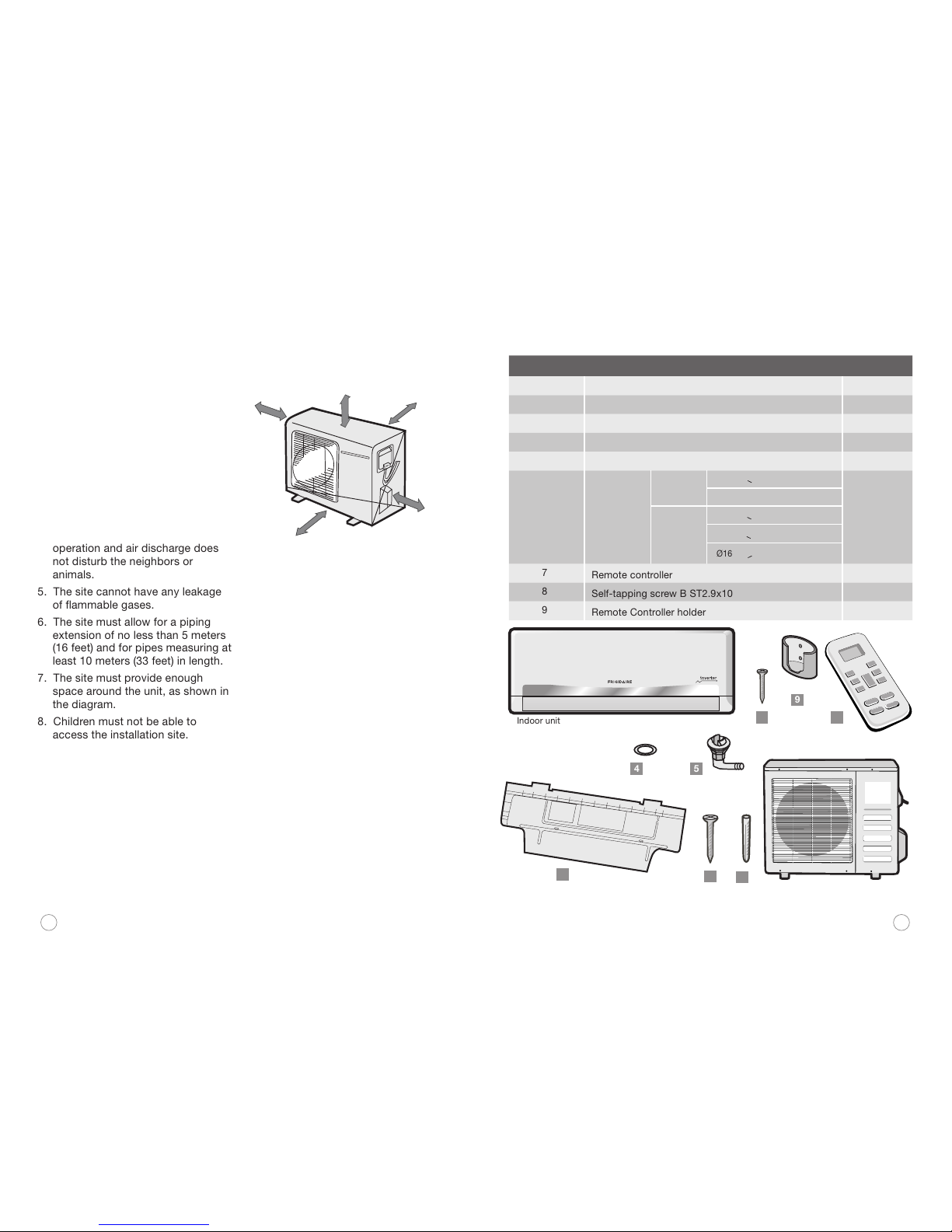

Parts list

NUMBERING PART NAME

Installation plate

Clip anchor

Self-tapping screw A ST3.9x25

Seal

Drain Joint

QTY.

Remote controller

Self-tapping screw B ST2.9x10

Remote Controller holder

Connecting

pipe

assembly*

Liquid side Ø6,35

Gas side

Ø9,53

Parts you must

purchase

(> models 18000 Btu's)

(< models 18000 Btu's)

Ø12,7

Ø9,53

Ø16

(< models 18000 Btu’s)

(< models 9000 Btu’s)

(> models 24000 Btu’s)

8 7

Indoor unit

Outdoor unit

09 10

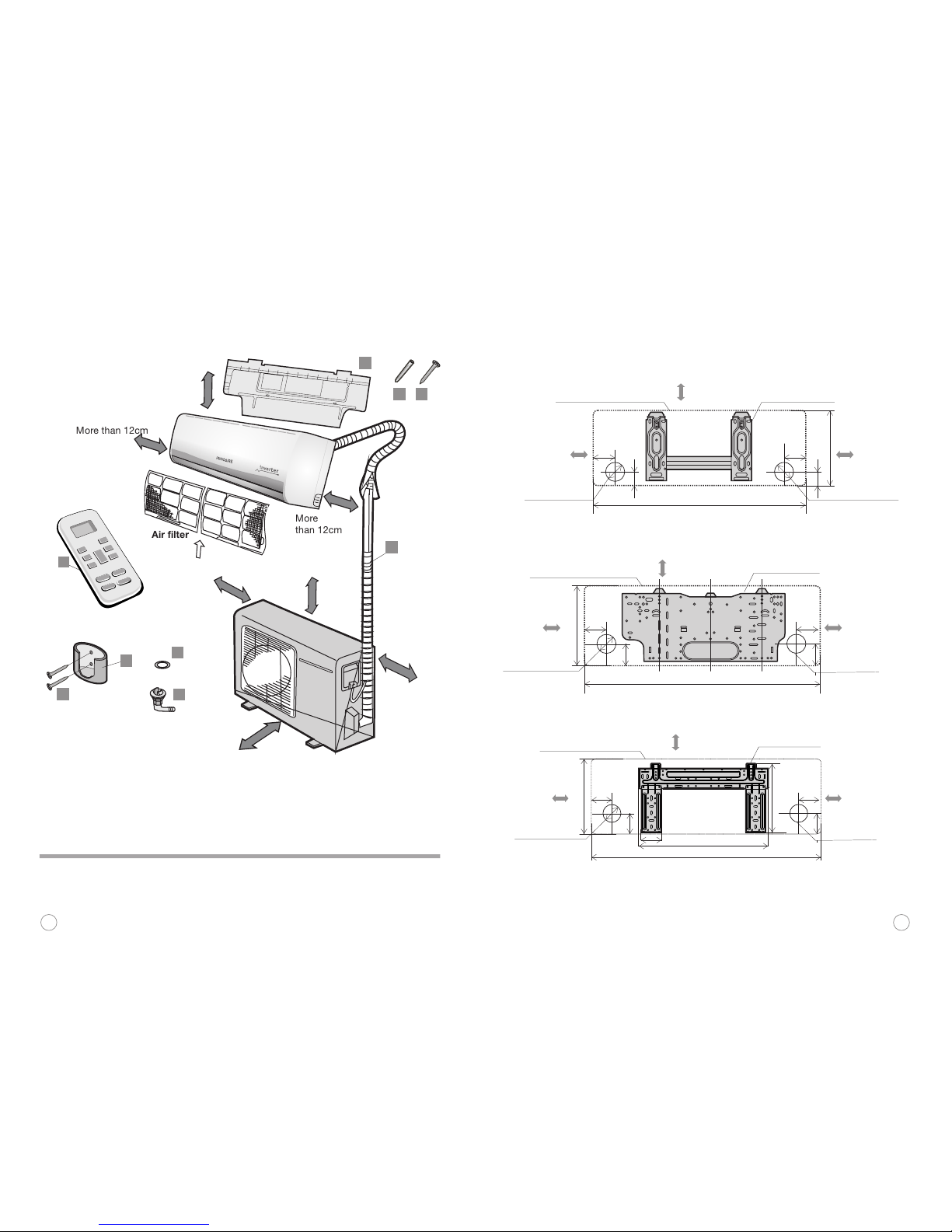

Indoor unit installation

Installation plates and dimensions

above 150mm from

the ceiling Installation plate

indoor unit outline

above 120mm

from the wall

above 120mm

from the wall

Refrigerant pipe

hole (left) Ø 65

Refrigerant pipe

hole (right) Ø 65

45 90

Models < 12000 Btu's (A: 710, B: 250)

Models 12000 Btu's (A: 790, B: 265)

above 150mm

from the ceiling

Indoor unit outline Installation plate

above 120mm

from the wall

above 120mm

from the wall

Refrigerant pipe

hole (left) Ø 65 Refrigerant pipe

hole (right) Ø 65

293

920

(A)

Models 12000 Btu's

1. This illustration is for explanation purposes only.

2. Copper lines must be insulated independently

Indoor unit

Outdoor

Unit

6More

than 12cm

More than 12cm

Air filter

More than 200cm

than 60cm

More than 30cm

More than 60cm

More than 15cm

(B)

above 150mm

from the ceiling

Indoor unit outline Installation plate

above 120mm

from the wall

above 120mm

from the wall

Refrigerant pipe

hole (left) Ø 65

Refrigerant pipe

hole (right) Ø 65

293

920

272

80 489

11 12

Attention

Fixing the Installation Plate

Drilling the Hole

1. Install the installation plate

horizontally over the structural

parts on the wall using the spaces

indicated on the plate, as shown in

the figure above.

2. In the case of tiled, concrete or

similar walls, create 5 mm-diameter

holes. Place anchorage supports

for the appropriate assembly

screws.

3. Fix the installation plate to the wall

with 8 A type screws.

1. Determine the position of the hole for

the pipe using the installation plate

and drill the pipe hole so that it is

titled slightly downward.

2. Always use a pipe cover with an

opening when drilling a metal bar.

Installation plate

Fit the Installation Plate and drill

holes in the wall according to the

wall structure and corresponding

mounting points on the installation

plate (Dimensions are in “mm”

unless otherwise stated).

Wall

Indoor unit Outdoor unit

5-7mm

13 14

Attention

above 150mm from ceiling

above 120mm

from wall

1080

330

above 120mm

from wall

130

108432432

130

Refrigerant pipe

hole (left) Ø 95

Indoor unit outline

Models 24000 Btu's

Models 30000 Btu's

325

1250

815 257

178

above 150mm from ceiling

above 120mm

from wall above 120mm

from wall

Refrigerant pipe

hole (right) Ø 95

Indoor unit outline

Models 30000 Btu's

Models 36000 Btu’s

Do not put the end

of drain hose into water.

Do not block

water flow

by a rise.

Do not block

water flow

by a rise.

Connective pipe and drainage installation

Drainage

1. Run the drain hose sloping

downward. Do not install the drain

hose as illustrated below.

2. When connecting extension drain

hose, insulate the connecting part

of extension drain hose with a

shield pipe, do not let the drain

hose slack.

Connective pipe

1. For the left-hand and right-hand

piping, remove the pipe cover from

the side panel. Explain to clients

that the pipe cover must be kept as

it may be used when relocate the air

conditioner to any other place.

2. For the rear-right-hand and rear-left-

hand piping, install the piping as

shown. Bend the connective pipe to

be laid at 43mm height or less from

the wall. Fix the end of the

connective pipe.

Right back

piping

Pipe cover

(left)

Pipe

holder

Pipe cover

(right)

Right piping

Connective

pipe

Indoor unit

outline

43mm

Piping and wrapping

1. Bundle the tubing, connecting cable,

and drain hose with tape securely,

evenly as shown.

2. Because the condensed water from

rear of the indoor unit is gathered in

ponding box and is piped out of

room. Do not put anything else in

the box.

Indoor unit

Cable

de conexión

Ponding

box

Pipe room

Wrapping

belt

Drain hose

Connective

pipe

1. Connect the indoor unit first, then

the outdoor unit.

2. Do not allow the piping to let out

from the back of the indoor unit.

3. Be careful not to let the drain hose

slack.

5. Heat insulated both of the auxiliary

piping.

6. Be sure that the drain hose is

located at the lowest side of the

bundle. Locating at the upper side

can cause drain pan to overflow

inside the unit.

7. Never intercross nor intertwist the

power wire with any other wiring.

8. Run the drain hose sloped

downward to drain out the

condensed water smoothly.

Cushioning

material

15 16

Attention

1. Pass the piping through the hole in

the wall.

2. Put the upper claw at the back of

the indoor unit on the upper hook of

the installation plate, move the

indoor unit from side to side to see

that it is securely hooked.

3. Piping can easily be made by lifting

the indoor unit with a cushioning

material between the indoor unit

and the wall. Get it out after finish

piping.

4. Push the lower part of the indoor

unit up on the wall, Then move the

indoor unit from side to side, up and

down to check if it is hooked

securely.

Upper hook

Lower hook

Fastening the Indoor Unit

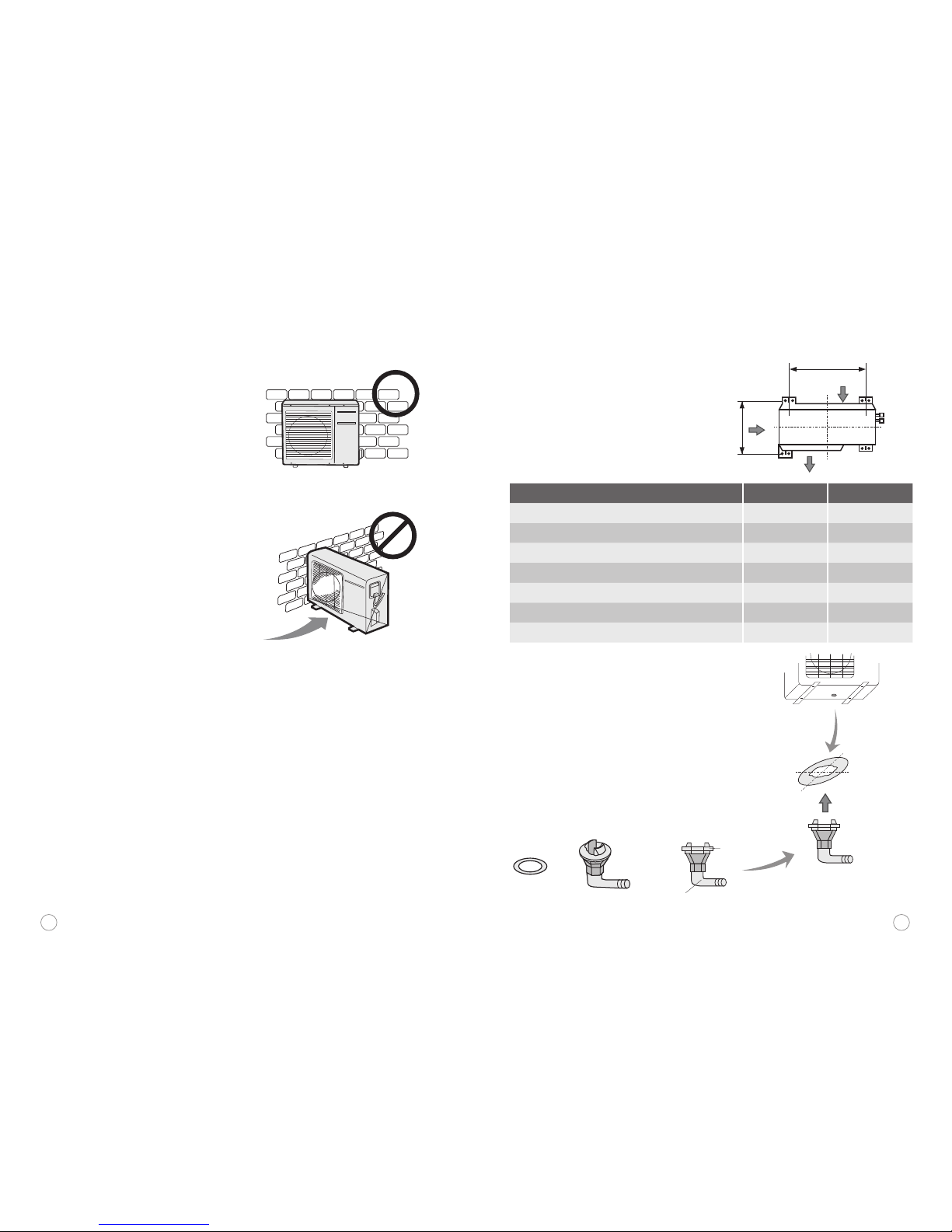

Settlement of outdoor unit

Anchor the outdoor unit tightly and

horizontally on a concrete or rigid

mount with a bolt and nut 10 or 8

diameter.

MODEL

458

460

549

530

523

560

590

A (mm)

250

276

290

340

335

333

B (mm)

Drain joint installation

Fit the seal into the drain elbow, then

insert the drain joint into the base pan

hole of outdoor unit, rotate 90 to

securely assemble them. Connecting

the drain joint with an extension drain

hose (Locally purchased), in case of

the water draining off the outdoor unit

during the heating mode.

Air inlet

Air

inlet

Air outlet

Base pan hole

of outdoor unit

Seal Drain joint

Seal

Drain pipe

+ =

700x535x235

685x430x260

780x540x250

760x590x285

820x600x345

845x695x335

895x860x330

17 18

1. Install the outdoor part of the unit

on a rigid surface to avoid excess

noise and vibration.

2. Direct the air vent toward an area

without obstacles.

3. Install the unit so that it is exposed

to as little wind as possible,

especially in areas where it is

frequently windy.

4. If the installation site is exposed to

heavy winds, such as in coastal

areas, place the unit along the

widest part of the wall or use

protective plates.

7. If need suspending installation, the

installation bracket should accord

with technique requirement in the

installation bracket diagram. The

installation wall should be solid

brick, concrete or the same

intensity construction, or actions to

reinforce, damping supporting

should be taken. The connection

between bracket and wall, bracket

and the air conditioner should be

firm, stable and reliable.

6. Be sure there is no obstacle which

block radiating air.

Outdoor unit installation

Stron wind

This manual suits for next models

Table of contents

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire FRA062AT7 User manual

Frigidaire

Frigidaire FRA052XT726 Owner's manual

Frigidaire

Frigidaire FAH096J2T1 User manual

Frigidaire

Frigidaire FAH14EQ2T4 User manual

Frigidaire

Frigidaire Gallery FGRQ0833U1E0 User manual

Frigidaire

Frigidaire FAK123J1V3 User manual

Frigidaire

Frigidaire FRA123PT111 Owner's manual

Frigidaire

Frigidaire FRA084KT7 User manual

Frigidaire

Frigidaire FAC052K7A10 User manual

Frigidaire

Frigidaire FFRA0811Q10 Owner's manual

Frigidaire

Frigidaire FFPA1222R11 Owner's manual

Frigidaire

Frigidaire CRA084KT711 Owner's manual

Frigidaire

Frigidaire FFRA102WAE User manual

Frigidaire

Frigidaire FRS093LS1 User manual

Frigidaire

Frigidaire FRA184MT2 User manual

Frigidaire

Frigidaire 220204d031 User manual

Frigidaire

Frigidaire FAH10EM2T1 Quick start guide

Frigidaire

Frigidaire FFRH1122U1 User manual

Frigidaire

Frigidaire CRA107CV116 Owner's manual

Frigidaire

Frigidaire FHPC082AC1 User manual

Frigidaire

Frigidaire Gallery FGRC1244T100 Owner's manual

Frigidaire

Frigidaire FAH106M1T1 User manual

Frigidaire

Frigidaire FRA106BU1 User manual

Frigidaire

Frigidaire FRA08EZT1 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
