Frigidaire FRA12EHT2 User manual

READ BEFORE INSTALLING UNIT

For Through-the-Wall Air Conditioners

Installation Instructions

NOTE:

DO NOT USE ANY SCREWS OTHER THAN THOSE SPECIFIED HERE

Note that the air conditioner dimensions are: 24" wide,14" high, and 19" deep (without front). Install Air Conditioner

according to these installation instructions to achieve the best performance. Save these installation instructions for

future reference.

Do This First (for existing sleeve)

You may not need all parts in the kit. Discard unused parts.

Items in Kit

2020213A0734

Hardware

Tapered Spacer Blocks (17” Long)

Plastic Divider ( )

Stuffer Seal ( )

5seal ( )

No. Qty.

Centering/Support Blocks ( ”)

4”x 3 ”x 1

121212

”x 4 ”x 14 ”

181212

1”x 1 ”x 84”

1”x 1 ”x 25”

seal ( )

1”x 1 ”x 14”

seal ( )

1”x 3/8”x 25”

seal ( )

1”x 3/8”x 14”

seal ( )

1”x 3/4”x 14”2

Hardware

Ground Wire (green)

14 Grounding Screw

15 1

16 1

No. Qty.

Trim Frame (top & bottom legs)

Grille (plastic)

Grille Aluminum

Nuts (plastic)

Screw w/washer 4

Trim Frame (side legs)

Toothed washer for grounding screw 2

Pay attention to danger and safety notices.

To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may

be exposed:

Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install

the unit. Wear protective gloves whenever lifting or carrying the unit. AVOID the sharp metal fins of front and rear coils. To

prevent injury or strain, use proper lifting and carrying techniques when moving unit.

Carefully inspect location where air conditioner will be installed. Be sure it will support the weight of the unit overan extended

period of time.

Handle air conditioner with care.

Make sure air conditioner does not fall during installation.

Carefully read the installation manual before beginning.

Follow each step as shown.

Observe all local, state, and national electrical codes and by qualified, licensed, authorized personnel only.

INSTALLATION WARNINGS AND CAUTION

Installation Instructions

How to Install

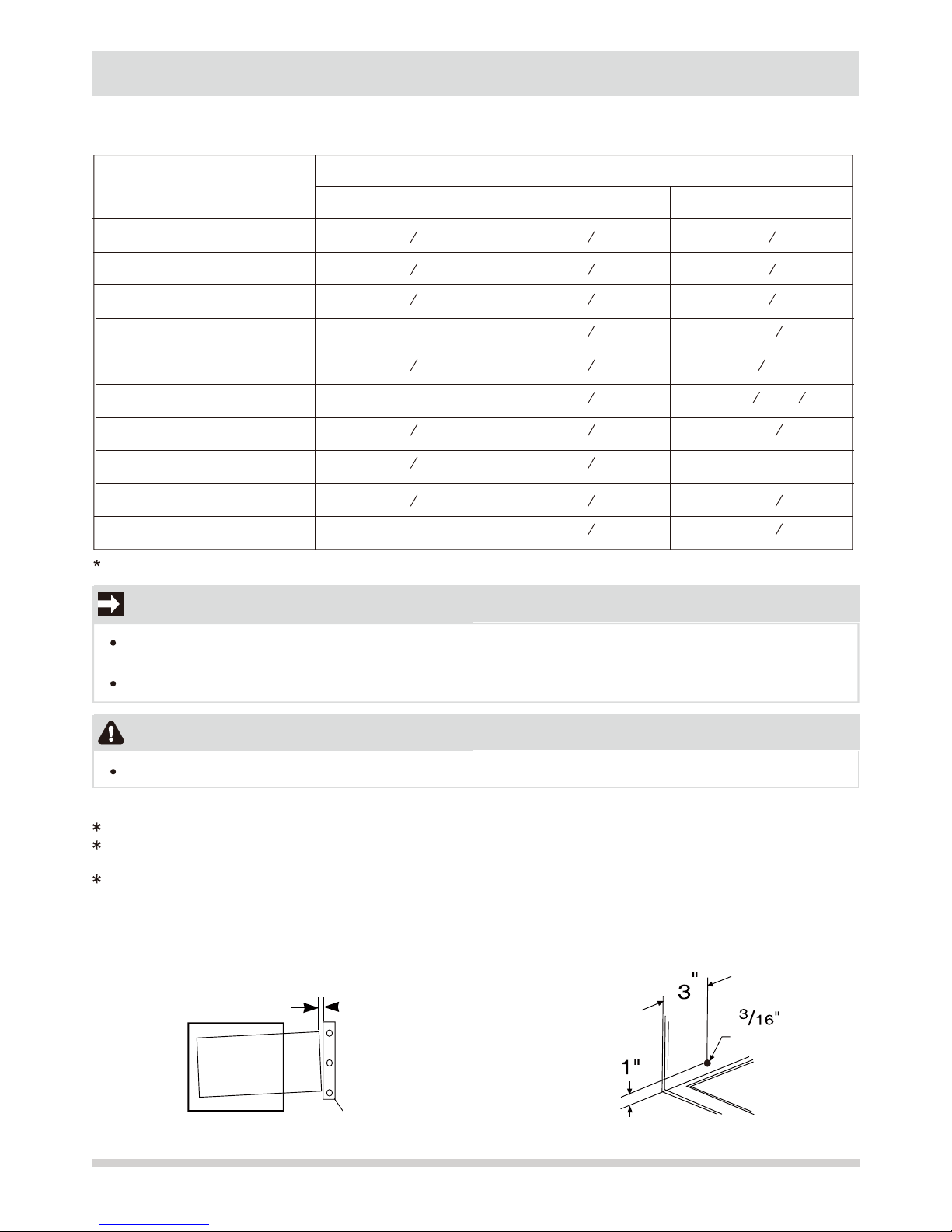

1. Identify the wall-sleeve brand for your installation, from the chart below.

Brand Wall Sleeve Dimensions

Width Height Depth

General Electric/Hotpoint 26 15581578

Sears/Kenmore 253416781858

Carrier (51S Series) 1858

1678

2534

Friedrich* 1634

1634

Emerson/Fedders* 15

1534

2634

Whirlpool 257816121718or 23

Fedders/Emerson* 27 163416341934

White-Westinghouse 2512151416, 17 or 22

Frigidaire 2512151416, 17 or 22

Carrier (52F Series) 2512151416, 17 or 22

CAUTION:

When installation is complete, replacement unit MUST have a rearward slope as shown in Fig.1.

2. Remove old Air Conditioner from wall sleeve and prepare wall sleeve as follows:

Clean interior (do not disturb seals).

Wall sleeve must be securely fastened in wall before installing Air Conditioner. Drive more nails or screws through

sleeve, into wall, if needed.

Retouch wall sleeve painted surface if needed.

Wall

sleeve

REAR

1/4" to 5/16"

FRONT

LEVEL

UNIT

Fig.1

3. If not existing, drill a 3/16" clearance hole for grounding screw through left side of wall sleeve, in a clear area about

3 inches maximum back from front edge of sleeve, using grounding screw and toothed washer. Pull loose end

of ground wire out front of sleeve, and temporarily bend it down and around lower edge of sleeve (Fig.2). This

ground wire will later be attached to frame of air conditioner once it is installed.

Wall sleeve to unit

sleeve grounding

Max.

Hole

Fig.2

IMPORTANT

All wall sleeves used to mount the new Air Conditioner must be in sound structural condition and have a rear

grille that securely attaches to sleeve, or rear flange that serves as a stop for the Air Conditioner.

For new installations, a Frigidaire Sleeve Kit (EA108T) is recommended.

For larger sleeves, an adaptor trim kit (EA120T) is available.

Installation Instructions

1. Remove the existing grille.

2. Place the grille included with the new air conditioner towards the rear of the sleeve.

3. Mark through the hole positions.

4. Drill through the sleeve flanges with a 1/8" drill bit.

5. Attach the new grille with self-threading screws and washers(not included).

6. It is VERY IMPORTANT that the grille is placed exactly as shown.

7. Most decorative exterior grilles may be left in place as long as the proper interior air direction grille is installed.

FOR INCREASED EFFICIENCY, UTILIZE THE PROVIDED LOUVERED REAR PANEL

4. Prepare the wall sleeve for installation of the new unit per the following Brand instructions.

#1 Emerson

#2 Fedders

#3 Fedders or Friedrich

#4 General Electric/Hotpoint

#5 Sears or Carrier(51S Series)

15Ǝ Deep

19 ƎDeep

16 ƎDeep

18 ƎDeep

#6 Whirlpool

#7 Whirlpool

#8 White-Westinghouse/Frigidaire/

Carrier(52F Series)

#9 White-Westinghouse/Frigidaire

17 ƎDeep

23ƎDeep

16Ǝ+ 17 ƎDeep

22ƎDeep

IMPORTANT

This unit's increased performance characteristics result from having two rear air intakes.

It is very important that these installation instructions are followed so your unit can operate at maximum

efficiency.

If there is an existing sleeve, and there is an existing rear grille, it needs to be replaced by one that has been

shipped with the unit in the accessory kit.

5. Identify your wall sleeve type and follow the instructions for that type in the following pages.

Installation of new grille provided with unit

Installation Instructions

#1 Emerson

Wall Sleeve Brands:

1. Remove existing

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

rear grille as shown on Page 3 of this manual and

replace with provided louvered rear panel. Install as shown here.

2. Attach(1)1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

3. Attach(2)1" x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Gently slide unit into sleeve.

8. Remove the plastic washer from the screw.

9. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

10. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

7. Before sliding all-the-way back, remove 2nd screw from fron on left

side of unit.

4. Cut(2)1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

5. Attach (2) 4 " x 3 " x 1 " centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

121212

15"Deep

11. Seal & Frame the unit as described on the last page of these

instructions.

12. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

4.5" 4"

80º 50º 50º

Rear Louvers

80º

Top View

4.5" 4"

Installation Instructions

#2 Fedders

Wall Sleeve Brands:

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided louvered rear panel. Install as shown here.

80º 50º 50º

Rear Louvers

80º

Top View

3. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

4. The 4" section is placed in front of the rib on base with the tapered

end facing the back of the sleeve. The remaining portion will be placed

behind the rib again sloping toward the rear of the sleeve. This helps

induce a rearward slope on the unit.

5. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

6. Attach (2) 1" x 3/8" x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

8. Gently slide unit into sleeve.

9. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

10. Remove the plastic washer from the screw.

11. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

12. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

13. Seal & Frame the unit as described on the last page of these instructions.

2. Attach (2) 4 " x 3 " x 1 " centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

121212

17"

Tapered Spacer Block

3/4"

Cut Here 4"

protection Paper Backing

19-3/4"Deep

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

14. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

4.5" 4"

Installation Instructions

#3 Fedders or Friedrich

Wall Sleeve Brands:

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided louvered rear panel. Install as shown here.

80º 50º 50º

Rear Louvers

80º

Top View

3. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

13. Seal & Frame the unit as described on the last page of these instructions.

2. Attach (2) 4 " x 3 " x 1 " centering/support blocks one on each

side wall. Place in center of side wall with the tapered end facing the

opening.

121212

16-3/4"Deep

5. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

6. Attach (2) 1" x 3/8" x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

8. Gently slide unit into sleeve.

9. Before sliding all-the-way back, remove 2nd screw from front on left side

of unit.

10. Remove the plastic washer from the screw.

11. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

12. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

17"

protection Paper Backing

3/4"

Tapered Spacer Block

12-1/2"

2-1/2"

4. The 2 " section is placed in front of the rib on base with the tapered

end facing the back of the sleeve. Cut the remaining portion to 12 "

and place behind the rib again sloping toward the rear of the sleeve.

This helps induce a rearward slope on the unit.

Cut Here

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

14. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

4.5" 4"

Installation Instructions

#4 General Electric/Hotpoint

Wall Sleeve Brands:

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided louvered rear panel. Install as shown here.

80º 50º 50º

Rear Louvers

80º

Top View

2. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

16-7/8" Deep

3. Install as shown with the tapered end 1/2" from the back of the sleeve.

This helps induce a rearward slope on the unit.

5. Attach (2) 1" x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding all-the-way back, remove 2nd screw from front on

left side of unit.

9. Remove the plastic washer from the screw.

10. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

11. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

4. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

17"

protection Paper Backing

3/4"

Tapered Spacer Block

13"

Cut Here

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

4.5"

4.5" 4"

Installation Instructions

#5 Sears or Carrier 51S Series

Wall Sleeve Brands:

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided louvered rear panel. Install as shown here.

80º 50º 50º

Rear Louvers

80º

Top View

18-5/8" Deep

2. Install (2) tapered spacer blocks to the floor of the sleeve as shown.

This helps induce a rearward slope on the unit.

3. Install as shown with the tapered end 1/2" from the back of the sleeve.

This helps induce a rearward slope on the unit.

4. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position

5. Attach (2) 1" x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

9. Remove the plastic washer from the screw.

11. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

10. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

4.5" 4"

Installation Instructions

#6 Whirlpool

Wall Sleeve Brands:

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided louvered rear panel. Install as shown here.

80º 50º 50º

Rear Louvers

80º

Top View

2. Cut (2) 17" Tapered Spacer Blocks as shown below into two pieces.

17-1/8" Deep

17"

protection Paper Backing

3/4"

Tapered Spacer Block

13"

Cut Here

5. Attach (2) 1" x 3/8" x 14" seals to the left and right sides of the sleeve.

6. Cut (2) 1" x 3/8" x 25" long seals to 14" long each and attach to the

vertical sections of the grille as shown.

7. Center unit & gently slide unit into sleeve.

8. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

9. Remove the plastic washer from the screw.

11. Slide the unit completely to the rear to ensure a good seal, making sure

the ground wire does not become tangled.

12. Seal & Frame the unit as described on the last page of these instructions.

3. Install to the floor of the sleeve as shown. This helps induce a rearward

slope on the unit.

4. Attach (1) 1" x 3/8" x 25" long seal in the center at the top of the sleeve.

Remove the backing paper and press into position.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

13. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

10. Screw and attach the other end of the ground wire from sleeve to the unit

as shown in picture. Make sure that the toothed washer is against the

cabinet.

4.5" 4"

Installation Instructions

#7 Whirlpool

Wall Sleeve Brands:

1. Remove existing rear grille as shown on Page 3 of this manual and

replace with provided louvered rear panel. Install as shown here.

80º 50º 50º

Rear Louvers

80º

Top View

23” Deep

Because of the increased unit depth, first try dry fitting using

the method described below:

Use these next steps if the unit requires extra extension into

the room.

2. Place (2) 1" x 1 " x 14" seals against each side.

11. Install the divider into the slots of the foam blocks. You may need to

trim the length to size.

12. Repeat steps 9-11 for the other vertical shown portion of the grille as

shown in the picture.

9. Attach 1" x " x 14" long seal over the solid vertical portion of the rear

grille.

10. Attach (2) 4 " x 3 " x 1 " foam blocks with the slot overlapping the

seal above.

343434

13. Attach (2) 1" x 1 " x 14" seals along the sides of the sleeve again

making sure all seals are flush.

15. Center unit & gently slide unit into sleeve.

16. Before sliding all-the-way back, remove 2nd screw from front on left

side of unit.

17. Remove the plastic washer from the screw.

19. Slide the unit completely to the rear to ensure a good seal, making

sure the ground wire does not become tangled.

20. Seal & Frame the unit as described on the last page of these instructions.

14. Cut the 1" x 1 " x 25" seal to fit the top of the sleeve. The pieces must

be fitted flush to the edge of the divider.

4. If position is okay, remove unit and Proceed to the next step.If not go

to step 9.

5. Attach (1) 1" x 1 " x 25" long seal in the center at the top of the

sleeve. Remove the backing paper and press into position.

6. Attach (2) 1" x 1 " x 14" seals to the left and right sides of the sleeve.

7. Cut (2) 1" x 3/8" x 25" long seal to 14" long each and attach to the

vertical sections of the grille as shown.

8. Attach the tapered spacer blocks to the floor of the sleeve. Now go to

step 15.

3. Gently slide unit in and check if amount extending from the sleeve is

sufficient once the trim frame is attached.

NOTE: You may need to drill holes in flange of existing sleeve to match

new rear grille

21. If you have difficulty with mounting the grill to the sleeve, follow the

instructions for direct mounting on Page 13.

18. Screw and attach the other end of the ground wire from sleeve to the

unit as shown in picture. Make sure that the toothed washer is against

the cabinet.

4.5" 4"

Other manuals for FRA12EHT2

Table of contents

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire FRA083AT7 User manual

Frigidaire

Frigidaire FAC088L7A1 User manual

Frigidaire

Frigidaire FHWW183WC2 Owner's manual

Frigidaire

Frigidaire GAS154J1A1 User manual

Frigidaire

Frigidaire CPA123DU1 Owner's manual

Frigidaire

Frigidaire EC300W-FA User manual

Frigidaire

Frigidaire FRA122CV1 User manual

Frigidaire

Frigidaire FAK085R7V - Slider/Casemen Room Air... User manual

Frigidaire

Frigidaire FAH085P1T User manual

Frigidaire

Frigidaire FRA102BT1 User manual

Frigidaire

Frigidaire FRA186MT2 User manual

Frigidaire

Frigidaire ELECTRONIC CONTROL AIR CONDITIONER Owner's manual

Frigidaire

Frigidaire FAK123N1V Quick start guide

Frigidaire

Frigidaire 220201d053 User manual

Frigidaire

Frigidaire CRA050XT73 User manual

Frigidaire

Frigidaire FSC09CH7M User manual

Frigidaire

Frigidaire WAL128K2A2 User manual

Frigidaire

Frigidaire Home Comfort FRA082AT7 Owner's manual

Frigidaire

Frigidaire FAA050P7A User manual

Frigidaire

Frigidaire FAS255P2A - Heavy Duty Room Air Conditioner User manual

Frigidaire

Frigidaire Home ComfortFRA08EHT1 User manual

Frigidaire

Frigidaire GALLERY GHPC132AB1 User manual

Frigidaire

Frigidaire FAX054P7A - 5,000 BTU Mini Room Air... User manual

Frigidaire

Frigidaire FAH106S1T - 10000 BTU Through-the-Wall Air... User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
