Frigidaire FAC102P1A4 User manual

u m

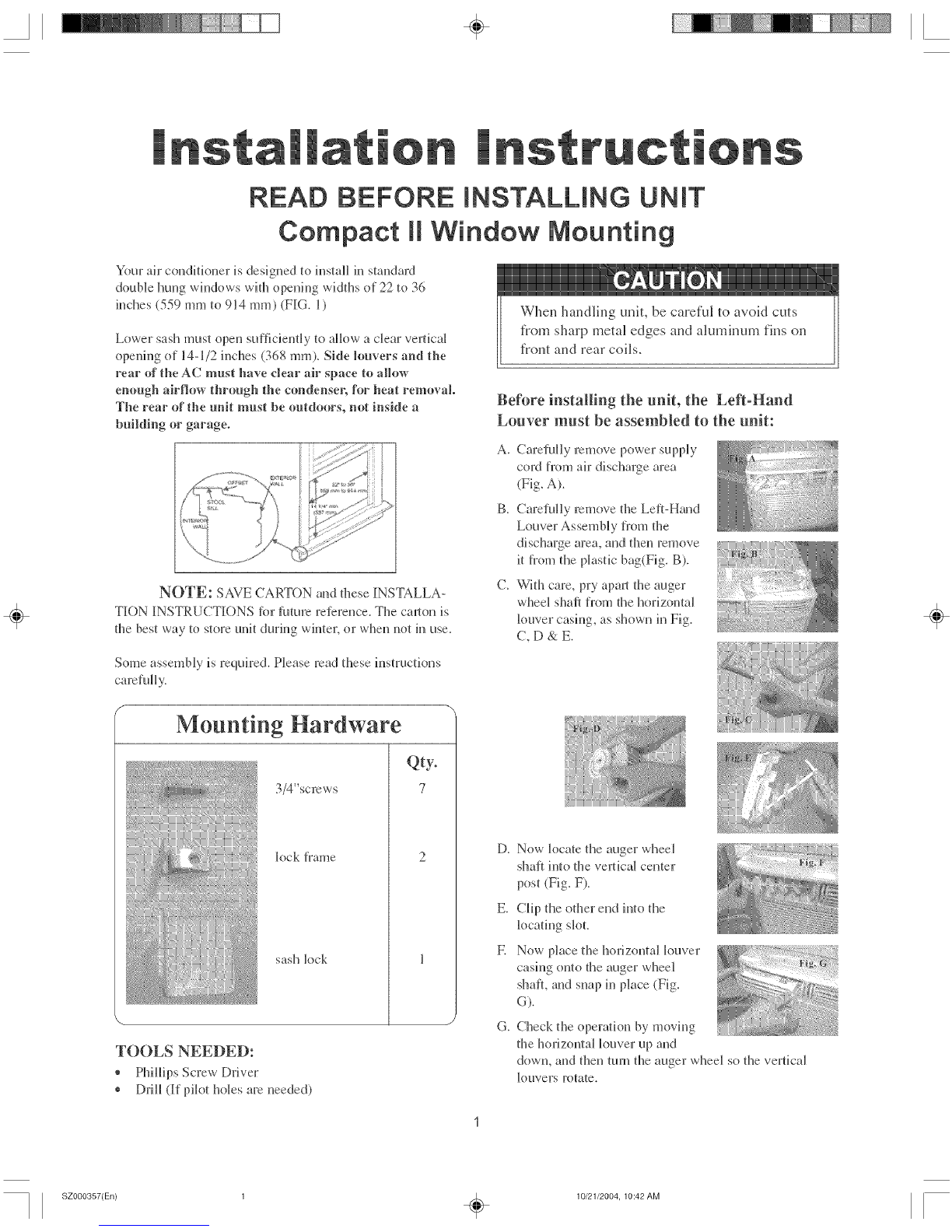

READ BEFORE iNSTALLiNG UNIT

Compact niWindow Mounting

Your ah"conditioner is designed to install in skmdard

double llm_g windows with opening widths of 22 to 36

inches (559 mm to 914 ram) (FIG. l)

Lower sash must open sufficiently 1oallow a clear velltical

opeuing of 14-1/2 inches (368 rnm). Side loovers and the

rear of the AC most have clear air space to allow

enoogh airflow throogh the condensel; for heat removal.

The rear of' the onit most be ootdoors, not inside a

boilding or garage.

NOTE: SAVE CARTON aud these INSTALLA-

TION INSTRUCTIONS tbr furore reference. The caJlon is

the best way to store unit during winter, or when not hi use,

When handling unit, be careful to avoid cuts

from sharp metal edges and aluminum fins on

front and rear coils.

Befbre installing the unit, the Left-Hand

Louver must be assembled to the unit:

A. Carefully remove power supply

cord flx)m air discharge area

(Fig. A).

B. Carefully remove dte Left-Hand

Louver Assembly from the

discharge area, and theu remove

it fl:om the plastic bag(Fig. B).

C. With care, pry apaJl tile auger

wheel shaft fl:om tile horizontal

k)uver casing, as shown hi Fig.

C,D&E.

Some assemNy is required. Please read these instructions

Mounting Hardware

3/4 'screws

lock frame

sash lock

TOOLS NEEDED:

* Drill (If pilot hales are needed)

Qty.

D. Now locate tile auger wheel

shaft into tile vertical ceuter

post (Fig. F).

E. Clip the oilier end hllo tile

locating slot.

E Now place the horizontal louver

casing onto the auger wheel

shaft, and snap in place (Fig.

G).

G, Check tile operation by moving

tile horizontal louver up and

down, and theu turn file auger wheel so file vertical

kmvers rotate.

SZOOO357(En) 1 , 10/21/2004, 10:42 AM

How to Install

NOTE: Top Rail and Sliding Panels a_teach side are

offset to provide the proper pi_.eh to the rear of (5/16").

This is necessary for proper condensed water utilization

and drainage. If you are not using the Side Panels for

any reason, this pitch _.othe rear must be main_.ained!

Place unit on floor, a bench or a taNe, There is a

Left and Right Window Filler Pane] - be sure to

use the proper panel _br each side,When installed

tile flange Rtr secarhlg tile panel in place to the whldow sill

wilJ be [hchlg hlto the morn.

A. Hold _l_e

Accordion

Pane] in one

hand and

gendy pull

back the

center to }]ee

the open end.

See Figure 2,

C. Once the panel

has been

hlstaHed on the

side of tlle

cabinet, make

sure it sits

file }tame

making slight

adjustments. Slide the top and bottom ends of the frame

into the top and bottom rails o[ the cabinet. Figure 5.

D. SJide the paneJ aHthe way in and repeat on the other

side,

NOTE: If storm window Nocks AC, see FIG. 12.

Keep a firm grip on d_eair conditioner, carefully

pk_cethe unit into the whldow opening so the

bottom of the ah7c<mditkmer fi:ame is against the

window sill (FIG,

6), Care ftlH y CJose

the whldow bellh_d

the top rail of the

tuni t,

B. Slide the flee end (F'section) of the panel hlto tlle

cabinet as shown in Figures 3A, 3B & 4_SHde the

pand down. Be sure to leave el_ough space to sJip the

top and bottom of the fl'ame hlto the mils on the cabhlet. Extend the side pands out against the window

{rame (FIG. 7).

SZOOO357(En) 2 , 10/21/2004, 10:42 AM

Place the frame lock between the fi°ame

extensions and the window sill as shown

(Fig. 8). Drive 3/4" (19 nmO k)cking

screws through the frame k_ck and into the sit1

(FIG. 9). NOTE: '[b prevent wh_dow sill from

splitting, drill 1/8" (3 mm) pilot holes before

driving screws.

FIG. 8

Cut _bam seal and insert in the space

between the upper and lower sashes

(FIG. 13).

IfAC is Blocked by Storm

[ i

i l/iHH iii iWtl

Drive 1/2" (13 ram) ]ocMng screws

through fi°ame holes into window sash

(FIG. 10/11).

"Ib secure lower sash in place, attach right

angle sash lock with 3/4" (19 mm) screw

as shown (FIG. 12).

Add wood as shown in FIG. 14, or remove storm

window before air conditioner is installed.

FIG. 14 I_SASH

BOARD

STORM WINDOW THICKNESS

FRAME AS REQUIRED,

OR OTHER I 1/2" MIN FOR PROPER

OBSTRUCTION (38 ram) , PITCH TO

ENTIRE SILL.

FASTEN WITH

NAILS OR

SCREWS,

If Storm Window Frame must remain, be sm:e the

drain holes or slots arc not caulked or painted

shut.Accumulated Rain Water or Condensation

must be allowed to drain out.

Removing AC From

* 2i_rn AC off, and disconnect power cord.

* Remove sash seal from between windows,

and unscrew safcD_ lock.

* Remove screws installed through flame and

frame tock.

* Close (slide) side panels into frame.

* Keeping a firm gaip on air conditioner, raise

sash and carefully "rock" air conditioner

backward to drain any condensate water in

base of unit. Be careful not to spitl aW

remaining water while lifting unit from

window: Store parts WITH air conditioner.
