This USE & CARE MANUAL provides specific operating instructions for your model. Use the room air conditioner only as

instructed in this USE & CARE MANUAL. These instructions are not meant to cover every possible condition and situation that

may occur. Common sense and caution must be practiced when installing, operating, and maintaining any appliance.

The power supply cord with

this air conditioner contains a current

detection device designed to reduce the risk

of fire.

UPlease refer to the section 'Operation of

Current Device' for details.

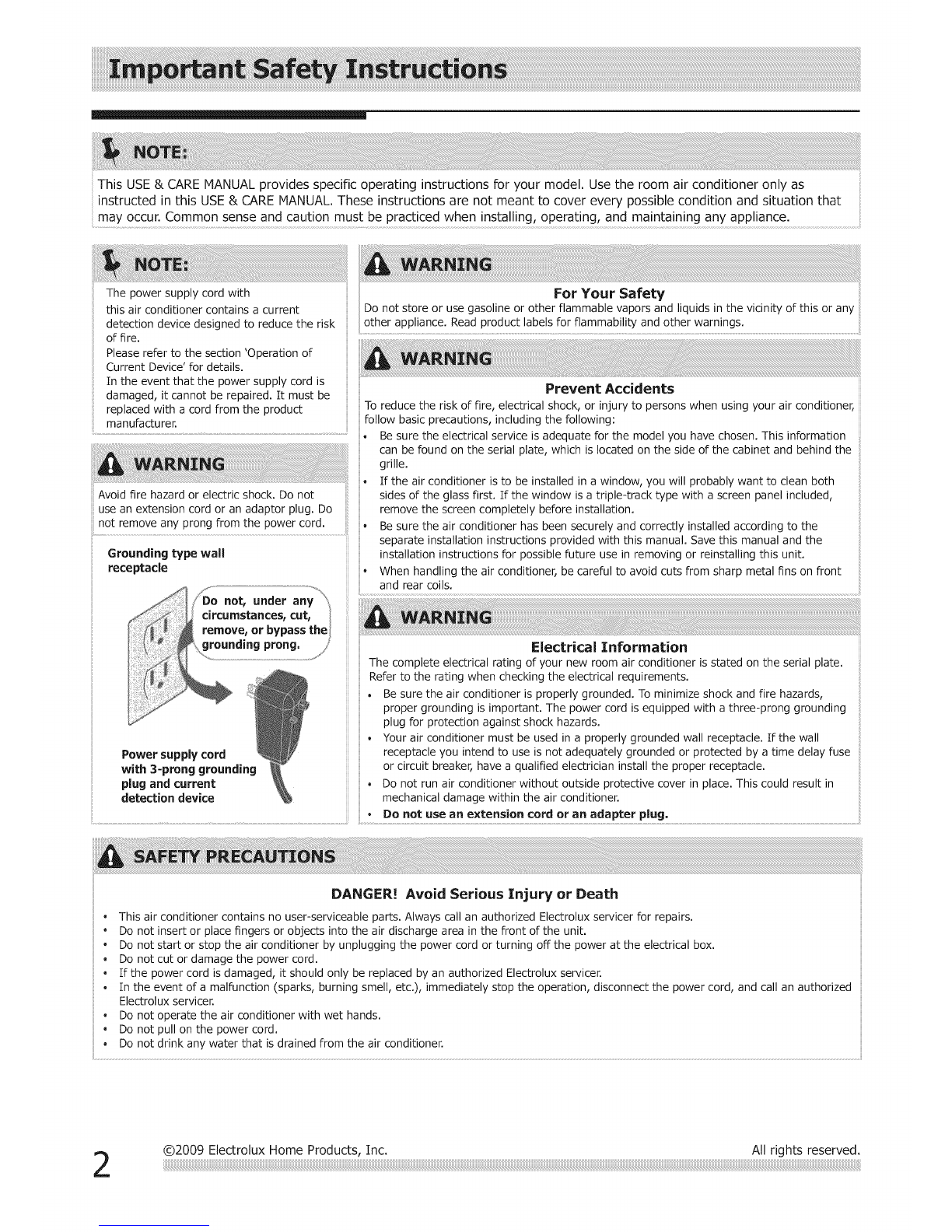

For Your Safety

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any

other appliance. Read product labels for flammability and other warnings.

In the event that the power supply cord is Prevent Accidents

damaged, it cannot be repaired, tt must be

replaced with a cord from the product To reduce the risk of fire, electrical shock, or injury to persons when using your air conditionel

manufacturer, followbasicprecautions,includingthefollowing:

° Be sure the electrical service is adequate for the model you have chosen. This information

Avoid fire hazard or electric shock. Do not

use an extension cord or an adaptor plug. Do

not remove any prong from the power cord.

can be found on the serial plate, which is located on the side of the cabinet and behind the

grille.

• If the air conditioner is to be installed in a window, you will probably want to clean both

iiii ii sides of the glass first. If the window is a triple-track type with a screen panel included,

remove the screen completely before installation.

• Be sure the air conditioner has been securely and correctly installed according to the

separate installation instructions provided with this manual. Save this manual and the

installation instructions for possible future use in removing or reinstalling this unit.

•When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front

and rear coils.

DANGER.IAvoid Serious Injury or Death

This air conditioner contains no user-serviceable parts. Always call an authorized Electrolux servicer for repairs.

Do not insert or place fingers or objects into the air discharge area in the front of the unit.

Do not start or stop the air conditioner by unplugging the power cord or turning off the power at the electrical box.

Do not cut or damage the power cord.

If the power cord is damaged, it should only be replaced by an authorized Electrolux servicer.

In the event of a malfunction (sparks, burning smell, etc.), immediately stop the operation, disconnect the power cord, and call an authorized

Electrolux servicer.

• Do not operate the air conditioner with wet hands.

• Do not pull on the power cord.

• Do not drink any water that is drained from the air conditioner.

CAUTION. IAvoid Injury or damage to the unit or other property

Provide occasional ventilation during use. Do not direct airflow at fireplaces or other heat related sources as this could cause flare ups or make

units run excessively.

Do not climb on or place objects on outdoor part of the unit.

Do not hang objects off the unit.

Do not place containers with liquids on the unit.

Turn off the air conditioner at the power source when it will not be used for an extended period of time.

Periodically check the condition of the unit's installation accessories for any damage.

Do not apply heavy pressure to the radiator fins of the unit.

Operate the unit with air filter in place.

Do not block or cover the intake grille, discharge area and outlet ports.

Ensure that any electrical/electronic equipment is one yard away from the unit.

Do not use or store flammable gases near the unit.

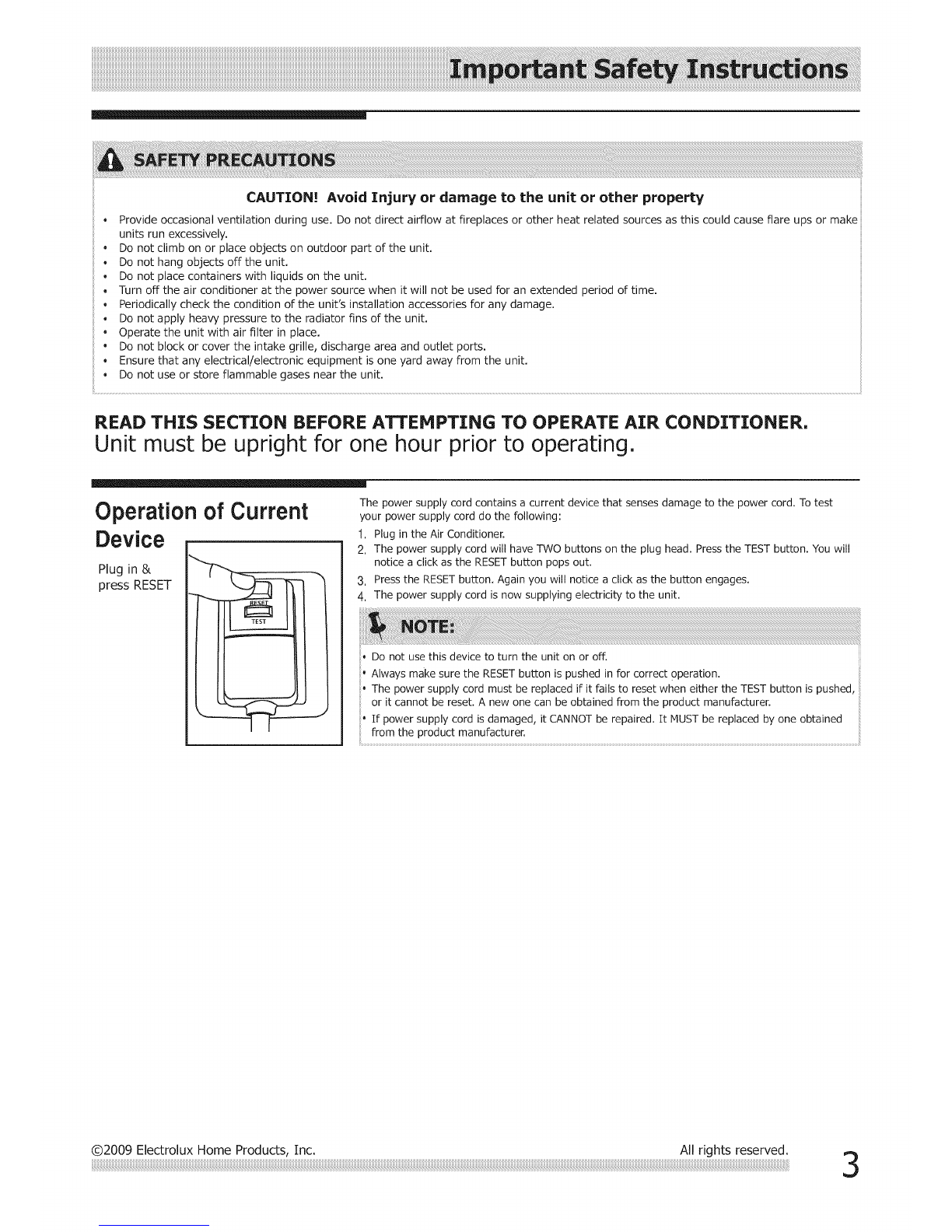

READ THIS SECTION BEFORE ATTEMPTING TO OPERATE AIR CONDITIONER.

Unit must be upright for one hour prior to operating.

Operation of Current

Device

Plug in & _,

press RESET

The power supply cord contains a current device that senses damage to the power cord. To test

your power supply cord do the following:

1. Plug in the Air Conditioner.

2. The power supply cord will have TWO buttons on the plug head. Press the TEST button. You will

notice a click as the RESETbutton pops out.

3. Press the RESET button, Again you will notice a click as the button engages,

4. The power supply cord is now supplying electricity to the unit,

,Do not use this device to turn the unit on or off.

• Always make sure the RESET button is pushed in for correct operation.

, The power supply cord must be replaced if it fails to reset when either the TEST button is pushed,

or it cannot be reset. A new one can be obtained from the product manufacturer.

•If power supply cord is damaged, it CANNOT be repaired, It MUST be replaced by one obtained

from the product manufacturer.

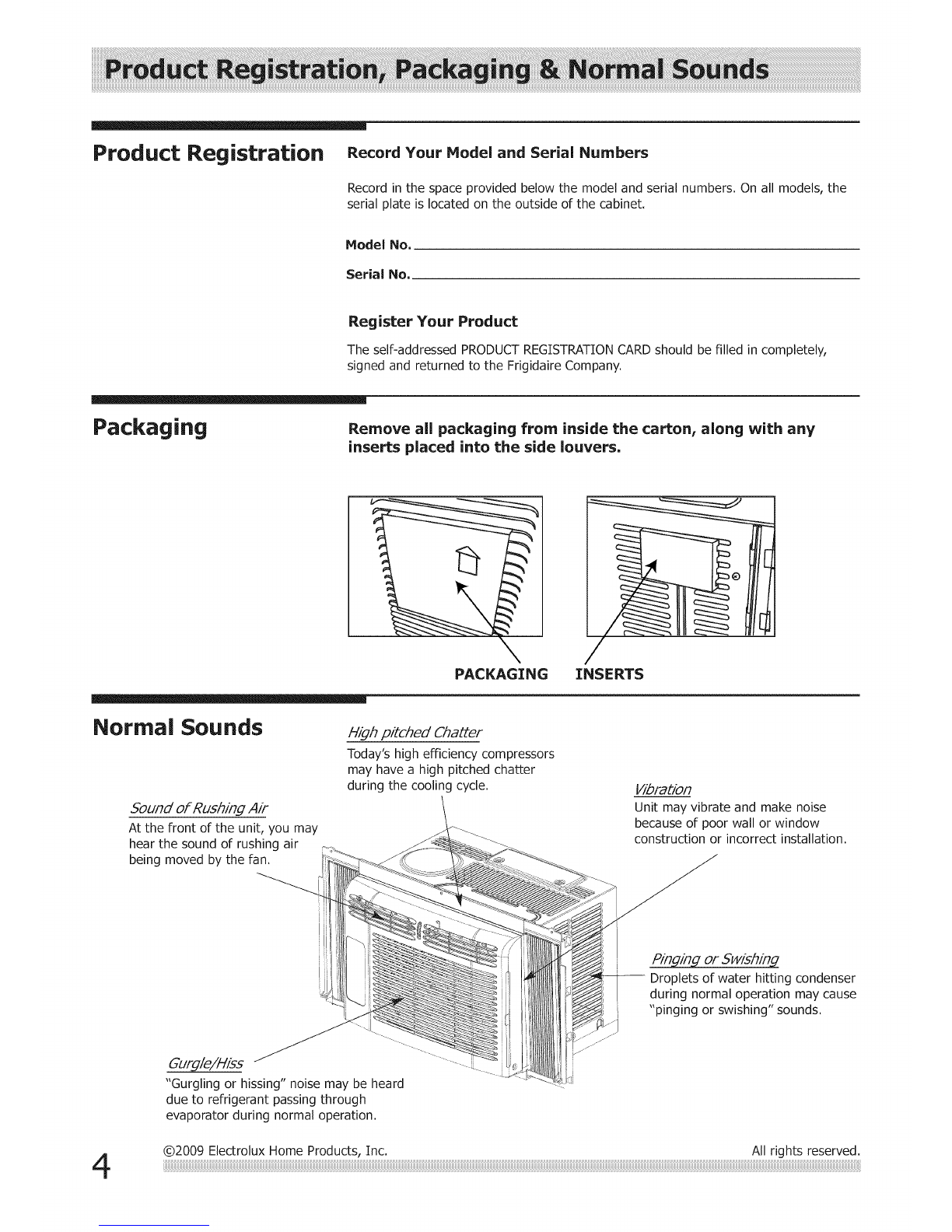

Product Registration Record Your Model and Serial Numbers

Record in the space provided below the model and serial numbers. On all models, the

serial plate is located on the outside of the cabinet.

Model No.

Serial No.

The self-addressed PRODUCT REGISTRATION CARD should be filled in completely,

signed and returned to the Frigidaire Company.

Packaging Remove all packaging from inside the carton, along with any

inserts placed into the side louvers,

PACKAGING /

INSERTS

Normal Sounds

Sound of Rushing Air

At the front of the unit, you may

hear the sound of rushing air

being moved by the fan.

High pitched Chatter

Today's high efficiency compressors

may have a high pitched chatter

during the cooling cycle. Vibration

Unit may vibrate and make noise

because of poor wall or window

construction or incorrect installation.

Pinging or Swishing

-- Droplets of water hitting condenser

during normal operation may cause

"pinging or swishing" sounds.

Gurgle/Hiss

"Gurgling or hissing" noise may be heard

due to refrigerant passing through

evaporator during normal operation.

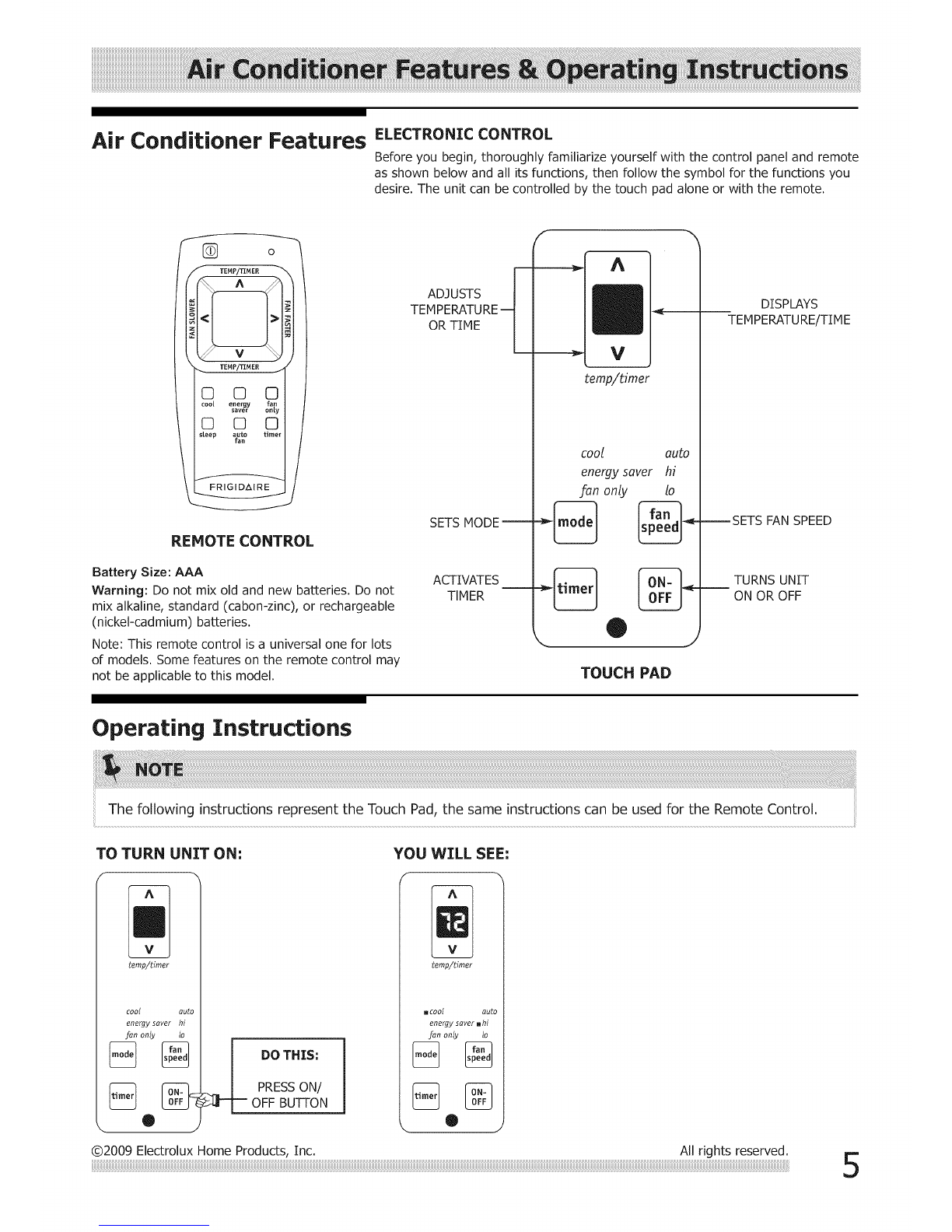

Air Conditioner Features ELECTRONIC CONTROL

Before you begin, thoroughly familiarize yourself with the control panel and remote

as shown below and all its functions, then follow the symbol for the functions you

desire. The unit can be controlled by the touch pad alone or with the remote.

REMOTE CONTROL

Battery Size: AAA

Warning: Do not mix old and new batteries. Do not

mix alkaline, standard (cabon-zinc), or rechargeable

(nickel-cadmium) batteries.

Note: This remote control is a universal one for lots

of models. Some features on the remote control may

not be applicable to this model.

AD] USTS |

TEMPERATURE-- 1

OR TIME I

SETS MODE

ACTIVATES

TIMER

temp/timer

cool

energy saver

fan only

auto

DISPLAYS

TEMPERATURE/TIME

_SETSFAN SPEED

TURNS UNIT

ON OR OFF

TOUCH PAD

The following instructions represent the Touch Pad, the same instructions can be used for the Remote Control.

TO TURN UNIT ON: YOU WILL SEE:

temp/timer

cool auto

energy saver hi

fan only lo

DO THIS:

PRESSON/

OFF BUTTON

temp/timer

mcool auto

energy saver mhi

fan only lo

Operating Instructions

(continued)

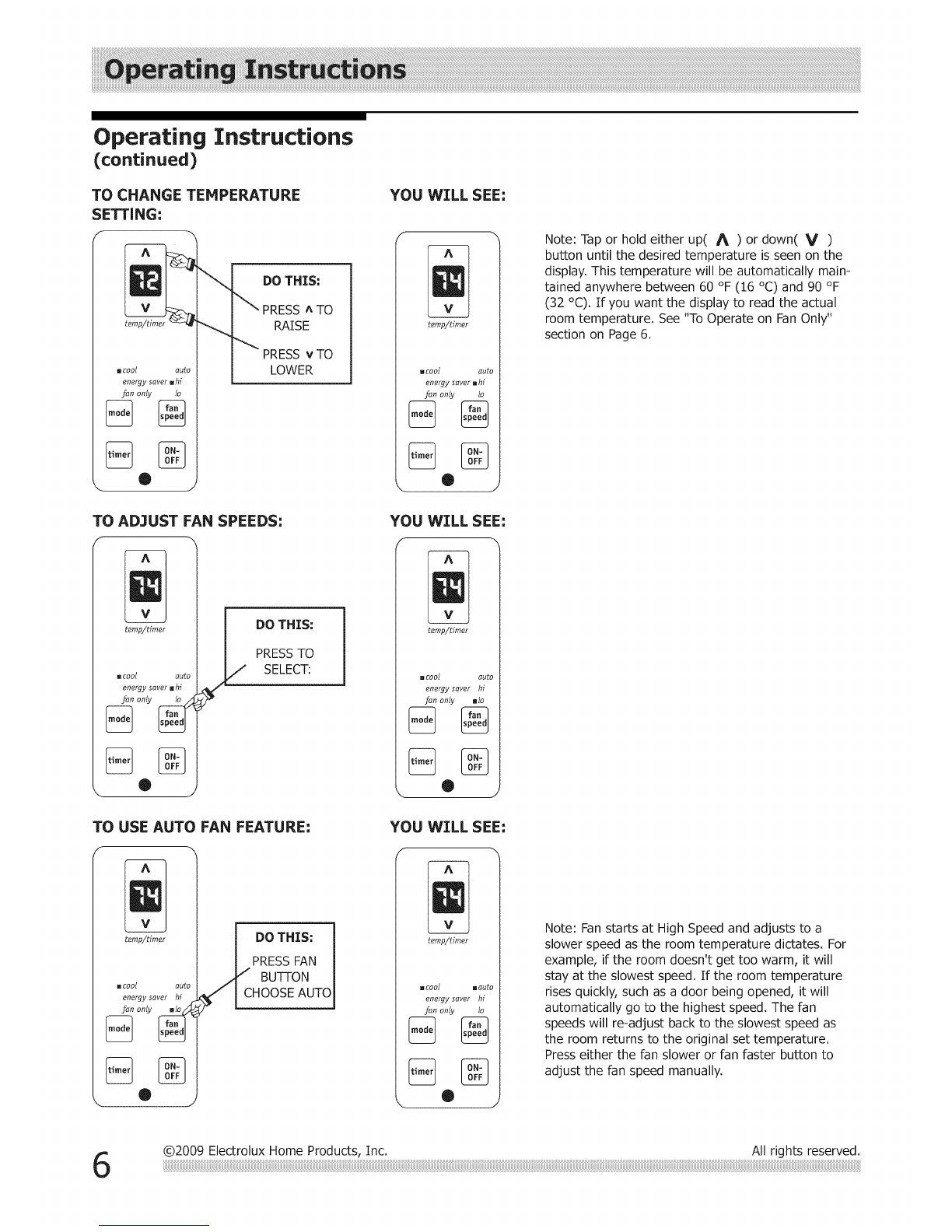

TO CHANGE TEMPERATURE

SETTING;

letup/diner

mcool auto

energy saver mhi

fan only to

DO THIS:

PRESS ^ TO

RAISE

PRESS vTO

LOWER

TO AD3UST FAN SPEEDS:

YOU WILL SEE:

f 'x

temp/timer

mcool auto

energy saver mhi

fan only to

YOU WILL SEE;

Note: Tap or hold either up( a ) or down( V )

button until the desired temperature is seen on the

display. This temperature will be automatically main-

tained anywhere between 60 °F (16 °C) and 90 °F

(32 °C). If you want the display to read the actual

room temperature. See "To Operate on Fan Only"

section on Page 6.

tamp/timer

!COOl auto

energy saver mhi

Ion only

DO THIS:

PRESS TO

SELECT:

TO USE AUTO FAN FEATURE;

tamp/timer

!coot auto

energy saver hi

fan only rote

YOU WILL SEE;

!coot auto

energy saver hi

fan only role

DO THIS:

PRESSFAN

BUTTON

CHOOSE AUTO

temp/timer

retool mauto

energy sever hi

fan only to

Note: Fan starts at High Speed and adjusts to a

slower speed as the room temperature dictates. For

example, if the room doesn't get too warm, it will

stay at the slowest speed. If the room temperature

rises quickly, such as a door being opened, it will

automatically go to the highest speed. The fan

speeds will re-adjust back to the slowest speed as

the room returns to the original set temperature.

Press either the fan slower or fan faster button to

adjust the fan speed manually.

Operating Instructions

(continued)

TO OPERATE ON FAN ONLY:

temp/tfmer

YOU WILL SEE:

[] cool [] auto

energy saver hi

fan only lo

®/

DO THIS;

PRESS MODE

BUTTON

CHOOSE FAN

ONLY

TO USE THE ENERGY SAVER

FEATURE:

temp/timer

tamp/timer

cool auto

energy saver •hi

•fan only lo

,. J

YOU WILL SEE:

tamp/rimer

Note: Use this function only when cooling is not

desired, such as for room air circulation or to exhaust

stale air on some models. (Remember to open the vent

during this function, but keep it closed during cooling

for maximum cooling efficiency.) You can choose any

fan speed you prefer. (Except "Auto Fan").

During this function, the display will show the actual

room temperature, not the set temperature as in

the cooling mode.

cool auto

energy saver mhi

mfanonly to DO THIS:

PRESSMODE

BUTTON

CHOOSE

ENERGY SAVER

TIMER: DELAY STOP [START

FEATURE

cool outo

[]energy saver mhi

fan only lo

Note: In this mode, the fan will continue to run for 1

minute after the compressor shuts off. The fan then

cycles on for 20 seconds at 10 minute intervals until

the room temperature is above the set temperature,

at which time the compressor turns back on and

cooling starts.

YOU WILL SEE HOW MUCH TIME IS CHOSEN:

FIRST

DO THIS:

PRESS

BUTTON

THEN

DO THIS:

PRESS

UP/DOWN

SET BUTTONS

tamp/timer

cool auto

•energy saver mhi

fanon@ lo

Note: For Delay Stop, the unit must be in the On position.

Note: For Delay Start, the unit must be in the Off position.

To adjust timer setting, tap or hold the UP arrow ( A ) or

the DOWN arrow ( V) to change delay timer at 0.5 hour

increments, up to 10 hours, then at 1 hour increments up

to 24 hours. The control will count down the time remain-

ing until start (8, 7.5, 7, etc.). The Delay Start mode auto-

matically selects cooling with maximum Fan Speed. The

temperature maintained will be the same as previously set.

To change the set temperature, press "COOL" then Up or

Down arrows until the desired temperature is indicated on

the display. After 5 seconds, the control will automatically

change the display back to the hours remaining until the

unit will start/stop. Turning the unit "ON" or "OFF" at any

time will cancel the Delay Start/Stop function.

The Delay Start/Stop Feature will work until the unit either

starts or stops. Once that happens, the above steps have

to be repeated again.

Operating Instructions

(continued)

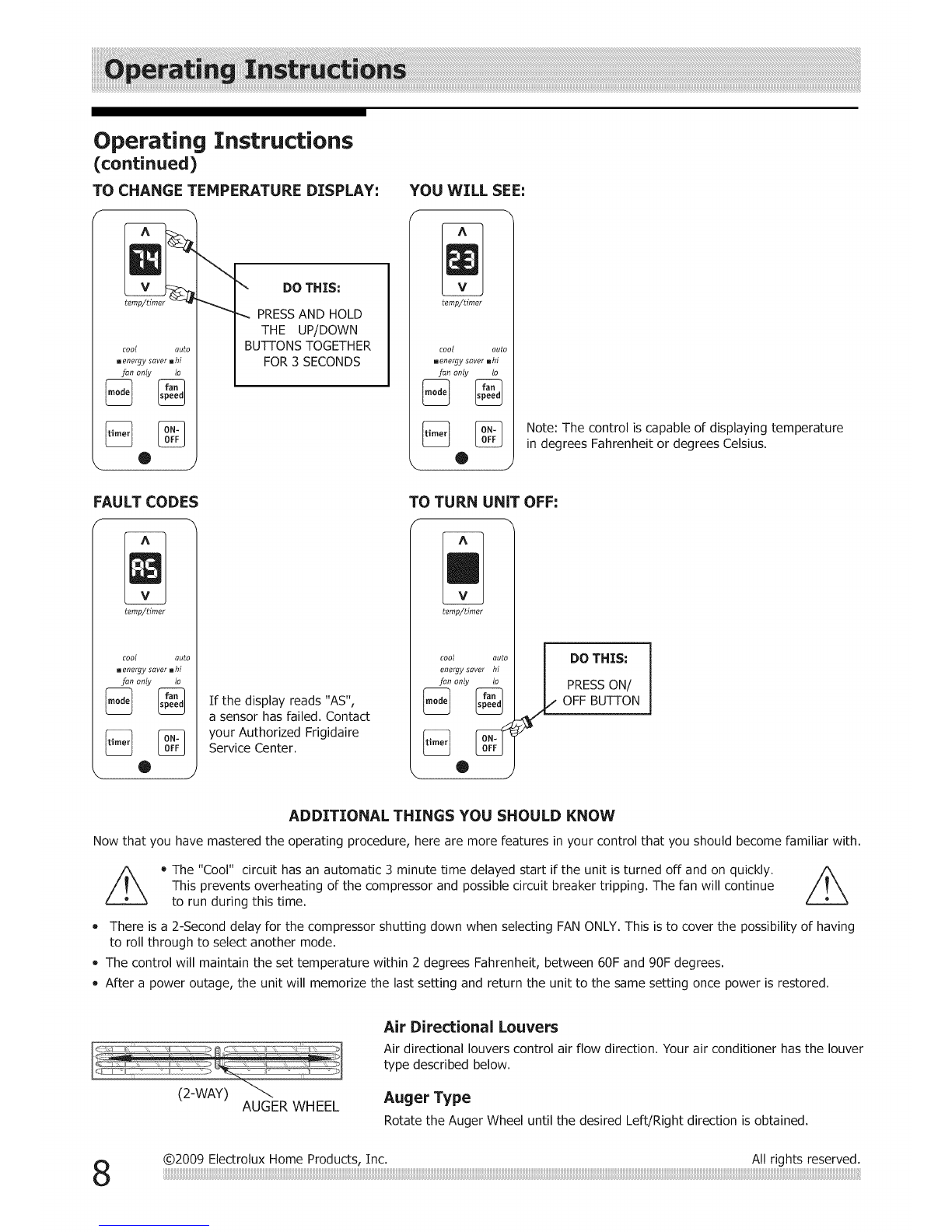

TO CHANGE TEMPERATURE DISPLAY:

temp/timer

cool auto

menergy severlhi

fan only lo

DO THIS;

PRESSAND HOLD

THE UP/DOWN

BUTTONS TOGETHER

FOR 3 SECONDS

FAULT CODES

temp/timer

YOU WILL SEE:

temp/timer

cool auto

menergy sever lhi

fan only lo

,. ® ,1

Note: The control is capable of displaying temperature

in degrees Fahrenheit or degrees Celsius.

TO TURN UNIT OFF:

cool auto

menergy saver lhi

fan only lo

If the display reads "AS",

a sensor has failed. Contact

your Authorized Frigidaire

Service Center.

letup/timer

cool auto

energy saver hi DO THIS;

I PRESSON/

ADDITIONAL THINGS YOU SHOULD KNOW

Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.

• The "Cool" circuit has an automatic 3 minute time delayed start if the unit is turned off and on quickly.

This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue

to run during this time.

• There is a 2-Second delay for the compressor shutting down when selecting FAN ONLY. This is to cover the possibility of having

to roll through to select another mode.

, The control will maintain the set temperature within 2 degrees Fahrenheit, between 60F and 90F degrees.

• After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.

AUGER WHEEL

Air Directional Louvers

Air directional louvers control air flow direction. Your air conditioner has the louver

type described below.

Auger Type

Rotate the Auger Wheel until the desired Left/Right direction is obtained.

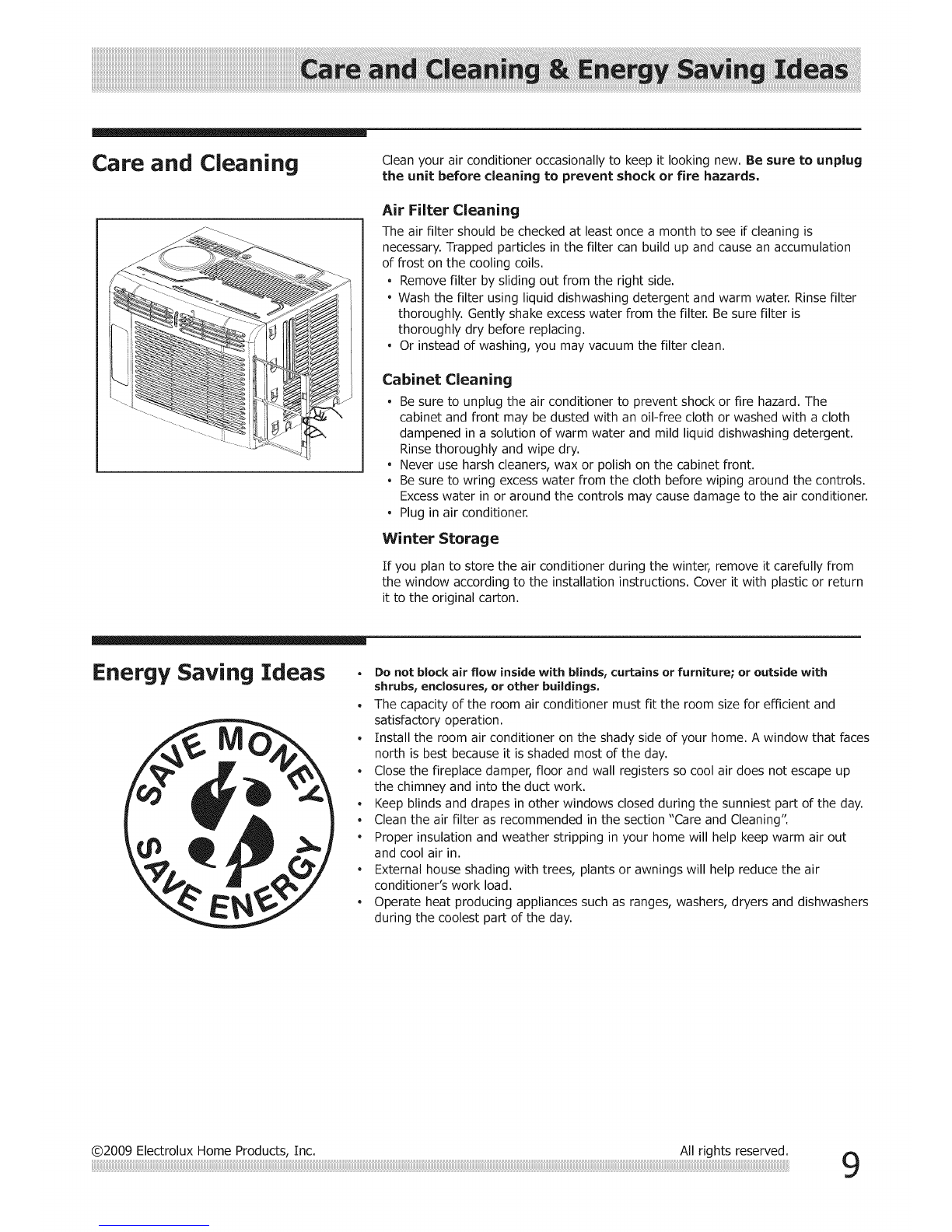

Care and Cleaning Clean your air conditioner occasionally to keep it looking new. Be sure to unplug

the unit before cleaning to prevent shock or fire hazards.

Air Filter Cleaning

The air filter should be checked at least once a month to see if cleaning is

necessary. Trapped particles in the filter can build up and cause an accumulation

of frost on the cooling coils.

• Remove filter by sliding out from the right side.

• Wash the filter using liquid dishwashing detergent and warm water. Rinse filter

thoroughly. Gently shake excess water from the filter. Be sure filter is

thoroughly dry before replacing.

•Or instead of washing, you may vacuum the filter clean.

Cabinet Cleaning

•Be sure to unplug the air conditioner to prevent shock or fire hazard. The

cabinet and front may be dusted with an oil-free cloth or washed with a cloth

dampened in a solution of warm water and mild liquid dishwashing detergent.

Rinse thoroughly and wipe dry.

•Never use harsh cleaners, wax or polish on the cabinet front.

•Be sure to wring excess water from the cloth before wiping around the controls.

Excess water in or around the controls may cause damage to the air conditioner.

•Plug in air conditioner.

Winter Storage

If you plan to store the air conditioner during the winter, remove it carefully from

the window according to the installation instructions. Cover it with plastic or return

it to the original carton.

Do not block air flow inside with blinds, curtains or furniture; or outside with

shrubs, enclosures, or other buildings,

The capacity of the room air conditioner must fit the room size for efficient and

satisfactory operation.

Install the room air conditioner on the shady side of your home. A window that faces

north is best because it is shaded most of the day.

Close the fireplace damper, floor and wall registers so cool air does not escape up

the chimney and into the duct work.

Keep blinds and drapes in other windows closed during the sunniest part of the day.

Clean the air filter as recommended in the section "Care and Cleaning".

Proper insulation and weather stripping in your home will help keep warm air out

and cool air in.

External house shading with trees, plants or awnings will help reduce the air

conditioner's work load.

Operate heat producing appliances such as ranges, washers, dryers and dishwashers

during the coolest part of the day.

Beforecallingforservice,reviewthislist.Itmaysaveyoutimeandexpense.Thislistincludescommonoccurrencesthatarenot

theresultofdefectiveworkmanshipormaterialsinthisappliance.

OCCURRENCE SOLUTION

Air conditioner will not operate. Wall plug disconnected. Push plug firmly into wall outlet.

Plug Current Device Tripped. Press the RESET button.

House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker.

Control is OFF. Turn Control ON and set to desired setting.

Air from unit does not feel cold

enough. Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above

60°F (16°C).

Temperature sensing element touching cold coil, located behind air filter. Straighten away from coil.

Reset to a lower temperature.

Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to

restart when set in the COOL mode.

Air conditioner cooling, but room

is too warm =ice forming

on cooling coil behind decorative

front

Outdoor temperature below 60 °F (16 °C). To defrost the coil, set FAN ONLY mode.

Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY

mode.

Temperature is set too Low for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then,

set temperature to a higher setting.

Air conditioner cooling, but room

is too warm =NO ice forming on

cooling coil behind decorative

front.

Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section.

Temperature is set too high. Set temperature to a lower setting.

Air directional louvers positioned improperly. Position louvers for better air distribution.

Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in

front of unit.

Doors, windows, registers, etc. open - cool air escapes. Close doors, windows, registers, etc.

Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling,

floor and furniture.

Air conditioner turns on and off

rapidly. Dirty air filter - air restricted. Clean air filter.

Outside temperature extremely hot. Set FAN speed to a faster setting to bring air through cooling coils

more frequently.

Noise when unit is cooling. Air movement sound. This is normal. If too loud, set to lower FAN setting.

Window vibration - poor installation. Refer to installation instructions or check with installer.

Water dripping INSIDE when Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to

unit is cooling, installation instructions or check with installer.

Water dripping OUTSIDE when Unit removing large quantity of moisture from humid room. This is normal during excessively humid

unit is cooling, days.

Room too cold, Set temperature too low. Increase set temperature.

If These Solutions Fail, Call :&=800=944=9044 For Frigidaire Service,

This manual suits for next models

Table of contents

Other Frigidaire Air Conditioner manuals

Frigidaire

Frigidaire GAC122P1A User manual

Frigidaire

Frigidaire FFRA0522R1 Owner's manual

Frigidaire

Frigidaire FAA067P7 User manual

Frigidaire

Frigidaire FAQ085S7A11 User manual

Frigidaire

Frigidaire EC300W-FA User manual

Frigidaire

Frigidaire FAX051P7 User manual

Frigidaire

Frigidaire FFRE25L3Q20 Owner's manual

Frigidaire

Frigidaire GAH085Q1T - GIBSON 8000BTU 115V 8.0A 9.4EE3 SPD 4 WAY AIR... User manual

Frigidaire

Frigidaire 220219A174 User manual

Frigidaire

Frigidaire FRA054XT70 User manual

Frigidaire

Frigidaire FRA122BU1 User manual

Frigidaire

Frigidaire FRA104CV111 User manual

Frigidaire

Frigidaire LRA107BU1 User manual

Frigidaire

Frigidaire FAA082P7A User manual

Frigidaire

Frigidaire FAC064K7A2 User manual

Frigidaire

Frigidaire FRS124YW10 Owner's manual

Frigidaire

Frigidaire FRA18EMU2 Installation instructions

Frigidaire

Frigidaire FAH12ER2T - 12 Quick start guide

Frigidaire

Frigidaire FAH146Q2T4 Quick start guide

Frigidaire

Frigidaire FAA055T7A0 Owner's manual

Frigidaire

Frigidaire FAK127P1V User manual

Frigidaire

Frigidaire FAA065M7A1 User manual

Frigidaire

Frigidaire FFHP362ZQ2 User manual

Frigidaire

Frigidaire FFRE053WA1 Owner's manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Samsung

Samsung AS09HM3N user manual

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Mitsubishi Electric

Mitsubishi Electric MSC-GE20VB operating instructions
