Frigidaire FAS297Q2A2 User manual

Product No. FAS297Q2A1 FAS297Q2A2

Series heavy duty heavy duty

Volts 230/208 230/208

BTU-Cooling 28500/28000 28500/28000

Owner's Guide 220218a007 220218a007

Installation Instructions 220218a00 220218a00

Market Lowes Lowes

P40L2006.eps MHD06parts01.eps 2202219012_WD.tif

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995464012

06/03/24

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAS297Q2

Publication No: 5995464012 FAS297Q2

03/06 2

RECOMMENDED SPARE PARTS

FAS297Q2 Publication No: 5995464012

# Functional Parts 3 03/06

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

Model Index: AFAS297Q2 (FAS297Q2A1)

BFAS297Q2 (FAS297Q2A2)

POS. NO PART NO. DESCRIPTION

1 5304455467 A B Panel, access, front

2 5304455468 A B Filter, air

3 5304455469 A B Panel, frame, front

4 5304455470 A B Tray, drip

5 5304455471 A B Scroll, blower housing, front

6 # 5304455472 A B Blower Wheel, centrifugal fan

7 5304455473 A B Scroll, blower housing, rear

8 5304455474 A B Bulkhead, partition, right

9 5304455475 A B Base, unit chassis

10 # 5304455476 A - Motor, fan

10 # 5304455517 - B Motor, fan, Asynchronism

11 # 5304455518 A B Compressor

12 5304455478 A B Shroud, condenser fan

13 5304455479 A B Baffle, air

14 # 5304455480 A B Fan Blade, axial flow

15 5304455481 A B Cover, condenser fan

16 5304455482 A B Cabinet, wrapper/sleeve

17 # 5304455483 A B Condenser

18 # 5304455519 A B Capacitor

19 5304455485 A B Strap, capacitor mtg.

20 # 5304455486 A B Terminal, block, main

21 # 5304455448 A B Transformer

22 # 5304455487 A B PC Board, control, main

23 5304455488 A B Box, electronic mtg

24 5304455489 A B Cover, front

25 5304455490 A B Door, air vent

26 5304455491 A B Bulkhead, partition, front/left

27 5304455492 A B Link, lever/vent door

28 # 5304455520 A B Evaporator

29 5304455505 A B Knob, louver control

30 5304455506 A B Louver, vertical

32 5304455507 A B Louver, horizontal

33 5304455508 A B Link, lever/vent door

35 5304455527 A B Retainer, shutter

36 5304455528 A B Shutter, accordion panel

37 5304455525 A B Frame, shutter, RH, extension

38 5304455526 A B Frame, shutter panel, LH

39 # 5304455377 A B Remote Control, transmitter

41 5304455510 A B Front Panel Assy., incl/3, 29 & 30

42 # 5304455509 A B Display Board

42* 5304455523 A B Overlay, control display

43 5304455511 A B Panel, display mtg

46 # 5304455512 A B Tube, discharge, formed

47 # 5304455521 A B Capillary Tube

48 # 5304455522 A B Suction Tube

50 # 5304455524 A B Power Cord, LCDI, test/reset

* 5304455457 A B Bracket, mounting, thermistor

* # 5304455228 A B Thermistor, temp sensor, evaporator

* # 5304455231 A B Thermistor, temp sensor, indoor

Publication No: 5995464012 FAS297Q2

03/06 4

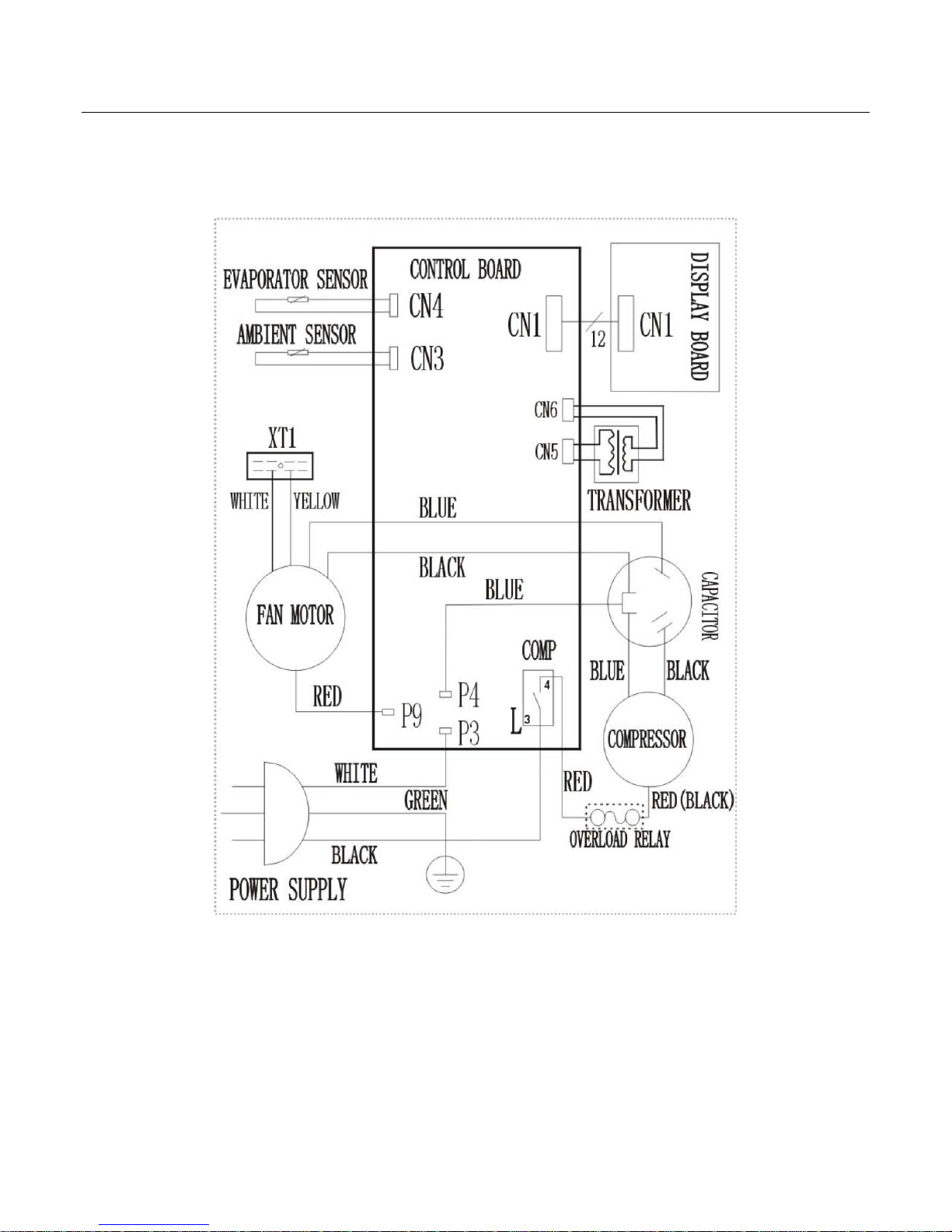

WIRING DIAGRAM
