Frigidaire FAH106J1T2 User manual

PRODUCT NO. BASE MODEL NO. WIRING DIAGRAM MARKET BTU-COOLING

FAH106J1T2 FAH106J1T 309107701 USA 10000 BTU

Publication No.

5995348397

010112

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAH106J1T

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309107701

OWNER’S GUIDE - # 309000823

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

08/01 2

Publication No. FAH106J1T

5995348397

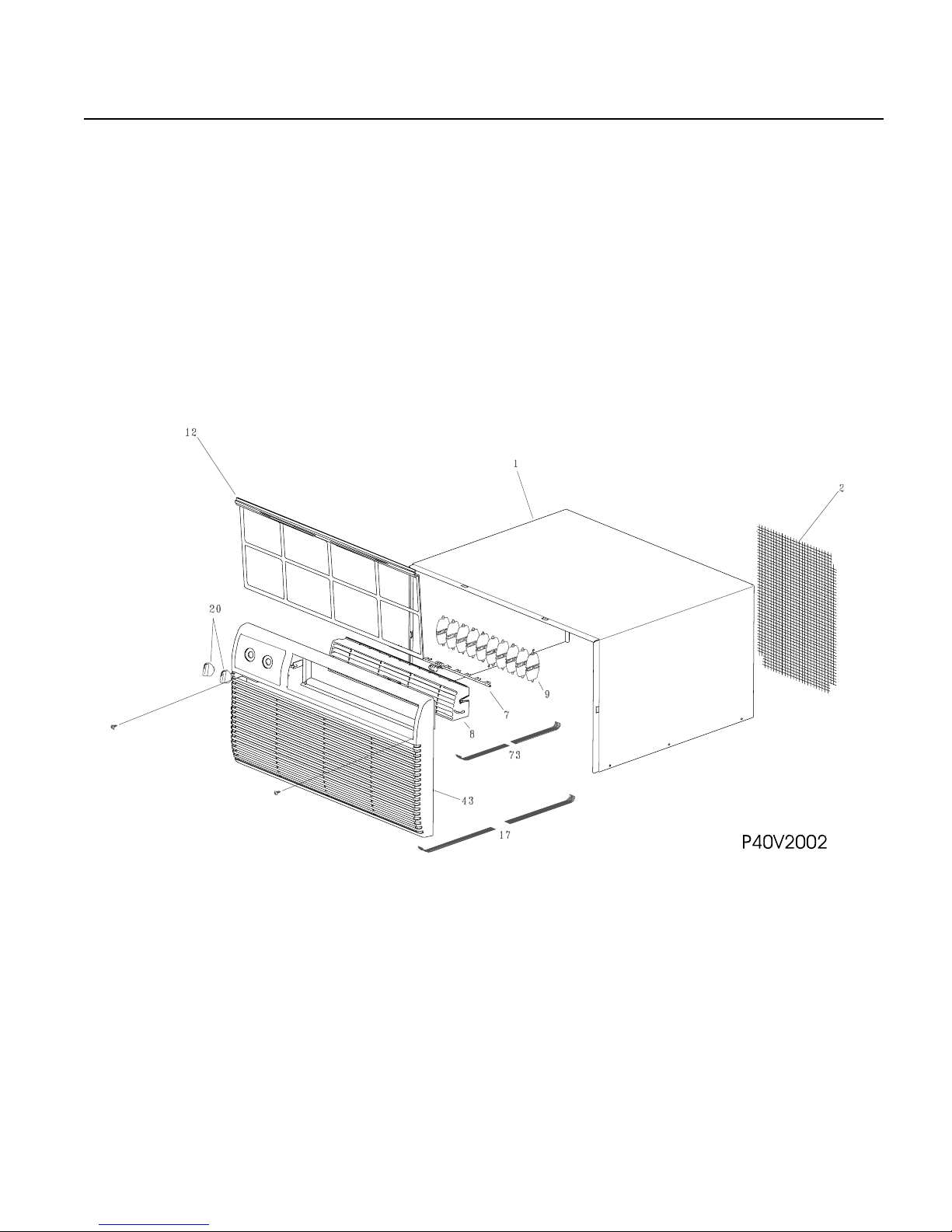

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FAH106J1T Publication No.

5995348397

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309627504 Cabinet-,U-bend 18.5BLD

2 309636101 Screen-safety,18.5BLD

7 309324004 Link-handle

8 309628004 Louver,horizontal

9 309628104 Louver-vertical

12 309628204 Filter,air ,molded plastic ,grey

17 309629405 Front assy,18.5 bld cool

20 309307011 Knob-control

20* 309307013 Knob-control

43 309631805 Front assy,control/label

73 309629304 Louver Assy,grey

* 5304402119 Seal-tube

* 5304408740 Panel-Rear plastic

08/01 4

Publication No. FAH106J1T

5995348397

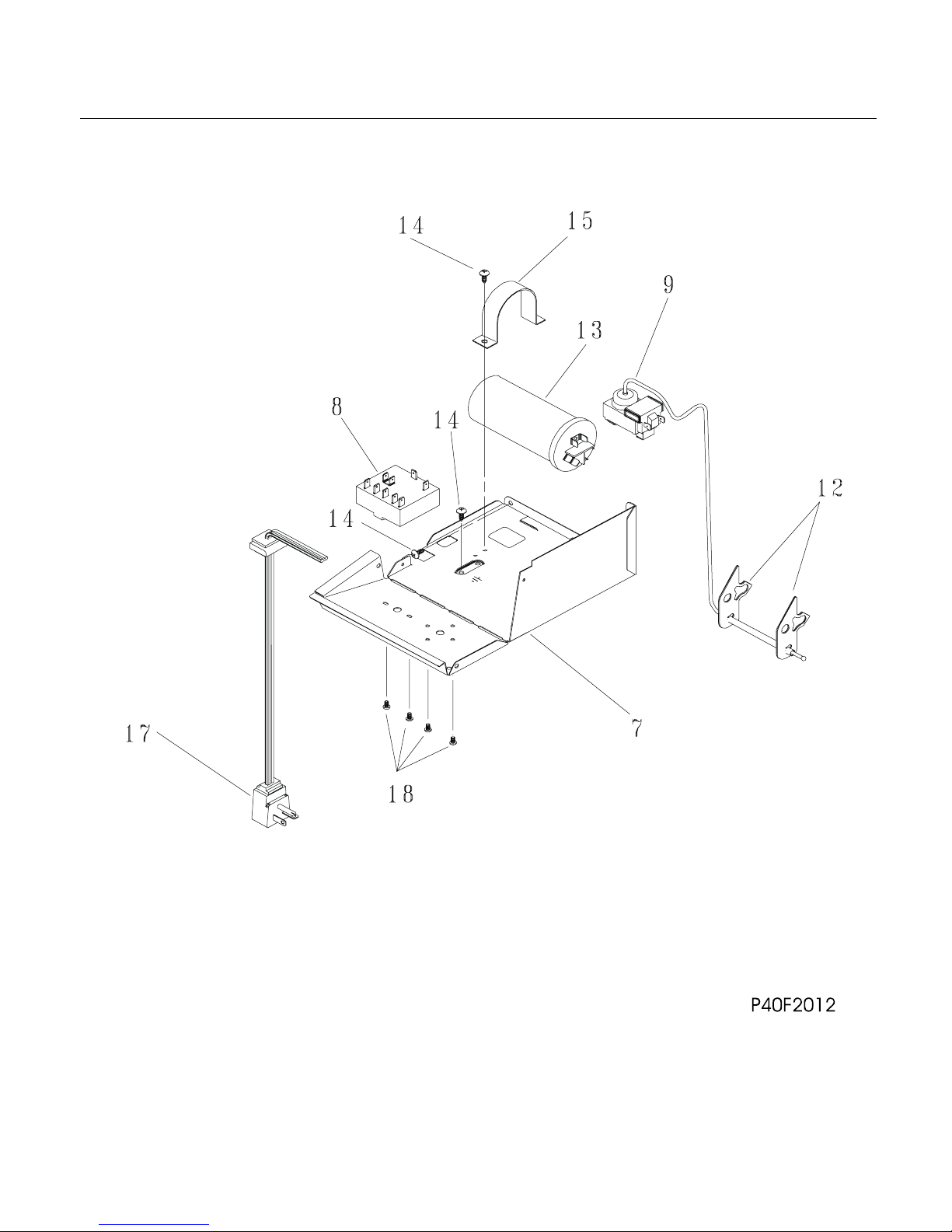

CONTROLS

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FAH106J1T Publication No.

5995348397

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309628501 Box-control

8 # 5304408739 Switch,GE 3sp l

9 5304408746 Control-temperature,12AMP

10* 309111201 Grommet,wire protector

12 309329801 Clip-sensor bulb

13 # 5303318963 Capacitor,370 V

14 3015312 Screw,8-18AB x 0.500

15 5303303077 Strap-capacitor

17 309343108 Cord-service,type A ,115V/16GA

18 5303007754 Screw,6-32 x 0.188

35 3200761 Spacer-control bulb

08/01 6

Publication No. FAH106J1T

5995348397

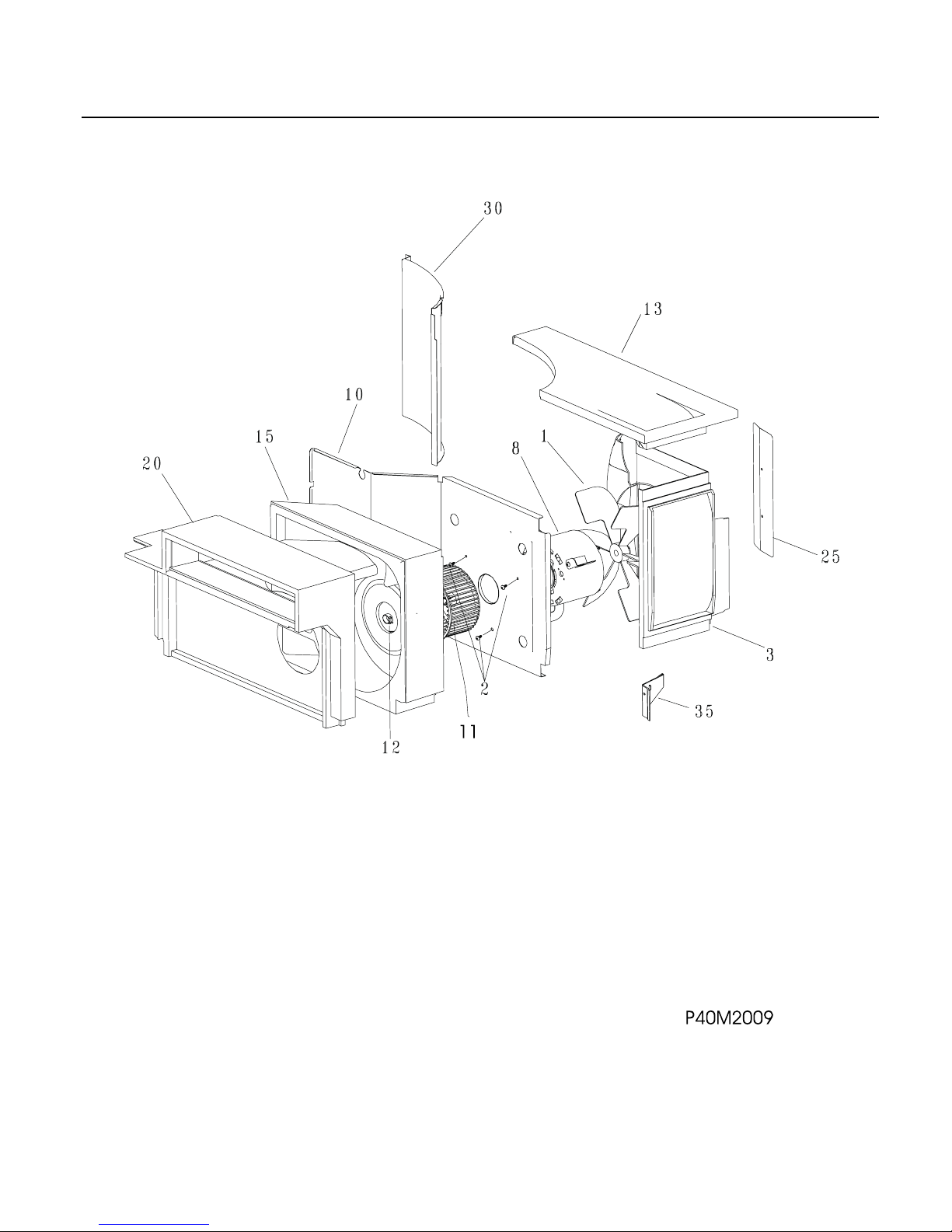

AIR HANDLING PARTS

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FAH106J1T Publication No.

5995348397

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309629102 Blade-fan ass’y

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309628901 Shroud-condenser

5 3202951 Seal-fan housing,bottom

8 # 5304408764 Motor-fan,GE 3sp w/lds ,230v/60

10 309627401 Bulkhead

11 # 309631701 Blower Wheel

12 309112101 Clamp-blower

12 5303012110 Clamp-blower

13 309628802 Top-cover

14 3015312 Screw,8-18AB x 0.500

15 309622801 Scroll

18 5303007754 Screw,6-32 x 0.188

20 309622901 Scroll plate

25 309335201 Baffle-air

30 309629001 Partition,shroud,galv-steel

35 309335001 Baffle-splash/motor

08/01 8

Publication No. FAH106J1T

5995348397

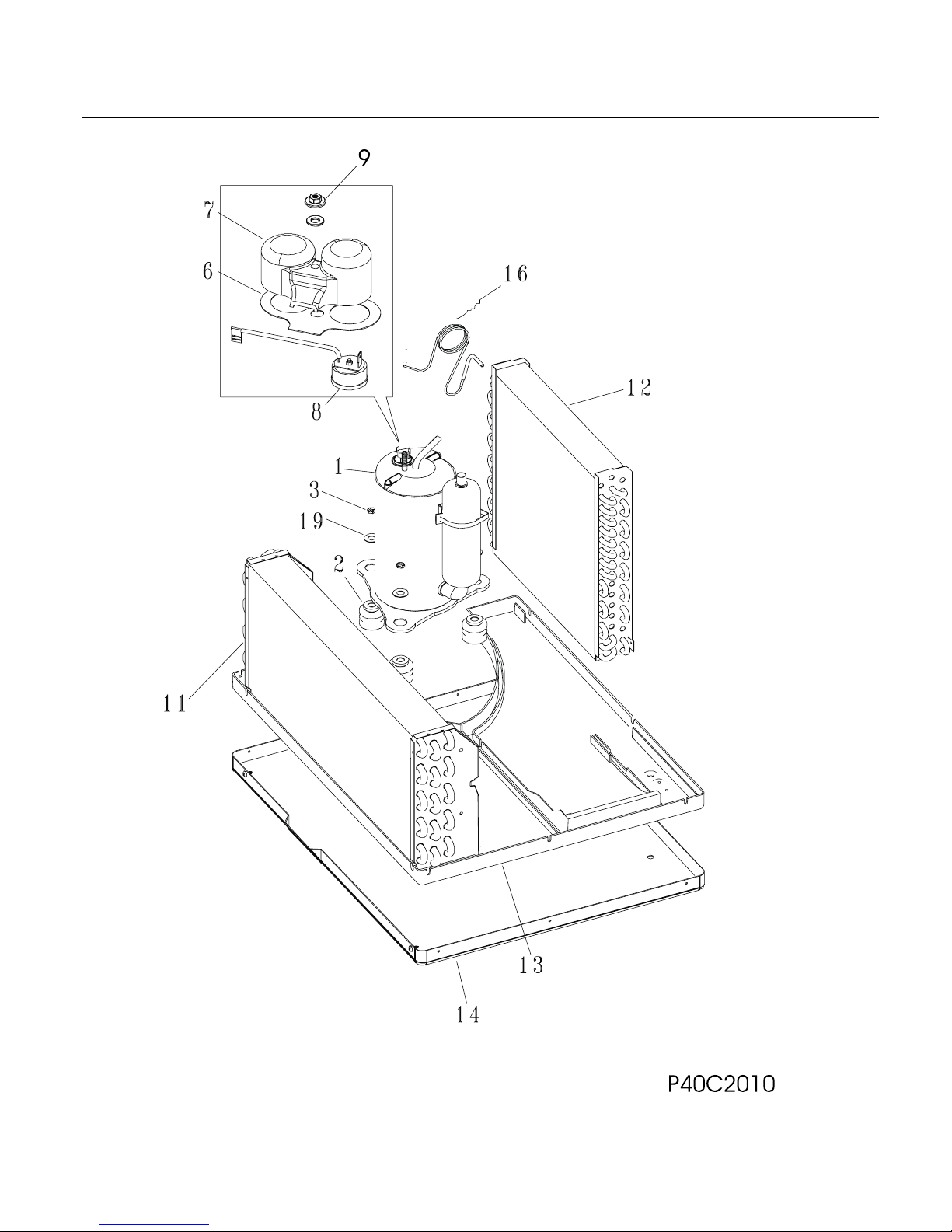

COMPRESSOR PARTS

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FAH106J1T Publication No.

5995348397

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 5304419112 Compressor-sanyo,806-014-42

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3200282 Gasket-cover

7 3200281 Cover-terminal

8 # 5303295567 Overload Protector

9 5303211017 Nut-terminal cover

11 # 309632307 Evap-assy,2RW/17FPI

12 # 309632501 Condenser-assy

13 309628705 Tray-base

14 309632005 Base/compr,stakd stud assy

16 # 5303289577 Capillary Tube,40 inch long ,cut-to-length

19 309112501 Washer,metallic

19* 5303002664 Washer,compressor mtg

08/01 10

Publication No. FAH106J1T

5995348397

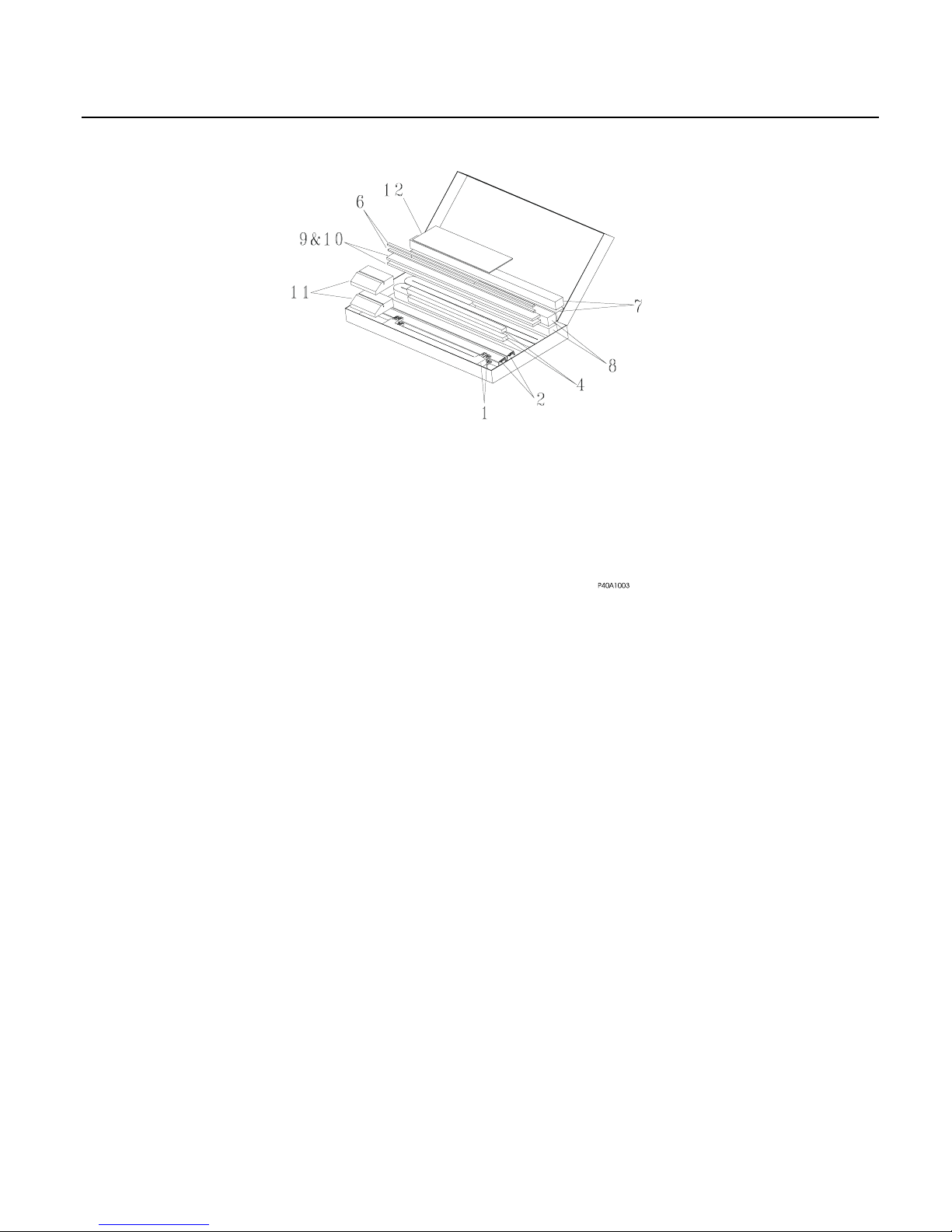

WINDOW MOUNTING PARTS

POS. NO PART NO DESCRIPTION

1 309628603 Trim

2 309628604 Trim frame-top & sides (2)

3 5304409303 Kit-wire grounding

4 5304409304 Block,tapered

5 5303301038 Seal-wrapper

6 5304409305 Seal-bracket end,cond

7 5304409306 Seal-rear panel,condenser

8 5304409307 Seal-rear pnl/sides,condenser

9 5304409308 Seal-rear pnl top/botm,cond

10 5304409309 Seal-rear pnl/sides,cond

11 5304409310 Block-cabinet/chassis

12 309335101 Divider,cond in/out

13 5304409311 Kit-grille mtg

15 309636002 Kit-mtg complete
