Frigidaire FAC065L7A2 User manual

ROOM AIR CONDITIONER

Model No.

FAC065L7A

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309341601

OWNER’S GUIDE - # 309000825

ENERGY GUIDE - # 309367484

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

PRODUCT NO. BASE MODEL NO. VOLTS BTU-COOLING

FAC065L7A2 FAC065L7A 115 6100 BTU

MARKET

North America

Publication No.

5995371639

020508

-EN/SERVICE /BLT

345

05/02 2

Publication No. FAC065L7A2

5995371639

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 05/02

* = Non-Illustrated Parts

FAC065L7A2 Publication No.

5995371639

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet

1* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

8 309640204 Louver Assy,Includes8&9

8* 309639302 Louver,horizontal

9 309647201 Louver,vertical ,with link

12 309343501 Filter-air,7.12 x 17.31 ,no frame

17 309640104 Front-cabinet,4 way ,complete assy

* 3015312 Screw,8-18AB x 0.500

19 309340802 Overlay,control

25 309328603 Door,fresh air vent

26 309638201 Handle,vent door

26A 309330201 Detent,vent

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

70 309342201 Enclosure,elec control mt

78 309342604 Remote Control,transmitter ,with batteries

05/02 4

Publication No. FAC065L7A2

5995371639

CONTROLS

# = Fast-moving Parts 5 05/02

* = Non-Illustrated Parts

FAC065L7A2 Publication No.

5995371639

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309643801 Control Box

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 5304413782 Holder,thermistor ,w/seal

13 # 5304426449 Capacitor,250 V ,35+5 mfd

14 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

15 309351901 Strap,capacitor mtg.

17 # 309343101 Cord-electric power,18 AWG ,115 V

* 3015312 Screw,8-18AB x 0.500

70 309342201 Enclosure,elec control mt

71 309340503 PC Board,power

72 # 309340505 PC Board,input ,11.5 MM display

72* 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Support,PC board

76 309111601 Transformer,120/12 Volt

05/02 6

Publication No. FAC065L7A2

5995371639

AIR HANDLING PARTS

# = Fast-moving Parts 7 05/02

* = Non-Illustrated Parts

FAC065L7A2 Publication No.

5995371639

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309646202 Fan Blade,with clamp

1* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing,fan shroud

4 5303303759 Seal,bottom

5 5304421913 Seal,top

6 08007481 Nut,Keps ,motor mtg ,(4)

8 # 309645002 Motor,fan

10 309643702 Bulkhead

11 # 309643302 Blower Wheel,8mm hub

12 327161302 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643004 Plate,housing/scroll

05/02 8

Publication No. FAC065L7A2

5995371639

COMPRESSOR PARTS

05/02 9

FAC065L7A2 Publication No.

5995371639

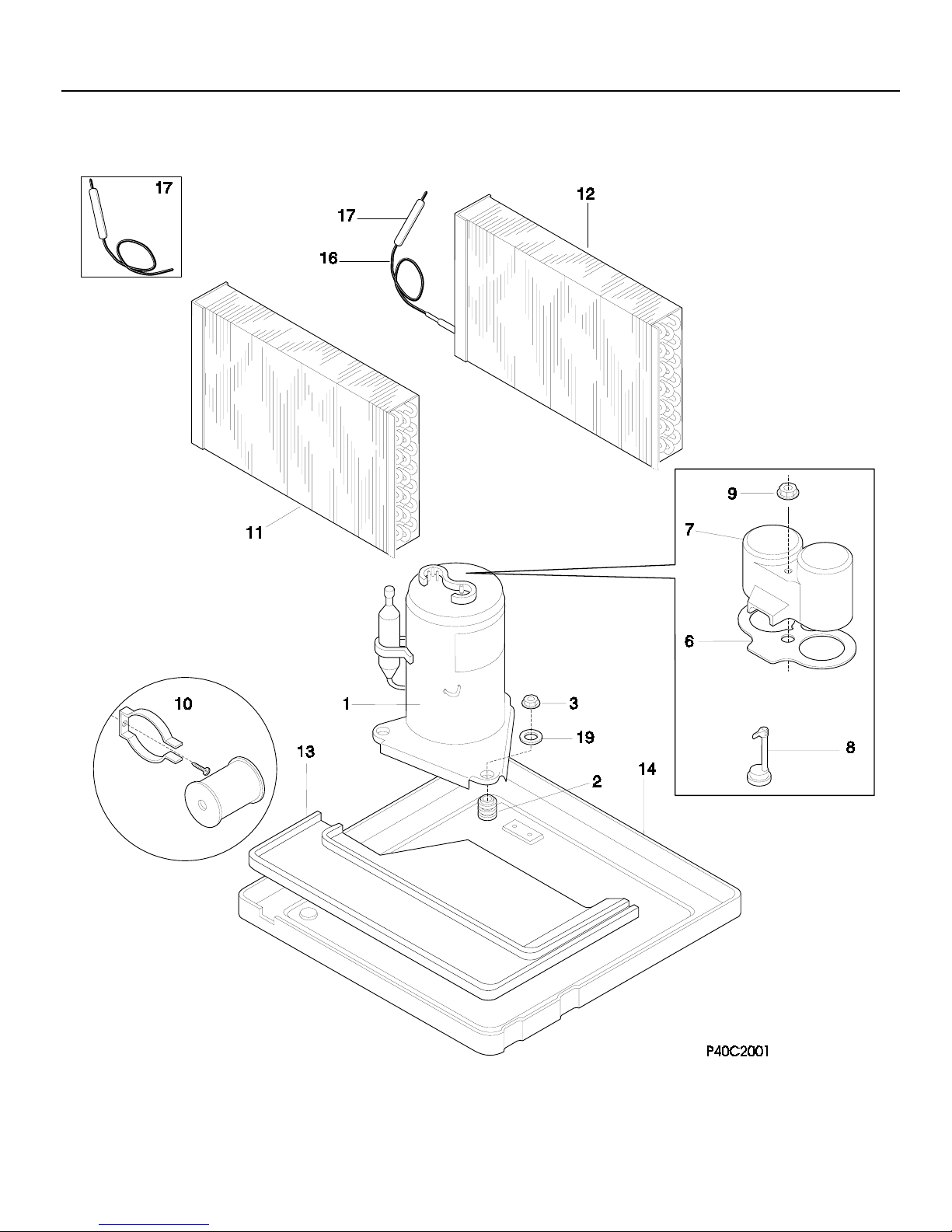

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309616921 Compressor

1* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 3201668 Gasket,terminal cover

7 5304405245 Cover,compr terminal

8 # 5303317553 Overload Protector

9 3201670 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309637507 Evaporator

12 # 309645303 Condenser

13 # 309642801 Tray,evap drip

14 309644003 Base,compressor mt. ,with studs

16 # 5308017120 Capillary Tube,45 inch long ,cut to length

17 # 5300265301 Drier-filter,service kit

17* 5303290357 Strainer

19 5303002664 Washer,compressor mtg

19* 309112501 Washer,metallic

05/02 10

Publication No. FAC065L7A2

5995371639

WINDOW MOUNTING PARTS
