Frigidaire FAA065P7A2 User manual

u m

READ BEFORE iNSTALLING UNIT

MS niWindow Mounting

Your ah"conditioner is desigl_ed to install in skmdard

double lumg windows with opening widths ol 22 to 36

inches (559 mm to 914 ram) (FIG. l)

Lower sash must open suificiemly to allow a clear vertical

opening of 14-1/2 inches (368 ram). Side louvers and the

rear of the AC must have clear air space to allow

enough airllow through the condensel; hn" heat removal.

The rear of the unit must be outdoors, not inside a

building or garage°

When handling unit, be careful to avoid cuts

f?om sharp metal edges and aluminum fins on

front and rear coils.

Beibre installing unit, the top rail must be

assembled on the unit.

_lbp Rail Hardware Qty.

3/8" Screw 4

Top Rail 1

NOTE: SAVE CARTON and these INSTALLA-

TiON iNSTRUCTiONS fin:fmnre reference. The caJlon is

the best way to store unit during wimer, or when not h_use.

Some assemNy is required. Please read these instructions

Mounting Hardware

3/4 'screws

lock frame

sash lock

TOOLS NEEDED:

• Drill (if pik)t hales are needed)

Qty.

TOOL NEEDED:

* PhilBips Screwdriver

A. Remove the air

conditioner flTomthe

cmlon and place on a

flat surface.

B. Remove top rail from

tlle bottom of the

packaging material as

shown in Fig. A

C. Align the hole in the

the top of the unit as

shown in Fig. B

D. Secure the top raiI to

rite unit with the 3/8"

Screws as shown in

Fig. (7

Packagitlg .

Top Rail

Fig. A

NOTE: FOR SAFETY REASONS, ALL

FOUR (4) SCREWS MUST BE SECURELY

FASTENED.

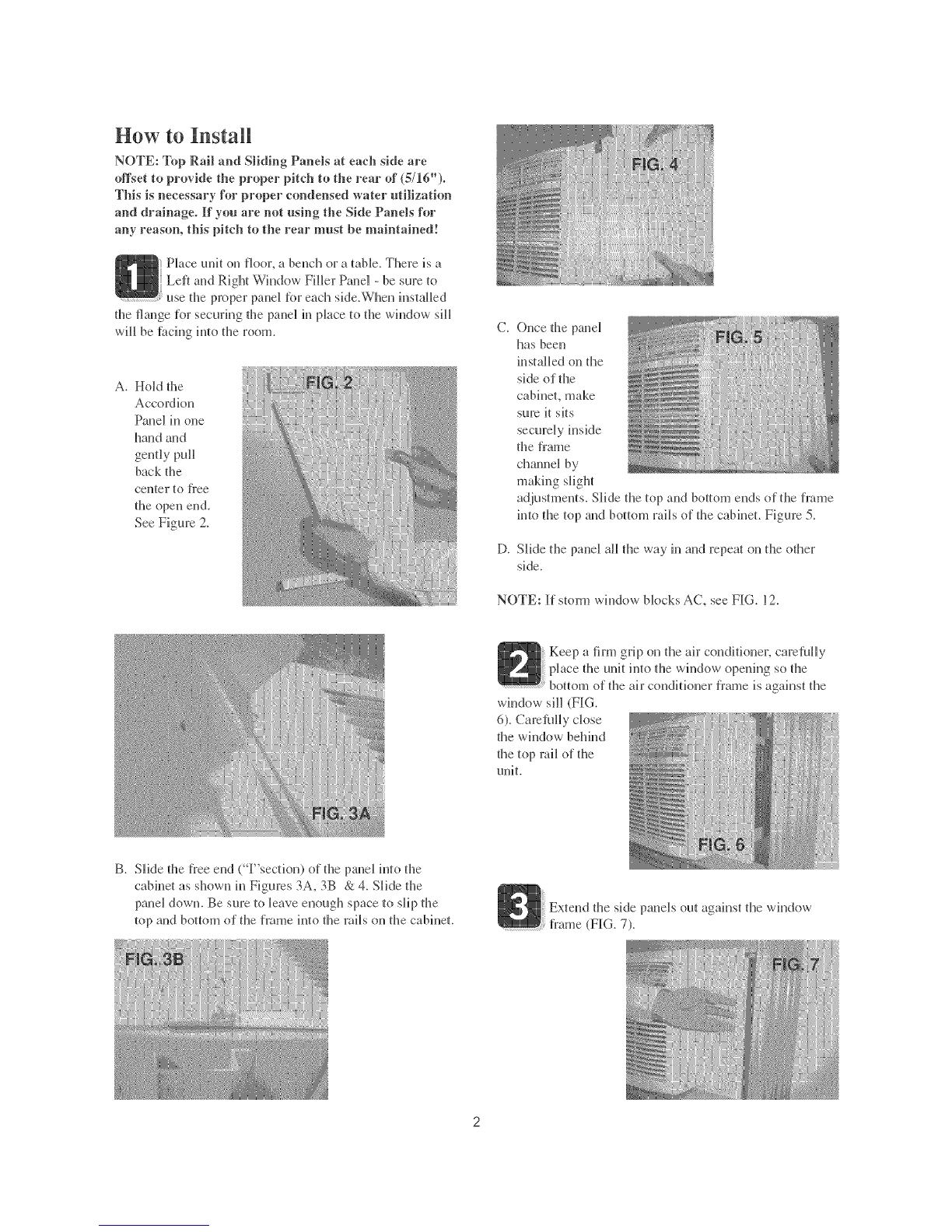

How to Install

NOTE: Top Rail and Sliding Panels at each side are

o_gset to provide the proper pitch to the rear of (5/16").

This is necessary for proper condensed water utilization

and drainage. If you are not using the Side Panels for

any reason, this pitch to the rear must be maintained!

Place unit on floor, a bench or a table, There is a

Left and Right Window Filler Panel - be sure to

use the proper panel _i_reach side,When installed

the []ange [or securhlg the panel hi place to the window sill

will be [)acing into the morn,

A. Hold file

Accordion

Pane] in one

hand and

geJlt]y pull

back the

center to }]ee

the open end.

See Figure 2.

C, Once the panel

has been

hlstaHed on the

side of the

cabinet, make

sure it sits

file [rame

making Might

adjustments. SHde the top and bottom ends of the [tame

into the top and bottom rails of file cabinet. Figure 5.

D. Slide the panel aH the way hi and repeat on the oilier

side.

NOTE" If storm window blocks AC, see FIG, 12,

Keep a firm grip on the air conditioner, carefully

place file unit into the window opening so the

bottom of the ai r conditioner }rame is against the

window sill (FIG.

6). Carefully close

the window behind

the top rail of the

unit,

B, Slide the fl:ee end (I"section) of the panel hlto the

cabinet as shown in Figures 3A, 3B & 4_ SHde the

panel down. Be sure to leave el_ough space to sJip the

top and bottom of the fl'ame into the mils on the cabinet. ExteJld the side pands out against the window

h:arne(FIG, 7),

Place the fi°ame lock between the fl°ame

extensions and the window sill as shown

(Fig. 8). Drive 3/4" (19 ram) locking

screws through the frame tock and into the sill

(FIG. 9). NOTE: '[b prevent window sill from

splitting, drill 1/8" (3 ram) pilot holes before

driving screws.

Cut _i)am seal and insert in the space

between the upper and lower sashes

(FIG. 13).

IfAC is Blocked by Storm

Drive 1/2" (13 ram) tocMng screws

through frame holes into window sash

(FIG. 10/11).

"Ii) secure tower sash in place, attach right

angte sash lock with 3/4" (19 mm) screw

as shown (FIG. 12).

Add wood as shown in FIG. 14, or remove storm

window be_i)re ah: conditioner is installed.

FIG. 14 [_SASH

BOARD

STORM WINDOW THICKNESS

FRAME AS REQUIRED,

OR OTHER 1 1/2" MIN FOR PROPER

OBSTRUCTION (38 ram) , PITCH TO

REAR A ON

ENTIRE SILL.

FASTEN WITH

NAILS OR

SCREWS,

If Storm Window Frame must remain, be sure the

drain holes or slots arc not caulked or painted

shut.Accumulated Rain Water or Condensation

must be allowed to drain out.

Removing AC From

* 2k_rn AC off, and disconnect power cord.

* Remove sash seal from between windows,

and unscrew safcD_ lock.

* Remove screws installed through frame and

fl°ame lock.

* Ctose (slide) side panels into frame.

* Keeping a firm ga°ip on air conditioner, raise

sash and carefully "rock" air conditioner

backward to drain any condensate water in

base of unit. Be careful not to spill aW

remaining water while lifting unit from

window: Store parts WITH air conditioner.
