Friedrich CP06E10 User manual

CP06 CP08

Power

Mode

Timer

0n/0ff

Fan

Speed

Temp

CoolMoney

Saver

Fan

Only

Dry

Auto

Swing

Power

Mode

Timer

0n/0ff

Fan

Speed

Temp

CoolMoney

Saver®

Fan

Only

Dry

Auto

Swing

200

Congratulations! Thank you for choosing

Friedrich.

Your Friedrich unit is designed for

maximum comfort and quietness.

Table of Contents

Introduction ..................................................................................2

Safety Precautions.......................................................................3

How to operate your Friedrich ...................................................5

Adjusting the Air Flow Direction.................................................6

Care and Maintenance .................................................................7

Hardware Location.......................................................................8

Installation Instructions

..........................................................

Troubleshooting Tips.................................................................17

Warranty......................................................................................18

GNE

Before Operating Your Unit

Make sure the wiring is adequate for your unit.

If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that

the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in figure 1.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical power to the unit; an extension cord will not.

Make sure that the receptacle is compatible with the wall plug provided.

This insures proper grounding. If you have a two-prong receptacle you will need to have the circuit replaced

by a certified electrician with a grounded circuit that meets all national and local codes and ordinances. You

must use the three-prong plug furnished with the air conditioner.

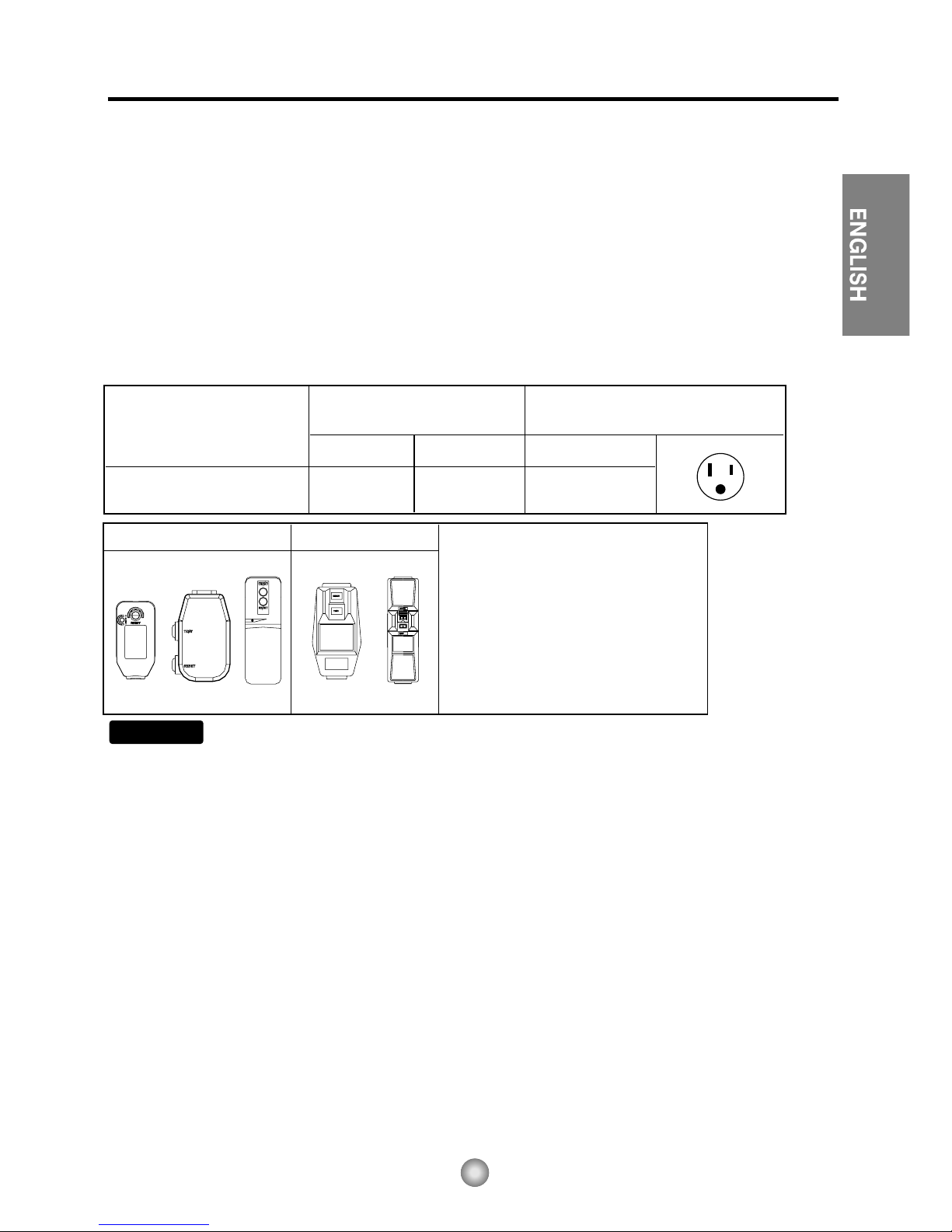

Figure 1

For the Best Cooling Performance and Energy Efficiency

Keep the filter clean

Make sure that your air conditioner is always in top performing condition by cleaning the filter regularly.

Instructions for removing and cleaning the filter can be found on page 7.

Provide good air flow

Make sure that the airflow to and from the unit is clear. Your air conditioner puts the air out at the side of

the unit, and takes in air at the left. Airflow is critical for good operation. It is just as important on the

outside of the building that the airflow around the unit exterior is not blocked.

Unit Placement

If your air conditioner can be placed in a window or a wall that is shaded by a tree or another building, the

unit will operate even more efficiently. Using drapes or blinds on the sunny side of the dwelling will also

add to your unit's efficiency.

Insulation

Good insulation will be a big help in maintaining desirable comfort levels. Doors should have weather

stripping. Be sure to caulk around doors and windows.

Introduction

MODEL

CP06 CP08

AMP VOLT NEMA NO.

15 125 5-15P

CIRCUIT RATING OR

TIME DELAY FUSE PLUG FACE

115V~ 230V~

Power cord may include a current

interrupter device. A test and reset button is

provided on the plug case. The device

should be tested on a periodic basis by first

pressing the TEST button and then the

RESET button. If the TEST button does not

trip or if the RESET button will not stay

engaged, discontinue use of the air

conditioner and contact a qualified service

technician.

Aluminum house wiring may pose special problems. Consult a qualified electrician.

N OT E!

ENGLISH

WARNING

Safety Precautions

To prevent injury and property damage, follow these instructions.

■Incorrect operation due to ignoring instructions can cause harm or damage. The seriousness is classified

by the following indications.

WARNING This symbol indicates the possibility of death or serious injury.

CAUTION This symbol indicates the possibility of injury or damage to

properties only.

■Meanings of symbols used in this manual are as shown below.

Never Do This

Always Do This

Plug in the power plug

properly.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

• It will cause electric shock or fire

due to heat generation.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire.

•

If the power cord is damaged, it must

be replaced by the manufacturer or a

Friedrich-certified service agent.

Do not modify power cord

length.

• It will cause electric shock or fire

due to heat generation.

Do not operate with wet

hands or in damp

environment.

• It will cause electric shock.

Do not direct air flow directly

at room occupants.

•

This could lead to health problems

Air

P urifier Power

Temp

Mode

Timer

S wing

Fan S peed

Auto

Swing

Power

Mode

Timer

0n/0ff

Fan

Speed

Temp

CoolMoney

Saver

Fan

Only

Dry

Auto

Swing

6. AUTO SWING

This button can automatically control the air flow

direction.

To receive the signal from remote controller.

dry operation.

(dehumidify operation)

Drain pipe

Drain cap

Care and Maintenance

Turn the power off and unplug the power plug before cleaning the air conditioner.

Air Filter

The air filter behind the inlet grille should be checked and cleaned at least once every 2 weeks (or as

necessary) to maintain optimal performance of the air conditioner.

How to remove the air filter

Drainage

The base pan may overflow due to high humidity. To drain

the excess water, remove the drain cap from the back of

the unit and secure the drainpipe. However, excess water may

drip out of the back of the basepan, which is normal operation.

When pressing the drainpipe into place, apply force in the

direction away from the fins to avoid injuring yourself.

1. Open the inlet grille upward by pulling out the bottom of the inlet grille.(a)

2. Remove the air filter from the front grille assembly by pulling the air filter up slightly.

3. Wash the filter using lukewarm water below 104°F(40°

C).(b)

4. Gently shake the excess water from the filter. When completely dry, replace the filter.

Air

PurifierPower

Temp

Mode

Timer

FanSpeed

Hardware Location

Product Features

CAUTION

This appliance should be installed in accordance with local and national wiring regulations. This

manual acts as a guide to help to explain product features.

Vertical Air Deflector

(Horizontal Louver)

Horizontal Air Deflector

(Vertical Louver)

Air Discharge

Cabinet

Air Filter

Air Intake(Inlet Grille)

Remote Controller

Front Grill

0/0ff

Dry

Evaporator

Control Board

Brace

Condenser

Base Pan

Compressor

Power Cord

0/0ff

Dry

ENGLISH

NOTE TO INSTALLER: Leave these

instructions with the air conditioner after

installation is complete.

NOTE TO CONSUMER: Keep this Installation

and Operation Manual for future use.

Important notes:

It is recommended that proper attire be worn

during installation.

For personal safety, this air conditioner must

be properly grounded.

It is important to have the wall outlet and circuit

checked by a qualified electrician if there is any

doubt as to whether a proper ground exists.

CAUTION:

Do not under any circumstances, cut or remove

the third (ground) prong from the power cord.

Do not change the plug on the power cord of

this air conditioner.

Aluminum house wiring may present special

problems ; consult a qualified electrician.

Before You Begin

Read these instructions completely and carefully.

Installation Instructions

❒Phillips-head screwdriver

❒Flat-blade screwdriver

❒Ruler or tape measure

❒Scissors or knife

❒Pencil

❒Level

❒Hammer

Tools You Will Need
