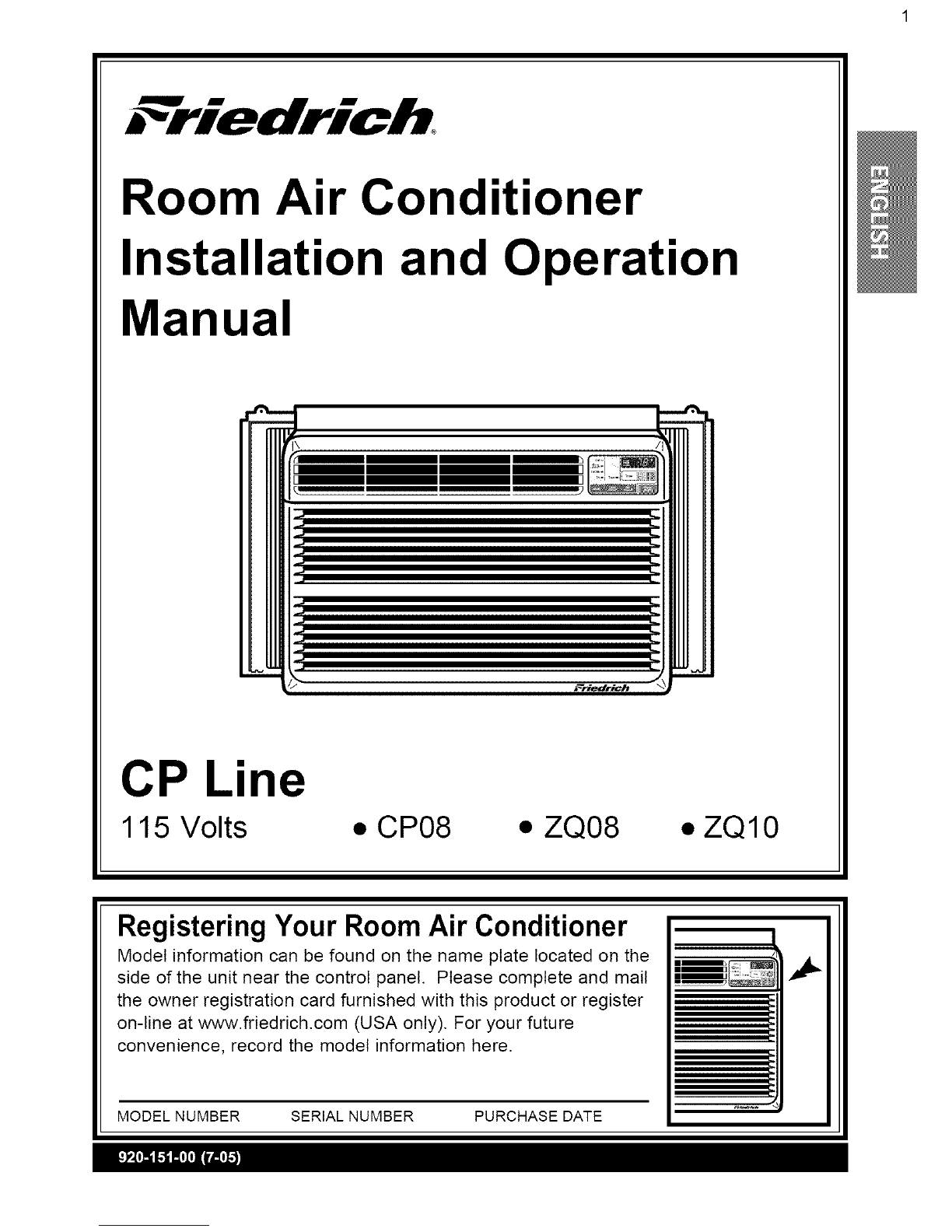

Friedrich CP Line CP08 User manual

Room Air Conditioner

Installation and Operation

Manual

*_'riedrich

CP Line

115 Volts •CP08 •ZQ08 •ZQ10

Registering Your Room Air Conditioner

Model information can be found on the name plate located on the

side of the unit near the control panel. Please complete and mail

the owner registration card furnished with this product or register

on-line at www.friedrich.com (USA only). For your future

convenience, record the model information here.

MODEL NUMBER SERIAL NUMBER PURCHASE DATE

Congratulations!

You have purchased a Friedrich

room air conditioner. The Friedrich

units are designed to give maximum

comfort and quietness.

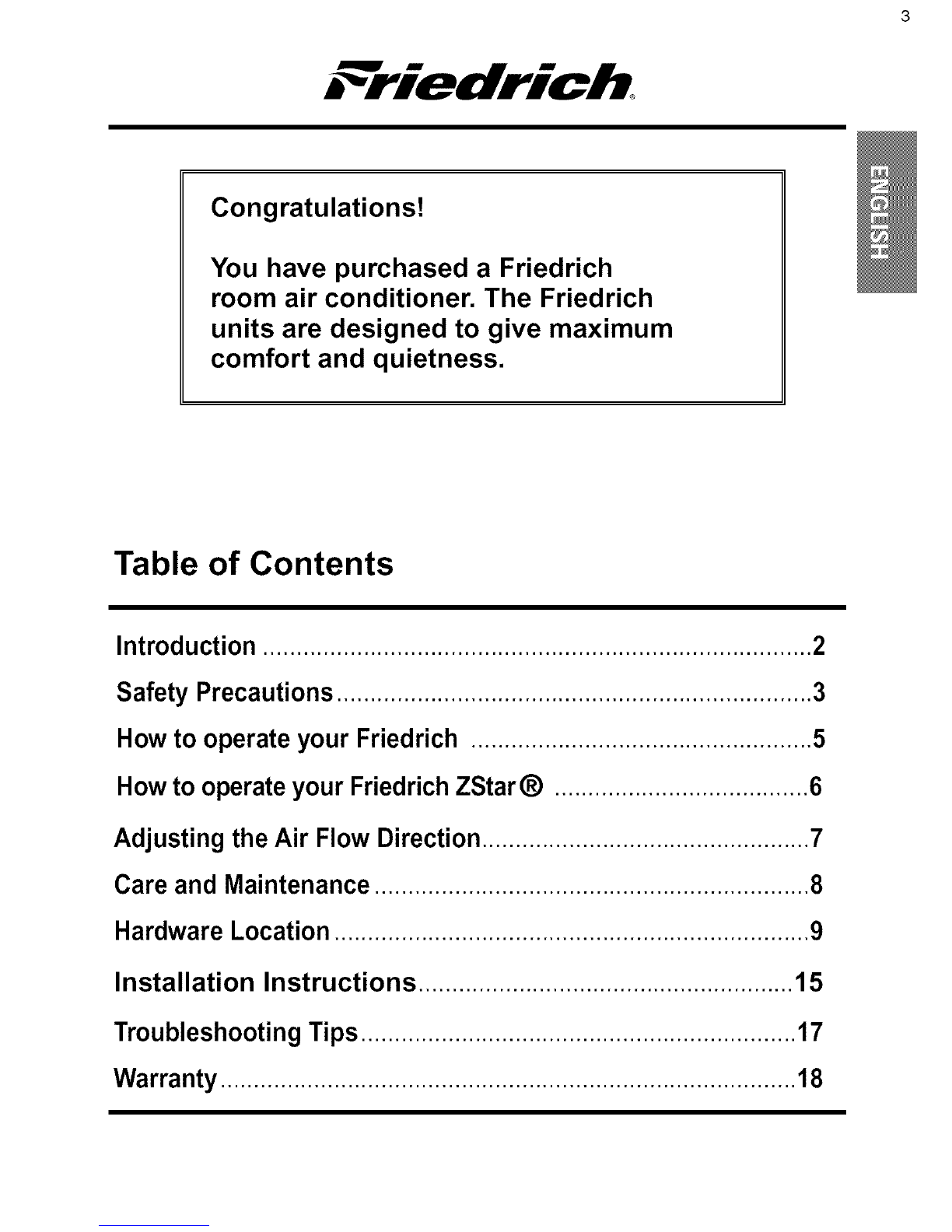

Table of Contents

Introduction .................................................................................. 2

Safety Precautions ....................................................................... 3

How to operate your Friedrich ................................................... 5

How to operate your Friedrich ZStar® ...................................... 6

Adjusting the Air Flow Direction................................................. 7

Care and Maintenance ................................................................. 8

Hardware Location ....................................................................... 9

Installation Instructions ........................................................ 15

Troubleshooting Tips ................................................................. 17

Warranty ...................................................................................... 18

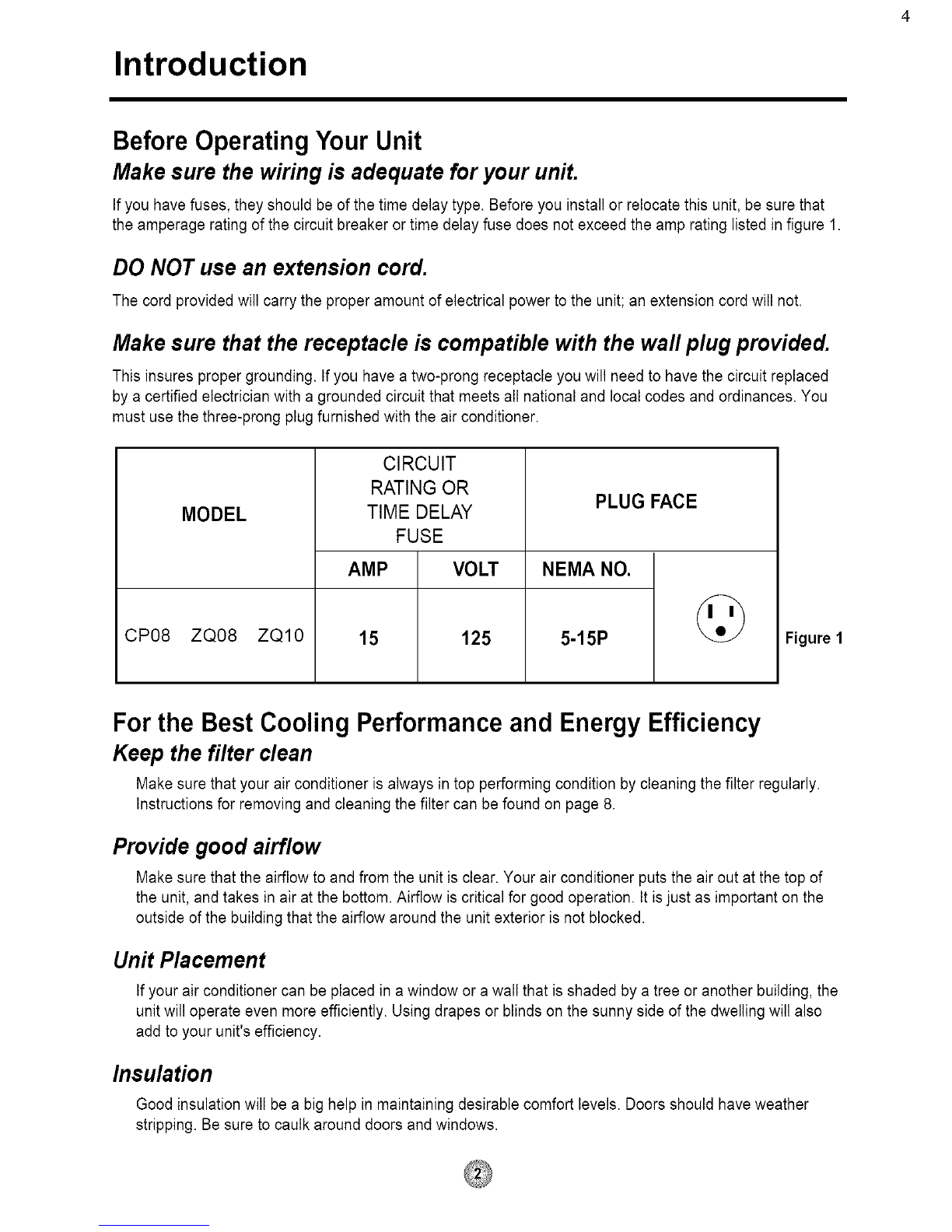

Introduction

Before Operating Your Unit

Make sure the wiring is adequate for your unit.

If you havefuses, they should be of the time delay type. Beforeyou install or relocate this unit, be surethat

the amperage rating of the circuit breaker or time delay fuse does notexceed the amp rating listed in figure 1.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical powerto the unit; an extension cord will not.

Make sure that the receptacle is compatible with the wall plug provided.

This insures proper grounding. If you have a two-prong receptacle you will need to havethe circuit replaced

by a certified electrician with a grounded circuit that meetsall national and local codes and ordinances.You

must use the three-prong plug furnished with the air conditioner.

MODEL

CP08 ZQ08 ZQ10

CIRCUIT

RATING OR

TIME DELAY

FUSE

AMP VOLT

15 125

PLUG FACE

NEMA NO.

5-15P @Figure 1

For the Best Cooling Performance and Energy Efficiency

Keep the filter clean

Make sure that your air conditioner is always in top performing condition by cleaningthe filter regularly.

Instructionsfor removing and cleaningthe filter can be found on page 8.

Provide good airflow

Make sure that the airflow to and from the unit is clear. Your air conditioner puts the air out atthe top of

the unit, and takes in air at the bottom. Airflow is critical for good operation. It isjust as important on the

outside ofthe building that the airflow around the unit exterior is not blocked.

Unit Placement

Ifyour air conditioner can be placed in a window or a wall that is shaded by a tree or another building, the

unit will operate even more efficiently. Using drapes or blindson the sunny sideof the dwellingwill also

add toyour unit's efficiency.

/nsu/ation

Good insulation will be a big help in maintaining desirable comfort levels. Doors should have weather

stripping. Be sureto caulk around doors and windows.

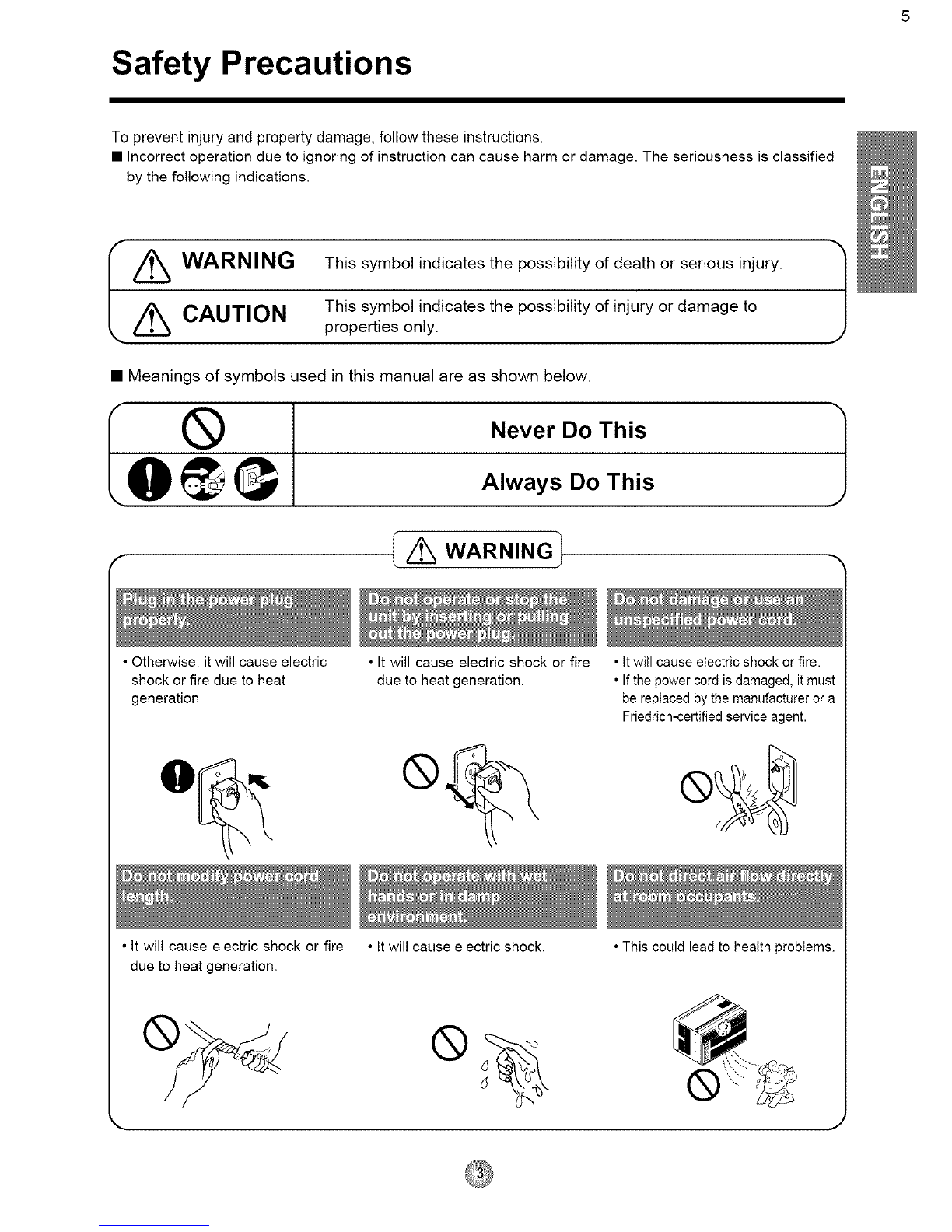

Safety Precautions

To prevent injury and property damage, follow these instructions.

• incorrect operation due to ignoring of instruction can cause harm or damage. The seriousness is classified

by the following indications.

'_//_ WARNING This symbol indicates the possibility of death or serious injury. /

/_ CAUTION This symbol indicates the possibility of injury or damage to

properties only.

• Meanings of symbols used in this manual are as shown below.

Never Do This

,0__ Always Do This

I/_ WARNING}

• Otherwise, it will cause electric

shock or fire due to heat

generation.

• it will cause electric shock or fire

due to heat generation.

• it wi(I cause eiectric shock or fire.

• If the power cord is damaged, it must

be reptaced by the manufacturer or a

Friedrich-certified service agent.

• it will cause electric shock or fire • it will cause electric shock.

due to heat generation.

• This could lead to hea(th probiems.

• They are sharp and may cause

an injury.

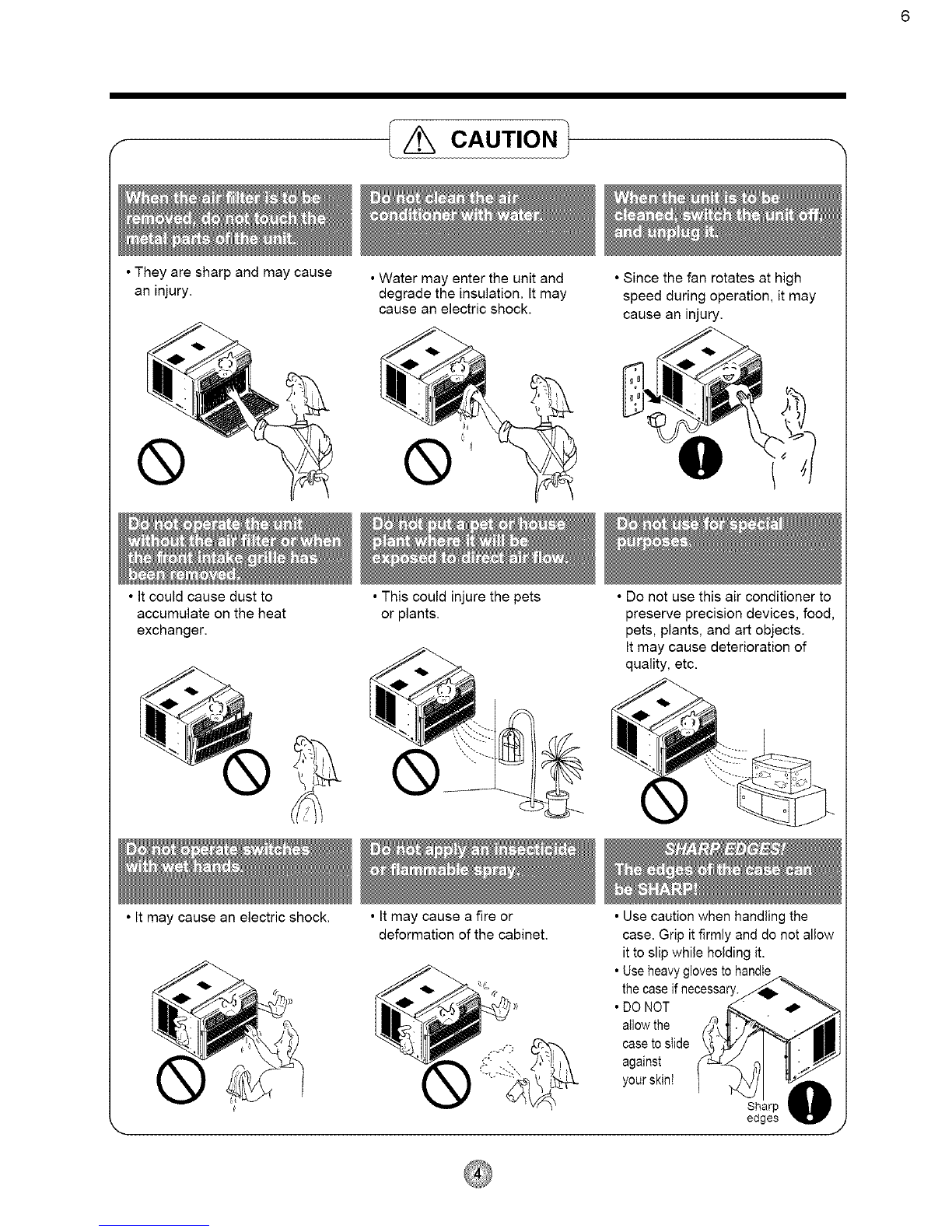

I CAUTION I

• Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

• Since the fan rotates at high

speed during operation, it may

cause an injury.

® ®

• It could cause dust to

accumulate on the heat

exchanger.

• It may cause an electric shock.

• This could injure the pets

or plants.

• It may cause a fire or

deformation of the cabinet.

• Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

•Use caution when handling the

case. Grip it firmly and do not allow

it to slip while holding it.

• Use heavy gloves to handte

the case if necessary.

• DO NOT

allow the

case to slide

against

your skinT

edges

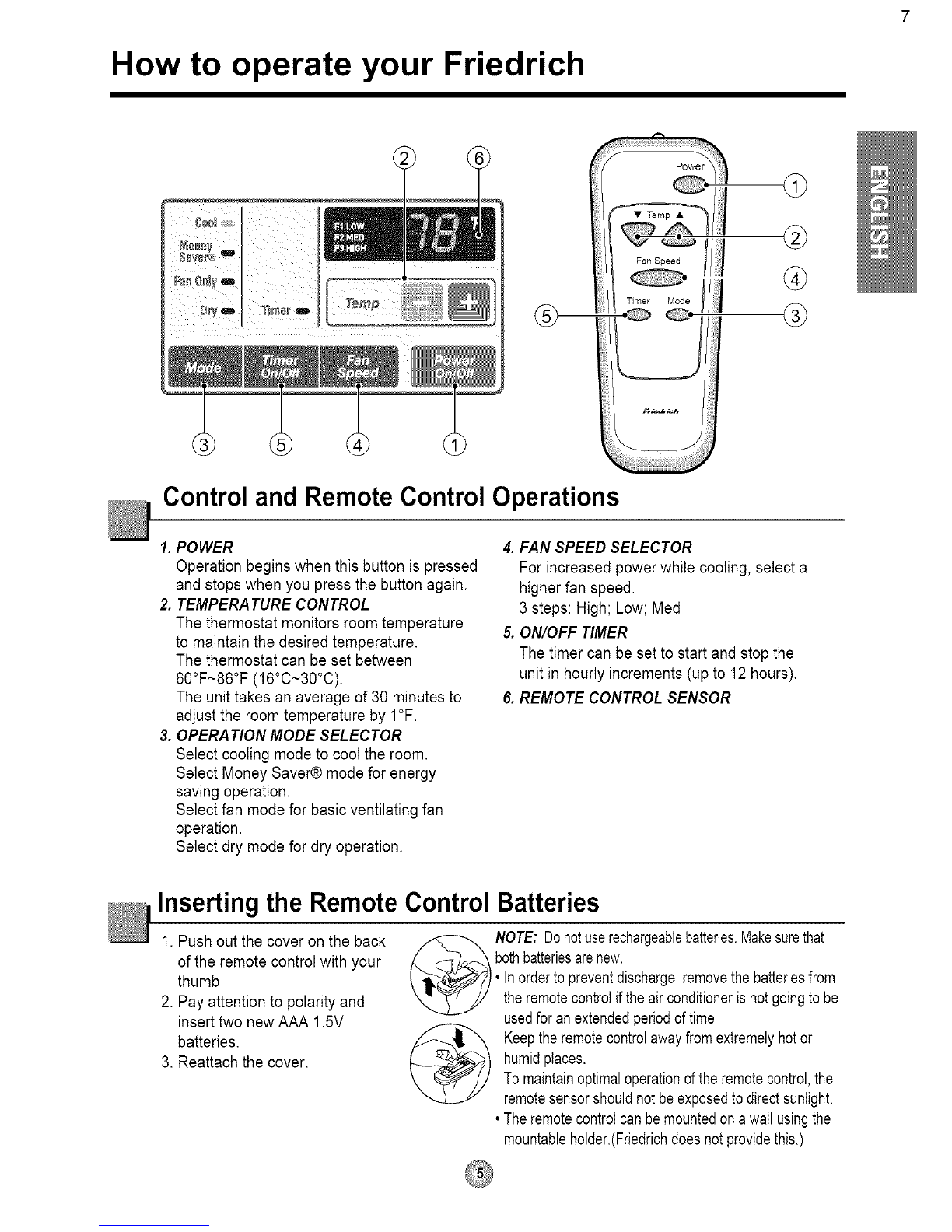

How to operate your Friedrich

Fan Speed

Timer Mode //il I

C ° _ @

Control and Remote Control Operations

I. POWER

Operation beginswhen this button ispressed

and stops when you press the button again.

2. TEMPERATURE CONTROL

The thermostat monitors room temperature

to maintain the desired temperature.

The thermostat can be set between

60°F~86°F (16°C~30°C).

The unit takes an average of 30 minutes to

adjust the roomtemperature by I°F.

3. OPERATION MODE SELECTOR

Select cooling mode to cool the room.

Select Money Saver_ mode for energy

saving operation.

Select fan mode for basic ventilatingfan

operation.

Select dry mode for dry operation.

4.FAN SPEEDSELECTOR

Forincreased powerwhile cooling, select a

higher fan speed.

3 steps: High; Low; Med

5. ON/OFF TIMER

The timer can be set to start and stop the

unit inhourly increments (up to 12 hours).

6.REMOTE CONTROL SENSOR

Inserting the Remote Control Batteries

1.Push out the cover on the back

of the remote control with your

thumb

2. Pay attention to polarity and

insert two new AAA 1.5V

batteries.

3. Reattach the cover.

NOTE: Donotuserechargeabiebatteries.Makesurethat

bothbatteriesarenew.

• Inordertopreventdischarge,removethebatteriesfrom

theremotecontroliftheairconditionerisnotgoingtobe

usedforanextendedperiodoftime

Keeptheremotecontrolawayfromextremelyhotor

humidplaces.

Tomaintainoptimaloperationoftheremotecontrol,the

remotesensorshouldnotbeexposedtodirectsunlight.

•Theremotecontrolcanbemountedonawallusingthe

mountableholder.(Friedrichdoesnotprovidethis.)

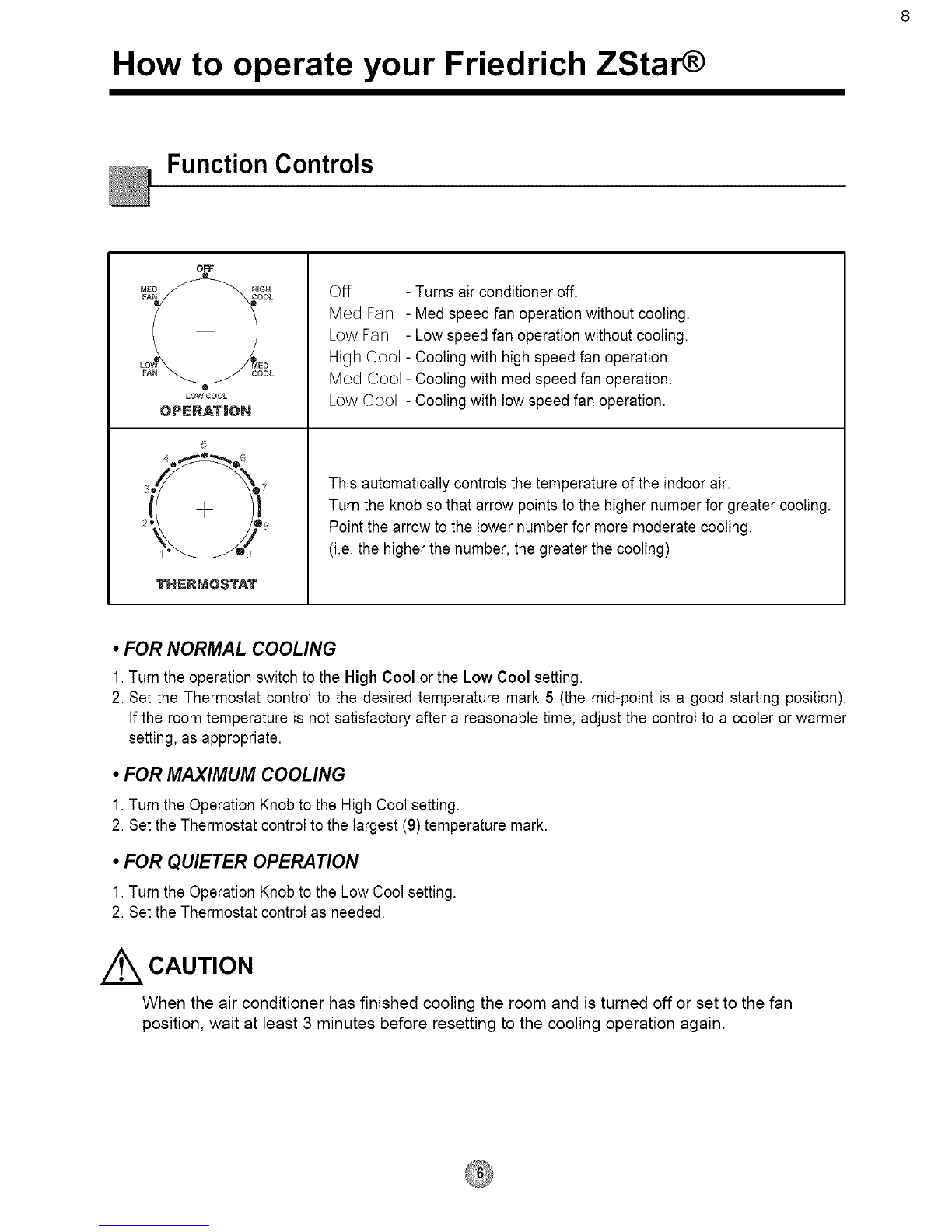

How to operate your Friedrich ZStar

Function Controls

MED H{GN

FAN@_COOL

LO ED

FAN _ COOL

LOW COOL

OPERATRON

THERMOSTAT

Off - Turns air conditioner off.

Med Fan - Medspeed fan operation without cooling.

Low Fan - Lowspeed fan operation without cooling.

High Cool - Coolingwith high speedfan operation.

Med Cool- Coolingwith med speed fan operation.

Low (3ool - Cooling with low speed fan operation.

This automatically controls the temperature of the indoor air.

Turn the knob so that arrow points to the higher numberfor greater cooling.

Point the arrow to the lower number for more moderate cooling.

(i.e. the higher the number, the greater the cooling)

•FOR NORMAL COOLING

1. Turnthe operation switch to the High Cool or the Low Cool setting.

2. Set the Thermostat control to the desired temperature mark 5 (the mid-point is a good starting position).

If the room temperature is not satisfactory after a reasonable time, adjust the control to a cooler or warmer

setting, as appropriate.

•FOR MAXIMUM COOLING

1. Turnthe Operation Knob to the HighCool setting.

2. Setthe Thermostat control to the largest (9) temperature mark.

•FOR QUIETER OPERATION

1. Turnthe Operation Knob to the Low Cool setting.

2. Setthe Thermostat control as needed.

CAUTION

When the air conditioner has finished cooling the room and is turned off or set to the fan

position, wait at least 3 minutes before resetting to the cooling operation again.

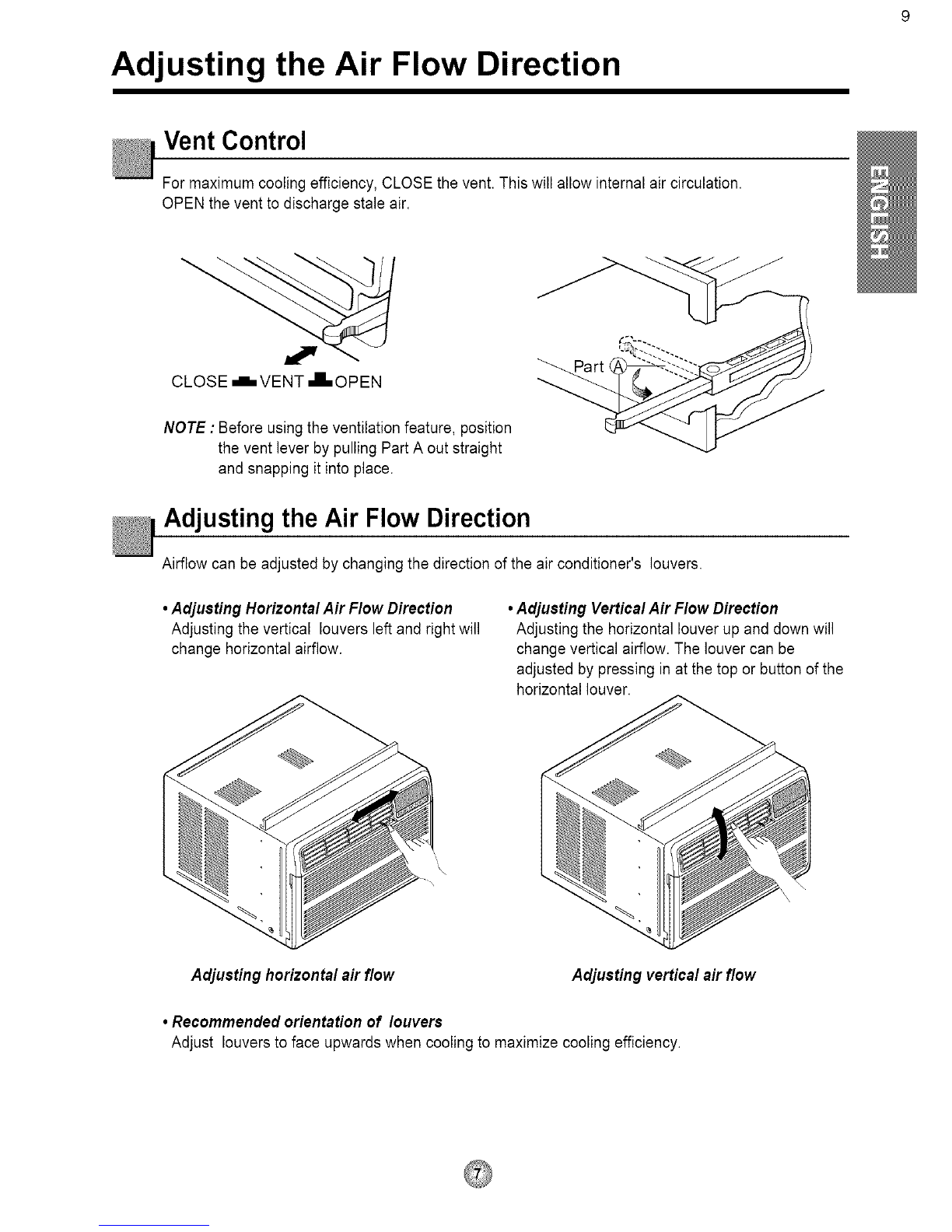

Adjusting the Air Flow Direction

Vent Control

For maximum cooling efficiency, CLOSEthe vent. This will allow internal air circulation.

OPENthe vent to discharge stale air.

CLOSE ,-=-VENT JLOPEN

NOTE : Before using the ventilation feature, position

the vent lever by pulling PartA out straight

and snapping it into place.

¢_'r"""

LuJ_p. "".

Part "" z--::--X"

Adjusting the Air Flow Direction

Airflow can be adjusted by changing the direction ofthe air conditioner's louvers.

•Adjusting Horizontal Air Flow Direction

Adjusting the vertical louvers left and rightwill

change horizontal airflow.

•Adjusting Vertical Air Flow Direction

Adjusting the horizontal louver up and downwill

change vertical airflow. The louvercan be

adjusted by pressing in at the top or button of the

horizontal louver.

Adjusting horizontal air flow Adjusting vertical air flow

•Recommended orientation of louvers

Adjust louversto face upwards when cooling to maximize cooling efficiency.

Care and Maintenance

Turnthepower off and unplug thepower plug before cleaning the air conditioner.

Air Filter

The air filter behind the inletgrille should be checked and cleaned at least once every 2 weeks (or as

necessary) to maintain optimal performanceof the air conditioner.

How to remove the air filter

1.The grille may be opened from the top for easy

maintenance after installation.

2. Open the inletgrille by pulling out on the exposed

door on the top of the unit (based on installation).

3. Pull the tab slightlyto releasethe filter. Pull the

filter in the same direction as the opening.

4. Clean the filter with warm, soapy water.

5. Rinse off and gently shake off excess water from

the filter. Make sure filter iscompletely dry before

replacing it.

Drainage

The base pan may overflow due to high humidity. To drain

the excess water, remove the drain cap from the back of

the unit and secure the drainpipe.

When pressing the drainpipe into place, apply force in the

direction away from the fins to avoid injuring yourself.

Drain pipe

Drain cap

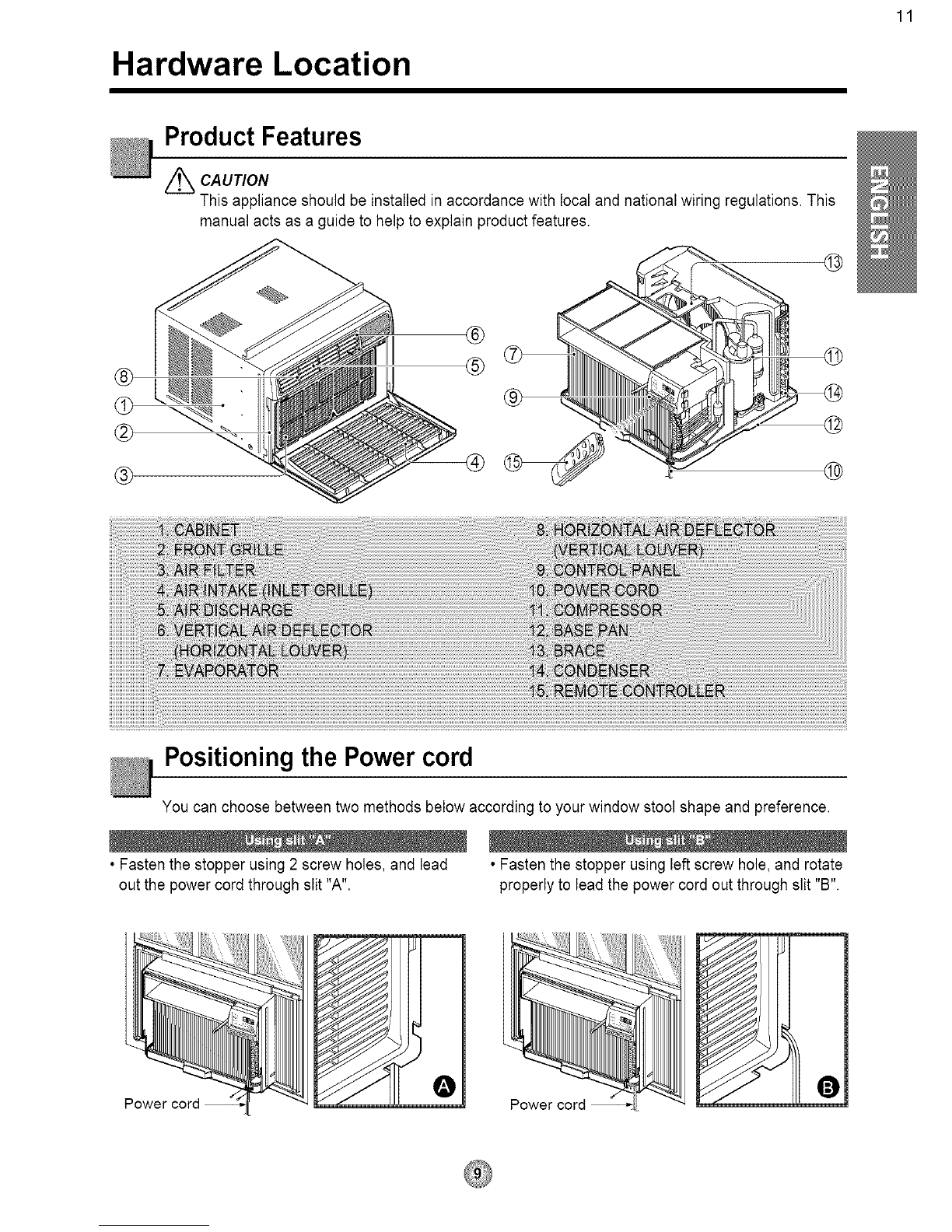

Hardware Location

Product Features

/_ CAUTION

This applianceshould be installed in accordance with local and national wiring regulations. This

manual acts as a guide to help to explain product features.

Positioning the Power cord

You can choose between two methods below according to your window stool shape and preference.

• Fasten the stopper using 2 screw holes, and lead ° Fastenthe stopper usingleft screw hole, and rotate

out the power cord through slit "A". properlyto lead the power cord out through slit "B".

Power cord Power cord

Other manuals for CP Line CP08

This manual suits for next models

Table of contents

Other Friedrich Air Conditioner manuals

Friedrich

Friedrich PTAC Series User manual

Friedrich

Friedrich PTAC Series User manual

Friedrich

Friedrich WallMaster PTAC User manual

Friedrich

Friedrich SG series User manual

Friedrich

Friedrich MW18C3F User manual

Friedrich

Friedrich MR36UY3J User manual

Friedrich

Friedrich ZoneAire P09B User manual

Friedrich

Friedrich Kuhl series User manual

Friedrich

Friedrich CP18C30 User manual

Friedrich

Friedrich V(E User manual

Friedrich

Friedrich Uni-Fit UE08A13B User manual

Friedrich

Friedrich CP10 User manual

Friedrich

Friedrich Vert-I-Pak VEA24 Series Original operating instructions

Friedrich

Friedrich ZStar ZQ05A10B Building instructions

Friedrich

Friedrich MR36Y3J User manual

Friedrich

Friedrich AIR CONDITIONER CEILING SUSPENSION TYPE... User manual

Friedrich

Friedrich Hazardgard SH20N50AT User manual

Friedrich

Friedrich Kuhl SS08M10 Guide

Friedrich

Friedrich M2404ER Building instructions

Friedrich

Friedrich Room Air Conditioners User manual

Friedrich

Friedrich MULTI ZONE MR24DY3JMA Product guide

Friedrich

Friedrich Twintemp YS09 User manual

Friedrich

Friedrich FSHSW09A1A User manual

Friedrich

Friedrich Chill Premier Series Guide

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
