Focal Point EF11-36 PASADENA LIMOUSIN Assembly Instructions

INSTALLATION & USER INSTRUCTIONS

All instructions must be handed to the user for

safekeeping.

ODELS COVERED BY THESE INSTRUCTIONS

EF11-36

PASADENA

LI OUSIN

WALL OUNTED ELECTRIC FIRE

Please note: Except where otherwise stated, all rights,

including copyright in the text, images and layout of this

booklet is owned by Focal Point Fires plc. You are not

permitted to copy or adapt any of the content without

the prior written permission of Focal Point Fires plc.

Revision A - 09/14

GB IE

Focal Point Fires plc.

Christchurch, Dorset BH23 2BT

Tel: 01202 499330

Fax: 01202 499326

www.focalpointfires.co.uk

Email: [email protected].uk

Questions or problems with your appliance?

Don’t take it back to the store

just give us a call on 01202 588601 we’re here to help

lines open between 9am and 5pm, onday to Friday

PASADENA LED ELECTRIC FIRE

I PORTANT - THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE

REFERENCE.

When using this electrical appliance, basic precautions should be followed to reduce the risk of fire, electric shock and injury to person,

including the following:

• This heater must be used on an AC supply only and the voltage marked on the heater’s rating label must correspond to the supply

voltage.

• DO NOT switch the appliance on until it is properly installed as described in this manual.

• The heater must not be located immediately above a socket outlet.

• Keep furniture, curtains and other fabric material away from the appliance.

• DO NOT leave the appliance unattended during use.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a

hazard.

• DO NOT operate this appliance with a damaged plug or cord, after a malfunction or after being dropped or damaged in any way.

• Repairs to electrical appliances should only be performed by a qualified electrician. Improper repairs may place the user at serious risk.

• DO NOT run the mains cable under carpets, rugs etc.

• DO NOT cover or obstruct the heater in any way. Overheating will result if it is accidentally covered.

• Never immerse the product in water or any other liquids.

• DO NOT use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

• DO NOT use the appliance outdoors.

• Before cleaning the appliance, ensure it is unplugged from the power and that it is completely cool.

• DO NOT clean the appliance with abrasive chemicals.

• Never use accessories that are not recommended or supplied by the manufacturer. It could cause danger to the user or damage to the

appliance.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

• Do not lift the appliance by the decorative fascia.

• DO NOT insert or allow foreign objects to enter the inlet or outlet vents as this may result in electric shock, fire or damage to

the appliance.

• DO NOT install the fire using an extension cord.

• Unplug from the mains supply if the appliance is not to be used for long periods

• CAUTION! In order to avoid a hazard due to inadvertent resetting of the thermal cut out, this appliance must not be supplied

through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility.

• CAUTION!: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children

and vulnerable people are present.

•WARNING: Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less

than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and

they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged

from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. The heater must not be used

if the glass panels are damaged.

I N S TA L L AT I O N & U S E R I N S T R U C T I O N S

GB IE

Section Contents Page No.

1.0 Important Notes 2

2.0 Installation Requirements 2

3.0 Appliance Data 2

4.0 Fixing Kit Checklist 3

5.0 Component Checklist 3

6.0 Site Requirements 4

7.0 Clearances to Combustibles 4

Section Contents Page No.

8.0 Installation Wall ounted 5

9.0 Installation Table Top 8

10.0 Operating the Appliance 10

11.0 Cleaning and aintenance 12

12.0 Troubleshooting Guide 13

13.0 Guarantee - Terms and Conditions 13

1.0 I PORTANT NOTES

The appliance is supplied with a pre-wired three pin plug (13 Amp fuse rated) and 1.8 metres of electrical cable. It is

therefore necessary for a suitable electrical socket to be located within this distance and be easily accessible. This appliance is

designed to be wall hung, using the wall fixtures/fixings provided. DO NOT recess any part of appliance into the wall. This

appliance is suitable for installation in static holiday/park homes.

Weight (kg): 15kg

Supply Voltage: 230V AC, 50Hz

Fuse Rating: 13 Amp

Heating Elements: 1500W

Lighting: LED

This fire is fitted with LED’s (Light Emitting Diode) in place of conventional bulbs. LED’s generate the same light levels as

conventional bulbs, but use a fraction of the energy consumed. LED’s are maintenance free and will not require replacing during

the life of the product.

2.0 INSTALLATION REQUIRE ENTS

3.0 APPLIANCE DATA

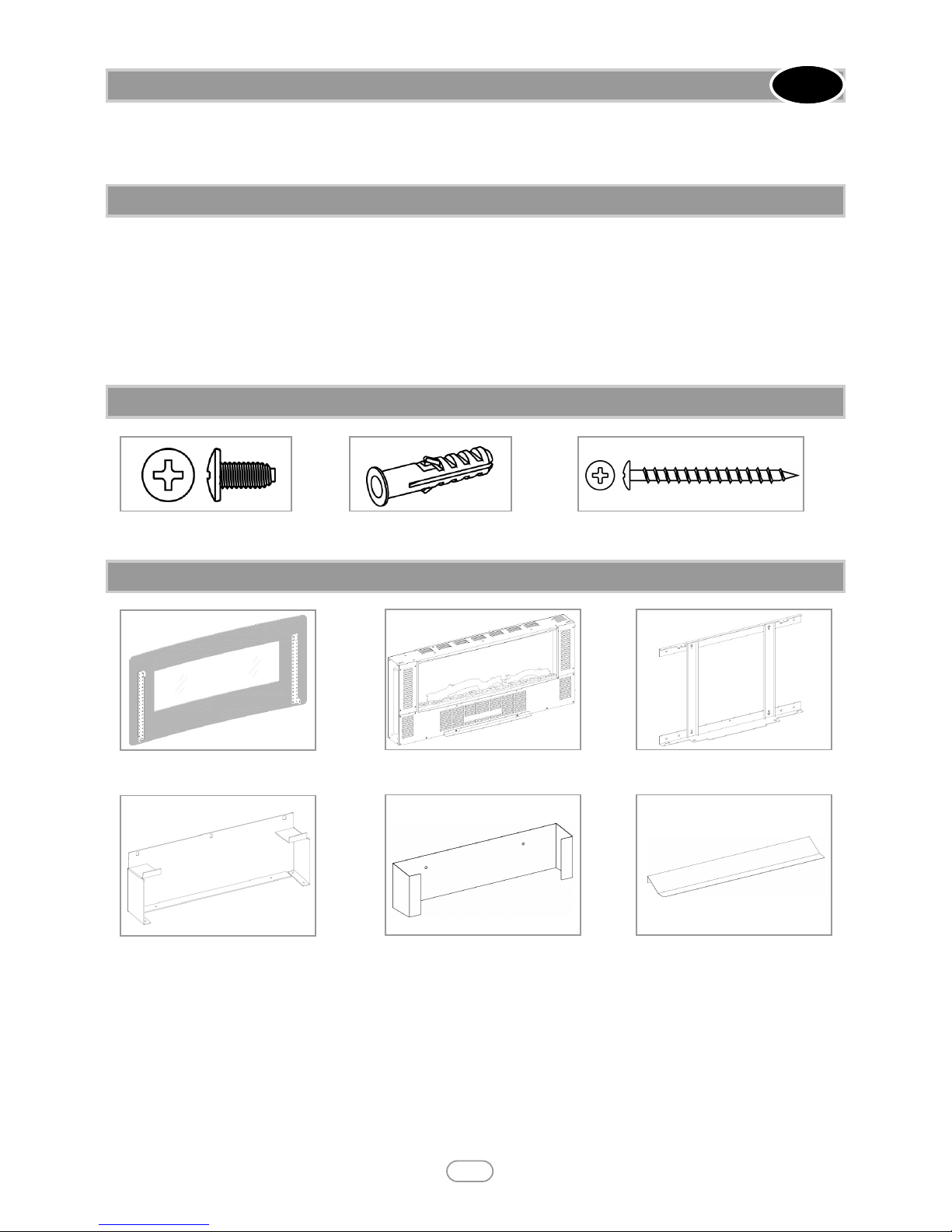

4.0 FIXING KIT CHECKLIST

1. 4 x 8mm Screw x 14 2. Large Wall Anchor x 5 3. 5 x 50mm Screw x 5

GB IE

5.0 CO PONENT CHECKLIST

1. Glass Fascia 2. Firebox 3. ounting Bracket

4. Table Top Support 5. Front Brace 6. Deflector

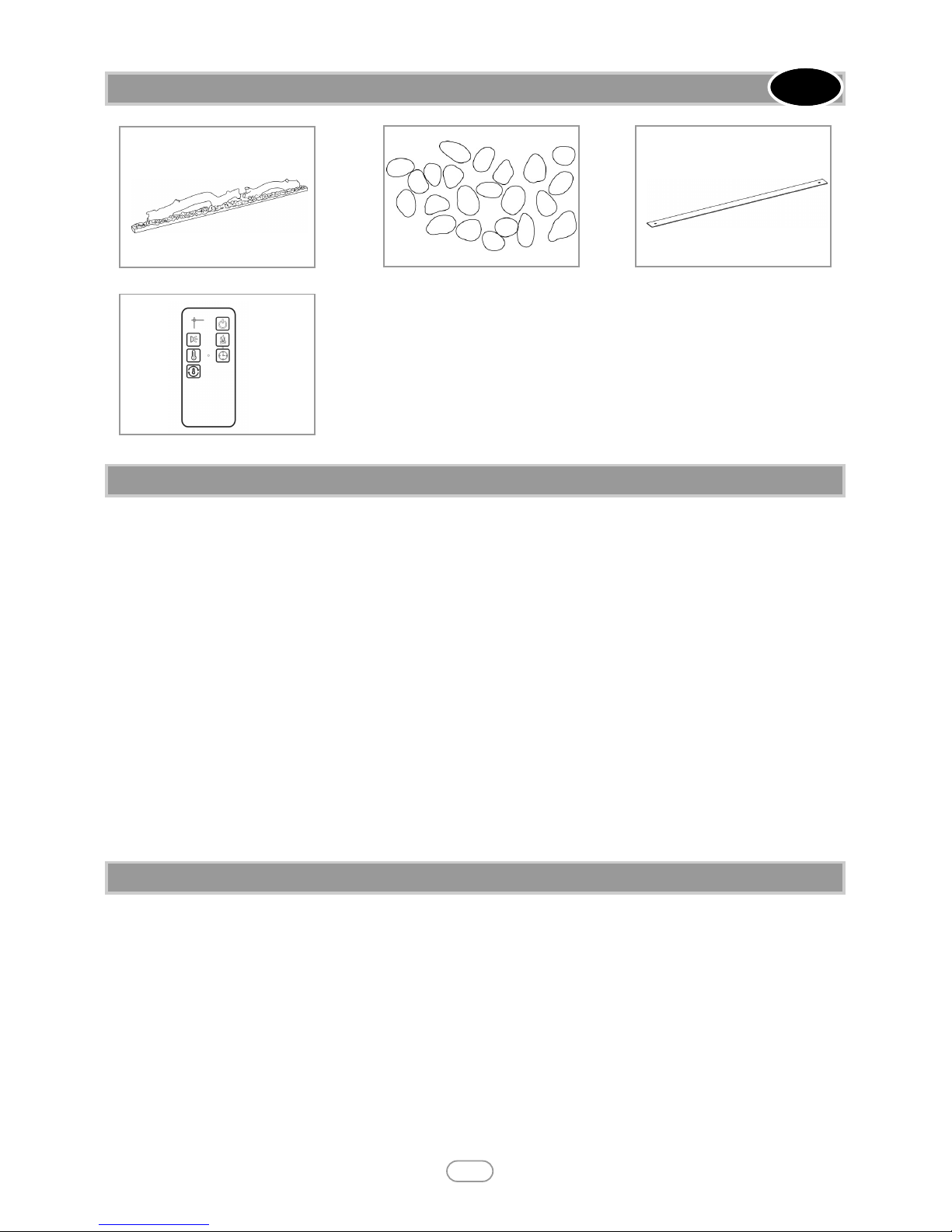

5.0 CO PONENT CHECKLIST - CONTINUED

GB IE

7. Logs 8. Pebbles Dependent On odel 9. Fuel Bed Holder

10. Remote Control

6.0 SITE REQUIRE ENTS

It should be noted that the appliance creates warm convected air currents. These currents move heat from the room

surroundings to, and up the wall surfaces adjacent to the heater.

Installing the heater next to these types of wall coverings or operating the heater where impurities in the air, (such as tobacco

smoke) exist, may slightly discolour wall finishing.

If the appliance is to be mounted on a dry lined or timber framed construction then the integrity and ability of the wall to

carry the weight of the appliance must be confirmed. It is important in these circumstances that any vapour barrier and/or

structural members of the house frame are not damaged.

If you are unsure of the ability of the wall to carry the weight and/or which type of wall fixing to use, you should take

professional advice and obtain the correct fixings. Alternatively, find a more suitable wall location.

DO NOT

• mount on a ceiling or floor

• recess any part of the appliance into the wall, or run the supply cable under carpets

• site any electrical equipment e.g. plasma screen TV sets etc, on the wall below the appliance.

• site in a position where curtains or drapes could cover the appliance, or other soft materials could cover e.g. below a coat

rack

• site behind an opening door where mechanical impact/damage could occur

• site where the supply cable would become a trip hazard

• sit, stand or forcefully pull on the appliance

• obstruct, cover or force items into the openings

• use the heater to dry clothes

• site/use in an outdoor location(s)

It is important that the following clearances are maintained from the appliance to combustible materials. These clearances are

dependent on the mounting location as defined below:

• The minimum distance from the top of the appliance to a ceiling is 300mm

• The minimum distance from the bottom of the appliance to the floor is 200mm

• The minimum distance to the sides of the appliance is 100mm

• The minimum distance to the front of the appliance is 500mm

7.0 CLEARANCES TO CO BUSTIBLE ATERIALS

8.0 INSTALLATION WALL OUNTED GB IE

CAUTION: DO NOT CONNECT THE APPLIANCE TO THE

ELECTRICAL SUPPLY AT THIS TI E.

Focal Point Fires plc. assumes absolutely no responsibility for injuries and damages

that may occur due to improper installation or handling.

Remove any protective film coatings from the finished/decorative surfaces of the

appliance, if any. After having selected the final mounting position of the appliance

taking into account the integrity of the wall the firebox of the appliance may be

secured to the wall.

To ensure customer safety, be sure to design the installation so that the strength of

both the wall and any wall fixings used are sufficient. The appliance should not be

installed until all wet plastering and/or dry wall sanding and wall painting has been

completed. Do not block the ventilation holes of the appliance. The wall onto

which the appliance is installed must be flat. Install only on a vertical surface. Avoid

sloped surfaces. Installation onto anything other than a vertical wall may result in

fire, damage or injury.

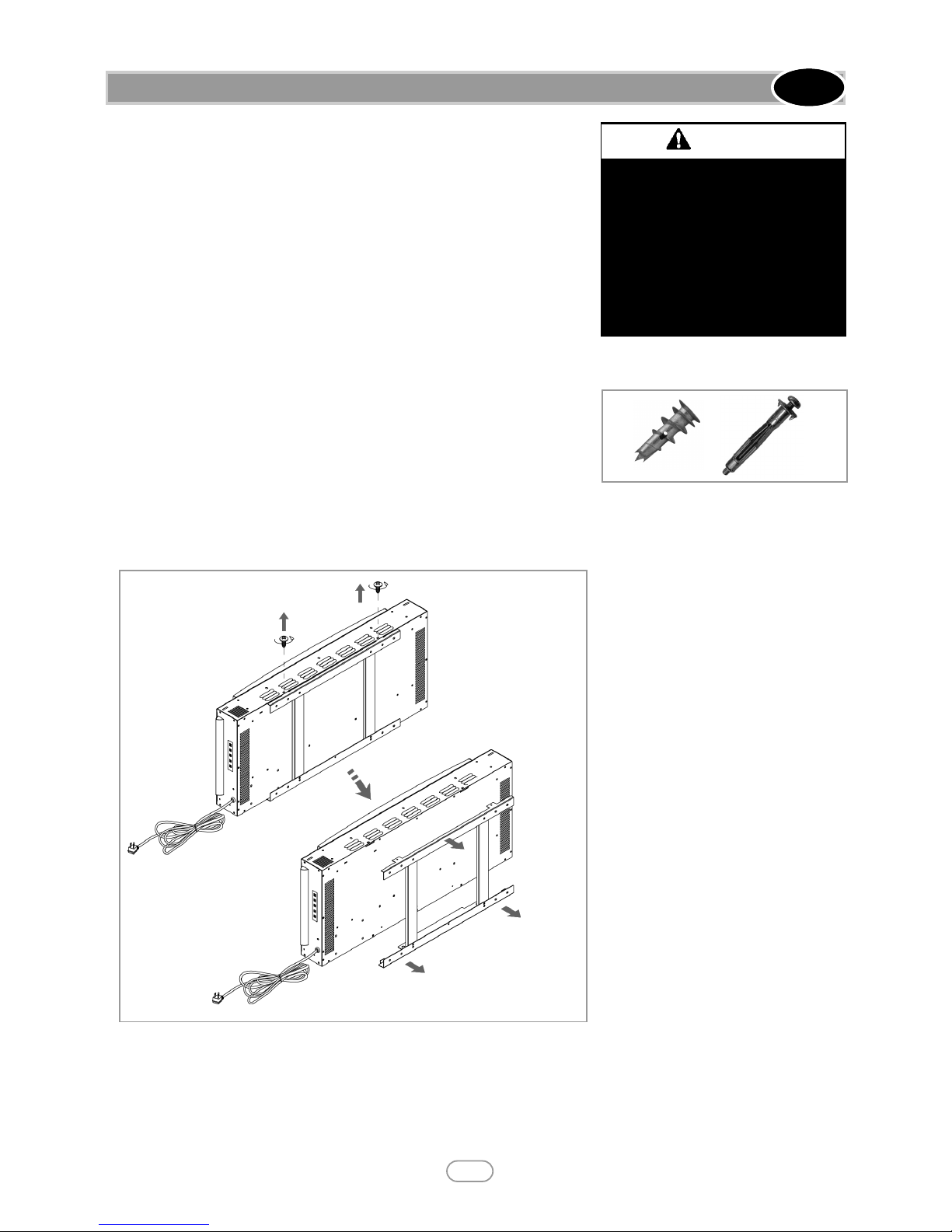

If the appliance is to be mounted on the inner leaf of a conventional cavity brick

wall, or a solid wall, then the wall plugs and fixing screws provided may be used.

Depending on the condition of the wall it may be necessary to use additional fixings.

In this situation, any additional fixings and wallplugs should be of the same size and

type as the ones provided.

The wall where the appliance is to be

installed must be capable of

long-term support of the total load of

the appliance. easures should also

be taken to ensure sufficient strength

to withstand the force of

earthquakes, vibration and other

external forces. Plasterboard alone is

not considered to be a structural

material. It is not recommended to

rely on plasterboard fixings alone to

support the weight of the appliance.

WARNING



If the appliance is to be mounted on a dry lined wall or a timber framed construction wall then efforts should be made to fix in

at least two positions vertically, into one of the wooden studs, or supporting wooden members of the wall using two of the

fixing screws provided. If this is not achievable then the wall should be strengthened using appropriate building materials.

ounting Bracket

1. Unpack the unit and confirm that you have all the hardware and required parts.

2. Remove the ounting Bracket from the Firebox by unscrewing the two screws that secure the ounting Bracket to the top

of the Firebox, using a Phillips screwdriver. As shown above.

8.0 INSTALLATION WALL OUNTED - CONTINUED GB IE

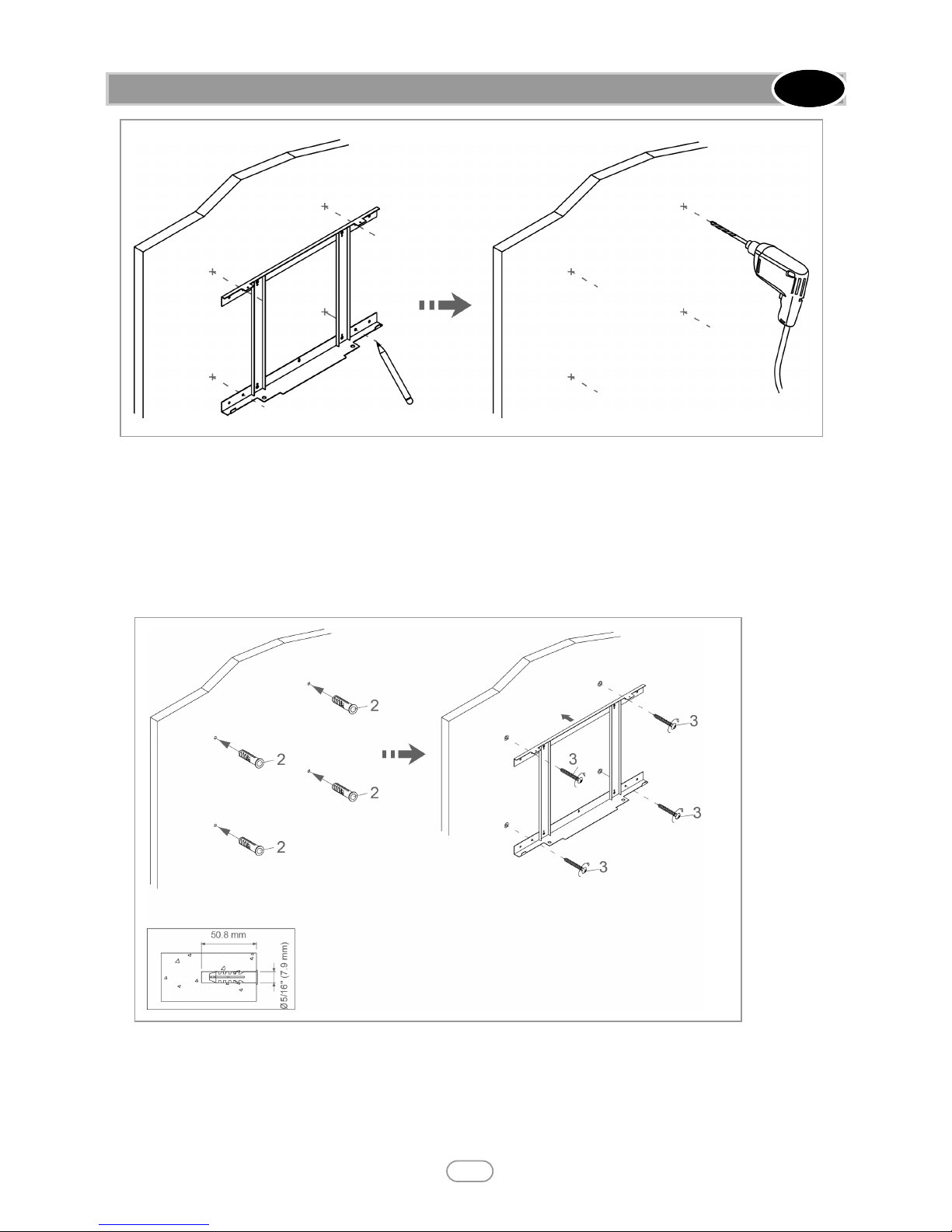

3. Find the optimal place to mount your Wall-mounted Fireplace. Consider the proper position relative to your room,

placement of furniture and windows.

4. Hold the ounting Bracket up to the wall to verify the correct location and ensure that the ounting Bracket is level. Use

a pencil to mark the four mounting holes on the wall at the desired mounting location, using the ounting Bracket as a

template.

5. With an electric drill (not included) on its low setting, drill 5/16 inch diameter holes to at least 1½ inch deep on the

marked points. NOTE: If installing the ounting Bracket to a wall stud, there is no need to drill the holes in the wood and

no need for the plastic wall anchors. It is recommended to install the mounting bracket to at least one wooden stud.

6. Tap 4 Large Wall Anchors (2) into the pre-drilled holes with a Hammer until they are flush with the wall.

7. Secure the ounting Bracket (3) to the wall by using four 5 x 50 mm Screws (3). As shown.

8.0 INSTALLATION WALL OUNTED - CONTINUED GB IE

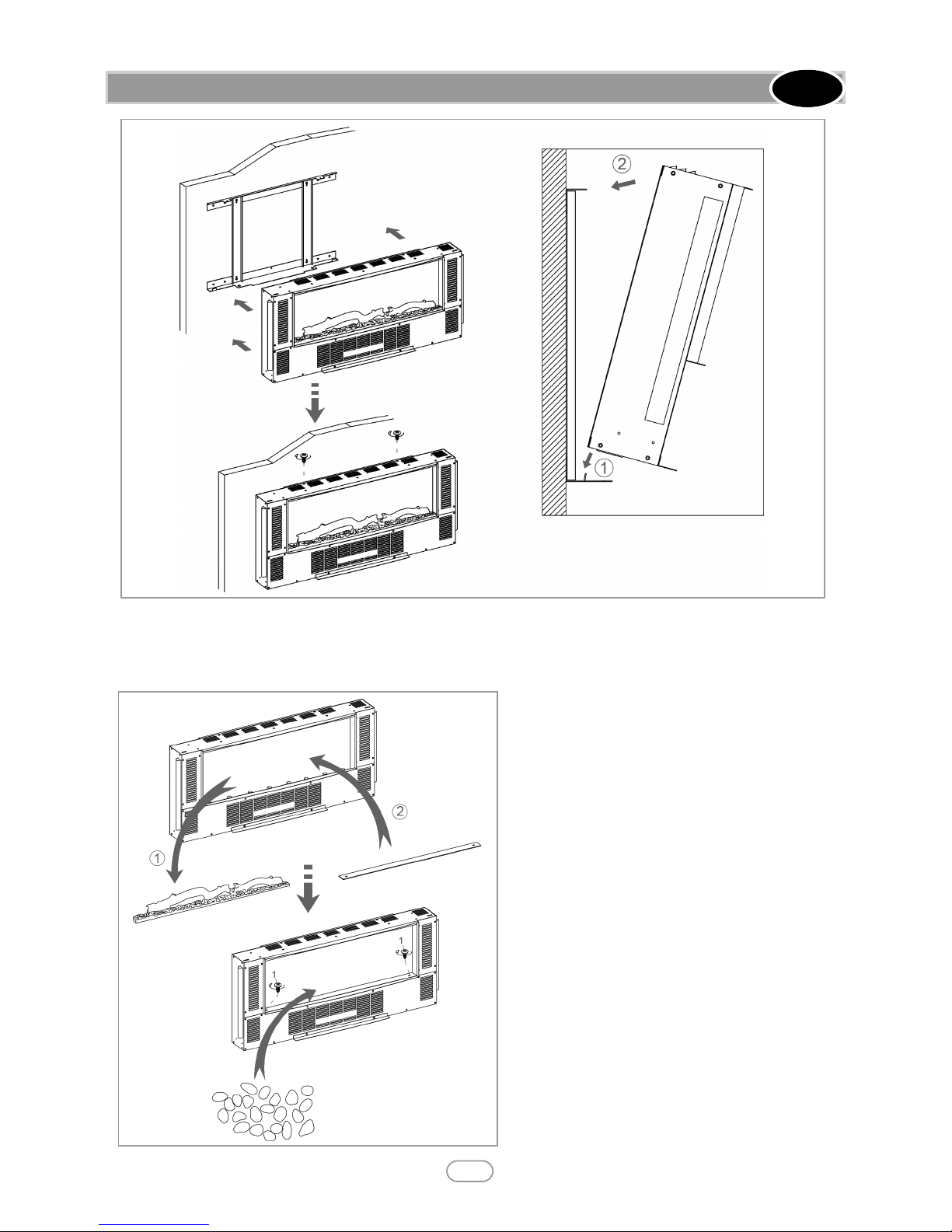

8. Hang the Firebox on the hooks at the bottom of the ounting Bracket , and push the top of the Firebox into the

ounting Bracket. As shown.

9. Ask a friend to hold the Electric Firebox into place and secure it to the ounting Bracket by refitting the two small screws

which were removed in step 2. As shown.

NOTE: We provided the optional pebbles for the

fuel bed holder. To change the fuel bed follow the

following steps below.

10. Remove the Log Set from the insert window

ledge at the front of the Firebox and

replace it with the fuel bed holder. Secure the fuel

bed holder in place with two 4 x 8 mm Screws (1). As

shown.

11. Arrange the pebbles on top of the fuel bed holder.

9.0 INSTALLATION TABLE TOP

8.0 INSTALLATION WALL OUNTED - CONTINUED GB IE

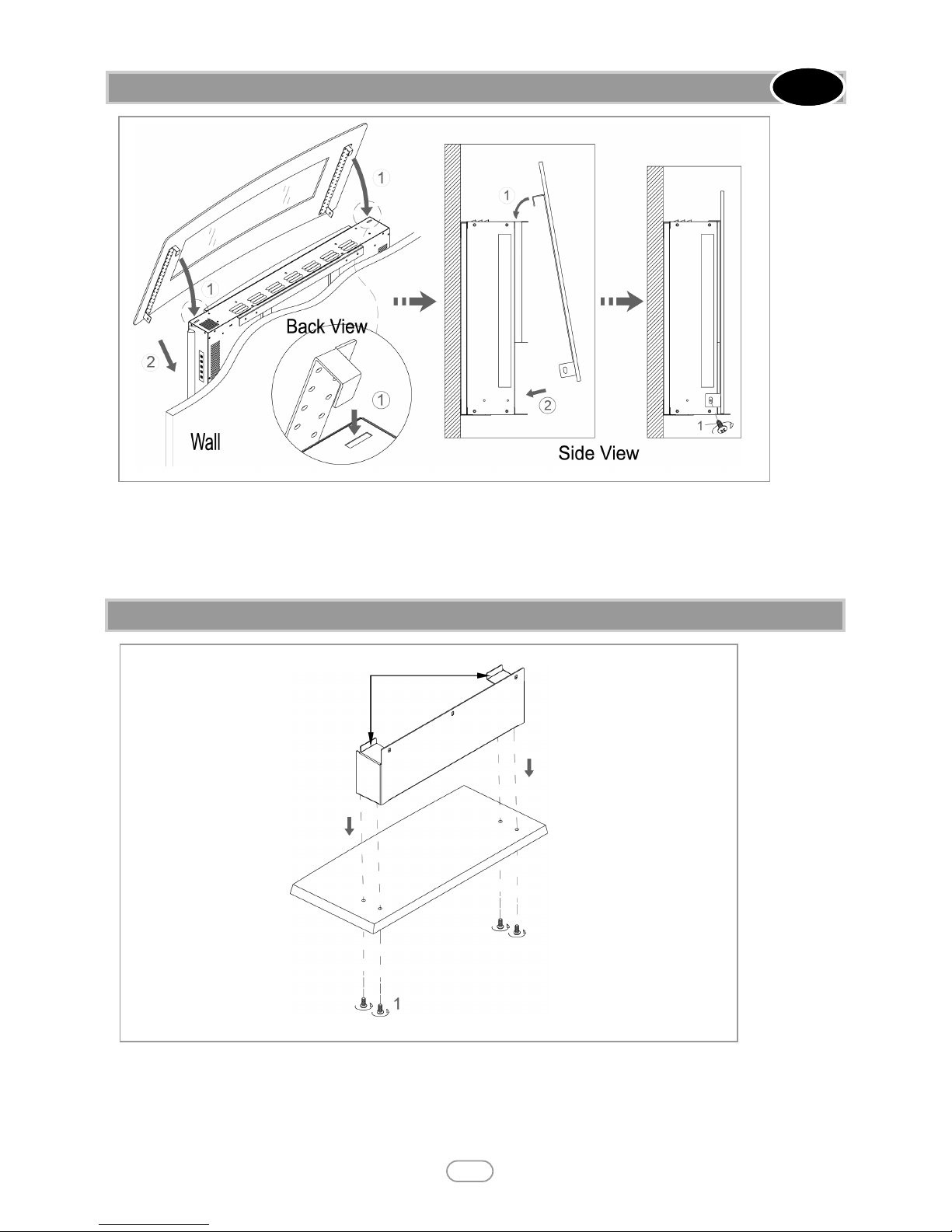

12. Lift the Glass Fascia into place, making sure the 2 hooks on the top back of the Glass Fascia fit securely into the slots on

the top of the Firebox. As shown.

NOTE: It is recommended that you use two people at this stage to prevent to the Glass Fascia or the Firebox.

13. Secure the Glass Fascia to the Firebox by fastening two 4 x 8 mm Screws (1) on both sides. As shown.

1. Unpack the unit and confirm that you have all the hardware and required parts.

2. Align and attach the Table Top Support with the Table Top Base by inserting four 4 screws (1) and fully tighten the

screws with a Phillips screwdriver.

The top hooks locate at the front

Table top support

Table top base

9.0 INSTALLATION TABLE TOP - CONTINUED GB IE

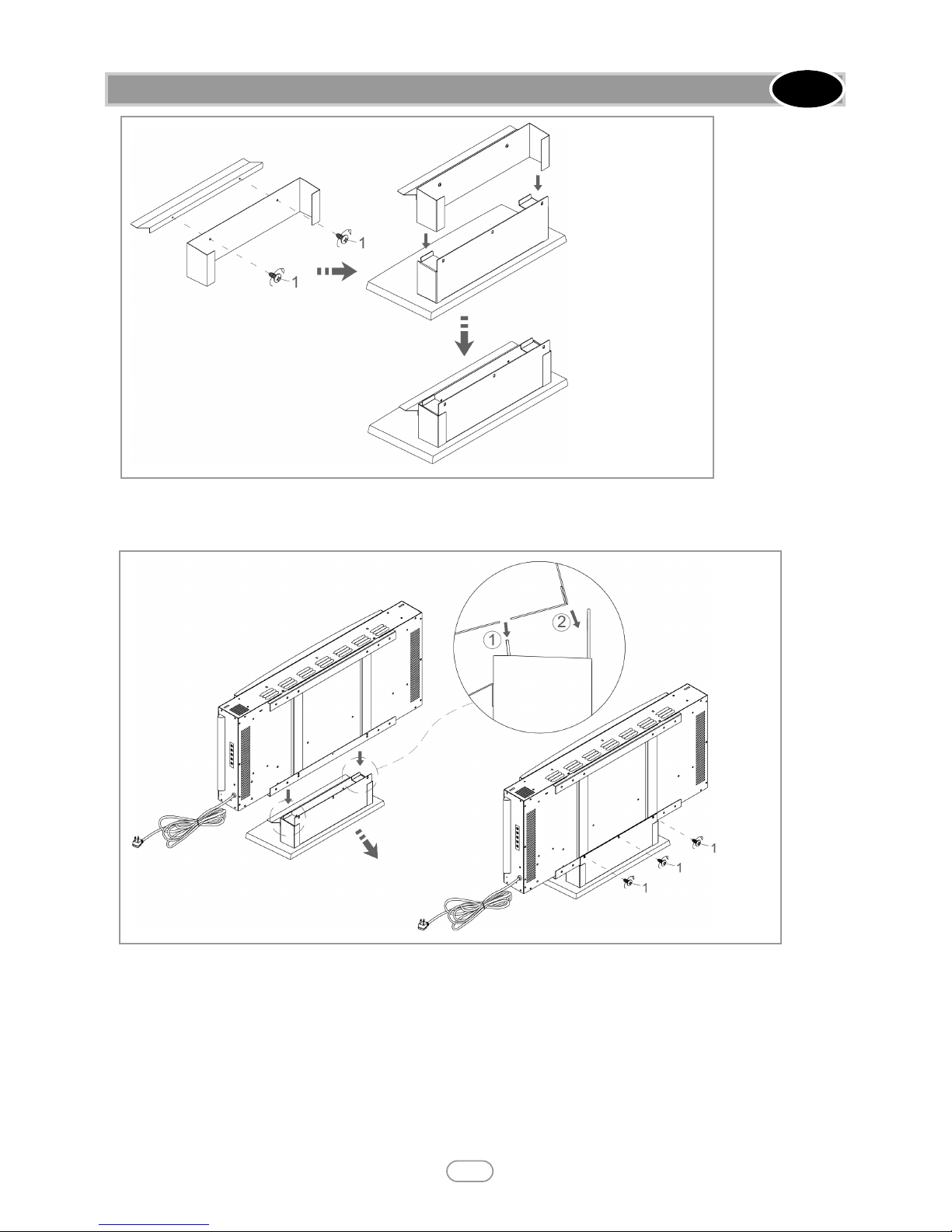

3. Fasten the Deflector to the Front Brace with two 4 x 8 mm Screws (1). As shown.

4. Slide the Front Brace assembly onto the Table Top Support and rest it onto the Table Top Base . As shown.

Front brace

Table top support

Table top base

Front brace

Deflector

5. Ask for assistance to position the Firebox onto Table Top Support so that the top hooks of the Table Top Support

properly fit into the bottom slots and the back mounting holes overlap the threaded sockets on the Firebox. As shown

above.

6. Insert three 4 x 8 mm Screws (1) through the mounting holes on the Table Top Support and securely screw into the

Firebox by a Phillips screwdriver. As shown.

Firebox

Table top support

Firebox

Table top support

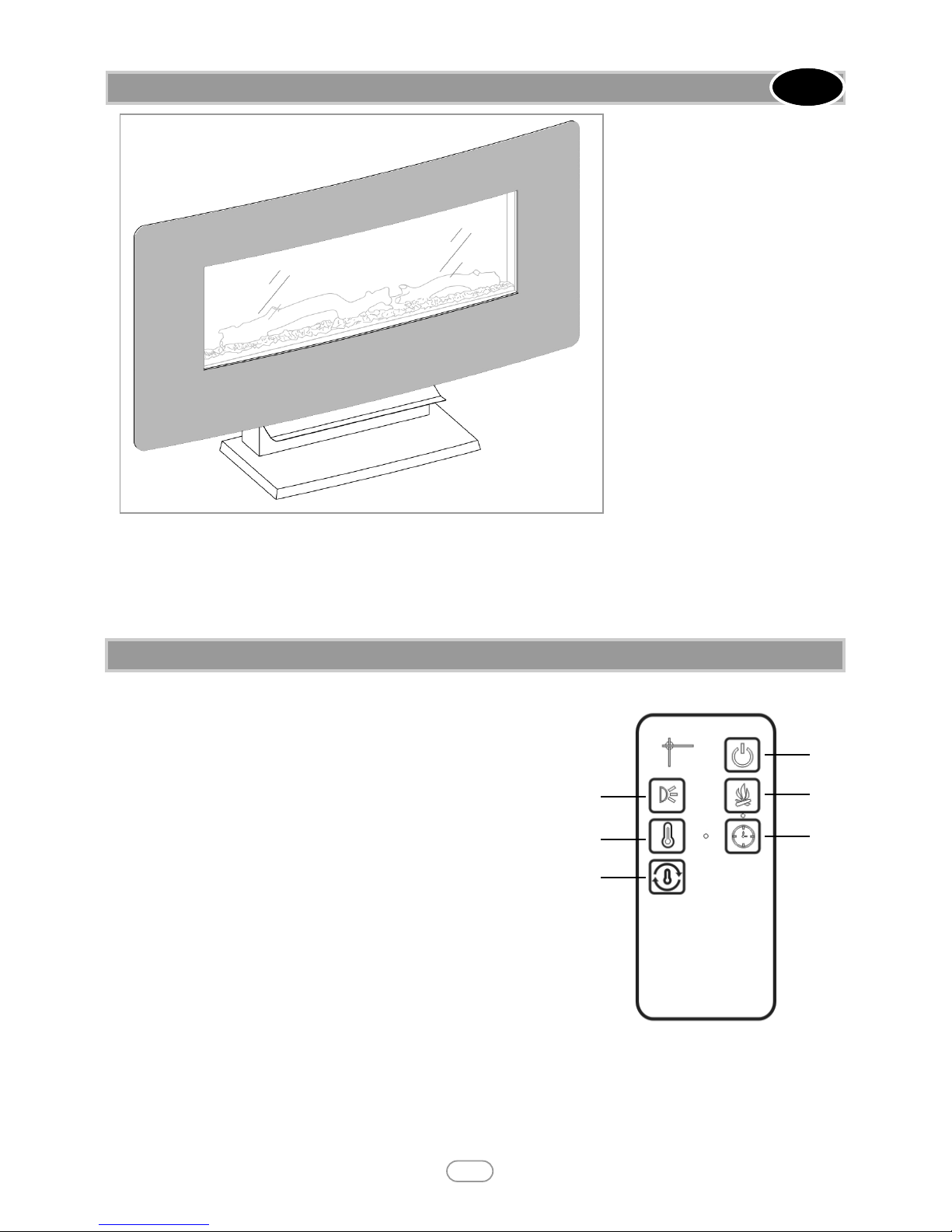

9.0 INSTALLATION - TABLE TOP - CONTINUED GB IE

7. Repeat steps 10 and 11 on the Installation wall mounted to change the log fuel bed to pebble.

8. Repeat steps 12 on the Wall ount configuration to install the Glass Fascia on the firebox.

10.0 OPERATING THE APPLIANCE

On the top right side plate of the Electric Fireplace is the control panel. This panel

contains the buttons to properly operate the electric fireplace. The buttons on the

control panel on the side of the Electric Fireplace and the Remote Control function in

the same way. The remote control has an effective range of up to 13 feet.

1. ain Power Button

2. Flames Control Button

3. Timer Function Button

4. Side Light Control Button

5. Thermostat On/Off Button

6. Thermostat Control Button

3.5.

Table of contents

Other Focal Point Indoor Fireplace manuals

Focal Point

Focal Point eko 3040 Guide

Focal Point

Focal Point EBONY ELECTRIC Assembly Instructions

Focal Point

Focal Point KAVACHI F500181 Assembly Instructions

Focal Point

Focal Point F820906 Programming manual

Focal Point

Focal Point L40 PINOIR- NG Assembly Instructions

Focal Point

Focal Point LJSF4009E-EHS88 Assembly Instructions

Focal Point

Focal Point GRANGE MULTIFLUE Assembly Instructions

Focal Point

Focal Point F820804 Programming manual

Focal Point

Focal Point ALVOR Assembly Instructions

Focal Point

Focal Point POLARIS User manual

Focal Point

Focal Point HORIZON Guide

Focal Point

Focal Point KENSINGTON REALITY User manual

Focal Point

Focal Point F500283 Assembly Instructions

Focal Point

Focal Point AMERSHAM LED ELECTRIC SUITE Assembly Instructions

Focal Point

Focal Point versailles Guide

Focal Point

Focal Point Exselsior Slimline User manual

Focal Point

Focal Point SAN FRANCISCO CHARLESTON Assembly Instructions

Focal Point

Focal Point EF461L-E Assembly Instructions

Focal Point

Focal Point BLENHEIM HE Assembly Instructions

Focal Point

Focal Point EBONY ELECTRIC Assembly Instructions

Focal Point

Focal Point EKOFIRES EKO 5090 Assembly Instructions

Focal Point

Focal Point L23S MIDNIGHT Assembly Instructions

Focal Point

Focal Point FPFBQ257 BLENHEIM Assembly Instructions

Focal Point

Focal Point JEMEZ User guide

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
