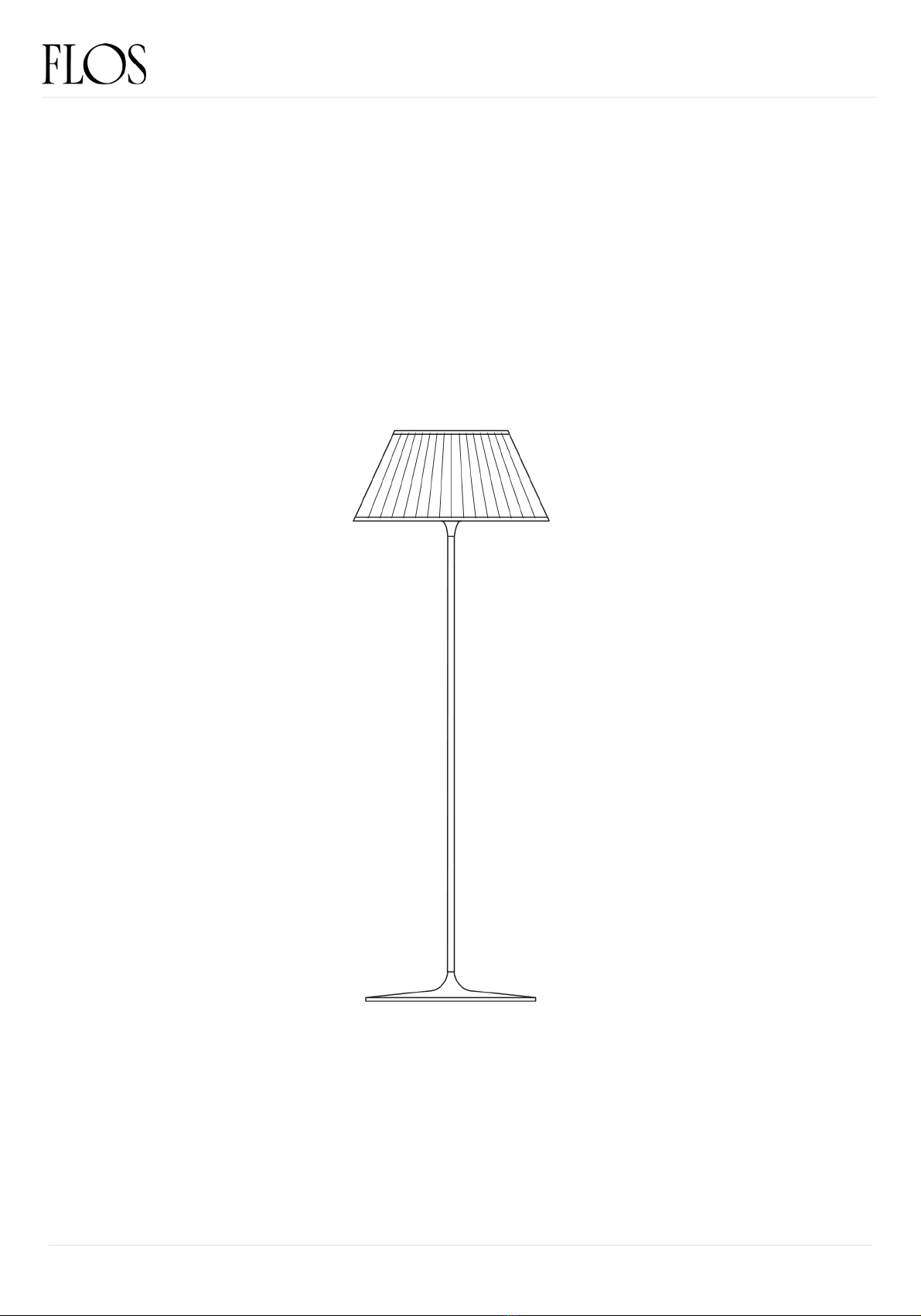

FLOS ROMEO SOFT F User manual

REV. 1

DATE 08/07/2021

ROMEO SOFT F

F6109007

Flos reserves the right to introduce any changes to its own models, without prior notice.

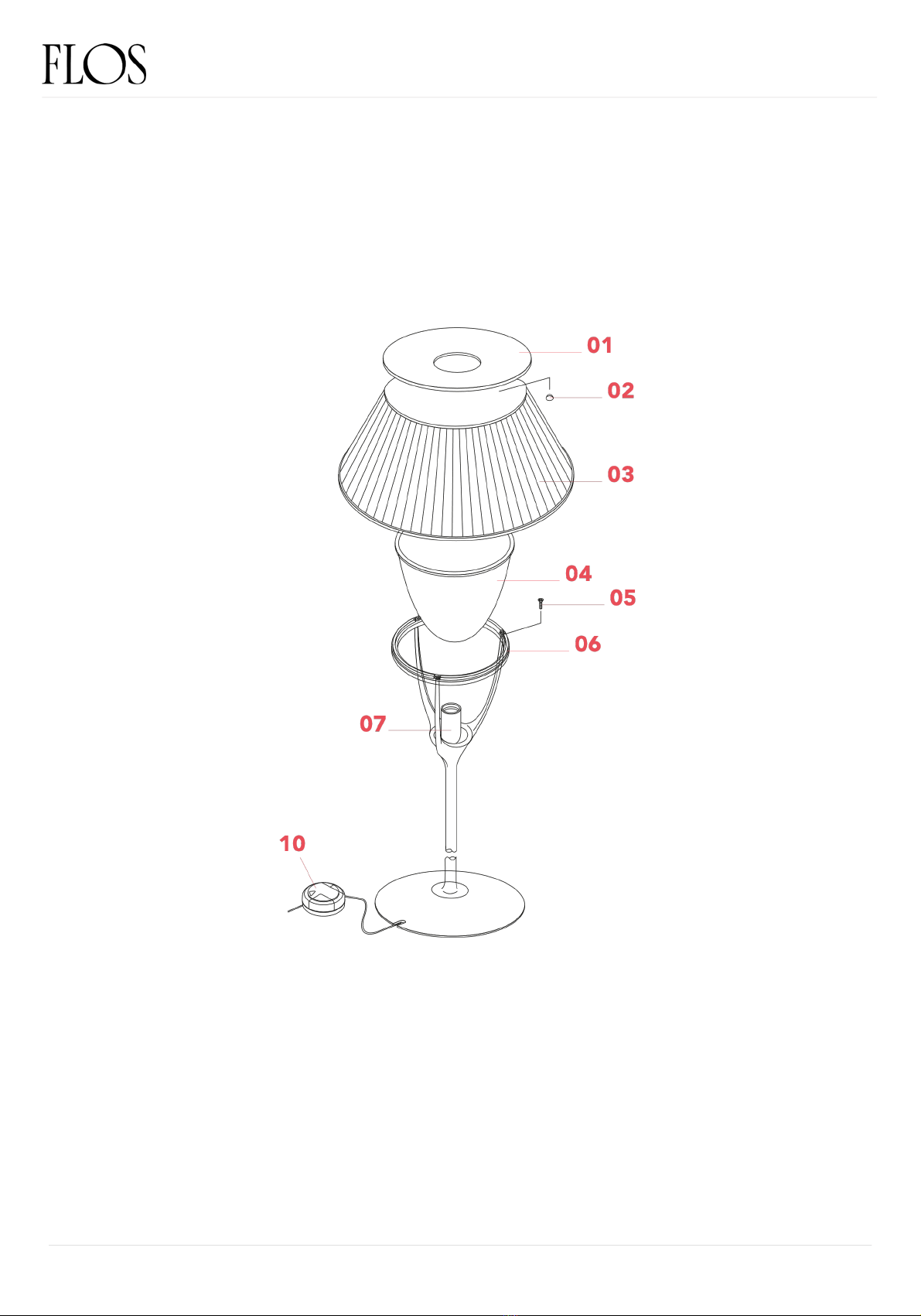

01. RF03204

–Cover ring

02. RF6100100

–Kit of silicone seats for cover ring

03. RF05274

–Fabric lamp shade

04. RF03321

–Acid-etched diffuser

05. RF6100200

–Kit of screws & bolts

06. RF05307

–Support ring

07. RF04169

– E27 Lamp holder

08. RF02812

–Grey support bracket

10. RF28045

– Led 220/240V 40-250W 4-100W Rondò dimmer

ROMEO SOFT F

F6109007

REV. 1

DATE 08/07/2021

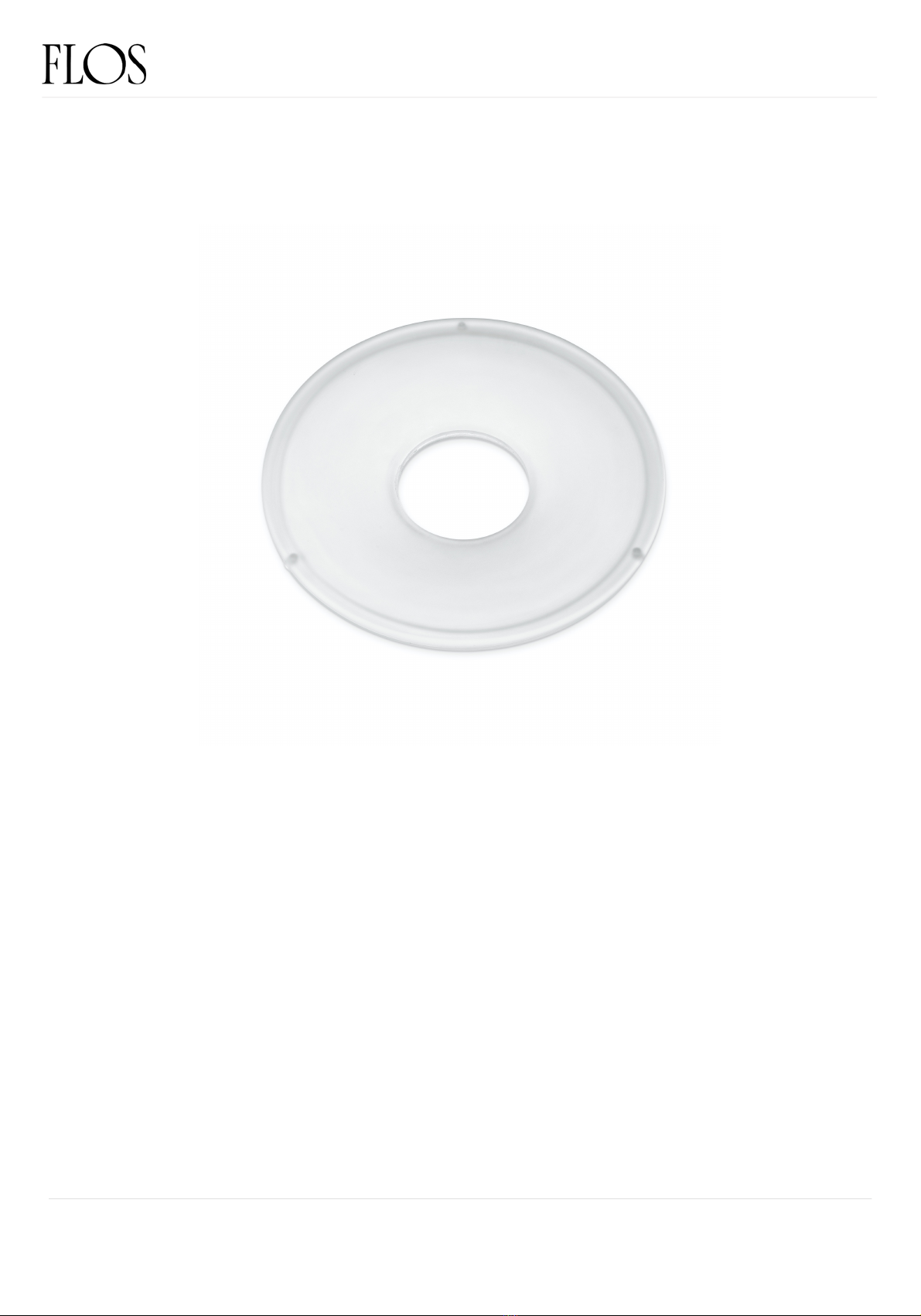

RF03204

COVER RING

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

ROMEO SOFT FF6109007

REV. 1

DATE 08/07/2021

REMARKS

–We advise to supply with the cover ring, also the glass silicone seats (code RF6100100)

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Position the fabric lamp shade (N) on the support ring (D) ensuring to insert the

hook threaded screws (R) into the apposite holes present in the support ring (D),

fasten the small bolts (Q).

Collocate the silicone seats in there apposite holes underneath the cover ring (O).

Rest the covering ring (O) on the pins (G).

Fig.1

RF03204

COVER RING

ROMEO SOFT FF6109007

REV. 1

DATE 08/07/2021

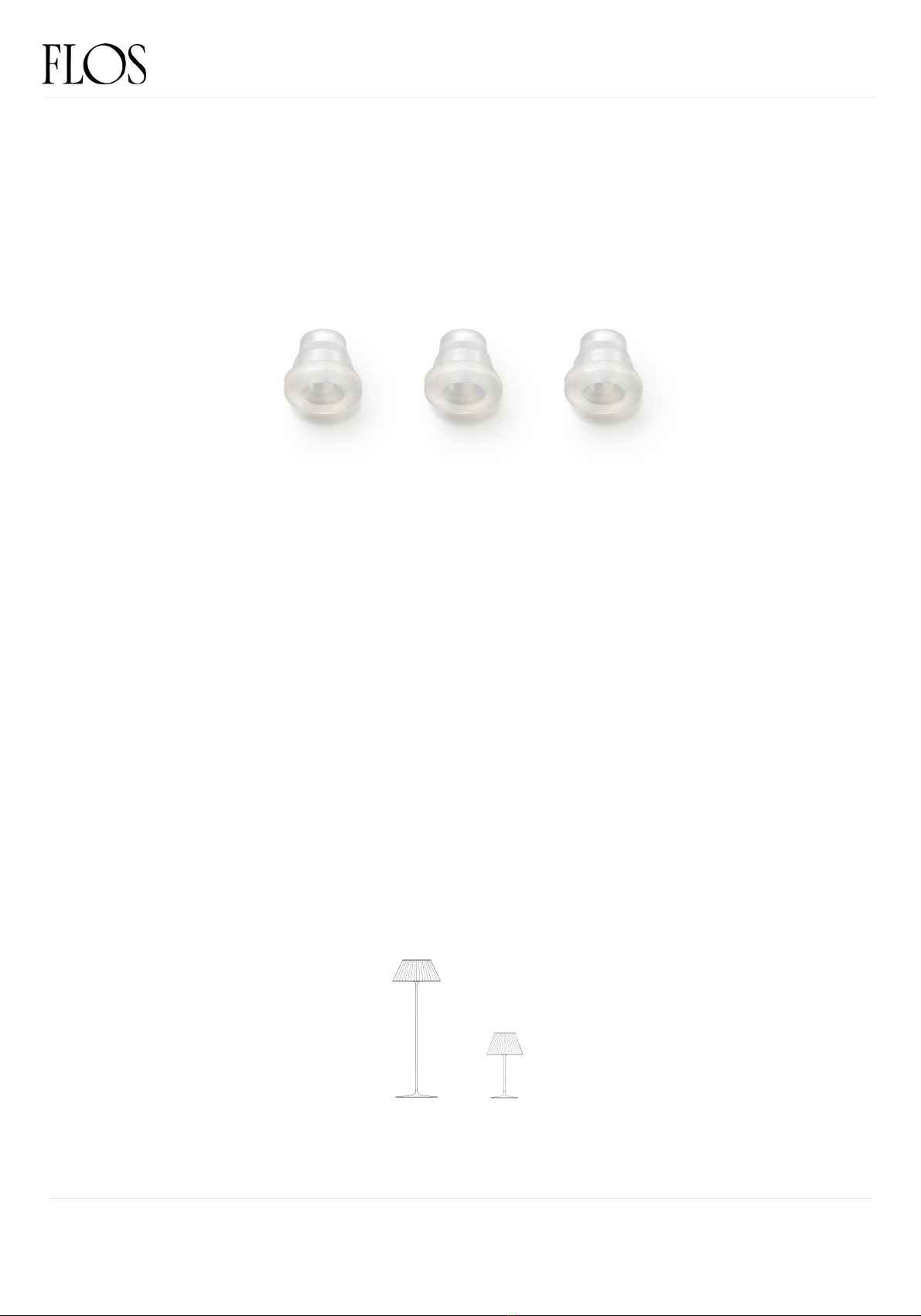

RF6100100

KIT OF SILICONE SEATS FOR COVER RING

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

ROMEO SOFT FF6109007

REV. 1

DATE 08/07/2021

Romeo

Soft F

p.05

Romeo

Soft T1

p.05

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Position the fabric lamp shade (N) on the support ring (D) ensuring to insert the hook threaded screws

(R) into the apposite holes present in the support ring (D), fasten the small bolts (Q).

Collocate the silicone seats in there apposite holes underneath the cover ring (O).

Rest the covering ring (O) on the pins (G).

Fig.1

RF6100100

KIT OF SILICONE SEATS FOR COVER RING

ROMEO SOFT FF6109007

REV. 1

DATE 08/07/2021

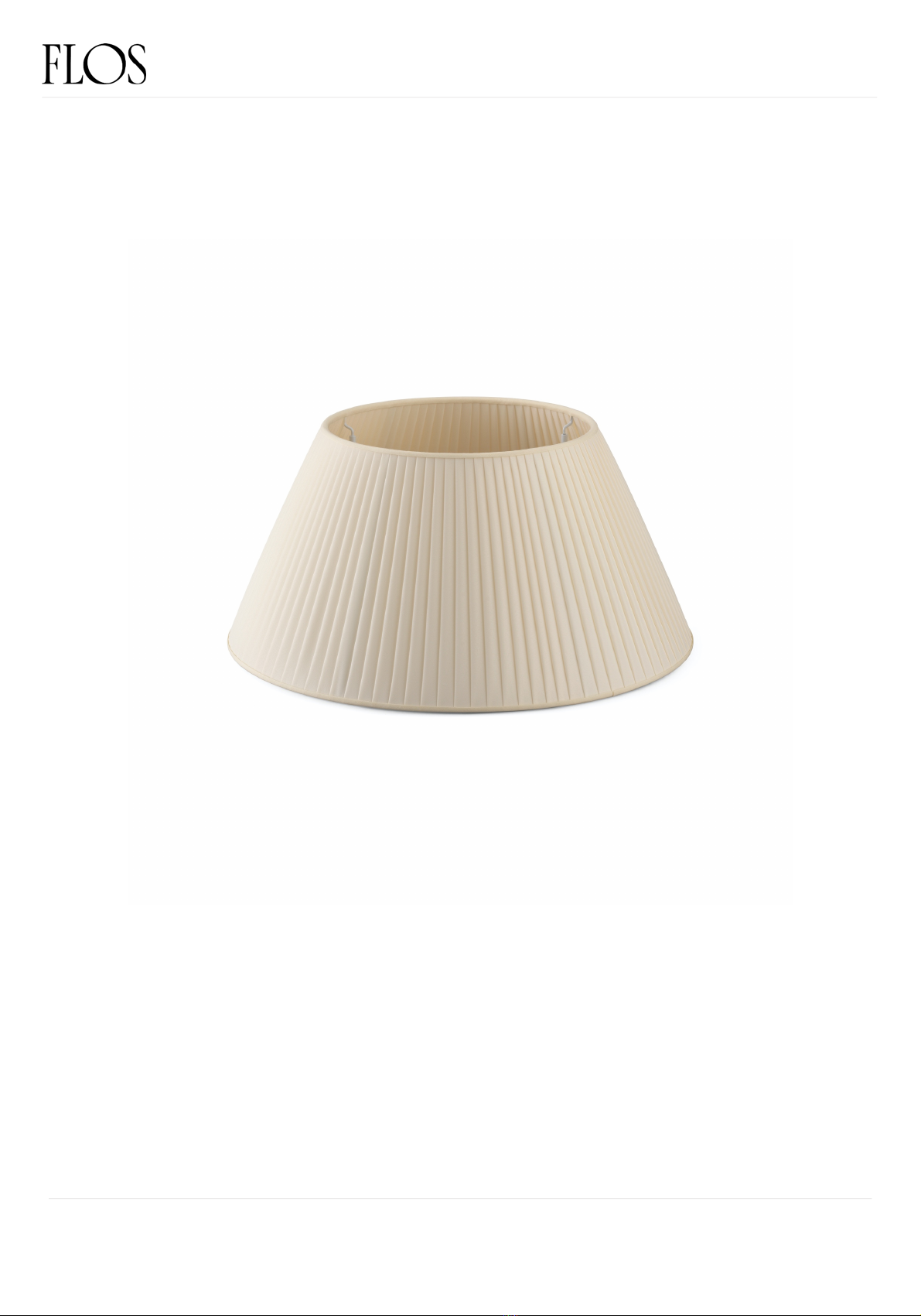

RF05274

FABRIC LAMP SHADE

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

ROMEO SOFT FF6109007

REV. 1

DATE 08/07/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Position the fabric lamp shade (N) on the support ring (D) ensuring to insert the hook threaded screws

(R) into the apposite holes present in the support ring (D), fasten the small bolts (Q).

Collocate the silicone seats in there apposite holes underneath the cover ring (O).

Rest the covering ring (O) on the pins (G).

Fig.1

ROMEO SOFT FF6109007

REV. 1

DATE 08/07/2021

RF05274

FABRIC LAMP SHADE

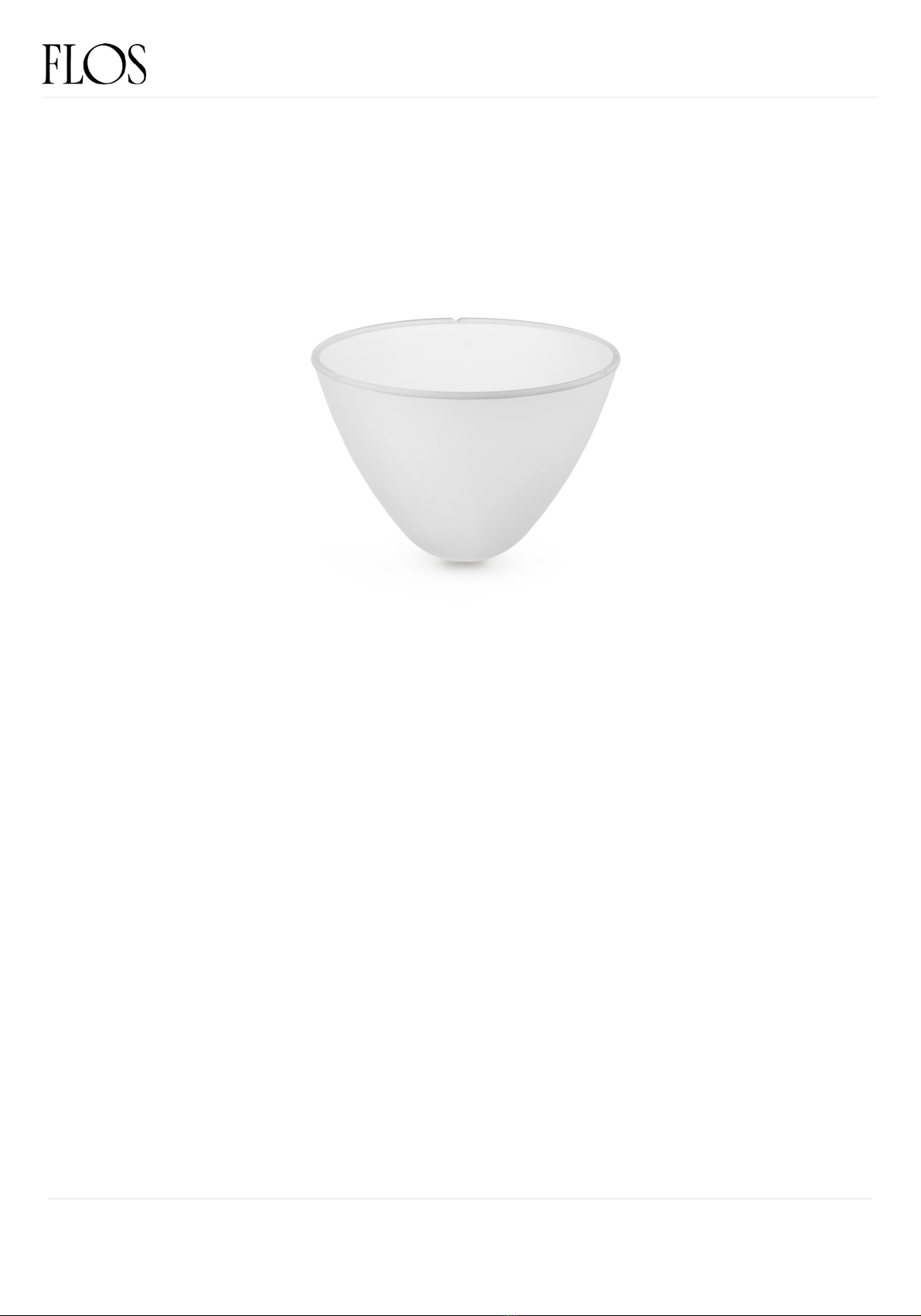

RF03321

ACID-ETCHED DIFFUSER

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

ROMEO SOFT FF6109007

REV. 1

DATE 08/07/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Insert the diffuser (H).

Now, Insert the lamp-bulb (I).

Fig.1

Fig.2

ROMEO SOFT FF6109007

REV. 1

DATE 08/07/2021

RF03321

ACID-ETCHED DIFFUSER

Remove the lamp-bulb (I) if still present on the

lamp device.
