JONATHAN Y JYL6007A User manual

WARNING

WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN.

WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT

BREAKER BEFORE INSTALLATION.

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT DO NOT INSTALL ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED

Model# JYL6007A

CARE AND MAINTENANCE

Unplug lamps before using any cleaning solutions. Dust shades with a feather duster or with an appropriate

vacuum-brush attachment. Wipe with a soft, dry cloth and clean lamp bases with the methods appropriate to

the material. Avoid the use of chemicals and household cleaners as they may damage the finish.

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

Model#

JYL6007A

Product Dimensions: 16"L X 16"W X (55-65)"H

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below

for safe use and installation

*f f

**This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce the risk of

electric shock. this plug will fit in a polarized outlet only one way. if the plug does not fit fully in the outlet, reverse the

plug, if it still does not fit, contact a qualified electrician. Never use with an extension cord unless the plug can be fully

inserted do not attempt to defeat this safety feature

*The external flexible cable or cord of this luminaire cannot be replaced;

If the cord is damaged, the luminaire shall be destroyed

PIECE DESCRIPTION PICTURE QUANTIT

PIECE DESCRIPTION PICTURE QUANTITY

Part List and Hardware List

nser

o no

emp

thi

s sa

ure.

A Lamp base 1X F Harp 1X

B Lamp Body 1X G Shade 1X

C Lamp Body 1X H Finial 1X

D Saddle 1X I Bulb 1X

E Socket 1X J Knob 1X

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.

If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 6 minutes

Estimated

Assembly

Time:

minutes

PLEASE USE ON/OFF TYPE"A" BULB MAX 100-WATT OR CFL BULB MAX 23-WATT OR LED BULB MAX 12-WATT

THERE IS LED 9-WATT BULB IN THE BOX

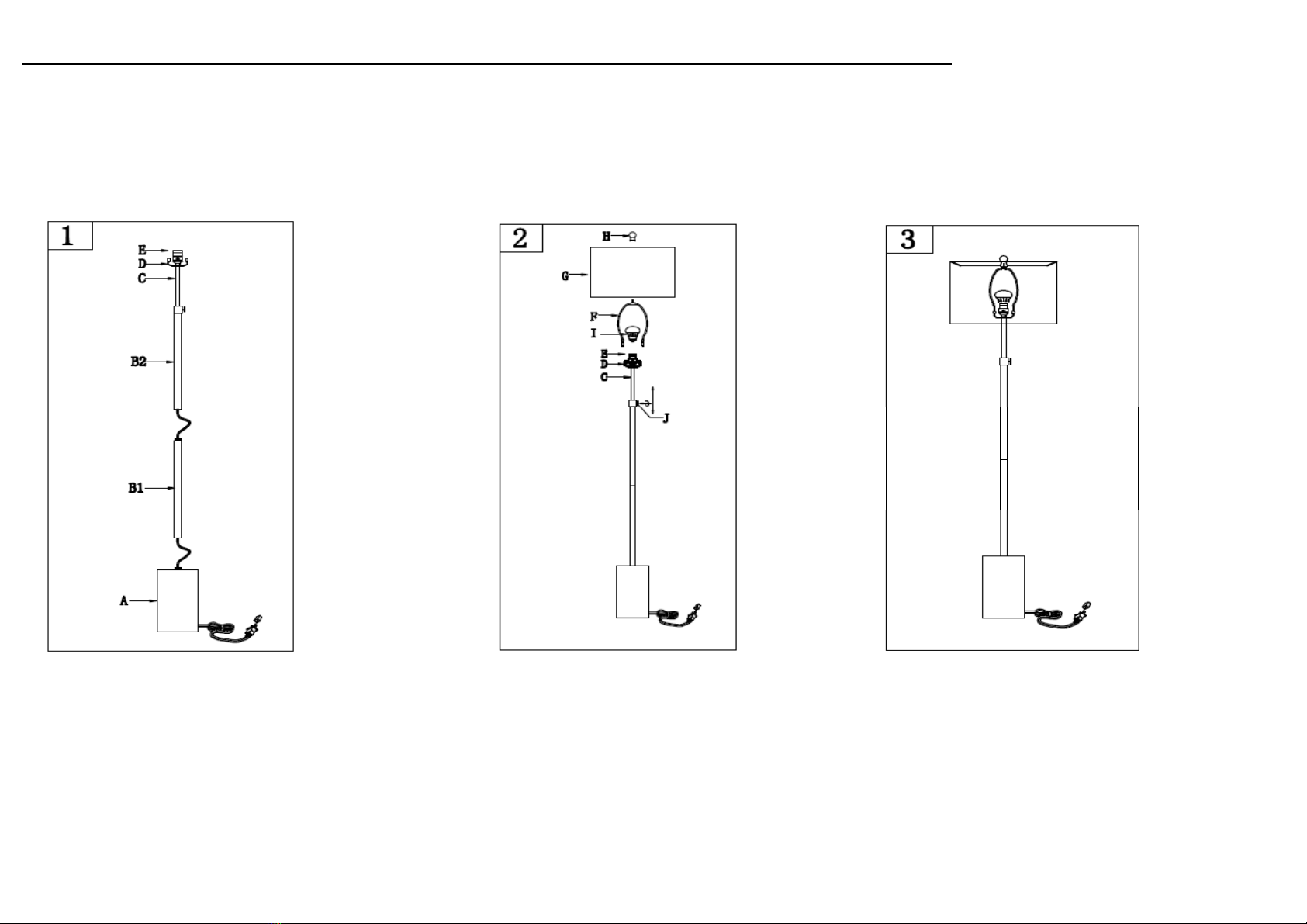

Step 1 Step2 Step3

Make sure all parts could be aligned before assemble Insert the harp (F) into the saddle (D). Put the light on a level surface to check

Do not rotate lamp body too hard avoid base screw broken Put the shade(G) on the harp(F), then if everything is stable.

Screw the Lamp body (C) onto the Lamp body (B2)

tighten the finial (H) into the harp (F)

Screw

the

Lamp

body

(C)

onto

the

Lamp

body

(B2)

tighten

the

finial

(H)

into

the

harp

(F)

Screw the Lamp body (B2) onto the Lamp body(B1) Insert the bulb(I) into the socket(E).

Screw the Lamp body (B1) onto the Lamp body(A) Please unscrew the knob (J) first before

Be careful not to twist the power cord and tighten securely adjust the lamp height, and screw the knob(J)

to tight after lamp height adjust finished

ENJOY YOUR LAMP

ENJOY

YOUR

LAMP
