FLOS NOCTAMBULE F User manual
REV. 1
DATE 30/06/2021
1
NOCTAMBULE F
Designed by Konstantin Grcic, 2019
F0292000
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
2
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
03. F0293030A –Terminal cap
04. RF0254100 –Fixing screws kit
05. RF27498 –Ring led diffuser
06. F0257000A –High cylinder
07. RF3320400 –Black plug kit & driver
08. RF27549 –Switch dimmer 48V PMW 500Hz
09. F0262030A –Big base
REV. 1
DATE 30/06/2021
NOCTAMBULE F
F0292000
03
04
05
06
07
08
09
05
EN
3
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 30/06/2021
F0293030A
TERMINAL CAP
NOCTAMBULE F F0292000
EN
4

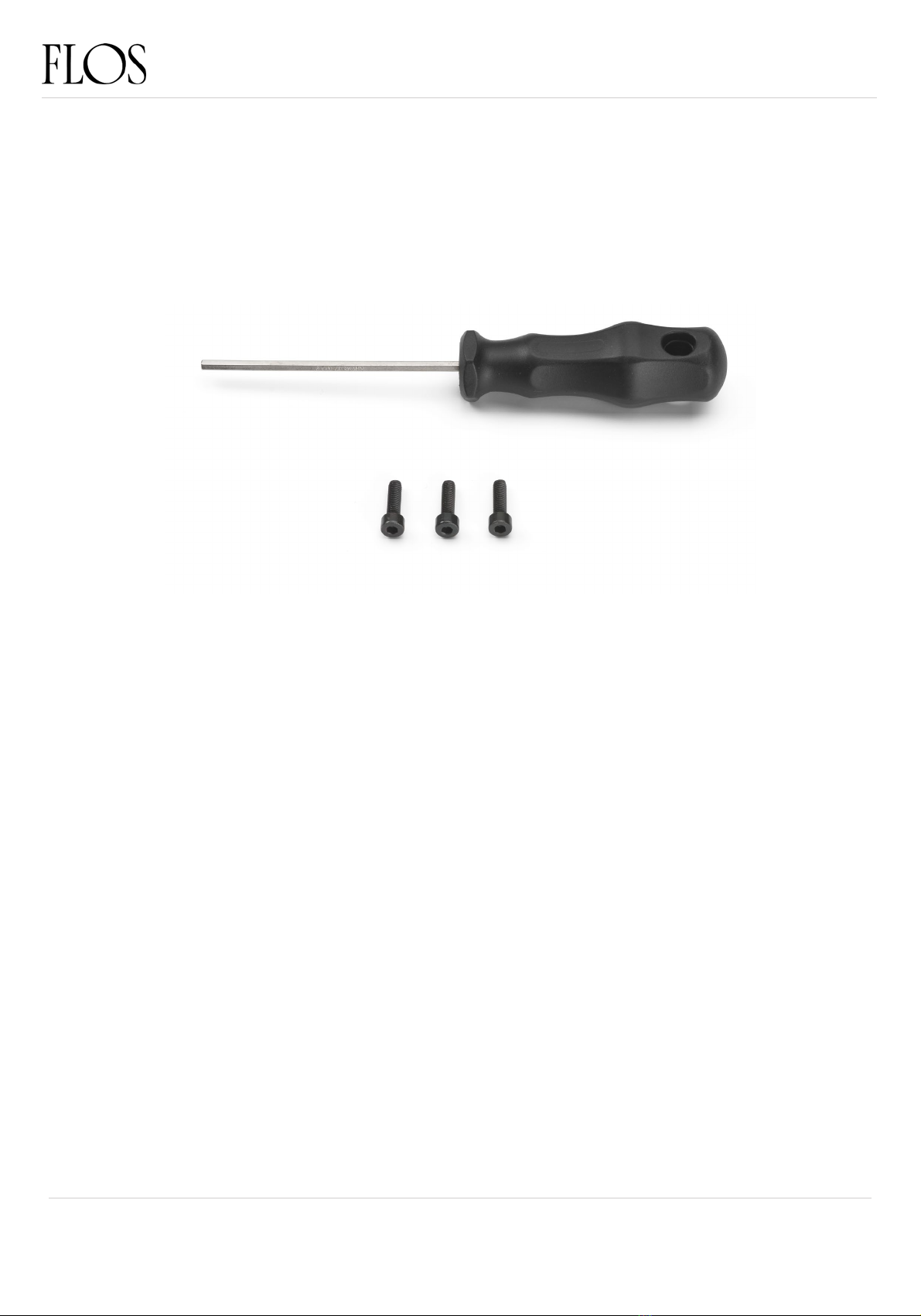

RF0254100
FIXING SCREWS KIT
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 30/06/2021
NOCTAMBULE F F0292000
EN
5

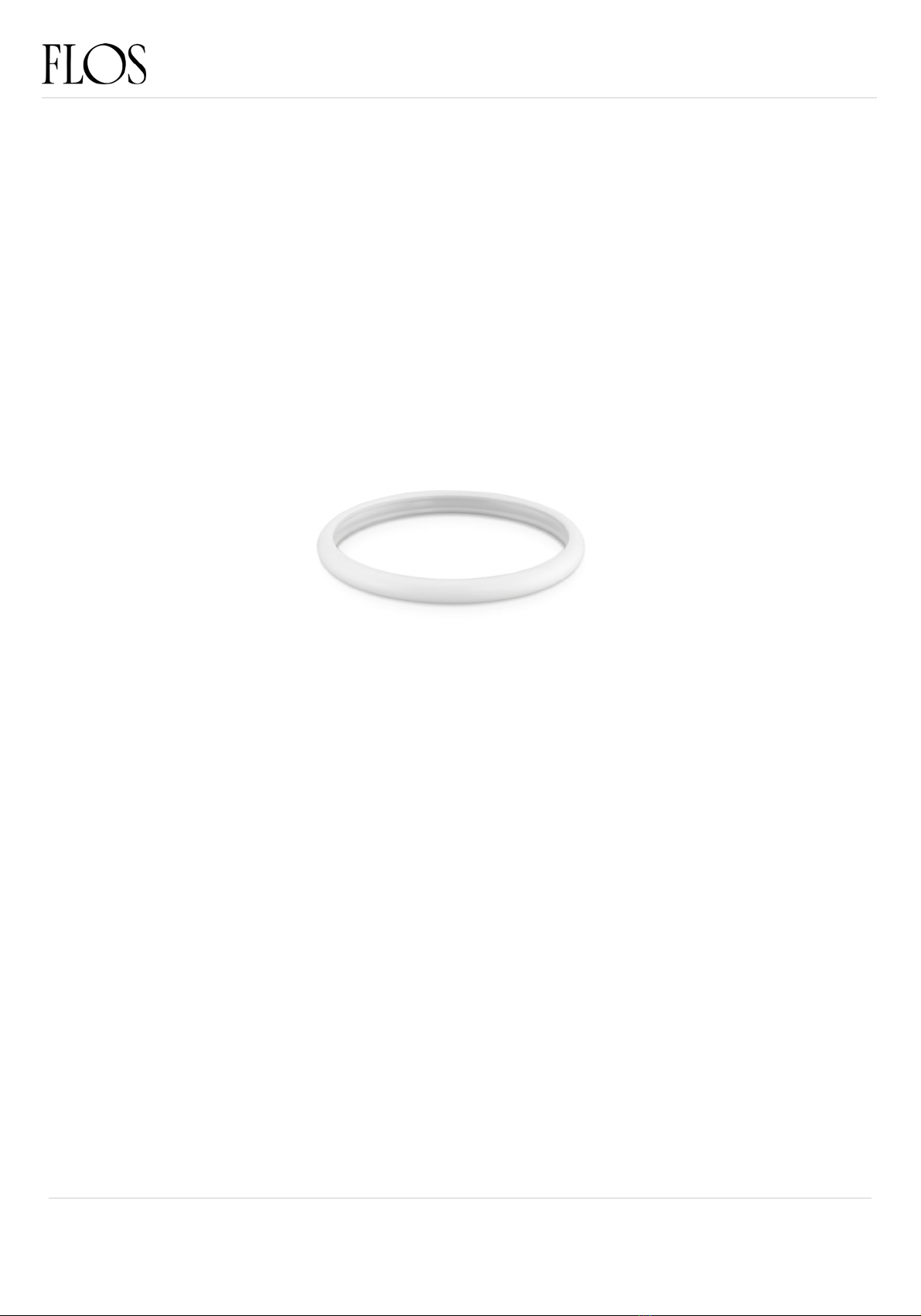

RF27498
RING LED DIFFUSER
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 30/06/2021
NOCTAMBULE F F0292000
EN
6
F0257000A
HIGH CYLINDER
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 30/06/2021
NOCTAMBULE F F0292000
x3
7
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Remove the base from the cylinder.
Fig.1
Fig.2
Disconnect the dimmer from the electrical cable.
Carefully place the lamp in a horizontal position by
resting it on the cylinder packages.
Unscrew the screws from the base.
REV. 1
DATE 30/06/2021
F0257000A
HIGH CYLINDER
NOCTAMBULE F F0292000
8
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
EN
Figure 3 and 4 (only for 2/3/4 cylinders version)
Disconnect the cylinder from the other one (3).
Unscrew the screws from the cylinder (1-2).
Replace the old cylinder with the new one.
Now assemble all the components, please
proceed in reverse order.
Connect the cylinder to the other one (3).
Tighten the screws to the cylinder (1-2).
Connect the base to the cylinder .
Tighten the screws of the base.
Connect the dimmer to the electrical cable.
Fig.3
Fig.4
X4 MAX
3
2
1
REV. 1
DATE 30/06/2021
F0257000A
HIGH CYLINDER
NOCTAMBULE F F0292000
EN
9
RF3320400
BLACK PLUG & KIT DRIVER
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
REV. 1
DATE 30/06/2021
NOCTAMBULE F F0292000
Captain
Flint
p.05
Noctambule
F
p.15
Sawaru
p.03
Superloon
p.13
Taccia
Led
p.13
Arco Led
p.03
EN
10
RF3320400
BLACK PLUG & KIT DRIVER
WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.
For the installation of the spare-part, it is necessary to consult a qualified electrician.
©2021 Flos -All rights reserved -www.flos.com
Flos reserves the right to introduce any changes to its own models, without prior notice.
Fig.1

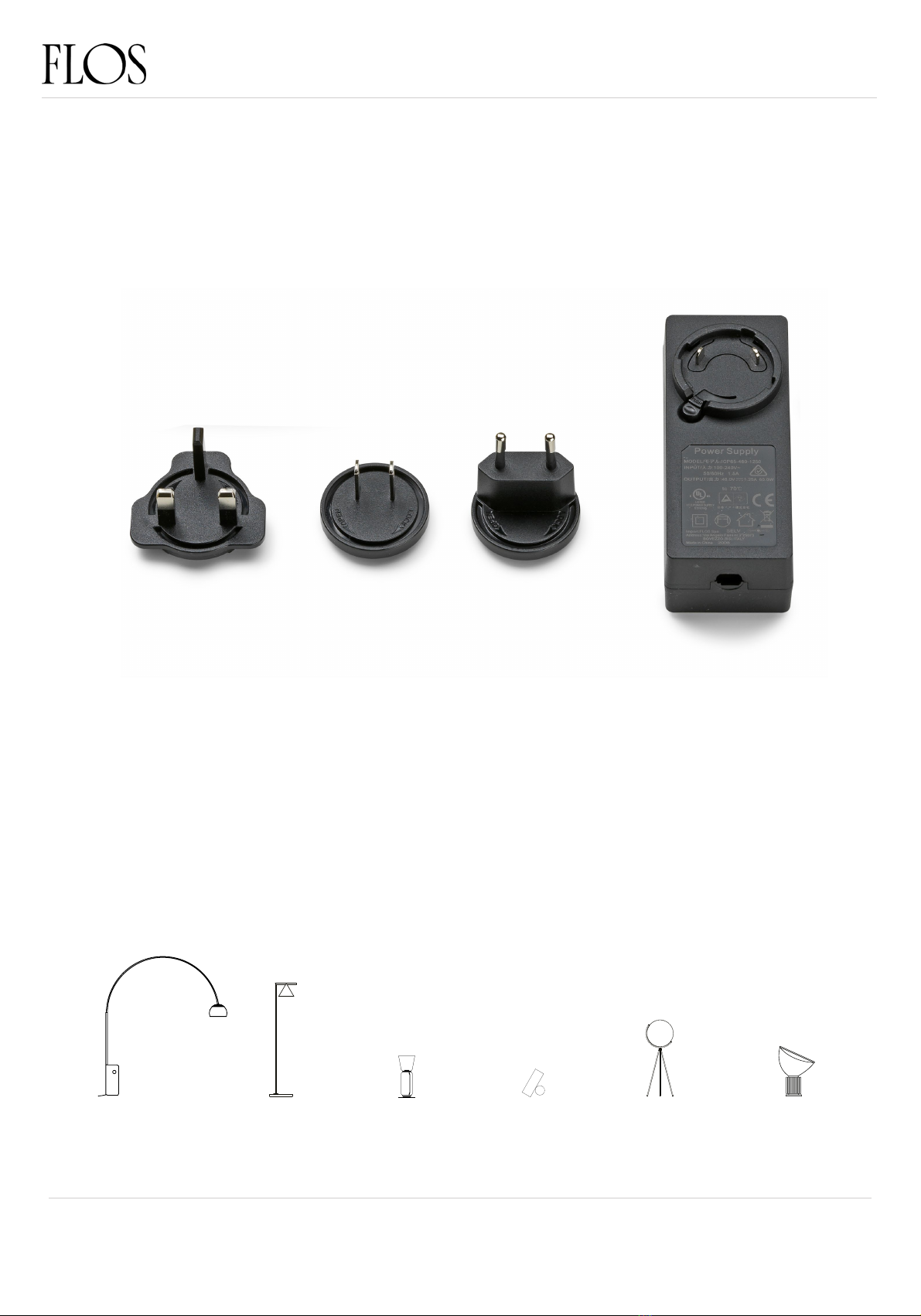

Insert the plug (E) into the power unit (B). By using the guides, snap the plug inside its apposite slot (use the correct
type of plug for the country in which the device must be installed).
B
E
REV. 1
DATE 30/06/2021
NOCTAMBULE F F0292000
Other manuals for NOCTAMBULE F
3
This manual suits for next models
1
Other FLOS Home Lighting manuals
