Flomec QS200 User manual

Product Owner’s Manual EN

QS200 Saddle

Insertion Ultrasonic Flowmeter Options

For Large Pipe Sizes

LINE SIZES: 6 in., 8 in., 10 in., 12 in. (Tube, PIP, Pipe NPS/IPS)

U.S. Design Patent No. D845,804 - Ultrasonic Insert

05/2021 920906-01 Rev C

Please save these instructions for future reference. Read carefully before attempting

to assemble, install, operate or maintain the product described.

Protect yourself and others by observing all safety information. Failure to comply with

instructions could result in personal injury and/or property damage.

Please refer to back cover for information regarding this product’s warranty and other

important information.

If you are missing parts, or experience problems with your installation, contact our

Customer Support Department. We will be happy to assist you.

Call: 888-996-3837 or 316-686-7361

Email: meters@ plains.com

SAVE FOR YOUR RECORDS

Model #: ________________________

Serial#: _________________________

Purch. Date: _____________________

TABLE OF CONTENTS

Getting Started --------------------------------------------- 4

General Safety Instructions ----------------------------- 5

Specifications ----------------------------------------------- 6

Installation --------------------------------------------------- 8

Operation --------------------------------------------------- 11

Repair Parts List & Service ---------------------------- 19

Warranty ---------------------------------------------------- 20

UNPACKING

Contents:

920913-01 Quick Start Guide (QS200 Saddle) (1) Sleeve

(1) Saddle (sized specifically for your pipe O.D.) (1) Gasket

(2) Band Clamps Hardware

(1) Retention Pin (Quick Release) (1) Sensor

(if ordered)

(1) Sensor Owners Manual

Inspect

•

After unpacking the unit, inspect carefully for any damage that may

have occurred during transit. Check for loose, missing or damaged

parts. Shipping damage claims must be filed with carrier.

•

See General Safety Instructions, and all Cautions, Warnings, and

Dangers as shown.

To do a complete and successful installation, you must carefully read this manual

and the manual for the sensor.

BEFORE CUTTING A HOLE IN THE PIPE

•Verify you have all the pieces.

•Verify this saddle size is the same as your pipe outside diameter.

•Verify the pipe is not pressurized.

•Verify the desired hole location is more than 10 diameters downstream

and 5 diameters upstream from any obstructions. Valves, pumps,

elbows, reducers are all considered obstructions.

•Note that the finished hole diameter should be between 1-15/16” to 2”.

It should be clean and free of burrs.

•We recommend the hole be made with a hole saw.

•Note the direction of flow. Measuring water only.

Tools and Materials Needed

•Ø1-15/16” to Ø2.0” hole saw and drill

•7/16” end wrenches

•Tape measure

•Permanent marker

GENERAL SAFETY INSTRUCTIONS

IMPORTANT: It is your responsibility to:

•Ensure that all equipment operators have access to adequate instructions

concerning safe operating and maintenance procedures.

This product is not approved for use with petroleum products

(diesel fuel, unleaded gasoline,jet fuel, kerosene, etc.), aromatic

hydrocarbons or other incompatible chemicals.

This product is not approved for use in hazardous locations.

When applying power, adhere to specifications listed in

appropriate electronics manual.

Disconnect external power before attaching or detaching input or

output wires.

NOTE: Be sure O-rings and seals are kept in good repair.

Compatibility of this product’s material and the process fluid

and/or environment should be considered prior to putting into

service.

Product should never be operated outside its published

specifications for temperature or pressure. See specifications for

your model.

Make sure flow and pressure have been eliminated from process

pipe prior to installing or removing product.

Installation near high electromagnetic fields and high current

fields is not recommended and may result in inaccurate readings.

Do not allow water to freeze in meter. Ice expansion may burst the

plastic housing.

Do not allow this meter to be used with steam.

Thermal expansion/contraction of plastic pipe can cause

clamps to

loosen. Make sure clamps are ALWAYS tight (Recommended

Torque is 75 IN

LB).

SPECIFICATIONS

SADDLE "ONLY" SELECTION CHART

Model Part

Number Description

Pipe Outside

Diameter (in.)

Operating Flow

Range

Maximum Water

Pressure**

Meter

Material

Gasket

Material

Saddle

Material

Clamp

Material

146080-01

6 in. Pipe

(NPS/IPS) 6.625 .1 to 15 ft/sec

(9 to 1350 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-02

8 in. Pipe

(NPS/IPS) 8.625 .1 to 15 ft/sec

(15 to 2300 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-03

10 in. Pipe

(NPS/IPS) 10.750 .1 to 15 ft/sec

(24 to 3650 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-04

12 in. Pipe

(NPS/IPS) 12.750 .1 to 15 ft/sec

(35 to 5300 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-05

6 in. Tube 6.000 .1 to 15 ft/sec

(8 to 1230 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-06

8 in. Tube 8.000 .1 to 15 ft/sec

(15 to 2200 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-07

10 in. Tube

10.000 .1 to 15 ft/sec

(23 to 3500 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-08

12 in. Tube

12.000 .1 to 15 ft/sec

(34 to 5100 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-09

6 in. PIP 6.140 .1 to 15 ft/sec

(8 to 1230 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-10

8 in. PIP 8.160 .1 to 15 ft/sec

(15 to 2200 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-11

10 in. PIP 10.200 .1 to 15 ft/sec

(23 to 3500 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

146080-12

12 in. PIP 12.240 .1 to 15 ft/sec

(34 to 5100 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) N/A Silicone Aluminum Stainless

Steel

SADDLE WITH SENSOR SELECTION CHART

Model Part

Number

Description

Pipe Outside

Diameter (in.)

Operating Flow

Range

Maximum Water

Pressure**

Meter

Material

Gasket

Material

Saddle

Material

Clamp

Material

146090-01

6 in. Pipe

(NPS/IPS) 6.625 .1 to 15 ft/sec

(9 to 1350 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-02

8 in. Pipe

(NPS/IPS) 8.625 .1 to 15 ft/sec

(15 to 2300 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-03

10 in. Pipe

(NPS/IPS) 10.750 .1 to 15 ft/sec

(24 to 3650 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-04

12 in. Pipe

(NPS/IPS) 12.750 .1 to 15 ft/sec

(35 to 5300 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-05

6 in. Tube 6.000 .1 to 15 ft/sec

(8 to 1230 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-06

8 in. Tube 8.000 .1 to 15 ft/sec

(15 to 2200 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-07

10 in. Tube

10.000 .1 to 15 ft/sec

(23 to 3500 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-08

12 in. Tube

12.000 .1 to 15 ft/sec

(34 to 5100 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-09

6 in. PIP 6.140 .1 to 15 ft/sec

(8 to 1230 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-10

8 in. PIP 8.160 .1 to 15 ft/sec

(15 to 2200 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-11

10 in. PIP 10.200 .1 to 15 ft/sec

(23 to 3500 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

146090-12

12 in. PIP 12.240 .1 to 15 ft/sec

(34 to 5100 GPM)*

150 PSI @ 73°F

(10 bar @ 23°C) Ryton Silicone Aluminum Stainless

Steel

* Nominal flow rate shown. Actual flow is dependent on pipe schedule (wall thickness).

** Maximum water pressure for larger line sizes would be based on the material of the sensor, adapter, and

pipe. ressure is also derated due to temperature (1.20 psi / °F).

5.3 in.

(13.4

cm)

3.9 in.

(9.9 cm)

4.3 in. (10.9 cm)

SPECIFICATIONS (Continued)

SADDLE – TOP VIEW SADDLE – FRONT VIEW

QS200 INSERT

INSTALLATION

Step 1

–

Drilling hole:

It is recommended that the saddle/sensor not be located on the very top or very bottom of

the pipe. Ideal performance can be achieved with the saddle mounted at 2 to 4 o’clock or 8

to 10 o’clock. Hole should also be drilled perpendicular to the pipe centerline and tangent to

the curvature.

Step 2

–

Mounting the saddle:

The saddle will need to be preassembled to insure the fit is proper. Assemble the hardware

as shown in Figure 1. Tighten only the bottom nuts that hold the threaded studs to the

saddle.

Figure 1

Place gasket over hole in pipe, place pre-assembled saddle from above over gasket. Be sure

saddle engages hole properly and saddle contour matches pipe’s outside diameter. Attach 2

each band clamps as shown in Figure 2 and tighten with 7/16 inch wrench. Recommended

Torque is 75 IN-LB.

NOTE: Clamps can loosen when mounted to plastic pipe, due to thermal contraction.

Figure 2

INSTALLATION (Continued)

Step 3

–

Mounting the sleeve:

Remove the top two nuts and pull sleeve from saddle. Using a tape measure, measure the

distance from the lip of the inside of pipe to the top of the saddle. Reference the asterisk in

Figure 3.

Figure 3

Transpose this measurement onto the sleeve as shown in Figure 4 and mark with a

permanent marker.

Figure 4

INSTALLATION (Continued)

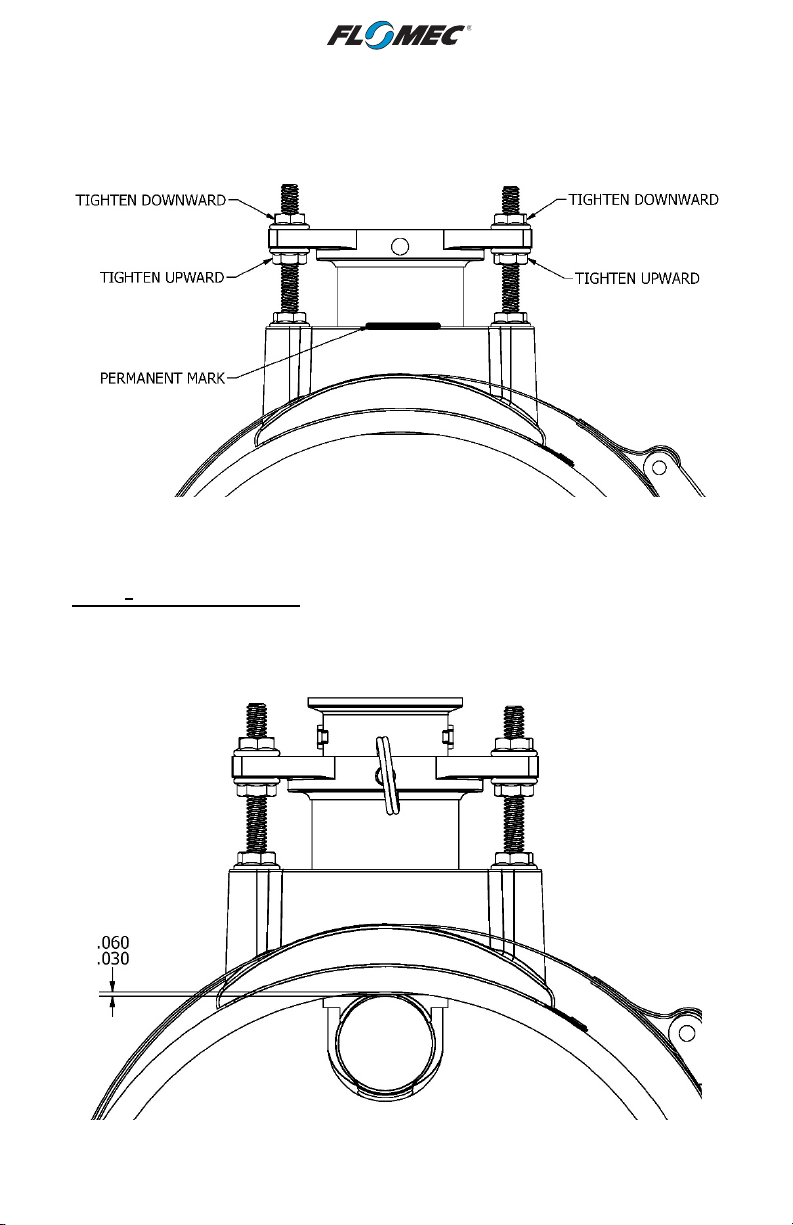

Place the marked sleeve back into saddle, engaging the threaded studs to the depth marked.

Twist the bottom nuts upward to bottom of sleeve flange, replace the two nuts removed earlier

and tighten all nuts with 7/16 wrench. See Figure 5.

Figure 5

Step 4

–

Mounting the sensor:

Note the flow arrows on the side of the sensor; these must point downstream. Insert sensor

into sleeve, press down until hole in sensor matches hole in sleeve. Insert retention pin. Final

sensor depth should match that shown in Figure 6.

Figure 6

Other manuals for QS200

This manual suits for next models

Table of contents

Other Flomec Plumbing Product manuals

Flomec

Flomec G Series User manual

Popular Plumbing Product manuals by other brands

Weka

Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS

Kohler

Kohler K-6228 Installation and care guide

UBERHAUS DESIGN

UBERHAUS DESIGN 75175017 Operator's manual

American Standard

American Standard DetectLink 6072121 manual

Uponor

Uponor Contec TS Mounting instructions

Pfister

Pfister Selia 49-SL Quick installation guide

Fortis

Fortis VITRINA 6068700 quick start guide

Fortis

Fortis MILANO 78211JS installation instructions

Kohler

Kohler K-12183 Homeowner's guide

Maxxus

Maxxus MX-M206-01 instruction manual

Moen

Moen 5922 Series installation instructions

Viega

Viega Prevista Pure 8512 Instructions for use

Kohler

Kohler Centerset K-15240 Homeowner's guide

Viega

Viega Prevista Dry 8522.33 Instructions for use

Sanela

Sanela Lema SLP 59RB Instructions for use

Elkay

Elkay EDF15AC Installation, care & use manual

Hans Grohe

Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions

baliv

baliv WT-140 manual
