Fisher & Paykel DE60F60NW1 Mounting instructions

Installation instructions

and User guide

Condenser dryer

DE60F60NW1 model

Contents

Safety and warnings 2

Installation instructions 4

Before drying 6

Selecting a programme and operating your machine 7

Maintenance and cleaning 12

Troubleshooting 14

Manufacturer’s Warranty 16

Customer Care 17

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

Caution, risk of fire – this is a safety symbol.

Failure to follow the warnings outlined in these user instructions can cause

a fire hazard.

2Safety and warnings

WARNING!

Fire Hazard

Please read the following information. Otherwise, there may be the

risk of personal injury or material damage. Moreover, any warranty

and reliability commitment will become void.

General safety

Never place your machine on a carpet covered floor. The lack of airflow from below your

machine may cause electrical parts to overheat.

Your machine is designed to stop operating in the event of power resuming after a power failure.

You must press START/PAUSE/CANCEL button to resume the programme.

Press the START/PAUSE/CANCEL button for 3 seconds to cancel the programme (see, ‘Ending the

programme through cancelling’ page 11).

Your machine can be operated at temperatures between +5°C and +35°C.

This appliance is not intended for use by persons (including young children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision on instruction concerning the use of the appliance by a person

responsible for their safety.

First use

When operating your machine for the first time, partly load it with wet items of clothing and let

it run approximately for 15 minutes.

You may smell an unpleasant odour and excessive fibre/lint may accumulate during first

drying cycle.

For safety and performance purposes, clean the filters after each drying cycle.

Intended use

This product has been designed for home use.

The appliance may only be used for drying textiles that are marked accordingly.

Do not operate this product without the lint filter in place.

Do not dry unwashed items in the dryer.

Safety instructions

Unplug the machine when it is not in use.

Never wash down the appliance with water. There is the risk of electric shock!

Never touch the plug with wet hands.

Never pull from the cable to unplug the machine.

Do not operate the machine if the power cord or plug is damaged.

Never attempt to repair the machine yourself.

For malfunctions that cannot be solved by information in the User Guide:

Turn off and unplug the appliance and contact a Fisher & Paykel Authorised Repairer.

Lint must not be allowed to accumulate around the tumble dryer.

To minimise the risk of fire in a tumble dryer, the following should be observed:

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol,

kerosene, dry cleaning solvents, spot removers, turpentine, waxes or wax removers, should be

washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as

in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation

creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling,

stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.

If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated

by hair care products be placed in a tumble dryer they should first be washed in hot water with

extra detergent - this will reduce, but not eliminate, the hazard.

The ‘cool down’ cycle of tumble dryers should be used to reduce the temperature of the items to

ensure they will not be damaged. They should not be removed from the tumble dryer or piled or

stacked while hot.

Important!

Never stop the tumble dryer before the end of the drying cycle unless all items are quickly

removed and spread out so that the heat can dissipate.

The dryer should not be used for items cleaned using industrial chemicals.

Items containing foam rubber (also known as latex foam) or similarly textured rubber like

materials should not be dried in a tumble dryer.

Foam rubber materials can, when heated, produce fire by spontaneous combustion.

Fabric softeners or similar products should not be used in a tumble dryer to eliminate the effects

of static electricity unless this practice is specifically recommended by the manufacturer of the

fabric softener or product.

Undergarments that contain metal reinforcements should not be placed in a tumble dryer.

Damage to the tumble dryer can result if metal reinforcements come loose during drying.

Plastic articles such as shower caps and waterproof textiles should not be placed in a tumble

dryer.

Rubber-backed articles, fibreglass, clothes fitted with foam rubber pads, pillows, galoshes and

rubber-coated tennis shoes should not be placed in a tumble dryer.

If there are children in your house...

Electrical appliances may be dangerous for children. Keep children away from the machine when

it is operating. Do not let them tamper with the machine.

Close the loading door when you leave the area where the machine is located.

Young children should be supervised to ensure that they do not play with the appliance.

Safety and warnings

The proper location

Install your machine in environments which have no risk of freezing and in a stable and level

position.

Do not install the machine behind lockable door, a sliding door, or a door that is hinged on the

opposite side to that of the dryer, in such a way that the door of the machine cannot be opened fully.

Do not place your machine on a carpet covered floor, a long pile rug or on similar surfaces.

Operate your machine in a well ventilated, dust-free environment.

Make sure that your machine is not placed on the power cable.

Place it at least 30 mm away from the edges of other furniture and walls.

Place the machine on a sound floor.

A special part (Part No. 791746) must be used if the machine is to be installed under a counter or

in a cupboard. This replaces the top trim and must be installed by a Fisher & Paykel Authorised

Repairer. Never operate the machine without the top trim.

If the machine is to be placed on top of a washing machine, the approximate weight together

may reach 180 kg when they are full.

A stacking kit should be used between the products, fitted to the washing machine.

Stacking Kit White Part No. 790691

Levelling

In order to ensure that your machine operates quietly and vibration-free, it must stand level and

balanced on its feet.

Balance the machine by adjusting the front feet. Loosen the feet by hand, and adjust them until

the machine stands level and does not rock.

Never unscrew the adjustable feet from their housings.

Two plastic pieces supplied with the Installation Instructions and User Guide

prevent your machine from slipping on wet and slippery surfaces. Tilt your

machine backwards to install these plastic parts. Fit the plastic parts to the

front adjustable feet. Press on the plastic parts to fix them in their places. Check

the balance of your machine again and readjust the adjustable feet if necessary.

Installation instructions

Fig.1 Fitting the

non-slip foot caps

Technical specifications

Specification

Height / Height for built-under installation (mm) 850 / 820

Width (mm) 595

Depth / Depth for built-under installation (mm) 540

Height adjustment of feet (mm) 5

Length of drain hose (mm) 1400

Diameter of drain hose (mm) 10

Highest point of the hose (mm) 800

Weight, unpacked 36

Voltage 220 – 240V, 50 Hz

Connected load 2000 – 2200 W

Fuse protection 16A

Electrical connection

Connect the machine to an earthed outlet protected by a fuse of suitable capacity.

Important!



Connection should comply with national regulations.



Power cord plug must be within easy reach after installation.



The voltage and the allowed fuse protection are specified in the section ‘Technical specifications’

(page 4).



The stated voltage must match with your mains voltage.



Connection via extension cords or multi-plugs should not be made.



The main fuse and switches must have a contact distance of minimum 3 mm.



If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.



The appliance must not be operated unless it is repaired! There is the risk of electric shock!

Products equipped with a condenser unit accumulate water during the drying cycle, which is

collected in the water tank. The accumulated water should be drained after each drying cycle.

Connection to a water drain

The TANK FULL warning LED will light up at the end of

each programme.

You can directly send the accumulated water out

through the water drain hose supplied with the machine

instead of periodically draining the water collected in

the water tank.

Connecting the water drain hose:

Remove the hose on the machine by pulling it out from

its end. Do not use any tools to take out the hose.

Attach the drain hose adaptor to the end of this hose.

Connect the special drain hose supplied with the

machine to the hose adaptor fitting.

The other end of the drain hose can be directly

connected to the wastewater drain or to the washbasin.

The fitting must always be secured in all types of

connections. Your house may be flooded if the hose gets

out of its housing during water discharge.

Important!



The hose should be attached to a maximum height of 800 mm.



You must be careful not the pinch or bend the hose.



The end of the hose should not be bent, it should not be stepped on and it must not be folded

between the drain and the machine.

Installation instructions

Fig.2 Connecting to a water drain

6Before drying

Always follow the advice on the garment labels. With this dryer, dry only items where the label

states that they are suitable for drying in a dryer by selecting the appropriate programme.

Laundry items with metal attachments such as belt buckles and metal buttons can damage

your machine.

Do not dry items such as woollen, silk garments and nylon stockings, delicate embroidered

fabrics, garments with metal accessories and items such as sleeping bags in the machine.

Garments made of delicate and valuable fabrics as well as lace curtains can be creased. Do not

dry these in your machine!

Do not dry items made of hermetic fibres such as pillows and quilts in the dryer.

Do not dry clothes containing rubber in the machine.

Do not dry clothes which have been exposed to petroleum, oil, combustible or explosive agents

in the machine even if they are washed beforehand.

Overly wet laundry or laundry that is dripping water must not be put into the machine.

Preparing clothes to be dried

All laundry must be spun at the highest possible spin speed your washing machine allows for the

textile type.

Laundry may be tangled after washing. Separate items before placing them into your dryer.

Sort your laundry according to their types and thicknesses. Dry the same kinds of items together.

Correct load capacity

The maximum capacity of the dryer is 6 kg.

Adding laundry to the machine more than the level shown in Fig.4 is

not recommended.

The drying performance of the product will decrease when the machine

is overloaded.

Overloading may also cause damage to the product and your clothes.

Place your garments into the drum loosely so that they will not get tangled.

Large pieces may bunch-up during drying. Stop the machine 1 – 2 times

during the drying process to separate bunched-up laundry.

Loading door

Open the loading door. Place laundry items loosely into the machine. Push the loading door to

close. Ensure that no items are caught in the door.

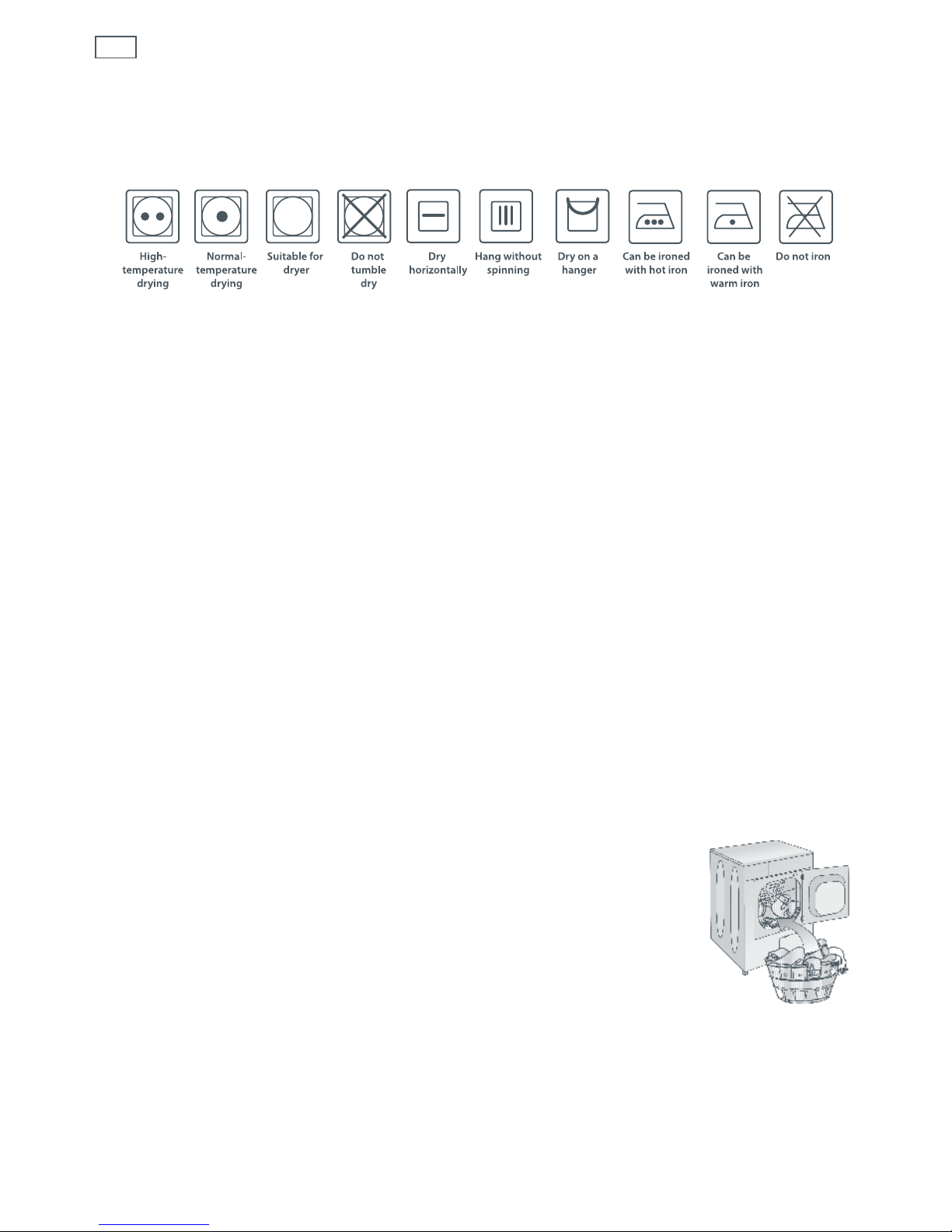

Fig.3 Garment care indicators

Fig.4 Loading the laundry

Selecting a programme and operating your machine

Control panel

Turning the machine on

Prepare the machine for programme selection by pressing the ON/OFF button.

Pressing the ON/OFF button does not necessarily mean the programme has started.

Press the START/PAUSE/CANCEL button to allow the machine to start the programme.

Programme selection

Choose the appropriate programme from the table below. Select the desired programme with

the programme selection button.

Extra dry

Dry at high temperature only for cotton laundry. Thick and multi-layered

laundry (eg: towels, linens, jeans) are dried in a way that they do not

require ironing.

Ready to Wear

Normal laundry (eg: tablecloths, underwear) are dried in a way that they

do not require ironing before placing in drawers.

Ready to Iron

Normal laundry (eg: shirts, dresses) are dried ready to be ironed.

Always select the highest temperature that is safe for the type of items in the load (check care

labels). A higher temperature will ensure energy and time saving, but may be unsuitable for

some items and cause damage.

ON/OFF button

Programme selection knob

START/PAUSE/CANCEL button

Cancel Audio Warning

Programme follow-up indicator

CLEAN FILTER warning LED

TANK FULL warning LED

Fig.5 Control panel features

123456

8Selecting a programme and operating your machine

Main programmes

Depending on the type of textile, the following main programmes are available:

Cottons

You can dry your durable clothes with this programme as it dries at a higher temperature.

It is recommended to use for your cotton items (such as bed sheets, quilt cover,

underclothing, etc).

Synthetics

You can dry your less durable clothes with this programme, as it dries at a lower temperature

compared to the cottons programme. It is recommended for your synthetic clothes (such as

shirts, blouses, synthetic/cotton blended garments, etc).

Do not dry curtains and lace in your machine.

Wrinkle Guard

A two-hour WRINKLE GUARD programme to prevent laundry from creasing will be activated if you

do not take the laundry out after the programme has come to an end. This programme rotates

the laundry in 60-second intervals to prevent creasing.

Delicates

A lower temperature for your very delicate laundry (silk blouses, fine underwear, etc) that is

suitable for tumble drying or laundry which is recommended to be hand-washed.

Freshen up

This 10 minute airing cycle blows cool air through your clothes. It is used to freshen clothes and

deodorise unpleasant odours on items that have been kept in closed environments for long

periods.

Timed programmes

Select one of the 10 min, 20 min, 40 min and 60 min timed programmes to achieve the desired

final drying level at low temperatures. The machine dries for the selected time regardless of

the level of moisture in your clothes. It is important to check the clothes throughout the longer

timed programmes to avoid overdrying.

Table of contents

Other Fisher & Paykel Dryer manuals

Fisher & Paykel

Fisher & Paykel DE6060P User manual

Fisher & Paykel

Fisher & Paykel AeroCare DE7027J1 User manual

Fisher & Paykel

Fisher & Paykel DH9060P1 Operating instructions

Fisher & Paykel

Fisher & Paykel Smartload DEGX1 User manual

Fisher & Paykel

Fisher & Paykel DH9060P User manual

Fisher & Paykel

Fisher & Paykel SmartLoad DE62T27GW1 Mounting instructions

Fisher & Paykel

Fisher & Paykel ED54 Installation instructions

Fisher & Paykel

Fisher & Paykel DE40F56AW1 User manual

Fisher & Paykel

Fisher & Paykel DE4060M1 User manual

Fisher & Paykel

Fisher & Paykel DE6060P1 User manual

Fisher & Paykel

Fisher & Paykel ED56 Series Mounting instructions

Fisher & Paykel

Fisher & Paykel DG60FA27AW2-96979 User manual

Fisher & Paykel

Fisher & Paykel DH9060C1 Manual

Fisher & Paykel

Fisher & Paykel DH8060P1 User manual

Fisher & Paykel

Fisher & Paykel DH9060FS User manual

Fisher & Paykel

Fisher & Paykel Intuitive DGIX2 Mounting instructions

Fisher & Paykel

Fisher & Paykel Smartload DGGX1US User manual

Fisher & Paykel

Fisher & Paykel AeroSmart DG27C Mounting instructions

Fisher & Paykel

Fisher & Paykel DE8060P2 User manual

Fisher & Paykel

Fisher & Paykel AeroSmart DE62T27C Mounting instructions

Fisher & Paykel

Fisher & Paykel DE8060P User manual

Fisher & Paykel

Fisher & Paykel DH9060P User manual

Fisher & Paykel

Fisher & Paykel Smartload DEGX1 Mounting instructions

Fisher & Paykel

Fisher & Paykel DE8060P User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
