FBII ZR401 User manual
N9931V1 3/01
ZR401/ZR402/OMNI-RF
RF Receiver
INSTALLATION INSTRUCTIONS
General Information
The ZR401/ZR402/OMNI-RF is an RF receiver for use with compatible control panels. The receiver
provides communication between wireless devices and the control panel.
The ZR402 (version 1.2) and Omni-RF support RF Jam detection. Refer to the control panel
instructions for details and programming.
Mounting the Receiver, Ground
Lugs, and Antennas
1. Remove the door of the security
system enclosure (A) to expose
the control panel.
2. Loosen both screws on the
control panel antenna block (1).
3. Insert ground lug (2) into the
left-hand terminal of the
control panel antenna block (1)
and secure lug to the enclosure
using the self-tapping screw (3)
provided.
4. Insert the antenna (4) into the
right-hand terminal of the
control panel antenna block (1).
5. Secure the ground lug (2) and
antenna (4) by tightening both
screws on the control panel
antenna block (1).
2
3
4
P/O
CONTROL
PANEL
1
A
ZR401-01-V0
IMPORTANT!
For best possible
performance of the
Receiver, it is extremely
important to be sure that
the ground lug connection
is solid to both the
enclosure and to the
antenna block.
Installation Instructions
¬19:l
N9931V1 3/01

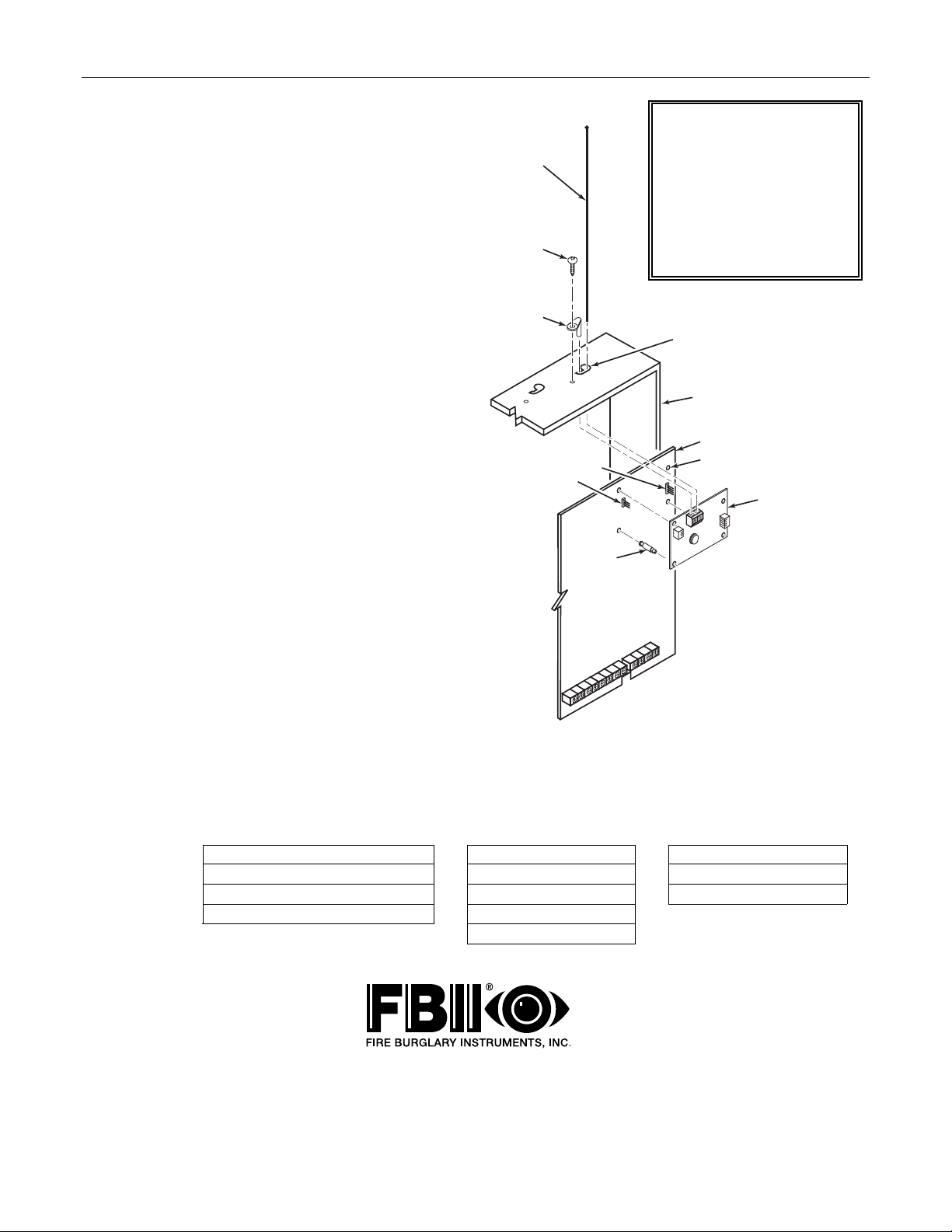

6. Press-fit the four stand-off
spacers (6) supplied into the
matching holes (9) of the control
panel (10).
7. Carefully position the receiver
board (5) over the 3- and 4-pin
headers (7 and 8). Apply
downward pressure to snap the
tops of the four spacers (6) onto
the receiver board
8. Loosen both screws on the
receiver board (5) antenna block.
9. Insert ground lug (12) into the
left-hand terminal of the
receiver board antenna block
and secure lug to the enclosure
using the self-tapping screw (13)
provided.
10. Insert the antenna (14) into the
right-hand terminal of the
receiver board antenna block.
11. Secure the ground lug (12) and
antenna (14) by tightening both
screws on the receiver board
antenna block.
12. Reinstall enclosure door
removed in step 1.
12
13
14
P/O
CONTROL
PANEL
ZR401
7
6
8
5
9
10
11
A
ZR401-02-V0
Specifications:
Physical: 2-3/8” W x 1-11/16” H x 5/8” D (50.mm x 43mm x 16mm)
Electrical: Voltage Input: 5VDC; Current Drain: 32mA
Wiring: As indicated in table:
3-PIN HEADER 4-PIN HEADER ANTENNA BLOCK
Gnd 5VDC Gnd
Signal from Panel Antenna Clock Antenna
Gnd Data
Gnd
Subsidiary of PITTWAY CORPORATION
180 Michael Drive, Syosset, New York 11791
Copyright 2000 PITTWAY CORPORATION
