Extech Instruments 42555 User manual

User’s Manual

Forehead Temperature InfraRed

Thermometer

MODEL 42555

Introduction

This thermometer is intended for scanning groups of individuals or monitoring an individual

for elevated temperatures. It is not a substitute for a clinical thermometer. Always use a

clinical thermometer when high accuracy body temperature measurements are required.

42555 V1.1 12/20052

Meter Description

1. LCD Display

2. Function Buttons

3. Handle Grip

4. IR Temperature Sensor

5. Measurement Trigger

6. Battery Compartment

Considerations and Warnings

Read all instructions before using this product.

For the most accurate results, make reading with an ambient (room) temperature of

73 to 82°F (23 to 27°C)

Make sure the skin is dry and that no hair interferes with the measurement.

Do not immerse the meter in water.

Avoid touching and/or scratching the infrared sensor lens.

Always use a clinical thermometer to verify any abnormal temperature

measurements.

Clean the lens area by gently blowing with compressed air and use a damp swap

to wipe the lens. Do not use any solvents to clean the lens.

Measurement Notes

1. If the meter has been stored in a cold or hot environment, allow it at least 20 minutes

to acclimate to room temperature before making measurements.

2. To prevent transmission of disease, avoid direct contact with the skin.

3. After heavy exercise always wait at least 10 minutes before taking forehead

temperature readings.

42555 V1.1 12/20053

Operating Instructions

1. Hold the meter from 0.5 to 4 inches (2 to 10cm) from the

forehead..

2. Point the meter at the center of the forehead and then pull

and hold the trigger to turn the meter on and begin testing.

3. For the best results, slowly scan towards the ear. Often the

area just above the temple provides the best measurement

because of it’s proximity to the temporal artery.

4. The meter will hold and display the highest temperature

measured.

5. The reading will remain in the display for approximately 6 second after the trigger is

released.

6. Press the

oF/oC button to change the measurement units.

7. “Hi” or “Lo” will appear in the display if the temperature reading is outside the range of

the meter.

Battery Replacement

When the low battery symbol appears on the display, replace the meter’s 9V battery.

The battery compartment is located on the bottom of the meter's handle. Open the

compartment by sliding the battery compartment cover off in the direction of the arrow.

Replace battery and re-install the battery compartment cover.

Specifications

Range / Resolution 86.0 to 122.0oF (30.0 to 50.0oC) / 0.1oC/F

Accuracy ± 0.9oF (0.5oC).

Note: Accuracy is specified for the following ambient (room)

temperature range: 73 to 82°F (23 to 27°C)

Display LCD display

Response time 500ms

Operating Humidity Max. 80% RH

Power Supply 9V battery

Automatic Power Off Meter shuts off automatically after 6 seconds

Weight 3.6 oz. / 100g

Dimensions 6.7 x 1.7 x 1.6” (170 x 44 x 40mm)

42555 V1.1 12/20054



Support Hotline (781) 890-7440

Tech support: Ext. 200; Email: support@extech.com

Repair/Returns: Ext. 210; Email: repair@extech.com

Website: www.extech.com

Warranty

EXTECH INSTRUMENTS CORPORATION warrants this instrument to be free of defects in

parts and workmanship for one year from date of shipment (a six month limited warranty

applies to sensors and cables). If it should become necessary to return the instrument for

service during or beyond the warranty period, contact the Customer Service Department at

(781) 890-7440 ext. 210 for authorization or visit our website www.extech.com for contact

information. A Return Authorization (RA) number must be issued before any product is

returned to Extech. The sender is responsible for shipping charges, freight, insurance and

proper packaging to prevent damage in transit. This warranty does not apply to defects

resulting from action of the user such as misuse, improper wiring, operation outside of

specification, improper maintenance or repair, or unauthorized modification. Extech

specifically disclaims any implied warranties or merchantability or fitness for a specific

purpose and will not be liable for any direct, indirect, incidental or consequential damages.

Extech's total liability is limited to repair or replacement of the product. The warranty set forth

above is inclusive and no other warranty, whether written or oral, is expressed or implied.

Table of contents

Other Extech Instruments Thermometer manuals

Extech Instruments

Extech Instruments IRT25 User manual

Extech Instruments

Extech Instruments RH250W User manual

Extech Instruments

Extech Instruments IR100 User manual

Extech Instruments

Extech Instruments 407907 User manual

Extech Instruments

Extech Instruments 42540 User manual

Extech Instruments

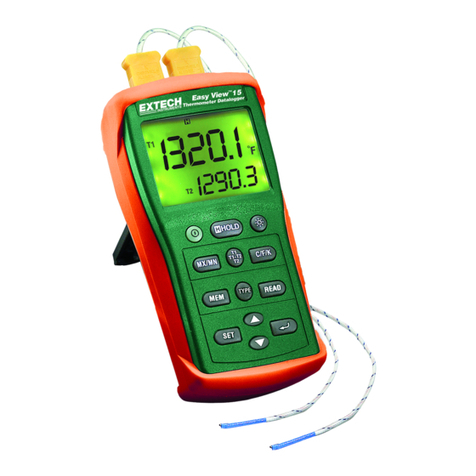

Extech Instruments EA15 User manual
