Extech Instruments 42509 User manual

User Manual

Dual Laser InfraRed (IR) Thermometer

with Color Alert

MODEL 42509

42509 V1.0 07/09

Introduction

Congratulations on your purchase of the Model 42509 IR Thermometer with Color Alert.

This Infrared thermometer measures and displays non-contact temperature readings up to

950oF (510oC). Dual laser pointers ensure accurate targeting and temperature

measurement. The Color Alert feature indicates when High or Low set points are

exceeded. The adjustable emissivity feature allows the IR thermometer to measure the

temperature of virtually any surface. Proper use and care of this meter will provide years of

reliable service.

Warranty

EXTECH INSTRUMENTS CORPORATION (A FLIR COMPANY) warrants this instrument to be free of defects

in parts and workmanship for three years from date of shipment (a six month limited warranty applies on

sensors and cables). If it should become necessary to return the instrument for service during or beyond the

warranty period, contact the Customer Service Department at (781) 890-7440 ext. 210 for authorization or visit

our website at www.extech.com (click on ‘Contact Extech’ and go to ‘Service Department’ to request an RA

number). A Return Authorization (RA) number must be issued before any product is returned to Extech. The

sender is responsible for shipping charges, freight, insurance and proper packaging to prevent damage in

transit. This warranty does not apply to defects resulting from action of the user such as misuse, improper

wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification. Extech

specifically disclaims any implied warranties or merchantability or fitness for a specific purpose and will not be

liable for any direct, indirect, incidental or consequential damages. Extech's total liability is limited to repair or

replacement of the product. The warranty set forth above is inclusive and no other warranty, whether written or

oral, is expressed or implied.

Safety

•Use extreme caution when the laser pointer is on

•Do not point the beam toward anyone's eye or allow

the beam to strike the eye from a reflective surface

•Do not use the laser near explosive gases or in other

potentially explosive areas

42509 V1.0 07/09

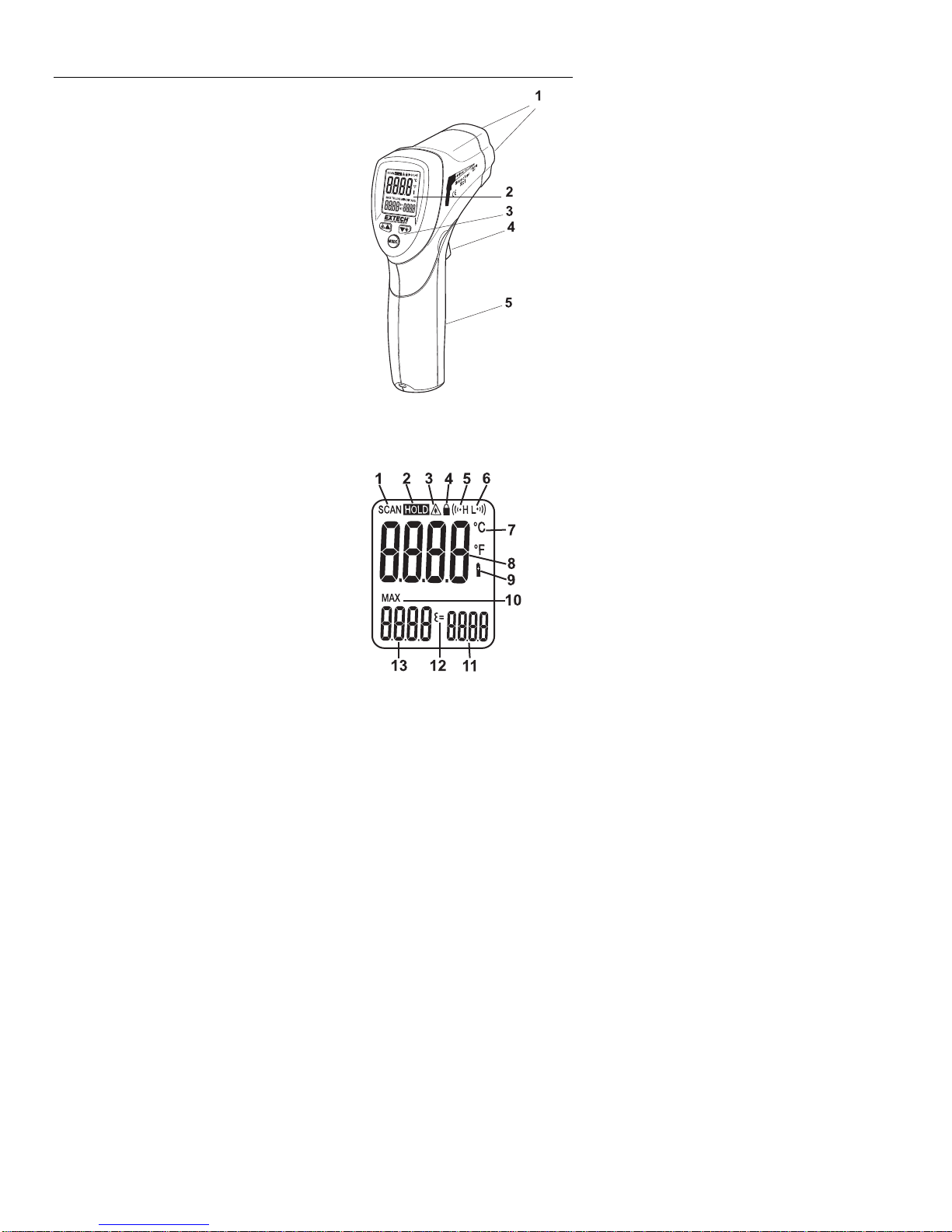

Meter Description

1. Dual Laser pointers

2. LCD Display

3. Function Buttons

4. Measurement Trigger

5. Battery and F/C Switch compartment

DISPLAY

1. SCAN, measurement in progress

2. HOLD, last measurement locked in display

3. Laser pointer active

4. Power locked ON

5. High limit alarm

6. Low limit alarm

7. C or F temperature units

8. Main temperature display

9. Low battery icon

10. MAX icon

11. Emissivity setting

12. Emissivity icon

13. Max temperature display

42509 V1.0 07/09

Operating Instructions

Temperature Measurements

1. Hold the meter by its handle and point it toward the surface to be measured.

2. Pull and hold the trigger to turn the meter on and begin testing. The temperature

reading, MAX temperature reading, the ‘SCAN’ icon, the emissivity value, and the unit

of measure will appear.

3. Release the Trigger and the reading will hold for approximately 7 seconds (HOLD will

appear on the LCD) after which the meter will automatically shut off. If LOCK mode is

enabled, the unit will not automatically shut off.

Note: Select the temperature units (ºF/ºC) using the switch inside the battery

compartment

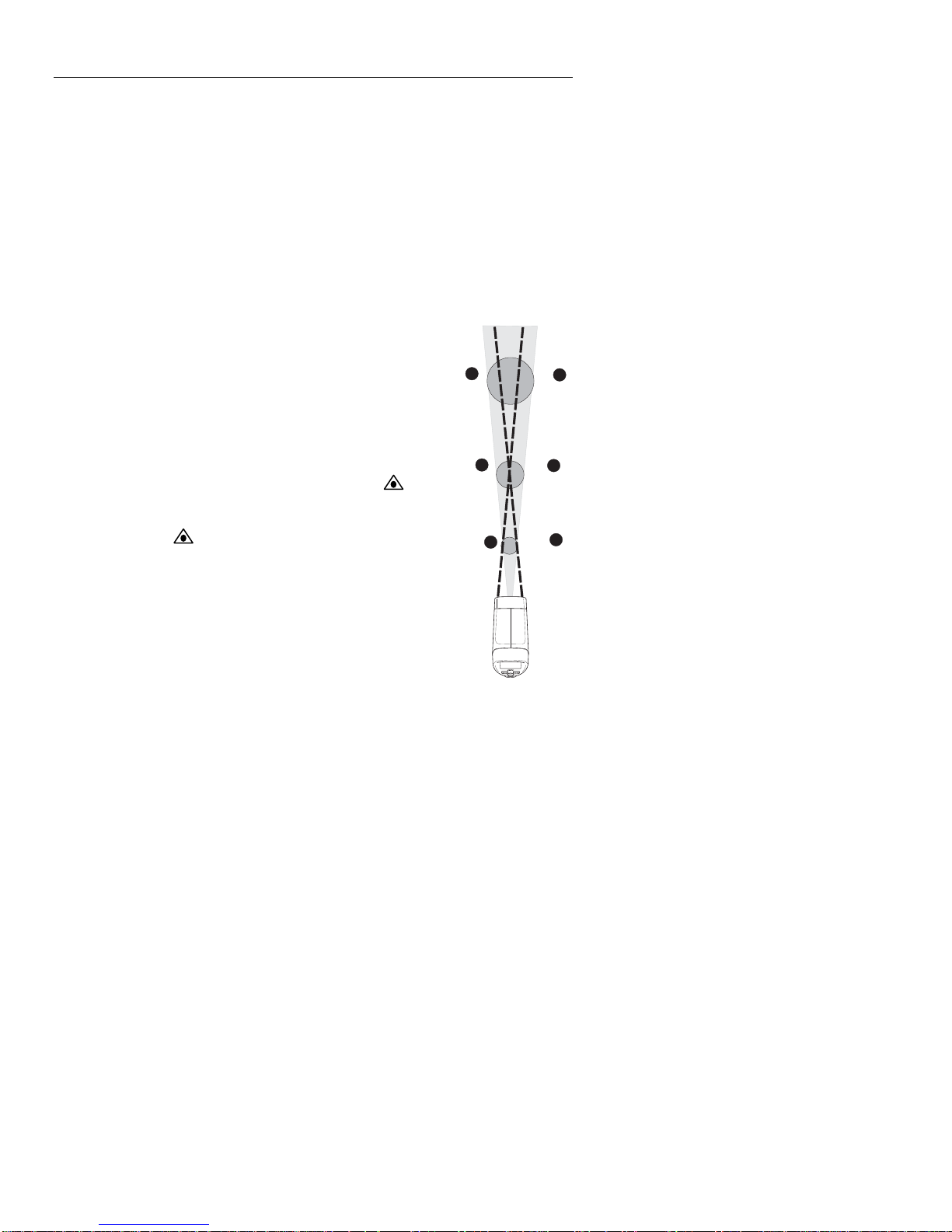

Dual Laser Pointer

The meter has a distance to target ratio of 12:1. The dual laser

pointers are designed to indicate the 12” distance when the

laser points are 1” apart. The spot size at this distance is a 1”

diameter. This is the recommended distance for most

measurements. To turn the lasers on/off:

1. Press and release the Trigger

2. While HOLD is on the display, press the laser button

once to turn the lasers on or off. The new status will appear

with the next trigger pull.

3. The laser icon will appear in the LCD when the laser

function is enabled.

4. The status of the laser will be stored in memory and will

remain as the “turn-on” condition until changed.

@12”

1”

@24”

2”

@6”

0.5”

@30cm

2.5cm

@61cm

5cm

@15cm

1.25cm

42509 V1.0 07/09

MAX (maximum) temperature display

The highest reading encountered during a single measurement scan is displayed in the

MAX display

Backlight

1. Press and release the Trigger

2. While HOLD is on the display, press the backlight button once to turn on the

backlight on or off.

3. The backlight will illuminate in the LCD when the feature is enabled.

4. The status of the backlight will be stored in memory and will remain as the “turn-on”

condition until changed.

5. Note: The backlight will shorten the battery life. Only use this feature when required.

The MODE button options

The MODE button is used to access the Emissivity, Lock, High alarm and Low alarm

features of the instrument.

1. Press and release the Trigger

2. While HOLD is on the display, press the MODE button to step through and program the

following features. A blinking icon indicates the feature is selected.

3. The meter will shut off and save any changes if no button is pressed for approximately

8 seconds.

E= (Emissivity Value)

Press the ▲or ▼buttons to change the emissivity value.

(Lock mode On/Off)

Press the ▲or ▼buttons to turn the lock feature ON or OFF.

(High Alarm On/Off)

Press the ▲or ▼buttons to turn the High Alarm feature ON or OFF.

(High Alarm setting)

Press the ▲or ▼buttons to set the high alarm limit value in the main display

(Low Alarm On/Off)

Press the ▲or ▼buttons to turn the High Alarm feature ON or OFF.

(Low Alarm setting)

Press the ▲or ▼buttons to set the Low alarm limit value in the main display.

42509 V1.0 07/09

Color Alert High and Low Alarm Feature

The meter has a programmable high and low alarm feature. When either alarm point is

reached the meter will alert the user via a flashing red LED backlight, as well as an audible

beep and a blinking LCD display icon. The alarm limit is set and the feature is

enabled/disabled using the MODE button. The setting is stored and memory and will

remain as the “turn-on” condition until changed.

Temperature Units

The temperature units can be set to °F or °C using the switch located in the battery

compartment.

Lock feature

The LOCK feature disables the Auto Power Off feature for a single period of use after the

Lock mode is selected. The feature is useful for long term temperature monitoring and

hands free use. The meter will revert to auto power off if the trigger is pressed during a

locked scan.

Over-range Indication

If the temperature measurement exceeds the specified temperature range, the

thermometer will display dashes in place of a temperature reading.

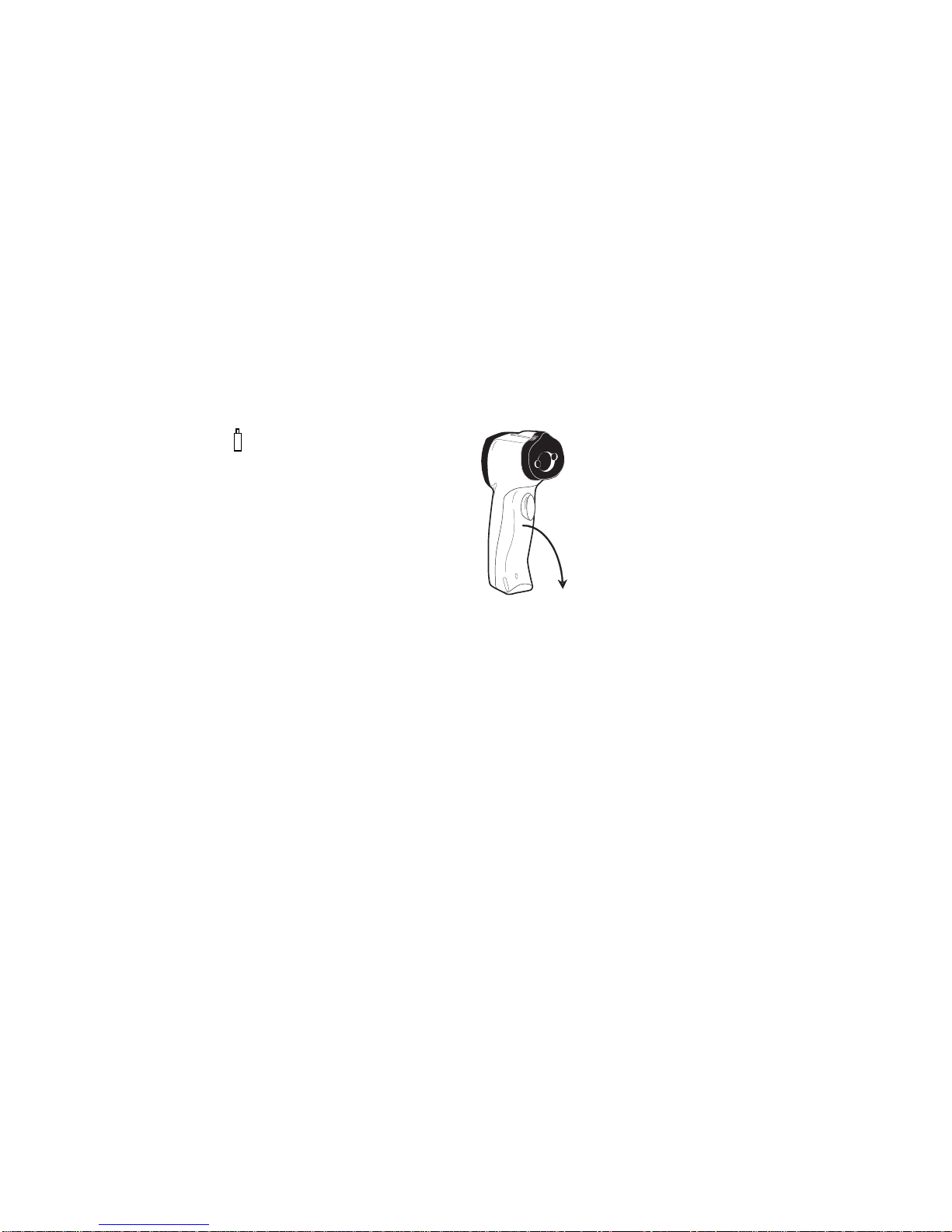

Battery Replacement

When the low battery symbol appears on the display, replace the

meter’s battery (9V). The battery compartment is located behind the

panel that surrounds the meter’s trigger. Open the compartment by

pulling the panel down from the trigger area. Replace the 9V battery

and close the battery compartment cover.

42509 V1.0 07/09

IR Measurement Notes

1. The object under test should be larger than the spot (target) size calculated by the field

of view diagram (printed on the side of the meter and in this guide).

2. Before measuring, be sure to clean surfaces that are covered with frost, oil, grime, etc.

3. If an object's surface is highly reflective, apply masking tape or flat black paint to the

surface before measuring. Allow time for the paint or tape to adjust to the temperature

of the surface it is covering.

4. Measurements through transparent surfaces such as glass may not be accurate.

5. Steam, dust, smoke, etc. can obscure measurements.

6. The meter automatically compensates for deviations in ambient temperature. However,

it can take up to 30 minutes for the meter to adjust to extremely wide changes.

7. To find a hot spot, aim the meter outside the area of interest then scan across (in an up

and down or side to side motion) until the hot spot is located.

Field of View

The meter’s field of view is 12:1. For example, if the meter is 12 inches from the target

(spot), the diameter of the target must be greater than 1 inch. Other distances are shown in

the field of view diagram. Measurements should normally be made as close as possible to

the device under test. The meter can measure from moderate distances but the

measurement may be affected by external sources of light. In addition, the spot size may

be so large that it encompasses surface areas not intended to be measured.

Calibration and Repair Services

Extech offers repair and calibration services for the products we sell. Extech also

provides NIST certification for most products. Call the Customer Service Department for

information on calibration services available for this product. Extech recommends that

annual calibrations be performed to verify meter performance and accuracy.

42509 V1.0 07/09

Emissivity and IR Measurement Theory

IR Thermometers measure the surface temperature of an object. The thermometer’s optics

sense emitted, reflected, and transmitted energy. The thermometer’s electronics translate

the information into a temperature reading which is then displayed on the LCD.

The amount of IR energy emitted by an object is proportional to an object's temperature

and its ability to emit energy. This ability is known as emissivity and is based upon the

material of the object and its surface finish. Emissivity values range from 0.1 for a very

reflective object to 1.00 for a flat black finish. For this model, the emissivity is adjustable

from 0.1 to 1.00. Most organic materials and painted or oxidized surfaces have an

emissivity factor of 0.95. When in doubt, set the emissivity to 0.95.

Emissivity Factors for Common Materials

Material under test Emissivity Material under test Emissivity

Asphalt 0.90 to 0.98 Cloth (black) 0.98

Concrete 0.94 Skin (human) 0.98

Cement 0.96 Leather 0.75 to 0.80

Sand 0.90 Charcoal (powder) 0.96

Soil 0.92 to 0.96 Lacquer 0.80 to 0.95

Water 0.92 to 0.96 Lacquer (matt) 0.97

Ice 0.96 to 0.98 Rubber (black) 0.94

Snow 0.83 Plastic 0.85 to 0.95

Glass 0.90 to 0.95 Timber 0.90

Ceramic 0.90 to 0.94 Paper 0.70 to 0.94

Marble 0.94 Chromium Oxides 0.81

Plaster 0.80 to 0.90 Copper Oxides 0.78

Mortar 0.89 to 0.91 Iron Oxides 0.78 to 0.82

Brick 0.93 to 0.96 Textiles 0.90

42509 V1.0 07/09



Support line (781) 890-7440

Technical support: Extension 200; E-mail: [email protected]m

Repair & Returns: Extension 210; E-mail: [email protected]

Product specifications subject to change without notice

For the latest version of this User’s Guide, Software updates, and other

up-to-the-minute product information, visit our website: www.extech.com

Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451

Specifications

Range -4 to 950oF (-20 to 510oC)

Resolution 0.1o

Accuracy -4°F to 28°F (-20°C to -2°C) ±9°F/4°C

28°F to 200°F (-2°C to 94°C) ±4.5°F/2.5°C

200°F to 400°F (94°C to 204°C) ±(1.0%rdg + 2°F/1°C)

400°F to 800°F (204°C to 426°C) ±(1.5%rdg + 2°F/1°C)

800°F to 950°F (426°C to 510°C) ±(4%rdg +2°F/1°C)

Note: Accuracy is specified for the following ambient temperature

range: 73 to 77°F (23 to 25°C)

Emissivity 0.10 to 1.00 adjustable

Field of View D/S = Approx. 12:1 ratio (D = distance; S = spot or target)

Laser pointer Dual, Class 2 laser < 1mW power; Wavelength is 630 to 670nm

IR Spectral response 8 to 14 μm (wavelength)

Repeatability ± 0.5% of reading or ± 1.8oF (1oC) whichever is greater

General Specifications

Display Backlit LCD display with function indicators

Response time 150ms

Over range indication “---------“

Operating Temperature 32oF to 122oF (0oC to 50oC)

Operating Humidity 10% to 90%RH operating, <80%RH storage.

Storage Temperature 14 to 140oF ( -10 to 60oC)

Power Supply 9V battery

Automatic Power Off 7 seconds, with LOCK to disable

Weight 5.7 oz. / 163g

Dimensions 5.7 x 4 x 1.6” (146 x 104 x 43mm)

42509 V1.0 07/09

Table of contents

Other Extech Instruments Thermometer manuals

Extech Instruments

Extech Instruments 42545 User manual

Extech Instruments

Extech Instruments 42530 User manual

Extech Instruments

Extech Instruments 421504 User manual

Extech Instruments

Extech Instruments RH200W User manual

Extech Instruments

Extech Instruments 445715 User manual

Extech Instruments

Extech Instruments 42545-NIST User manual

Extech Instruments

Extech Instruments 42545A User manual

Extech Instruments

Extech Instruments IR400 User manual

Extech Instruments

Extech Instruments 42511 User manual

Extech Instruments

Extech Instruments EA10-NIST User manual

Extech Instruments

Extech Instruments 42512 User manual

Extech Instruments

Extech Instruments RH35 User manual

Extech Instruments

Extech Instruments RH490-NIST User manual

Extech Instruments

Extech Instruments MO295 User manual

Extech Instruments

Extech Instruments 42500 User manual

Extech Instruments

Extech Instruments 42545 User manual

Extech Instruments

Extech Instruments SDL500 User manual

Extech Instruments

Extech Instruments SD500 User manual

Extech Instruments

Extech Instruments RH10 User manual

Extech Instruments

Extech Instruments 42510A User manual

Extech Instruments

Extech Instruments 445703 User manual

Extech Instruments

Extech Instruments 401014A User manual

Extech Instruments

Extech Instruments RH200W User manual

Extech Instruments

Extech Instruments EA15 User manual

Popular Thermometer manuals by other brands

Delton

Delton 981A instruction manual

Baker

Baker MM2P instruction manual

Tarmo

Tarmo 320281 manual

Citizen

Citizen CTD 504 instruction manual

TFA

TFA 14.1500 instruction manual

Vive

Vive DMD1010 user manual

Gotemp

Gotemp THB4002 user guide

GREISINGER

GREISINGER G 1202 Quick reference guide

Amprobe

Amprobe TMD-53W user manual

Trotec

Trotec BP10 operating manual

Radiance instruments

Radiance instruments RT616 Series product manual

Eurolec

Eurolec IR151 operating instructions

Scaneo

Scaneo TS42B instruction manual

Sper scientific

Sper scientific 800043 instruction manual

Microlife

Microlife NC 200 Operating instructions manual

Motorola

Motorola MBP69SN General questions

The MeatStick

The MeatStick The MeatStick quick start guide

Hama

Hama TH35-A operating instructions
