ETC Irideon WLZ User manual

Irideon WLZ

User Manual

Version 1.0.1

Part Number: 7192M1200-1.0.1 Rev I

Released: 2023-07

To view a list of ETCtrademarks and patents, go to

etcconnect.com/ip. All other trademarks, both marked and not

marked, are the property of their respective owners.

For a complete list of all third-party licenses that are fully

incorporated herein to the extent required by each third-party

license terms and conditions, please visit etcconnect.com/licenses.

ETC intends this document, whether printed or electronic, to be

provided in its entirety.

Table of Contents

Irideon WLZ User Manual i

Introduction 1

Safety 2

Installation 4

Install Track-Mounted Luminaire

(OneTrack) 4

Install Track-Mounted Luminaire

(DataTrack) 5

Install Canopy Luminaire (DMX Variant) 5

Install Canopy Luminaire (0–10 V and

DALI Variants) 10

Install Portable Luminaire with C-clamp 12

Install Portable Luminaire on Unistrut

Track 14

Connect Cables to Portable Luminaire 14

Configuration 15

Set the DMX Address at the Luminaire 15

Adjust the Local Intensity 17

Initial Power Up 17

Status LED 18

RDM Values 18

Focus and Setup 19

Adjust the Tilt 19

Adjust the Field 19

Use the Barn Door Accessory 20

Use the Integrated MediaHolder 20

Cleaning 22

Specifications and Reference 23

FCC Compliance 23

ii Irideon WLZ User Manual

Irideon WLZ User Manual 1

Introduction

The Irideon WLZ is a compact but powerful LED wash light. It incorporates

many of the great features of its companion luminaire, the Irideon FPZ,

including local and DMX control, adjustable zoom, and sleek design.

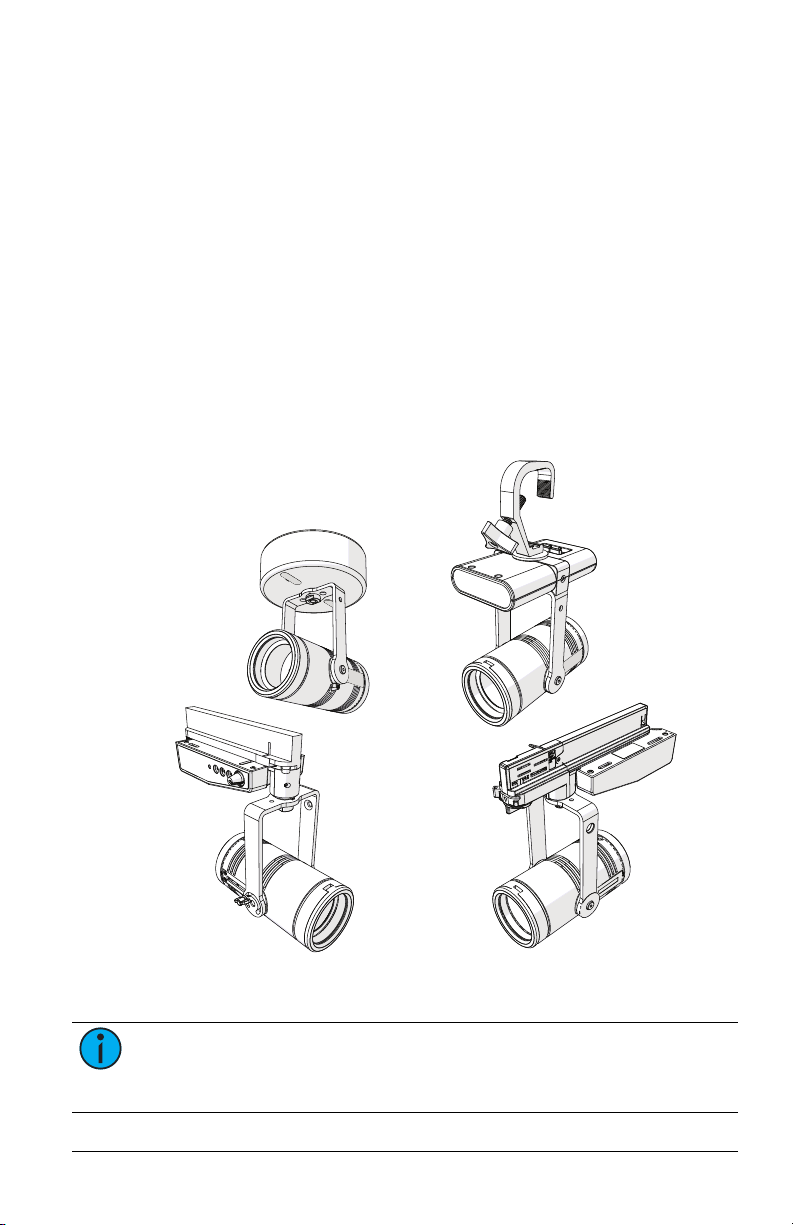

The Irideon WLZ has three available mounting options:

•Track-mount: For use with the OneTrack or DataTrack track system.

•Portable: Includes a miniature C-clamp (North America only) and

yoke-mounted driver, and has a permanently installed power cord

with 3-prong Edison connector. Region-specific connectors are

available. Contact ETC for available options. Use L5-15 plugs on

branch circuits with L5-15 receptacles only.

•Canopy: Available in three different control variants:

‐0–10 V

‐DALI

‐DMX

Canopy Portable

Track-mount

(DataTrack)

Track-mount

(OneTrack)

Note:

The miniature C-clamp for the portable luminaire is available

only in North America. In the EU and UK, use an M12 bolt to secure

a clamp (provided separately) to the luminaire.

2 Irideon WLZ User Manual

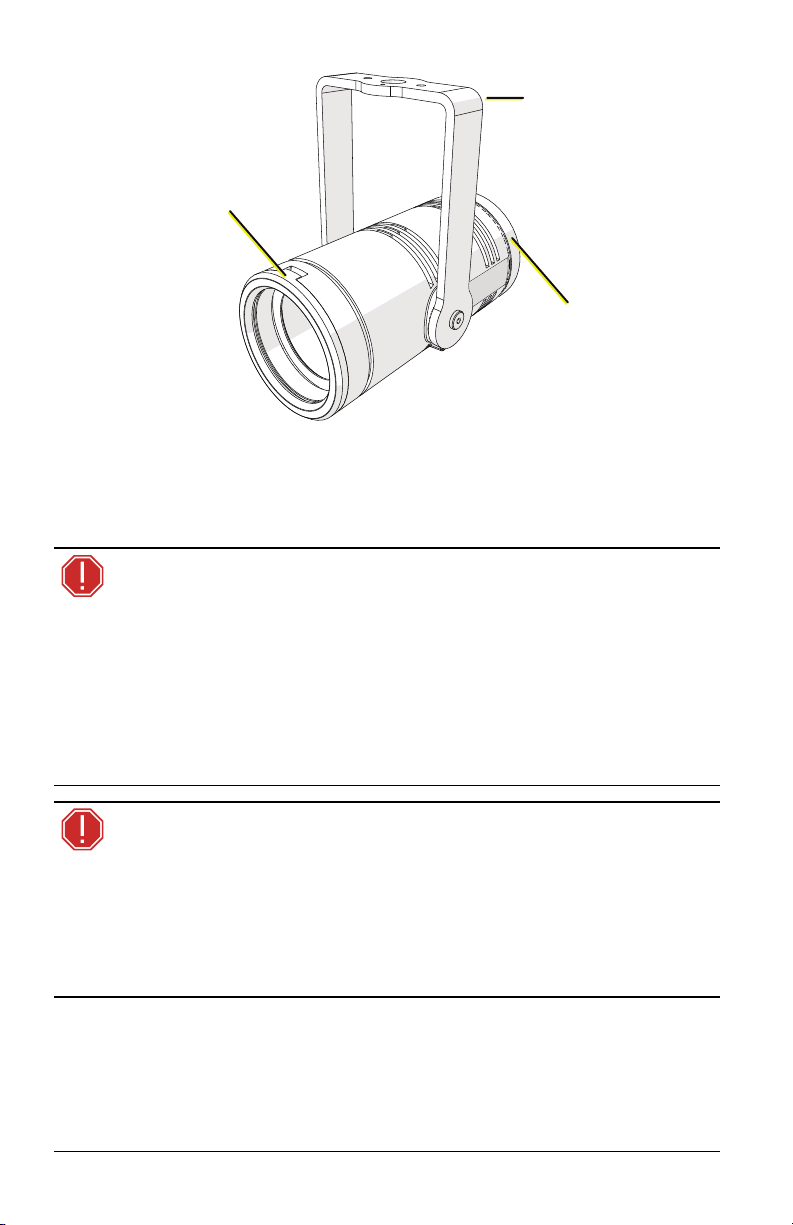

Yoke

Wide/narrow

field adjustment

Integrated

media holder

(Illustration shows luminaire body only)

Safety

WARNING: Note the following safety warnings before use:

• Use the luminaire in dry locations only, where humidity

does not exceed 90 percent (non-condensing).

• Do not mount the luminaire on or near a flammable

surface.

• Check that the accessory holder is locked before

mounting the luminaire.

• Do not operate the luminaire without a lens installed.

• Do not use this luminaire if a lens is deeply scratched or

cracked. You must replace a lens when it is damaged.

AVERTISSEMENT : Prendre connaissance des avertissements

de sécurité suivants avant toute utilisation :

• Ne pas installer le projecteur sur ou à côté d’une surface

inflammable.

• Vérifiez que le porte-accessoires est verrouillé avant de

monter le projecteur.

• N’utilisez pas le projecteur sans que la lentille soit

installée.

Irideon WLZ User Manual 3

IMPORTANT SAFEGUARDS

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS

• Keep lamp away from materials that may burn.

• External temperature after 5 minutes of full-brightness operation:

27°C (81°F).

• External temperature when steady state is achieved: 50°C (122°F).

SAVE THESE INSTRUCTIONS

Canopy Luminaire

WARNING: RISK OF ELECTRIC SHOCK! Power must be off

when you perform this procedure.

The luminaire must be installed by a qualified electrician in

accordance with all national and local electrical and

construction codes and regulations.

AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE!

L'alimentation doit étre éteinte avant d'exécuter cette

procédure.

Track-Mount Luminaire

WARNING: To reduce the risk of fire and electric shock, use

the track-mount luminaire only with its designated track

system (for example, One Track or DataTrack).

AVERTISSEMENT : Pour éviter le risque d'incendie ou de

choc électrique, utiliser le luminaire à adaptateur pour rail

uniquement avec son système de rail désigné (OneTrack ou

DataTrack par exemple).

WARNING: Use the DataTrack track-mount luminaire with

ceiling-mounted track only.

4 Irideon WLZ User Manual

The following symbols may appear on product labeling.

The luminaire must be installed at

least 0.1m (4.0in) away from all

lighted objects.

Le luminaire doit être installé à au

moins 0,1m (4,0po) de tout objet

éclairé.

This product should not be

discarded as unsorted waste but

must be sent to separate collection

facilities for recovery and recycling.

Ce produit ne doit pas être jeté avec

les déchets ménagers mais doit être

déposé dans une collecte de déchets

électroniques ou dans un point de

collecte.

Installation

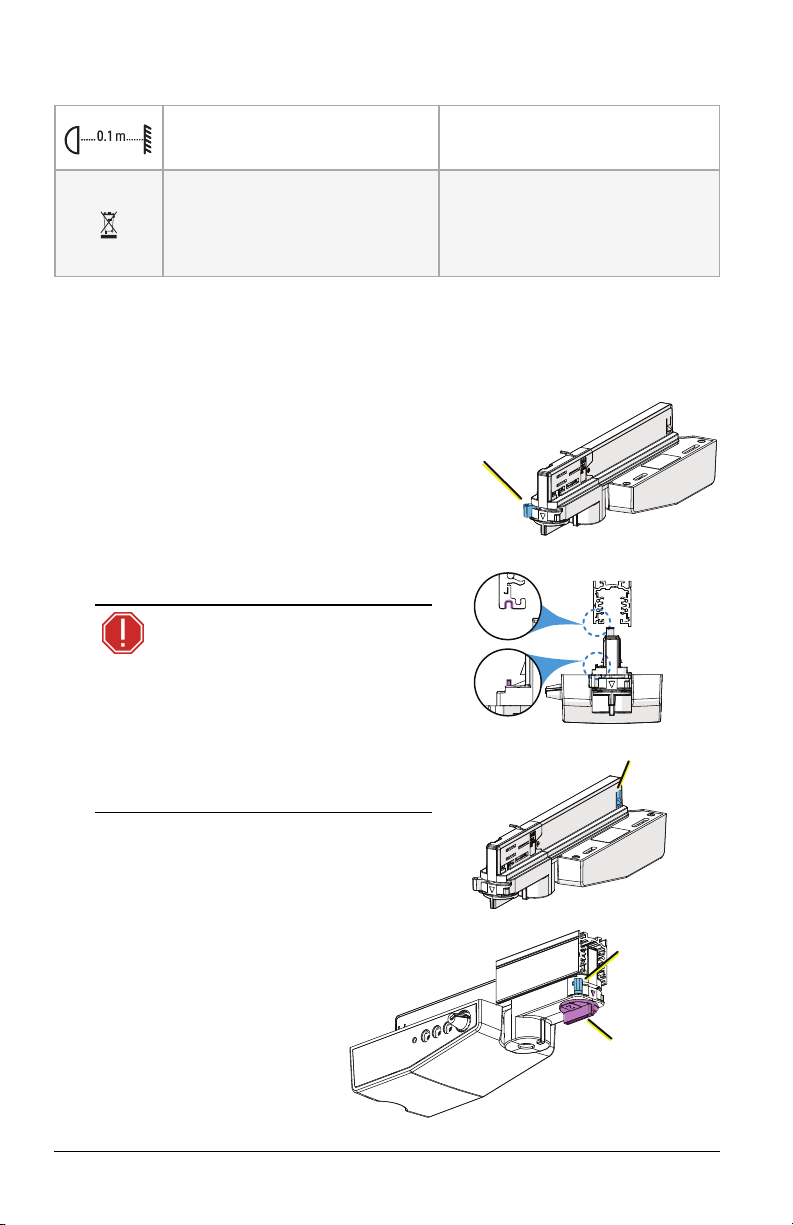

Install Track-Mounted Luminaire (OneTrack)

1. Before you begin, verify that the adapter

is unlocked. (Images at right show just

the OneTrack adapter.)

2. Orient the adapter so that the two tabs

are aligned with the groove in the track,

and then insert the adapter into the

track. The tab at the end of the adapter

locks into the track when the fixture is

fully seated.

WARNING: When using

the circuit selection lock,

ensure that the selected

circuit is a constant

power circuit. Selecting a

dimmable circuit may

cause luminaire damage

that will void the ETC

warranty.

Verify adapter

is unlocked

Align tabs

to groove Tab locks

into track

3. Flip the locking tab to the

opposite side to lock the

adapter, and then rotate the

circuit selection knob to

select the correct circuit.

Flip to lock

Rotate to

align circuit

with triangle

Irideon WLZ User Manual 5

Circuit

selection lock

Locking

mechanism

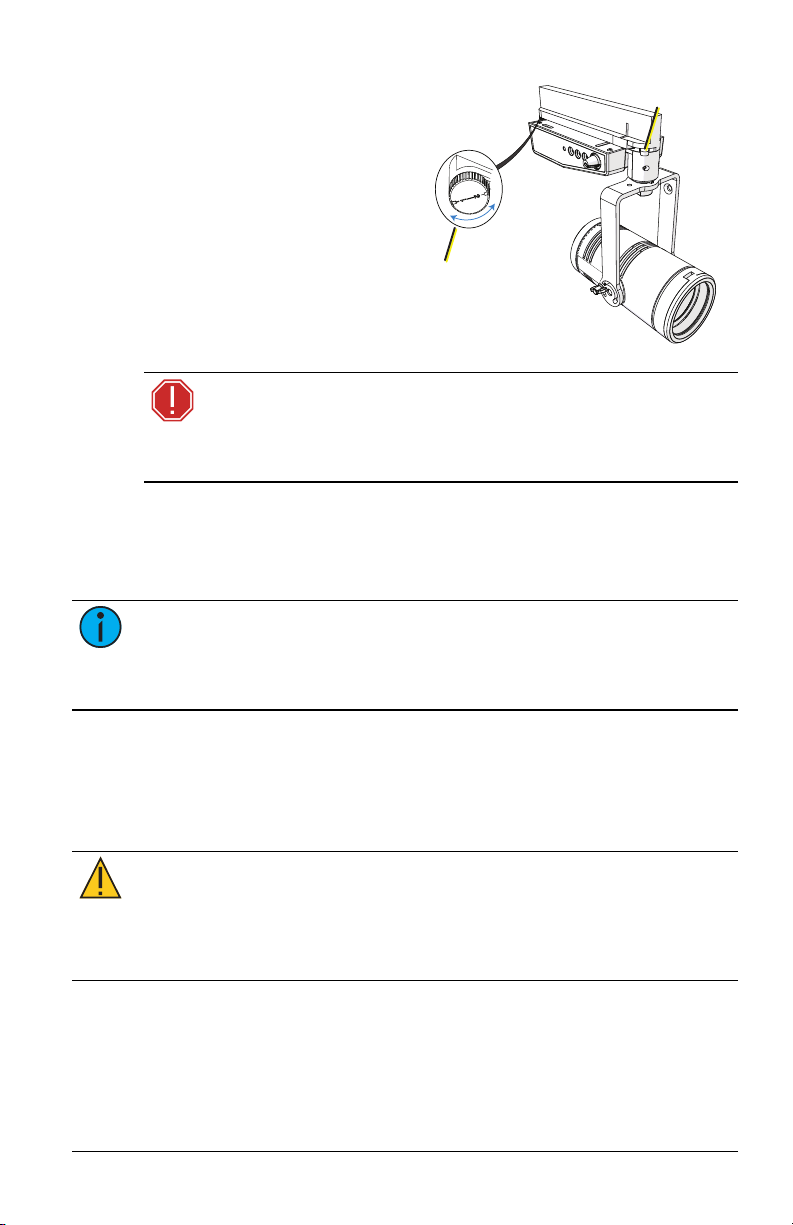

Install Track-Mounted

Luminaire (DataTrack)

1. Insert the DataTrack adapter

into the track. The adapter

only fits into the track one

way with the tabs nesting

into the track’s groove.

2. Rotate the locking

mechanism to lock the

adapter into place.

WARNING: When using the circuit selection lock,

ensure that the selected circuit is a constant power

circuit. Selecting a dimmable circuit may cause

luminaire damage that will void the ETC warranty.

3. Use the circuit selection lock to select the circuit. The desired circuit

number should point toward the center of the adapter.

Install Canopy Luminaire (DMX Variant)

Note:

The canopy luminaire can be installed directly on 4in and

4-11/16in back boxes, or on back boxes with round cover plates.

The canopy luminaire cannot be installed on 1-gang back boxes or

trim rings.

Install the Voltage Barrier (DMX Variant)

The DMX variant of the canopy luminaire includes a voltage barrier to

separate the data network from the line voltage inside the back box.

Voltage barriers are provided for both 4in and 4-11/16in back boxes.

CAUTION: DMX control is a Class 2 circuit. DMX wiring

cannot be run through the same conduit as line voltage

power-supply conductors. Separate the line voltage from the

data side in the back box. Install the voltage barrier provided

by ETC.

6 Irideon WLZ User Manual

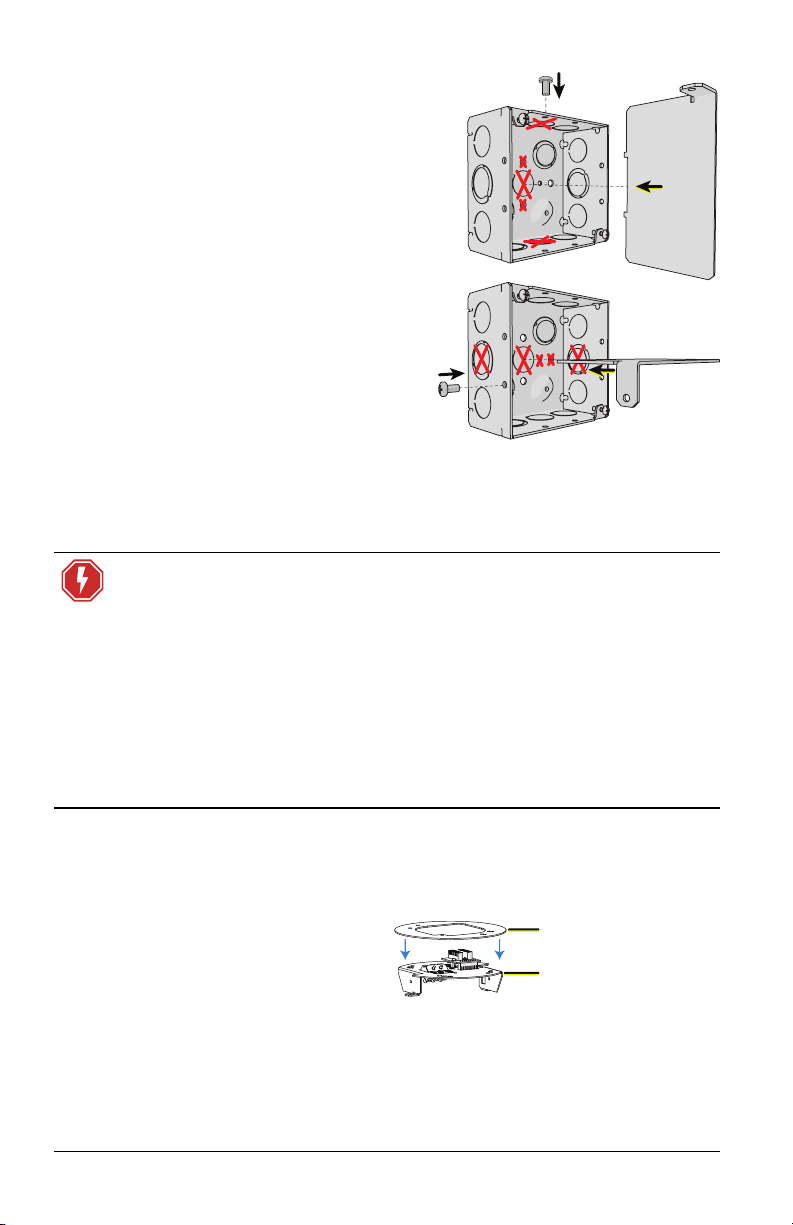

Install the voltage barrier in the back

box with the provided bolt (see

images at right, showing a 4in back

box). The voltage barrier blocks two

or more through holes in the back of

the junction box, depending on how

it is oriented, plus the center conduit

knockout in the back of the junction

box and the center knockouts on two

sides of the junction box. The blocked

holes and knockouts are marked with

"X" in the illustration to the right.

Connect Canopy Wiring

(DMX Variant)

Cable preparation instructions for

DMX termination are included in the

termination kits, and are also available for download at etcconnect.com.

1. Remove the adhesive tape or fasteners securing the mounting plate to

the luminaire to free the mounting plate from the canopy enclosure.

WARNING: RISK OF ELECTRIC SHOCK! Install the cover plate

as directed below for installations where the interior of the

canopy enclosure could be exposed after installation with

only the mounting plate. For example, install the cover plate

when installing to a surface-mount back box.

AVERTISSEMENT : Installez la plaque de protection comme

indiqué ci-dessous pour les installations où l'intérieur de la

rosace de plafond pourrait être exposé après l'installation

avec uniquement la plaque de montage. Par exemple,

installez la plaque de protection lors de l'installation sur un

boîtier arrière à montage en surface.

2. Are you flush-mounting the luminaire or surface-mounting the

luminaire?

• Flush-mounting: Continue to step 3.

•

Cover plate (if needed

for surface-mounting)

Mounting plate

Surface-mounting:

Position the cover

plate on top of the

mounting plate

before wiring the

luminaire. The cover

plate is required when the interior of the canopy enclosure could

be exposed after installation with only the mounting plate (the

mounting surface is smaller than the canopy enclosure).
