Declaration of conformity

We, Electronic Theatre Controls, Europe Ltd., declare under sole responsibility that the product:

Product name: Source Four PARNel CE

Product type/model: Source Four PARNel-EA

Lot: n/a

Batch/Serial number: n/a

Item numbers: one of each model

to which this declaration relates in conformity with the following standards:

EN60598-1:2000 Luminaires, General requirements and tests

EN60598-2-17:1990 Specification for luminaires for stage lighting, television, film, and

photographic studios (outside and indoor) - equiv. BS 4533-

102.17:1990

following the provisions of EU LV Directive(s) 73/23/EEC

London, United Kingdom Mr. Adam Bennette

(Place of issue) (Name of authorised person)

(Date of issue) (signature of authorised person)

Electronic Theatre Controls Europe, Ltd. Registered office:

Unit 26-28, Victoria Industrial Estate, Grant Thornton House

Victoria Road, London W3 6UU U.K. Melton St., London NW1 28W, England

Telephone (+44) (0)20 896 1000 Registered in England No. 3057796

Fax (+44) (0)20 896 2000 VAT No. 6629487 90

2Source FourPARNel CE User Manual

English

Source Four PARNel CE guidelines

The Source Four PARNel CE is intended for professional use only. Read the entire User Guide

before using equipment.

• Do not mount the Source Four PARNel CE on or near a flammable surface.

• Use the Source Four PARNel CE in dry locations only, where humidity does not exceed 90 percent.

• The luminaire is for indoor use only and is not intended for outdoor use.

• For temporary installations, mount and support the Source Four PARNel CE only by the primary suspension yoke

holes. Suspend the luminaire from a hook clamp or a stand mount, using a securely tightened steel bolt (up to Ø

12 mm), flat washer and locking washer.

• In addition to primary suspension, attach a safety cable (ETC part #7060A1022) or chain to the secondary sus-

pension point on the Source Four PARNel CE.

• If the external cable is damaged, it shall be replaced by ETC or our service agents.

• Always hang the Source Four PARNel CE with the colour frame held securely behind the retaining clip.

• Always replace the lamp if it becomes damaged or thermally deformed.

• Disconnect the unit from power before all cleaning and maintenance.

• The Source Four PARNel CE is suitable for indoor use with a maximum ambient temperature: Ta=45°C

• Maximum exterior surface temperature: Tmax=242ºC

• A multilingual label sheet is included with this manual. Affix the label of the appropriate language over the existing

warning label on the extension yoke. Do not cover ETC trademark or CE mark.

• The Source Four PARNel CE contains a CE safety screen that covers the lens to prevent injury from broken glass

die to lamp failure. Do not remove the safety screen.

• Keep the luminaire at least 2.7 meters away from any lit surface. Lighted objects at this distance or greater will not

exceed 90ºC temperature from projected light.

WARNING:

Please note the following safety precautions.

0.2m

English

Basic assembly

Luminaire information

Wiring and power information

A plug of at least 2.5 amp (220/240V) rating should be attached to the luminaire’s mains lead. The

wires in the mains lead are 1.55mm2each and coloured in accordance with the following code:

Green and Yellow: Earth

Blue: Neutral

Brown: Live

Current rating: 240V/2.5 amp maximum

Operating frequency: 50/60 Hz

WARNING:

Please note the following safety warnings before use:

Do not mount the luminaire on or near combustible surfaces.

Do not operate the luminaire without a lens installed.

Always hang the luminaire with the color frame retaining clip in the locked

position.

WARNING:

This luminaire must be earthed.

WARNING!

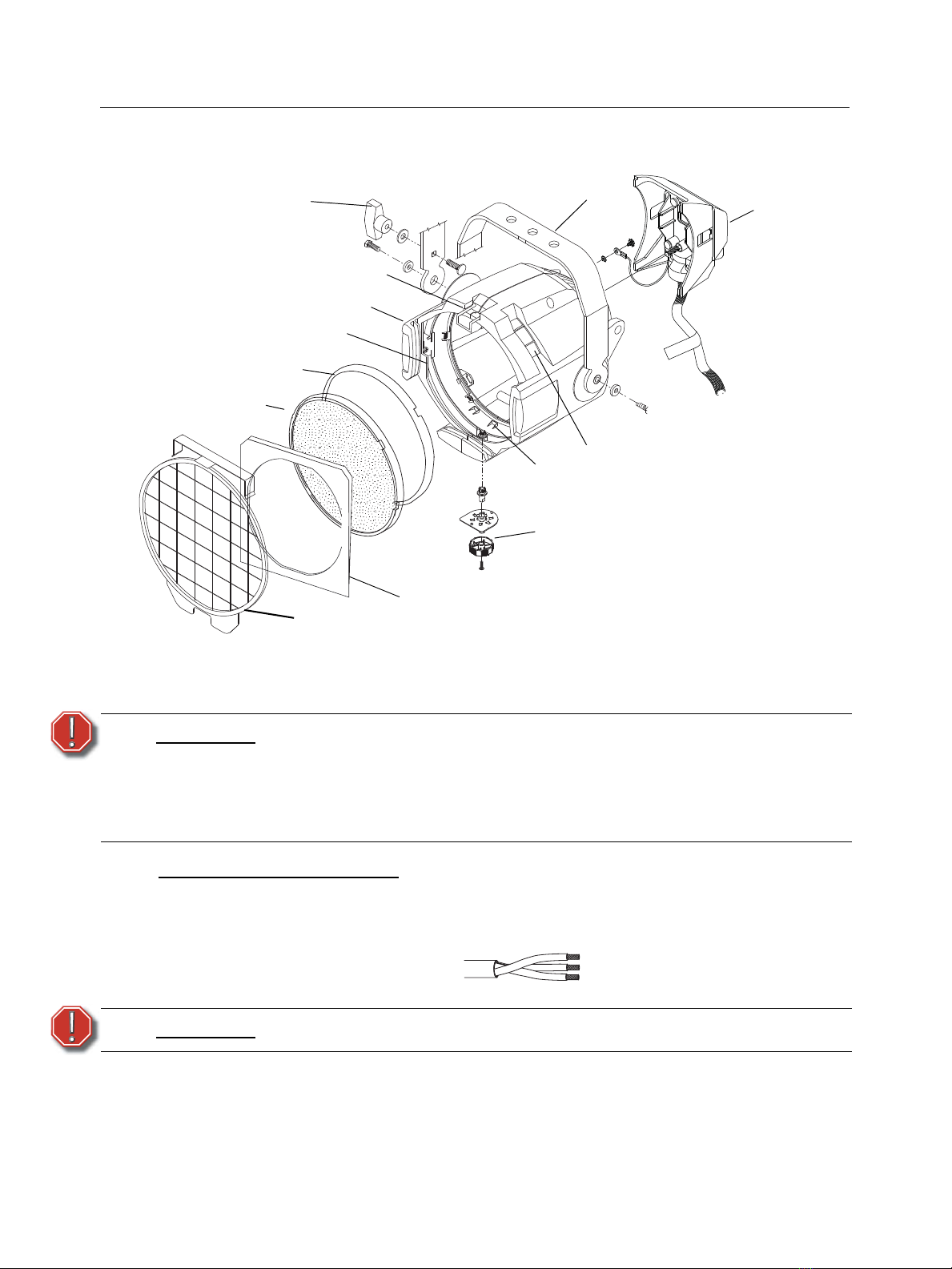

Figure 1

Yoke locking knob

Clear lens

Lamp housing

Yoke

Lens rotating ring

Color frame holder

Color frame

Lens catcher

Gel retaining clip

Tabs

Stippled lens

Focus knob

Safety screen

t 180°c

4Source FourPARNel CE User Manual

English

HPL lamp table

CAUTION:

Do not use lamps other than the HPL in Source Four fixtures. Use of lamps other

than HPL will void your warranty.

Lamp code Watts Volts Initial Lumen Colour

temp.

Average rated life

HPL 750/230 750 230 19,750 3,200°K 300 hours

HPL 750/230X 750 230 15,600 3,050°K 1500 hours

HPL 575/230 575 230 14,900 3,200°K 400 hours

HPL 575/230X 575 230 11,780 3,050°K 1500 hours

HPL 375/230 375 230 7,250 3,000°K 1000 hours

HPL 750/2240 750 240 19,750 3,200°K 300 hours

HPL 750/240X 750 240 15,600 3,050°K 1500 hours

HPL 575/240 575 240 14,900 3,050°K 400 hours

HPL 575/240X 575 240 11,780 3,050°K 1500 hours

HPL 375/240X 375 240 19,750 3,000°K 1000 hours

Note:

The performance of saturated colours may be less than desirable in any theatrical

lighting luminaire, especially when equipped with a 750w lamp. For best results,

always use high-quality colour media rated for high-temperature use.

ETC’s optional Gel Extender, part # PSF1029, will provide maximum colour media

life. The use of any gel extender accessory may limit the coverage of any wide-

angle lens or beam setting.

A variety of heat shield products is also available from many colour media

manufacturers. Follow the manufacturer’s instructions for the use of these

products.

English

Colour frame holder

The colour frame holder is equipped with a spring-loaded retaining clip that prevents colour frames

and accessories from falling out. See Figure 2.

Step 1: Release the retaining clip by pushing it sideways while gently pulling backwards.

Step 2: Insert the colour frame.

Step 3: Lock the retaining clip by pushing sideways while gently pushing forward.

Replacing the HPL lamp

A lamp must be installed before you use the luminaire.

Step 1: Disconnect power to the Source Four PARNel CE before installing the lamp.

Step 2: Loosen the knurled bolt on the back of the lamp housing, disconnect the Earth continuity

cable and pull the housing out.

WARNING:

Make sure all colour frame accessories are locked in position with the

retaining clip before hanging the Source Four PARNel CE.

Note:

Use only colour frames or accessories with 19 cm mounting flange.

Note:

Verify that the HPL lamp you intend to install is suitable for your facility’s voltage;

115-, 120-, 230-, and 240-volt HPL lamps are available.

See HPL lamp table, page 4. Operating HPL lamps above their rated voltage

reduces lamp life and can cause premature lamp failure.

WARNING:

Let the lamp cool before replacing.

Figure 2

Retaining clip in the

locked position

HPL lamp

Lamp retention

brackets

Lamp housing

Figure 3

Knurled bolt

Lamp retaining clips

6Source FourPARNel CE User Manual

English

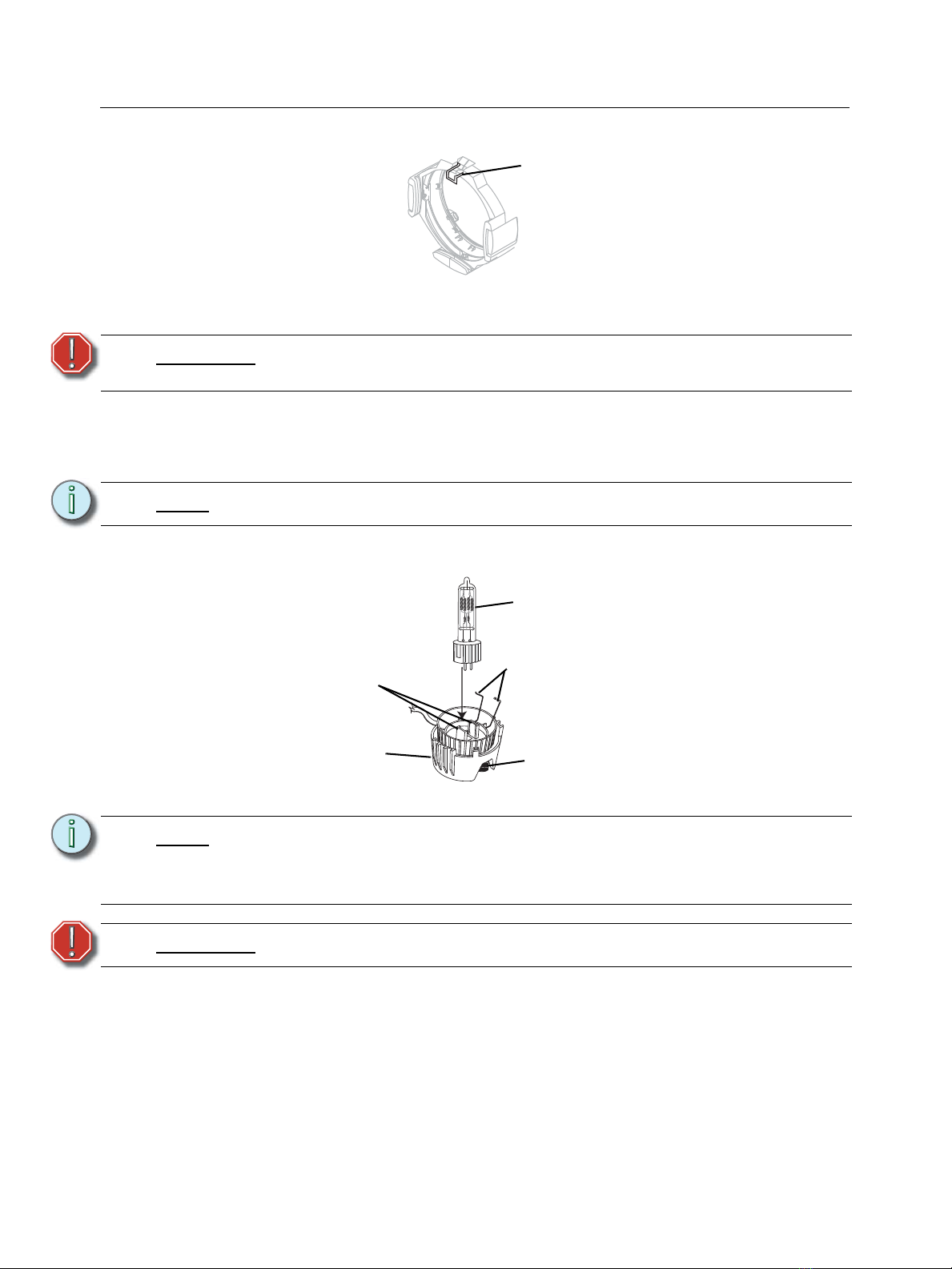

Step 3: Holding by the base, remove the HPL lamp from its box.

Step 4: Align the flat sides of the lamp base with the retention brackets on either side of the

socket as shown in Figure 3.

Step 5: Push down on the lamp base until the lamp seats firmly. When properly installed, the top

of the lamp’s base will be even with he top edges of the retention brackets.

Step 6: Press lamp retaining clip across lamp base to secure.

Step 7: Reconnect the Earth continuity cable. Reinstall the lamp housing by aligning the bolt hole

and tightening the knurled bolt.

Focus knob positioning

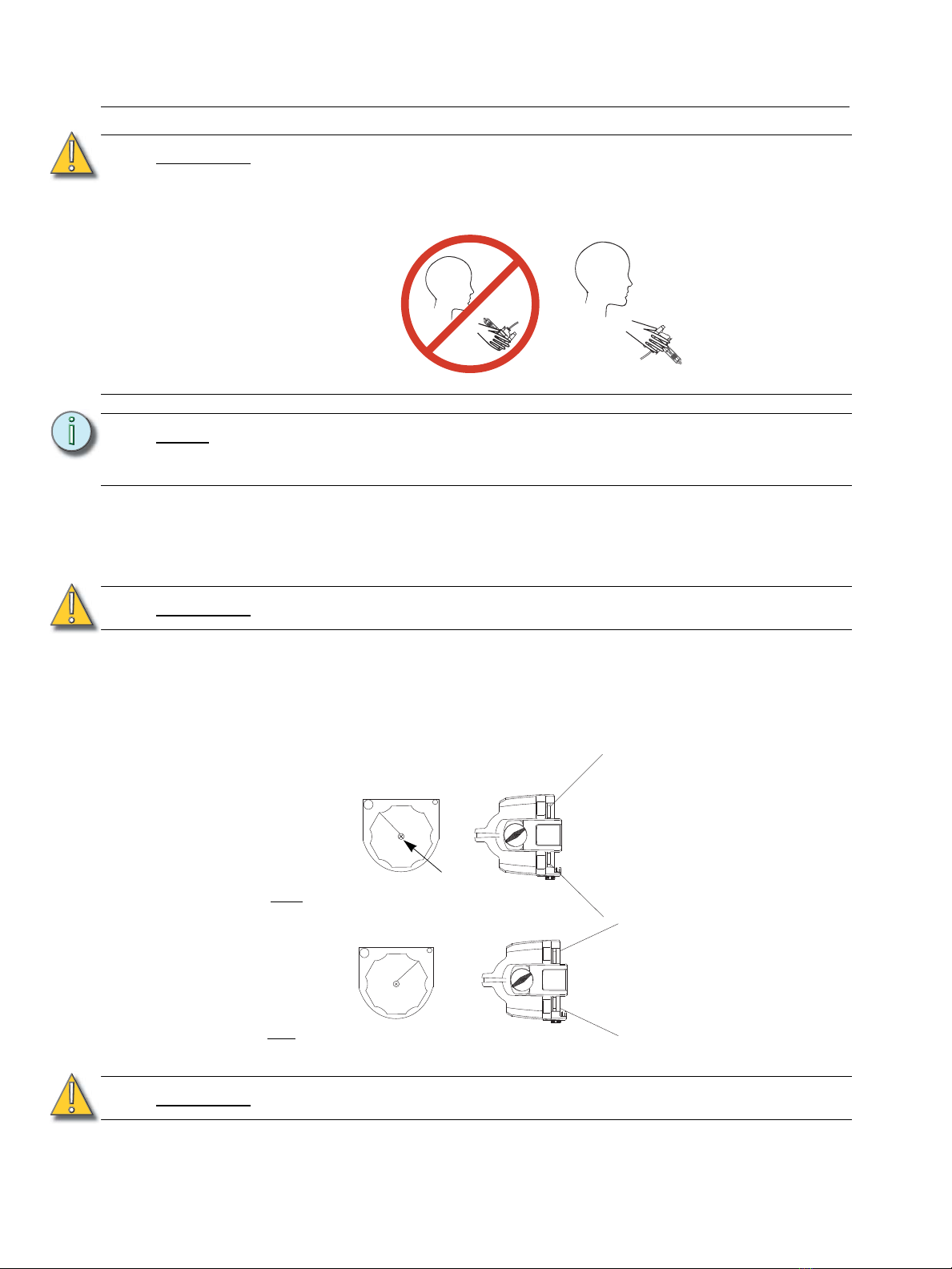

To adjust focus knob tension, loosen or tighten the focus knob screw. See Figure 4.

CAUTION:

Use caution when installing or replacing any lamp.

When installing/replacing lamp, be sure to point the lamp away from your face and

away from others before inserting it firmly into the assembly.

This may prevent injuries if the lamp should break.

Note:

To avoid premature lamp failure, do not touch the lamp glass. If you do, clean it

carefully with isopropyl alcohol and a clean lint-free cloth. Allow to dry before

operation.

CAUTION:

Improperly installed lamps cause premature lamp failure and socket problems.

CAUTION:

Lens rotation knob does not rotate 360°. Do not attempt to exceed limit.

INCORRECT CORRECT

Focus knob in

flood position

Figure 4

Focus knob in

spot position

45° field angle

25° field angle

Focus knob

screw

English

Lens identification

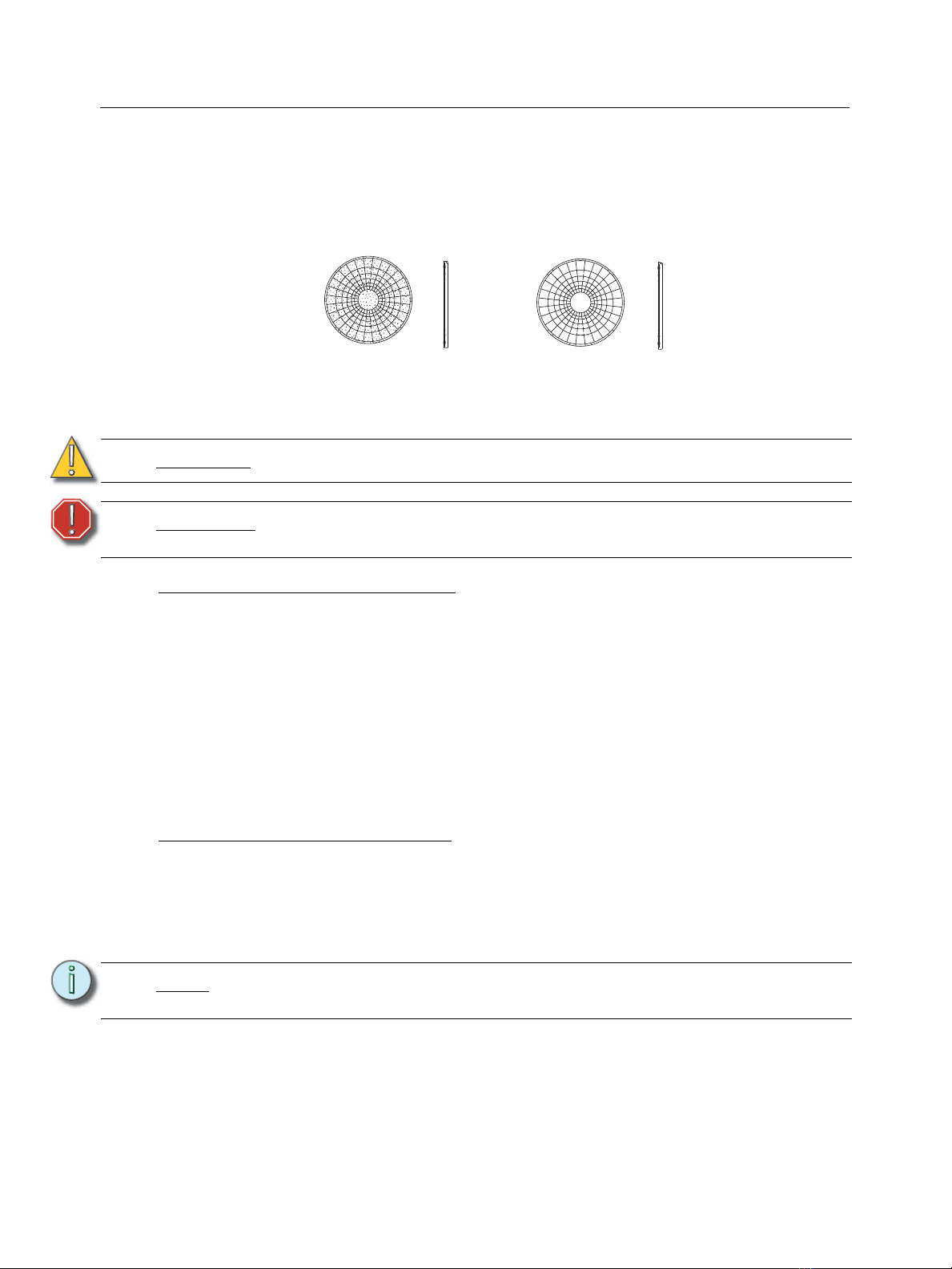

Lenses for the Source Four PARNel come in two versions. The wave/clear lens is in a fixed position

in the rear of the luminaire. The wave/stippled lens is in the rotating ring at the front of the luminaire.

The wave surfaces face each other.

Changing front lens

Replace lens if it becomes cracked or badly scratched.

Removing a wave/stippled front lens

Step 1: Place the luminaire on a flat, stable work surface. Do Not remove or install lenses with

luminaire hanging.

Step 2: Rotate the focus knob to the full spot position.

Step 3: Tilt the front of the luminaire down at least 45°. See Figure 6.

Step 4: Press the spring clip with your finger to release the lens.

Step 5: Allow the lens to drop forward from under the clip.

Step 6: When the lens drops, remove your finger, allowing the lens to slide forward until it rests

on the lens catchers. See Figure 7.

Step 7: Carefully remove the lens.

Installing a wave/stippled front lens

Step 1: Position the luminaire with the front of the unit (lens side) facing you, and tilted slightly

upward. See Figure 8.

Step 2: Rotate the focus knob to the full spot position.

Step 3: Hold the lens by the edge and position it so the convex side faces the rear of the

luminaire.

Step 4: From the top of the luminaire, slide the lens behind the lens catchers and position it

behind the tabs on the bottom of the lens rotator ring.

CAUTION:

Never operate the luminaire without a lens in place.

WARNING:

Unplug the luminaire and allow it to cool down before attempting to change

a lens.

Note:

Installing the front lens with the contoured side out will not impair the optics, but it

will make removing the lens difficult.

Figure 5

Wave/Stippled Lens (WS) Wave/Clear Lens (WC)

8Source FourPARNel CE User Manual

English

Step 5: Gently push the top of the lens inward until it snaps behind the spring clip.

Positioning the wave/stippled front lens.

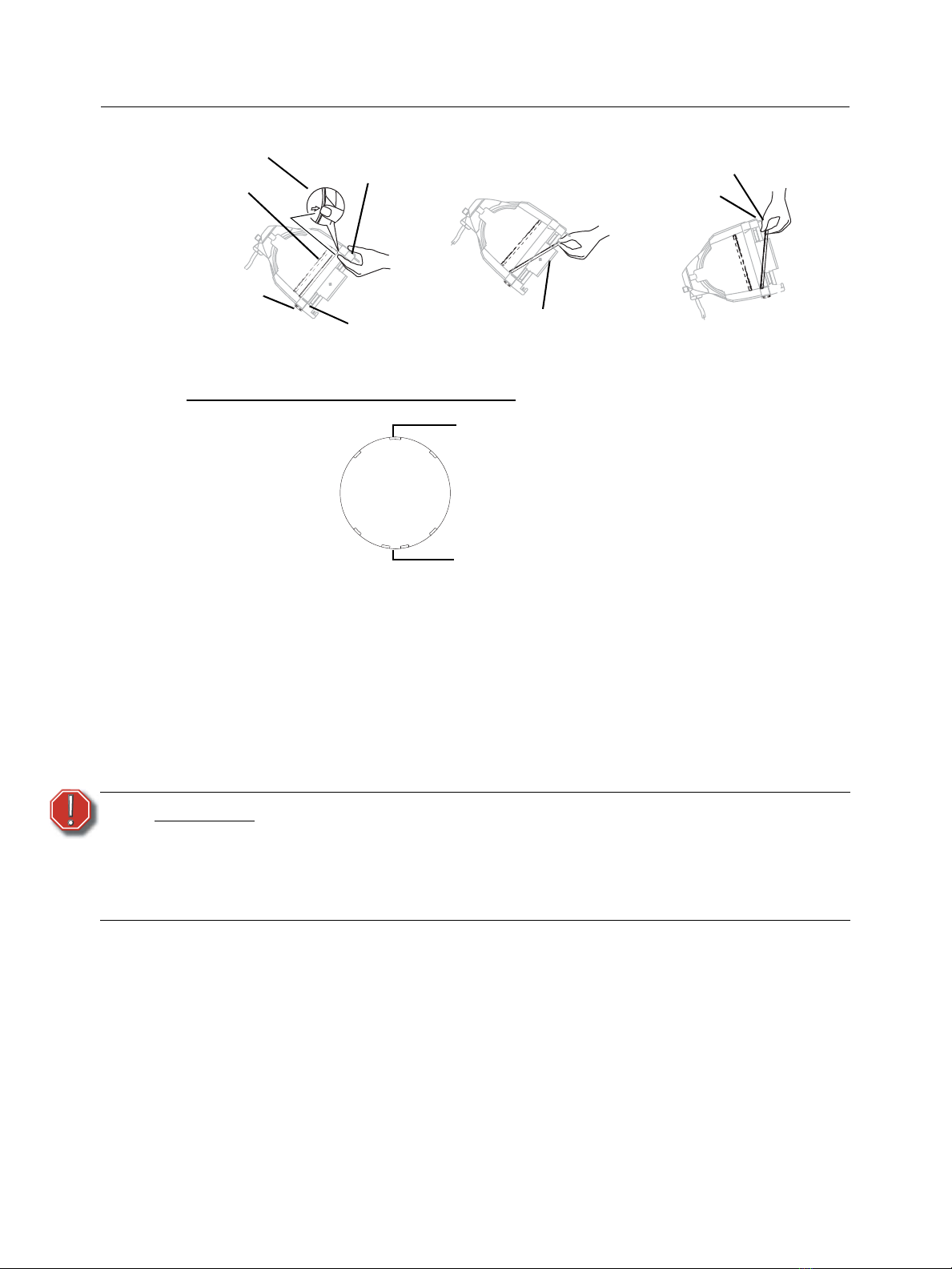

Step 1: There are seven notches cut into the stippled side of the lens. Position the lens

so the cluster of three notches is on top. The center notch of the cluster aligns

with the spring clip on the lens retainer ring. See Figure 9.

Step 2: The bottom of the lens has a cluster of four notches. Place the two center notches

behind the tabs at the bottom of the lens rotator ring.

Cleaning glass lens

Replace lenses if they contain visible damage (cracks or deep scratches) that may impair their

effectiveness.

Remove dust with a blast of oil-free air or wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled

water or a 50%-50% mixture of each can be used to clean the glass surface.

Cleaning the reflector

The reflector is located behind the rear, fixed position wave/clear lens and requires disassembly of

the luminaire to access it. See the Source Four ParNel Assembly Guide for instructions on luminaire

disassembly/assembly.

WARNING:

Do not use ammonia-based or other harsh commercial cleaners. Clean lens

only as directed.

Commercially available glass cleaning agents should be avoided as they

may contain ammonia, other harsh chemical detergents or abrasive agents.

These cleaners may damage the glass surface and the Anti-Reflective

coatings. Do not immerse or soak the glass in any cleaning solution.

Spring clip

Lens

Focus knob

Retaining clip

Tab Lens catcher

Retaining clip

Spring clip

Figure 6 Figure 7 Figure 8

Top center notch

Bottom two center notches

Figure 9

This manual suits for next models

Table of contents

Other ETC Lighting Equipment manuals

ETC

ETC Source Four Revolution Scroller Cartridge User manual

ETC

ETC Prodigy FlyPipe Studio User manual

ETC

ETC Express 24/48 User manual

ETC

ETC HIGH END SYSTEMS LONESTAR User manual

ETC

ETC Sensor3 User manual

ETC

ETC fos/4 Series User manual

ETC

ETC Source Four HID PARNel User manual

ETC

ETC High End Systems SolaPix 7 User manual

ETC

ETC Irideon AR50 User manual

ETC

ETC fos/4 Panel Pole-Operated Yoke User manual

ETC

ETC High End Systems SolaPix 7 User manual

ETC

ETC Desire D40XTI User manual

ETC

ETC Irideon WLZ User manual

ETC

ETC ColorSource Spot User manual

ETC

ETC Source Four CE 405 User manual

ETC

ETC Selador Series User manual

ETC

ETC Lighting Control Console User manual

ETC

ETC ColorSource CYC User manual

ETC

ETC source four fresnel User manual

ETC

ETC ArcLamp System User manual

ETC

ETC fos/4 Fresnel User manual

ETC

ETC Source Four Mini LED User manual

ETC

ETC Echo User manual

ETC

ETC Source 4WRD User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
