Overview

The ColorSource PAR is an affordable LED fixture that uses the RGB-L (red,

green, blue, and lime) color system to provide a rich, bright light.

The ColorSource PAR is available in both original and Deep Blue variants. The

Deep Blue uses an array that offers richer, more saturated blues and stronger

magentas in exchange for the more jewel-toned blues like sky or turquoise.

For more information, see the ETC website at etcconnect.com.

The ColorSource PAR is UL924 listed as a Directly Controlled Luminaire for

use in emergency lighting systems when used with the ETC DMX Emergency

Bypass Controller (DEBC).

Note:

Features described in this document require the latest version

of software. For information on updating fixture software, see Update

the Fixture Software on page11.

ETC Installation Guide

ColorSource PAR v1.7

Safety

For professional use only. Read the entire manual before using this

equipment.

WARNING:

•

Risk of eye injury. Do not stare directly into the light.

•

Do not mount the fixture on or near a flammable surface.

•

Disconnect the fixture from power and DMX and allow it

to cool before installing accessories or performing any

cleaning and maintenance.

AVERTISSEMENT :

•

Risque de lésion oculaire. Ne fixez pas directement la

lumière.

•

Ne pas installer le projecteur sur ou à côté d’une surface

inflammable.

•

Débranchez le projecteur de son alimentation et du DMX

et laissez-le refroidir avant d’installer des accessoires ou

d’effectuer un nettoyage ou un entretien.

WARNING: The ColorSourcePAR is a Directly Controlled

Luminaire suitable for use in emergency lighting applications in

accordance with 2017 National Electrical Code section 700.24

when used with an ETC DMX Emergency Bypass Controller.

Equipment intended for this purpose must be properly selected,

installed, and maintained so that facility conformance can be

obtained. Installation and servicing shall be performed by

qualified service personnel.

WARNING: RISK OF ELECTRIC SHOCK! The light source in this

luminaire is not user-replaceable, and must be replaced only by a

qualified technician. Contact ETC Customer Support for

assistance.

AVERTISSEMENT : RISQUE DE DÉCHARGE ÉLÉCTRIQUE! La

source lumineuse de ce projecteur n'est pas remplaçable par

l'utilisateur et ne doit être remplacée seulement par un

technicien qualifié. Contactez le service client ETC pour obtenir de

l’assistance.

ColorSource PAR Page 2 of 12 ETC

ETC Installation Guide

ColorSource PAR v1.7

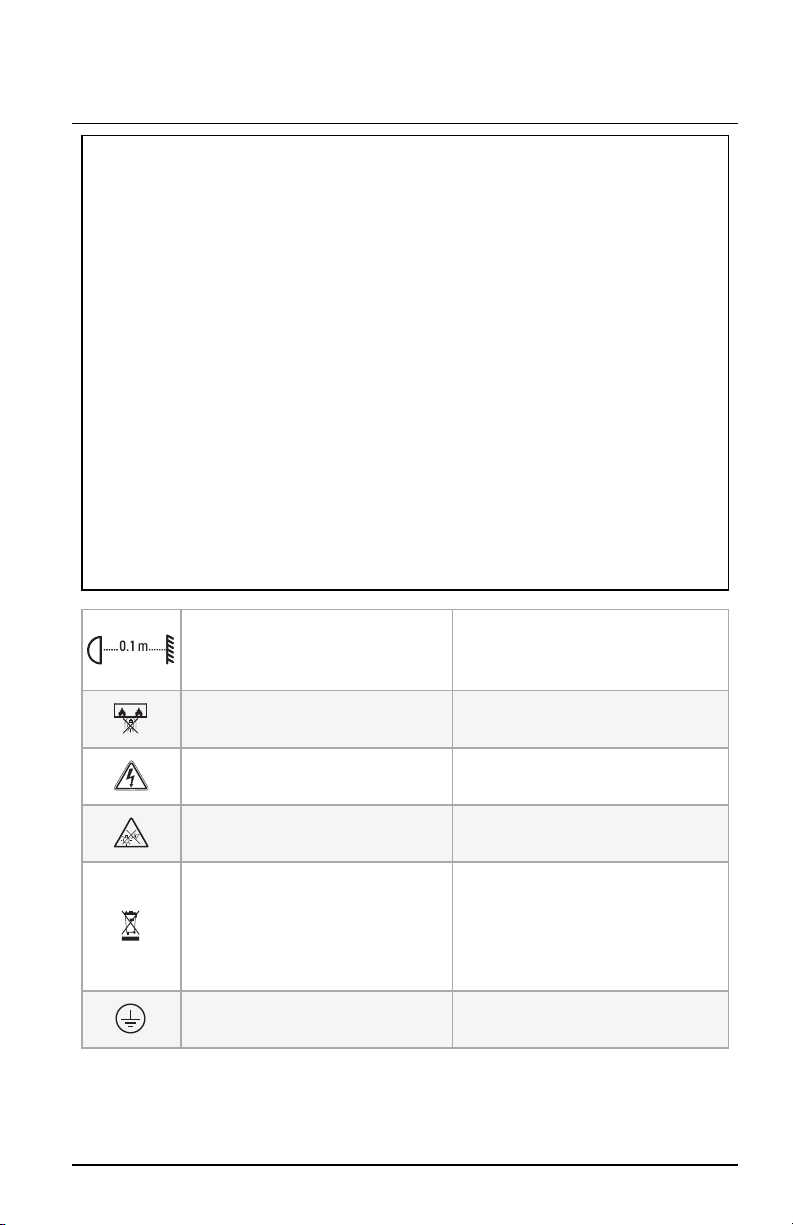

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions should always be

followed including the following:

READ AND FOLLOW ALL SAFETY

INSTRUCTIONS

•

Do not use outdoors.

•

Do not let power supply cords touch hot

surfaces.

•

Do not mount near gas or electric heaters.

•

Equipment should be mounted in

locations and at heights where it will not

readily be subjected to tampering by

unauthorized personnel.

•

The use of accessory

equipment not

recommended by the

manufacturer may cause

an unsafe condition.

•

Do not use this

equipment for other than

intended use.

SAVE THESE INSTRUCTIONS

The luminaire must be installed at

least 0.1m (4.0in) away from all

lighted objects.

Le luminaire doit être installé à au

moins 0,1m (4,0po) de tout objet

éclairé.

Do not mount the fixture on or

near a flammable surface.

Ne pas installer le projecteur sur ou à

côté d’une surface inflammable.

Risk of electric shock Risque de décharge éléctrique

Do not stare at the operating light

source.

Ne pas regarder la source de lumière

lorsqu’elle fonctionne.

This product should not be

discarded as unsorted waste but

must be sent to separate collection

facilities for recovery and recycling.

Ce produit ne doit pas être jeté avec

les déchets ménagers mais doit être

déposé dans une collecte de déchets

électroniques ou dans un point de

collecte.

Protective earth (ground) Protection Classe I Mise à la terre

ColorSource PAR Page 3 of 12 ETC

ETC Installation Guide

ColorSource PAR v1.7

Environment

The ColorSource PAR operates in ambient temperatures of 0°C–40°C and

comes with a variable-speed fan. The ColorSource PAR is for indoor use only.

•

Maximum recommended ambient operating temperature: Ta=40°C

(104°F)

•

Maximum anticipated external surface temperature at 40°C ambient:

Tmax = 80°C (176°F)

•

External temperatures after 5 minutes of full-brightness operation at

25°C (77°F) ambient: 30°C (86°F)

•

External Temperature (steady state achieved) at 25°C (77°F): 41°C

(106°F)

Electrical

•

Operates between 100V and 240VAC at a frequency of 50/60Hz.

•

Maximum power consumption is 120 W.

•

Up to 9 luminaires(15 A max) may be linked via power thru connector

(10 luminaires total per circuit) when used with an R20Relay Module

or Unison Echo Relay Panel. Consult breaker trip curves when used

with other equipment. Requires power from a non-dimmable source.

•

Inrush:

120 V: 35 A (first half-cycle)

240 V: 49 A (first half-cycle)

Typical Power Consumption

100 V 120 V 230 V

Power Current Power Current Power Current

Idle 1.22 W 0.03 A 1.21 W 0.03 A 1.14 W 0.03 A

Direct at Full 107 W 1.07 A 106 W 0.88 A 104 W 0.46 A

ColorSource PAR Page 4 of 12 ETC

ETC Installation Guide

ColorSource PAR v1.7

Installation

Emergency Lighting Considerations

Luminaires that are used in emergency lighting applications must provide a

minimum illumination level over the identified means of egress path in

accordance with the Life Safety Code®, NFPA 101. A luminaire that is intended

to serve this purpose must be mounted at a height where it will not readily be

subjected to tampering by unauthorized personnel and where the minimum

required illumination level over the egress path can be achieved. The ETC

DMX Emergency Bypass Controller that is driving the luminaire upon loss of

utility power must be programmed to drive the ColorSource PAR to full

illumination.

Mounting

The ColorSource PAR ships with a standard yoke for mounting with a clamp.

An expandable floor stand yoke is available as an optional accessory. Contact

your local dealer for more information.

Safety cable

attachment

loop

Safety Cable

A safety cable (or other approved safety device)

must be attached to the fixture. Attachment

loops are on the rear of the fixture. Take care to

leave as little slack as possible in the safety cable

to avoid catching the yoke of the fixture.

Connectors

•

Power: Two powerCON®connectors for power in and thru

•

Data (DMX512/RDM): Two five-pin XLR connectors OR two

RJ45connectors for data in and thru

Conversion cables are available from ETC. Please contact your ETC customer

service representative and request part number W6538 for RJ45 to female

XLR or part number W6539 for RJ45 to male XLR.

Note:

This fixture is not Ethernet/data network compatible.

Note:

The ColorSource PAR is not self terminating. You must

terminate the last fixture in line with a 120 Ohm resistor. To purchase

a terminator, please contact ETC customer service and request part

number N4086 (RJ45 terminator) or SGE1507 (XLR terminator).

ColorSource PAR Page 5 of 12 ETC

ETC Installation Guide

ColorSource PAR v1.7

Set Up the Fixture

1. Plug the power cord into the powerCON In connector on the rear of

the fixture.

2. Make any power-thru cable connections prior to applying a power

source.

3. Make any DMX connections, and if the fixture is the last in a DMX line,

terminate the fixture. See

Connectors on the previous page

4. Plug the power cord into the power source.

Power thruPower in

Data in Data thru

Mode Up and Down

User interface

Power Up

Press any button to wake the display. The display shows the DMX address.

See

Set the DMXAddress on the facing page

You can press the Mode button to access the Presets/Sequences menu. See

Play Presets and Sequences on page8

Adjust the Tilt

The fixture can be tilted up and down and rotated (panned) as needed.

1. Loosen, but do not remove the yoke locking knob.

2. Tilt the fixture to the desired angle.

3. Tighten the yoke locking knob.

ColorSource PAR Page 6 of 12 ETC

ETC Installation Guide

ColorSource PAR v1.7

Set the DMXAddress

1. Press any button to wake the display. The display shows the DMX

address.

2. Use the Up and Down buttons to select the DMX address for the

fixture.

You can also use RDM for DMX addressing. See

RDM Values on page12

Change the DMXControl Mode

You can set the DMX control mode for the fixture to one of four available

mode options.

1. Press any button to wake the display. The display shows the DMX

address.

2. Press and hold the Mode button for 3 seconds. The display shows the

current DMX control mode.

3. Press the Up button or Down button to change the DMX control

mode:

•

5ch: 5-channel mode (intensity, red, green, blue, and strobe). This

is the default mode.

•

dir: Direct emitter control (intensity, red, green, blue, indigo,

lime, and strobe).

•

1ch: 1-channel mode controls the intensity of preset 1 (defaults

to 3200K White).

•

rgb: RGB mode (red, green, and blue).

4. Press the Mode button to confirm your selection.

The display will automatically return to the DMX address after 10 seconds of

inactivity, and edits to the DMX control mode will not be saved. This cancels

unsaved changes.

ColorSource PAR Page 7 of 12 ETC

ETC Installation Guide

ColorSource PAR v1.7

DMXControl Channels

DMX

Channel

5ch

(5 channel)

dir

(Direct)

1ch

(1 Channel)

rgb

(RGB)

1 Intensity Intensity Intensity Red

2 Red Red Green

3 Green Green Blue

4 Blue Blue/Indigo*

5 Strobe** Lime

6 Strobe**

*Original ColorSource PAR fixture uses blue in channel 4; Deep Blue fixture uses indigo in

channel 4.

**Use DMX values of 0 or 255 for no strobe. Use values of 1–254 to increase the strobe rate

from 1 per second up to 33 per second.

Data Loss Behavior

When DMX data is lost, the fixture does one of the following actions:

•

If you selected a preset or sequence, that preset or sequence

automatically plays.

•

If no preset or sequence is active in the background, the fixture goes

dark and the DMXstart address flashes on the user interface.

Play Presets and Sequences

The fixture has twelve factory-configured presets and five factory-configured

sequences. When you play a preset or sequence on a fixture:

•

The same preset number or sequence number plays on any connected

fixtures that are not receiving DMX.

•

If you power down the fixture, the preset or sequence resumes when

you power it on again.

You can re-record presets and sequences through an RDM device or manually

on the fixture. See

Re-record Presets on the facing page

1. Press the Mode button to activate the Presets/Sequences menu. The

last active preset or sequence plays automatically. (If DMX data is

present, the current preset or sequence plays in the background and

DMX data continues to take priority.)

2. Press the Up button or Down button as needed to scroll through the

available presets and sequences.

3. To stop the selected preset or sequence, press the Mode button a

second time. The display will revert to show the DMX start address.

ColorSource PAR Page 8 of 12 ETC

ETC Installation Guide

ColorSource PAR v1.7

Pre-configuredPresets

Preset Name

1 3200 K White

2 5600 K White

3 Red

4 Green

5 Blue

6 Cyan

Preset Name

7 Magenta

8 Yellow

9 Orange

10 Light Yellow

11 Light Blue

12 Light Pink

Pre-configuredSequences

Sequence Name

1 Rainbow Fast

2 Rainbow Slow

3 Warm Colors Fast

4 Cool Colors Fast

5 Random

Re-record Presets

1. Using DMX, set the desired levels for the new preset.

2. Press the Mode button to access the Presets/Sequences menu.

3. Press the Up button or Down button to navigate to the preset number

that you want to re-record.

4. Press and hold the Mode button for 3 seconds to confirm the preset

selection. The user interface will show a 3-second countdown. The

preset number blinks once to confirm that the preset has been

recorded.

Note:

When the fixture is in Direct mode (dir) or 1-channel mode

(1ch), you cannot re-record presets.

When you re-record presets with the fixture in RGB mode (rgb), the

intensity is set to full and the strobe is turned off.

See Change the DMXControl Mode on page7.

ColorSource PAR Page 9 of 12 ETC

ETC Installation Guide

ColorSource PAR v1.7

Adjust the Intensity of Presets

1. Ensure that DMX data is not present.

2. Press the Mode button to access thePresets/Sequences menu, and

then press the Up button or Down button to select the preset that you

want to edit.

3. Press and hold the Mode button for 3 seconds. The display shows L:

followed by either an intensity level from 0–99 or FL for full.

4. Press the Up button or Down button to change the intensity level of

the preset in real time.

5. Press the Mode button to confirm your selection and return to

thePresets/Sequences menu.

The display will automatically return to thePresets/Sequences menu after

10seconds of inactivity, and edits to the preset intensity will not be saved.

Lock the User Interface

After you have set up the fixture, you can lock the user interface to prevent

additional changes.

1. Press and hold the Up button and Down button simultaneously for

3seconds. The display will show Loc to indicate that the user interface

is locked.

2. To unlock the user interface, press and hold the Up button and Down

button simultaneously for 3 seconds.

ColorSource PAR Page 10 of 12 ETC

Other manuals for ColorSource PAR

This manual suits for next models

Table of contents

Other ETC Lighting Equipment manuals

ETC

ETC Source Four LED Series User manual

ETC

ETC Source Four Mini LED User manual

ETC

ETC Selador Series User manual

ETC

ETC Prodigy FlyPipe Studio User manual

ETC

ETC fos/4 Series User manual

ETC

ETC Expression 2.0 User manual

ETC

ETC ColorSource Raceway User manual

ETC

ETC ColorSource CYC User manual

ETC

ETC Echo User manual

ETC

ETC GDS BluesSystem User manual

ETC

ETC ColorSource Spot jr v2.0 User manual

ETC

ETC Source Four LED Series User manual

ETC

ETC HIGH END SYSTEMS LONESTAR User manual

ETC

ETC Desire Fresnel User manual

ETC

ETC Source Four LED Series Installation guide

ETC

ETC fos/4 Panel Yoke User manual

ETC

ETC Express 24/48 User manual

ETC

ETC CE Source Four User manual

ETC

ETC fos/4 Series User manual

ETC

ETC Source 4WRD User manual

ETC

ETC Selador CE Series User manual

ETC

ETC Source Four jr User manual

ETC

ETC HIGH END SYSTEMS SolaPix 37 User manual

ETC

ETC High End Systems SolaFrame 3000 User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
